How To: Secondary Stand Alone Fuse Block Install

Discussion in '2nd Gen. Tacomas (2005-2015)' started by H2Otx, Oct 27, 2010.

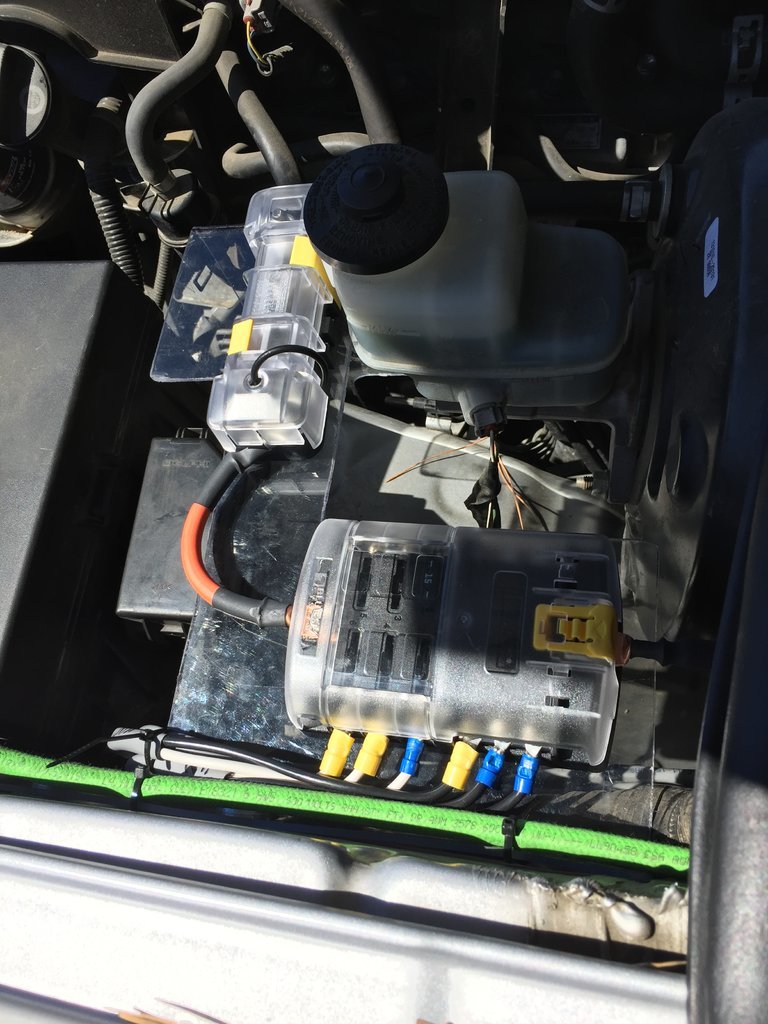

  1. Dec 24, 2016 at 8:39 AM
    #241
    Marbleyard

    Marbleyard Thread killer

    Joined:
    Jul 15, 2016
    Member:
    #192084
    Messages:
    806
    Gender:
    Male
    First Name:
    John
    Virginia
    Vehicle:
    2019 4Runner Pro
    SOLD 2016 taco: premium technology and tow package. OV Tune 1.05; A.R.E. V Camper Shell; BRO grille & Tails; OEM bed mat; Xenon Depot HID headlight conversion; reflective gray tailgate letter inserts; GoPro session; Hondo radio knobs; K&N cold air intake, quicksand painted dash bezels, Subaru dash speakers, Kicker CS 6x9 fronts and 6.5 rear speakers; All LED interior lights and LED high-beam headlights. Redline elite hood shock props. prinsu cab and camper rack with rough country 30" light bar; (2) 8" rear facing “F.U.”rough country black LED lights; prinsu cargo basket kit, (2) prinsu load racks; roadshower 4; ARB 2500 awning and room kit; weather tech floor mats; carhart seat covers; ckma12 ARB air compressor under the hood; blue ridge overland gear air tools bag, tool bag, driver's seat molle. Rack mounted TRED 800 recovery treds and plano case. Rotopax water and fuelpax fuel canisters; Pelican cased first aid kit in bed. rockblokz mud flaps. ARB rear dif. breather. Stand alone fuse block. SSO bumper with 10k smittybilt synthetic line winch and factor55 ultrahook. Pro Eagle 2-Ton “The Beast” jack. OME lift kit: 90000 front shocks and 886 OME coils, Camburg 310078 UCA, 60091 rear shocks with light duty Dakar leafs. Good Year duratracs 285/75R16. Black vinyl inlays on factory OR wheels; RCI Steel Front/Trans/Trans Case/Rear Diff Skids, Alum A-Arm; Mobtown bolt-on sliders with scorpion bed coating; pelfreybilt aluminum fuel tank skid; Cali-Raised full length Molle storage LH & RH bed sides; Caliraised bedside reinforcements; HELLA sharptone horns; Optima blue-top battery with AJT machined red tiedown bracket. AJT quicksand key fob. Overland Bound member #6996
    phx13 and Toynado like this.
  2. Jan 2, 2017 at 8:52 PM
    #242
    filbert

    filbert Well-Known Member

    Joined:
    Mar 11, 2016
    Member:
    #180917
    Messages:
    64
    Gender:
    Male
    Chicago
    Vehicle:
    2016 Tacoma TRD OR DCSB V6 MT

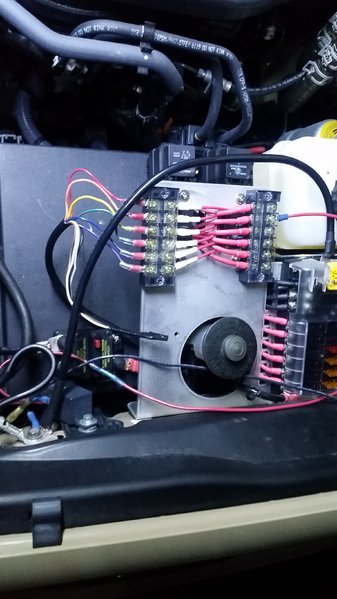

    Here is mine for my 2016 OR M/T. I haven't seen a lot of M/T setups so I didn't realize how much space that clutch fluid reservoir takes up! This is my first major electrical project so any feedback is welcome. I realize I need to do some general wire clean-up, but I was installing this thing outside for three hours and after the sun went down the temp plummeted below freezing so I just wanted to get it in an operable condition.

    I used the Pelfreybilt panel as my base. I assembled as much as I could before installing the panel and it was a bit of a squeeze to get it in, but everything is installed and working so far. I had to remove the plastic cover along the side of the inner fender to get the cover for the fuse block on and off. You can see the fuse block in the upper right, and the circuit breaker on the lower right, mounted on top of the stock fuse box. Mounted underneath the panel are 6 waterproof relays which get power from the bottom bank on the fuse block (the top bank are non-relayed for small accessories).

    There are two terminal strips on the left. The top strip is all the power leads from the relays, while the bottom strip is all the switch sources, which i have wired to some 18-10 sprinkler wire (18 AWG, 10 cores) that goes through a grommet into the cabin. Right now, I'm only using 6 of the wires, so I may have gone overboard getting the 18-10 instead of something a smaller, but I figured any other small power or signal wires could go through there as well. You can see the four extra wires taped up in the pictures. I haven't wired up the switches yet since I'm still trying to decide where to put all the switches and I just ordered a new drill bit since none of mine were big enough for the switches I got.

    For the main power cables, I used 4AWG that I got from Home Depot, which has really thick cores that are hard to bend and work with, so I may re-do those. I'm not a fan of how the negative cable is run across everything either, but it was so stiff I just left it for now. I also have an extra relay that you can see on the bottom right that I didn't get a chance to switch over to one of the new relays.

    I thought I had another picture but it turned out too blurry, but I'll get more when I have a chance.


  3. Jan 3, 2017 at 9:32 AM
    #243
    Bruce988jl

    Bruce988jl Well-Known Member

    Joined:
    Oct 29, 2015
    Member:
    #168035
    Messages:
    4,668
    Gender:
    Male
    First Name:
    Jason
    Boston MA
    Vehicle:
    05 Mitsubishi Evo 08 Tacoma Dbl Cab TRD Off-Road

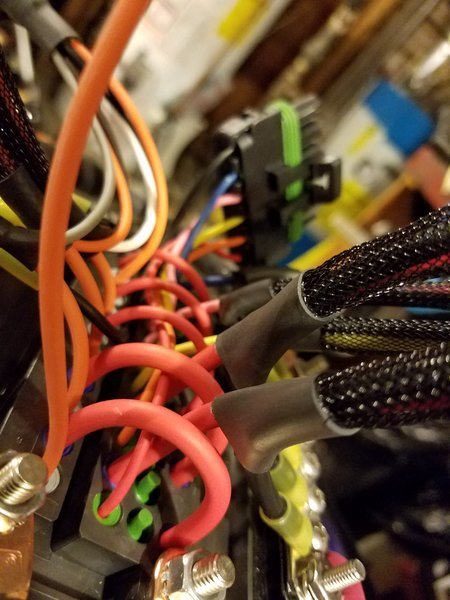

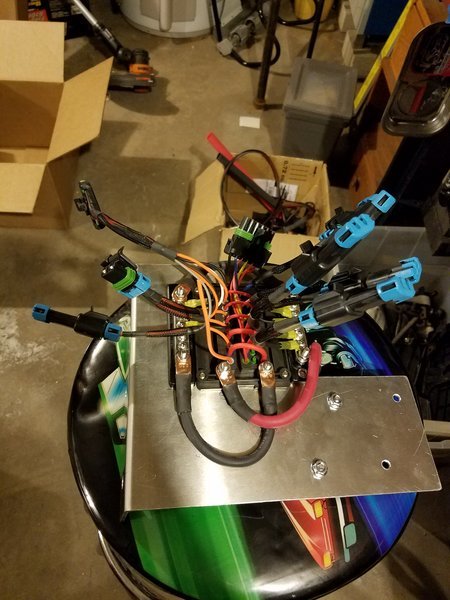

    Went with a bussmann relayed setup instead of a bluesea. I bought the bussmann prepopulated from a member on here and made my own harnesses so that it old all be removed and lamps/accessories could be swapped out with ease. Also upgraded to a group 31 battery as well while I was at it.


    Toynado and DrFunker like this.
  4. Feb 27, 2017 at 7:04 PM
    #244
    Cows Have Claws

    Cows Have Claws Well-Known Member

    Joined:
    Dec 14, 2015
    Member:
    #172257
    Messages:
    246
    Gender:
    Male
    First Name:
    Matt
    Oregon
    Vehicle:
    2020 Army Green TRD-Pro

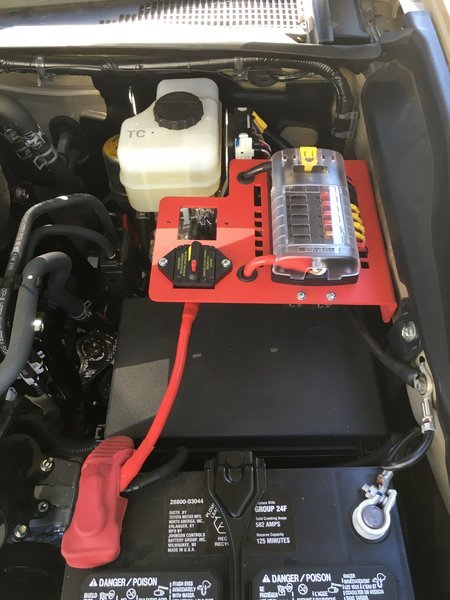

    @Toynado did you just attach the negative cable to the ground screw on the side wall?

  5. Feb 27, 2017 at 9:28 PM
    #245
    Toynado

    Toynado Well-Known Member

    Joined:
    Oct 16, 2015
    Member:
    #166816
    Messages:
    1,384
    Gender:
    Male
    SF Bay Area
    Vehicle:
    2016 TRD OR DCSB Quicksand
    EXTERIOR: Toytec Boss 2.0 Dakar CS047R Leaf Springs Tailpipe chopped Pelfreybilt Front full hoop front bumper w/ Pelfrey fairlead Pelfreybilt Rear standard bumper Pelfreybilt Aluminum IFS, Mid, Rear (exhaust reroute) & Gas tank skids Pelfreybilt Fuseplate w/ 12 circuit fuse block All-Pro Apex Sliders ProComp 7036 17"x9" -6 offset BFG 275/70R/17 KO2's Warn VR10000-S winch Baja Designs S8 light bar & Squadron sports amber pods in front bumper Baja Designs S2 flush pods in rear bumper Baja Designs Squadron Pro amber pods on Caliraised ditch light brackets @rrentrop reflective black tailgate inserts RSI LED's for regular & high beams Prinsu Cabrac Custom Tradesman Truck Top by Access Manufacturing w/ Powertank 8"propane tank mount & Yakima tracks on the roof INTERIOR: Warrior Products door sill protectors Husky Weather Beater floor mats front & rear Coverking arid multicam seat covers in the front Midland 75-822 CB w/ 4' Firestick antenna on C4 Fabrication tailgate mount Consolevault Hondo Garage iPhone mount
    Yup that exactly what I did

  6. Feb 28, 2017 at 6:07 AM
    #246
    ETXTacoma

    ETXTacoma TTC #050 in the 903

    Joined:
    Feb 12, 2016
    Member:
    #177942
    Messages:
    16,148
    Gender:
    Male
    First Name:
    Steven
    Tyler, Texas
    Vehicle:
    2014 DCSB Tacoma TRD OR
    Dynatrac ProRock 60 Rear Axle, that is important enough.
    @jorasanu10

    Here is the thread that I used to kinda wire up the stuff.

  7. Feb 28, 2017 at 7:19 AM
    #247
    buyobuyo

    buyobuyo Read The Fucking Manual

    Joined:
    Jan 24, 2008
    Member:
    #4417
    Messages:
    6,134
    Gender:
    Male
    First Name:
    Jeremy
    Camden, AR
    Vehicle:
    08 PreRunner SR5, I4, Manual, Silver
    A thing or two...
    Has anyone setup a secondary ignition controlled fuse box in the cab for accessories?

  8. May 4, 2017 at 7:10 AM
    #248
    ldanny

    ldanny Well-Known Member

    Joined:
    Aug 14, 2008
    Member:
    #8541
    Messages:
    127
    I am still new to this. I tried to search but did not come up with a solid answer. What's the difference between going with the Bussmann vs the Bluesea set up? Is it just that the Bussman set up has the relays?

    Thanks!

  9. May 4, 2017 at 9:33 AM
    #249
    i8boots

    i8boots Well-Known Member

    Joined:
    Mar 10, 2014
    Member:
    #125032
    Messages:
    200
    Gender:
    Male
    UT - 801
    Vehicle:
    2017 MGM DC SB TRDOR JBL
    Hood/bed lights, pop-n-lock, Bak X2 Tonneau, custom breaker box, Husky mudflaps, white interior LEDs, Morimoto xB v2 Headlights, Bilstein 6112/5160, Sumo Springs.
    Pretty much. I chose Bluesea because I wanted only what I needed and wanted to know exactly why i was doing each part of the box and wiring. I also was having problems understanding relays at first so having to buy them and research them individually helped me understand.

    dziner, ldanny and Toynado like this.
  10. May 5, 2017 at 8:13 AM
    #250
    ldanny

    ldanny Well-Known Member

    Joined:
    Aug 14, 2008
    Member:
    #8541
    Messages:
    127
    Thanks! I am in the same boat.

    dziner likes this.
  11. May 12, 2017 at 12:33 PM
    #251
    AcerD

    AcerD Well-Known Member

    Joined:
    Feb 25, 2017
    Member:
    #211679
    Messages:
    155
    Gender:
    Male
    First Name:
    Austin
    Bend OR
    Vehicle:
    2013 Tacoma Shortbed
    Thanks for doing this write up. Super helpful!

  12. Aug 13, 2017 at 6:21 PM
    #252
    edr1118

    edr1118 New Member

    Joined:
    Aug 13, 2017
    Member:
    #226746
    Messages:
    1
    Gender:
    Male
    First Name:
    Edward
    Vehicle:
    2012 Tacoma TRD Sport
    Anyone with this mod end up with some parasitic draw? I only have a USB terminated onto this circuit and a couple weeks later my battery started having issues cranking...


  13. Aug 14, 2017 at 7:44 AM
    #253
    Lazz993

    Lazz993 Well-Known Member

    Joined:
    Jan 10, 2016
    Member:
    #174605
    Messages:
    57
    Gender:
    Male
    Awesome write up

  14. Aug 14, 2017 at 8:49 AM
    #254
    Gunshot-6A

    Gunshot-6A Not A Fed

    Joined:
    Dec 29, 2009
    Member:
    #28389
    Messages:
    20,160
    Gender:
    Male
    First Name:
    Conner
    Salt Lake City
    Vehicle:
    2015 TRD Offroad
    Had mine for several months and no issues. I do pop the breaker switch manually before I let it sit at the airport, etc but mainly just because I tend to have bad luck and don't want to add help...

  15. May 27, 2018 at 7:48 PM
    #255
    Tennessee YODA

    Tennessee YODA Damn pigeons

    Joined:
    May 6, 2018
    Member:
    #252647
    Messages:
    187
    Gender:
    Male
    First Name:
    Jason
    Knoxville tn
    Vehicle:
    2008 red tacoma pre runner
    Bull bar nilight light and light bar grill vision rims replacement grill aftermarket headlights
    Just got my fuse block waiting on circuit breaker . My question is does this set up eliminate the real and fus that’s on my light wiring harness or can I just plug and play with all that already installed and just move from battery to fuse block ?

  16. May 27, 2018 at 7:49 PM
    #256
    Tennessee YODA

    Tennessee YODA Damn pigeons

    Joined:
    May 6, 2018
    Member:
    #252647
    Messages:
    187
    Gender:
    Male
    First Name:
    Jason
    Knoxville tn
    Vehicle:
    2008 red tacoma pre runner
    Bull bar nilight light and light bar grill vision rims replacement grill aftermarket headlights
    Relay * and fuse srry **

  17. May 29, 2018 at 11:39 AM
    #257
    Littles

    Littles Stupid is as stupid does.

    Joined:
    May 14, 2014
    Member:
    #129837
    Messages:
    2,491
    Gender:
    Male
    First Name:
    Bryan
    Castle Rock, CO
    Vehicle:
    3 tons of fun
    It will eliminate the fuse, but not the relay unless you are replacing with your own relays.

    Tennessee YODA likes this.
  18. May 29, 2018 at 1:07 PM
    #258
    Tennessee YODA

    Tennessee YODA Damn pigeons

    Joined:
    May 6, 2018
    Member:
    #252647
    Messages:
    187
    Gender:
    Male
    First Name:
    Jason
    Knoxville tn
    Vehicle:
    2008 red tacoma pre runner
    Bull bar nilight light and light bar grill vision rims replacement grill aftermarket headlights
    So the harness I have has a in line fuse that’s part of the harness can’t jist disconnect,do I just pull the fuse or cut the wires and reconnect ?

  19. May 29, 2018 at 1:09 PM
    #259
    Fatmonk8

    Fatmonk8 Did anyone ever tell you you're my hero?

    Joined:
    Dec 8, 2017
    Member:
    #237952
    Messages:
    1,157
    Gender:
    Male
    First Name:
    Paul
    Delco, PA
    Vehicle:
    2019 SR5 Barcelona Red Taco 3.5 V6
  20. May 29, 2018 at 1:36 PM
    #260
    Littles

    Littles Stupid is as stupid does.

    Joined:
    May 14, 2014
    Member:
    #129837
    Messages:
    2,491
    Gender:
    Male
    First Name:
    Bryan
    Castle Rock, CO
    Vehicle:
    3 tons of fun
    You could just leave it in there and have two fuses (won't hurt anything), but I cut mine at the in-line fuse and wired it directly to my fuse block. The whole point for me was to clean up the mess of wires coming off my battery and eliminate having to carry multiple types and sizes of the tube style inline fuses, and just carry a variety of blade type fuses.

    303tacoma likes this.
