How To: Secondary Stand Alone Fuse Block Install

Discussion in '2nd Gen. Tacomas (2005-2015)' started by H2Otx, Oct 27, 2010.

  1. May 1, 2012 at 5:07 PM
    #41
    whereismymind

    whereismymind Well-Known Member

    Joined:
    Mar 6, 2012
    Member:
    #74374
    Messages:
    75
    Gender:
    Male
    First Name:
    Don
    Broomfield, CO
    Vehicle:
    2012 Tacoma SR5 MGM D-cab
    Toytec Ultimate lift,Spidertrax spacers,Light Racing Control Arms,285/75/16 Duratrac's
    Any reason for not running the aux. fuse box inside the cab? Is there just not a good spot for it?

    Seems to me there would be more wires going to it from inside vs. ones coming from the engine. Obviously depending on personal accessories.

  2. May 1, 2012 at 5:59 PM
    #42
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,425
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Or put a relay on the components that you want to work only with Key ON

  3. May 1, 2012 at 6:34 PM
    #43
    H2Otx

    H2Otx [OP] The Tinkerer

    Joined:
    Jun 10, 2010
    Member:
    #38728
    Messages:
    221
    Gender:
    Male
    First Name:
    Austin
    Houston, Texas
    Vehicle:
    10 DC 4x2 SR5 TRD Off-Road
    SilverStar Ultra Headlights; Nokya Ion Yellow Fogs; SuperBright LED Bulbs; 8" Shorty Antenna; WeatherTech Mats / Bug Shield / Vent Visors; TRD CAI with aFe Pro Dry S Filter; aFe Pre-Filter; Custom CAI Cover and Fuse Box Cover; TRD AT Shift Knob (Japan); TRD Oil Filler Cap (Japan); n-Fab Step Rails; Monster Hook
    Well with any customization it all comes down to personal preference / selection of personal accessories.

    BUT, IMHEO I would put the fuse block inside the engine bay in any scenario. Typically you would be running high amp loads or collectively a high amp load on this block and heat would be generated from all the connections at this one junction. This one junction is the fused source for all of your devices (the buck stops with it). If anything shorted on it and your breaker fails, then you have a potential fire hazard.

    Also, there is not many place inside the cab to place something this size and give enough clearance to safely connect everything. And lets be honest if there are enough spaces in the cab you are going to want to use those for your accessories (speaker amp, HAM unit, tools, etc.)

    I designed this for the average "bear," or Taco in this case. One that would have accessories both internal and external.

    For my application the fused sources are:
    5 amp - Switch Panel (
    2.5 amp - Radar Detector
    10 amp - HAM Radio
    10 amp - HID Light Force 140 (FR - fog)
    10 amp - HID Light Force 140 (FR - driving)
    10 amp - HID Light Force 140 (RR - backup)
    10 amp - air compressor

    This is my v1.0 and as my list of accessories grow I might have to make a v2.0 as I might want to upgrade the stereo. But I might have to run that separate.

  4. May 9, 2012 at 12:38 AM
    #44
    thebaker

    thebaker Well-Known Member

    Joined:
    Feb 14, 2009
    Member:
    #13597
    Messages:
    2,182
    Gender:
    Male
    First Name:
    Byron
    NorCal
    Vehicle:
    Upgraded to a 3rd gen
    Never ending......$$$
  5. May 9, 2012 at 12:52 AM
    #45
    Wallygater

    Wallygater Well-Known Member

    Joined:
    May 24, 2011
    Member:
    #57164
    Messages:
    381
    Gender:
    Male
    USA
    Vehicle:
    '11 SR5 DBL Cab 4x4 6 speed
    Softopper, All-pro bolt-on sliders, Tom Wood's drive shaft, Goodyear 235/85/16 Dura-trac's, SG, USA-Spec I-pod adaptor, Amsoil in everything
    I installed one inside my old 2007 dbl cab in the plastic bin behind the rear driver side passenger seat. I put it in a box I picked up at radio shack. I mounted it in there because I was worried about water and the elements messing it up if it was under the hood. My fears were unwarranted.

    It worked ok there but I won't be putting it there in my 2011. I took the plastic things out from behind there for more room. The downsides of putting it in the cab are you have to run wires into the cab and depending on how many accessories you have, it could be a lot of wires. That opens your cab up to water penetration. Also there is a fire risk (as mentioned) and given a choice, I would rather have a fire in the engine bay then where my family sits. :cool:

  6. May 9, 2012 at 12:54 AM
    #46
    Twistedfreedom

    Twistedfreedom welcome to the incredibuild

    Joined:
    Sep 12, 2011
    Member:
    #63386
    Messages:
    8,821
    Gender:
    Male
    First Name:
    Adam
    Seattle
    Vehicle:
    in progress
    modded the F*ck out
    Sub'd cause my engine bay looks like an octopus orgy

    NathanG223 and Beretta4x4 like this.
  7. May 9, 2012 at 5:25 AM
    #47
    Namyo

    Namyo -

    Joined:
    Apr 28, 2010
    Member:
    #36165
    Messages:
    14,130
    Gender:
    Male
    :laugh:

  8. May 9, 2012 at 5:40 AM
    #48
    MarAgt

    MarAgt Well-Known Member

    Joined:
    Apr 26, 2012
    Member:
    #77702
    Messages:
    121
    Gender:
    Male
    Lugoff, SC
    Vehicle:
    Silver Tacoma TRD
  9. May 9, 2012 at 8:41 AM
    #49
    Large

    Large Red

    Joined:
    Sep 10, 2011
    Member:
    #63268
    Messages:
    22,430
    Gender:
    Male
    Looks similar to mine.

    [​IMG]

    #4 AWG 'Dekoron' brand, Burndy lugs, Burndy crimpers, cable management (somewhat), looks better now. I'll try to take a better pic.

  10. May 14, 2012 at 10:41 PM
    #50
    ROGU3 PR3DATOR

    ROGU3 PR3DATOR Space Shuttle Door Gunner

    Joined:
    Aug 9, 2010
    Member:
    #41451
    Messages:
    1,048
    Gender:
    Male
    First Name:
    Jake
    Alamogordo, New Mexico
    Vehicle:
    MGM 2011 TRD Off-Road
    Lifted, Supercharged, Armored, and lots more

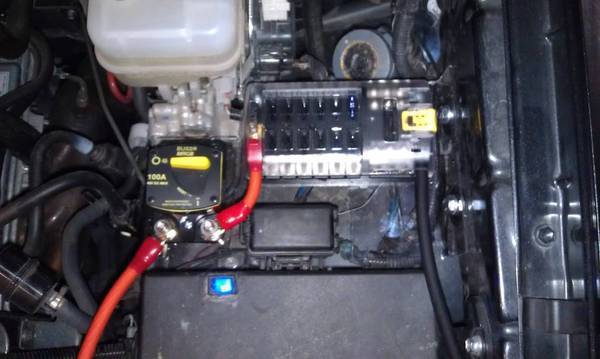

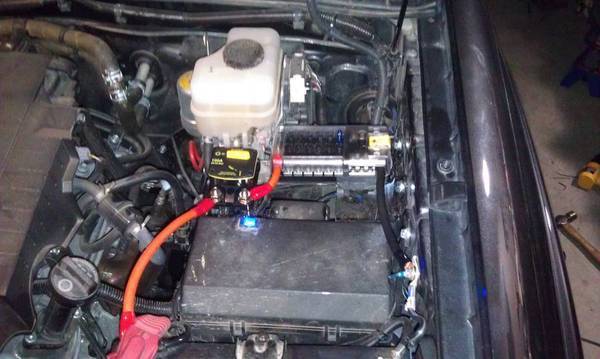

    Finally got around to doing this mod. Followed this how to as a basic guide. Here is how it turned out. If anyone sees something that doesn't seem right, let me know. But as far as I can tell everything is golden...

    [​IMG][​IMG]

    Kolunatic and timinNC like this.
  11. May 21, 2012 at 7:16 PM
    #51
    bitejr138

    bitejr138 CTID

    Joined:
    Jun 2, 2010
    Member:
    #38261
    Messages:
    212
    Gender:
    Male
    First Name:
    Kelly
    St. Maries, Idaho
    ...and mine.


    [​IMG]

    timinNC likes this.
  12. May 21, 2012 at 7:26 PM
    #52
    The1youluv2hate

    The1youluv2hate Well-Known Member

    Joined:
    Sep 14, 2010
    Member:
    #43233
    Messages:
    2,919
    Gender:
    Male
    First Name:
    Peps
    SAnta Paula CA
    Vehicle:
    18 TRD sPort 4x4 (11mgmsport)
    oem pro grill 17” pro rep wheels Fox dsc shocks


    Thats Clean set up :thumbsup:

  13. May 21, 2012 at 7:27 PM
    #53
    Coupe

    Coupe Well-Known Member

    Joined:
    Feb 10, 2009
    Member:
    #13485
    Messages:
    2,786
    Gender:
    Male
    Houston, Texas
    Vehicle:
    08 X-Runner
    Lots baby!
    Nice write up!

  14. May 30, 2012 at 4:05 PM
    #54
    bitejr138

    bitejr138 CTID

    Joined:
    Jun 2, 2010
    Member:
    #38261
    Messages:
    212
    Gender:
    Male
    First Name:
    Kelly
    St. Maries, Idaho
  15. May 30, 2012 at 9:51 PM
    #55
    IKMtacoma

    IKMtacoma Well-Known Member

    Joined:
    Apr 2, 2011
    Member:
    #54196
    Messages:
    87
    Gender:
    Male
    whats the best way to run a switch into the cab to the empty slots beside the power mirror pad for grill lights? I am thinking about getting the BDF Light bar for behind the grill (the one being made by BAMF) and want to know what is the best / cleanest way to do this.


  16. May 30, 2012 at 11:15 PM
    #56
    ROGU3 PR3DATOR

    ROGU3 PR3DATOR Space Shuttle Door Gunner

    Joined:
    Aug 9, 2010
    Member:
    #41451
    Messages:
    1,048
    Gender:
    Male
    First Name:
    Jake
    Alamogordo, New Mexico
    Vehicle:
    MGM 2011 TRD Off-Road
    Lifted, Supercharged, Armored, and lots more
    Run the wires through the firewall where the rest of the wires run through.

  17. Oct 28, 2012 at 2:40 PM
    #57
    ryrydtl

    ryrydtl Well-Known Member

    Joined:
    Oct 12, 2009
    Member:
    #24210
    Messages:
    80
    Gender:
    Male
    First Name:
    Ryan
    Cailifornia
    Vehicle:
    2019 Tacoma Pro
  18. Oct 28, 2012 at 5:26 PM
    #58
    wilnbroc

    wilnbroc Well-Known Member

    Joined:
    Aug 28, 2011
    Member:
    #62495
    Messages:
    149
    Gender:
    Male
    First Name:
    Nathan
    Tennessee
    Vehicle:
    09 Silver SR5 4wd Base Double Cab Short Bed
    Aluminum Side steps, Tuffy security bed box, bed lights installed like hookedontronics mod., auxillery 12v DC plug in Console, USA-SPEC iPod interface, set of Bilstein 5150's, CBI Offroad Trail Rider 2.0 rear bumber-textured black, Redline hoodstruts, Toyo Open Country A/T 265/70-16
    Did you make that bracket or order it somewhere?

  19. Oct 28, 2012 at 10:57 PM
    #59
    Drunknsloth

    Drunknsloth Indffrnce will be the fall of manknd but who cares

    Joined:
    Jun 17, 2010
    Member:
    #39105
    Messages:
    3,129
    Gender:
    Male
    First Name:
    Retribution
    South West
    Vehicle:
    08 SR5 Access V6 6-Speed
    Blacked-Out Badges; Retribution Decals (Sockmonkey); Tailgate Mod; Red LED Rear Blinkers; Yellow Foglights; Yellow Front Blinkers; Superwhite Xenon Corner Bulb; Leer Bedcap; Bedrug Bedmat; Black Cupholders; Black Plastic Piece Around Window Controls; Plasti-Dip Front Bumper Valence; Plasti-Dip Grill Surround; Blackout Chrome Back Bumper; Metal Miller Skid-Plate; Aero Turbine 2525 Muffler; TSB Rear Leaf Springs and Shocks; Satoshi Grill Pending; Off-Roading Torn off Mirror (Replaced); Blue-Sea Fuse Box; Tinted Tail Lights; URD Short Shifter; Interior Mood Lighting; Hood Lights; BedLights Pending
    That is clean!

  20. Dec 9, 2012 at 3:52 AM
    #60
    jim.harris

    jim.harris Member

    Joined:
    Apr 3, 2012
    Member:
    #76235
    Messages:
    9
    Gender:
    Male
    First Name:
    Jim
    British Columbia
    Vehicle:
    08 TRD Sport Dbl Cab
    Fabtech stage II 6" Lift, Debadged, WeatherTech Digital fit, 13" Radio Antenna... more to come...
    Nice write up, and some super clean installs. This is near the top of my "to do" list and you guys have given me some good ideas. Cheers
