How To: Secondary Stand Alone Fuse Block Install

Discussion in '2nd Gen. Tacomas (2005-2015)' started by H2Otx, Oct 27, 2010.

  1. Dec 13, 2012 at 7:15 PM
    #61
    calixto25

    calixto25 Well-Known Member

    Joined:
    Aug 18, 2012
    Member:
    #85049
    Messages:
    120
    Gender:
    Male
    Arizona
    Vehicle:
    TRD sport
    Hids, billet grille, headlights, fog lights, k&n intake, throttle body spacer, led taillights, led bulb conversion.
  2. Dec 14, 2012 at 12:51 AM
    #62
    Mxpatriot

    Mxpatriot Well-Known Member

    Joined:
    Nov 18, 2009
    Member:
    #26163
    Messages:
    3,609
    Gender:
    Male
    Vehicle:
    '06 4x4 AP LT and Locked
    Nice job

  3. Jan 12, 2013 at 5:53 PM
    #63
    logcabinwc

    logcabinwc Well-Known Member

    Joined:
    Jan 28, 2012
    Member:
    #71584
    Messages:
    1,541
    Gender:
    Male
    First Name:
    Micah
    SF East Bay
    Vehicle:
    08 4d 4x4 White V6 TRD
    Old Man Emu 885s with Nitrocharged 90000, Bilstein 5100 in the back with AllPro 3 spring progressive AAL, 16 inch Baja Black 6-spoke alloy wheels, Flow Master exhaust, bed lights, Pioneer HD radio, Uniden CB Radio, K&N Air filter, BAMF Sliders w/kickout, Relentless Aluminum IFS Skid, 24 LED light bar, custom/homebuilt expedition style bed rack and basket combo, and Body Armor rear plate bumper.
    Great write up! I think I will do this! Question though... Actually two, and bear with me because I'm electrically challenged.

    The 12 fuse block is $10 bucks more, so I figure might as go with it so I have more options. (I won't run everything at once of course though!!! Just to have options)
    Now, should I still get the 100A circuit breaker, or something larger?
    And I have a Siren/PA with a 100w speaker up front.. Is that going to be too much to run through the fuse block?

  4. Jan 12, 2013 at 8:49 PM
    #64
    Drunknsloth

    Drunknsloth Indffrnce will be the fall of manknd but who cares

    Joined:
    Jun 17, 2010
    Member:
    #39105
    Messages:
    3,129
    Gender:
    Male
    First Name:
    Retribution
    South West
    Vehicle:
    08 SR5 Access V6 6-Speed
    Blacked-Out Badges; Retribution Decals (Sockmonkey); Tailgate Mod; Red LED Rear Blinkers; Yellow Foglights; Yellow Front Blinkers; Superwhite Xenon Corner Bulb; Leer Bedcap; Bedrug Bedmat; Black Cupholders; Black Plastic Piece Around Window Controls; Plasti-Dip Front Bumper Valence; Plasti-Dip Grill Surround; Blackout Chrome Back Bumper; Metal Miller Skid-Plate; Aero Turbine 2525 Muffler; TSB Rear Leaf Springs and Shocks; Satoshi Grill Pending; Off-Roading Torn off Mirror (Replaced); Blue-Sea Fuse Box; Tinted Tail Lights; URD Short Shifter; Interior Mood Lighting; Hood Lights; BedLights Pending
    If I remember correctly the Blue Seas 12 maximum is 140A so you will need to find a circuit breaker that is smaller then this. I think I still run a 100A.

    Yes you can run the 100W Siren/PA. I would use a relay, 14 gauge wire, and a 10 amp fuse.

  5. Jan 12, 2013 at 9:13 PM
    #65
    Fractured

    Fractured FPS-a-holic

    Joined:
    Dec 23, 2011
    Member:
    #69293
    Messages:
    821
    Gender:
    Male
    First Name:
    Corey
    NOR*Cal
    Vehicle:
    2012 MGM DCSB 4x4
    TRD wheels, TRD cat back exhaust, ScanGauge 2, Debadged, Avid sliders, UWS bed box w/automatic LED light, Led Interior/Reverse/Lic. Plate lights, Yellow Fogs, Flyzeye Light, Color matched grill, Rearview mirror relocate bracket, Power Sliding rear window, Plasti-dipped bumper/"T" emblem
    The 100w speaker will pull 8.3a at 12v.

    Wasnt someone making these mounts custom?

  6. Jan 13, 2013 at 12:00 AM
    #66
    logcabinwc

    logcabinwc Well-Known Member

    Joined:
    Jan 28, 2012
    Member:
    #71584
    Messages:
    1,541
    Gender:
    Male
    First Name:
    Micah
    SF East Bay
    Vehicle:
    08 4d 4x4 White V6 TRD
    Old Man Emu 885s with Nitrocharged 90000, Bilstein 5100 in the back with AllPro 3 spring progressive AAL, 16 inch Baja Black 6-spoke alloy wheels, Flow Master exhaust, bed lights, Pioneer HD radio, Uniden CB Radio, K&N Air filter, BAMF Sliders w/kickout, Relentless Aluminum IFS Skid, 24 LED light bar, custom/homebuilt expedition style bed rack and basket combo, and Body Armor rear plate bumper.
    Thanks for your help guys.
    And which mounts? For the fuse block and circuit breaker? Or the siren?

  7. Jan 13, 2013 at 2:46 AM
    #67
    logcabinwc

    logcabinwc Well-Known Member

    Joined:
    Jan 28, 2012
    Member:
    #71584
    Messages:
    1,541
    Gender:
    Male
    First Name:
    Micah
    SF East Bay
    Vehicle:
    08 4d 4x4 White V6 TRD
    Old Man Emu 885s with Nitrocharged 90000, Bilstein 5100 in the back with AllPro 3 spring progressive AAL, 16 inch Baja Black 6-spoke alloy wheels, Flow Master exhaust, bed lights, Pioneer HD radio, Uniden CB Radio, K&N Air filter, BAMF Sliders w/kickout, Relentless Aluminum IFS Skid, 24 LED light bar, custom/homebuilt expedition style bed rack and basket combo, and Body Armor rear plate bumper.
    I just looked up and a guy arranged a gb on a mount but they're all out now.... guess we'll have to make our own!

  8. Jan 13, 2013 at 10:33 PM
    #68
    H2Otx

    H2Otx [OP] The Tinkerer

    Joined:
    Jun 10, 2010
    Member:
    #38728
    Messages:
    221
    Gender:
    Male
    First Name:
    Austin
    Houston, Texas
    Vehicle:
    10 DC 4x2 SR5 TRD Off-Road
    SilverStar Ultra Headlights; Nokya Ion Yellow Fogs; SuperBright LED Bulbs; 8" Shorty Antenna; WeatherTech Mats / Bug Shield / Vent Visors; TRD CAI with aFe Pro Dry S Filter; aFe Pre-Filter; Custom CAI Cover and Fuse Box Cover; TRD AT Shift Knob (Japan); TRD Oil Filler Cap (Japan); n-Fab Step Rails; Monster Hook
    So take all of the devices that you plan on running through the fuse block and add up their total load (amps). With all things running what is the total amperage? If you aren't sure use Watts = Amps x Volts or Amps = Watts / Volts. For this situation we are using 12 volts. 100A should cover you but just be sure.

    I wouldn't run a relay on the speaker, but that is MHO. Any thing 10A or less I typically run a fuse. On fog lights, HIDs, winch and larger loads I would use a relay. I have been trying to develop a waterproof relay panel for some time now, it just isn't easy. I found a company that sells an 8 slot relay board, but waterproofing doesn't appear to be easy. That plus the Daystar switch bank to mount in the upper sunglass spot is a daunting task. Too many other chores to complete around the house.

  9. Jan 13, 2013 at 11:46 PM
    #69
    logcabinwc

    logcabinwc Well-Known Member

    Joined:
    Jan 28, 2012
    Member:
    #71584
    Messages:
    1,541
    Gender:
    Male
    First Name:
    Micah
    SF East Bay
    Vehicle:
    08 4d 4x4 White V6 TRD
    Old Man Emu 885s with Nitrocharged 90000, Bilstein 5100 in the back with AllPro 3 spring progressive AAL, 16 inch Baja Black 6-spoke alloy wheels, Flow Master exhaust, bed lights, Pioneer HD radio, Uniden CB Radio, K&N Air filter, BAMF Sliders w/kickout, Relentless Aluminum IFS Skid, 24 LED light bar, custom/homebuilt expedition style bed rack and basket combo, and Body Armor rear plate bumper.
    Ya I don't think I'll run the relay.. I havent been running one now and everything has been fine. Thanks for the advice though!
    And ya. Honestly at this point I'll be running some bed lights, a cb, and the siren off the fuse block, but I highly doubt ever all at once.
    3/12 slots full, but hopefully later down the road I'll be getting some offroad lighting, auxiliary back up lighting, and probably some general shenanigan stuff requiring some type of power.
















    Besides, empty slots in the fuse blocks means I have to get more toys :D

  10. Jan 24, 2013 at 8:21 PM
    #70
    tmreyes1

    tmreyes1 Well-Known Member

    Joined:
    Dec 8, 2011
    Member:
    #68412
    Messages:
    1,723
    Gender:
    Male
    First Name:
    T-Rey
    TX
    Vehicle:
    2017 TRD
    Would a 80 breaker be enough for a one of the fuse panels. I only ask cause I have an 80 amp breaker laying around, but do not want to find out the hard way that is is not enough. I do have the 12 fuse panel, but don't think I will use all the spots. I am mainly gonna use it for bed lights and some LED lights.

  11. Jul 21, 2013 at 11:44 PM
    #71
    ETAV8R

    ETAV8R Out DERP'n

    Joined:
    Feb 20, 2008
    Member:
    #4832
    Messages:
    3,566
    Gender:
    Male
    Republik of Commiefornia
    Vehicle:
    MGM 09 AC 4WD V6 TRD-OR w/ Tradesman Shell
    Just the basics
    Very clean!
    Does anyone know of any potential group buys for one of these mounting plates?

  12. Jul 21, 2013 at 11:59 PM
    #72
    ProForce

    ProForce IG @proforce.expeditions OB#5411

    Joined:
    Oct 12, 2009
    Member:
    #24205
    Messages:
    7,076
    Gender:
    Male
    First Name:
    Anthony
    SoCal - Fontana
    Vehicle:
    09 MGM TRD Sport DCSB 4.0 Auto 2wd
    Too many to list. See build page. Link in signature

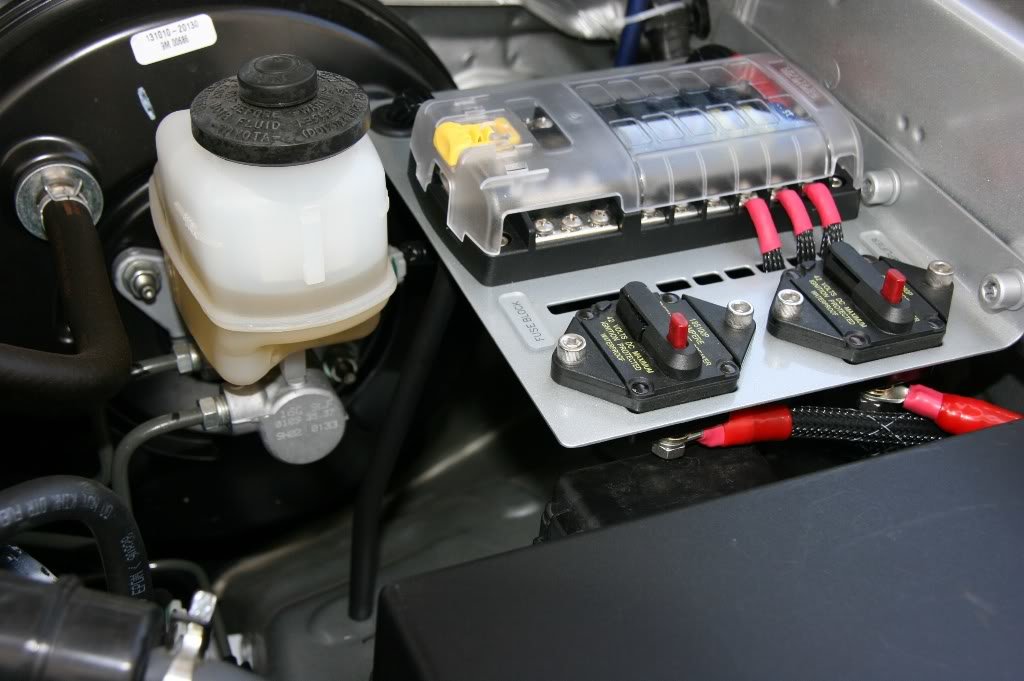

    Just finished mine today! I'm actually missing the circuit breaker cuz I'm waiting for it to come in but you can see where it will go


    Earfarmer and Toynado like this.
  13. Jul 25, 2013 at 6:31 PM
    #73
    ProForce

    ProForce IG @proforce.expeditions OB#5411

    Joined:
    Oct 12, 2009
    Member:
    #24205
    Messages:
    7,076
    Gender:
    Male
    First Name:
    Anthony
    SoCal - Fontana
    Vehicle:
    09 MGM TRD Sport DCSB 4.0 Auto 2wd
    Too many to list. See build page. Link in signature
    Finished my setup finally. uploadfromtaptalk1374802261204.jpguploadfromtaptalk1374802272240.jpg

    Earfarmer and t-nutz like this.
  14. Apr 4, 2014 at 7:39 AM
    #74
    MTopp

    MTopp Professional bear handler

    Joined:
    Aug 12, 2013
    Member:
    #110295
    Messages:
    5,816
    Gender:
    Male
    First Name:
    Matt
    North NJ
    Vehicle:
    05 SR5 4x4
    trifecta tonneau, pop n' lock, Depo black bezel headlights, mb 352 wheels, 265/75r16 cooper at3s, visors, colormatched 2011 grille with raptor LEDs, much LEDs in and out Future/wanted: black valence, hood scoop, catback, CAI, 285/75r16s, OMD leaf pack mod
    Went to Lowes and they didn't have lexan thick enough. I'm going to check a local place to see if they have it

  15. Apr 4, 2014 at 9:30 AM
    #75
    Suenter

    Suenter Member

    Joined:
    Oct 5, 2013
    Member:
    #113892
    Messages:
    18
    Gender:
    Male
    First Name:
    Steve
    Easton PA
    Vehicle:
    2013 Access Cab 4x4 SR5
    Here is my question...I have a aux fuse panel from Painless Wiring(3 hot and 4 ignition switched), I would like to install it inside the cab in my rear seat platform next to my subwoofer. I would install the circuit breaker like you next to my battery, but what gauge wire would I need to run it to the cab? Fuse box has a 40 amp relay and 50 amp circuit breaker.

  16. Apr 7, 2014 at 8:28 AM
    #76
    Spencer

    Spencer Future President

    Joined:
    Dec 19, 2012
    Member:
    #93415
    Messages:
    1,435
    Gender:
    Male
    First Name:
    TIGGLEBITTIES
    Upland, Chino... all of 909.
    Vehicle:
    2013 DCSB 4X4 6cyl Sex Machine
    Redline hood lift, Flyzeye cabin lights, tailgate lock, SPOD Power block, VIAR onboard air, Cobra CB radio, Firestick 4' Antenna, Hot Blonde CoPilot Mod, SIX 9" Hella 4000 HID conversion with external 55W ballasts, Six 6" LED bars, Napier Bed Tent, Mudflaps delete using rocks, Roof rack by Brute force, Rock sliders by Brute force, Bed LED lights, Underhood LED automatic lights, Constant 12V bed plug, Rugged race radio, ICON uniball UCA's, KING 2.5 700 rate coilovers, Deaver rear leaf springs, KING 2.5 resi rear shocks (Flat 0.15 stack on compression shims), Scangauge, Empty wallet Mod Bug disease, AllPro Apex front bumper, On board heat exchange shower & water pump (Heater Core intercept mod), On Board Air - Viair for now, ARB when it dies-, allpro Skids back to gas tank- Tepui RTT on the shittiest "Bed Rack" ever made.... AllPro U Bolt flip kit with timbren bumps NEXT UP- expo leafs & bed rack, hydraulic bumps in rear, Total Chaos stock LCA's w/ Bypass, Rear 12" shock hoop relocate
    http://www.bluesea.com/files/resources/newsletter/images/DC_wire_selection_chartlg.jpg

    Run 4 or 6 AWG size, but if the connectors can hold bigger wire, use as big as you can fit. Always assume the circuit will running at full capacity and assume a fuse will fail. Put that breaker right next to the battery! NOT all the way back on your fuse block-
    Say you get t- boned and that hot wire gets pinched and grounds out before the breaker. You've now got a wire fire while you're trapped inside.

    More likely accident is that wire rubs the coating off inside the firewall penetration and shorts before the breaker- bye bye truck.

    Run the same gauge lead direct from positive and negative on the battery, not one positive lead and the negative to the frame.

  17. Apr 8, 2014 at 6:33 AM
    #77
    Suenter

    Suenter Member

    Joined:
    Oct 5, 2013
    Member:
    #113892
    Messages:
    18
    Gender:
    Male
    First Name:
    Steve
    Easton PA
    Vehicle:
    2013 Access Cab 4x4 SR5
    Thanks Spencer...Just the info I needed....:)

  18. Apr 8, 2014 at 8:08 AM
    #78
    Spencer

    Spencer Future President

    Joined:
    Dec 19, 2012
    Member:
    #93415
    Messages:
    1,435
    Gender:
    Male
    First Name:
    TIGGLEBITTIES
    Upland, Chino... all of 909.
    Vehicle:
    2013 DCSB 4X4 6cyl Sex Machine
    Redline hood lift, Flyzeye cabin lights, tailgate lock, SPOD Power block, VIAR onboard air, Cobra CB radio, Firestick 4' Antenna, Hot Blonde CoPilot Mod, SIX 9" Hella 4000 HID conversion with external 55W ballasts, Six 6" LED bars, Napier Bed Tent, Mudflaps delete using rocks, Roof rack by Brute force, Rock sliders by Brute force, Bed LED lights, Underhood LED automatic lights, Constant 12V bed plug, Rugged race radio, ICON uniball UCA's, KING 2.5 700 rate coilovers, Deaver rear leaf springs, KING 2.5 resi rear shocks (Flat 0.15 stack on compression shims), Scangauge, Empty wallet Mod Bug disease, AllPro Apex front bumper, On board heat exchange shower & water pump (Heater Core intercept mod), On Board Air - Viair for now, ARB when it dies-, allpro Skids back to gas tank- Tepui RTT on the shittiest "Bed Rack" ever made.... AllPro U Bolt flip kit with timbren bumps NEXT UP- expo leafs & bed rack, hydraulic bumps in rear, Total Chaos stock LCA's w/ Bypass, Rear 12" shock hoop relocate

    No problem!
    The way I see it, the more people I can help here, the less likely I'll end up with someone's janky clusterF* when I buy my next taco. So nothing personal, I'm only helping myself here. :p

  19. Apr 9, 2014 at 3:11 PM
    #79
    Suenter

    Suenter Member

    Joined:
    Oct 5, 2013
    Member:
    #113892
    Messages:
    18
    Gender:
    Male
    First Name:
    Steve
    Easton PA
    Vehicle:
    2013 Access Cab 4x4 SR5
    [​IMG]lol...... if I were to install 3000 watt inverter back where I am now going to install my aux fuse box, what gauge wire and breaker will I need for that? added the picture so you can see where I'm putting this stuff, right now only my sub woofer is in there along with the jack.

  20. Apr 10, 2014 at 4:27 PM
    #80
    MTopp

    MTopp Professional bear handler

    Joined:
    Aug 12, 2013
    Member:
    #110295
    Messages:
    5,816
    Gender:
    Male
    First Name:
    Matt
    North NJ
    Vehicle:
    05 SR5 4x4
    trifecta tonneau, pop n' lock, Depo black bezel headlights, mb 352 wheels, 265/75r16 cooper at3s, visors, colormatched 2011 grille with raptor LEDs, much LEDs in and out Future/wanted: black valence, hood scoop, catback, CAI, 285/75r16s, OMD leaf pack mod
    Almost have all my supplies! Just need lexan/polycarbonate?, more 4 gauge wire and connectors, and a day off. Thanks again for the info

    Last edited: Apr 10, 2014
