How To: Secondary Stand Alone Fuse Block Install

Discussion in '2nd Gen. Tacomas (2005-2015)' started by H2Otx, Oct 27, 2010.

  1. Apr 17, 2014 at 5:59 PM
    #81
    MTopp

    MTopp Professional bear handler

    Joined:
    Aug 12, 2013
    Member:
    #110295
    Messages:
    5,816
    Gender:
    Male
    First Name:
    Matt
    North NJ
    Vehicle:
    05 SR5 4x4
    trifecta tonneau, pop n' lock, Depo black bezel headlights, mb 352 wheels, 265/75r16 cooper at3s, visors, colormatched 2011 grille with raptor LEDs, much LEDs in and out Future/wanted: black valence, hood scoop, catback, CAI, 285/75r16s, OMD leaf pack mod
    Do you all think 1/4" lexan is good or 1/2"? Or other, 3/8"? I have to order it online probably, no one around me stocks it

    Last edited: Apr 17, 2014
  2. Apr 17, 2014 at 7:18 PM
    #82
    MTopp

    MTopp Professional bear handler

    Joined:
    Aug 12, 2013
    Member:
    #110295
    Messages:
    5,816
    Gender:
    Male
    First Name:
    Matt
    North NJ
    Vehicle:
    05 SR5 4x4
    trifecta tonneau, pop n' lock, Depo black bezel headlights, mb 352 wheels, 265/75r16 cooper at3s, visors, colormatched 2011 grille with raptor LEDs, much LEDs in and out Future/wanted: black valence, hood scoop, catback, CAI, 285/75r16s, OMD leaf pack mod
    Alright, thanks!

  3. Apr 26, 2014 at 5:55 AM
    #83
    MTopp

    MTopp Professional bear handler

    Joined:
    Aug 12, 2013
    Member:
    #110295
    Messages:
    5,816
    Gender:
    Male
    First Name:
    Matt
    North NJ
    Vehicle:
    05 SR5 4x4
    trifecta tonneau, pop n' lock, Depo black bezel headlights, mb 352 wheels, 265/75r16 cooper at3s, visors, colormatched 2011 grille with raptor LEDs, much LEDs in and out Future/wanted: black valence, hood scoop, catback, CAI, 285/75r16s, OMD leaf pack mod
    Should negative from block go to battery terminal or frame? I've read different things

  4. Apr 26, 2014 at 9:17 AM
    #84
    crooks420

    crooks420 Well-Known Member

    Joined:
    Oct 11, 2009
    Member:
    #24135
    Messages:
    70
    Gender:
    Male
    First Name:
    Jesse
    San Gabriel
    Vehicle:
    05 AC Prerunner SR5, 12 DC LB 4x4, 70 FJ40
    Both would be best.

    Jesse

  5. Apr 26, 2014 at 7:06 PM
    #85
    MTopp

    MTopp Professional bear handler

    Joined:
    Aug 12, 2013
    Member:
    #110295
    Messages:
    5,816
    Gender:
    Male
    First Name:
    Matt
    North NJ
    Vehicle:
    05 SR5 4x4
    trifecta tonneau, pop n' lock, Depo black bezel headlights, mb 352 wheels, 265/75r16 cooper at3s, visors, colormatched 2011 grille with raptor LEDs, much LEDs in and out Future/wanted: black valence, hood scoop, catback, CAI, 285/75r16s, OMD leaf pack mod
    I understand, but don't know what'd you use for such large wire

  6. Apr 26, 2014 at 8:02 PM
    #86
    Thelgord

    Thelgord The Pantagonist

    Joined:
    Dec 29, 2012
    Member:
    #94014
    Messages:
    1,165
    Gender:
    Male
    Augusta, GA
    Vehicle:
    '13 TRD (OffRoad, 4x4)
    SOS Rocksliders, All Pro skid plate, Procomp add-a-leaf, Bilstein 5100 @ 1.75", CB, high-lift jack
    You can go either way. The negative cable (from the battery) goes to the frame, so the frame is a good ground, and is used as such all over the vehicle. You can also go strait to the battery terminal itself. It really doesn't matter.

    Edit: Clarification

    Last edited: Apr 26, 2014
  7. Apr 27, 2014 at 4:47 AM
    #87
    MTopp

    MTopp Professional bear handler

    Joined:
    Aug 12, 2013
    Member:
    #110295
    Messages:
    5,816
    Gender:
    Male
    First Name:
    Matt
    North NJ
    Vehicle:
    05 SR5 4x4
    trifecta tonneau, pop n' lock, Depo black bezel headlights, mb 352 wheels, 265/75r16 cooper at3s, visors, colormatched 2011 grille with raptor LEDs, much LEDs in and out Future/wanted: black valence, hood scoop, catback, CAI, 285/75r16s, OMD leaf pack mod
    Alright, thanks, frame it is

  8. Apr 27, 2014 at 9:14 AM
    #88
    Thelgord

    Thelgord The Pantagonist

    Joined:
    Dec 29, 2012
    Member:
    #94014
    Messages:
    1,165
    Gender:
    Male
    Augusta, GA
    Vehicle:
    '13 TRD (OffRoad, 4x4)
    SOS Rocksliders, All Pro skid plate, Procomp add-a-leaf, Bilstein 5100 @ 1.75", CB, high-lift jack
    I have never worked with Lexan before, what is the best way to "bend" it to shape? Clamp and a heat gun?

  9. Apr 27, 2014 at 9:47 AM
    #89
    H2Otx

    H2Otx [OP] The Tinkerer

    Joined:
    Jun 10, 2010
    Member:
    #38728
    Messages:
    221
    Gender:
    Male
    First Name:
    Austin
    Houston, Texas
    Vehicle:
    10 DC 4x2 SR5 TRD Off-Road
    SilverStar Ultra Headlights; Nokya Ion Yellow Fogs; SuperBright LED Bulbs; 8" Shorty Antenna; WeatherTech Mats / Bug Shield / Vent Visors; TRD CAI with aFe Pro Dry S Filter; aFe Pre-Filter; Custom CAI Cover and Fuse Box Cover; TRD AT Shift Knob (Japan); TRD Oil Filler Cap (Japan); n-Fab Step Rails; Monster Hook
    Clamps, wood, vise, heat gun... Your intentions are to heat the area you are trying to bend, NOT the entire piece. There are many ways to achieve the same result, however if you heat the entire piece to could end up warping or doing something you didn't intend.

  10. Apr 27, 2014 at 9:49 AM
    #90
    Thelgord

    Thelgord The Pantagonist

    Joined:
    Dec 29, 2012
    Member:
    #94014
    Messages:
    1,165
    Gender:
    Male
    Augusta, GA
    Vehicle:
    '13 TRD (OffRoad, 4x4)
    SOS Rocksliders, All Pro skid plate, Procomp add-a-leaf, Bilstein 5100 @ 1.75", CB, high-lift jack
    Thanks for the video, doesn't seem to be all that complicated. Just need the right tools.

  11. Apr 27, 2014 at 1:54 PM
    #91
    MTopp

    MTopp Professional bear handler

    Joined:
    Aug 12, 2013
    Member:
    #110295
    Messages:
    5,816
    Gender:
    Male
    First Name:
    Matt
    North NJ
    Vehicle:
    05 SR5 4x4
    trifecta tonneau, pop n' lock, Depo black bezel headlights, mb 352 wheels, 265/75r16 cooper at3s, visors, colormatched 2011 grille with raptor LEDs, much LEDs in and out Future/wanted: black valence, hood scoop, catback, CAI, 285/75r16s, OMD leaf pack mod
    [​IMG]

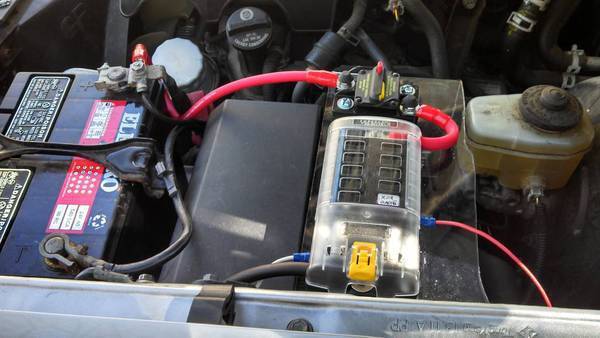

    How's it look wire wise?

  12. May 4, 2014 at 6:08 PM
    #92
    MTopp

    MTopp Professional bear handler

    Joined:
    Aug 12, 2013
    Member:
    #110295
    Messages:
    5,816
    Gender:
    Male
    First Name:
    Matt
    North NJ
    Vehicle:
    05 SR5 4x4
    trifecta tonneau, pop n' lock, Depo black bezel headlights, mb 352 wheels, 265/75r16 cooper at3s, visors, colormatched 2011 grille with raptor LEDs, much LEDs in and out Future/wanted: black valence, hood scoop, catback, CAI, 285/75r16s, OMD leaf pack mod
    Boomp for opinions

  13. May 4, 2014 at 6:57 PM
    #93
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,399
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Looks fine

  14. May 4, 2014 at 7:00 PM
    #94
    crooks420

    crooks420 Well-Known Member

    Joined:
    Oct 11, 2009
    Member:
    #24135
    Messages:
    70
    Gender:
    Male
    First Name:
    Jesse
    San Gabriel
    Vehicle:
    05 AC Prerunner SR5, 12 DC LB 4x4, 70 FJ40
    Looks ok, for one accessory wired up...... :yes:

  15. May 23, 2014 at 9:29 AM
    #95
    RDtres

    RDtres Well-Known Member

    Joined:
    May 20, 2012
    Member:
    #79224
    Messages:
    176
    Gender:
    Male
    Albuquerque
    Vehicle:
    2012 Tacoma DC LB
    I finally got around to doing this mod, thank you to everyone for ideas and suggestions. After considering what I wanted and had to work with I chose lexan as my base tray, a Blue Sea 6 slot fuse block, a 100A circuit breaker from Autozone and went to work. The hardest time I had was deciding on shape and design. I made sure to leave room for my PIAA relays and a 100A fuse for later when I install my audio system. Anyhow. here it is. I'm open to questions or positive comments. Thanks again OP
