How To: Secondary Stand Alone Fuse Block Install

Discussion in '2nd Gen. Tacomas (2005-2015)' started by H2Otx, Oct 27, 2010.

  1. May 11, 2015 at 10:50 AM
    #161
    euroshowoff

    euroshowoff Well-Known Member

    Joined:
    Oct 27, 2014
    Member:
    #141133
    Messages:
    506
    Gender:
    Male
    Stafford, VA
    Vehicle:
    15 Superwhite DCSB 4x4 V6
    Toytec lift, Trailgear sliders, CBI ditch light brackets, Trailtoys LED ditch lights, Trailtoys LED reverse pods, Custom Roll-Bar, TRD skid plate, TRD sport grill, TRD custom bedsides, Custom BlueSea wiring block, OTTRAW Rockers, Pro Comp 7036, BFGoodrich KO2s, Bestop soft topper,VIAIR 88p
    Don't know what i would do without this forum..

    So would each relay need an add a fuse, or could i piggy back off of pin 86 on the relay?

  2. May 11, 2015 at 11:38 AM
    #162
    plurpimpin

    plurpimpin Well-Known Member

    Joined:
    Jul 31, 2011
    Member:
    #60895
    Messages:
    1,612
    Gender:
    Male
    PDX
    Vehicle:
    2010 TRD Off Road 4x4
    I'm pretty sure you could split the wire before Pin 86. Relays don't pull much power. Split the wire from the add a fuse and then wire them to each of your switches and then attach the switches to pin 86 on their respective relays. (You'll need two for two sets of lights)

  3. May 11, 2015 at 12:18 PM
    #163
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,657
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Yep, or put 2 wires in the same terminal connector from relay 1 to go to relay 2 like this 'm'

  4. May 11, 2015 at 2:41 PM
    #164
    euroshowoff

    euroshowoff Well-Known Member

    Joined:
    Oct 27, 2014
    Member:
    #141133
    Messages:
    506
    Gender:
    Male
    Stafford, VA
    Vehicle:
    15 Superwhite DCSB 4x4 V6
    Toytec lift, Trailgear sliders, CBI ditch light brackets, Trailtoys LED ditch lights, Trailtoys LED reverse pods, Custom Roll-Bar, TRD skid plate, TRD sport grill, TRD custom bedsides, Custom BlueSea wiring block, OTTRAW Rockers, Pro Comp 7036, BFGoodrich KO2s, Bestop soft topper,VIAIR 88p

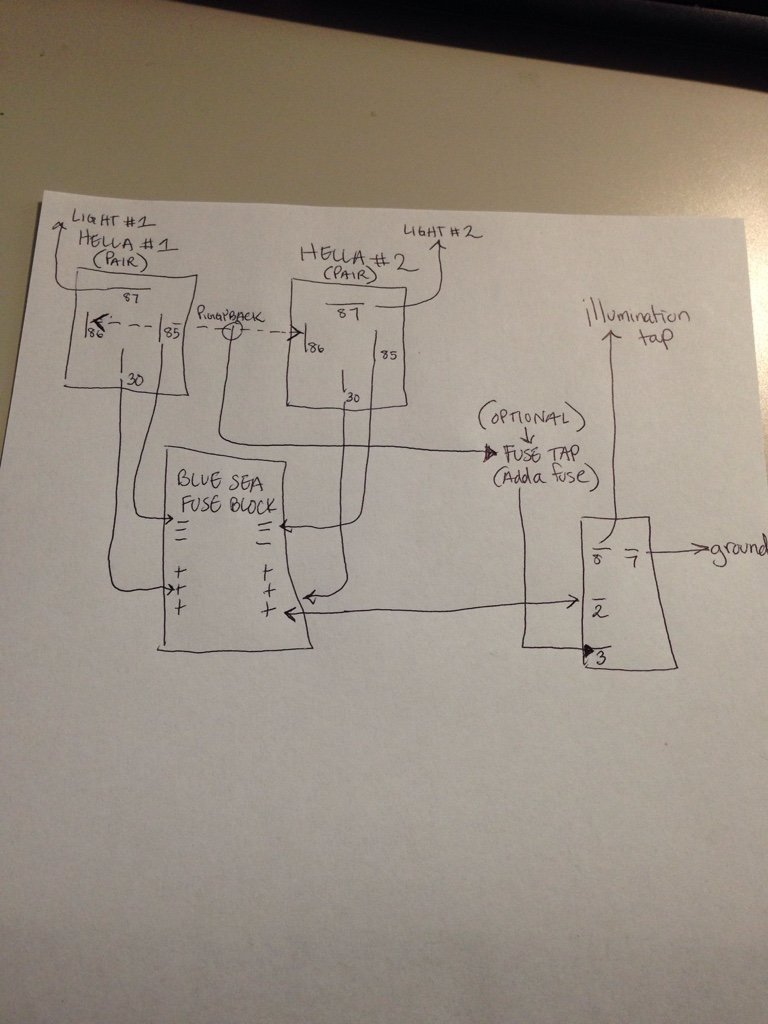

    How does this look, assuming I'm operating 4 hella roof lights via one switch.


  5. May 12, 2015 at 4:22 AM
    #165
    JustinL

    JustinL Well-Known Member

    Joined:
    Jan 31, 2011
    Member:
    #50299
    Messages:
    3,749
    Gender:
    Male
    First Name:
    Justin
    Berlin, CT
    Vehicle:
    2009 TRD OffRoad DCSB Pyrite Mica
    2012 Conversion
    No need for multiple relays in that ^ diagram. My rule of thumb is one relay per rocker switch. So if you want your 2 Hellas to come on at the same time, wire them to be powered on with one relay. This means you would need to take the power wire from your relay (pin 87) split out from one wire made into a "Y" shape to two wires, one for each light.

    Hope this makes sense. If you have hella lights the wiring kit they come with has a "Y" wire.

  6. May 12, 2015 at 4:24 AM
    #166
    euroshowoff

    euroshowoff Well-Known Member

    Joined:
    Oct 27, 2014
    Member:
    #141133
    Messages:
    506
    Gender:
    Male
    Stafford, VA
    Vehicle:
    15 Superwhite DCSB 4x4 V6
    Toytec lift, Trailgear sliders, CBI ditch light brackets, Trailtoys LED ditch lights, Trailtoys LED reverse pods, Custom Roll-Bar, TRD skid plate, TRD sport grill, TRD custom bedsides, Custom BlueSea wiring block, OTTRAW Rockers, Pro Comp 7036, BFGoodrich KO2s, Bestop soft topper,VIAIR 88p
    Thanks. The picture caption is probably misleading. But I would be running a total of 4 hella lights. Figured I would use 1 relay per pair and have them activated by one switch?

  7. May 12, 2015 at 4:26 AM
    #167
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,657
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Yea, the picture is with your titles. You got this though. One relay per switch is a good rule.

  8. May 15, 2015 at 5:34 AM
    #168
    euroshowoff

    euroshowoff Well-Known Member

    Joined:
    Oct 27, 2014
    Member:
    #141133
    Messages:
    506
    Gender:
    Male
    Stafford, VA
    Vehicle:
    15 Superwhite DCSB 4x4 V6
    Toytec lift, Trailgear sliders, CBI ditch light brackets, Trailtoys LED ditch lights, Trailtoys LED reverse pods, Custom Roll-Bar, TRD skid plate, TRD sport grill, TRD custom bedsides, Custom BlueSea wiring block, OTTRAW Rockers, Pro Comp 7036, BFGoodrich KO2s, Bestop soft topper,VIAIR 88p

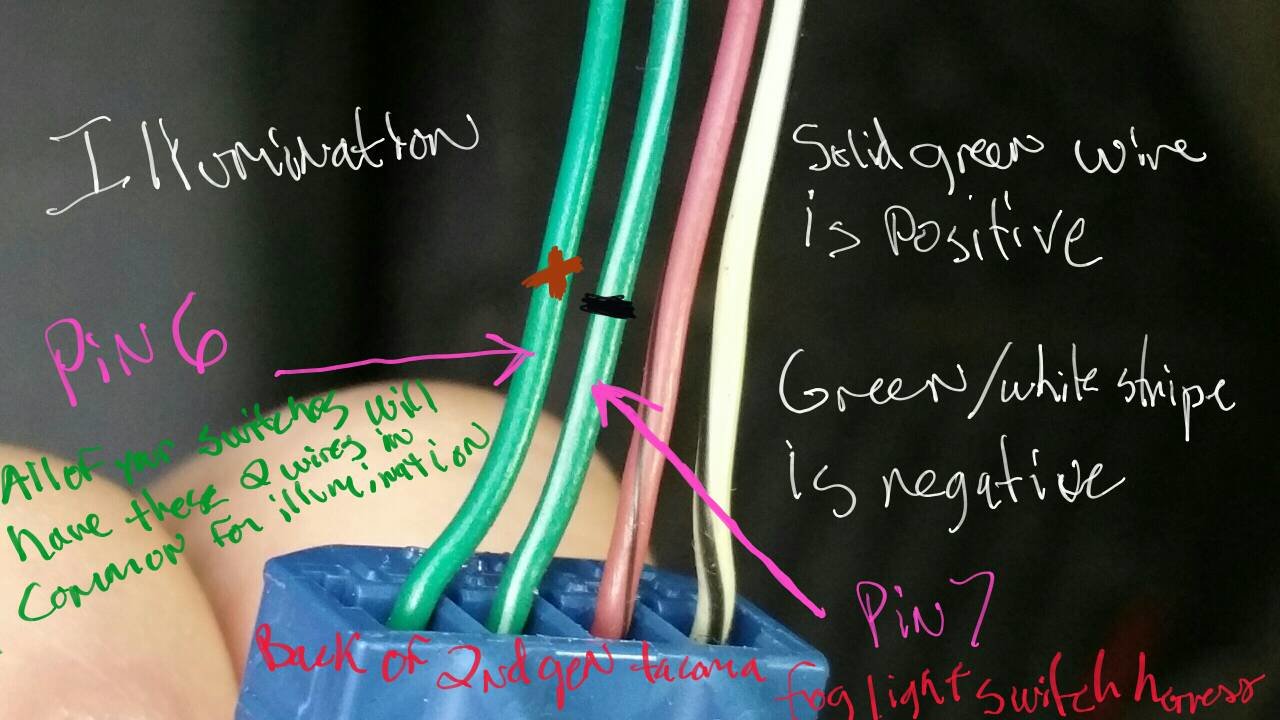

    question regarding illuminating the toggle switches. whats the best way to tap the back of the stock fog light harness? Vampire tap?

    pulled from another thread. is he refering to pin 6 and pin 7 of his ottraw toggle switch?


  9. May 25, 2015 at 4:10 PM
    #169
    weldo

    weldo Well-Known Member

    Joined:
    Oct 15, 2014
    Member:
    #140423
    Messages:
    1,339
    Gender:
    Male
    First Name:
    Mike
    Pittsburgh, pa
    Vehicle:
    2014 base ac 2.7 5-speed 4x4
    Sub'd for great info!

  10. May 31, 2015 at 2:21 PM
    #170
    EsJ TX

    EsJ TX Well-Known Member

    Joined:
    Mar 19, 2015
    Member:
    #151339
    Messages:
    51
    Gender:
    Male
    First Name:
    Eric
    Victoria, Texas
    Vehicle:
    2013 Tacoma 4x4 Double Cab
    5100's , OME 887's, 1/2 spacer driver side, 1/4 spacer passenger side and AAL in the rear 275/70/17 BFG KO2's
    Awesome thread!! I found some 1/4 thick Lexan and I am going to order the fuse panel and breaker tonight. Love this forum but it's getting me into trouble $$$$ lol

  11. Jun 8, 2015 at 5:18 PM
    #171
    euroshowoff

    euroshowoff Well-Known Member

    Joined:
    Oct 27, 2014
    Member:
    #141133
    Messages:
    506
    Gender:
    Male
    Stafford, VA
    Vehicle:
    15 Superwhite DCSB 4x4 V6
    Toytec lift, Trailgear sliders, CBI ditch light brackets, Trailtoys LED ditch lights, Trailtoys LED reverse pods, Custom Roll-Bar, TRD skid plate, TRD sport grill, TRD custom bedsides, Custom BlueSea wiring block, OTTRAW Rockers, Pro Comp 7036, BFGoodrich KO2s, Bestop soft topper,VIAIR 88p
    Question

    I have everything wired, and now my toggle switch is lit 100% of the time instead of only when the key is in the acc position. I have the circuit breaker tripped so that it doesn't kill my batter. My current wire config

    I have the 4 pin otrattw rocker switch

    The top led is on 100% of the time. The bottom led is only lit when the toggle is activated as expected.

    #8 = (+) from fuse block
    #2 = (+) from add a fuse (tapped off 7.5 acc)
    #3 trigger from relay
    #7 ground

  12. Jun 11, 2015 at 12:15 PM
    #172
    scott96929

    scott96929 IRoniK

    Joined:
    Sep 20, 2014
    Member:
    #138704
    Messages:
    868
    Gender:
    Male
    First Name:
    Scott
    Phoenix, Az
    Vehicle:
    2007 Tocoma PreRunner (Ironik)
    All Pro Front Plate Bumper, MaxTrac 4" Spindles, Light Racing Upper Control Arms, BOSS Leaf Springs, Toytec Adjustable Coilovers, Fox 2.0 Rear shocks, 17" Raceline Assault Wheels, Toyo RT 285 70R17, AFE Stg II Cold Air Intake, Prinsu Cabrack, Prinsu Bedrack, 10K Kensun HID Headlights, Avec 20" Optic LED Light Bar, Avec LED Fog Lights, Heretic 30" Combo LED Light Bar, Viper Max 12000 Winch, Quick Fist, Tepui Kukeman Ruggerized RTT, Smittybilt Awning, Relentless Fab Tailgate Reinforcement, Anti-Dark Hood Lighting Kit, Fog Lights Anytime Mod, Rear Differential Breather Mod, P&L Tailgate Lock, KMFAB Rock Sliders, KMFAB Rock Light Kit, KMFAB Bed Light Kit, KMFAB RTT Light Kit, KMFAB 12 VDC Outlet Kit,Optima Dual Battery, SSCS Kit, Switch Pro 8100 Kit, Cali Raised Ditch Light Kit
    Ok. I'm about to install my C/B, 100 amp fuse protection device and fuse block. I pretty much know how I want to set it up. Wiring all the accessories isn't a problem either. I'm wondering how to organize all the relays from the harnesses like Piaa and all the other block relays. These are bulky and can be a mess without organizing them as well. All I see is the top of everyone's mounting plate, so neat and organized, but what about what you don't see (i.e: relays? Bundles of wiring harnesses, etc) I'm thinking about mounting a "L" bracket under my fuse block plate and mounting all the relays to it.

  13. Jul 7, 2015 at 5:50 AM
    #173
    MTopp

    MTopp Professional bear handler

    Joined:
    Aug 12, 2013
    Member:
    #110295
    Messages:
    5,816
    Gender:
    Male
    First Name:
    Matt
    North NJ
    Vehicle:
    05 SR5 4x4
    trifecta tonneau, pop n' lock, Depo black bezel headlights, mb 352 wheels, 265/75r16 cooper at3s, visors, colormatched 2011 grille with raptor LEDs, much LEDs in and out Future/wanted: black valence, hood scoop, catback, CAI, 285/75r16s, OMD leaf pack mod
    I'm currently remaking my fuse block plate. It will be more organized and clean now. Holes for wire to go through and the one side is for mounting relays


    the block is accidentally backwards in this pic

  14. Jul 7, 2015 at 11:52 AM
    #174
    logcabinwc

    logcabinwc Well-Known Member

    Joined:
    Jan 28, 2012
    Member:
    #71584
    Messages:
    1,541
    Gender:
    Male
    First Name:
    Micah
    SF East Bay
    Vehicle:
    08 4d 4x4 White V6 TRD
    Old Man Emu 885s with Nitrocharged 90000, Bilstein 5100 in the back with AllPro 3 spring progressive AAL, 16 inch Baja Black 6-spoke alloy wheels, Flow Master exhaust, bed lights, Pioneer HD radio, Uniden CB Radio, K&N Air filter, BAMF Sliders w/kickout, Relentless Aluminum IFS Skid, 24 LED light bar, custom/homebuilt expedition style bed rack and basket combo, and Body Armor rear plate bumper.
    Well, the LED will stay lit because it is connected to the battery (running of course through the external fuse block too). If you wanted that top LED to only come on when you turn the truck on (or not all the way on but the electronics) you need to run a relay to the switch's wire that lights up that relay. The relay would then be connected to the batter/fuse block for power, as well as a fuse in the trucks original fuse block that is only powered once the truck is on (such as the radio). This will then provide power to the relay only when the truck is on, which then allow the power form the fuse block/battery to power that top LED light.

    Essentially, its a lot of extra wiring. You could do it a MUCH easier way, but I'm not too sure how kosher a method this would be, so perhaps consult someone else and DO AT YOUR OWN RISK (although this is how I would do it on my truck). I would run a wire from the trucks original fuse block (the same place that you would have hooked the relay to) and run that wire directly to the top LED in the switch. This is assuming that the pole (metal connection on the back of the rocker switch) provides power to the LED and only the LED in the switch and not your accessory. LEDs don't take up that much power, so it shouldn't hurt whatever you're tapping into in the fuse block. As an extra precaution, I would run an inline fuse on it though just to be safe. But this will do the exact same thing.

    Message me if you need any clarification or have questions, it can be hard to follow, especially when you don't have a diagram and aren't familiar with wiring.

  15. Jul 7, 2015 at 1:43 PM
    #175
    euroshowoff

    euroshowoff Well-Known Member

    Joined:
    Oct 27, 2014
    Member:
    #141133
    Messages:
    506
    Gender:
    Male
    Stafford, VA
    Vehicle:
    15 Superwhite DCSB 4x4 V6
    Toytec lift, Trailgear sliders, CBI ditch light brackets, Trailtoys LED ditch lights, Trailtoys LED reverse pods, Custom Roll-Bar, TRD skid plate, TRD sport grill, TRD custom bedsides, Custom BlueSea wiring block, OTTRAW Rockers, Pro Comp 7036, BFGoodrich KO2s, Bestop soft topper,VIAIR 88p

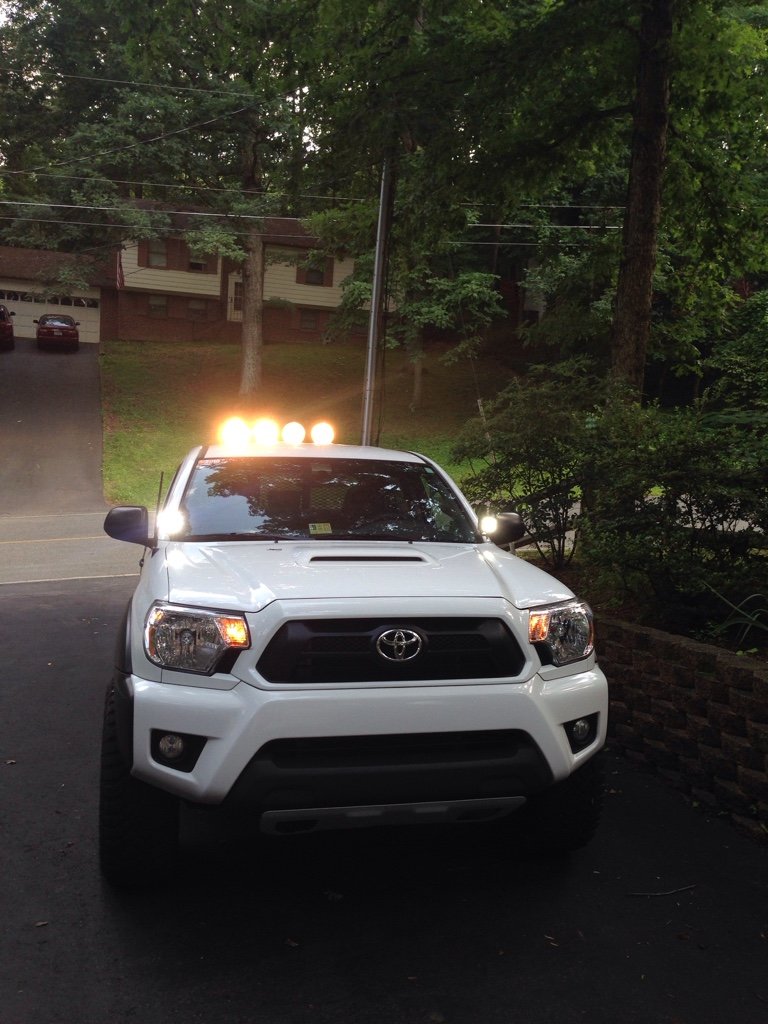

    Thanks. I pretty much got everything figured out. I ran a positive wire from my aux fuse block to the relay, grounded the relay, and ran an accessory wire (from lights (+)) to the relay. I have one wire coming off that relay to my switch. I used power from my fuse block in the cabin (under the dash) and used an add-a-fuse to light up the leds inside the switch.

    My issue now though, is when I turn on all my lights, i blow the add-a-fuse fuse, and i've had up to a 20amp fuse in there. Still trying to wrap my head around that before i add my aux reverse lights.

  16. Jul 7, 2015 at 2:16 PM
    #176
    MTopp

    MTopp Professional bear handler

    Joined:
    Aug 12, 2013
    Member:
    #110295
    Messages:
    5,816
    Gender:
    Male
    First Name:
    Matt
    North NJ
    Vehicle:
    05 SR5 4x4
    trifecta tonneau, pop n' lock, Depo black bezel headlights, mb 352 wheels, 265/75r16 cooper at3s, visors, colormatched 2011 grille with raptor LEDs, much LEDs in and out Future/wanted: black valence, hood scoop, catback, CAI, 285/75r16s, OMD leaf pack mod
    Thats very odd. I have multiple OTRATTW switches wired similarly. Off a fuse tap. You sure you put the right wires in the right place?

    euroshowoff likes this.
  17. Jul 7, 2015 at 2:26 PM
    #177
    euroshowoff

    euroshowoff Well-Known Member

    Joined:
    Oct 27, 2014
    Member:
    #141133
    Messages:
    506
    Gender:
    Male
    Stafford, VA
    Vehicle:
    15 Superwhite DCSB 4x4 V6
    Toytec lift, Trailgear sliders, CBI ditch light brackets, Trailtoys LED ditch lights, Trailtoys LED reverse pods, Custom Roll-Bar, TRD skid plate, TRD sport grill, TRD custom bedsides, Custom BlueSea wiring block, OTTRAW Rockers, Pro Comp 7036, BFGoodrich KO2s, Bestop soft topper,VIAIR 88p

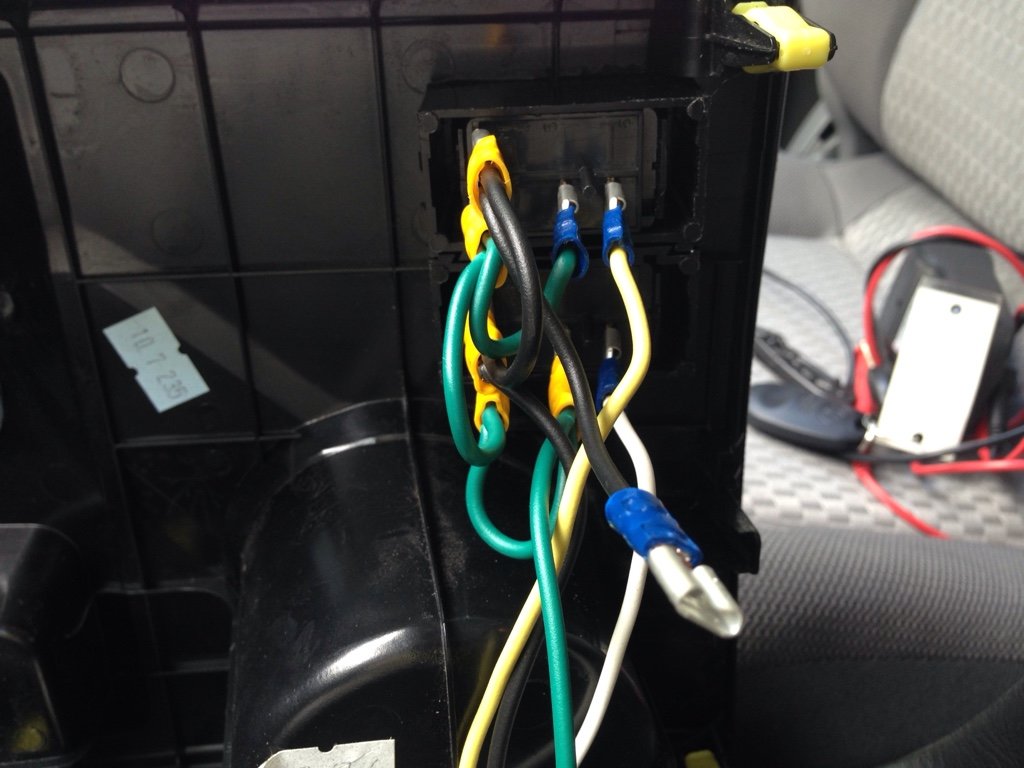

    It's possible. Just looking through my pics j believe this is where I left things.

    Green = add a fuse
    Black = ground
    White = trigger to my ditch light relay
    Yellow = trigger to my off road lights



  18. Jul 7, 2015 at 2:39 PM
    #178
    MTopp

    MTopp Professional bear handler

    Joined:
    Aug 12, 2013
    Member:
    #110295
    Messages:
    5,816
    Gender:
    Male
    First Name:
    Matt
    North NJ
    Vehicle:
    05 SR5 4x4
    trifecta tonneau, pop n' lock, Depo black bezel headlights, mb 352 wheels, 265/75r16 cooper at3s, visors, colormatched 2011 grille with raptor LEDs, much LEDs in and out Future/wanted: black valence, hood scoop, catback, CAI, 285/75r16s, OMD leaf pack mod
    So it is an SPDT switch? single pole, double throw? EDIT: I saw your other post that said it wasn't

    Last edited: Jul 7, 2015
  19. Jul 7, 2015 at 2:41 PM
    #179
    MTopp

    MTopp Professional bear handler

    Joined:
    Aug 12, 2013
    Member:
    #110295
    Messages:
    5,816
    Gender:
    Male
    First Name:
    Matt
    North NJ
    Vehicle:
    05 SR5 4x4
    trifecta tonneau, pop n' lock, Depo black bezel headlights, mb 352 wheels, 265/75r16 cooper at3s, visors, colormatched 2011 grille with raptor LEDs, much LEDs in and out Future/wanted: black valence, hood scoop, catback, CAI, 285/75r16s, OMD leaf pack mod
    Also, what slot are you tapping into for the fuse?

  20. Jul 7, 2015 at 2:52 PM
    #180
    euroshowoff

    euroshowoff Well-Known Member

    Joined:
    Oct 27, 2014
    Member:
    #141133
    Messages:
    506
    Gender:
    Male
    Stafford, VA
    Vehicle:
    15 Superwhite DCSB 4x4 V6
    Toytec lift, Trailgear sliders, CBI ditch light brackets, Trailtoys LED ditch lights, Trailtoys LED reverse pods, Custom Roll-Bar, TRD skid plate, TRD sport grill, TRD custom bedsides, Custom BlueSea wiring block, OTTRAW Rockers, Pro Comp 7036, BFGoodrich KO2s, Bestop soft topper,VIAIR 88p
    Spst switch.

    Tapping off the 7.5 acc
