HOW-TO: Snorkel on a Budget - Tips and Advice

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Benson X, Sep 17, 2015.

  1. Sep 6, 2017 at 2:40 PM
    #161
    SlashMTB10

    SlashMTB10 Well-Known Member

    Joined:
    Mar 7, 2017
    Member:
    #212562
    Messages:
    193
    Gender:
    Male
    First Name:
    Ryan
    Southeast, CT
    Vehicle:
    2006 Toyota Tacoma DBL LB
    ICON Stage 4 w/ Tubular Upper Control Arms, Old Man EMU leaf pack, pro comp wheels w/ Cooper STT Maxx's, Pelfreybilt steel plate bumper, RCI skids, 4xinnovations sliders, custom built bed rack, ROAM Adventure CO. RTT and awning.
    do you have any pictures inside the engine compartment? plumbing wise?

  2. Sep 6, 2017 at 3:25 PM
    #162
    inesshell

    inesshell blah blah blah

    Joined:
    Aug 2, 2011
    Member:
    #60986
    Messages:
    7,142
    Vehicle:
    All stock Superwhite 10' AC
    changing the air filter will be a pita with this setup

  3. Sep 6, 2017 at 3:37 PM
    #163
    SlashMTB10

    SlashMTB10 Well-Known Member

    Joined:
    Mar 7, 2017
    Member:
    #212562
    Messages:
    193
    Gender:
    Male
    First Name:
    Ryan
    Southeast, CT
    Vehicle:
    2006 Toyota Tacoma DBL LB
    ICON Stage 4 w/ Tubular Upper Control Arms, Old Man EMU leaf pack, pro comp wheels w/ Cooper STT Maxx's, Pelfreybilt steel plate bumper, RCI skids, 4xinnovations sliders, custom built bed rack, ROAM Adventure CO. RTT and awning.
    uh oh, that reminds me, i have an aftermarket k&n intake. i wonder if there's a way to be an in-line filter in somehow.

  4. Sep 6, 2017 at 3:43 PM
    #164
    SlashMTB10

    SlashMTB10 Well-Known Member

    Joined:
    Mar 7, 2017
    Member:
    #212562
    Messages:
    193
    Gender:
    Male
    First Name:
    Ryan
    Southeast, CT
    Vehicle:
    2006 Toyota Tacoma DBL LB
    ICON Stage 4 w/ Tubular Upper Control Arms, Old Man EMU leaf pack, pro comp wheels w/ Cooper STT Maxx's, Pelfreybilt steel plate bumper, RCI skids, 4xinnovations sliders, custom built bed rack, ROAM Adventure CO. RTT and awning.
  5. Sep 6, 2017 at 8:18 PM
    #165
    inesshell

    inesshell blah blah blah

    Joined:
    Aug 2, 2011
    Member:
    #60986
    Messages:
    7,142
    Vehicle:
    All stock Superwhite 10' AC
  6. Sep 7, 2017 at 7:10 AM
    #166
    inesshell

    inesshell blah blah blah

    Joined:
    Aug 2, 2011
    Member:
    #60986
    Messages:
    7,142
    Vehicle:
    All stock Superwhite 10' AC
  7. Sep 7, 2017 at 8:18 AM
    #167
    SlashMTB10

    SlashMTB10 Well-Known Member

    Joined:
    Mar 7, 2017
    Member:
    #212562
    Messages:
    193
    Gender:
    Male
    First Name:
    Ryan
    Southeast, CT
    Vehicle:
    2006 Toyota Tacoma DBL LB
    ICON Stage 4 w/ Tubular Upper Control Arms, Old Man EMU leaf pack, pro comp wheels w/ Cooper STT Maxx's, Pelfreybilt steel plate bumper, RCI skids, 4xinnovations sliders, custom built bed rack, ROAM Adventure CO. RTT and awning.
    I'm excited to install mine once I receive it after seeing @inesshell install. I'm going to attempt to plumb it into my existing k&n intake. Might have to get creative.

  8. Sep 7, 2017 at 8:22 AM
    #168
    inesshell

    inesshell blah blah blah

    Joined:
    Aug 2, 2011
    Member:
    #60986
    Messages:
    7,142
    Vehicle:
    All stock Superwhite 10' AC

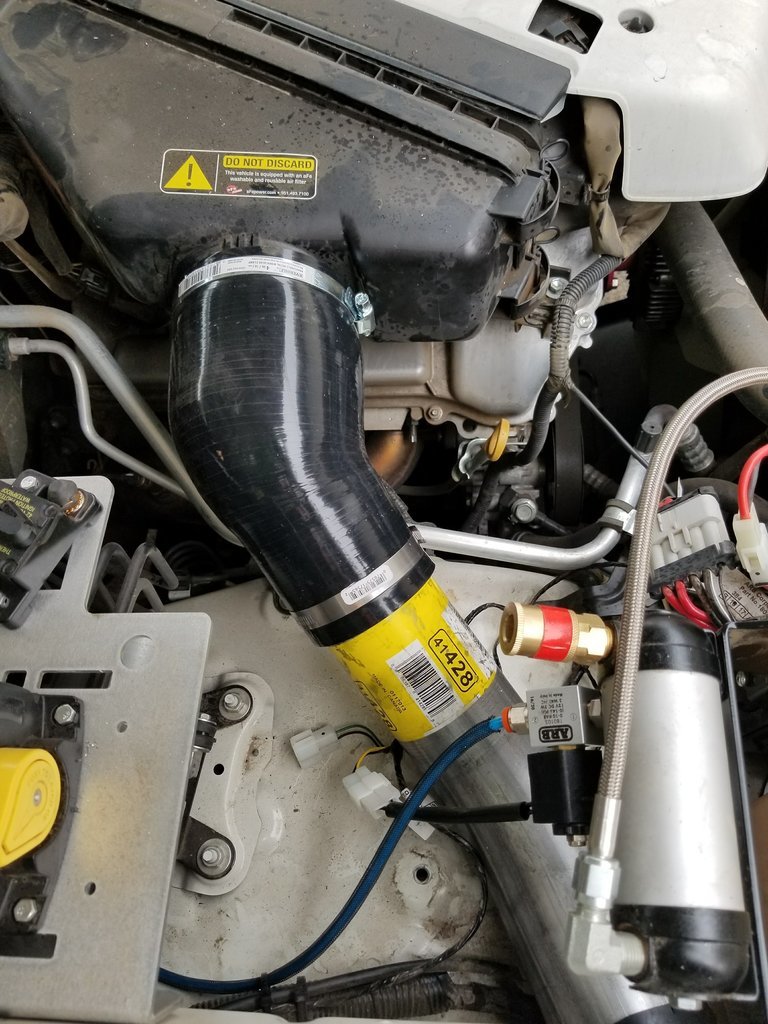

    will be easy to plumb it into your intake, thats what the existing arb ones do, the fit on mine is quite good but like everyone has stated, there is a small gap in front that can be filled with rtv or butyl if it bothers you

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  9. Sep 7, 2017 at 8:38 AM
    #169
    SlashMTB10

    SlashMTB10 Well-Known Member

    Joined:
    Mar 7, 2017
    Member:
    #212562
    Messages:
    193
    Gender:
    Male
    First Name:
    Ryan
    Southeast, CT
    Vehicle:
    2006 Toyota Tacoma DBL LB
    ICON Stage 4 w/ Tubular Upper Control Arms, Old Man EMU leaf pack, pro comp wheels w/ Cooper STT Maxx's, Pelfreybilt steel plate bumper, RCI skids, 4xinnovations sliders, custom built bed rack, ROAM Adventure CO. RTT and awning.
    looks awesome!

  10. Sep 10, 2017 at 7:46 AM
    #170
    SlashMTB10

    SlashMTB10 Well-Known Member

    Joined:
    Mar 7, 2017
    Member:
    #212562
    Messages:
    193
    Gender:
    Male
    First Name:
    Ryan
    Southeast, CT
    Vehicle:
    2006 Toyota Tacoma DBL LB
    ICON Stage 4 w/ Tubular Upper Control Arms, Old Man EMU leaf pack, pro comp wheels w/ Cooper STT Maxx's, Pelfreybilt steel plate bumper, RCI skids, 4xinnovations sliders, custom built bed rack, ROAM Adventure CO. RTT and awning.
    Ok, the snorkel is the only thing I'm waiting on now. Shipped a couple days ago from China. I've got the rest of the pieces I think I will need to, hopefully. I hate getting into a project and then realizing you're missing something causing the project to be put on hold. Here's my idea... since I have a K&N intake already, I'm going to try and cut it down and eliminate the s curve in it, leaving enough room to stick a coupler on before the MAF sensor. I will attach this part of the intake directly to the throttle body and then attach the inline air filter I have to the other end. I will use some 3" tubing to make up any gaps to the snorkel. It looks as if the opening in the inner fender is in a straight line with the throttle body. So here's another question. The crank case breather hose that is running off the intake tube to the top of the crank case, can I eliminate that hose and stick a filter directly to the crank case vent port?? If I cut down the intake tube, the hose outlet on the intake will be eliminated. Here are a couple of pictures. Thanks for any help!!

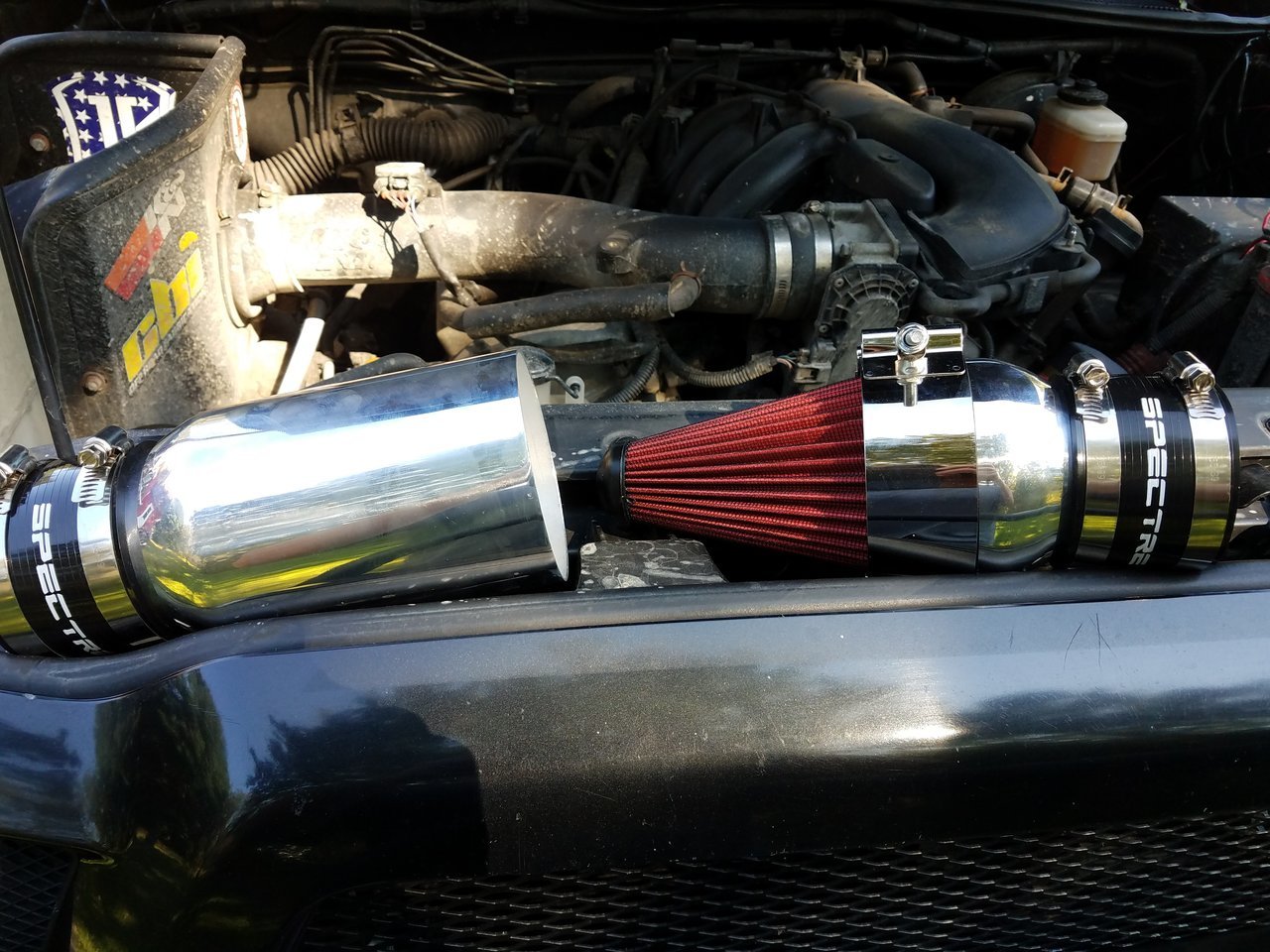

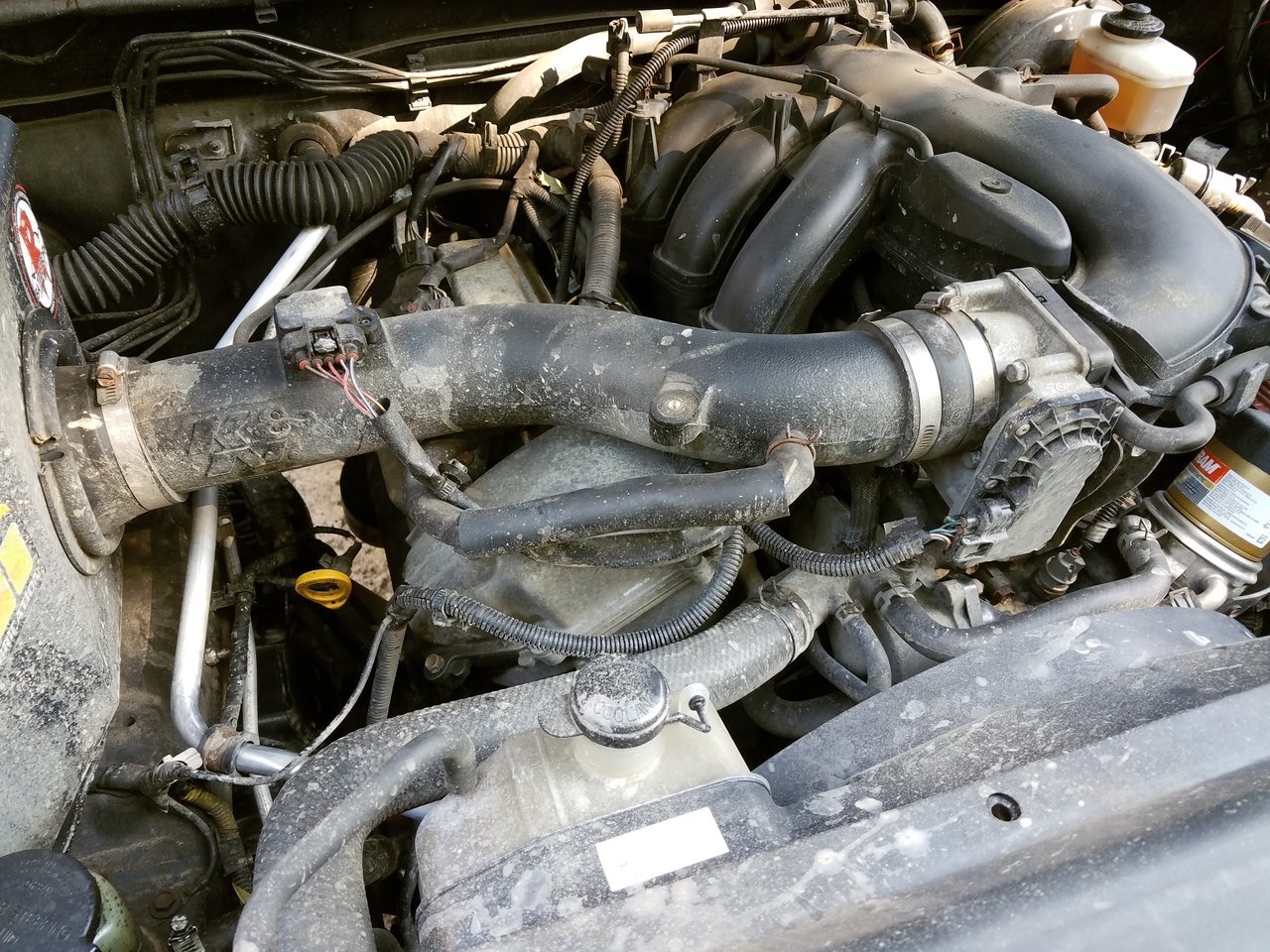

    crank case breather hose.jpg inline filter.jpg inline filter 2.jpg

    inesshell likes this.
  11. Sep 10, 2017 at 7:49 AM
    #171
    fatfurious2

    fatfurious2 IG: great_white_taco

    Joined:
    Jun 28, 2014
    Member:
    #132884
    Messages:
    43,364
    Gender:
    Male
    First Name:
    David
    Ashburn, VA
    Vehicle:
    2010 TRD OR Access Cab
  12. Sep 12, 2017 at 4:22 AM
    #172
    SlashMTB10

    SlashMTB10 Well-Known Member

    Joined:
    Mar 7, 2017
    Member:
    #212562
    Messages:
    193
    Gender:
    Male
    First Name:
    Ryan
    Southeast, CT
    Vehicle:
    2006 Toyota Tacoma DBL LB
    ICON Stage 4 w/ Tubular Upper Control Arms, Old Man EMU leaf pack, pro comp wheels w/ Cooper STT Maxx's, Pelfreybilt steel plate bumper, RCI skids, 4xinnovations sliders, custom built bed rack, ROAM Adventure CO. RTT and awning.
    Well... came home from work yesterday to a large package sitting on the back porch. Yes, the snorkel has arrived! Only took like 3-4 days, from China! The mail lady even left me a note saying she signed for the package so I wouldn't have to go to the post office to pick it up (work hours would make it hard to do so.) All of the intake plumbing is gathered. Friday is the planned install day! Whoo!

  13. Sep 28, 2017 at 8:55 PM
    #173
    RipcurlUSC

    RipcurlUSC Well-Known Member

    Joined:
    May 23, 2017
    Member:
    #219761
    Messages:
    79
    Gender:
    Male
    First Name:
    Jesse
    SoCal
    Vehicle:
    2006 DCSB 4.0 4X4 Black
    Stuff here and there. Built not Bought. Fabbing w/o Fibbing
    I'm about to do mine once I get the balls and/or drunk enough. I'm noticing some guys are going with the flexi tube rather than the mandrel and silicon tubes. Any real difference in performance? Seems easier to route but obviously not as rigid.

    I'd also like to stay as low and close to the top of the wheel well to conserve space and hopefully have enough room to fab a bracket/plate for my arb twin compressor above it and then run the manifold on the other side of the ABS unit. Can anyone let me know if they think there is enough room above the tubes?
    @inesshell or @adriancast maybe some thoughts?

    I don't really want to relocate the washer reservoir and mount the compressor sideways. I guess I can always move the breaker/relay panel to the pass side and try the compressor by the stock fuse box area.

    Anyway, any input, thoughts or advice is appreciated.

    Btw, I found the same 167 kit that has the thicker plastic on alibaba for $87. I had to haggle with the lady but she finally caved. She thinks I'm coming back to place a bulk order once I inspect this one. Ha. Cheers

  14. Sep 28, 2017 at 10:28 PM
    #174
    inesshell

    inesshell blah blah blah

    Joined:
    Aug 2, 2011
    Member:
    #60986
    Messages:
    7,142
    Vehicle:
    All stock Superwhite 10' AC
    I have my manifold and twin compressor sideways with the sled mount and there is plenty of room, it sits very low to the fender. Much lower compared to stock airbox.

    I use the pelfrey mount to mount my acr above the abs. Performance wise you won't be able to tell the difference since the limiting air factor here is still the 2" throttle body. Where it did make a.significance is the variance with ambient temps.

  15. Sep 29, 2017 at 8:01 AM
    #175
    badger

    badger Well-Known Member

    Joined:
    Jan 6, 2012
    Member:
    #70102
    Messages:
    2,091
    Gender:
    Male
    Vehicle:
    07 SR5
  16. Sep 29, 2017 at 8:45 AM
    #176
    inesshell

    inesshell blah blah blah

    Joined:
    Aug 2, 2011
    Member:
    #60986
    Messages:
    7,142
    Vehicle:
    All stock Superwhite 10' AC
    you still need an elbow, those supplied is not long enough to reach the coupler

  17. Sep 29, 2017 at 8:46 AM
    #177
    inesshell

    inesshell blah blah blah

    Joined:
    Aug 2, 2011
    Member:
    #60986
    Messages:
    7,142
    Vehicle:
    All stock Superwhite 10' AC
    in addition, that 25 series might cost you more to mod, mine ran 115 alone for the 167 kit without the coupling and elbow

  18. Sep 29, 2017 at 8:51 AM
    #178
    inesshell

    inesshell blah blah blah

    Joined:
    Aug 2, 2011
    Member:
    #60986
    Messages:
    7,142
    Vehicle:
    All stock Superwhite 10' AC
    fitted an enginaire to mine


    davidwer07 and Stewbuff like this.
  19. Sep 29, 2017 at 9:22 AM
    #179
    Mr. Projekt

    Mr. Projekt Well-Known Member

    Joined:
    Oct 23, 2016
    Member:
    #200511
    Messages:
    6,599
    Gender:
    Male
    First Name:
    Caleb
    Harpers Ferry, WV
    Vehicle:
    2021 DCLB TRD-OR 4x4 Army Green
    looks great man! I hope mine looks half as clean that yours does

    inesshell likes this.
  20. Sep 29, 2017 at 9:30 AM
    #180
    inesshell

    inesshell blah blah blah

    Joined:
    Aug 2, 2011
    Member:
    #60986
    Messages:
    7,142
    Vehicle:
    All stock Superwhite 10' AC
    measure lots and cut lol. a custom template that matches the shape of the snorkel and antennae notch helps...
