How to test coil pack

Discussion in '1st Gen. Tacomas (1995-2004)' started by vettehigh, Aug 19, 2019.

  1. Aug 19, 2019 at 6:21 AM
    #1
    vettehigh

    vettehigh [OP] Tacoma Tank

    Joined:
    Oct 25, 2017
    Member:
    #234045
    Messages:
    773
    Gender:
    Male
    First Name:
    Jon
    Upstate, NY
    Saturday I was catching the highway and when I hit 65, the engine started to lose power and bog down to 45. After 10 seconds or so, the engine was back to normal and up to speed. Wonder if one of the coils are bad. I can get the DENSO 6731201 coils for about $55 each. Might just get all 3 OEM's for $175 shipped

    Note, 2 of the coils are OEM and 1 is aftermarket. I have no idea how old the coils are, but I would say they have been on for a long while.

    New OEM plugs and wires were installed last year along with OEM fuel filter

    95.5 4x4 V6

    Last edited: Aug 19, 2019
    GQ7227 likes this.
  2. Aug 19, 2019 at 7:11 AM
    #2
    GQ7227

    GQ7227 mw survivor

    Joined:
    Dec 6, 2018
    Member:
    #275019
    Messages:
    30,898
    Gender:
    Male
    First Name:
    J A Y
    309km east of Hazard ...the good life
    Vehicle:
    '97 black SR5 0g ~ MT @ 176k ...
    black woolWax, green IFC, borlaCB, custom Line-X PC drums, skid, nuts, hooks, 1/4 silver frame...
    i have yet to come across what the 'approximate' lifespan is of the coils (years or mileage)
    does anybody know?

  3. Aug 19, 2019 at 8:37 AM
    #3
    Area51Runner

    Area51Runner Well-Known Member

    Joined:
    Jun 26, 2014
    Member:
    #132748
    Messages:
    8,573
    Gender:
    Male
    Northern California
    Vehicle:
    '02 3.4l DC w/OME kit, SPCs, S/T Maxx 255/85/16s
    If it was just that one time, I'd wait and see. If its happening more than once - then yeah, start figuring out possibles.

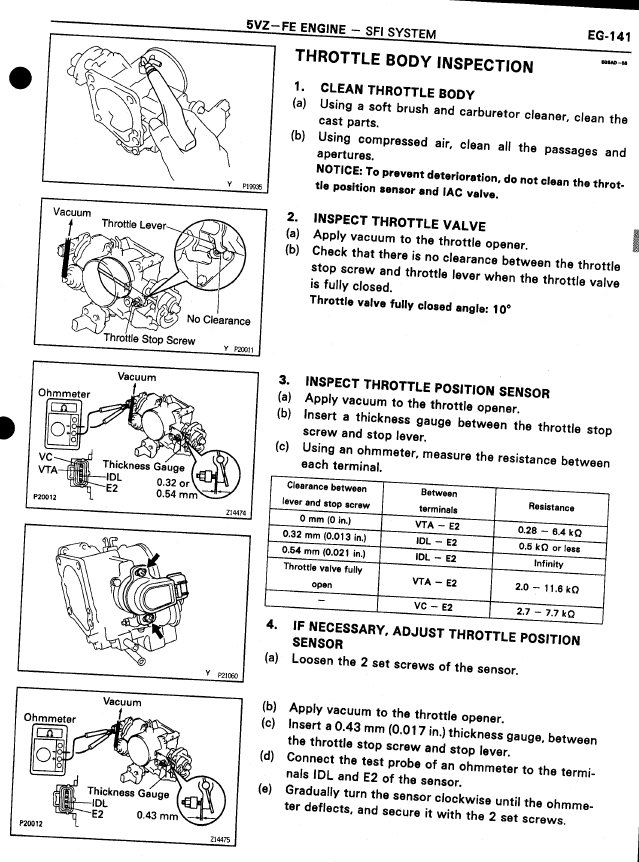

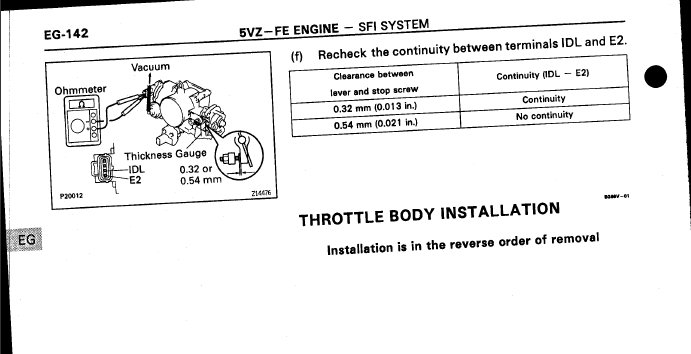

    If you're going to replace coil packs, I'd replace the aftermarket first. Denso is fine - its OEM. When was the last time you cleaned the throttle body?

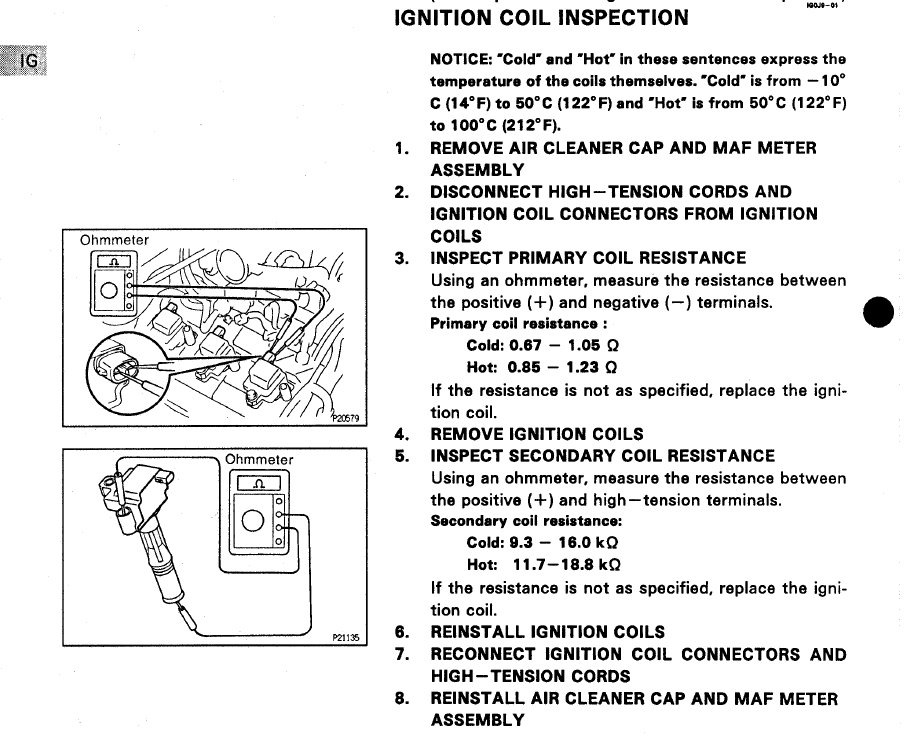

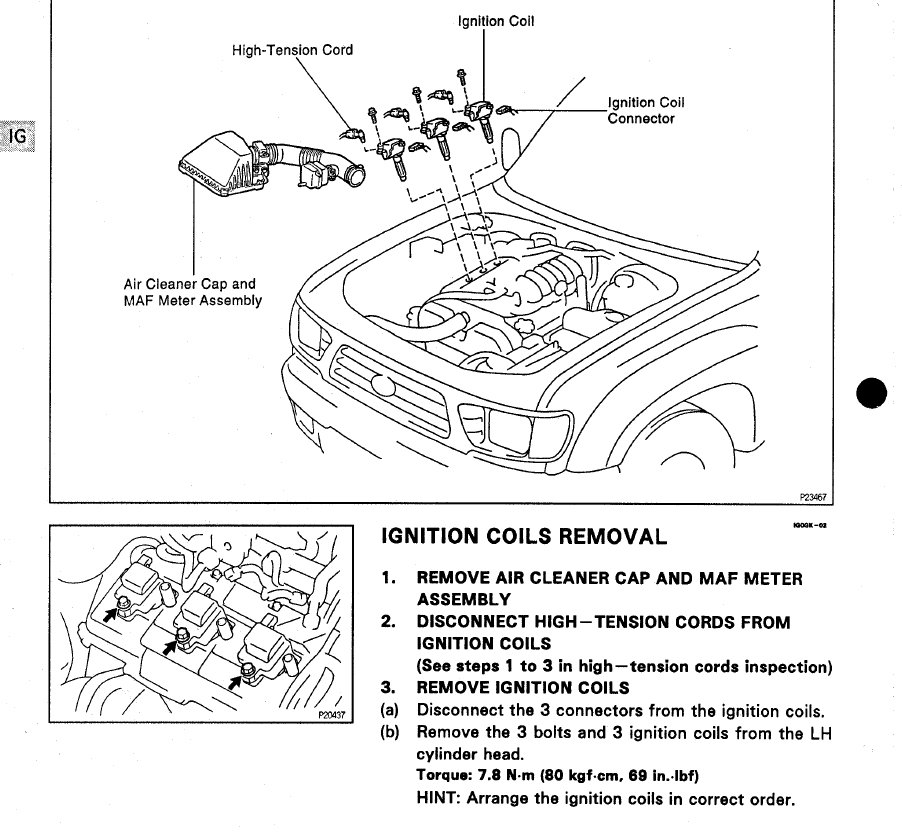

    See below for testing - snapshot from the 96 FSM











    GQ7227 likes this.
  4. Aug 19, 2019 at 8:46 AM
    #4
    skeezix

    skeezix Well-Known Member

    Joined:
    Oct 31, 2010
    Member:
    #45512
    Messages:
    1,625
    Gender:
    Male
    Colorado
    Vehicle:
    1998 Limited
    I would go to O'Reilly Auto or Autozone and get a free OBD readout first. It could be an injector beginning to go out. In any event, it's good to know a bit more about what's going on.

  5. Aug 19, 2019 at 8:47 AM
    #5
    vettehigh

    vettehigh [OP] Tacoma Tank

    Joined:
    Oct 25, 2017
    Member:
    #234045
    Messages:
    773
    Gender:
    Male
    First Name:
    Jon
    Upstate, NY
    Where do you even plug in the OBD on my 95.5?

  6. Aug 19, 2019 at 8:51 AM
    #6
    Area51Runner

    Area51Runner Well-Known Member

    Joined:
    Jun 26, 2014
    Member:
    #132748
    Messages:
    8,573
    Gender:
    Male
    Northern California
    Vehicle:
    '02 3.4l DC w/OME kit, SPCs, S/T Maxx 255/85/16s
    Is your check engine light on?

  7. Aug 19, 2019 at 8:53 AM
    #7
    vettehigh

    vettehigh [OP] Tacoma Tank

    Joined:
    Oct 25, 2017
    Member:
    #234045
    Messages:
    773
    Gender:
    Male
    First Name:
    Jon
    Upstate, NY
    Nope

  8. Aug 19, 2019 at 9:02 AM
    #8
    0xDEADBEEF

    0xDEADBEEF Where are we going? Why am I in this handbasket?

    Joined:
    Mar 2, 2019
    Member:
    #285037
    Messages:
    8,131
    Kansas City
    Vehicle:
    2000 4WD MT Single Cab
    Rust, dents, miles, extra metal.
    How smoothly does it idle? Has it done this more than once? Intermittent bogging like that feels like another problem, possibly fuel or something.

  9. Aug 19, 2019 at 9:04 AM
    #9
    skeezix

    skeezix Well-Known Member

    Joined:
    Oct 31, 2010
    Member:
    #45512
    Messages:
    1,625
    Gender:
    Male
    Colorado
    Vehicle:
    1998 Limited
    I don't know where the 1995.5 OBD plug is, but the tech who checks it does. Maybe somebody else here can help?

    I also don't know what the parameters are to get the CEL to come on. It comes on as soon as the key engine starts in some cases, but in others it takes awhile (like, um, 100- 200 miles or so, or a certain number of start-ups). When mine came on, it would go off after driving about 10 miles, but would come back on after I turned the engine off and let it set for 10 minutes. After I found and fixed my problem, the CEL stayed off for another 150 or so miles, then it came back on, and stayed on, whenever the engine was running. Go figger...:notsure:

  10. Aug 19, 2019 at 9:13 AM
    #10
    vettehigh

    vettehigh [OP] Tacoma Tank

    Joined:
    Oct 25, 2017
    Member:
    #234045
    Messages:
    773
    Gender:
    Male
    First Name:
    Jon
    Upstate, NY
    I'll be getting the coils in Wed, and I'll report back. Wanted to change them when I bought the truck back in 17 becasue I changed almost everything else :thumbsup:

  11. Aug 19, 2019 at 9:16 AM
    #11
    Area51Runner

    Area51Runner Well-Known Member

    Joined:
    Jun 26, 2014
    Member:
    #132748
    Messages:
    8,573
    Gender:
    Male
    Northern California
    Vehicle:
    '02 3.4l DC w/OME kit, SPCs, S/T Maxx 255/85/16s
    Then not much is going to be had with the scanner. If your CEL is on then I'd say grab a scanner and check it out but not going to tell you anything at this point. CEL light is going to come on and stay on when the computer detects an issue.

    :cheers:

  12. Aug 19, 2019 at 9:19 AM
    #12
    Area51Runner

    Area51Runner Well-Known Member

    Joined:
    Jun 26, 2014
    Member:
    #132748
    Messages:
    8,573
    Gender:
    Male
    Northern California
    Vehicle:
    '02 3.4l DC w/OME kit, SPCs, S/T Maxx 255/85/16s
    The CEL should come on as soon as the ignition is in the ON position. A few seconds after the engine is started and running, it will go out. This is normal behavior.

    What you describe is not. Whatever issue you found and fixed is either back or wasn't the entire issue and something else is going on since it "came back on and stayed on after 150 miles or so". Go have autozone or wherever check it again and see what fault code shows up. Something is wonky.

  13. Aug 20, 2019 at 7:51 AM
    #13
    skeezix

    skeezix Well-Known Member

    Joined:
    Oct 31, 2010
    Member:
    #45512
    Messages:
    1,625
    Gender:
    Male
    Colorado
    Vehicle:
    1998 Limited
    The first time my CEL went on it was due to a faulty injector.

    The second time it turned on (and then stayed on whenever the engine was running) was caused by a vacuum leak. Thank gawd for whomever told me to use starter fluid and check for leaks! :thumbsup:

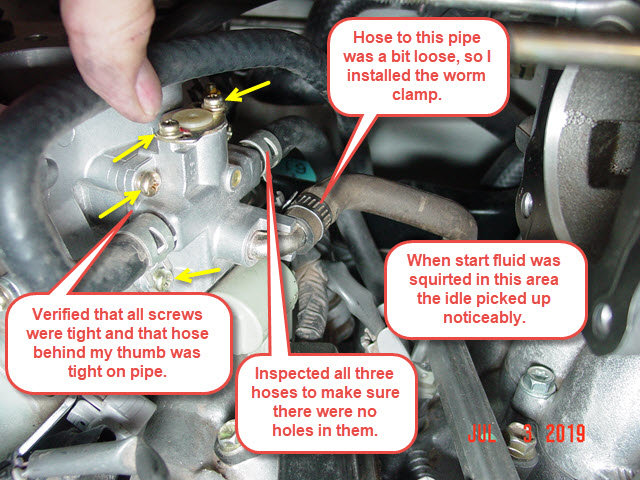

    20190703 Throttle Body Vacuum Lines 01 640 px.jpg
    Putting a clamp on the loose hose solved the problem. I never would have found it just by wiggling the hoses because that particular hose seemed tight to me.

    Kevins60 likes this.
  14. Aug 20, 2019 at 3:59 PM
    #14
    vettehigh

    vettehigh [OP] Tacoma Tank

    Joined:
    Oct 25, 2017
    Member:
    #234045
    Messages:
    773
    Gender:
    Male
    First Name:
    Jon
    Upstate, NY
    Just replaced all 3 coils via Denso along with new bolts. Of the 3 old coils: one was the original oem - another was oem, but probably 10+ years old - and the last was aftermarket, probably a few years old. Feel better all are new OEM

    CS_AR likes this.
