How To: Throttle body cleaning 2005+ V6

Discussion in 'Technical Chat' started by genxer36, May 23, 2010.

  1. genxer36

    genxer36 [OP] Lord of Tomfoolery

    Joined:
    Nov 13, 2007
    Member:
    #3442
    Messages:
    10,664
    Gender:
    Male
    First Name:
    Sean
    Bethlehem,GA
    Vehicle:
    2013 Toyota Camry SE - 2011 Tacoma traded
    Tow package, XM Satellite radio, K & N Air filter, & Channel Vent Visors
    This weekend I cleaned my throttle body.

    Items you will need: 10mm socket/wrench, rags, flat-head screwdriver,wire,wire cutters, Throttle body cleaner, MAF cleaner,tooth brush.

    [​IMG]

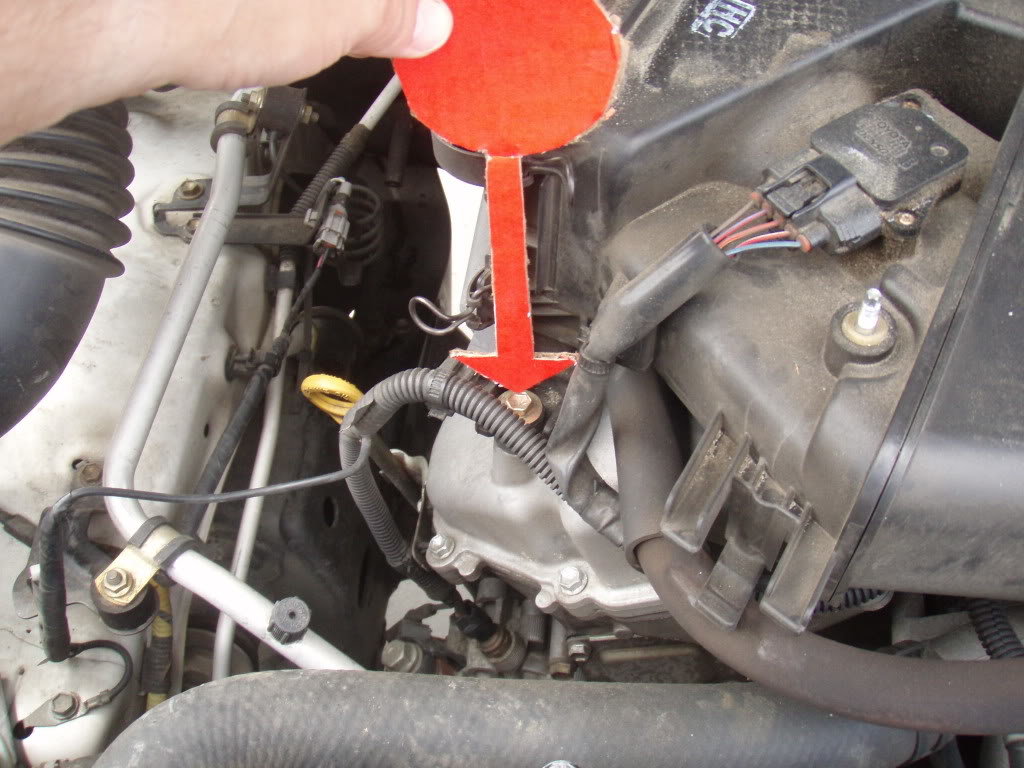

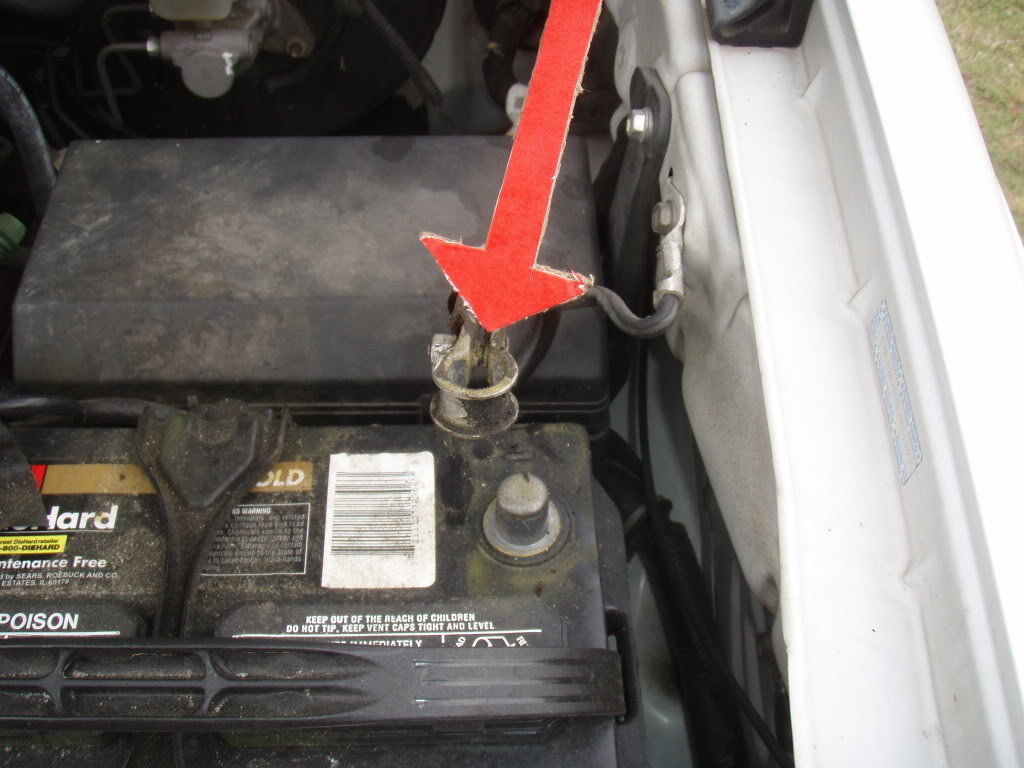

    First step: Remove the negative on your battery. I used the 10mm on this.

    [​IMG]

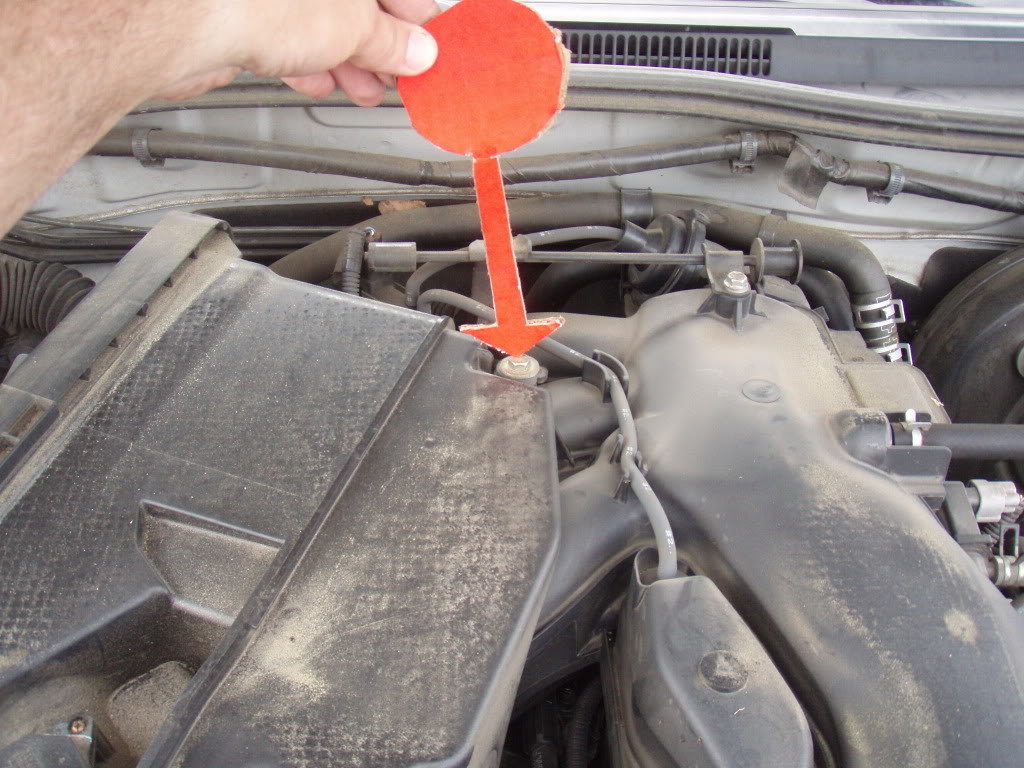

    Next: Remove the engine cover. There are 2 10mm nuts to remove.
    [​IMG]
    [​IMG]

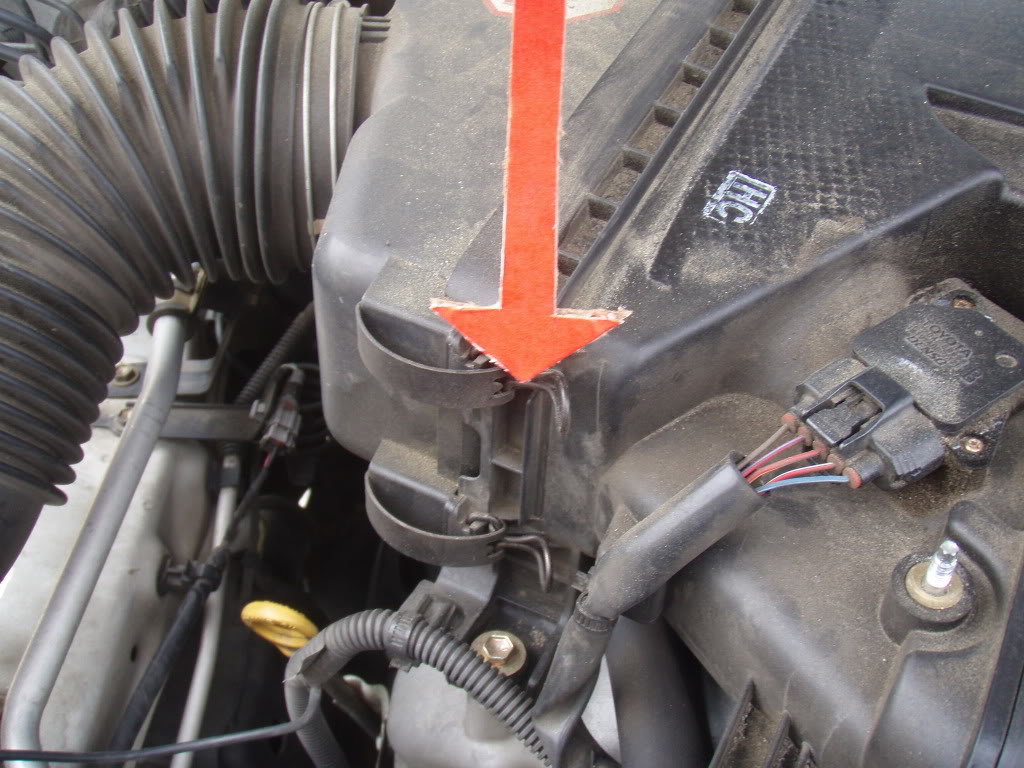

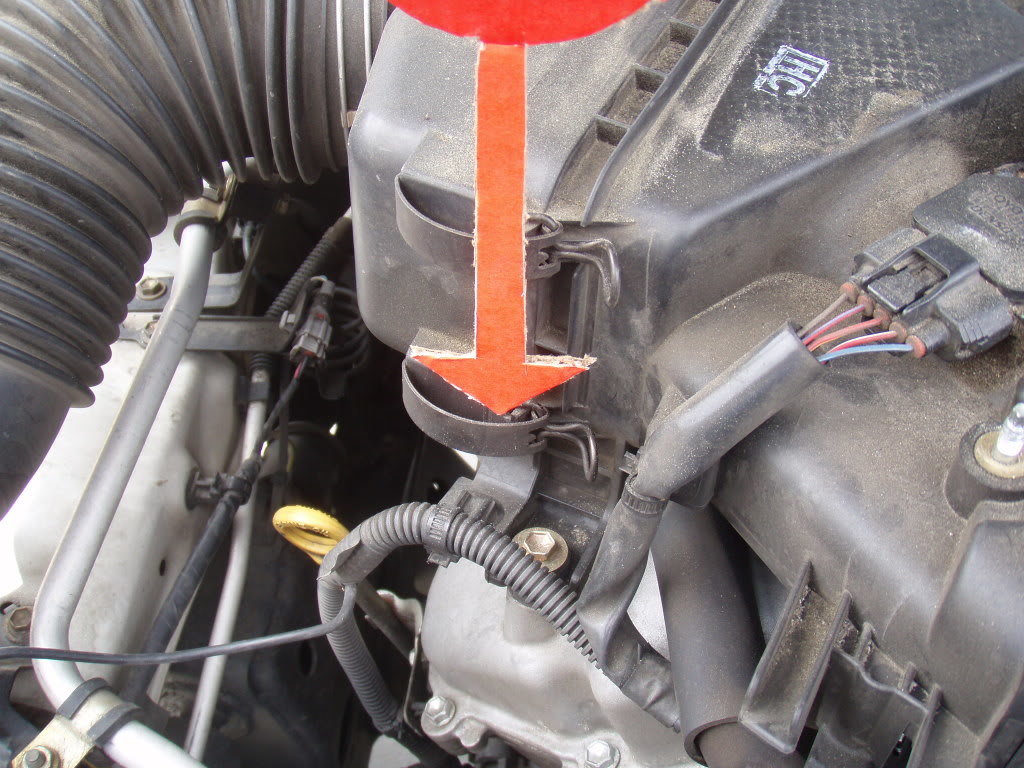

    Next: Disconnect both clips on the air cleaner housing.
    [​IMG]
    [​IMG]

    Remove the air filter. If it is a paper one, replace if needed. If it is the K&N filter like mine. Clean it with the cleaning kit as per directions on the kit.
    [​IMG]

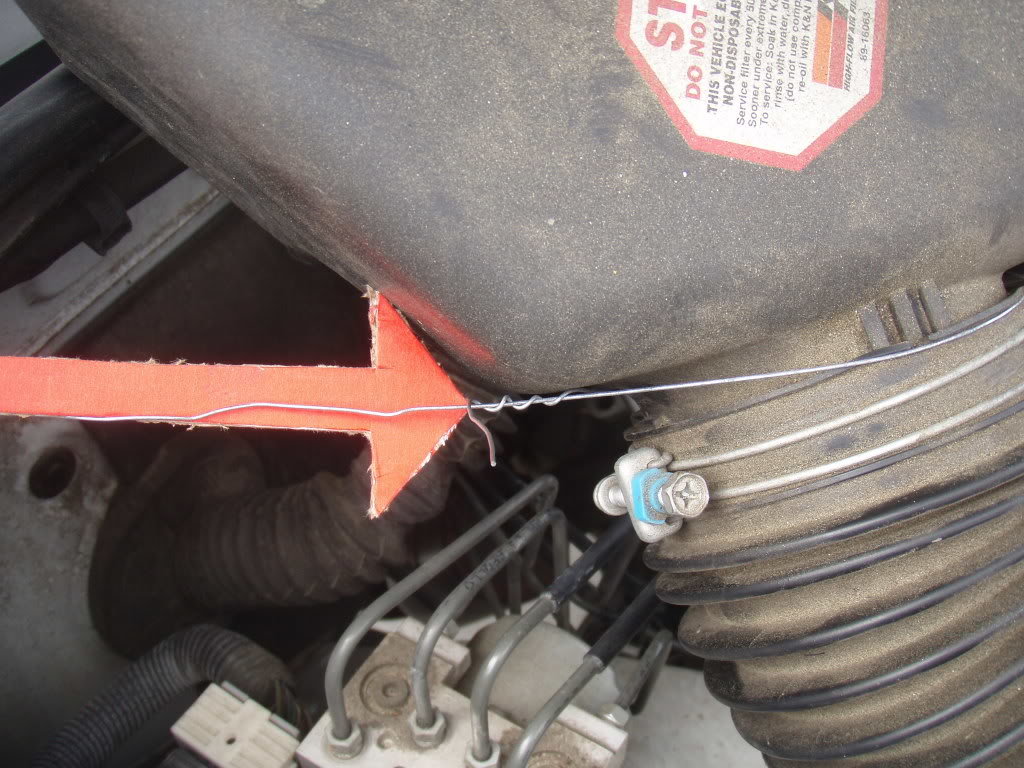

    I use wire to pull the air cleaner housing out of the way. Wrap wire around it & connect it to the base of my antenna. (The black cylinder thing on my antenna is my XM antenna)
    [​IMG]
    [​IMG]

    Next: Remove 2 bolts holding the MAF box.10mm socket
    [​IMG]
    [​IMG]

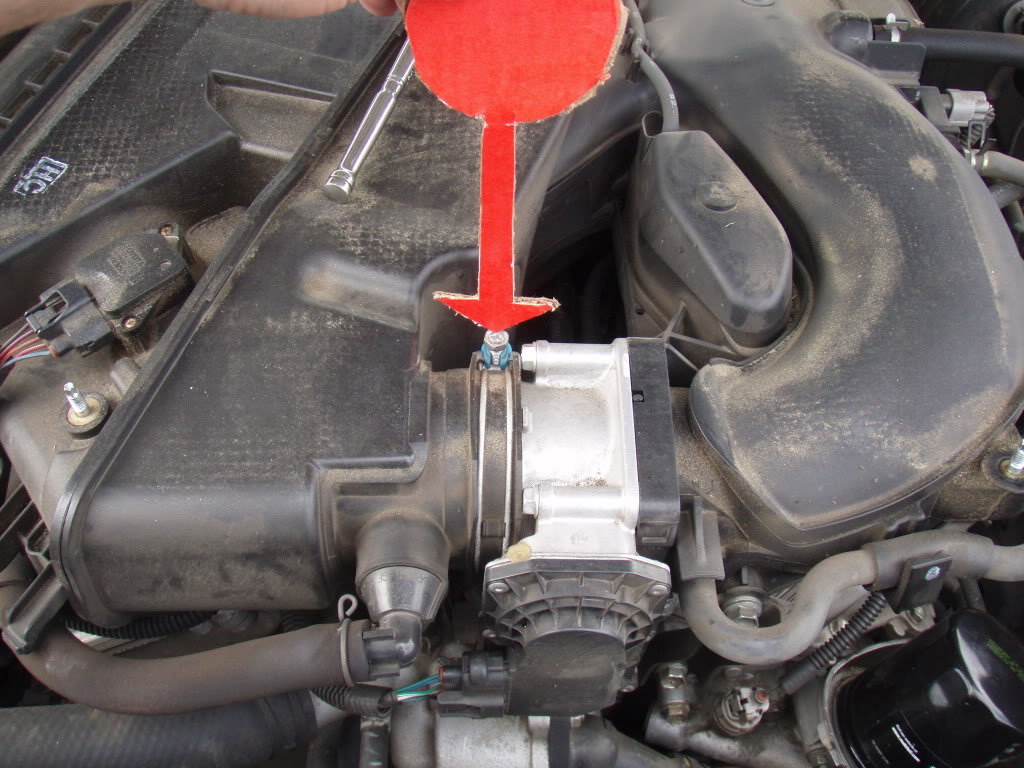

    Then loosen the screw -Either 10mm socket or phillips head screwdriver. I used the socket.
    [​IMG]

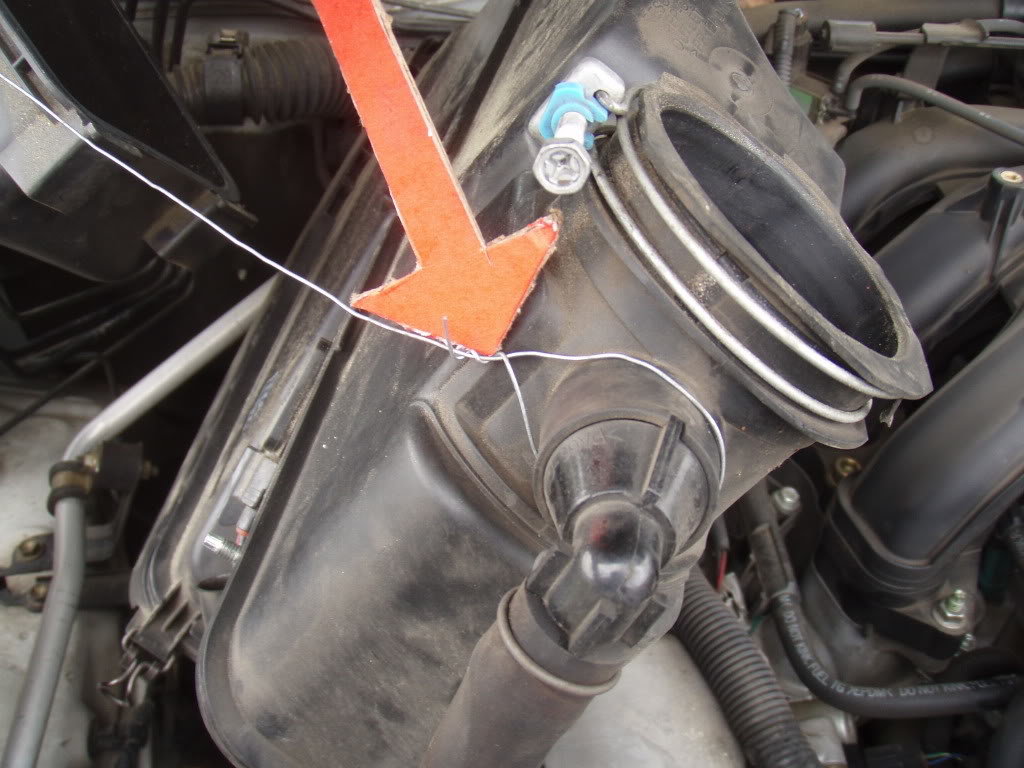

    Once the screw is loose, you need to wiggle the housing back & forth, pulling to the left. To remove the housing from the throttle body.

    Once removed. I use wire to pull it out of the way. Wrapped around the plastic neck, not the hose.
    [​IMG]

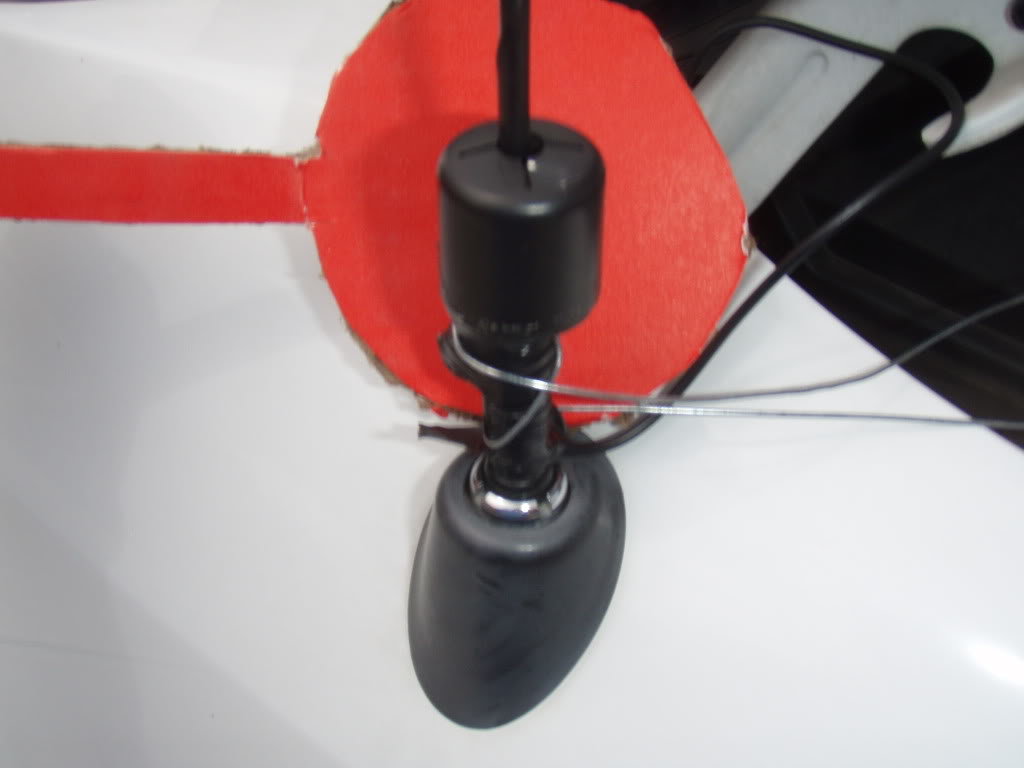

    Then I wrap it around the antenna base.
    [​IMG]

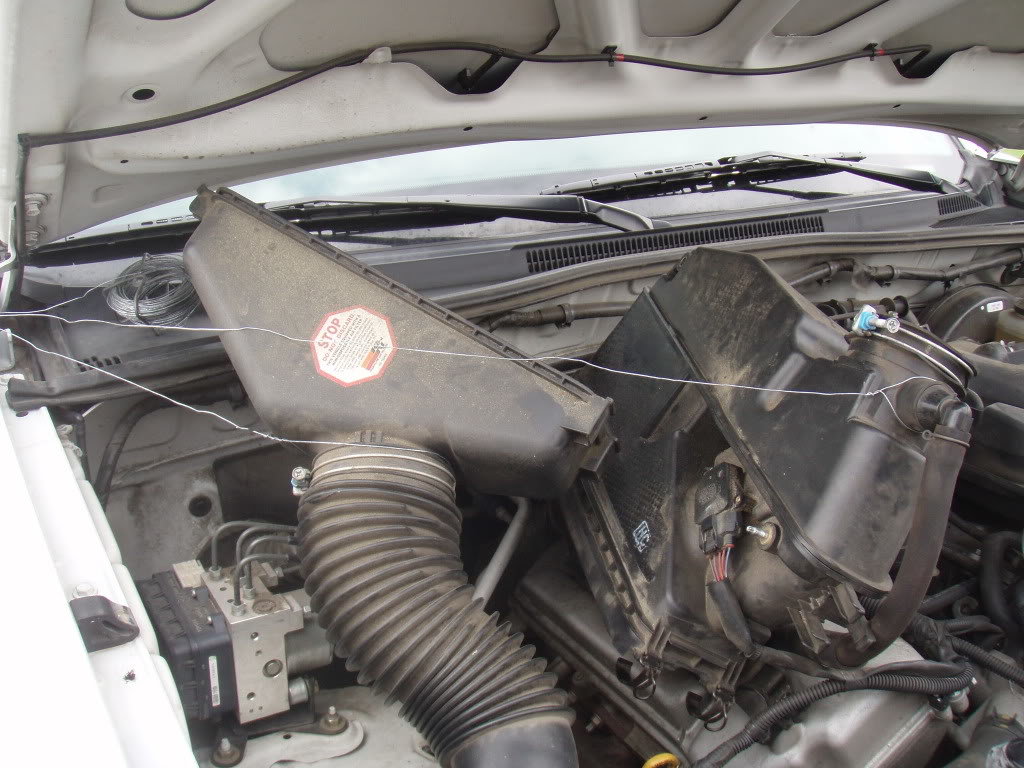

    Everything is out of the way without completely removing.
    [​IMG]

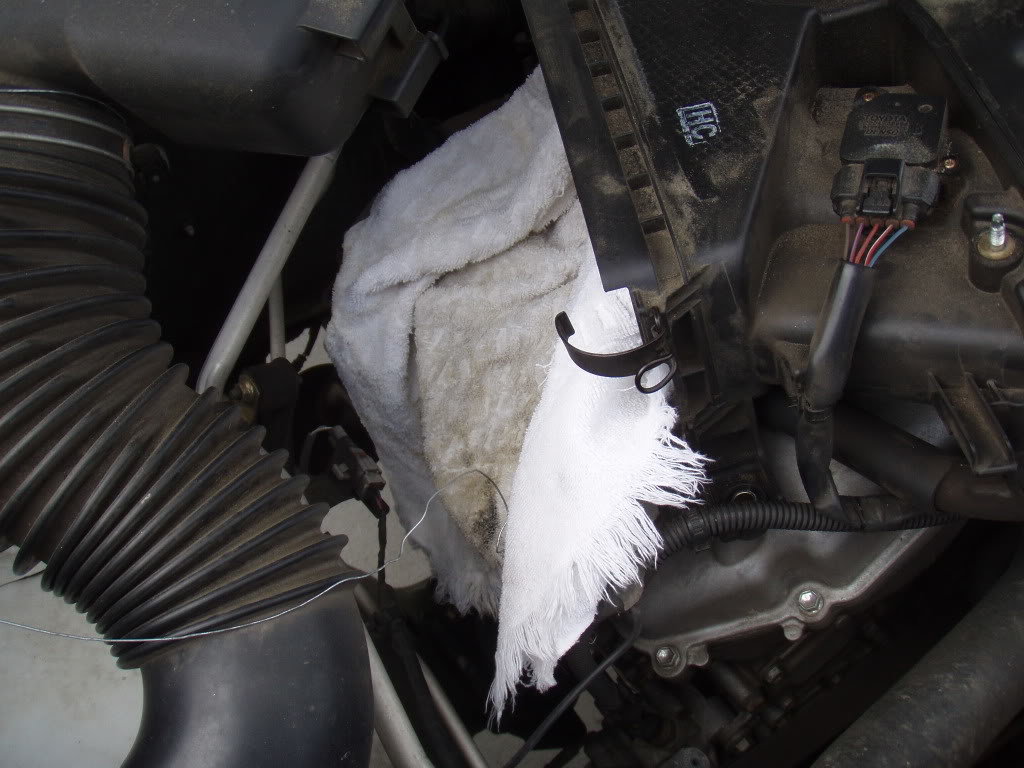

    Cleaning the MAF: I put a spare rag at the backend of the MAF housing.
    [​IMG]

    Then I spray the MAF cleaner into the housing onto the MAF sensor. It hangs down & has a circle on the end. Follow the directions on the can.DO NOT touch the sensor with the cleaner straw! DO NOT touch the MAF sensor with anything. Just spray it with MAF cleaner & only MAF cleaner. The MAF wires are very brittle & can break if touched. If you damage the MAF, it will be several hundred for a new one.
    [​IMG]

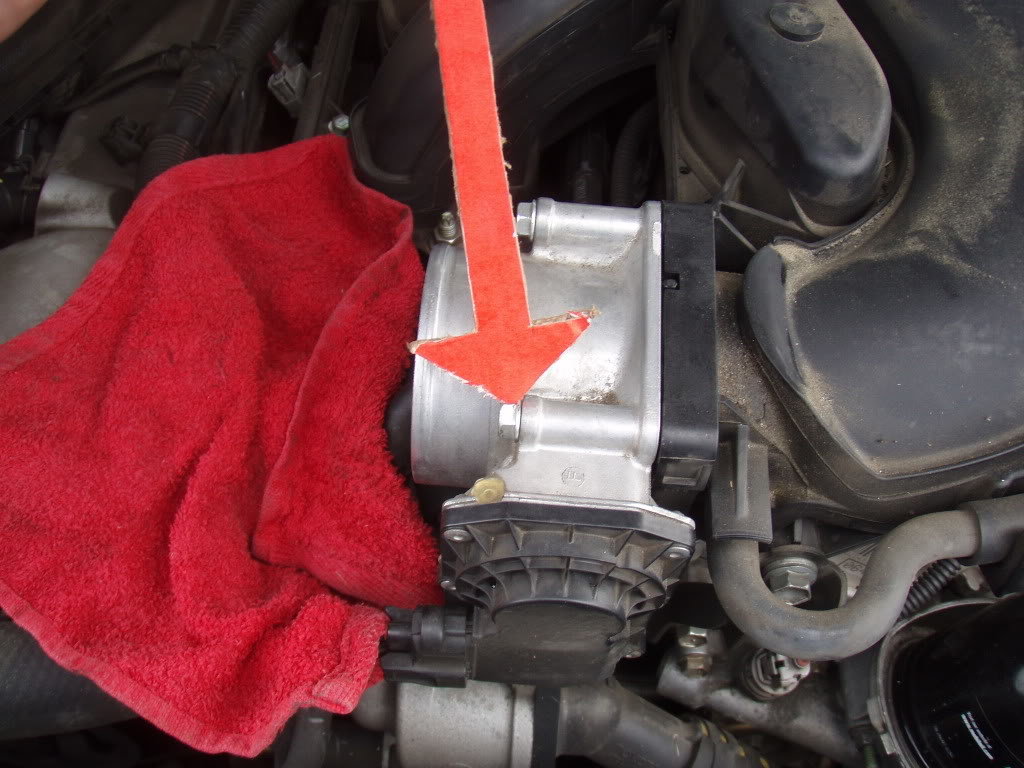

    This is the throttle body to be cleaned, inside it.
    [​IMG]

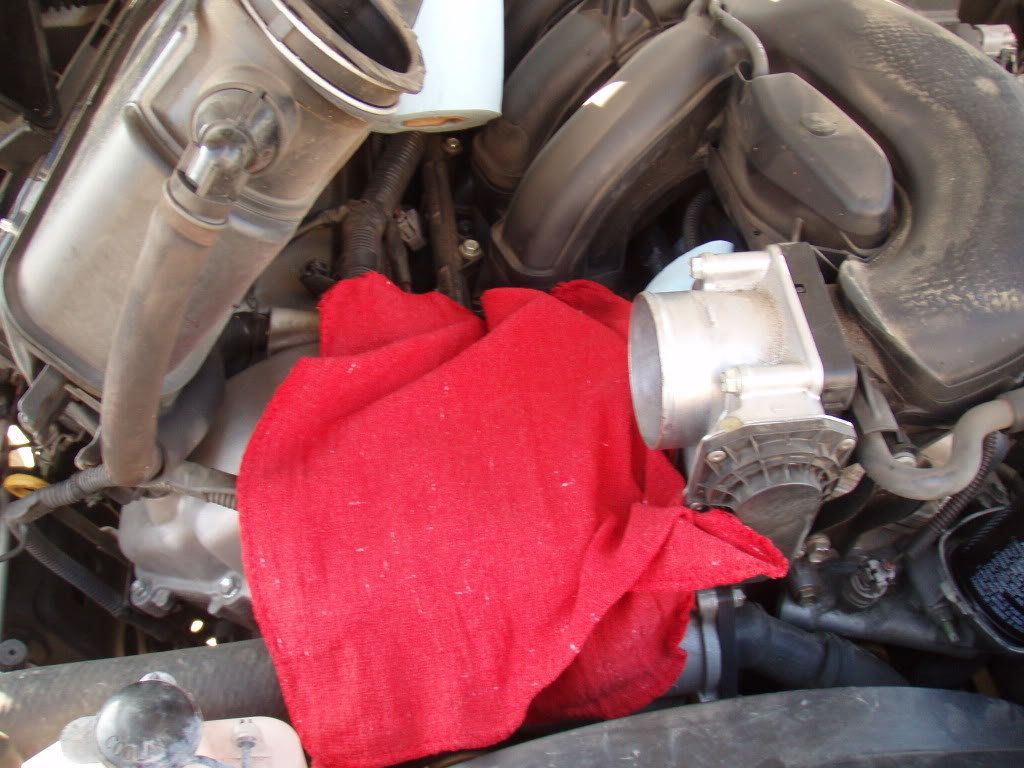

    On to cleaning the throttle body: I lay a rag on the engine below the throttle body to catch any drippings.
    [​IMG]

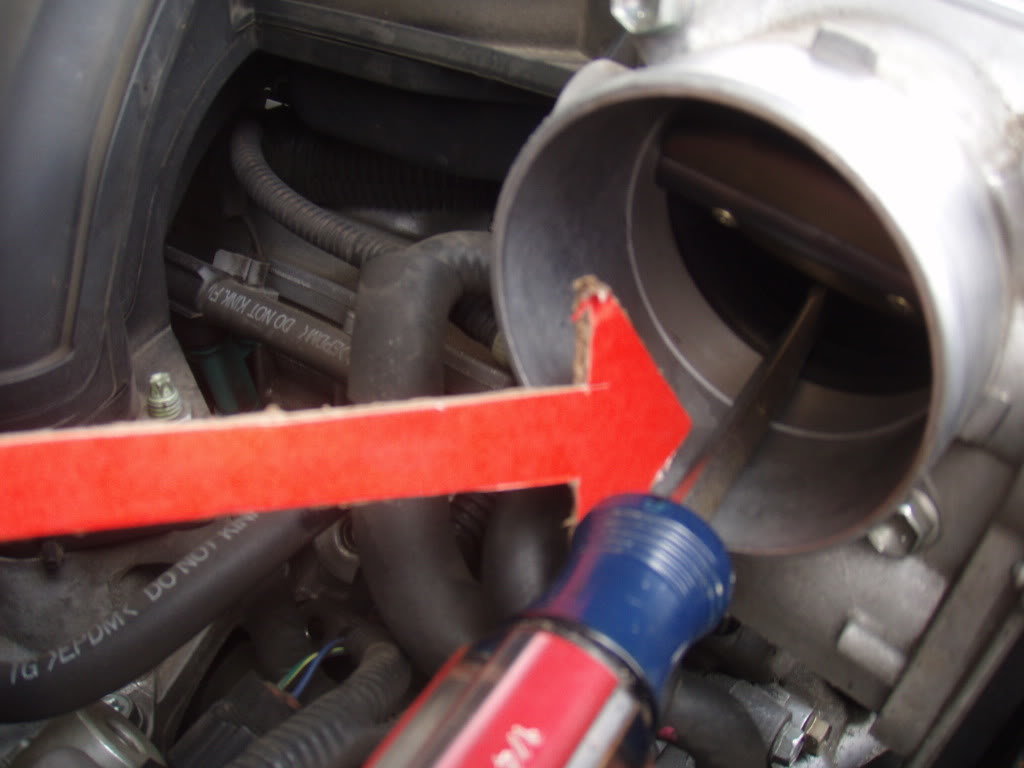

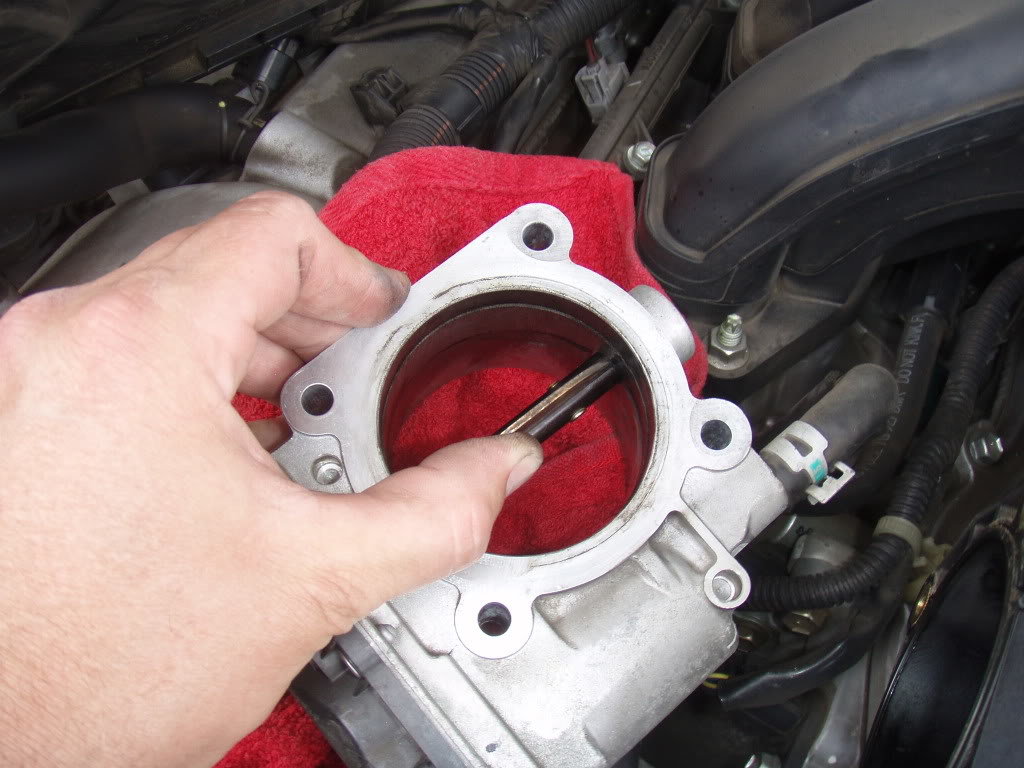

    Use a flat-head screwdriver to open the butterfly.
    [​IMG]

    Generously spray throttle body cleaner inside, the top & bottom
    [​IMG]

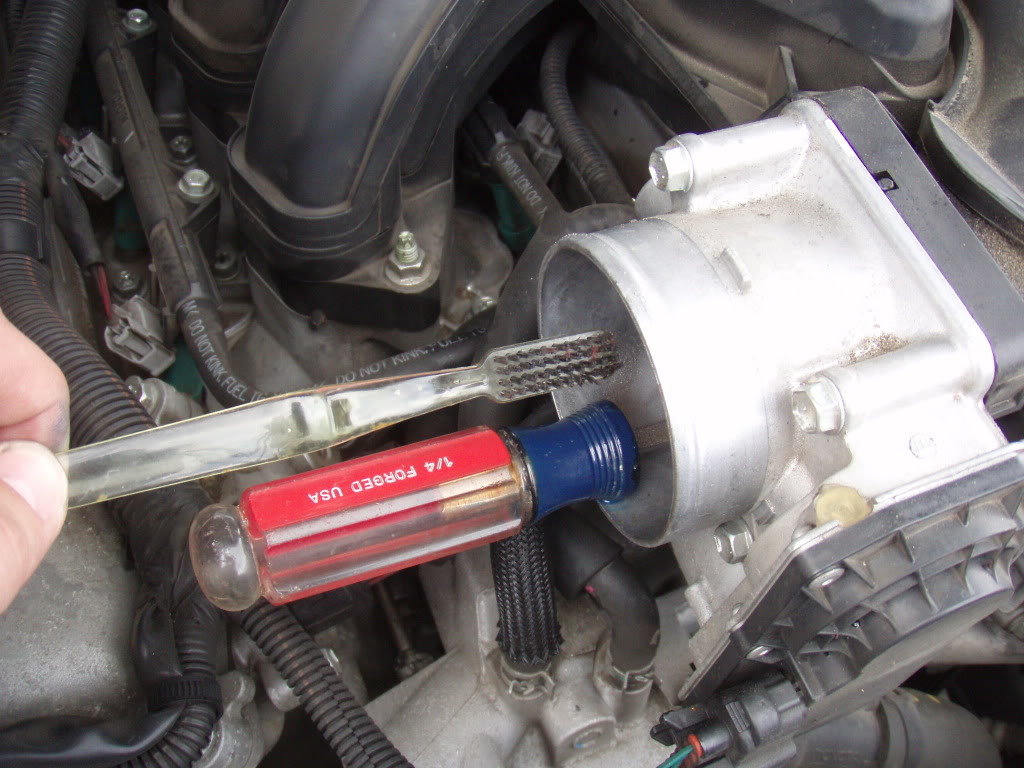

    Using a toothbrush, scrub inside the throttle body as far as you can reach. Spray & scrub. Also use a rag with your fingers or wrapped around the brush to get the gunk out.

    [​IMG]


    When finished, reverse the process to put everything back together.

    When you start your truck it may sputter at first, just give it some gas. It is burning off any TB cleaner that may have entered the engine.

    Good luck!
    Sean

    If you want to remove the throtlle body to clean it. I will have pics on the next screen below.


    Dexdawg
    found this for cleaning the MAF on an FJ, it looks identical to the Tacoma. Good find!

    http://www.youtube.com/watch?v=qiEdey2IHcc

    Last edited: May 12, 2014
  2. teambcw

    teambcw Well-Known Member

    Joined:
    May 2, 2008
    Member:
    #6355
    Messages:
    58
    Gender:
    Male
    First Name:
    Jason
    So Cal
    Great write up....... I am loving the red arrow!!!

  3. SlurpeeBlueMetallic

    SlurpeeBlueMetallic FFFFFFUUUUUUUUUUUUUUU...

    Joined:
    Jun 23, 2009
    Member:
    #18825
    Messages:
    1,666
    Gender:
    Male
    Nice job, especially the arrow. I've seen a few write-ups where a specific bolt or clip gets described and I'm looking at it wondering "Where in the hell..."
    :D

  4. ToucanV13

    ToucanV13 You think I was rollin out here naked?

    Joined:
    Feb 21, 2008
    Member:
    #4866
    Messages:
    2,374
    Gender:
    Male
    San Diego and Colorado
    Vehicle:
    Infideled out TRD Sport 4X4
    285/70 Hankook AT-M, Window vents, TRD CAI, TRD Cat-back exhaust with WickedFlow can, AFE Throttle Body Spacer, Billy 5100 @ 2.5 and 1" block rear, RBP nerf bars, Halo HIDs, 20% tint up front
    Nice red arrows lol. COuldn't you have just unscrewed the sensor?

  5. newtaco2008

    newtaco2008 Well-Known Member

    Joined:
    Mar 29, 2010
    Member:
    #34196
    Messages:
    90
    Gender:
    Male
    Fort Mill, SC
    Vehicle:
    08 prerunner indigo ink pearl
    nice write up... how often should we clean these two things?

  6. SlurpeeBlueMetallic

    SlurpeeBlueMetallic FFFFFFUUUUUUUUUUUUUUU...

    Joined:
    Jun 23, 2009
    Member:
    #18825
    Messages:
    1,666
    Gender:
    Male
    I much prefer to leave the sensor attached... IMO, less chance to screw it up or let it whack into something else.

  7. genxer36

    genxer36 [OP] Lord of Tomfoolery

    Joined:
    Nov 13, 2007
    Member:
    #3442
    Messages:
    10,664
    Gender:
    Male
    First Name:
    Sean
    Bethlehem,GA
    Vehicle:
    2013 Toyota Camry SE - 2011 Tacoma traded
    Tow package, XM Satellite radio, K & N Air filter, & Channel Vent Visors

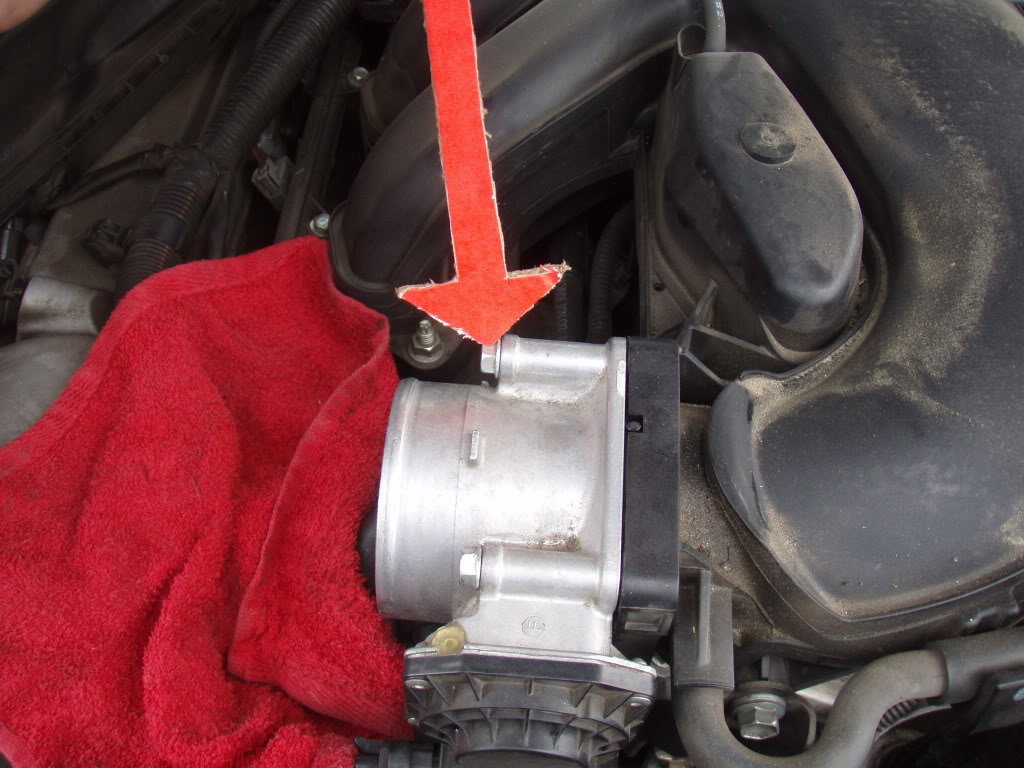

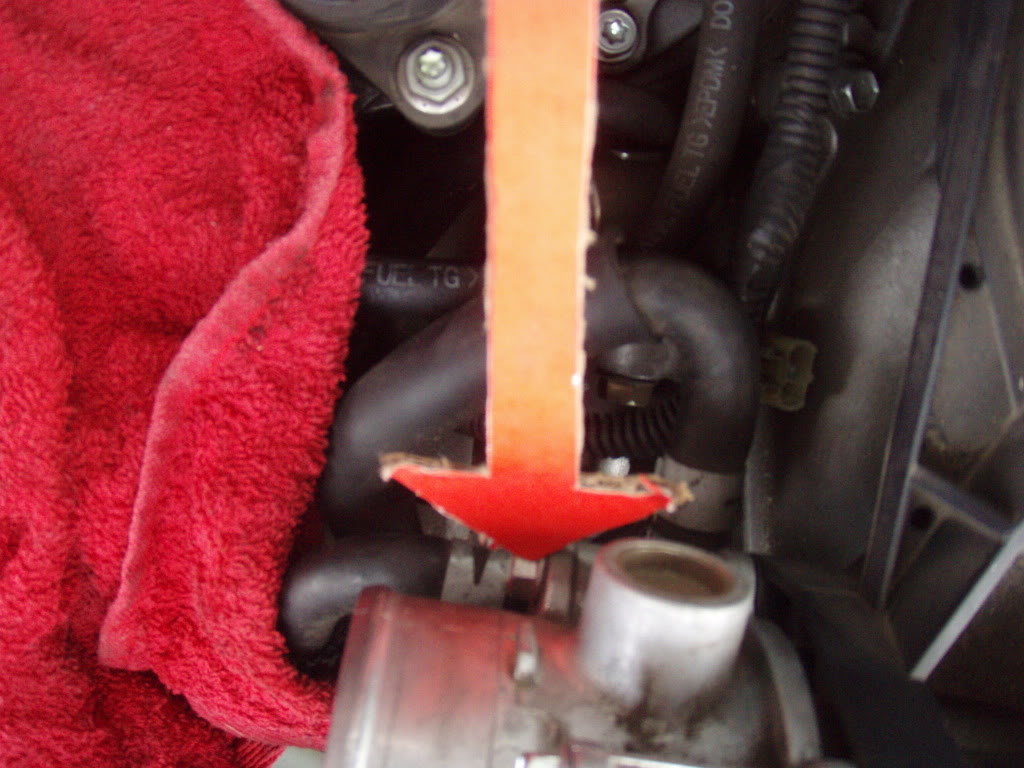

    Removing the throttle body: Remove 4 bolts
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

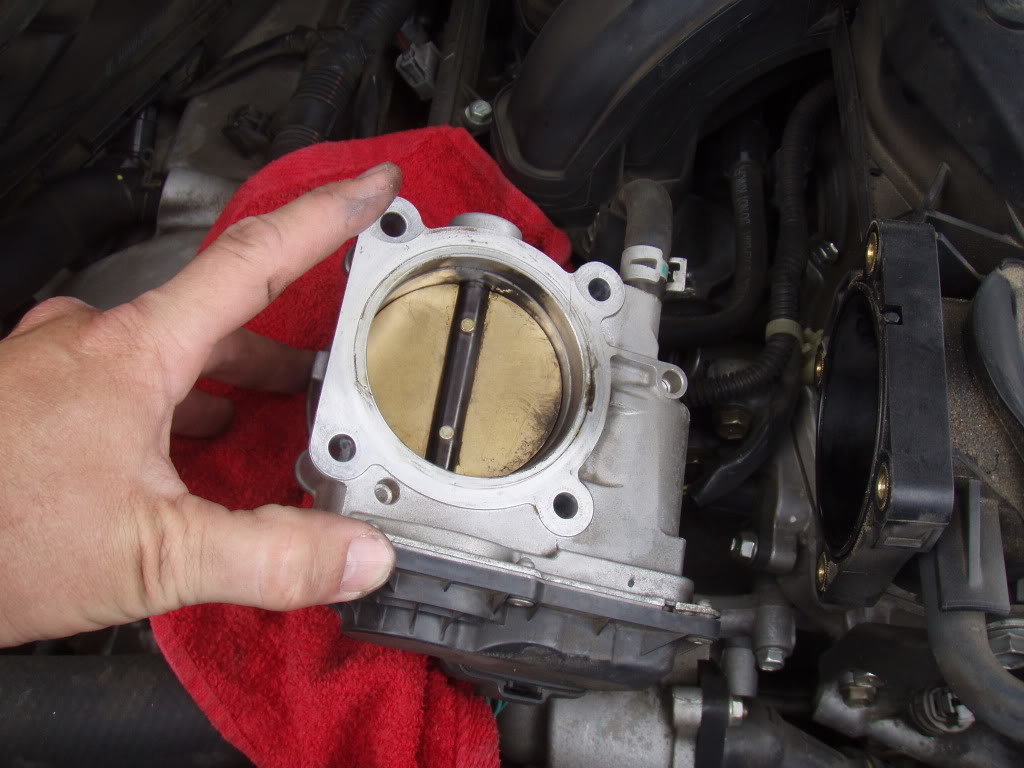

    Then you have easy access to get to the backside of the throttle body. I didn't do this the 1st time I cleaned the throttle body.
    [​IMG]

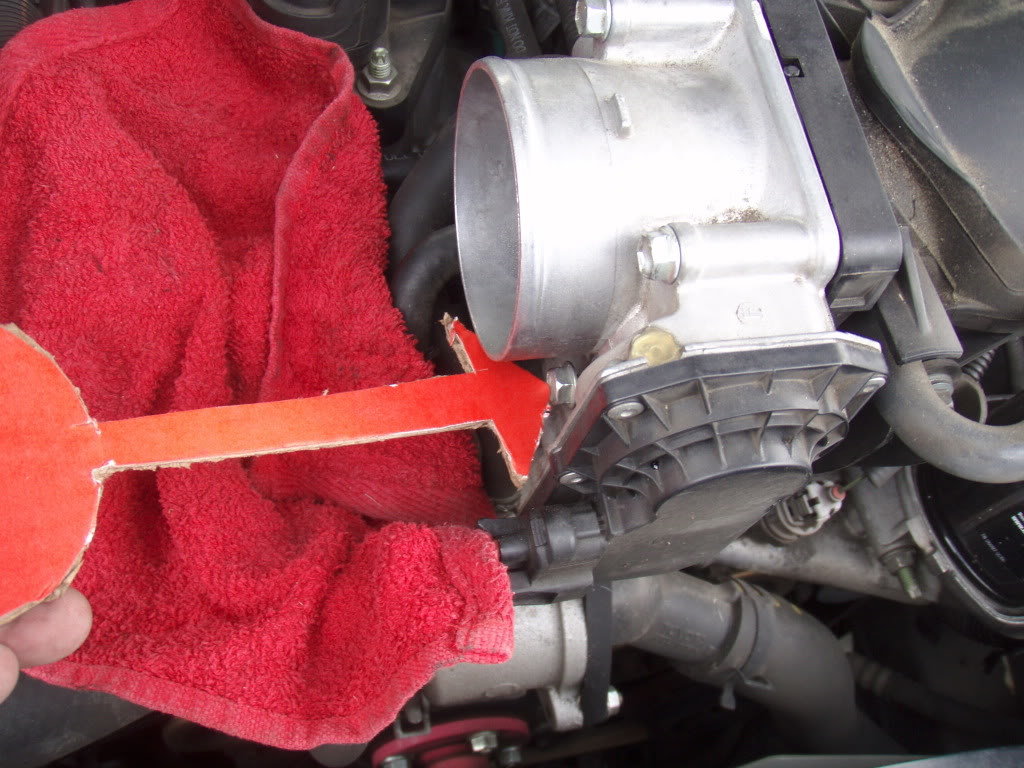

    Clean all around the butterfly with the TB cleaner & tooth brush, wipe with a rag.
    [​IMG]


    Also spray TB cleaner in the black piece that the TB connects too. Wipe out with a rag. Mine didn't have much gunk in it. Most of the gunk was around the throttle body itself.

    According to Chris4x4 the Throttle body bolts should be torqued to 9 ft-lbs.

  8. genxer36

    genxer36 [OP] Lord of Tomfoolery

    Joined:
    Nov 13, 2007
    Member:
    #3442
    Messages:
    10,664
    Gender:
    Male
    First Name:
    Sean
    Bethlehem,GA
    Vehicle:
    2013 Toyota Camry SE - 2011 Tacoma traded
    Tow package, XM Satellite radio, K & N Air filter, & Channel Vent Visors
    Box lid cut out. LOL

  9. STR8_BEAST

    STR8_BEAST MASTER CHIEF

    Joined:
    Dec 28, 2009
    Member:
    #28323
    Messages:
    1,583
    Gender:
    Male
    First Name:
    Collin
    HB, SoCal
    Vehicle:
    07 PRERUNNER TRD OR
    K&N CAI, MAGNAFLOW EXHAUST, MASSIVE SOUND SYSTEM, KENWOOD DNX 7140, WINDOW TINTS, REAR TSB, FRONT COIL SPACER, SATOSHI MOD, BHLM, WHITE CALIPERS, CB RADIO W/4FT FIRESTIK, MAGLITE MOD
    nice write up, this should be stickied!

  10. genxer36

    genxer36 [OP] Lord of Tomfoolery

    Joined:
    Nov 13, 2007
    Member:
    #3442
    Messages:
    10,664
    Gender:
    Male
    First Name:
    Sean
    Bethlehem,GA
    Vehicle:
    2013 Toyota Camry SE - 2011 Tacoma traded
    Tow package, XM Satellite radio, K & N Air filter, & Channel Vent Visors
    I am not a fan of removing the MAF. Since it can easily get broken. Best to leave it in place & spray the cleaner on it several times. Plus having it tilted, the liquid can drip off with the dirt onto the rag on the backside.

  11. genxer36

    genxer36 [OP] Lord of Tomfoolery

    Joined:
    Nov 13, 2007
    Member:
    #3442
    Messages:
    10,664
    Gender:
    Male
    First Name:
    Sean
    Bethlehem,GA
    Vehicle:
    2013 Toyota Camry SE - 2011 Tacoma traded
    Tow package, XM Satellite radio, K & N Air filter, & Channel Vent Visors
    Thanks everyone. Glad to help.

  12. BakoTruck

    BakoTruck Well-Known Member

    Joined:
    May 1, 2009
    Member:
    #16674
    Messages:
    2,852
    Gender:
    Male
    First Name:
    Herbie Hancock
    Bakersfield, CA
    Vehicle:
    05 PreRunner TRD
    Mostly stock for now, I have added a cb radio, various cheap mods and I plan on adding aftermarket wheels and other items in the future.
    Nice write up! Can we make it mandatory for all write-ups to have red arrows. :D

  13. OffroadToy

    OffroadToy The dog did it...I swear!

    Joined:
    Sep 12, 2009
    Member:
    #22680
    Messages:
    5,058
    Gender:
    Male
    High Desert... land of junipers, sage brush, and l
    Vehicle:
    07 TRD OFFROAD 4x4 VSC/TRAC/DAC/HAC
    snugtop supersport canopy, black westin bullbar/tube steps, piaa offroad lights, weathertech floor mats, oem bed mat, trd seat covers, avs inchannel vent visors, 2" suspension lift, front diff drop, rear differential breather extension, oil filter drain hose, a/c drain hose extention & reroute, front window tint, cat theft protection plate, tailgate clamp mod, xpel headlight/foglight protecters, oem block heater, bfg 265/75R/16 a/t k/o's, cabin air rodent protection screen, rcbs illuminated 4X4 switch mod
    Thanks for taking the time to do this write up...very informative!:)

  14. genxer36

    genxer36 [OP] Lord of Tomfoolery

    Joined:
    Nov 13, 2007
    Member:
    #3442
    Messages:
    10,664
    Gender:
    Male
    First Name:
    Sean
    Bethlehem,GA
    Vehicle:
    2013 Toyota Camry SE - 2011 Tacoma traded
    Tow package, XM Satellite radio, K & N Air filter, & Channel Vent Visors
    You are welcome. It needed to be written up.


    I agree, it is always difficult for me to understand when someone does a write up without showing the exact location of something.

    I suck @ photoshop, so a box lid was easier.

  15. Krazie Sj

    Krazie Sj Resident Jackass

    Joined:
    Oct 9, 2008
    Member:
    #9849
    Messages:
    13,478
    Gender:
    Male
    First Name:
    Power Serge
    LV-426 (Acheron)
    Vehicle:
    07 TRD Off Road 4x4
    Borla Catback Exhaust, Airaid Short Ram Intake, 285x75R16 Mickey Thompson MTZs, 16" Konig Countersteer rims, ARB Bumper, All Pro LT w/Walker Evan Shocks front and back, All Pro expedition leaf pack, 10,000lb Superwinch, Intake Manifold Spacer, Bed Rack with ARB RTT, Rotopack and Hi Lift mounted, Husky Liner mats and an air freshener from 1995.
    Gotta love how you made it Krazie proof. That is much appreciated.


    Repped!

  16. genxer36

    genxer36 [OP] Lord of Tomfoolery

    Joined:
    Nov 13, 2007
    Member:
    #3442
    Messages:
    10,664
    Gender:
    Male
    First Name:
    Sean
    Bethlehem,GA
    Vehicle:
    2013 Toyota Camry SE - 2011 Tacoma traded
    Tow package, XM Satellite radio, K & N Air filter, & Channel Vent Visors
    Thanks

  17. MXscott14

    MXscott14 Bartle Do Member

    Joined:
    Aug 11, 2010
    Member:
    #41541
    Messages:
    373
    Gender:
    Male
    First Name:
    Keith Stone
    In Front Of You
    Vehicle:
    tacoma 6inch procomp trail grapplers35's
    Black Headlight, Foglight always on,
    what does this improve sorry im just wondering

  18. Duff Man

    Duff Man Well-Known Member

    Joined:
    Aug 22, 2009
    Member:
    #21589
    Messages:
    399
    Gender:
    Male
    First Name:
    Sean
    North Carolina
    Vehicle:
    09 TRD Off Road
    AEM CAI, Magnaflow exhaust, DT headers, all speakers replaced with (2) 10's and amp behind rear seats, color matched grill, grillcraft, projector headlights, 8000k HID's, DC Torque wheels, 3" Toytec lift, Bilstein 5100 shocks.

    probably cleans up oil from the filter that is built up on the MAF sensor and in the throttle body. I've heard oil from the filter can really mess up your MAF sensor if you don't take care of it. Idk about if it makes your engine run any better though, haven't done it myself yet.

  19. genxer36

    genxer36 [OP] Lord of Tomfoolery

    Joined:
    Nov 13, 2007
    Member:
    #3442
    Messages:
    10,664
    Gender:
    Male
    First Name:
    Sean
    Bethlehem,GA
    Vehicle:
    2013 Toyota Camry SE - 2011 Tacoma traded
    Tow package, XM Satellite radio, K & N Air filter, & Channel Vent Visors
    While throttle-body cleaning is good preventative maintenance, it should also help engine drivability. In fact, if you've noticed a rough idle, stumbling initial acceleration or even stalling - all when the engine is fully warmed up - a dirty throttle body could be the culprit. Once you look inside a throttle body, you will probably be surprised at the dirt, gum and varnish that have accumulated there over time.

    In severe cases, the throttle plate may start to open and close with difficulty and even get stuck. The first time I cleaned mine. I noticed the throttle plate was difficult to open.

  20. genxer36

    genxer36 [OP] Lord of Tomfoolery

    Joined:
    Nov 13, 2007
    Member:
    #3442
    Messages:
    10,664
    Gender:
    Male
    First Name:
    Sean
    Bethlehem,GA
    Vehicle:
    2013 Toyota Camry SE - 2011 Tacoma traded
    Tow package, XM Satellite radio, K & N Air filter, & Channel Vent Visors
    It makes a huge difference on how your engine runs. The first time I cleaned mine @ 80,000 miles. It was like driving a new truck. Performance improved greatly. Before the truck was sluggish on take off.
