How To Trouble Shoot 4x4 Actuator

Discussion in '2nd Gen. Tacomas (2005-2015)' started by blackhawke88, Feb 15, 2013.

  1. Feb 15, 2013 at 6:09 PM
    #1
    blackhawke88

    blackhawke88 [OP] wo ai ni bao bei ^_^

    Joined:
    Jan 11, 2009
    Member:
    #12478
    Messages:
    16,663
    Gender:
    Male
    SGV, CA
    Vehicle:
    07 TRD Offroad
    I have seen a lot of people replacing actuators, which are very expensive. My 4x4 went out a few months ago and I went through the attached factory trouble shoot guide, and found out the two tiny prongs on either side of the actuator motor were barely bent so they couldnt make contact. I soldered the prongs to the motor and everything worked fine:



    205CE86C-BB46-4AB5-8B18-296E7E018001-105_2f151f1363d75c5b5f20d2592050ee3f06764f54.jpg

    [​IMG]

  2. Feb 15, 2013 at 6:28 PM
    #2
    92dlxman

    92dlxman drinking whats on sale

    Joined:
    Jun 24, 2012
    Member:
    #81250
    Messages:
    1,447
    Gender:
    Male
    First Name:
    Kevin
    Visalia, CA
    Vehicle:
    08 access 4x4 4.0 6-gear
    5100s, ome884s, wheelers aal kit, and some rustoleum
    thank you, i was kindof lurking in that thread and am sure this will benefit many of us a few miles down the road

  3. Feb 15, 2013 at 8:11 PM
    #3
    Vstrom30

    Vstrom30 Well-Known Member

    Joined:
    Dec 5, 2012
    Member:
    #92484
    Messages:
    209
    Gender:
    Male
    Midwest
    Vehicle:
    Tacoma Access Cab 4x4
    That is some good info.

  4. Feb 15, 2013 at 8:16 PM
    #4
    FreidTaco

    FreidTaco boost

    Joined:
    Sep 21, 2011
    Member:
    #63918
    Messages:
    2,811
    Gender:
    Male
    First Name:
    jeff
    Panhandle of Wyoming
    Vehicle:
    06 Tacoma TRD OffRoad SR5
    URD Stage 3 SC. 35" duratracs LT
    Is this what your t case looks like?

    [​IMG]
    Photo from DCtacoboy4x4

    Do not touch transfer case.
    GO to front diff.

    DC92T likes this.
  5. Feb 15, 2013 at 8:24 PM
    #5
    blackhawke88

    blackhawke88 [OP] wo ai ni bao bei ^_^

    Joined:
    Jan 11, 2009
    Member:
    #12478
    Messages:
    16,663
    Gender:
    Male
    SGV, CA
    Vehicle:
    07 TRD Offroad
    The 4x4 actuator is at the front diff

    Crom likes this.
  6. Feb 16, 2013 at 1:55 PM
    #6
    FreidTaco

    FreidTaco boost

    Joined:
    Sep 21, 2011
    Member:
    #63918
    Messages:
    2,811
    Gender:
    Male
    First Name:
    jeff
    Panhandle of Wyoming
    Vehicle:
    06 Tacoma TRD OffRoad SR5
    URD Stage 3 SC. 35" duratracs LT
    DO this!!! It worked!!!
    I will post up more pictures to help out future people
    THANKS again MAN!!!!

  7. Feb 16, 2013 at 2:14 PM
    #7
    FreidTaco

    FreidTaco boost

    Joined:
    Sep 21, 2011
    Member:
    #63918
    Messages:
    2,811
    Gender:
    Male
    First Name:
    jeff
    Panhandle of Wyoming
    Vehicle:
    06 Tacoma TRD OffRoad SR5
    URD Stage 3 SC. 35" duratracs LT
    I had to drop the two front diff brackets to get to the top 2 bolts.


    I ended up replacing the vacuum hose because i cut it a little while replacing it.


    This is what it looks like out of the diff. Make sure you clean the old silcone gasket off before installing.


    Top side with the 5 screws you have to remove.

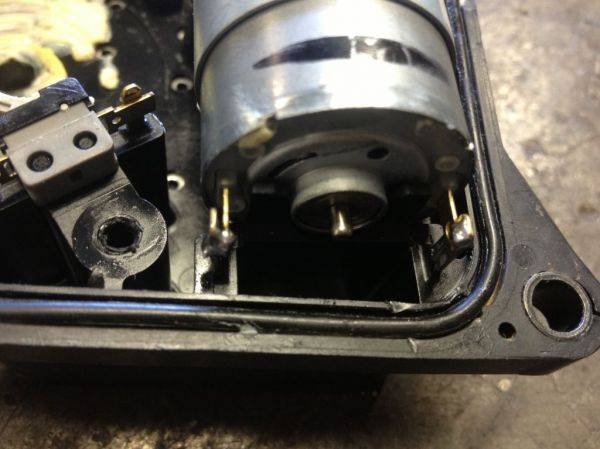

    Here are how my terminals looked. They looked pretty close but i could see ark marks on one side.


    My soldering looks poor here but i touched it up before installing.
    I soldered both terminals on the motor and both on the switch as well just for insurance.

    And then reverse order to assemble.
    Thanks again blackhawke88 +1

    Marc70, jrmobb, divetruck and 6 others like this.
  8. Feb 16, 2013 at 8:43 PM
    #8
    blackhawke88

    blackhawke88 [OP] wo ai ni bao bei ^_^

    Joined:
    Jan 11, 2009
    Member:
    #12478
    Messages:
    16,663
    Gender:
    Male
    SGV, CA
    Vehicle:
    07 TRD Offroad
    :D glad i could help!

  9. Feb 17, 2013 at 8:17 PM
    #9
    romafern

    romafern Hug diz nuts

    Joined:
    Mar 15, 2010
    Member:
    #33279
    Messages:
    826
    Gender:
    Male
    First Name:
    Rob
    80918 Let's meet!
    Vehicle:
    Paid for and saving a shit ton of $$$$$
    Thinking of adding a second battery...
    Good work to the both of you!!!!!

    Send blackhake88 some beer.


    Mods, make a sticky out of this.


    As for the dealers, shame on you for trying to rip off the owners.

    TWTaco and jahsonferg like this.
  10. Feb 17, 2013 at 8:51 PM
    #10
    username

    username Fluffer

    Joined:
    Oct 15, 2010
    Member:
    #44704
    Messages:
    6,070
    Pendleton, Or
    Vehicle:
    05 Taco with some crap welded to it
    mostly stock
    Mine was the T-case actuator. It has three slide contacts that corroded. I tried to fill the pitting with solder and sanding it flat, which worked for about a year, then I converted my T-case to manual shift and just locked the front diff actuator then unplugged it. Works every time now. Both actuators are a really bad design and the weakest link in the factory 4wd system.

  11. Feb 17, 2013 at 8:58 PM
    #11
    romafern

    romafern Hug diz nuts

    Joined:
    Mar 15, 2010
    Member:
    #33279
    Messages:
    826
    Gender:
    Male
    First Name:
    Rob
    80918 Let's meet!
    Vehicle:
    Paid for and saving a shit ton of $$$$$
    Thinking of adding a second battery...
    Agree with you. :cool:

    GrayRock likes this.
  12. Feb 17, 2013 at 9:03 PM
    #12
    chilidogrc

    chilidogrc Play stupid games, win stupid prizes

    Joined:
    Aug 22, 2009
    Member:
    #21561
    Messages:
    2,752
    Gender:
    Male
    First Name:
    Rodrigo
    San Diego
    Vehicle:
    2016 4Runner
    I concur :cool:

  13. Feb 19, 2013 at 11:49 PM
    #13
    uscg2008

    uscg2008 Well-Known Member

    Joined:
    Nov 6, 2009
    Member:
    #25537
    Messages:
    2,884
    Gender:
    Male
    First Name:
    coby
    San Diego, CA originally from Huntington Beach, CA
    Vehicle:
    06 trd sr5 four door 4x4
    CLICK ON SIGNATURE>>>>
    Def gana have to try this when I get home from deployment in st paul island.
    cause this is my problem

    I can shift into 4wd hi and I hear it click in but the light just keeps blinking. Then when I got to switch in into 4lo while I'm in neutral it doesn't shift and just keeps beeping. Then the only way I can get out of 4hi is to shut the truck off, then switch to 2wd then turn the truck back on and it will then click out.

    Any ideas?

  14. Mar 6, 2013 at 4:58 PM
    #14
    ProjektTaco

    ProjektTaco New Member

    Joined:
    Feb 21, 2013
    Member:
    #98105
    Messages:
    1
    Gender:
    Male
    First Name:
    Dan
    Alberta
    Vehicle:
    06 Tacoma TRD Sport
    3" Trailmaster Lift,17" XD rims, 33" Nitto Dune Grapple Tires,Bushwacker Pocket Style Flares.
    Did the trick for the time being! I also had some faint arcing marks on one of the prongs, soldered it and works perfect. Beats paying $650 for a new actuator! Thanks!!

  15. Mar 6, 2013 at 5:05 PM
    #15
    MudFlap

    MudFlap Well-Known Member

    Joined:
    Jul 13, 2011
    Member:
    #59794
    Messages:
    432
    Gender:
    Male
    First Name:
    Tim
    Memphis (north mississippi)
    Vehicle:
    2012 TRD Off Road
    Marking this one in my browsers fave list for later.

    I wonder thought, is this a FIX? or is this more like a temp fix like a band aid on a broken leg? Whats the real cause of the actuator failing just those prongs losing connection?

  16. Mar 6, 2013 at 6:50 PM
    #16
    FreidTaco

    FreidTaco boost

    Joined:
    Sep 21, 2011
    Member:
    #63918
    Messages:
    2,811
    Gender:
    Male
    First Name:
    jeff
    Panhandle of Wyoming
    Vehicle:
    06 Tacoma TRD OffRoad SR5
    URD Stage 3 SC. 35" duratracs LT
    Somewhat. There actually is NO solder at all on those contact points. The are only making contact by simply touching. That is why this fix works by adding solder. It makes a permanent connection that does not allow vibrations to effect the contact points.

  17. Mar 6, 2013 at 7:02 PM
    #17
    FreidTaco

    FreidTaco boost

    Joined:
    Sep 21, 2011
    Member:
    #63918
    Messages:
    2,811
    Gender:
    Male
    First Name:
    jeff
    Panhandle of Wyoming
    Vehicle:
    06 Tacoma TRD OffRoad SR5
    URD Stage 3 SC. 35" duratracs LT
    Unfortunately no. That is why several people have claimed that they could see tiny arc marks (myself included) where the pins were trying to make contact but did not have a good enough connection.

  18. Mar 6, 2013 at 7:28 PM
    #18
    gearcruncher

    gearcruncher Well-Known Member

    Joined:
    Nov 1, 2012
    Member:
    #90305
    Messages:
    5,248
    Gender:
    Male
    First Name:
    Canadain bumper technician
    Great white North 51.0333° N, 93.8333° W
    Vehicle:
    2010.TRD.SportDCLB4x4Limited leather package
    TRD Sport Rally -5 speed automatic Limited ,Factory heated leather seats ,chrome package,Super white with front windows tinted to 35 % Dick Cepek DC-2 wheels Summer tires - Good year silent armor P265/65R17 Winter tires - Good year P265/65R17 Ultra Ice studded Illuminated 4x4 switch TRD 3rd brake light cover ($20) TRD seat belt shoulder protectors (5). ($50) TRD ...B pillar emblems ($20) TRD rear slider sticker with devil horns ( $6) TRD summer floor matts ($60) TRD steering wheel emblem ($20) TRD floor pedals .($95) TRD shorty antenna ($14) TRD front Windshield emblems ($17) TRD head pillows .($60) TRD head rest protectors TRD door scuff protection $20 TRD floor matt emblems ($40) TRD tow plug emblem . ($40) TRD cigarette lighter with LED.($35) TRD tissue dispenser ($12) TRD front bezel emblems ($9) TRD door emblems ($6) TRD lanyards($9) TRD lisence plates with TRD bolts($50) TRD fender emblems TRD center caps Part Number:PT904-35070-CC ($80) TRD cd
    Almost makes you wonder why manufacturers are placing electrical components in such a harsh environment under the vehicle doesnt it ?
    General motors is by far the most guilty of this placing computer boards on the transfer case , abs controllers on the frame rail etc etc .
    All it takes a quick trip through a shallow pond to find out how well these components are actually sealed .
    I am not saying water impregnation is the cause but I sure miss the days of a manual 4x4 transfer case shifter in a Toyota .:confused:

    TRDSport10, Micbt25 and DC92T like this.
  19. Mar 6, 2013 at 7:38 PM
    #19
    undecided

    undecided Well-Known Member

    Joined:
    Aug 27, 2009
    Member:
    #21892
    Messages:
    412
    Gender:
    Male
    First Name:
    Adam
    San Diego, CA
    Vehicle:
    06 TRD Sport 4X4
    CAI, CB radio, Double Din Stereo, Aero Exhaust, Softopper, BHLM, KODE Push Button Start, Bruteforce Fab Rear bumper, Weathertechs
    Subbed for future use. Thanks! :thumbs up:

  20. Apr 2, 2013 at 10:12 PM
    #20
    joesmith

    joesmith Well-Known Member

    Joined:
    Dec 7, 2011
    Member:
    #68331
    Messages:
    88
    Gender:
    Male
    Alaska
    Vehicle:
    2005 Access Cab 4x4
    How much gear oil do you loose when pulling the actuator? Can I use regular gasket sealer when I hook it back up? Can I use hand tools only or will I need access to an impact wrench?

    Thanks! :)
