How To Trouble Shoot 4x4 Actuator

Discussion in '2nd Gen. Tacomas' started by blackhawke88, Feb 15, 2013.

  1. Mar 6, 2013 at 7:02 PM
    #21
    FreidTaco

    FreidTaco 'merica

    Joined:
    Sep 21, 2011
    Member:
    #63918
    Messages:
    1,651
    Gender:
    Male
    First Name:
    null
    Wy
    Vehicle:
    06 Tacoma TRD OffRoad SR5
    Billys 5100 all four corners, fronts set at 0 with 886x coils, 2" AAL, Betterbuilt toolbox, 1.25" spidertrax, 3" Flowmaster 50 series delta flow, own fog light mod, mounted Streamlight rechargeable stinger, toolbox light, ScanGuage Oh... and URD Stage 3 SC
    Unfortunately no. That is why several people have claimed that they could see tiny arc marks (myself included) where the pins were trying to make contact but did not have a good enough connection.

  2. Mar 6, 2013 at 7:05 PM
    #22
    DoorDing

    DoorDing Thank you, Nancy Roman

    Joined:
    Sep 7, 2012
    Member:
    #86445
    Messages:
    23,670
    Gender:
    Male
    Vehicle:
    2012 DCSB Off-Road 4WD
    If the joints fail again, I'd try connecting the contacts with wire and see if it can handle whatever is breaking the solder.

  3. Mar 6, 2013 at 7:28 PM
    #23
    gearcruncher

    gearcruncher Well-Known Member

    Joined:
    Nov 1, 2012
    Member:
    #90305
    Messages:
    2,208
    Gender:
    Male
    First Name:
    Canadain bumber technician
    Great white North 51.0333° N, 93.8333° W
    Vehicle:
    2010.TRD.SportDCLB4x4Limited leather package
    TRD Sport Rally -5 speed automatic Limited ,Factory heated leather seats ,chrome package,Super white with front windows tinted to 35 % Dick Cepek DC-2 wheels Summer tires - Good year silent armor P265/65R17 Winter tires - Good year P265/65R17 Ultra Ice studded Illuminated 4x4 switch TRD 3rd brake light cover ($20) TRD seat belt shoulder protectors (5). ($50) TRD ...B pillar emblems ($20) TRD rear slider sticker with devil horns ( $6) TRD summer floor matts ($60) TRD steering wheel emblem ($20) TRD floor pedals .($95) TRD shorty antenna ($14) TRD front Windshield emblems ($17) TRD head pillows .($60) TRD head rest protectors TRD door scuff protection $20 TRD floor matt emblems ($40) TRD tow plug emblem . ($40) TRD cigarette lighter with LED.($35) TRD tissue dispenser ($12) TRD front bezel emblems ($9) TRD door emblems ($6) TRD lanyards($9) TRD lisence plates with TRD bolts($50) TRD fender emblems TRD center caps Part Number:PT904-35070-CC ($80) TRD cd
    Almost makes you wonder why manufacturers are placing electrical components in such a harsh environment under the vehicle doesnt it ?
    General motors is by far the most guilty of this placing computer boards on the transfer case , abs controllers on the frame rail etc etc .
    All it takes a quick trip through a shallow pond to find out how well these components are actually sealed .
    I am not saying water impregnation is the cause but I sure miss the days of a manual 4x4 transfer case shifter in a Toyota .:confused:

  4. Mar 6, 2013 at 7:38 PM
    #24
    undecided

    undecided Well-Known Member

    Joined:
    Aug 27, 2009
    Member:
    #21892
    Messages:
    304
    Gender:
    Male
    First Name:
    Adam
    San Diego, CA
    Vehicle:
    06 TRD Sport 4X4
    CAI, CB radio, Double Din Stereo, Aero Exhaust, Softopper, BHLM, KODE Push Button Start, Bruteforce Fab Rear bumper, Weathertechs
    Subbed for future use. Thanks! :thumbs up:

  5. Apr 2, 2013 at 10:12 PM
    #25
    joesmith

    joesmith Well-Known Member

    Joined:
    Dec 7, 2011
    Member:
    #68331
    Messages:
    88
    Gender:
    Male
    Alaska
    Vehicle:
    2005 Access Cab 4x4
    How much gear oil do you loose when pulling the actuator? Can I use regular gasket sealer when I hook it back up? Can I use hand tools only or will I need access to an impact wrench?

    Thanks! :)

  6. Apr 2, 2013 at 10:25 PM
    #26
    blackhawke88

    blackhawke88 [OP] wo ai ni bao bei ^_^

    Joined:
    Jan 11, 2009
    Member:
    #12478
    Messages:
    16,864
    Gender:
    Male
    SGV, CA
    Vehicle:
    07 TRD Offroad
    Didnt lose any oil. 6 philips screws to pop off the face of the actuator. Dont even need to remove the front diff, just loosen the bolts and tilt down.

  7. Apr 2, 2013 at 10:43 PM
    #27
    joesmith

    joesmith Well-Known Member

    Joined:
    Dec 7, 2011
    Member:
    #68331
    Messages:
    88
    Gender:
    Male
    Alaska
    Vehicle:
    2005 Access Cab 4x4
    Cool! I am going to try and diagnose my 4x4, I think the actuator is broken.

    For the longest time it wouldn't switch from 2WD into 4WD, now its stuck in 4WD and the light is blinking. I don't want to drive it around much until I get it fixed, especially since all the snow and ice is melting and I will be driving on pavement.

  8. Apr 3, 2013 at 9:14 AM
    #28
    joesmith

    joesmith Well-Known Member

    Joined:
    Dec 7, 2011
    Member:
    #68331
    Messages:
    88
    Gender:
    Male
    Alaska
    Vehicle:
    2005 Access Cab 4x4
    It's in 4WD, I can feel the wheels bind when I make a sharp turn.

  9. Apr 4, 2013 at 12:17 AM
    #29
    qnyla

    qnyla Well-Known Member

    Joined:
    Feb 2, 2010
    Member:
    #30604
    Messages:
    809
    Gender:
    Male
    NM
    Vehicle:
    06 DC Off Road 6-Speed
    I wish I had known this when mine went out last year. Thanks for this info!

  10. Apr 4, 2013 at 5:31 AM
    #30
    moondeath

    moondeath Plenty of slaves for my robot colony?

    Joined:
    Jan 8, 2011
    Member:
    #48948
    Messages:
    3,528
    Gender:
    Male
    First Name:
    Chris
    Pa, Carlisle
    Vehicle:
    6th Gen 2013 TRD Sport DCLB 4x4
    Grill Thin Lip (Custom Car Grills Mod), Wheels & Tires, Bilstein 5100 1.75" in Front and 1" in Rear, Access Tonneau Cover, Pop & Lock Tailgate Electronic Lock PL8521
    Maybe we'll get lucky and the next tacoma will go back to a manual transfer case.

  11. Jun 10, 2013 at 1:45 PM
    #31
    Manwithoutaplan

    Manwithoutaplan the full Monty

    Joined:
    Jan 30, 2008
    Member:
    #4500
    Messages:
    44,295
    Gender:
    Male
    CA
    Vehicle:
    07 Tacoma Speedway Blue Trd 4x4
    -Nitro 4.56 gears - Arb Front and Rear lockers. -Rear Swing out bumper Curiosity of ( Dept .94) https://www.facebook.com/Dept94 -Tinted, -ProComp 6 inch lift with Icon Coil overs and Bilstein's 7100Resi -315/70/17 - 17x8 in Pro Comp Matte black rims 4.5 bs -East Coast Gear Supply Sliders -ALL Pro EXP LEaf pack -Camburg UCA's -CAB mount CHOP
  12. Jun 23, 2013 at 5:08 PM
    #32
    Bearcoatoffroad

    Bearcoatoffroad Well-Known Member

    Joined:
    Apr 30, 2013
    Member:
    #103175
    Messages:
    106
    Gender:
    Male
    First Name:
    Barry
    Rincon, GA
    Vehicle:
    '07 TRD Off Road 4x4 Double Cab
    2.5" spacer lift, Tundra wheels with spacers
    Whoever else does this, you have to pull the front diff way down to get the top actuator bolts out, when you do this it is likely going to disconnect the diff breather hose.

    LOOK for it on reassembly!

    It is hard to see and real hard to reconnect. A steel tube exits the top of the diff, then there is a 3-4 inch long section of rubber hose directly above the actuator, then another steel tube. All the prying down of the diff pulls on the vent and can unplug the rubber from the second steel tube, did not seem to have any clamps on it.

    Also, keep an eye on the CV boots, they will contact the front LCA bolts and can damage them.

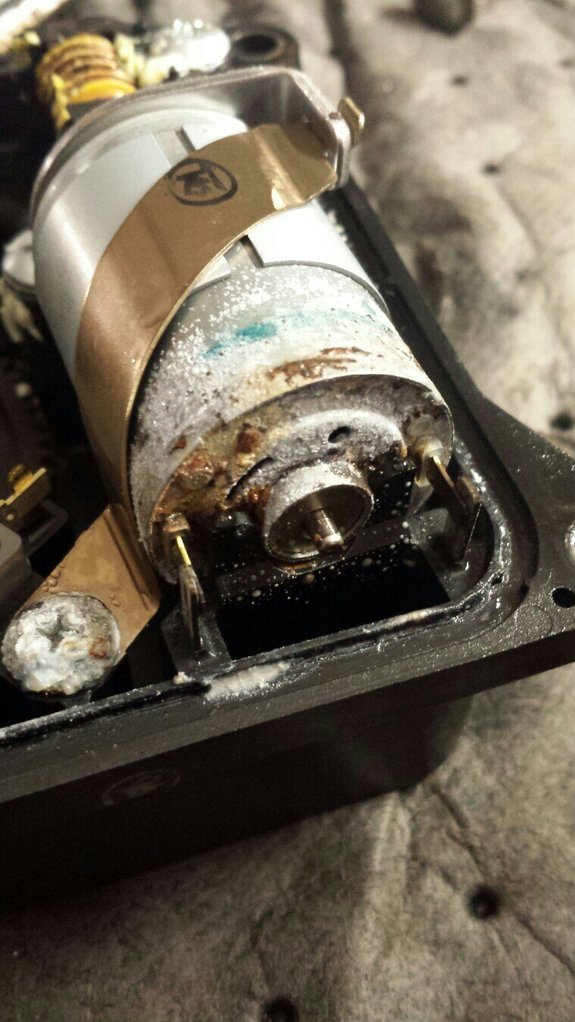

    My ADD actuator had about a cup of water in it, half submersing the motor and entirely the micro switch. A good cleaning with alcohol, then WD-40 seemed to get it working again.

    Test the motor with alligator clips and a battery (I used a dewalt drill battery). Two pinouts on closest to the motor are for the motor, you can also test the connections at the motor this way.

  13. Jul 3, 2013 at 6:11 PM
    #33
    farminfireman

    farminfireman Active Member

    Joined:
    Jun 17, 2013
    Member:
    #106488
    Messages:
    39
    Gender:
    Male
    First Name:
    Myles
    WNC
    Vehicle:
    06 trd off road
    3 inch lift, custom built tool box, aftermarket headlights, smoked taillights, diff lock any time mod :), k&n cold air intake, after market headunit with 2 10inch subs behind the rear seat
    Could this be why my 4wd lo dont work

  14. Jul 3, 2013 at 6:14 PM
    #34
    blackhawke88

    blackhawke88 [OP] wo ai ni bao bei ^_^

    Joined:
    Jan 11, 2009
    Member:
    #12478
    Messages:
    16,864
    Gender:
    Male
    SGV, CA
    Vehicle:
    07 TRD Offroad
    ^ dunno, do a continuity test

  15. Jul 3, 2013 at 9:09 PM
    #35
    farminfireman

    farminfireman Active Member

    Joined:
    Jun 17, 2013
    Member:
    #106488
    Messages:
    39
    Gender:
    Male
    First Name:
    Myles
    WNC
    Vehicle:
    06 trd off road
    3 inch lift, custom built tool box, aftermarket headlights, smoked taillights, diff lock any time mod :), k&n cold air intake, after market headunit with 2 10inch subs behind the rear seat
    ^ can you tell me how to do that please

  16. Jul 3, 2013 at 9:38 PM
    #36
    Sandman614

    Sandman614 LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    8,139
    Gender:
    Male
    Boone, NC\Cary, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Lick your fingers and touch them to both leads ;-)

    Seriously you don't sound like you need to open anything.

  17. Jul 26, 2013 at 8:41 AM
    #37
    Sje1124

    Sje1124 Well-Known Member

    Joined:
    Nov 1, 2010
    Member:
    #45564
    Messages:
    3,403
    Gender:
    Male
    First Name:
    Sean
    Oklahoma / Louisiana
    Vehicle:
    2010 DBL Cab TRD OR 4x4 W/ JBL
    Just a few
    Sub'd, will be doing this tonight

  18. Jul 26, 2013 at 9:41 AM
    #38
    allmotorrex

    allmotorrex Grove St. Motorsports

    Joined:
    Aug 29, 2010
    Member:
    #42441
    Messages:
    11,180
    Gender:
    Male
    First Name:
    Gideon
    Memphis 901
    Vehicle:
    08 SR5 4wd 2.7
    4.88s w/h rear Powertrax locker, Fox 2.5 Ext. RR COs, Camburg 1.25” ucas, Fox 12" smooth body RR, BAMF shock kit, AP 3" springs, ext. brake lines, 315/75/16 BFG KM2, AP 1.5" spacers, 16x8 Pro Comp wheels, BFF front hybrid, GSM rear HC, Relentless Fab ifs skid, BAMF lca skids, BAMF k/o sliders, X2O 10K comp. winch, TP glass fenders, OKled 20"bar, EBS dimpled/slotted rotors, EBS green pads, K&N 63 CAI, LCE headers, FM Super 44 w/h turn down, URD MAF cali., LCE Dual Comp clutch, URD ss, TMPer M1 Abrams shift knob, Amsoil oil, Cobra 75wxst w/h 4' firestix, ARB compressor, Grillcraft, FXR TRS, T1 eyelids, 500 hellas w/h 6k hid conv., custom ADV Monster model 60 lights, bed lights, speedo light mod, Glow Shift volt/oil pres gauges, Glow shift 2g column pod, Optima yellow tops dual battery setup w/h IBS system, Pioneer DEH-P7200HD head unit, Pioneer 600W 4ch & 350w 2ch amps for doors and sub, Wet Oakle covers, Weather Tech
    Do you have a multimeter?

  19. Jul 26, 2013 at 9:44 AM
    #39
    Sandman614

    Sandman614 LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    8,139
    Gender:
    Male
    Boone, NC\Cary, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    He has 8 posts and doesn't know how to do a Cont. test.


    [​IMG]

  20. Jul 26, 2013 at 1:30 PM
    #40
    LowerBost

    LowerBost Well-Known Member

    Joined:
    Jun 14, 2013
    Member:
    #106273
    Messages:
    325
    Gender:
    Male
    First Name:
    Nick
    Pittsburgh, PA
    Vehicle:
    09 Tacoma Sport
    Old Man Emu Lift w/ Dakars and Billsteins, K&N Intake, Throttle Body Space, Front Bull Bar, Side Rails, Painted Stock Rims, Bilstein 5100 Front Shocks, Third Brake Light Cover, Satoshi Grill Mod, BHLM Mod
    I'll have to keep this thread in mind. Had an issue with mine last winter. It wouldn't come out of 4WD. Took it to my dealer and said it was $1300 to get the actuator replaced and that if I put it in 4WD again they will not be able to remove it and MUST replace the actuator. Them jags think I'm stupid or something?... Took it to another dealer and they said nothing was wrong with it at all...Just waiting for it to go again... Great write up!
