How To Trouble Shoot 4x4 Actuator

Discussion in '2nd Gen. Tacomas (2005-2015)' started by blackhawke88, Feb 15, 2013.

Page 3 of 46
  1. Jul 26, 2013 at 6:50 PM
    #41
    Sandman614

    #41
    Sandman614 Ex-Snarky TWSS elf, Travis #hotsavannahdotcom

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    35,879
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    :goingcrazy:

    Sandman614, Jul 26, 2013
    #41
  2. Jul 26, 2013 at 6:59 PM
    #42
    SoCalTacos

    #42
    SoCalTacos Turd runner

    Joined:
    Nov 5, 2011
    Member:
    #66543
    Messages:
    3,710
    Gender:
    Male
    socal
    Vehicle:
    2017 4Runner TRD Pro
    Led head/dtr lights.
    My actuator is cracked...I need a new one...junkyard I went to wouldn't sell me just the actuator, wanted me to but the entire third member. Anyone have any cheap sources?

    SoCalTacos, Jul 26, 2013
    #42
  3. Jul 27, 2013 at 6:48 AM
    #43
    Sje1124

    #43
    Sje1124 Well-Known Member

    Joined:
    Nov 1, 2010
    Member:
    #45564
    Messages:
    5,023
    Gender:
    Male
    First Name:
    Sean
    Louisiana
    Vehicle:
    2010 DBL Cab TRD OR 4x4
    Just a few
    Bringing mine to Toyota on Monday since its still under warranty.

    Sje1124, Jul 27, 2013
    #43
  4. Sep 12, 2013 at 1:48 PM
    #44
    joesmith

    #44
    joesmith Well-Known Member

    Joined:
    Dec 7, 2011
    Member:
    #68331
    Messages:
    88
    Gender:
    Male
    Alaska
    Vehicle:
    2005 Access Cab 4x4
    How do you get the screws out, mine are really stuck? Last night I sprayed the screws with PB Blaster, hopefully sitting overnight will help me take it apart.

    Also, how do I tell by looking at the diff if it is locked or unlocked?

    joesmith, Sep 12, 2013
    #44
  5. Sep 12, 2013 at 2:19 PM
    #45
    blackhawke88

    #45
    blackhawke88 [OP] wo ai ni bao bei ^_^

    Joined:
    Jan 11, 2009
    Member:
    #12478
    Messages:
    16,598
    Gender:
    Male
    SGV, CA
    Vehicle:
    07 TRD Offroad
    my screws just came out with a screw driver.

    Try turning slowly. If truck doesnt want to move, then 4x4 is engaged.

    blackhawke88, Sep 12, 2013
    #45
  6. Sep 12, 2013 at 3:07 PM
    #46
    allmotorrex

    #46
    allmotorrex Grove St. Fab

    Joined:
    Aug 29, 2010
    Member:
    #42441
    Messages:
    16,746
    Gender:
    Male
    First Name:
    Gideon
    Memphis 901
    Vehicle:
    08 SR5 4wd 2.7
    NWF crawlbox, 5.29s, rear Detriot, front Harrop, 37" SXIIs, 17x9" KMC Grenade Crawl beadlocks, Dirt King 3.5" LT kit with King shocks, Fox 12" smooth body RR, BAMF shock kit, AP 3" springs, ext. brake lines, custom 1 piece driveshaft with .135 wall tubeing, GSF front rock crawling bumper, GSF rear bumper, Relentless Fab ifs skid, BAMF k/o sliders, X2O 10K comp. winch, TP glass fenders, OKled 20"bar, EBS dimpled/slotted rotors, EBS green pads, custom K&N CAI, LCE headers, FM Super 44 w/h turn down, URD MAF, Spec clutch, LCE heavy flywheel, URD short shifter, TMPer M1 Abrams shift knob, Amsoil oil, Cobra 75wxst w/h 4' firestix, Grillcraft, FXR TRS, T1 eyelids, custom ADV Monster 60 lights, bed lights, speedo light mod, Glow Shift volt/oil pres gauges, Glow shift 2g column pod, Optima yellow tops dual battery setup w/h IBS system, Pioneer DEH-P7200HD head unit, Pioneer 600W 4ch & 350w 2ch amps for doors and sub, Wet Oakle covers
    mine were locked too. I had to get 3 of them out with channel locks

    allmotorrex, Sep 12, 2013
    #46
  7. Sep 12, 2013 at 3:31 PM
    #47
    joesmith

    #47
    joesmith Well-Known Member

    Joined:
    Dec 7, 2011
    Member:
    #68331
    Messages:
    88
    Gender:
    Male
    Alaska
    Vehicle:
    2005 Access Cab 4x4
    When under the truck and looking at the opening, I can see the sleeve that the actuator arm moves. What is normal position and 4x4 position?

    joesmith, Sep 12, 2013
    #47
  8. Sep 12, 2013 at 3:32 PM
    #48
    joesmith

    #48
    joesmith Well-Known Member

    Joined:
    Dec 7, 2011
    Member:
    #68331
    Messages:
    88
    Gender:
    Male
    Alaska
    Vehicle:
    2005 Access Cab 4x4
    I'll find out tonight when I get off work how hard they are to get off.

    joesmith, Sep 12, 2013
    #48
  9. Sep 12, 2013 at 11:24 PM
    #49
    joesmith

    #49
    joesmith Well-Known Member

    Joined:
    Dec 7, 2011
    Member:
    #68331
    Messages:
    88
    Gender:
    Male
    Alaska
    Vehicle:
    2005 Access Cab 4x4
    Ya, I used a pair of vise grips to remove all but one screw. The last screw I had to file a flat spot so the vise grips wouldn't slip.

    The plastic gear inside the actuator is broken, and I don't think they sell parts so I will need to buy a new actuator unit or see if I can get one from a junk yard.

    I'll upload pictures in the morning when I can find a camera.

    joesmith, Sep 12, 2013
    #49
  10. Sep 13, 2013 at 9:12 AM
    #50
    joesmith

    #50
    joesmith Well-Known Member

    Joined:
    Dec 7, 2011
    Member:
    #68331
    Messages:
    88
    Gender:
    Male
    Alaska
    Vehicle:
    2005 Access Cab 4x4
    You can see the top of this little gear that is broken.

    [​IMG]

    joesmith, Sep 13, 2013
    #50
    unstpible likes this.
  11. Sep 13, 2013 at 9:15 AM
    #51
    joesmith

    #51
    joesmith Well-Known Member

    Joined:
    Dec 7, 2011
    Member:
    #68331
    Messages:
    88
    Gender:
    Male
    Alaska
    Vehicle:
    2005 Access Cab 4x4
    So is this open?

    [​IMG]

    And this is 4x4 engaged?

    [​IMG]

    joesmith, Sep 13, 2013
    #51
    PzTank likes this.
  12. Sep 13, 2013 at 11:02 AM
    #52
    joesmith

    #52
    joesmith Well-Known Member

    Joined:
    Dec 7, 2011
    Member:
    #68331
    Messages:
    88
    Gender:
    Male
    Alaska
    Vehicle:
    2005 Access Cab 4x4
    After closer inspection I can see where the gap between the drive shafts is located.

    Local dealer wants $378 for the part, online seems to be about $100 cheaper, plus shipping.

    No junk yards around here seem to have this part either.

    joesmith, Sep 13, 2013
    #52
    PzTank likes this.
  13. Sep 25, 2013 at 9:47 AM
    #53
    joesmith

    #53
    joesmith Well-Known Member

    Joined:
    Dec 7, 2011
    Member:
    #68331
    Messages:
    88
    Gender:
    Male
    Alaska
    Vehicle:
    2005 Access Cab 4x4
    Well I bought a new 4x4 actuator assembly from Camelback Toyota, put it in the truck and my 4wd drive is working again! :)

    joesmith, Sep 25, 2013
    #53
    SteanAZ, PzTank and yotao like this.
  14. Sep 25, 2013 at 10:13 AM
    #54
    allmotorrex

    #54
    allmotorrex Grove St. Fab

    Joined:
    Aug 29, 2010
    Member:
    #42441
    Messages:
    16,746
    Gender:
    Male
    First Name:
    Gideon
    Memphis 901
    Vehicle:
    08 SR5 4wd 2.7
    NWF crawlbox, 5.29s, rear Detriot, front Harrop, 37" SXIIs, 17x9" KMC Grenade Crawl beadlocks, Dirt King 3.5" LT kit with King shocks, Fox 12" smooth body RR, BAMF shock kit, AP 3" springs, ext. brake lines, custom 1 piece driveshaft with .135 wall tubeing, GSF front rock crawling bumper, GSF rear bumper, Relentless Fab ifs skid, BAMF k/o sliders, X2O 10K comp. winch, TP glass fenders, OKled 20"bar, EBS dimpled/slotted rotors, EBS green pads, custom K&N CAI, LCE headers, FM Super 44 w/h turn down, URD MAF, Spec clutch, LCE heavy flywheel, URD short shifter, TMPer M1 Abrams shift knob, Amsoil oil, Cobra 75wxst w/h 4' firestix, Grillcraft, FXR TRS, T1 eyelids, custom ADV Monster 60 lights, bed lights, speedo light mod, Glow Shift volt/oil pres gauges, Glow shift 2g column pod, Optima yellow tops dual battery setup w/h IBS system, Pioneer DEH-P7200HD head unit, Pioneer 600W 4ch & 350w 2ch amps for doors and sub, Wet Oakle covers
    Hell yeah. I just ordered one Sunday night and I'm hoping mine goes that smooth also.

    allmotorrex, Sep 25, 2013
    #54
  15. Sep 25, 2013 at 2:05 PM
    #55
    joesmith

    #55
    joesmith Well-Known Member

    Joined:
    Dec 7, 2011
    Member:
    #68331
    Messages:
    88
    Gender:
    Male
    Alaska
    Vehicle:
    2005 Access Cab 4x4
    I dropped the two front diff brackets to give more clearance. Hardest part for me was getting the old unit off. If I had an angle adapter to remove that last bolt, it would be so much easier!

    joesmith, Sep 25, 2013
    #55
  16. Sep 26, 2013 at 7:54 AM
    #56
    allmotorrex

    #56
    allmotorrex Grove St. Fab

    Joined:
    Aug 29, 2010
    Member:
    #42441
    Messages:
    16,746
    Gender:
    Male
    First Name:
    Gideon
    Memphis 901
    Vehicle:
    08 SR5 4wd 2.7
    NWF crawlbox, 5.29s, rear Detriot, front Harrop, 37" SXIIs, 17x9" KMC Grenade Crawl beadlocks, Dirt King 3.5" LT kit with King shocks, Fox 12" smooth body RR, BAMF shock kit, AP 3" springs, ext. brake lines, custom 1 piece driveshaft with .135 wall tubeing, GSF front rock crawling bumper, GSF rear bumper, Relentless Fab ifs skid, BAMF k/o sliders, X2O 10K comp. winch, TP glass fenders, OKled 20"bar, EBS dimpled/slotted rotors, EBS green pads, custom K&N CAI, LCE headers, FM Super 44 w/h turn down, URD MAF, Spec clutch, LCE heavy flywheel, URD short shifter, TMPer M1 Abrams shift knob, Amsoil oil, Cobra 75wxst w/h 4' firestix, Grillcraft, FXR TRS, T1 eyelids, custom ADV Monster 60 lights, bed lights, speedo light mod, Glow Shift volt/oil pres gauges, Glow shift 2g column pod, Optima yellow tops dual battery setup w/h IBS system, Pioneer DEH-P7200HD head unit, Pioneer 600W 4ch & 350w 2ch amps for doors and sub, Wet Oakle covers
    Yeah mine came off really easy. I had to take channel locks to the Philips head screws but the ADD box itself came off the diff real easy. Part should be here today so hopefully 4wd is alive by tonight. :pray:

    allmotorrex, Sep 26, 2013
    #56
  17. Sep 26, 2013 at 8:03 AM
    #57
    Negative1

    #57
    Negative1 Well-Known Member

    Joined:
    Jan 5, 2009
    Member:
    #12262
    Messages:
    228
    Gender:
    Male
    Great post!
    Thanks for the info.

    Sub'd!

    Negative1, Sep 26, 2013
    #57
  18. Oct 26, 2013 at 8:35 PM
    #58
    uscg2008

    #58
    uscg2008 Well-Known Member

    Joined:
    Nov 6, 2009
    Member:
    #25537
    Messages:
    2,879
    Gender:
    Male
    First Name:
    coby
    San Diego, CA originally from Huntington Beach, CA
    Vehicle:
    06 trd sr5 four door 4x4
    CLICK ON SIGNATURE>>>>

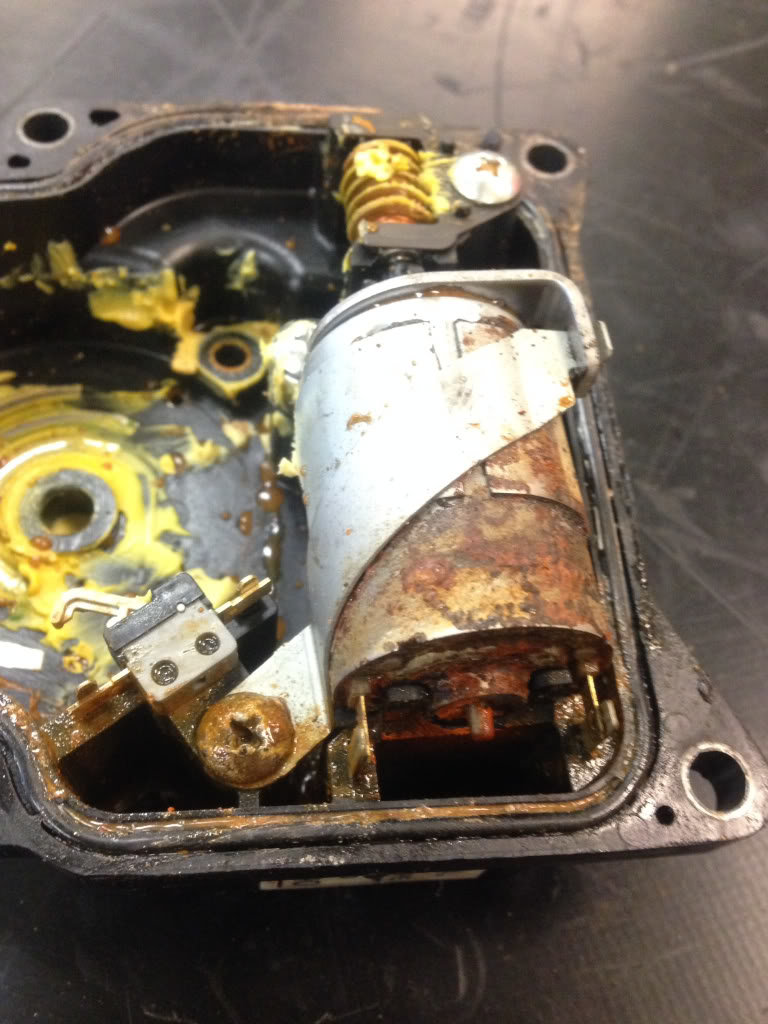

    So this is what mine looks like
    066a3980db5606cd137d3105b23ea4dd_zpsff8e_46724c8b0cd5b7f29762253da89deb1e330505ae.jpg

    So im going to try and clean it up and see if it works tomorrow.... If not I'm going to have to either get one from my cousin who is a Toyota tech at price or....shit idk

    uscg2008, Oct 26, 2013
    #58
  19. Oct 26, 2013 at 8:47 PM
    #59
    blackhawke88

    #59
    blackhawke88 [OP] wo ai ni bao bei ^_^

    Joined:
    Jan 11, 2009
    Member:
    #12478
    Messages:
    16,598
    Gender:
    Male
    SGV, CA
    Vehicle:
    07 TRD Offroad
    :eek: if it works, give a bead of gasket to make sure that doesnt happen again!

    blackhawke88, Oct 26, 2013
    #59
  20. Oct 26, 2013 at 9:03 PM
    #60
    NumNutz

    #60
    NumNutz One of the original 7928

    Joined:
    Jul 14, 2008
    Member:
    #7928
    Messages:
    4,899
    Gender:
    Male
    Virginia Beach, VA
    Vehicle:
    07 Tacoma 4x4 - Kings, TC, Dakars, broken stuff
    Lots.
    Wow. Wish I hadn't paid Toyota a ridiculous amount of money to replace one for me last winter.

    NumNutz, Oct 26, 2013
    #60
