HOW TO: Tundra USB/Stereo input on Tacoma aftermarket head unit

Discussion in 'Audio & Video' started by epa4wd, Jul 17, 2010.

  1. Jul 17, 2010 at 6:42 PM
    #1
    epa4wd

    epa4wd [OP] Well-Known Member

    Joined:
    Mar 17, 2009
    Member:
    #14828
    Messages:
    2,062
    Gender:
    Male
    First Name:
    Eduardo
    Vehicle:
    2015 TRD Sport 2WD
    Clazzio Seat Covers Extang Tri-Fold Soft Tonneau Cover TRD Skid Plate Side Steps 43% Front Tint Pop and Lock TRD Exhaust
    This part fits below the A/C Controls on the 09+ Tacomas

    Needed:


    -Tundra USB/Stereo port part number 86190-0C020
    -USB Male to Male cable
    -R/C toy servo extension cable (you can get it at a hobby shop just ask for a servo extension cord)

    USB port:
    [​IMG]




    Thanks to ElectronMan for the instructions to connect the USB cable and info on cutting the port:


    You may need to cut the back of the USB/Stereo port like the pics below for easier access to connectors, like this:

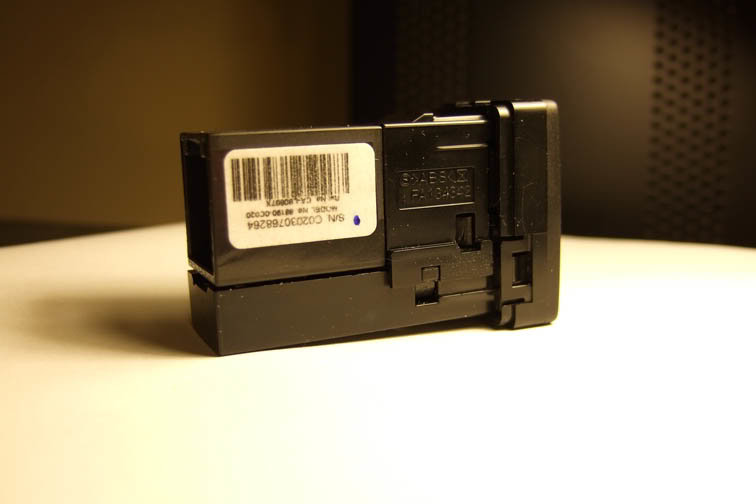

    BEFORE:

    [​IMG]

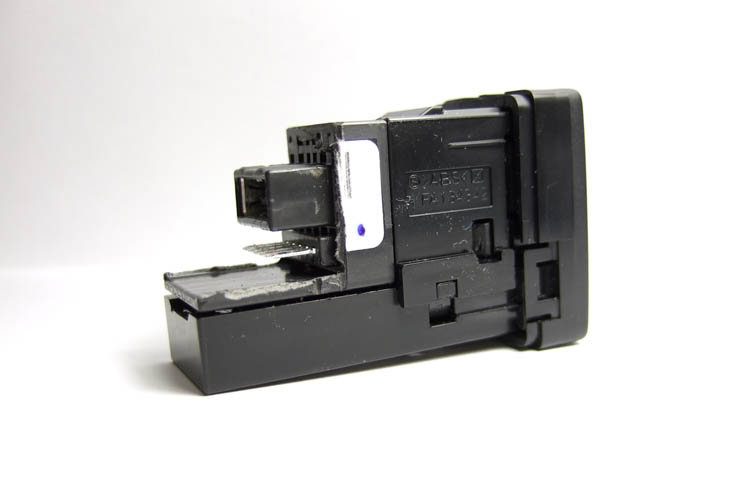

    AFTER:

    [​IMG]


    Connecting the USB (Thanks again to ElectronMan):

    You will need to modify one end of the USB cable, basically remove the metal surrounding so you end with something like this:

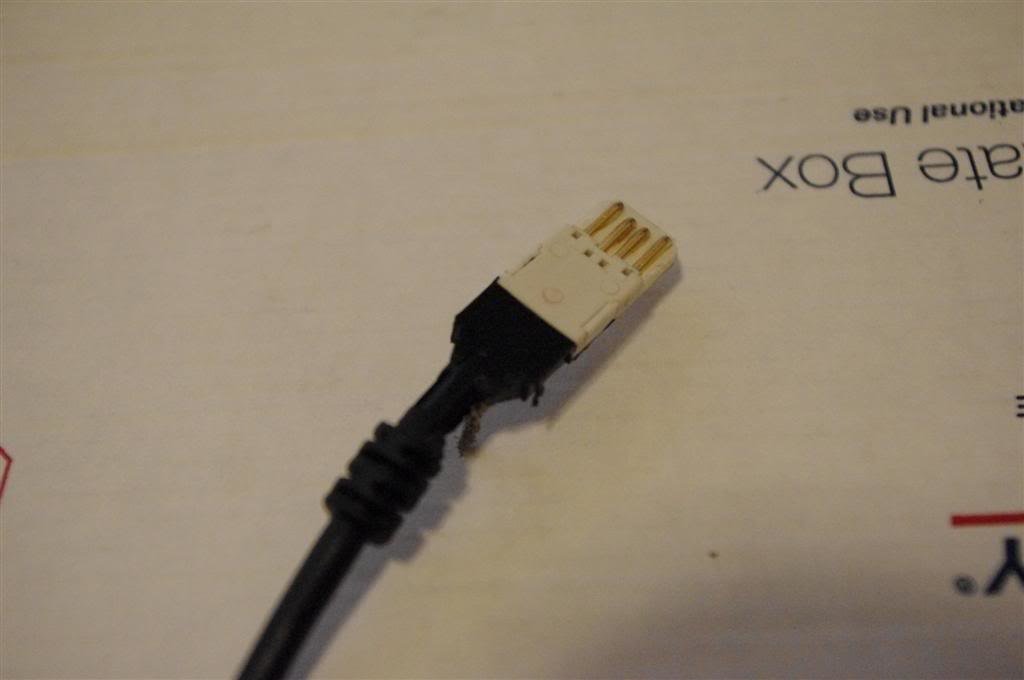

    [​IMG]

    Once modified like above it will plug in, in the back of the toyota USB port.
    [​IMG]

    Thats it!!!

    Stereo input:

    For the stereo cable I used a three wire 3.5mm stereo cable, cut the plug of one end and you'll have three thin wires exposed:

    Black - ground
    Red - right channel
    White - left channel

    Mate them to a radio control servo wire extension as follow:
    (Depending on which harness they give you at the hobby shop, they usually are black,red,white or brown,red,yellow)

    Black to (Black or Brown)

    Red to (White or yellow)

    White to (Red)

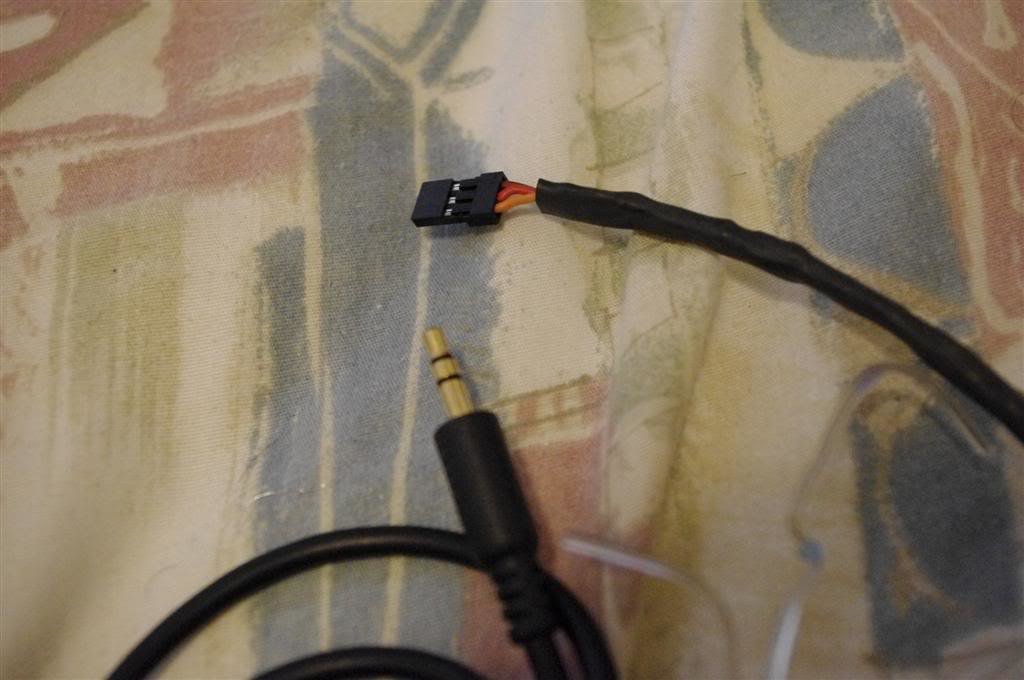

    You'll end up with a cable like this:
    [​IMG]

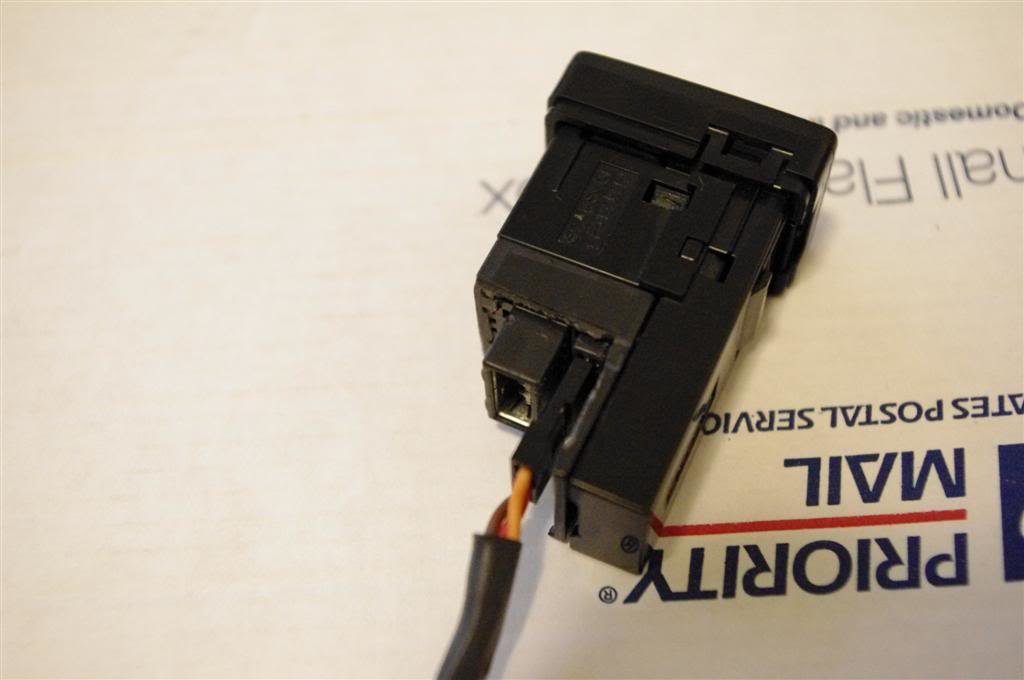

    Connect to the back of the USB/Stereo input like this:
    [​IMG]

    Connect to aftermarket radio and thats it!!!!!!!!!

    Installed PIC:

    [​IMG]

  2. Jul 18, 2010 at 6:56 PM
    #2
    othater

    othater Well-Known Member

    Joined:
    Aug 22, 2009
    Member:
    #21558
    Messages:
    220
    Gender:
    Male
    SoCal-Walnut
    Vehicle:
    06 Prerunner SR5 TRD Sport
    Thanks for posting your how to.
    Do you have a picture of where you installed the jack?

  3. Jul 18, 2010 at 7:02 PM
    #3
    epa4wd

    epa4wd [OP] Well-Known Member

    Joined:
    Mar 17, 2009
    Member:
    #14828
    Messages:
    2,062
    Gender:
    Male
    First Name:
    Eduardo
    Vehicle:
    2015 TRD Sport 2WD
    Clazzio Seat Covers Extang Tri-Fold Soft Tonneau Cover TRD Skid Plate Side Steps 43% Front Tint Pop and Lock TRD Exhaust
    don't have a pic, but its next to the stock AUX input below the A/C controls

  4. Oct 14, 2010 at 1:43 AM
    #4
    ShaLor

    ShaLor Well-Known Member

    Joined:
    Jan 8, 2010
    Member:
    #29015
    Messages:
    410
    Gender:
    Male
    First Name:
    Shane
    Burbank, CA
    Vehicle:
    07 4x4 Doublecab TRD Off Road
    Custom mud flap removal from rock on trail :), Tailgate Hose Clamp Mod, Cobra 75 wx st CB install, 19 more D-Rings in the bed, Satoshi Grill, Fog Lamp on any time mod. Relentless Fab CB antenna hood mount, LED bed lights, Demello Hybrid Sliders, Undercover Tonneau Cover, Lighted 4x4 switch
    Nice and clean! I am definitely going to do this when I order the 2009 Lower Trim panel for my 2007 that doesn't have any auxiliary input. Of course, I still have to get a radio that has auxiliary inputs so I can actually use this.

  5. Oct 18, 2010 at 1:59 PM
    #5
    GearBox

    GearBox I hate Commie Libs!

    Joined:
    Feb 9, 2010
    Member:
    #31035
    Messages:
    152
    Gender:
    Male
    First Name:
    Gear
    Phoenix
    Vehicle:
    07 Tacoma Double Cab TRD Sport 4x4
    Where did you order the lower trim panel from?

  6. Oct 18, 2010 at 2:22 PM
    #6
    scottri

    scottri Well-Known Member

    Joined:
    Apr 13, 2010
    Member:
    #35187
    Messages:
    2,105
    Gender:
    Male
    First Name:
    Scott
    Tigard Oregon
    Vehicle:
    '10 Sport DC TRD Sport PreRunner
    Cover King Seat Covers, WeatherTech Liners, PopNLock, storage bin locks, N-Fab Step bars, and G4 Elite Tonneau cover.
    Nice write up! Thanks.

  7. Nov 24, 2010 at 7:58 PM
    #7
    ShaLor

    ShaLor Well-Known Member

    Joined:
    Jan 8, 2010
    Member:
    #29015
    Messages:
    410
    Gender:
    Male
    First Name:
    Shane
    Burbank, CA
    Vehicle:
    07 4x4 Doublecab TRD Off Road
    Custom mud flap removal from rock on trail :), Tailgate Hose Clamp Mod, Cobra 75 wx st CB install, 19 more D-Rings in the bed, Satoshi Grill, Fog Lamp on any time mod. Relentless Fab CB antenna hood mount, LED bed lights, Demello Hybrid Sliders, Undercover Tonneau Cover, Lighted 4x4 switch
    I haven't ordered it yet. I am waiting for the 2011 Consumer Electronics Show so I can figure out what head unit I want for my stereo. I want a head unit that is Apple AirPlay compatible. I will be able to play music from my iPhone wirelessly, but still be able to power my phone for charging and other accessories with the USB port.

    When I do order the lower trim panel, I will probably order it from:

    ToyotaPartsCheap.com

    http://www.trademotion.com/partlocator/index.cfm?action=getJointLocator&siteid=214001&chapter=&sectionids=0,2610&groupid=4805&subgroupid=2781&componentid=4221&make=34&model=Tacoma&year=2009&catalogid=2&displayCatalogid=0

    The part numbers are:
    55407-04040-B0 panel (trim panel itself)
    55539-28160-C0 blank. (button blanks)

  8. Jan 18, 2011 at 6:19 AM
    #8
    ItalynStylion

    ItalynStylion Sounds Gooooood

    Joined:
    Jun 15, 2009
    Member:
    #18467
    Messages:
    4,543
    Gender:
    Male
    First Name:
    Steven
    DFW, Tx.
    Vehicle:
    09 Double Cab TRD Sport 4x4
    Oh hell yeah, how'd I miss this thread?

  9. Feb 6, 2011 at 3:55 PM
    #9
    TRDKenE

    TRDKenE DAMN GOOD DEAL!!

    Joined:
    Jul 6, 2009
    Member:
    #19348
    Messages:
    706
    Gender:
    Male
    First Name:
    Kenny
    Richmond, Virginia
    Vehicle:
    '10 D-CAB OFF-ROAD 4X4
    TRD CAI, GrillCraft.
    sooo....does the USB work? or is just for the AUX?

  10. Feb 6, 2011 at 3:58 PM
    #10
    epa4wd

    epa4wd [OP] Well-Known Member

    Joined:
    Mar 17, 2009
    Member:
    #14828
    Messages:
    2,062
    Gender:
    Male
    First Name:
    Eduardo
    Vehicle:
    2015 TRD Sport 2WD
    Clazzio Seat Covers Extang Tri-Fold Soft Tonneau Cover TRD Skid Plate Side Steps 43% Front Tint Pop and Lock TRD Exhaust
    Yes the USB works, it is hooked up to a Pioneer u310bt.

  11. Feb 6, 2011 at 6:09 PM
    #11
    TRDKenE

    TRDKenE DAMN GOOD DEAL!!

    Joined:
    Jul 6, 2009
    Member:
    #19348
    Messages:
    706
    Gender:
    Male
    First Name:
    Kenny
    Richmond, Virginia
    Vehicle:
    '10 D-CAB OFF-ROAD 4X4
    TRD CAI, GrillCraft.
    I don't see where the usb cable goes. Does the AUX and USB works? Thanks sorry for so many questions.

  12. Feb 6, 2011 at 6:34 PM
    #12
    epa4wd

    epa4wd [OP] Well-Known Member

    Joined:
    Mar 17, 2009
    Member:
    #14828
    Messages:
    2,062
    Gender:
    Male
    First Name:
    Eduardo
    Vehicle:
    2015 TRD Sport 2WD
    Clazzio Seat Covers Extang Tri-Fold Soft Tonneau Cover TRD Skid Plate Side Steps 43% Front Tint Pop and Lock TRD Exhaust
    Cable on Picture #4 is a male to male USB cable, just that one of the ends was modifyed so it would plug in, into the Toyota USB/Aux. The other unmodifyed end simply plugs in into the USB port behind my Pioneer headunit.

    and Yes both 3.5mm Stereo and USB are connected and working perfectly.

  13. Feb 6, 2011 at 6:56 PM
    #13
    slmgt

    slmgt Well-Known Member

    Joined:
    Oct 19, 2010
    Member:
    #44921
    Messages:
    661
    Gender:
    Male
    San Francisco Bay Area
    Vehicle:
    11 TRD Sport w/ JBL DCLB V6 AT
    Husky floor mats (Fr and Rr) Hose clamp securing tailgate
    This is an awesome mod and to save a few bucks on the USB cable, Monoprice sells the same USB cable for much less (along with lots of other cables and accessories) - just choose the color and length of the cable.

  14. Feb 6, 2011 at 7:02 PM
    #14
    TRDKenE

    TRDKenE DAMN GOOD DEAL!!

    Joined:
    Jul 6, 2009
    Member:
    #19348
    Messages:
    706
    Gender:
    Male
    First Name:
    Kenny
    Richmond, Virginia
    Vehicle:
    '10 D-CAB OFF-ROAD 4X4
    TRD CAI, GrillCraft.
    cool....thanks for your help bud...

  15. Feb 12, 2011 at 4:41 PM
    #15
    stoggy

    stoggy Member

    Joined:
    Jan 17, 2011
    Member:
    #49438
    Messages:
    5
    Gender:
    Male
    stereo
    got my usb adapter installed.

    The cable type would depend on what is coming out of the back of you radio.

    The USB adapter, the toyota part, is female on the outside and male on the inside. So like for me i had a female connector coming out of the back of my stereo but i didnt want to bugger up that adapter when i could buy a normal usb cable and plug the male side into the cable from the stereo and then bugger up the female side and plug it into the toyota usb plug.

    I used a grinder to cut down the female side on the usb cable i bought. i didnt cut down the toyota plug. Hardest part was getting the old aux-only plug out. I finally got it with a coat hanger. just made a little curl at the bottom so I could put it under and pull up on the tab before i could push it out.

  16. Mar 18, 2011 at 7:49 PM
    #16
    2000GTacoma

    2000GTacoma Well-Known Member

    Joined:
    Jan 29, 2011
    Member:
    #50183
    Messages:
    2,184
    Gender:
    Male
    Snow Hill NC
    Vehicle:
    00 Tacoma Ext. 3.4L SR5
    nice write up

  17. Apr 5, 2011 at 9:10 PM
    #17
    LovingLife

    LovingLife New Member

    Joined:
    Apr 5, 2011
    Member:
    #54421
    Messages:
    1
    Gender:
    Male
    First Name:
    Kristina
    Denver
    I've been trying to get the usb part of this mod to work. The aux part works fine for me.

    I bought 3 inexpensive USB A Male to A Male USB connectors and tried this but the connectors I guess where a little too cheap as the wires to the connectors came off too easy. I did connect them in but my HU couldn't find the flash drive I had connected.

    Since I ran out of stock cables I decided to make my own from two USB cables. I wired up the cables for A Male to A Male. What I'm not sure of is whether I keep the wires for the cable the same on both end or invert them

    Pin No. Signal Cable Color
    1 + VCC Red
    2 Data - White
    3 Data + Green
    4 GND Black


    I tried

    P1 to P1
    P2 to P2
    P3 to P3
    P4 to P4

    but the flash drive wasn't seen by the HU

    I then tried to flip just the power

    P1 to P4
    P4 to P1

    and that didn't work either
    Anyone know what the wiring should be for A Male to A Male?

    Also do I need any of the metal on the connector for a contact
    The picture doesn't show any. I'm just at a lost as to what I'm doing wrong here.

  18. Apr 6, 2011 at 5:10 AM
    #18
    epa4wd

    epa4wd [OP] Well-Known Member

    Joined:
    Mar 17, 2009
    Member:
    #14828
    Messages:
    2,062
    Gender:
    Male
    First Name:
    Eduardo
    Vehicle:
    2015 TRD Sport 2WD
    Clazzio Seat Covers Extang Tri-Fold Soft Tonneau Cover TRD Skid Plate Side Steps 43% Front Tint Pop and Lock TRD Exhaust
    In The usb cable end that you stripped
    You have to slightly push up each of the four
    Metal contacts so they make contact with their respective contacts on the aux port

  19. Apr 6, 2011 at 12:36 PM
    #19
    Bullzi511Tacoma06

    Bullzi511Tacoma06 LIVESTRONG

    Joined:
    Mar 3, 2010
    Member:
    #32485
    Messages:
    1,661
    Gender:
    Female
    Louisiana, not far from New Orleans
    Vehicle:
    06 PreRunner Doublecab TRD Off Road
    EuroStyle 13" ANTENNAX (3/13), SockMonkey 3rd Brake Light TRD decal (3/13), WeatherTech DigitalFit Black Floormats (3/31), Apexcone Raptor HID Kit (for fogs) 35w/6000k (4/11), Removed side steps (4/11), Fog Light Anytime Mod (5/2), Mud Flaps Removed (5/4), Debadged (5/7-8), BHLM, Bed Extender
    Guessing this will not work on my 06 stock headunit?

  20. Apr 6, 2011 at 12:41 PM
    #20
    epa4wd

    epa4wd [OP] Well-Known Member

    Joined:
    Mar 17, 2009
    Member:
    #14828
    Messages:
    2,062
    Gender:
    Male
    First Name:
    Eduardo
    Vehicle:
    2015 TRD Sport 2WD
    Clazzio Seat Covers Extang Tri-Fold Soft Tonneau Cover TRD Skid Plate Side Steps 43% Front Tint Pop and Lock TRD Exhaust
    (see picture number 4)
