HOW TO: Tundra USB/Stereo input on Tacoma aftermarket head unit

Discussion in 'Audio & Video' started by epa4wd, Jul 17, 2010.

  1. Oct 5, 2012 at 8:14 AM
    #41
    Jet Fixer

    Jet Fixer Jet Fixer

    Joined:
    Oct 4, 2012
    Member:
    #88286
    Messages:
    16
    Gender:
    Male
    First Name:
    Kyle
    Lakenheath, UK
    Vehicle:
    12 TRD Off-Road
    Pioneer 7" DVD/CD Husky Liner All-Weather Mats
    Thanks for the tutorial.... this worked awesomely!

  2. Mar 15, 2013 at 8:59 AM
    #42
    fagesbp

    fagesbp Member

    Joined:
    Feb 18, 2013
    Member:
    #97828
    Messages:
    10
    Gender:
    Male
    First Name:
    Brandon
    Louisiana
    Vehicle:
    '13 Reg Cab MT
    Last edited: Mar 15, 2013
  3. Mar 15, 2013 at 9:03 AM
    #43
    LoadedTaco

    LoadedTaco Kick A$$ Member

    Joined:
    Aug 21, 2012
    Member:
    #85218
    Messages:
    2,759
    Gender:
    Male
    First Name:
    Peter
    Burr Ridge Il
    Vehicle:
    2012 Red Baja
    I know this is slightly off topic but I am having a really hard time finding and auxilary lighting switch for the blank plugs I have next to this location. Can any of you help me out?...Before you say it yes I used the search function.

  4. Jun 11, 2013 at 2:04 AM
    #44
    lish

    lish New Member

    Joined:
    Jun 11, 2013
    Member:
    #106026
    Messages:
    1
    Gender:
    Male
    Wondering if anyone could help, I want to use a 4 pole 3.5mm av-in jack to play audio only, through a normal 3 pole aux cable. I am aware that these jacks are capable of video playback. Will this work? I would have to wire up the 4 pole av-in jack as if it were a normal 3 pole aux-in jack as my headunit does not support video playback through these 4 pole av-in jacks anyways, so I will be connecting the jack to my head unit with a normal 3 cable aux cord. Sorry if this is confusing. The av jack i'm referring to is linked below, this is the component I want to install and run to my h/u:

    http://www.ecstuning.com/ES2159880/

    Any help is greatly appreciated.

    Thanks

  5. Jun 11, 2013 at 6:16 AM
    #45
    dtopgun515

    dtopgun515 Well-Known Member

    Joined:
    Feb 21, 2012
    Member:
    #73285
    Messages:
    880
    Gender:
    Male
    First Name:
    Darrell
    Hey Yall Georgia
    Vehicle:
    13 TRD Sport
    5100's up front set to 1.75, SCS Stealth 6 wheels, Nitto Terra Grappler AT's
    Anybody tried to modify the factory installed usb/aux switch to hook up to an aftermarket radio? Going to install a double din in a few weeks and would be nice to keep my factory switch functional.

  6. Jun 11, 2013 at 6:38 AM
    #46
    ike3000

    ike3000 Well-Known Member

    Joined:
    Apr 27, 2013
    Member:
    #103001
    Messages:
    210
    Gender:
    Male
    i used this for the USB: http://www.sonicelectronix.com/item_61468_Axxess-AX-TOYUSB.html seems to work fine so far.

    i have not done the 3.5mm aux input yet, but plan to tap into the factory wiring harness and connect the aux input to the RCA inputs available on the rear of my DEH-80PRS. i'll do that when i install the radio antenna adaptor in a couple of weeks (love the fact that toyota uses non-conventional plugs!).

    there's a wiring diagram available somewhere on this forum (i found it a couple of weeks ago) that shows the wiring from the aux 3.5mm input to the stereo connector. i'll post a link if i find it.

  7. Jun 16, 2013 at 1:24 AM
    #47
    OfficerObie59

    OfficerObie59 Member

    Joined:
    May 6, 2013
    Member:
    #103609
    Messages:
    10
    Gender:
    Male
    My abode
    Vehicle:
    '11 Tacoma Double Cab, Extended Bed
    I wanted to do this with my aftermarket head unit, but with just the solo auxiliary plug that came with my 2011 Tacoma (solo meaning no USB). And unlike the USB/AUX combo the OP used that has a five pin connection to the AUX jack, the solo AUX jack is eight pins, with two rows of four.

    So here's what I did, after some trial and error.

    First, you're going to build the spliced audio cable as the OP instructed EXCEPT that the wires will go together as follows--essentially, you're reversing the right and left channels:

    Connection: 3.5 mm Audio cable to (servo wire)
    Ground: Black to (Black or Brown)
    Right Channel: Red to (Red)
    Left Channel: White to (White or yellow)

    (If you made the cable the way the OP instructed, don't fret. You can always very gently lift up on the small plastic tabs that keep the wires from coming out of the connector and swap the red and the white/yellow wire. Be careful to ensure you don't break the small tabs as it may cause loose connections in the future.)

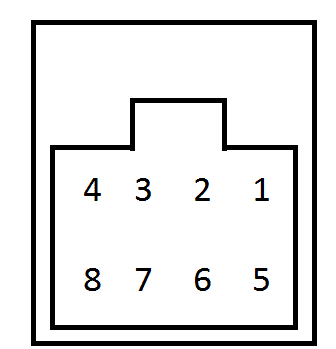

    Next, the 8 pin connector on the back of the AUX jack is mapped as follows:

    [​IMG]

    1 = Aux Left Out
    2 = Aux Right Out
    3 = Aux Ground
    4 = Aux Connection Sensor
    5 = Shielding
    6-8 = Unused

    So if you've been playing along, the servo wire will connect to Pins 3, 2, and 1 with the white/yellow wire on Pin 1, the red wire on Pin 2, and the black or brown wife on Pin 3.

    Instead of a servo wire, I actually used the smaller end of an old analog audio cable from a CD rom drive. While I had to move some pins around, it works aweseome.

    Hopefully this is helpful to someone in a similar position.

    Obes

  8. Jun 29, 2013 at 4:54 PM
    #48
    randyoaks187

    randyoaks187 New Member

    Joined:
    Jun 29, 2013
    Member:
    #107271
    Messages:
    2
    Gender:
    Male
    Vehicle:
    2011 Double Cab PreRunner TRD Sport
    Anyone out there know if the stock aux jack can be replaced with the usb combo version if you just want power to the usb with out doing all these cable mods?

  9. Jun 29, 2013 at 4:58 PM
    #49
    KCDuran

    KCDuran Stormtrooper

    Joined:
    Jun 13, 2012
    Member:
    #80606
    Messages:
    6,828
    Gender:
    Male
    First Name:
    Kyle
    South Jersey
    Vehicle:
    5 Lug'n 4 banger
    Icon/TC Mid Travel Kit, Kenwood Deck, Helix Audio System, BHLM (With Tinted Reflectors), Tinted Taillights, Satoshi Grill (color matched to super white), Stormtrooper sticker, Air Force sticker HUA! Re colored gauges (White numbers and ODO with Blue Needles) Magnaflow Glasspack Muffler, Stainless steel exhaust tip, 8k HIDs, LED Satoshi, Eye Lids, ARB locker (4.10 Gears), 8k FOG HIDs, LED Head Lamp, Tonneau Cover
    Sub'd ... completely awesome!

  10. Jul 5, 2013 at 8:18 AM
    #50
    OfficerObie59

    OfficerObie59 Member

    Joined:
    May 6, 2013
    Member:
    #103609
    Messages:
    10
    Gender:
    Male
    My abode
    Vehicle:
    '11 Tacoma Double Cab, Extended Bed
    To a stock head? Sounds like a question for another thread...

  11. Jul 9, 2013 at 11:02 PM
    #51
    Voodoochild 2k9

    Voodoochild 2k9 Well-Known Member

    Joined:
    Apr 2, 2012
    Member:
    #76109
    Messages:
    217
    Gender:
    Male
    First Name:
    Randy
    Florida
    Vehicle:
    TBD
    Undercover SE; DD Pioneer Radio
    Does the iPhone cable have 4 sections or 3 on the plug? I'm thinking the same as you because I'm about to get an iPhone to go with my new Pioneer with app mode. If it only has 3 sections like a normal headphone cable, it should work with this mod...or so you'd think.

  12. Jul 13, 2013 at 7:45 PM
    #52
    Tommiet

    Tommiet Well-Known Member

    Joined:
    Jun 10, 2013
    Member:
    #105990
    Messages:
    247
    Gender:
    Male
    First Name:
    Tom
    Charlotte Area
    Vehicle:
    PreRunner
    How do you remove the USB "faceplate?" I'm installing a new HU and want to hack the USB connector, but cannot figure out how to remove it.

  13. Jul 13, 2013 at 9:38 PM
    #53
    Voodoochild 2k9

    Voodoochild 2k9 Well-Known Member

    Joined:
    Apr 2, 2012
    Member:
    #76109
    Messages:
    217
    Gender:
    Male
    First Name:
    Randy
    Florida
    Vehicle:
    TBD
    Undercover SE; DD Pioneer Radio
    I havent done it myself, but have asked before. Was basically told you need to remove the console to get to the back. I tried popping it out as well with no luck. Will have to wait for some free time, which is at a premium these days...

  14. Jul 18, 2013 at 10:25 AM
    #54
    OfficerObie59

    OfficerObie59 Member

    Joined:
    May 6, 2013
    Member:
    #103609
    Messages:
    10
    Gender:
    Male
    My abode
    Vehicle:
    '11 Tacoma Double Cab, Extended Bed
    If you already have the head unit (and climate controls) out of the dash, you should be able to stick a couple fingers down there and pop it out from behind.

    My issue was I installed it that way, and then learned after putting my head unit back in my connections were wrong. Solution? If you *gently* stick a thin, wide flathead screw driver between the top of the plug and the dash panel, you can pop it out and avoid having to remove your stereo trim, stereo, and climate control panel. I did it with the AUX only plug in my '11; should work with the AUX/USB combo.

    Again, I emphasise GENTLY.

    Last edited: Jul 18, 2013
  15. Jul 25, 2013 at 1:28 PM
    #55
    apoteker

    apoteker Well-Known Member

    Joined:
    Aug 1, 2012
    Member:
    #83859
    Messages:
    114
    Gender:
    Male
    Vehicle:
    2012 DCSB O/R debadged
    JBL/Entune Touchscreen Navigation with Speed override mod, JBL Speaker refit, debadged, chime removed, overhead led mod, switch LED mod, rear cupholder LED mod, ImMrYo Rear-View Mirror Lift Bracket #339
    so i am trying to do this mod in a slightly different way- in my '12 with the aux port i just want to tap into the wiring harness where this plugged into the back of my oem radio- but i can't find which plug it connected to... any ideas?

    thanks

  16. Oct 13, 2013 at 7:39 AM
    #56
    Voodoochild 2k9

    Voodoochild 2k9 Well-Known Member

    Joined:
    Apr 2, 2012
    Member:
    #76109
    Messages:
    217
    Gender:
    Male
    First Name:
    Randy
    Florida
    Vehicle:
    TBD
    Undercover SE; DD Pioneer Radio
    A little late but if you haven't figured it out yet, there's a cable by Axxess for just that purpose. Just picked one up myself off flea bay. Gonna see if I can figure it out today. I also got the servo thing the OP was talking about. That one will be a little tougher.

  17. Nov 10, 2013 at 3:25 PM
    #57
    Keonib

    Keonib Member

    Joined:
    Aug 23, 2013
    Member:
    #111022
    Messages:
    22
    Gender:
    Male
    First Name:
    Keoni
    Honolulu, HI
    Vehicle:
    11 Tacoma DBL Cab 4x4
    Sub'd and added to the list!

  18. Nov 10, 2013 at 5:47 PM
    #58
    adio

    adio Do. Or do not. There is no try. -Master Yoda

    Joined:
    Sep 11, 2008
    Member:
    #9165
    Messages:
    1,566
    Gender:
    Male
    EWA BEACH, HI
    Vehicle:
    2015 INFERNO TRD PRO
    Bought, not built:-P
    gonna do this to a 2014 touchscreen HU that I recently installed in my 2008. got every part except the servo wire to get the aux function to work.

    I'll post up an update ones I get it done.

  19. Nov 11, 2013 at 2:19 AM
    #59
    adio

    adio Do. Or do not. There is no try. -Master Yoda

    Joined:
    Sep 11, 2008
    Member:
    #9165
    Messages:
    1,566
    Gender:
    Male
    EWA BEACH, HI
    Vehicle:
    2015 INFERNO TRD PRO
    Bought, not built:-P
    So I got a chance to hook up the USB/AUX port. USB function, but the AUX function can't seem to work. I wired up the AUX like the OP did. Did I do it wrong since the way he did it is for an aftermarket HU. I'm guessing for me to utilize the AUX function I need to use all 5 pins on the port.

    Anyone know the pin lay out of the AUX?? At help is greatly appreciated.

  20. Nov 12, 2013 at 1:50 PM
    #60
    adio

    adio Do. Or do not. There is no try. -Master Yoda

    Joined:
    Sep 11, 2008
    Member:
    #9165
    Messages:
    1,566
    Gender:
    Male
    EWA BEACH, HI
    Vehicle:
    2015 INFERNO TRD PRO
    Bought, not built:-P
    ^^^ Any help from anyone?? haha
