Discussion in 'Audio & Video' started by blake.eubank.1, Jul 31, 2012.

  1. Jul 31, 2012 at 6:44 PM
    #1
    blake.eubank.1

    blake.eubank.1 [OP] Member

    Joined:
    Jun 18, 2011
    Member:
    #58487
    Messages:
    13
    Gender:
    Male
    First Name:
    Blake
    Tx
    Vehicle:
    07 sr5 4x4
    I want to wire my backup camera to a switch and to automatically come on when i go into reverse

    this is the backup camera i got
    http://www.amazon.com/gp/product/B0049LBJ56/ref=oh_details_o00_s00_i01

    and this is the unit i got
    http://www.amazon.com/gp/product/B0051GN8SE/ref=oh_details_o00_s00_i00

    i know how to one or the other just not sure how to do both
    Thanks!

  2. Jul 31, 2012 at 6:48 PM
    #2
    brandonn

    brandonn pretend this is a clever saying

    Joined:
    Apr 13, 2010
    Member:
    #35215
    Messages:
    248
    Gender:
    Male
    First Name:
    Brandon
    Houston, TX
    You have to tap into the reverse wire.. it's the white and red wire at the top.


  3. Jul 31, 2012 at 6:53 PM
    #3
    blake.eubank.1

    blake.eubank.1 [OP] Member

    Joined:
    Jun 18, 2011
    Member:
    #58487
    Messages:
    13
    Gender:
    Male
    First Name:
    Blake
    Tx
    Vehicle:
    07 sr5 4x4
    i know but how should about splicing into that wire and one that always gets power to put a switch to.

  4. Jul 31, 2012 at 6:55 PM
    #4
    brandonn

    brandonn pretend this is a clever saying

    Joined:
    Apr 13, 2010
    Member:
    #35215
    Messages:
    248
    Gender:
    Male
    First Name:
    Brandon
    Houston, TX
    You want a switch to control what?

  5. Jul 31, 2012 at 6:59 PM
    #5
    blake.eubank.1

    blake.eubank.1 [OP] Member

    Joined:
    Jun 18, 2011
    Member:
    #58487
    Messages:
    13
    Gender:
    Male
    First Name:
    Blake
    Tx
    Vehicle:
    07 sr5 4x4
    to give the camera power bc the reverse doesnt always have power. correct??

  6. Jul 31, 2012 at 7:08 PM
    #6
    brandonn

    brandonn pretend this is a clever saying

    Joined:
    Apr 13, 2010
    Member:
    #35215
    Messages:
    248
    Gender:
    Male
    First Name:
    Brandon
    Houston, TX
    The reverse is only hot when you put the truck in reverse.

    So, if you wire it into the reverse the camera will only come on when you're in reverse.

    edit: oh i get it, you want it to come on automatically when in reverse OR when you flip the switch.

    Tap one wire into the reverse wire and the other you can run to the battery I guess. Then just wire up the switch with both wires and a ground.

    edit2: wait that wouldn't work. let me think about it :p

  7. Jul 31, 2012 at 7:20 PM
    #7
    brandonn

    brandonn pretend this is a clever saying

    Joined:
    Apr 13, 2010
    Member:
    #35215
    Messages:
    248
    Gender:
    Male
    First Name:
    Brandon
    Houston, TX
    Okay, excuse my crappy diagram, I had to use an online paint program.

    B is batter, S is switch, R is the reverse wire, HU is headunit.

    [​IMG]

  8. Jul 31, 2012 at 7:22 PM
    #8
    blake.eubank.1

    blake.eubank.1 [OP] Member

    Joined:
    Jun 18, 2011
    Member:
    #58487
    Messages:
    13
    Gender:
    Male
    First Name:
    Blake
    Tx
    Vehicle:
    07 sr5 4x4
    thanks for the help if anyone wants to add to that or has done it please chime in, i wont be doing it for a couple more days

  9. Jul 31, 2012 at 7:24 PM
    #9
    blake.eubank.1

    blake.eubank.1 [OP] Member

    Joined:
    Jun 18, 2011
    Member:
    #58487
    Messages:
    13
    Gender:
    Male
    First Name:
    Blake
    Tx
    Vehicle:
    07 sr5 4x4
    thanks for the diagram that will help a lot

  10. Jul 31, 2012 at 7:25 PM
    #10
    TnRedNeck721

    TnRedNeck721 GO VOLS!

    Joined:
    Mar 10, 2011
    Member:
    #52731
    Messages:
    23,722
    Gender:
    Male
    First Name:
    Zach
    TN
    Vehicle:
    07 TRD off road 4WD
    No mud flaps, plasti dipped emblems, and rear bumper, Weather tech digital fit, Bed mat from tractor supply. Pioneer 4400BH head unit. B.A.M.F bed rail tie downs. AVS vent visors.
    idk but i bet you could get a adapter for the HU for a back up camera. i think most that have the back up camera capabilities have a adaptor.

  11. Aug 1, 2012 at 12:28 AM
    #11
    MJonaGS32

    MJonaGS32 MJ on a GS

    Joined:
    Apr 14, 2009
    Member:
    #15949
    Messages:
    12,114
    Gender:
    Male
    First Name:
    MJ
    SF Bay Area (East)
    Vehicle:
    07 Mid-Travel 4x4 DCSB 6spd
    Kings Mid Travel, Drifter, dual batt OBA, ARB locker, 4.56 gears
    or you can just use a relay

  12. Aug 1, 2012 at 7:28 AM
    #12
    03is300ztk

    03is300ztk Well-Known Member

    Joined:
    Dec 16, 2011
    Member:
    #68845
    Messages:
    397
    Gender:
    Male
    First Name:
    Zach
    Somewhere in the hills NC
    Vehicle:
    07 Tacoma 4X4
    Grillcraft, with front and rear bumper/bed in the works.
    Question, the way you show this wired, wouldnt it not function if he had the switch off?

    Example, Switch off, shift into reverse = no camera im pretty sure.

  13. Aug 1, 2012 at 7:50 AM
    #13
    Raddbus

    Raddbus Well-Known Member

    Joined:
    Jul 8, 2011
    Member:
    #59529
    Messages:
    373
    Gender:
    Male
    First Name:
    Russell
    Santa Maria
    Vehicle:
    TRUE BLU TACO
    Illuminated 4X4 switch, 3" lift,
    I think this would do it. This is only the power wiring. I figure you knew to connect to HU. LOL also a Crappy wiring diagram but it should work.


  14. Aug 1, 2012 at 8:09 AM
    #14
    03is300ztk

    03is300ztk Well-Known Member

    Joined:
    Dec 16, 2011
    Member:
    #68845
    Messages:
    397
    Gender:
    Male
    First Name:
    Zach
    Somewhere in the hills NC
    Vehicle:
    07 Tacoma 4X4
    Grillcraft, with front and rear bumper/bed in the works.
    Yours appears the same as the other diagram posted, It seems with the switch in the off position, even if you put in in reverse the cam wont turn on. Am I wrong on this, I really fell like I am overthinking it hear.


    EDIT: Took a second lonnnnng look and thought about it some more. As long as the dedicated power to the camera is from the reverse light and then you use a splice on the camera power wire it will work. Run a power wire from a 12v source to your switch, then use a wire crimp inline on the camera's power line if you have the switch off the camera will still cut on when reverse lights are activated.

    Man I over thought the shit out of that one.

  15. Aug 1, 2012 at 11:48 AM
    #15
    fritzthecat

    fritzthecat Well-Known Member

    Joined:
    Jun 10, 2008
    Member:
    #7217
    Messages:
    175
    Gender:
    Male
    Virginia Beach
    Vehicle:
    07 PreRunner Auto AccCab Indigo
    If you run a + wire from the battery to the switch to the camera and also tie it into the backup wire, then everytime you turn on the camera, the backup lights would come on. Like on the diagram, the switch not only gives power to the camera, it also feeds the backup lights.
    If you use Brandonn schematic you would set the truck on fire since the battery + goes through the switch straight to ground.
    Two diodes will work:
    Battery ---- switch ---- >| ----- HU Camera ON (or Camera power)
    RevWire ---------------->|----'

    This will prevent voltage from feeding back into the circuits.

    Fritz

  16. Aug 1, 2012 at 6:20 PM
    #16
    blake.eubank.1

    blake.eubank.1 [OP] Member

    Joined:
    Jun 18, 2011
    Member:
    #58487
    Messages:
    13
    Gender:
    Male
    First Name:
    Blake
    Tx
    Vehicle:
    07 sr5 4x4
    damn yeah i've had to replace wiring harnesses before (not from my mistake) and it blows so i think ill use it as it is.

  17. Aug 2, 2012 at 1:38 PM
    #17
    blake.eubank.1

    blake.eubank.1 [OP] Member

    Joined:
    Jun 18, 2011
    Member:
    #58487
    Messages:
    13
    Gender:
    Male
    First Name:
    Blake
    Tx
    Vehicle:
    07 sr5 4x4

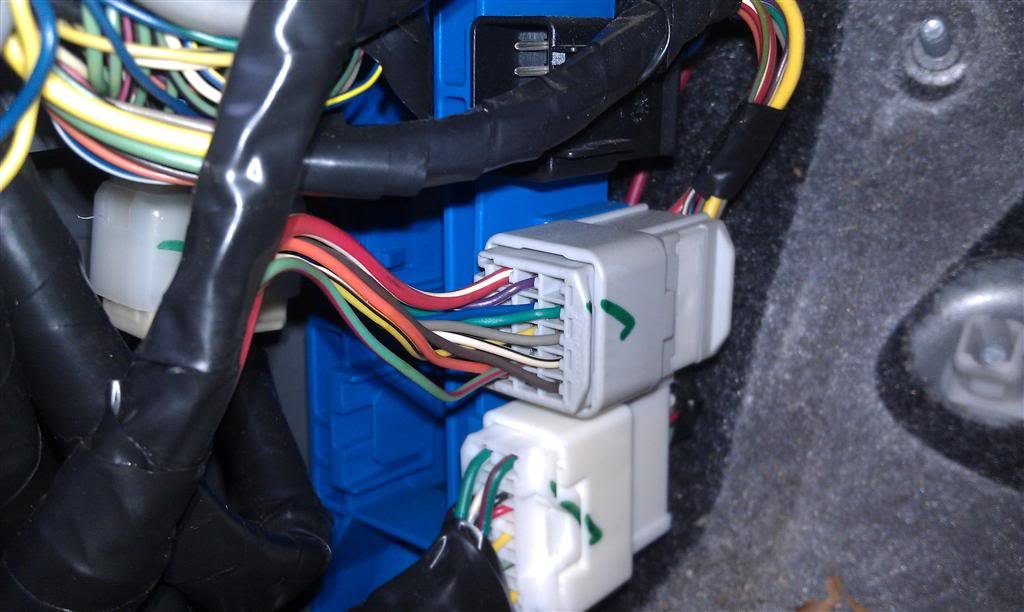

    WHERE IS THIS LOCATED IN THE TRUCK?

  18. Aug 2, 2012 at 1:41 PM
    #18
    fishntaco

    fishntaco Well-Known Member

    Joined:
    Mar 4, 2010
    Member:
    #32523
    Messages:
    302
    Gender:
    Male
    First Name:
    Josh
    Mobile Al
    Vehicle:
    08 Silver Streak DCLB Prerunner Sport
    Behind the driver side kick panel.

  19. Aug 2, 2012 at 7:16 PM
    #19
    blake.eubank.1

    blake.eubank.1 [OP] Member

    Joined:
    Jun 18, 2011
    Member:
    #58487
    Messages:
    13
    Gender:
    Male
    First Name:
    Blake
    Tx
    Vehicle:
    07 sr5 4x4
  20. Aug 7, 2012 at 10:51 AM
    #20
    Raddbus

    Raddbus Well-Known Member

    Joined:
    Jul 8, 2011
    Member:
    #59529
    Messages:
    373
    Gender:
    Male
    First Name:
    Russell
    Santa Maria
    Vehicle:
    TRUE BLU TACO
    Illuminated 4X4 switch, 3" lift,

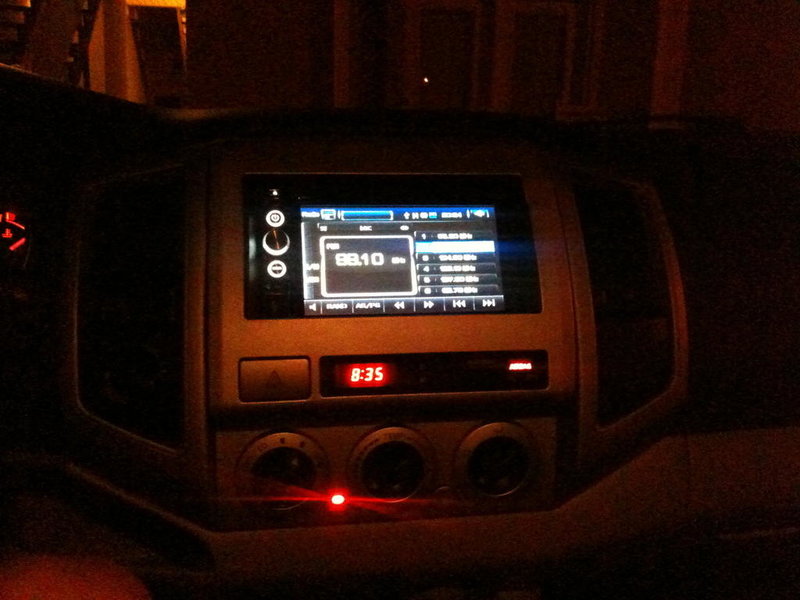

    K, it's installed but did you hook it up like you wanted, with the switch to turn on the camera and always on when in reverse?
