HP Tuners for 2005-2015

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Hacktacular, Mar 24, 2019.

  1. Mar 24, 2019 at 2:26 PM
    #1
    Hacktacular

    Hacktacular [OP] Well-Known Member

    Joined:
    Mar 13, 2016
    Member:
    #181157
    Messages:
    222
    Gender:
    Male
    First Name:
    Robert
    Vehicle:
    2010 Tacoma X-Runner Turbo
    800cc Siemens/Deka Injectors URD Fuel Pump Upgrade Haltech Elite 2500 Custom Power Fab Precision Turbo 6676 @8 PSI 3" Custom Exhaust from turbo out
    So HP Tuners made this happen recently and is a fantastic option for the 05-15!
    This will allow you to tune your own vehicle if that is what you are after.

    TOYOTA
    YearModel TypeSingle Vehicle Universal CreditsUnlimited Year/Model Universal Credits
    05-15 Tacoma 4.0L V6 (1GR-FE) (Including transmission) (2) 4 N/A
    07-18 Land Cruiser 200 & 70 – 4.5L V8 D-4D (1VD-FTV) (Including transmission) (2) 4 N/A
    07-19 Land Cruiser 5.7L V8 (3UR-FE) (Including transmission) (2) 6 N/A
    07-18 Tundra 5.7L V8 (3UR-FE, 3UR-FBE) (Including transmission) (2) 6 N/A
    07-18 Sequoia 5.7L V8 (3UR-FE, 3UR-FBE) (Including transmission) (2) 6 N/A


  2. Mar 24, 2019 at 3:36 PM
    #2
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    16,791
    Gender:
    Male
    First Name:
    Tor
    Houston
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] ProEFI Pro128 EMS [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 170* T-stat mod [] APR Large Fuel Rail [] Aeromotive Stealth 340 LPH Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
  3. Mar 24, 2019 at 3:42 PM
    #3
    Halligan

    Halligan Old School

    Joined:
    May 5, 2018
    Member:
    #252561
    Messages:
    39
    Gender:
    Male
    First Name:
    Cam
    BC Canada
    Vehicle:
    2015 DCSB Gearjammer
    5100's, custom rears, 265/70/17's, Detroit Truetrac
    Looking at your truck build you clearly know a thing or two about tuning these trucks! Will the HP software allow a user to eliminate the bloody rev hang that plagues the later (2013-15) 4.0L trucks? I loathe the rev hang with a manual, it makes me want to explode.

  4. Mar 24, 2019 at 4:01 PM
    #4
    Hacktacular

    Hacktacular [OP] Well-Known Member

    Joined:
    Mar 13, 2016
    Member:
    #181157
    Messages:
    222
    Gender:
    Male
    First Name:
    Robert
    Vehicle:
    2010 Tacoma X-Runner Turbo
    800cc Siemens/Deka Injectors URD Fuel Pump Upgrade Haltech Elite 2500 Custom Power Fab Precision Turbo 6676 @8 PSI 3" Custom Exhaust from turbo out
    @Halligan, I assume it will but cannot confirm as I haven't done one myself. Hp Tuners has been adding more vehicles to their supported list and I was excited to see the 2nd Gen Tacoma added.
    For the record I run Haltech but this has peaked my curiosity for sure. I may just give this a try.

    NOTE: The one thing I do not like about the product is that it is email support only. There is no number to call to troubleshoot or get support. So if you run in to an issue it could take a while to get it resolved.
    This is where Haltech kills it. Their customer service is the best in the industry in my experience so far.

    Last edited: Mar 24, 2019
    scottalot, Biscuits, rmepilot and 4 others like this.
  5. Mar 24, 2019 at 5:05 PM
    #5
    loginfailed

    loginfailed Well-Known Member

    Joined:
    Aug 29, 2016
    Member:
    #195923
    Messages:
    4,126
    Gender:
    Male
    First Name:
    Dwayne
    Houston, TX
    Vehicle:
    2014 DCSB 4WD
  6. Mar 24, 2019 at 5:55 PM
    #6
    12TRDTacoma

    12TRDTacoma Pulley Man ;)

    Joined:
    Aug 20, 2012
    Member:
    #85133
    Messages:
    9,277
    Gender:
    Male
    First Name:
    Roberto
    Concord, CA
    Vehicle:
    12 TRD Sport DCLB 4x4 Tacoma
    Supercharged
    It's on now. HP Tuners is the ultimate in tuning functionality and simplicity for all GM vehicles.

    Time to have some fun with Toyota at last!

    @Torspd is this available for purchase?

  7. Mar 24, 2019 at 6:01 PM
    #7
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    16,791
    Gender:
    Male
    First Name:
    Tor
    Houston
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] ProEFI Pro128 EMS [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 170* T-stat mod [] APR Large Fuel Rail [] Aeromotive Stealth 340 LPH Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    No idea. Hacktacular showed it to me first. All it takes is contacting them to find out.

    Hacktacular [OP] and 12TRDTacoma like this.
  8. Mar 24, 2019 at 6:34 PM
    #8
    Hacktacular

    Hacktacular [OP] Well-Known Member

    Joined:
    Mar 13, 2016
    Member:
    #181157
    Messages:
    222
    Gender:
    Male
    First Name:
    Robert
    Vehicle:
    2010 Tacoma X-Runner Turbo
    800cc Siemens/Deka Injectors URD Fuel Pump Upgrade Haltech Elite 2500 Custom Power Fab Precision Turbo 6676 @8 PSI 3" Custom Exhaust from turbo out
    It is available. It is still in BETA but available on the website.

  9. Mar 24, 2019 at 8:26 PM
    #9
    arcenik

    arcenik TRD

    Joined:
    Aug 12, 2017
    Member:
    #226644
    Messages:
    363
    Gender:
    Male
    First Name:
    Jon
    ][-][//-\\\/\///-\\][][
    Vehicle:
    2015 X-Runner
    I emailed them to see if they have a sample tune file. I downloaded the beta VCM editor but it doesn't have one for a tacoma, I am really curious to see what it can do.

    Hacktacular [OP] and loginfailed like this.
  10. Mar 24, 2019 at 8:33 PM
    #10
    Gerard6778

    Gerard6778 Well-Known Member

    Joined:
    Dec 30, 2018
    Member:
    #277494
    Messages:
    168
    Gender:
    Male
    First Name:
    Gerard
    Following

  11. Mar 24, 2019 at 9:01 PM
    #11
    desertrunner24

    desertrunner24 Well-Known Member

    Joined:
    Oct 30, 2016
    Member:
    #201101
    Messages:
    3,371
    Gender:
    Male
    First Name:
    Jake
    Fresno , CA
    Vehicle:
    2011 TRD offroad 4x4
    Some
  12. Mar 25, 2019 at 4:29 AM
    #12
    Hacktacular

    Hacktacular [OP] Well-Known Member

    Joined:
    Mar 13, 2016
    Member:
    #181157
    Messages:
    222
    Gender:
    Male
    First Name:
    Robert
    Vehicle:
    2010 Tacoma X-Runner Turbo
    800cc Siemens/Deka Injectors URD Fuel Pump Upgrade Haltech Elite 2500 Custom Power Fab Precision Turbo 6676 @8 PSI 3" Custom Exhaust from turbo out
    If it's the same as it has been for GM all these years, it pretty versatile.

    12TRDTacoma likes this.
  13. Mar 25, 2019 at 6:12 PM
    #13
    Hacktacular

    Hacktacular [OP] Well-Known Member

    Joined:
    Mar 13, 2016
    Member:
    #181157
    Messages:
    222
    Gender:
    Male
    First Name:
    Robert
    Vehicle:
    2010 Tacoma X-Runner Turbo
    800cc Siemens/Deka Injectors URD Fuel Pump Upgrade Haltech Elite 2500 Custom Power Fab Precision Turbo 6676 @8 PSI 3" Custom Exhaust from turbo out
    A little Q and A with HP Tuners today.

    1. Can I tune for the larger injectors? Yes you can compensate for larger injectors in the calibration.
    2. Can I use the GM flex fuel sensor and provide the input to the mpvi2? The factory system does not use a flex fuel sensor and the MPVI2 does not currently have a frequency input that would be able to log a GM flex fuel sensor.
    3. When using flex fuel can is there any room in the ECU for auto scaling for E85? If the vehicle has a flex fuel calibration there will be flex fuel parameters available for variation in ethanol content.
    4. What type of mapping is being done? Is it speed density/VE? The OEM fueling strategy is MAF based, you should not lose any functionality as our software only makes changes to the oem calibration.
    5. Do you lose any factory functionality such as VSC or have any issues with DTC's causing CEL's? You should not lose any functionality as our software only makes changes to the oem calibration.
    6. I would like to check out the software but it tell me there is no device connected when I try. Is there a way to see what is available for my vehicle in the software? If you do not have an MPVI2 you will not be able to open any files.

  14. Mar 25, 2019 at 6:18 PM
    #14
    arcenik

    arcenik TRD

    Joined:
    Aug 12, 2017
    Member:
    #226644
    Messages:
    363
    Gender:
    Male
    First Name:
    Jon
    ][-][//-\\\/\///-\\][][
    Vehicle:
    2015 X-Runner
    The software comes with some samples you can open and check out, but not a Toyota one.

  15. Mar 25, 2019 at 6:20 PM
    #15
    loginfailed

    loginfailed Well-Known Member

    Joined:
    Aug 29, 2016
    Member:
    #195923
    Messages:
    4,126
    Gender:
    Male
    First Name:
    Dwayne
    Houston, TX
    Vehicle:
    2014 DCSB 4WD
    So, spend $750 for the whole shebang and then you can see what parameters are available? Reminds me of passing the bill so we can see what's in it. Would be some good customer service and marketing if they could just provide some screen shots from their end of everything available for the Tacoma.

    EDIT: I bought one :D

    Last edited: Apr 5, 2019
    rmepilot, MTopp, JustDSM and 9 others like this.
  16. Mar 25, 2019 at 6:22 PM
    #16
    Hacktacular

    Hacktacular [OP] Well-Known Member

    Joined:
    Mar 13, 2016
    Member:
    #181157
    Messages:
    222
    Gender:
    Male
    First Name:
    Robert
    Vehicle:
    2010 Tacoma X-Runner Turbo
    800cc Siemens/Deka Injectors URD Fuel Pump Upgrade Haltech Elite 2500 Custom Power Fab Precision Turbo 6676 @8 PSI 3" Custom Exhaust from turbo out
    To their credit, they did provide me screenshots but I didn't want to share them without permission.

    Roostfactor, Torspd and loginfailed like this.
  17. Mar 25, 2019 at 6:31 PM
    #17
    loginfailed

    loginfailed Well-Known Member

    Joined:
    Aug 29, 2016
    Member:
    #195923
    Messages:
    4,126
    Gender:
    Male
    First Name:
    Dwayne
    Houston, TX
    Vehicle:
    2014 DCSB 4WD
    Did the contents of the screen shots provided indicate that the solution they offer is a worthy investment for tuning the 1GR?

    Roostfactor and Hacktacular [OP] like this.
  18. Mar 25, 2019 at 6:37 PM
    #18
    Lord Helmet

    Lord Helmet Prepare To Attack

    Joined:
    Aug 30, 2012
    Member:
    #85875
    Messages:
    31,520
    Gender:
    Male
    First Name:
    Nick
    SoCal
    Vehicle:
    2018 T4R ORP W/ KDSS '13 Taco, & Spaceball One
    Sub'd because it's HP Tuners

    Biscuits and Gingerbeard Man like this.
  19. Mar 25, 2019 at 6:38 PM
    #19
    Hacktacular

    Hacktacular [OP] Well-Known Member

    Joined:
    Mar 13, 2016
    Member:
    #181157
    Messages:
    222
    Gender:
    Male
    First Name:
    Robert
    Vehicle:
    2010 Tacoma X-Runner Turbo
    800cc Siemens/Deka Injectors URD Fuel Pump Upgrade Haltech Elite 2500 Custom Power Fab Precision Turbo 6676 @8 PSI 3" Custom Exhaust from turbo out
    Yes, you can use larger injectors change timing and fueling parameters. The downside is no E85 solution.

    Roostfactor and loginfailed like this.
  20. Mar 25, 2019 at 6:40 PM
    #20
    Hacktacular

    Hacktacular [OP] Well-Known Member

    Joined:
    Mar 13, 2016
    Member:
    #181157
    Messages:
    222
    Gender:
    Male
    First Name:
    Robert
    Vehicle:
    2010 Tacoma X-Runner Turbo
    800cc Siemens/Deka Injectors URD Fuel Pump Upgrade Haltech Elite 2500 Custom Power Fab Precision Turbo 6676 @8 PSI 3" Custom Exhaust from turbo out
    Here are the screenshots....

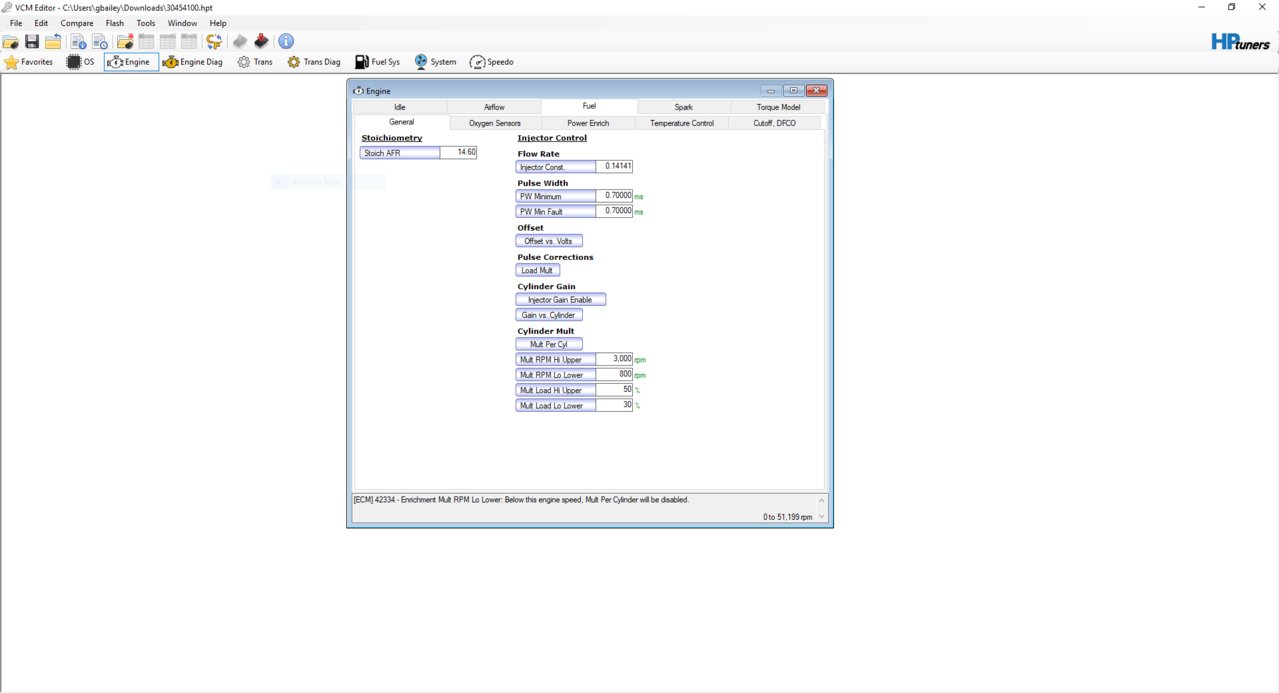

    toyota injector.jpg

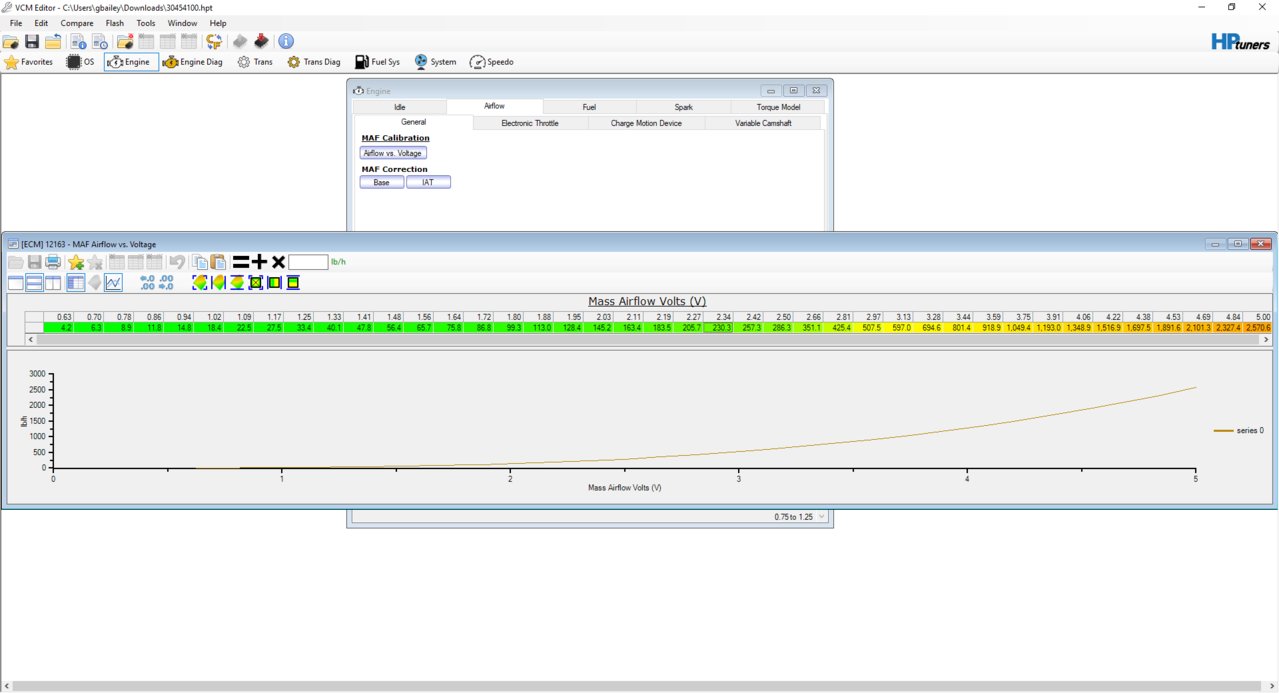

    Toyota MAF.jpg

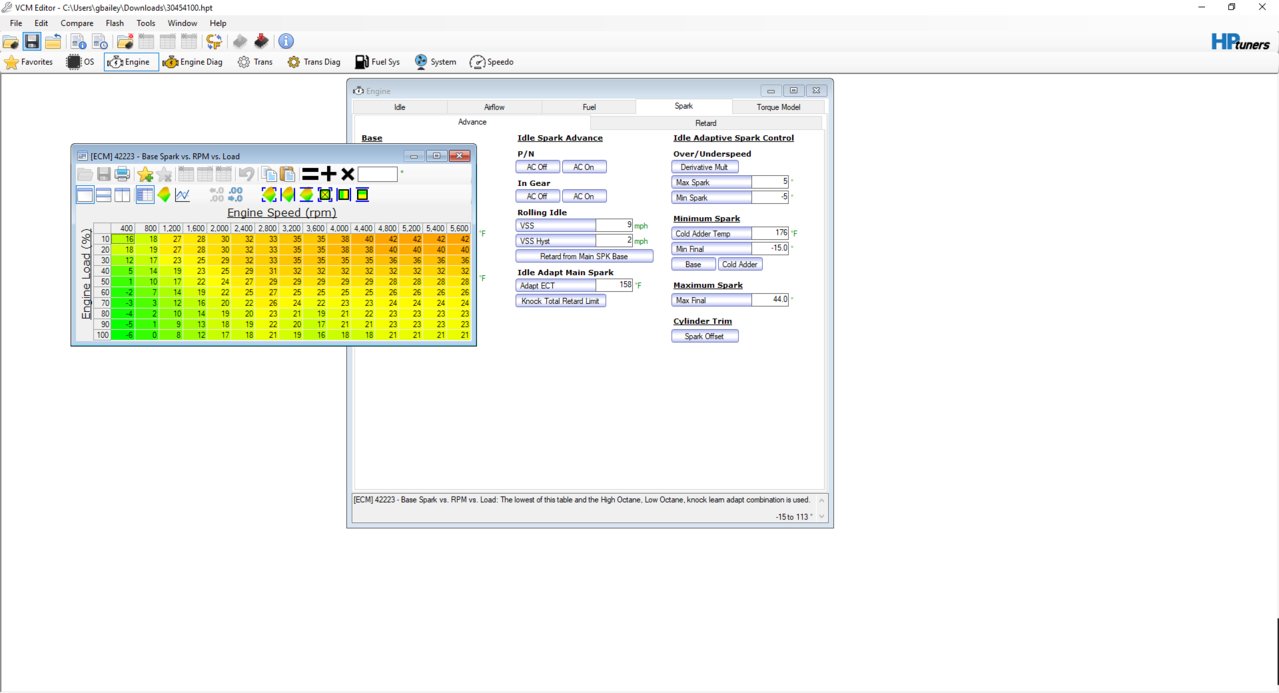

    toyota spark base.jpg

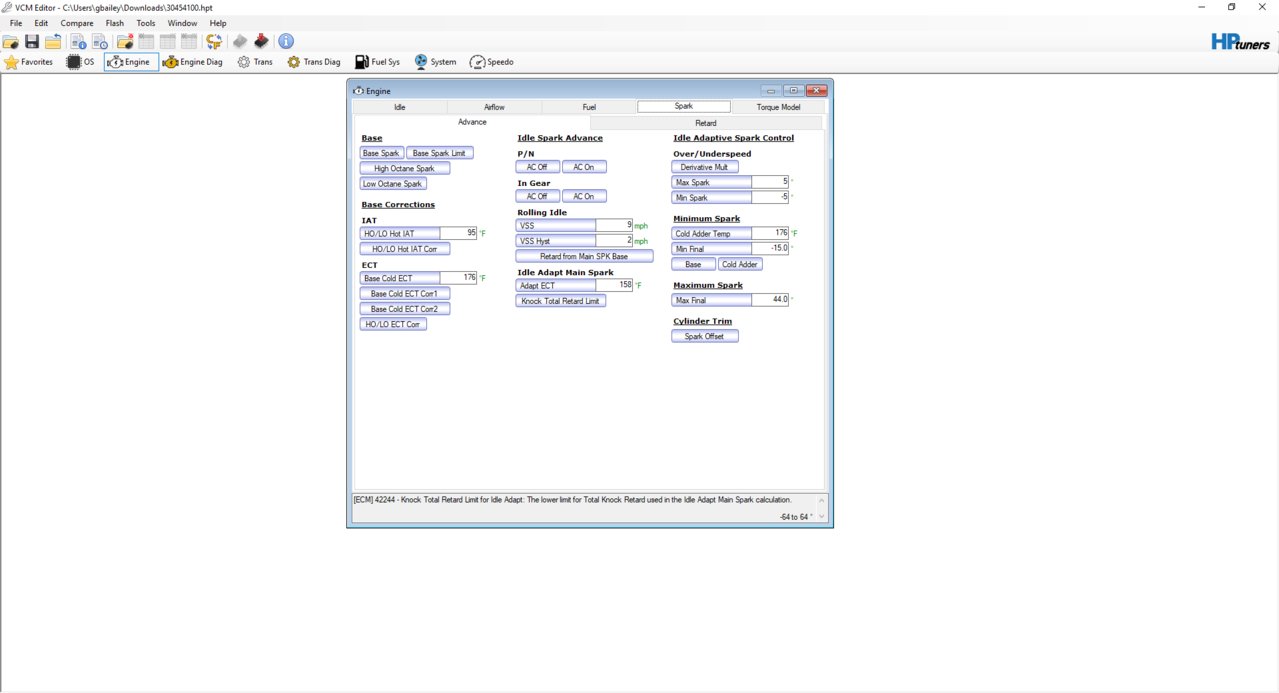

    toyota spark general.jpg
