I built a sub box for my '06 DC -- check it >>>

Discussion in 'Audio & Video' started by BenWA, Mar 24, 2009.

  1. Mar 24, 2009 at 8:18 PM
    #1
    BenWA

    BenWA [OP] Well-Known Member

    Joined:
    Feb 23, 2009
    Member:
    #13977
    Messages:
    1,589
    Gender:
    Male
    Seattle @ 0.9 Mach
    Vehicle:
    '06 Double Cab TRD Off Road 4X4
    I wanted to upgrade my factory JBL sub with something that sounds a bit better and hits a little harder. Didn't want to change any other part of my JBL system, so I tried to be as un-invasive as possible.

    My budget for this upgrade was about $300. That would have to do for the sub driver, amp, box materials, and wiring.

    I decided to go with the Pioneer 10" TSSW2541D shallow mount sub with a Profile AP400 amp rated at 200W RMS in bridged mode. I designed and built the box (with influence from Marv's designs) with fit into the cramped space in mind, and the ability to rack the Profile amp and the factory JBL amp on either side.

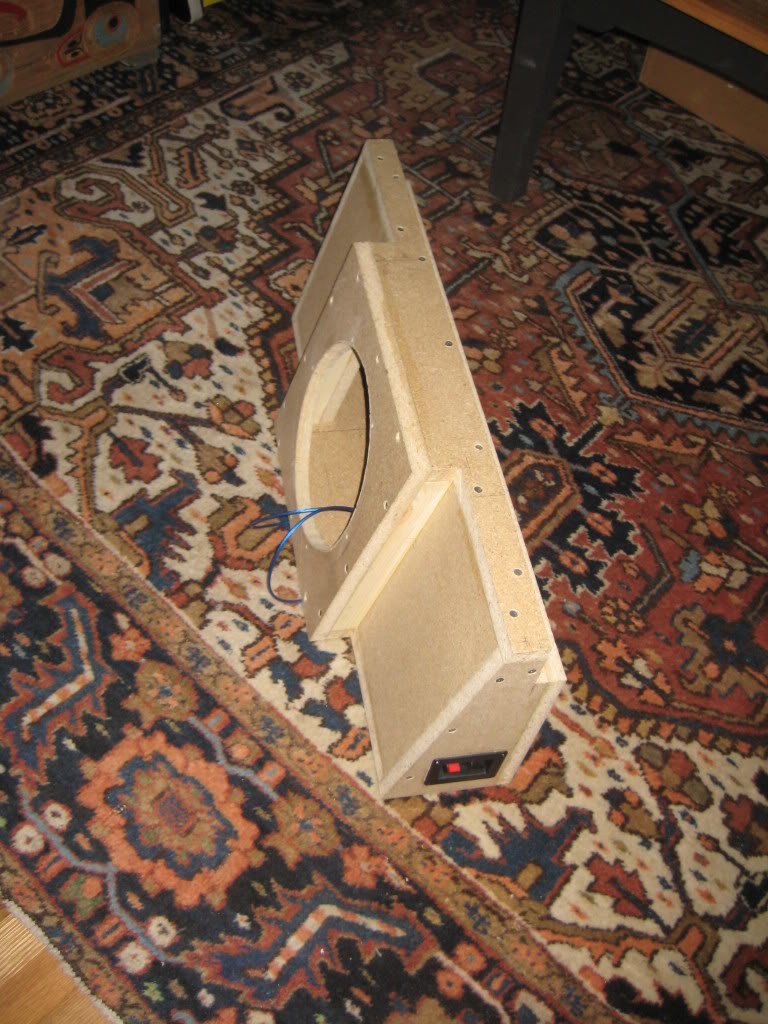

    Here's what I came up with. Keep in mind, I only had a handheld circular saw (with a clamp saw guide), a sawzall, and a drill at my disposal (and a six'r of Dos Equis) -- so don't knock my sloppy craftsmanship! :p

    [​IMG]

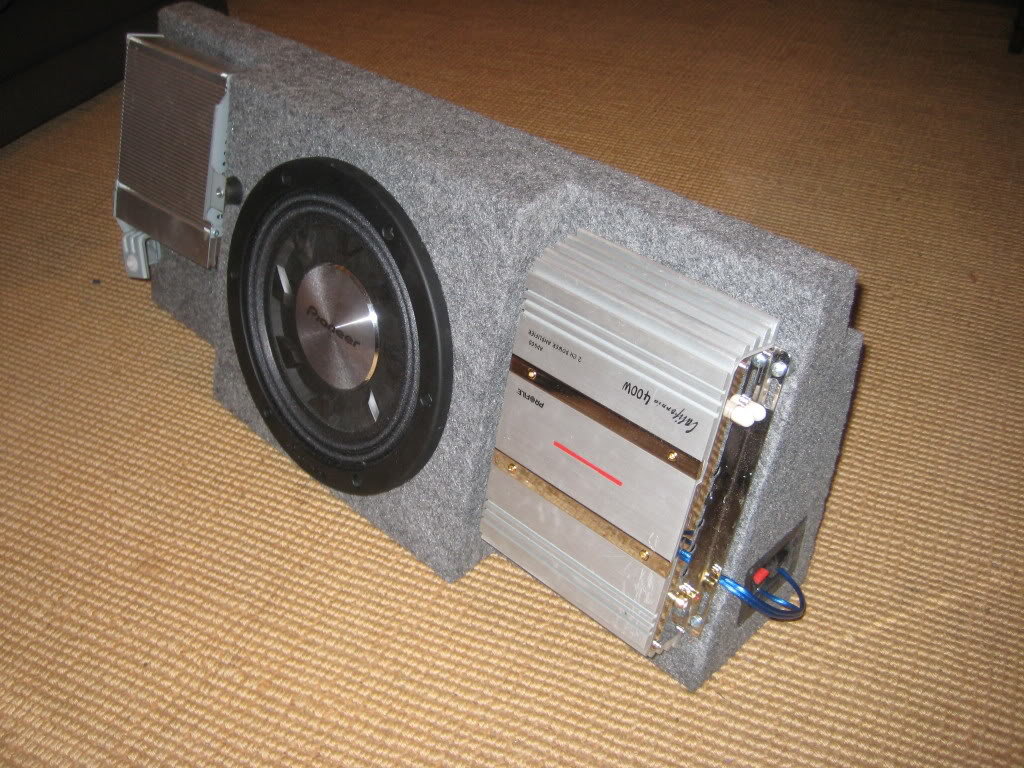

    The finished box:

    [​IMG]

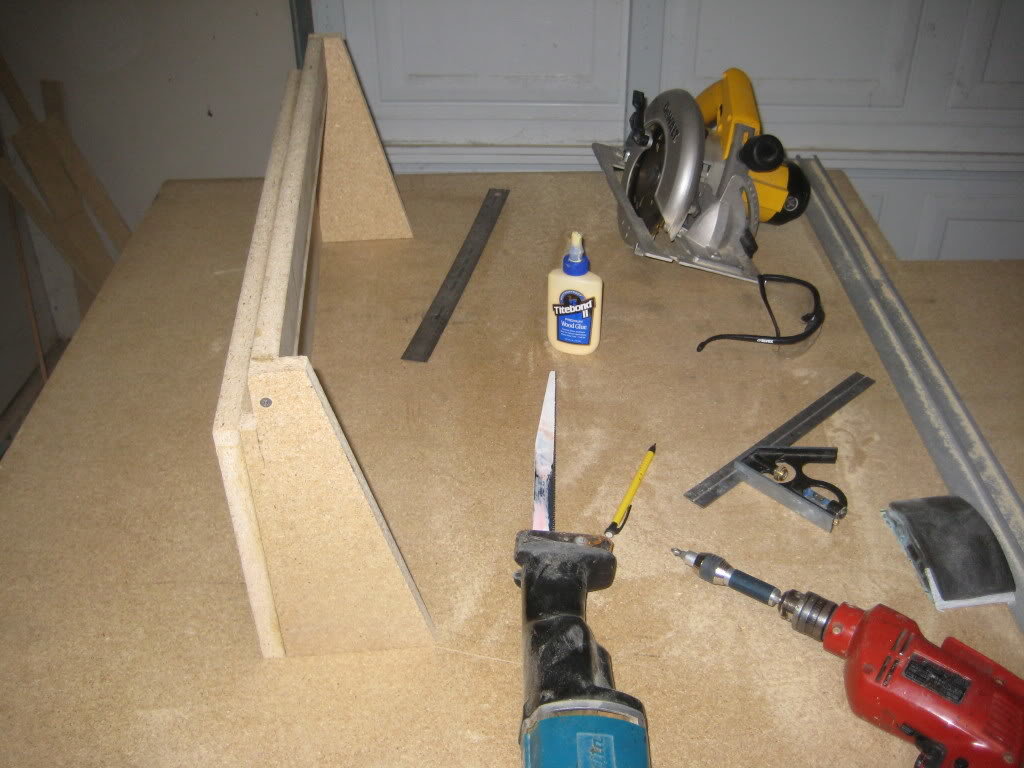

    The top and bottom pieces with the front beveled edges were a b1tch to cut with a circular saw that only tilts one way! I had to use some *advanced* techniques to make some of the cuts (don't try this at home!)

    [​IMG]


    I sealed all the seams with silicone caulk on the inside to ensure that it is airtight. I also packed quite a lot of polyfill into the box, completely filling both of the side chambers, and partially filling the center chamber.


    Test fit:

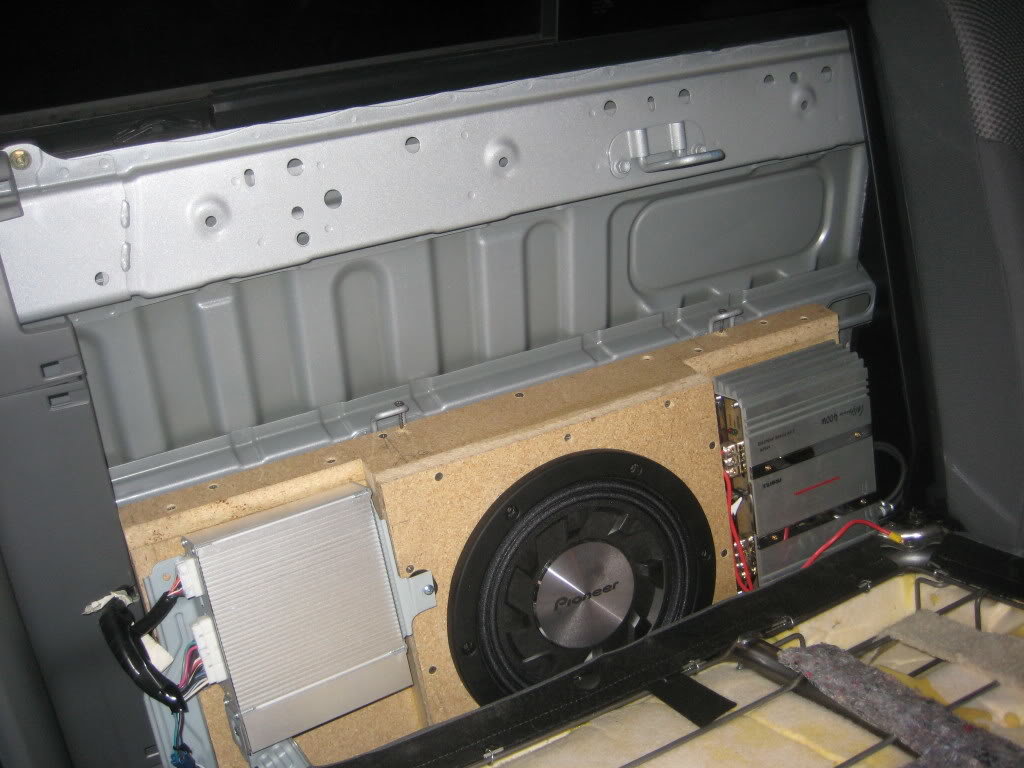

    [​IMG]


    Compared to some of the builds I've seen on here, this is pretty ghetto. ;)


    I plan on carpeting the box, and I also want to carpet the back wall of the truck above the box. Any tips on how to affix carpet to the top of the truck's back wall (below the window) and underneath the metal cross bar behind the sub box??


    Also, I haven't thought of a more permanent way to secure the box to the cab. Any ideas? You can see in the pic that I have two drywall screws thru the child seat loops for the time being.


    Unfortunately, I botched my initial sizing measurements so I didn't leave enough space to put the plastic seatback back on (it would pinch against the sub with the seat angled forward).... I had to cut the bottom part of the plastic seatbeack where it bulges out so that it won't pinch agains the sub. Duhhh. Oh well.

    After all the work (and it WAS a lot of work), it was definitely worth the upgrade. That little shallow mount puts out a LOT of sound! And I just barely exceeded my $300 target.


    EDIT:

    Got'r all carpeted and ready to pound! :D

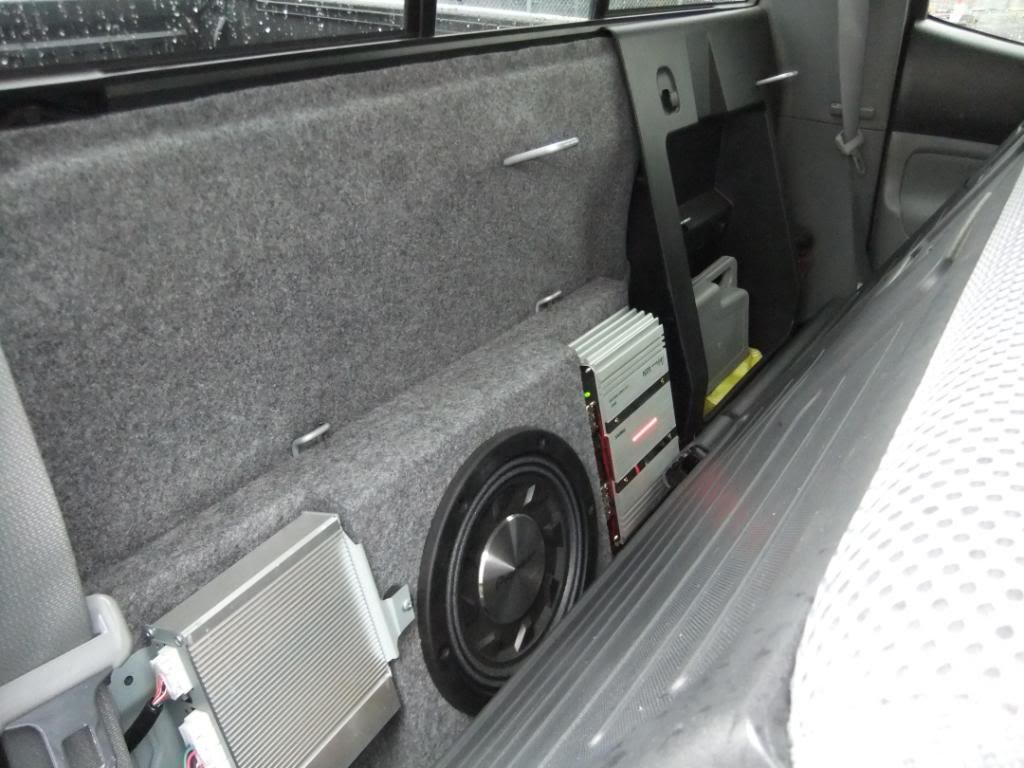

    [​IMG]


    Note that the driver's side storage bin is still in place and unaffected by the installation:

    [​IMG]

    Now that I've had it a while, I have it tuned and tweaked to perfection and I can't believe how much resonant bass this little guy puts out. I used to have a 12" Kicker in a Volvo wagon and this is louder and cleaner.

    Not that I'm particularly into cruising and drawing attention to myself, but a couple times with windows rolled down and a track with good bass cranked up people have told me that they could hear this setup coming from a mile away :D and I'm also pretty sure I've rattled the dentures of a couple crabby geezers in front of me at the stoplight ;)


    NEW! NEW! NEW!

    I added a couple of pics of the wiring that is needed to connect the aftermarket subwoofer amp to the factory amp, for those who are interested in doing the same. It's super easy with a line out converter (LOC), which my Profile amp happened to come with. I'm holding the LOC in my hand in the pic below... the input speaker level wires are to the left of my hand in the pic (a pair of green and a pair of white) and the RCA output wires go from the LOC to my aftermarket amp to the right of my hand (aftermarket amp not pictured).

    [​IMG]

    To splice in to the appropriate wires, use the wire harness that you unplugged from the factory subwoofer that has 4 wires going to it: brown, green, dark blue, and light blue. You will splice into these wires. The R/L sides and +/- polarities correspond to the wires as follows:

    L + Brown
    L - Green
    R + Light blue
    R - Dark blue

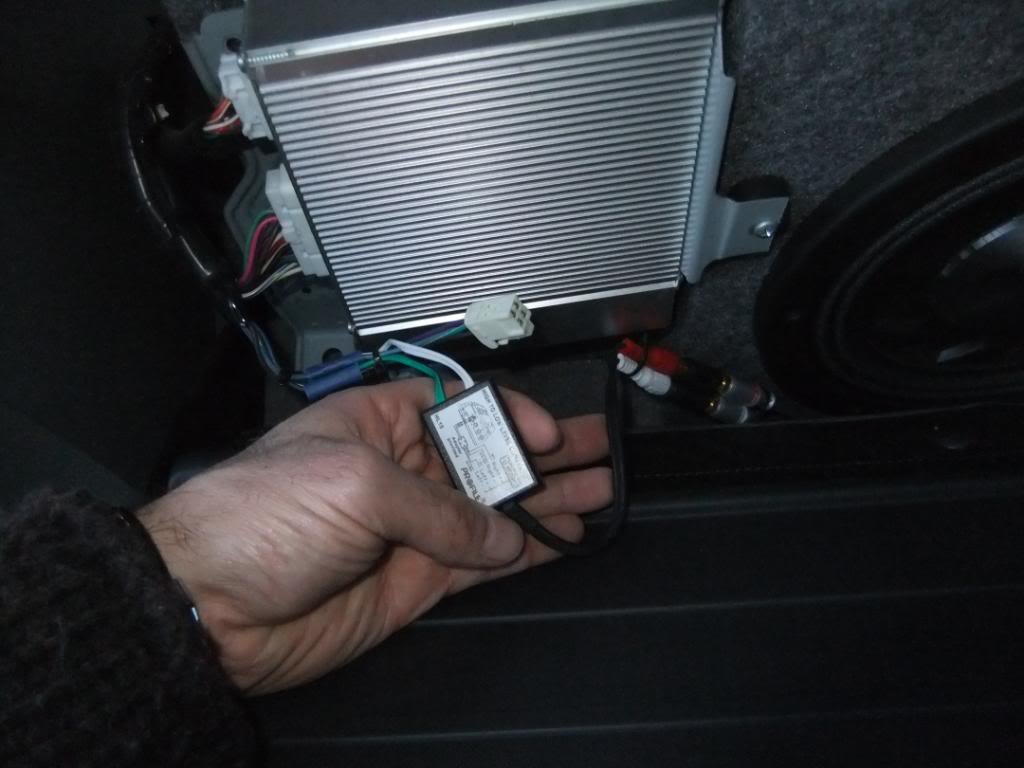

    Your LOC should have 4 wires that you will splice to the above mentioned wires with. I actually soldered mine and put crimp connectors over the solder joints, and then zip tied the bundle together to keep everything tidy. The wire harness is no longer needed since the factory sub that it plugged into has been removed, but I wanted to keep the harness in tact in case I ever want to put the factory sub back in. It just dangles free for now without needing to be plugged in to anything. Alternatively, you could cut the female plug off of your factory sub and utilize that as your splice-in point.

    [​IMG]

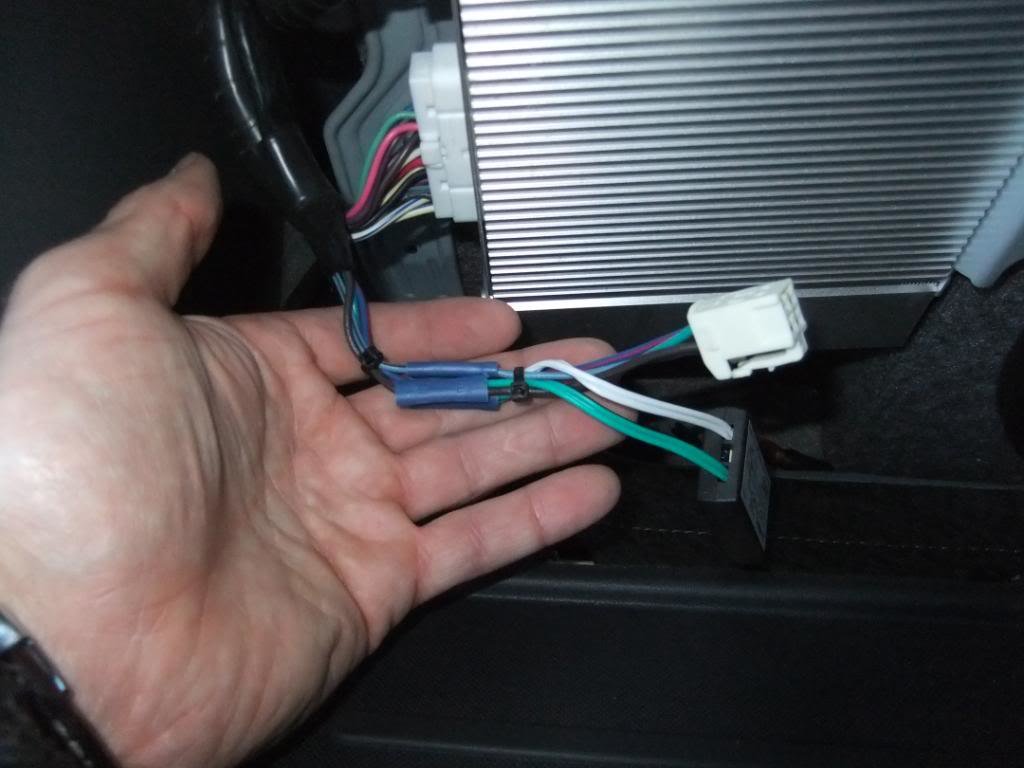

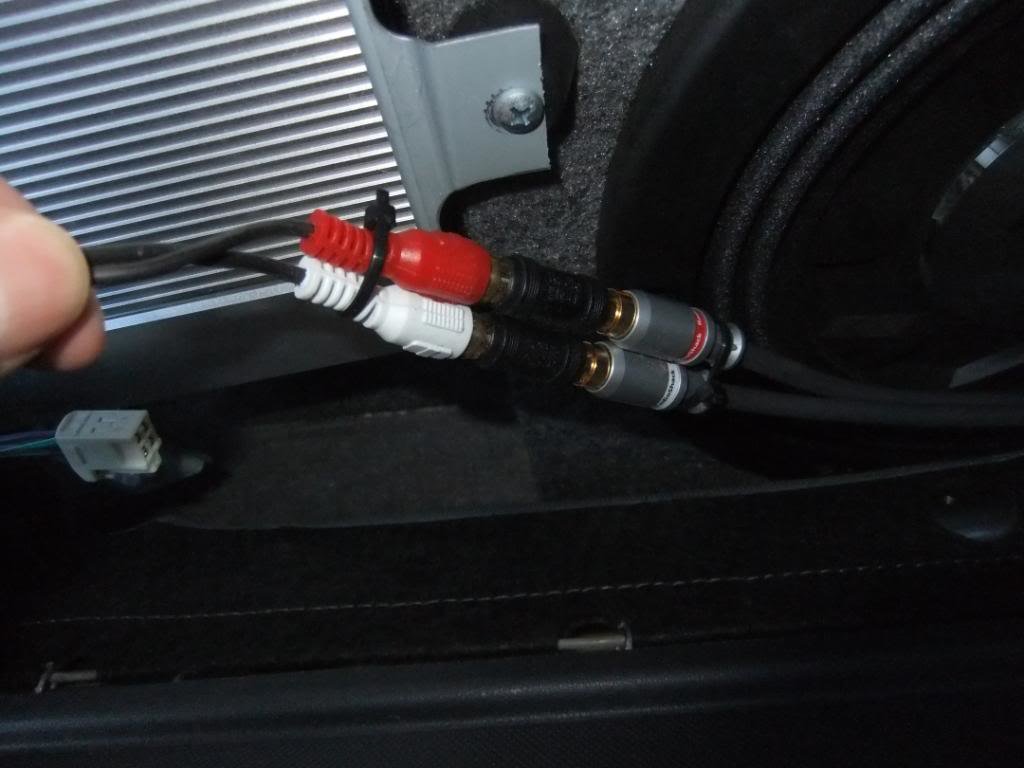

    Detail photo of RCA cables which run from LOC output leads to the aftermarket amp's RCA inputs. I had to use male-to-male adapters (not that there's anything wrong with that :) ) which are the black connectors between the plugs. Everything is zip tied together to keep it tidy.

    [​IMG]

    For juice to the new amp, I ran a 10 AWG positive power lead from the battery routed thru the firewall straight to the amp with a 20A in line fuse near the battery terminal. I ran a short 10 AWG negative power lead from the amp to a hole that I drilled in the floor of the cab behind the rear seat and secured the lead to the floor with a self-tapping screw.

    Since the factory JBL head unit uses a data signal to turn on the factory amp rather than a 12V turn on lead, I had to run a new 12V turn on lead to my aftermarket amp from the fuse box under the steering column. I used a mini fuse add-a-circut (available at Schuck's/O'Reilly auto parts) and plugged into the ACC slot. Seamless and easy.

    Add-a-circuit for 12V amp turn on lead:

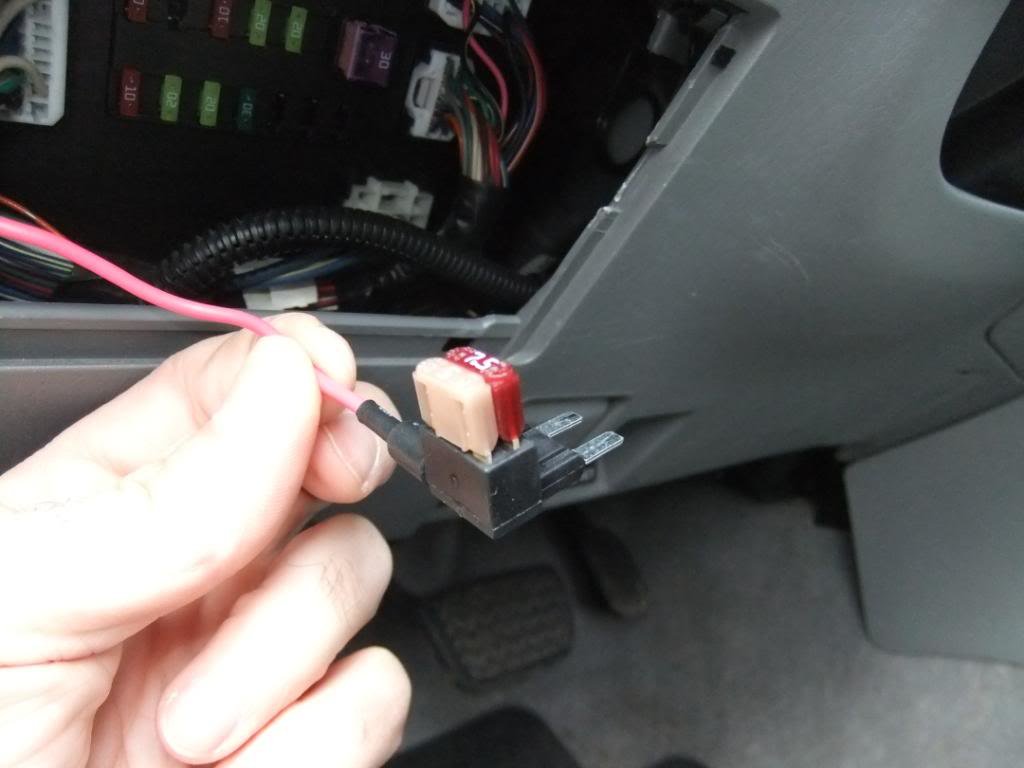

    [​IMG]

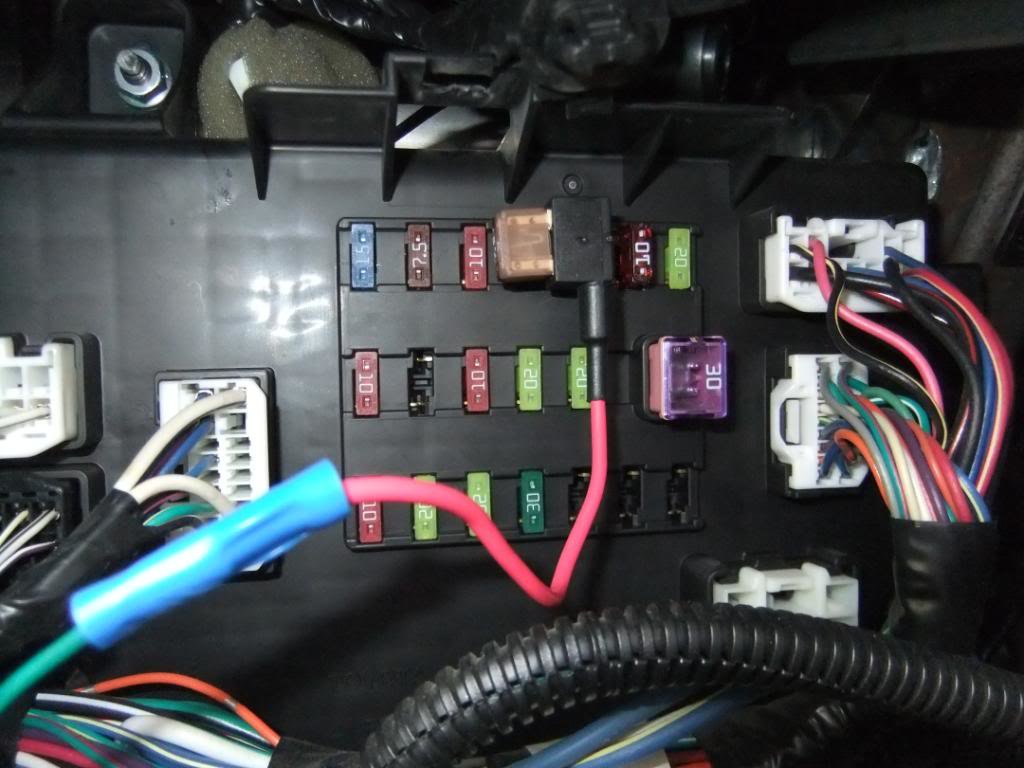

    Plugs right into the ACC fuse slot:

    [​IMG]

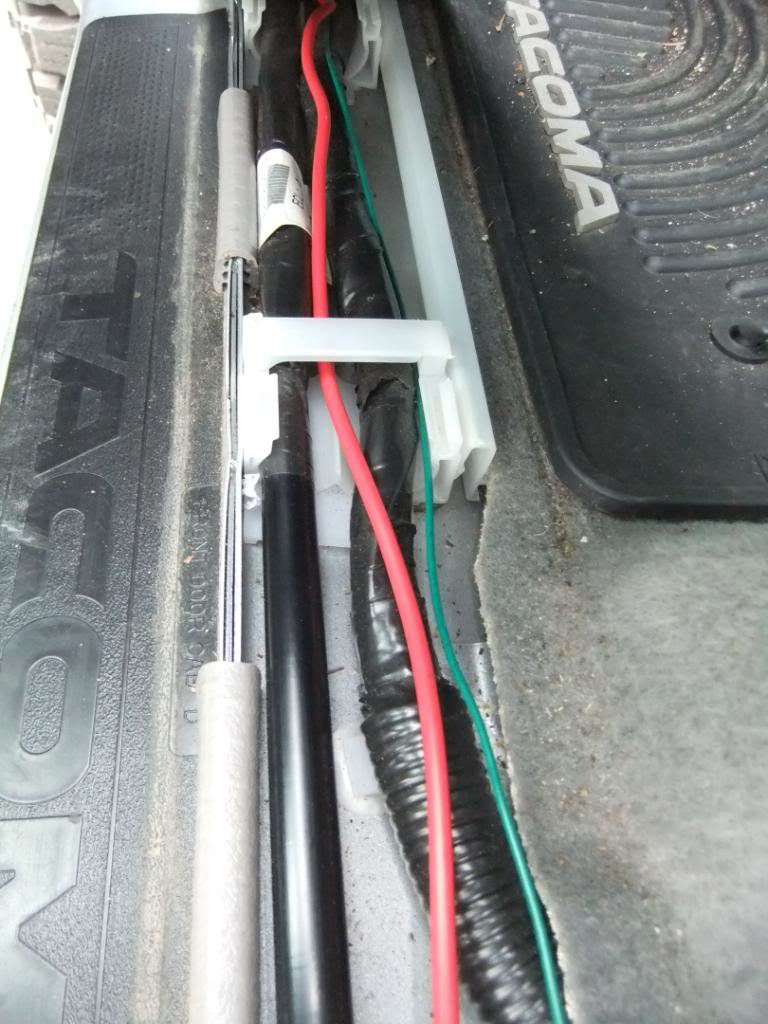

    Fished the positive power lead (red wire) and amp turn on lead (green wire) under all my door threshold trim straight to the back wall of the cab:

    [​IMG]




    UPDATED!!

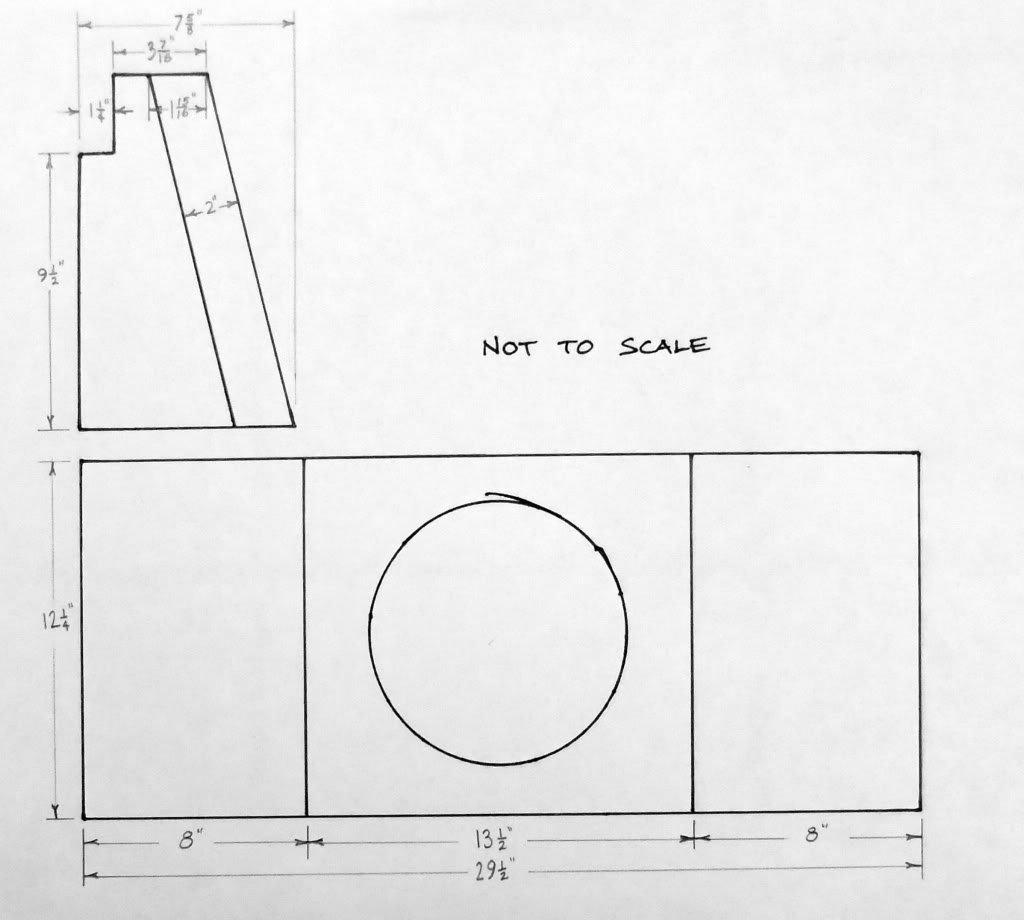

    CRUDE DRAWING WITH BOX DIMENSIONS (CLICK TO VIEW FULL SIZE)


    IMPORTANT NOTE: I cannot guarantee that a box with these dimensions will fit in your truck. A box with the dimensions shown in the sketch below WILL DEFINITELY NOT FIT behind the rear seat in a way that allows the seatback to fold forward through it's full range of motion, without first either removing the plastic seatback cover or trimming off part of the seatback cover where it bulges out at the bottom. If you want the box to fit without removing or trimming the seatback cover, you will have to reduce the bottom dimension from 7-5/8" to something closer to 7" (or maybe even less?). Keep in mind that reducing the box size in any dimension will reduce overall internal box volume and may affect sound quality, depending on the sub you choose and the sub manufacturer's recommended enclosure volume. If you reduce the bottom dimension you may want to increase the top dimension to maintain the box volume. In my truck, there is plenty of space between the seatback and the top front of the sub box, so a box could definitely be built deeper in that top depth dimension.


    ALSO, this box was designed around the Pioneer shallow mount 10" sub which has a 2-7/8" mounting depth. It may not be deep enough for other subs!! Measure twice and cut once.

    [​IMG]


    This box was pretty complicated to build due to it's weird geometry... I would advise against a beginner carpenter/cabinetmaker attempting to build this on their own. If you aren't comfortable with this kind of DIY box building, check out some of the official sub box vendors on this site. They can put something together for you for a more than fair price.

    Feel free to PM me with any questions about anything I did!
