I made some drawers.

Discussion in '2nd Gen. Builds (2005-2015)' started by theREDwonder, Jan 21, 2018.

  1. Jan 21, 2018 at 11:30 PM
    #1
    theREDwonder

    theREDwonder [OP] Well-Known Member

    Joined:
    Mar 15, 2015
    Member:
    #150998
    Messages:
    216
    Gender:
    Male
    First Name:
    Corey
    Huntington Beach
    Vehicle:
    2011 DCLB Sport 4x4
    Kings + Flippac
    The culmination of way too much time on the computer and in the shop. As is customary, finished photo first:

    GFQYhMrt6pCH2qbeV6ufLRW7Du-dMEf7iVxYcXoN_1cdf8821c517c94419a89b97e31e480d773bd053.jpg

    I wanted a way to keep stuff organized in the back of the camper. With the Flippac, stuff was floating around everywhere and it was always a mess after a single night camping (wife + 1.5 year old daughter). This will hopefully help keep all the camper gear underneath and the clothes relegated to duffle bags.

    I was inspired by this build, and even entertained the idea of buying it from him, now that it is for sale. I even looked at the decked system, but quickly balked at that after realizing that they are less than 45% efficient with the utilization of space. I have a friend with a full size truck and he loves them, they mid size truck iteration just wasn't doin it for me...and so I set off to design my own. I studied many builds, and thought about doing the ball bearing/tube sliders, but figured for the amount of money/time it would take to build, a set of drawer slides seems way easier/more robust. Using just wood seemed quick and dirty,
    but also heavy. My good friend had great luck with a fabricated metal frame + purchased drawer + purchased slides, and this was the best route I chose to follow.

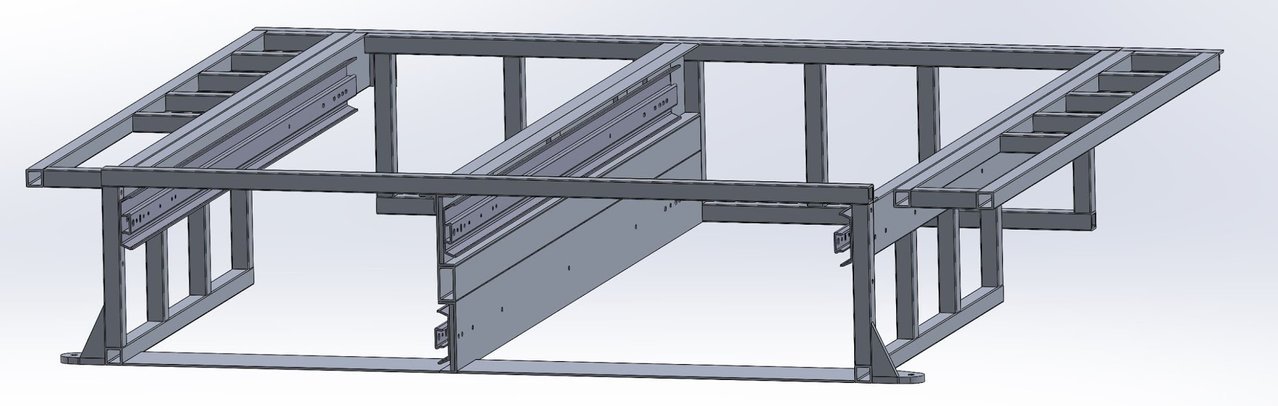

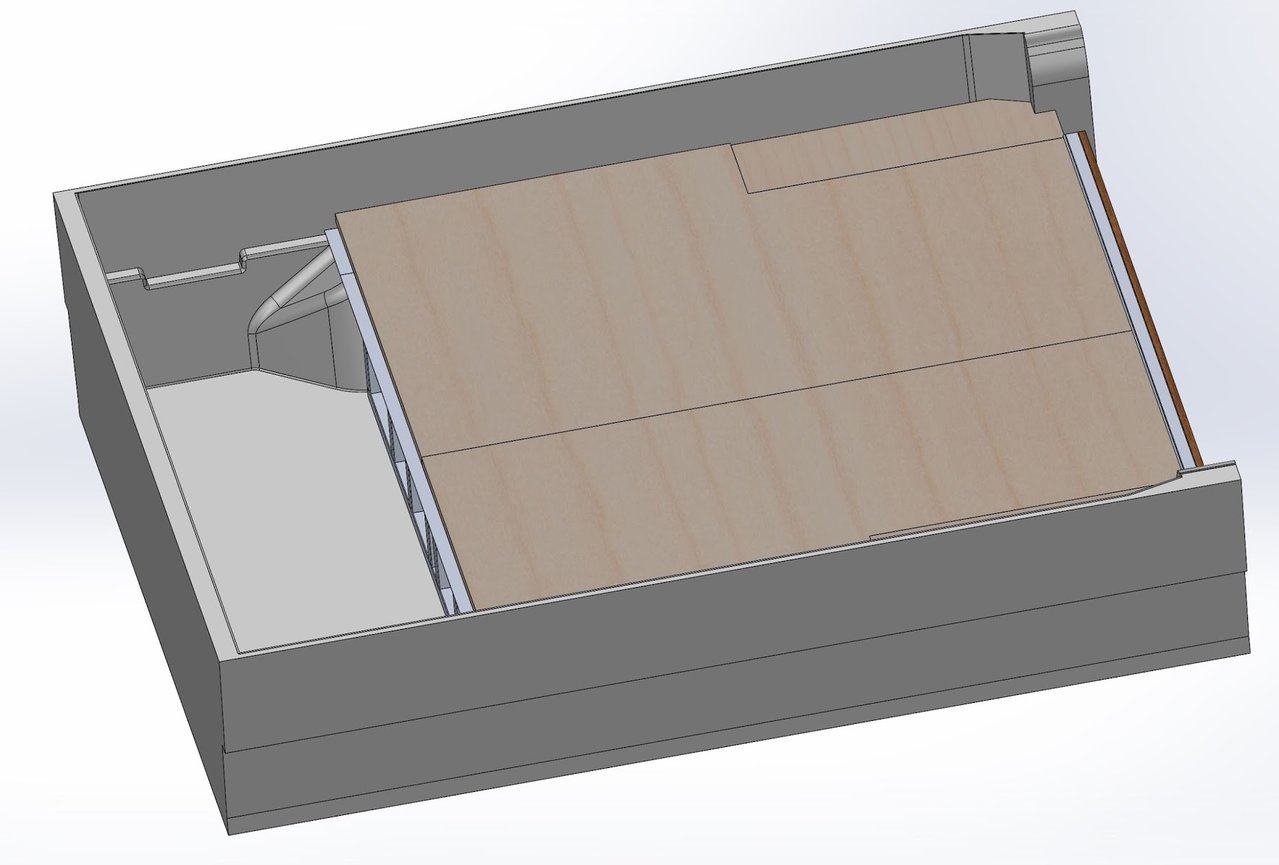

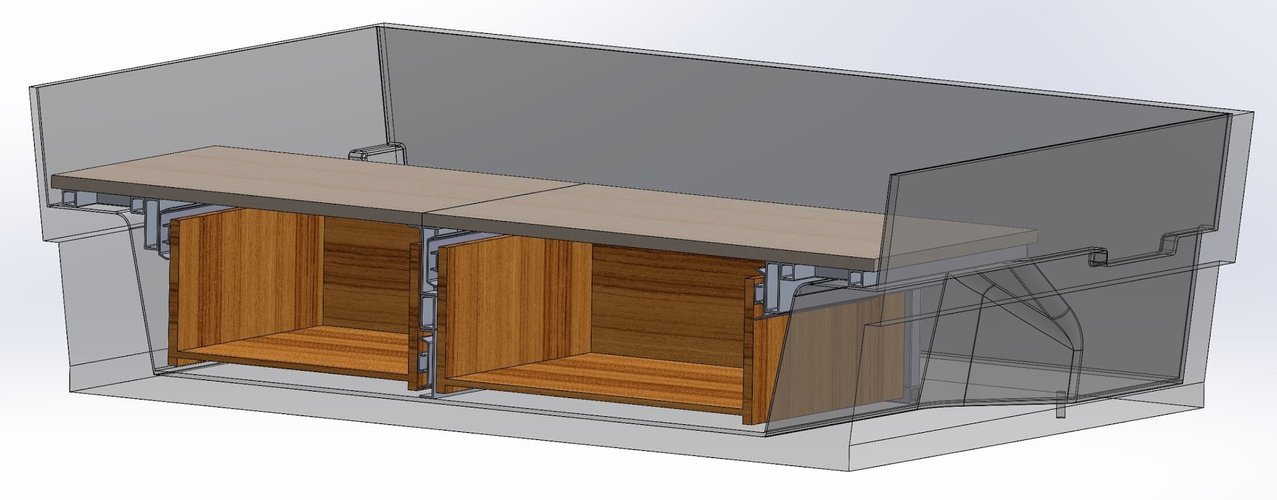

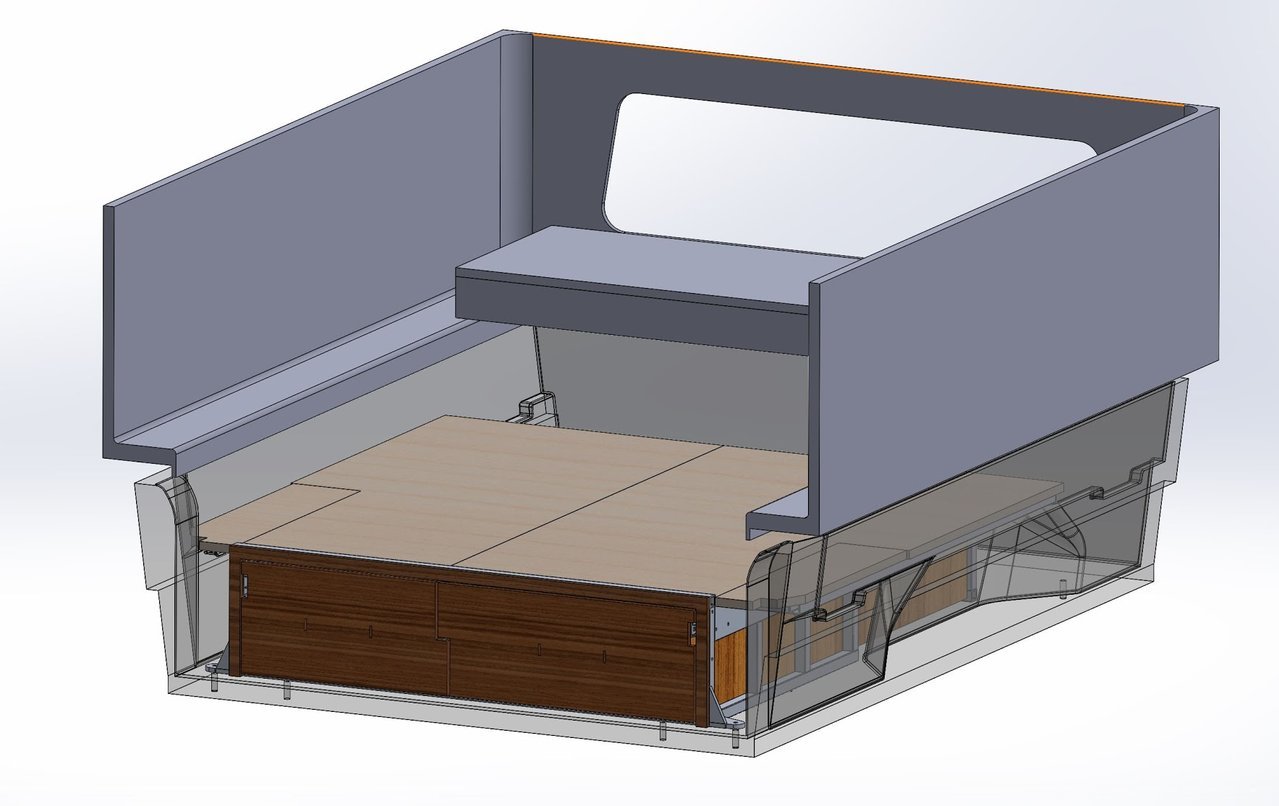

    And so began the design:
    I wanted the frame to slide in between the wheel wells while maximizing width and minimizing dead space. I came up with the idea of "stacking" the two center slides, and this saved a solid 2" of dead space. I was apprehensive about doing this because EVERY single drawer I've ever seen/ googled has both slides on the same plane. The engineer in me said its fine, and it turned out great. I almost went with a single giant drawer that would be have been cheaper and lighter (only 1 set of slides, and less frame), but I figured I need the center support to serve as our floor in the flippac.

    Specs:
    Weight
    * frame: 54 pounds
    * 22.875" drawer: 32.3 pounds
    * 17.250" drawer: 27.5 pounds
    * 2x 48" 500 pound rated slides: 52 pounds total
    * Plywood Floor: 45 pounds
    * Mahogany Drawer Front: 5 pounds
    * Hardware: 6 pounds
    *Total: 221 pounds

    It came out heavier than I wanted, but there really isnt that many more places I could cut weight.

    Total money spent
    * Drawer Slides from Orr & Orr: $270 + $60 shipping
    * Drawers made by Drawer Box Specialities: $140 + $75 shipping
    * Plywood: $50
    * Mahogany: $20
    * Carpet: $20
    * Aluminum for frame: $175
    * Hardware: $45
    * Total: $855

    I could have saved a bunch by picking up the drawers, they were only 100 miles away, but by the time you factor in gas and time, the shipping was worth it.

    nLjVVgVRfA2Q46B3XxQ3qzMw9bcCZqUaZpNM9uPV_802893f191125cd11f187d81fdc50972a1b95269.jpg

    QcSj1w6ApD6OXzvV0Uwz3YTr4vazFCrxmJ49P0xk_8d6667b4ff4ea121e2235eea31ccc52da7a60e82.jpg

    x1F-iNnN3DbwxeVMNS0mwhUZVArtBz7g8IPEguXt_0276e37465e74fbd83eae428f547b33933f0b385.jpg

    Being an engineer is a blessing and a curse. I spent way to long measuring/building the Taco bed in CAD, but that ultimately led to a product that fit the first time.

    eJY-zpebsUf6nAjYzagVPWARipGHZ_VTfVC7EBRs_751eaa4e4599c749e4b6ca1fc51d80838bbba46e.jpg

    The drawers are 4' 6" long on 4' slides. This left an 18" full width cubby forward of the wheel wells. I plan to put a water tank in here.

    M48Jns6dio2gZvLNHmh8UDivVRDQ3Ryu19QUIAPZ_e589de67ba015da09bc1daa8b4d0f6f16ca080d6.jpg

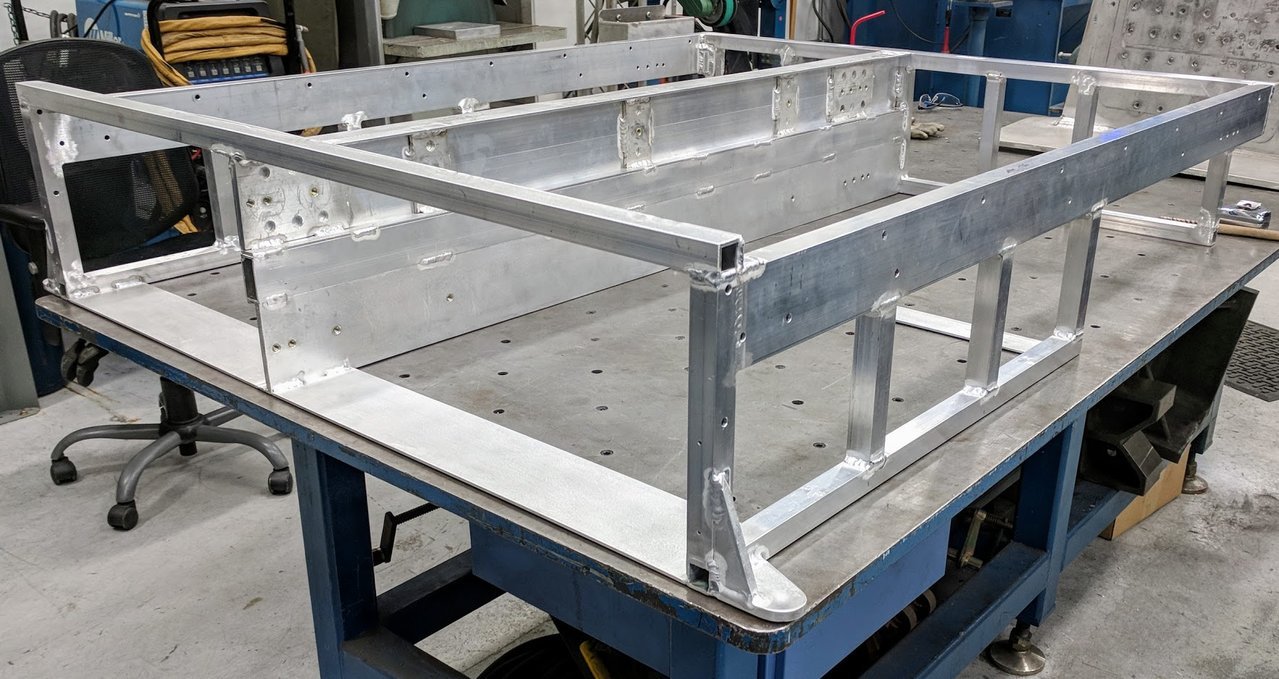

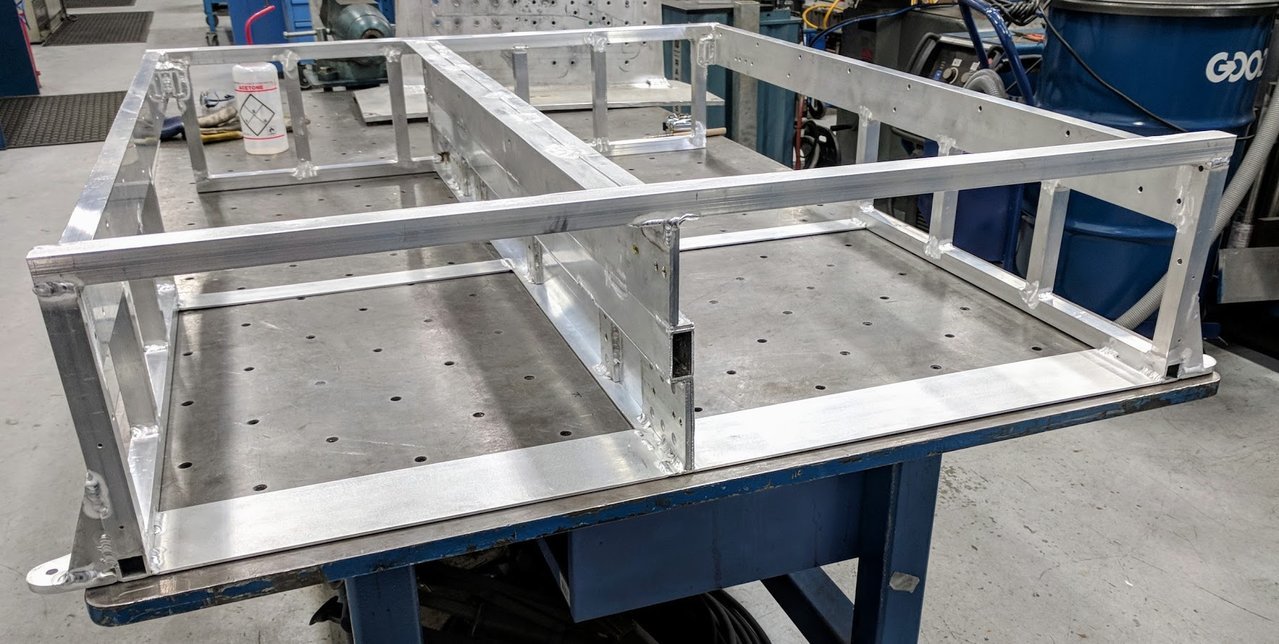

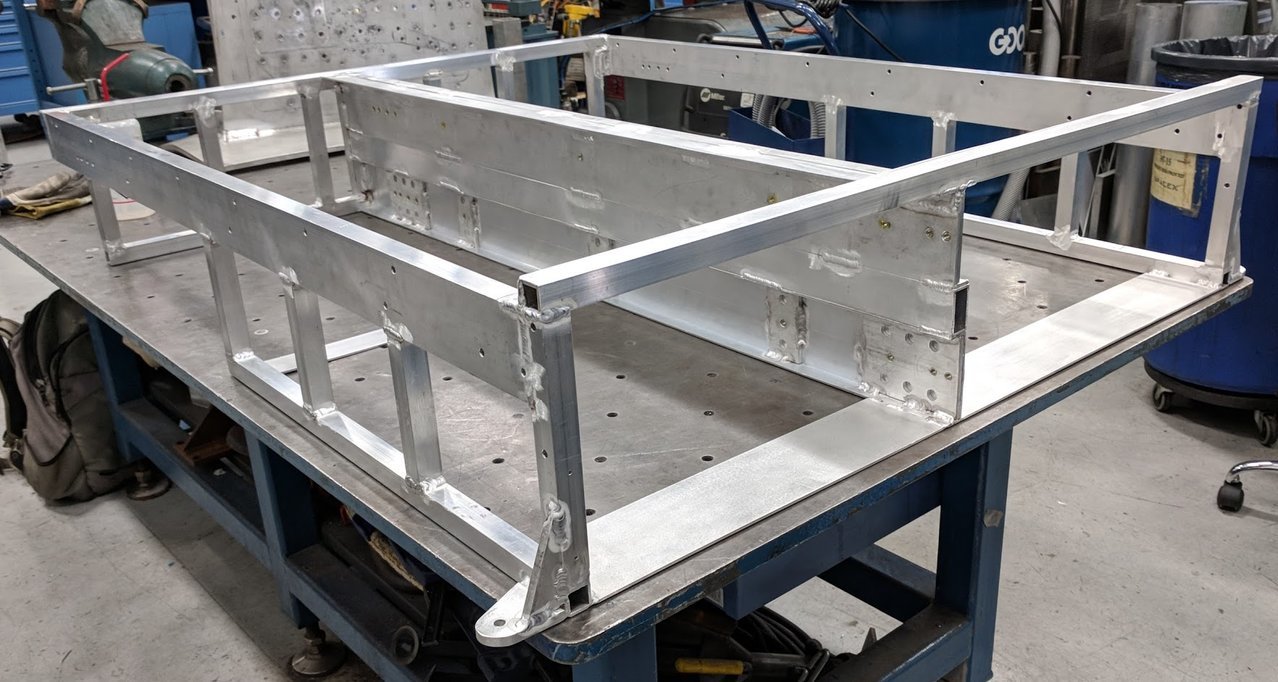

    I fabbed the frame at work during lunch over a few weeks, having all the right tools sure makes it go that much quicker and easier.

    ngHRINTLuUsl0rpPNqrZ8QQKm72SaFNB3MY9Wd5k_531b4eba0080a4be1a83a40196d92a92b9adf3f5.jpg

    hT3pH94nUmnU2WzxILIWkRS33TfyNSeVFOppjaFj_7856c26e91da5eab78bd1b50798c77800e3aa7aa.jpg

    NbH5_zS_CRLooXcFMitPOzgbDJqOOOyfj0Prr_Yw_c25e875ce5e5c0d131e4c4387d2d9a93452e1736.jpg

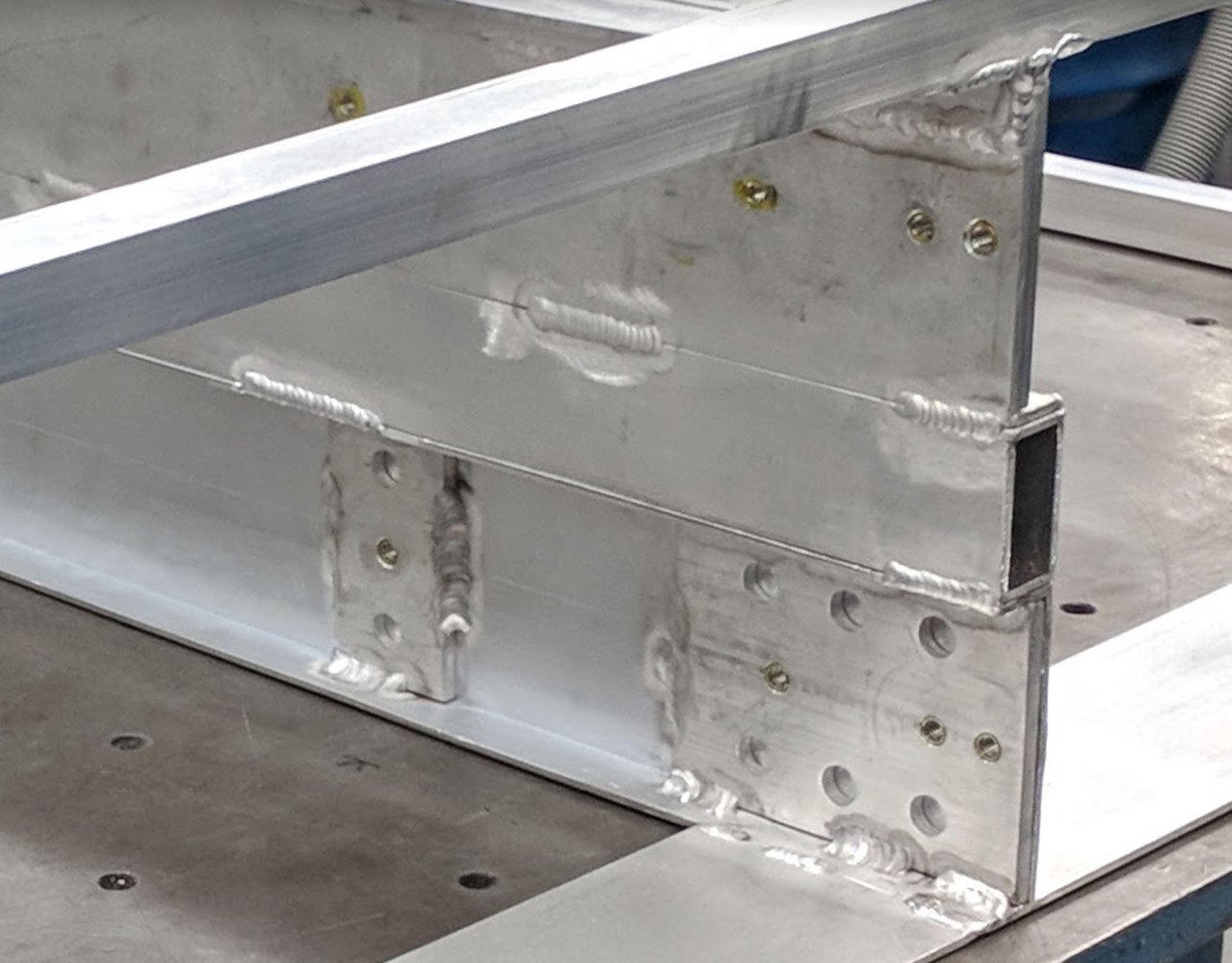

    To keep the center "S" light, I used .125" wall C-Channel with a .25" welded in doubler. I then drilled the holes and installed stainless steel threaded inserts with a zinc chromate primer for corrosion prevention. The threaded insert install only took about 20 minutes, but not having to worry about aluminum threads galling or cross threading is worth the time.

    TCttmoV_urvyBZGDMc-Vew-XDylRT2BqohNaOm8u_6507860d791046d8667680e94cbdfebf2bd44ab2.jpg

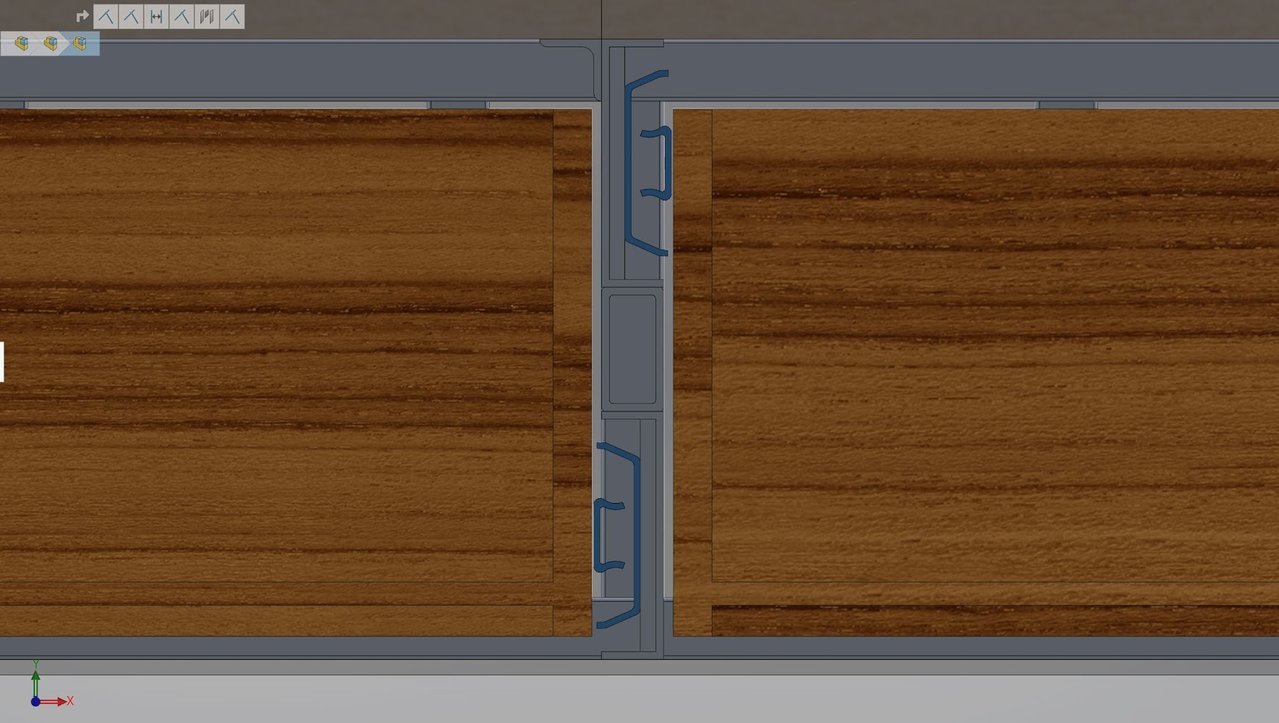

    Test fitting the frame before it was fully welded, it fit! Thanks CAD!

    -pfiOhc_Pn8U4oExUNfg7Cd5KMwrgqOGol0tK8kS_494c62f685e73ad0976f951cfe90282f815cf996.jpg

    I_oaIS_usAYz60Nba8g00ASoPneC6k-nLzRGmMSr_89b7047707d70761a7966532aa0c32d3500e1341.jpg

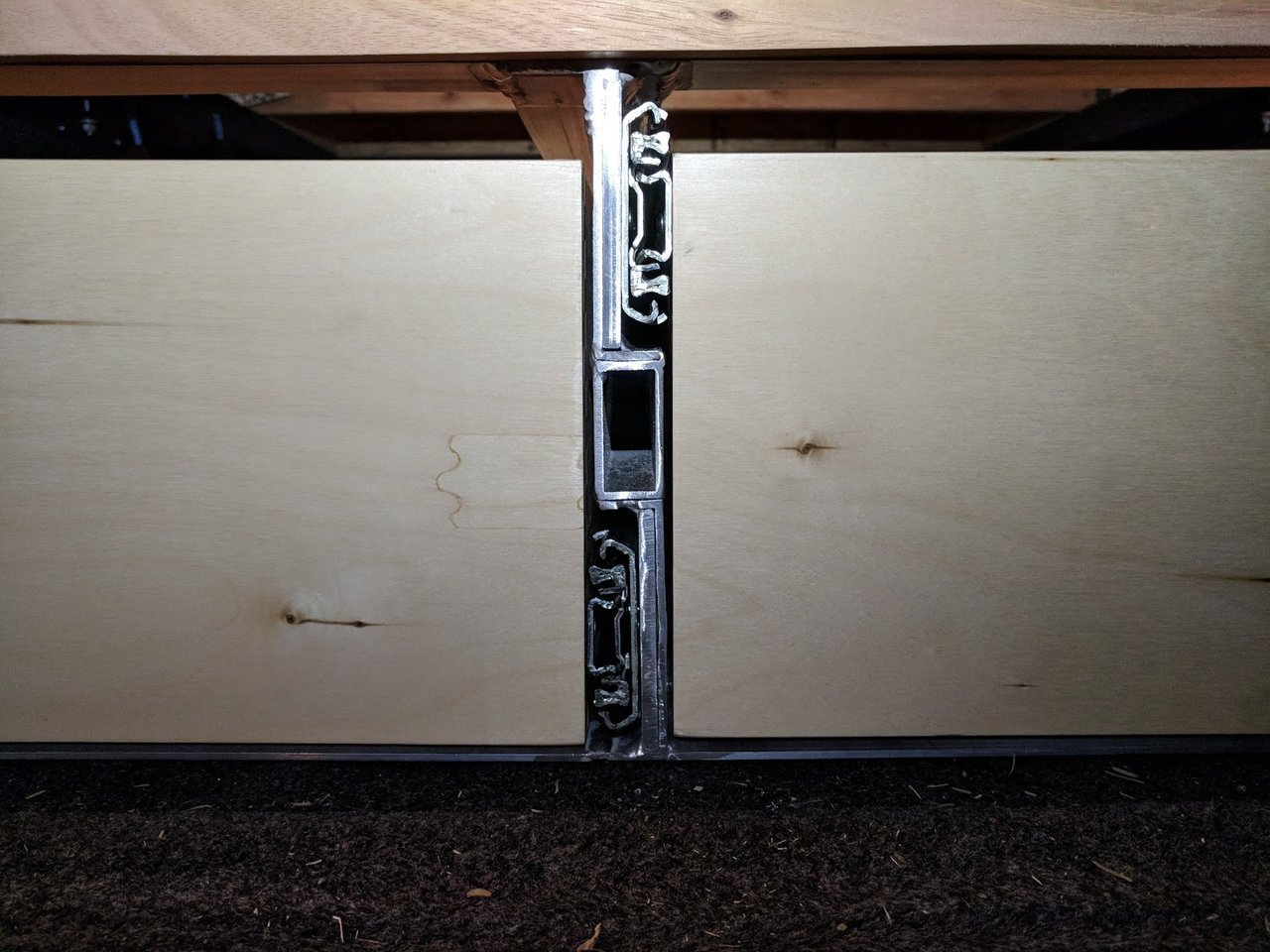

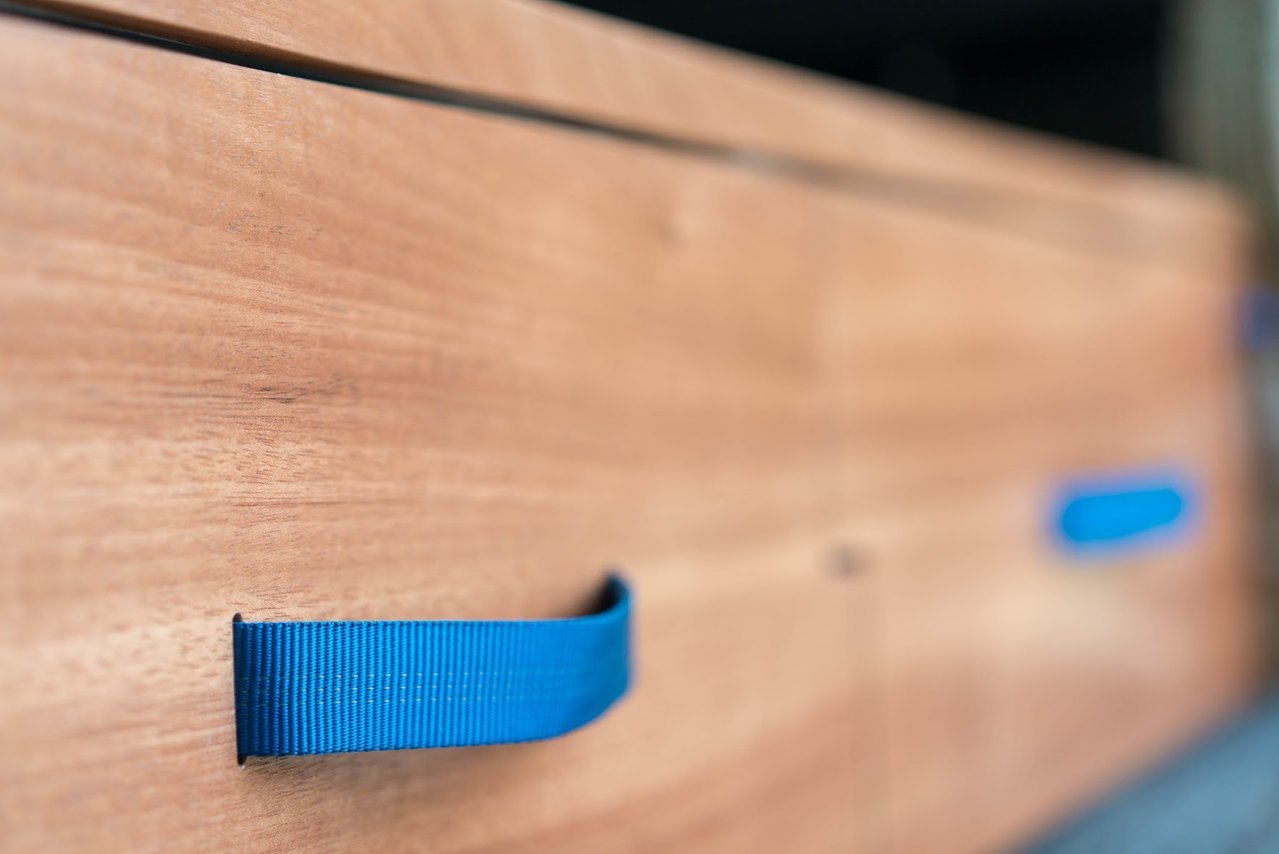

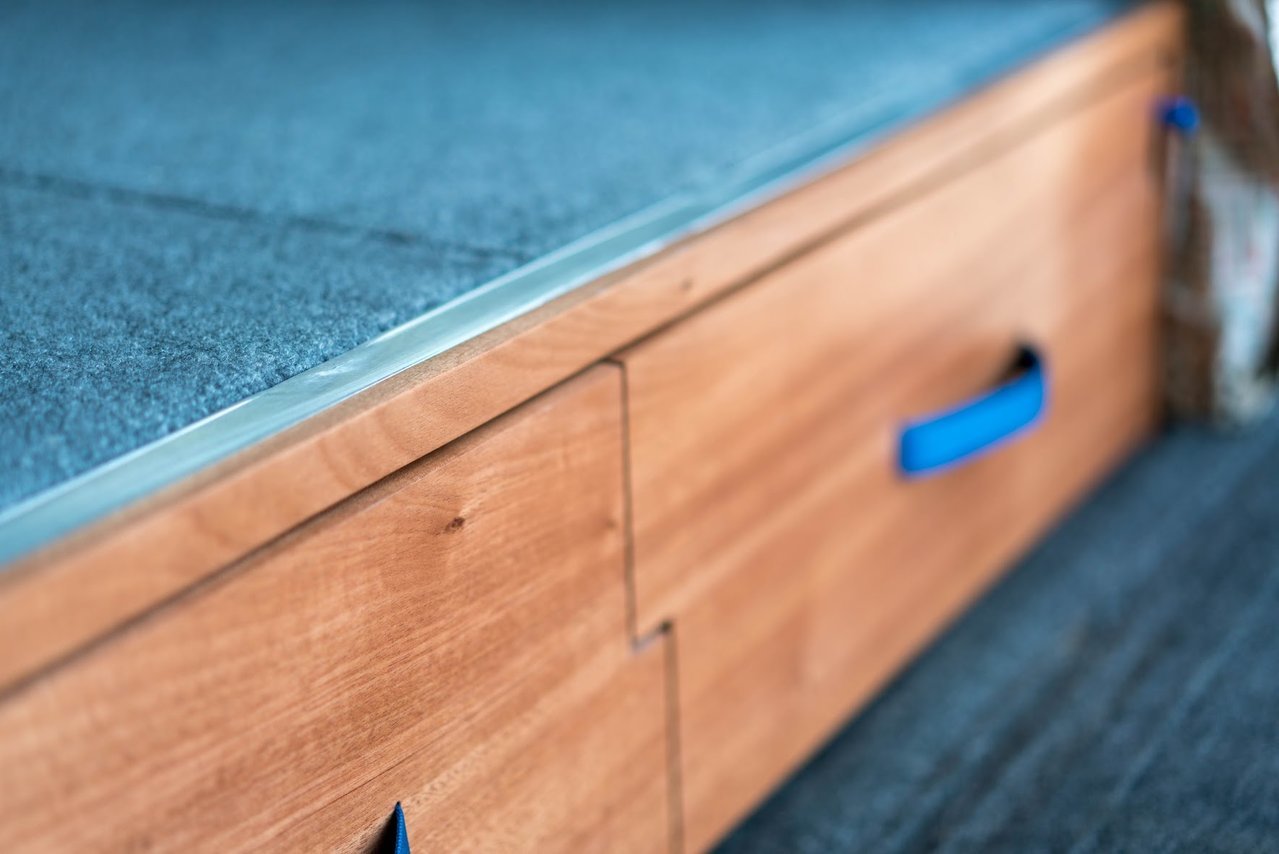

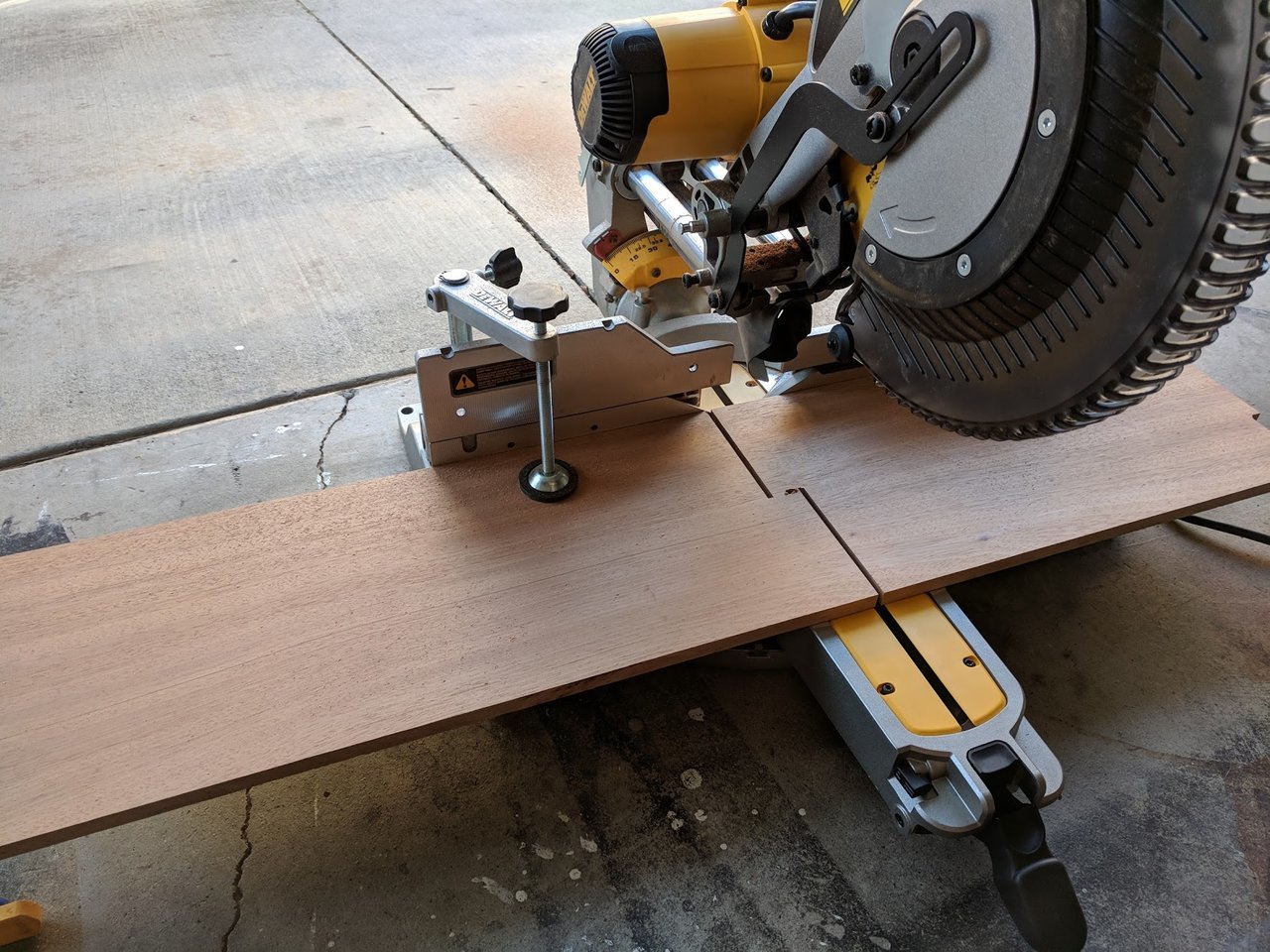

    One detail I really wanted to get right was the drawer fronts. A single piece of mahagony was used for the drawer fronts/ trim. You can see the grain continue all the way through There were no second chances with the cuts on this piece.

    Ni9AFpfR1FDEFP_FeghC2MileyvDZalu4klTRSIQ_919922eba85412542fd0a2956ca26d04ce2a0ad7.jpg
    ZDQ7HqcF1xWeYvyCb4nIKtdDdxQ7CNRTAJa46TlJ_47e9cb353d657fcd89ed56db26f54dc994eaed2a.jpg

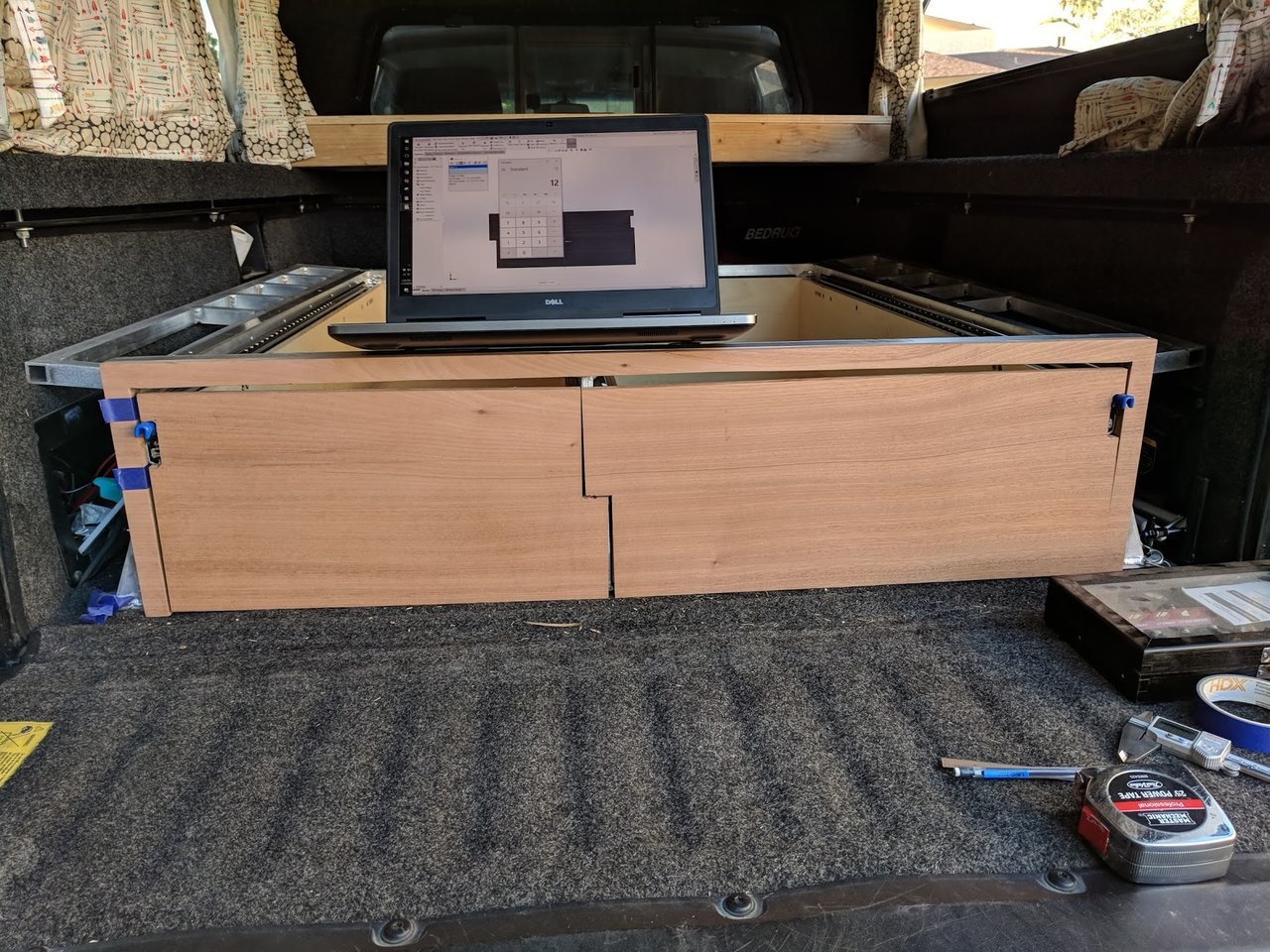

    Consulting the oracle
    pcCniIFYzdORh91MesFlaIwu0Xm9bGMqaHo3RyDo_f0e384fe8cb37327fc87fe0c112a0c56945f5cc6.jpg

    I made the floor piece out of some 3/4" birch ply. I would have gone lighter, but this will be the floor that we stand on in the camper, and I wanted it stout. The OCD in me is sad the carpet doesn't match the bed rug.

    rcdL8RiA8UCTNaZwtt6k6INMXIGzdx3iIg_7b-0M_7cf690a2ebb56f8c8639bd584c07da3261dfa113.jpg

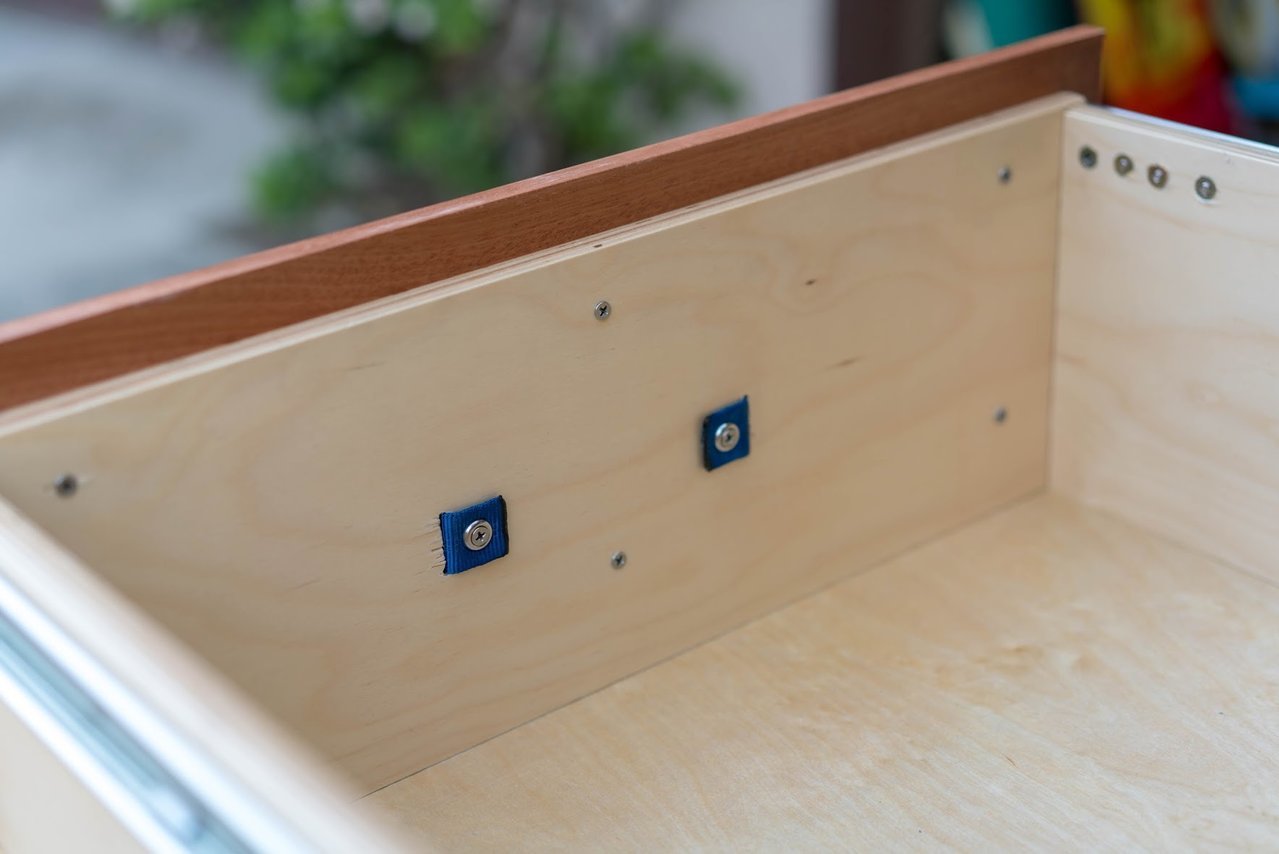

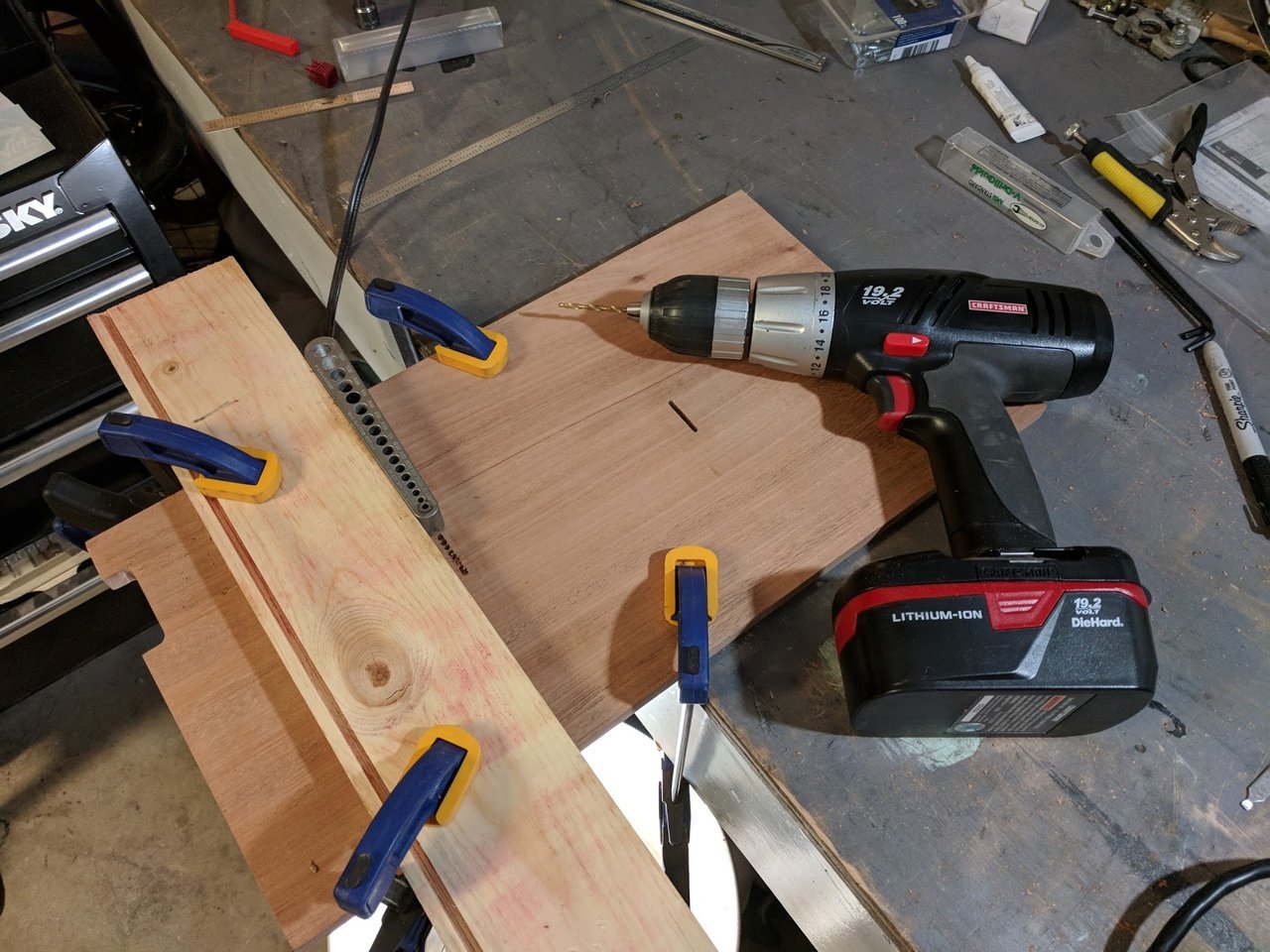

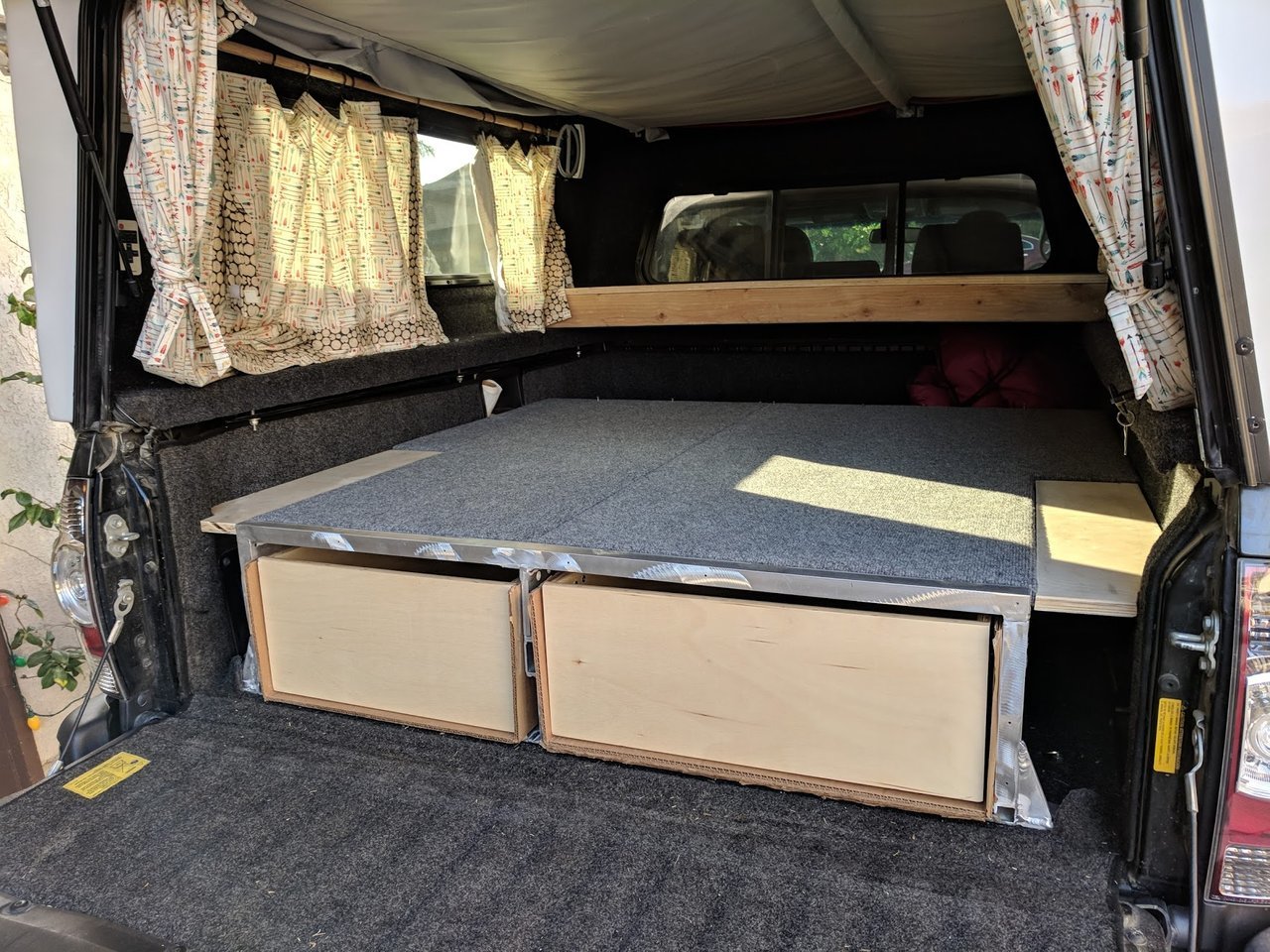

    I cut the slots in both the drawers and the hardwood fronts, then fed the 1" webbing through and secured it on the inside. I choose webbing because I like to climb, and it seemed cool, durable, and cheap.

    B0ix4MqPp-9dSdsU7i1A8sk5IPXO8CVAO_8Yf7wa_67572833d5374a3d467ee34da106135ef7a79abd.jpg

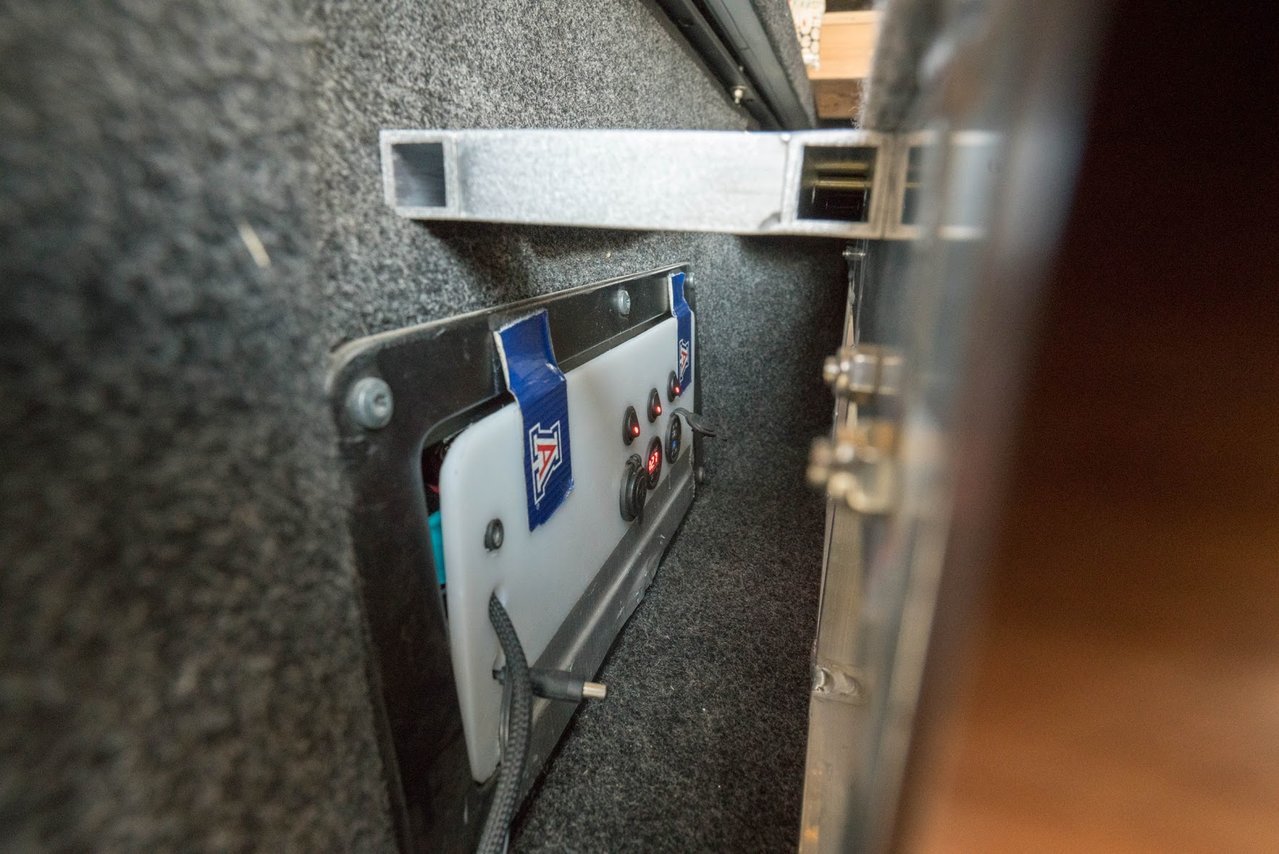

    The little side cubbies are still accessible. I am going to carpet the little plywood covers. I have my power panel in the drivers side cubby so I wanted to still be able to get to that with the tailgate up.

    6mlG-kibfj6Oc4S8rBWnJPib9RyKw8gZDiYH4pbL_f5d2a1863027fd0613a279bdff6fb2eb1675cc17.jpg

    dC4JznnKX5QzXjiIMOijsQuyv0VicY_lZWYKospV_677840f2023bdc176a816e3658ca8f98deafda41.jpg

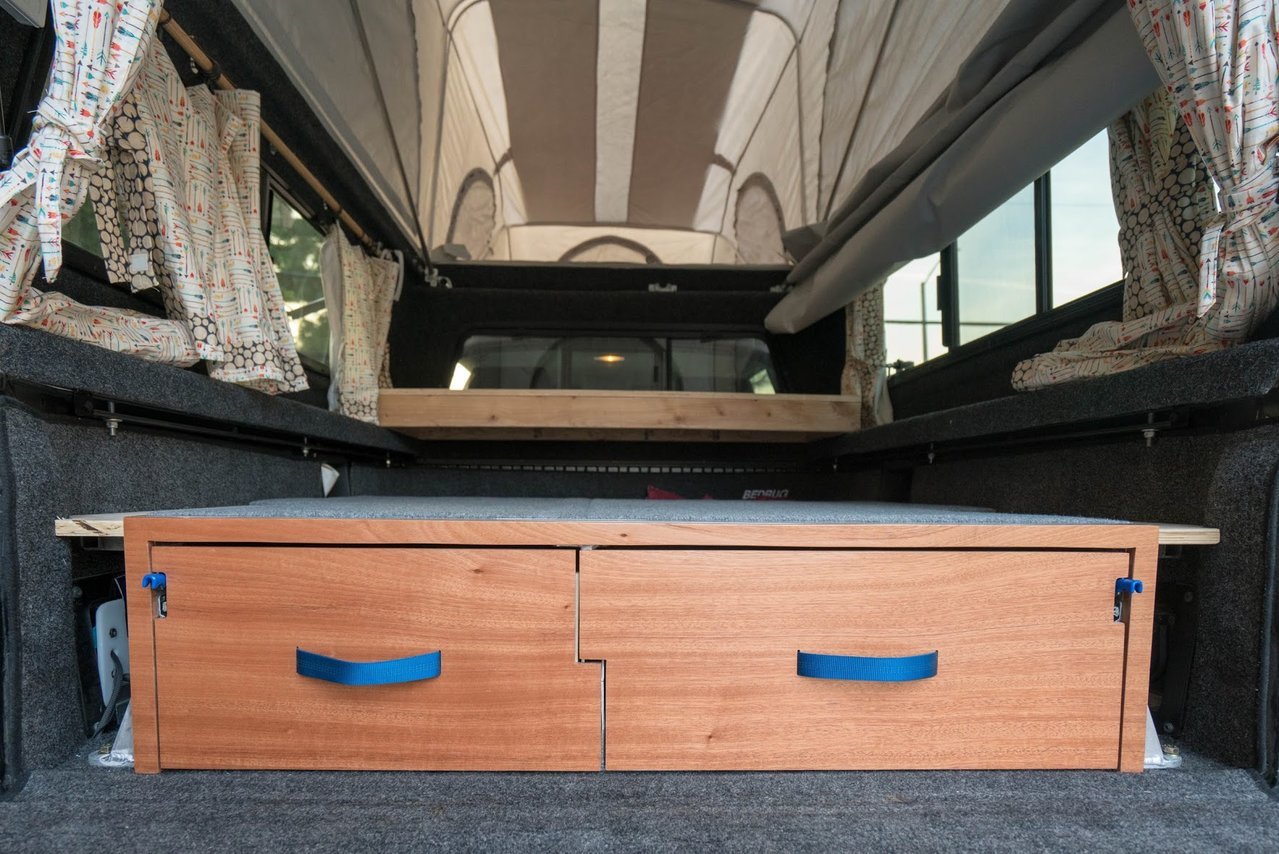

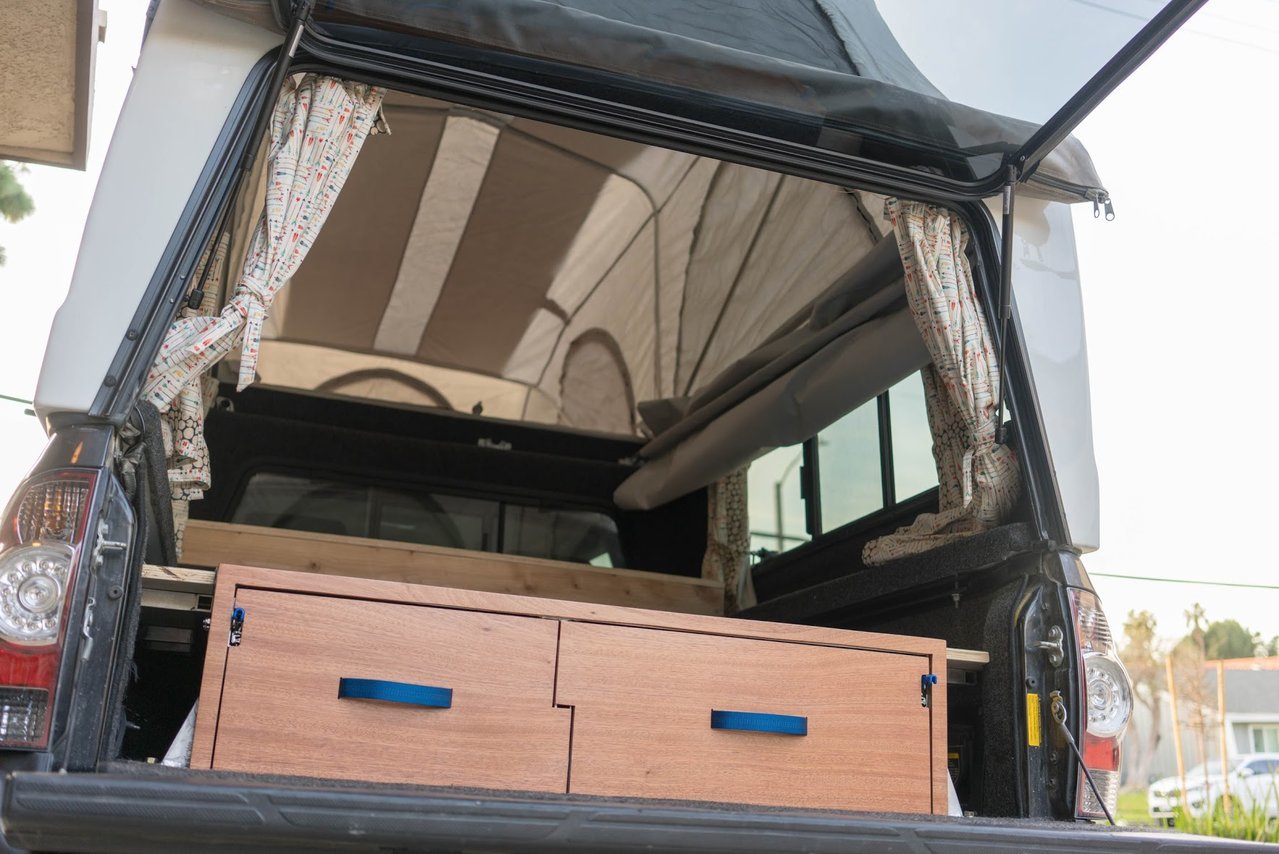

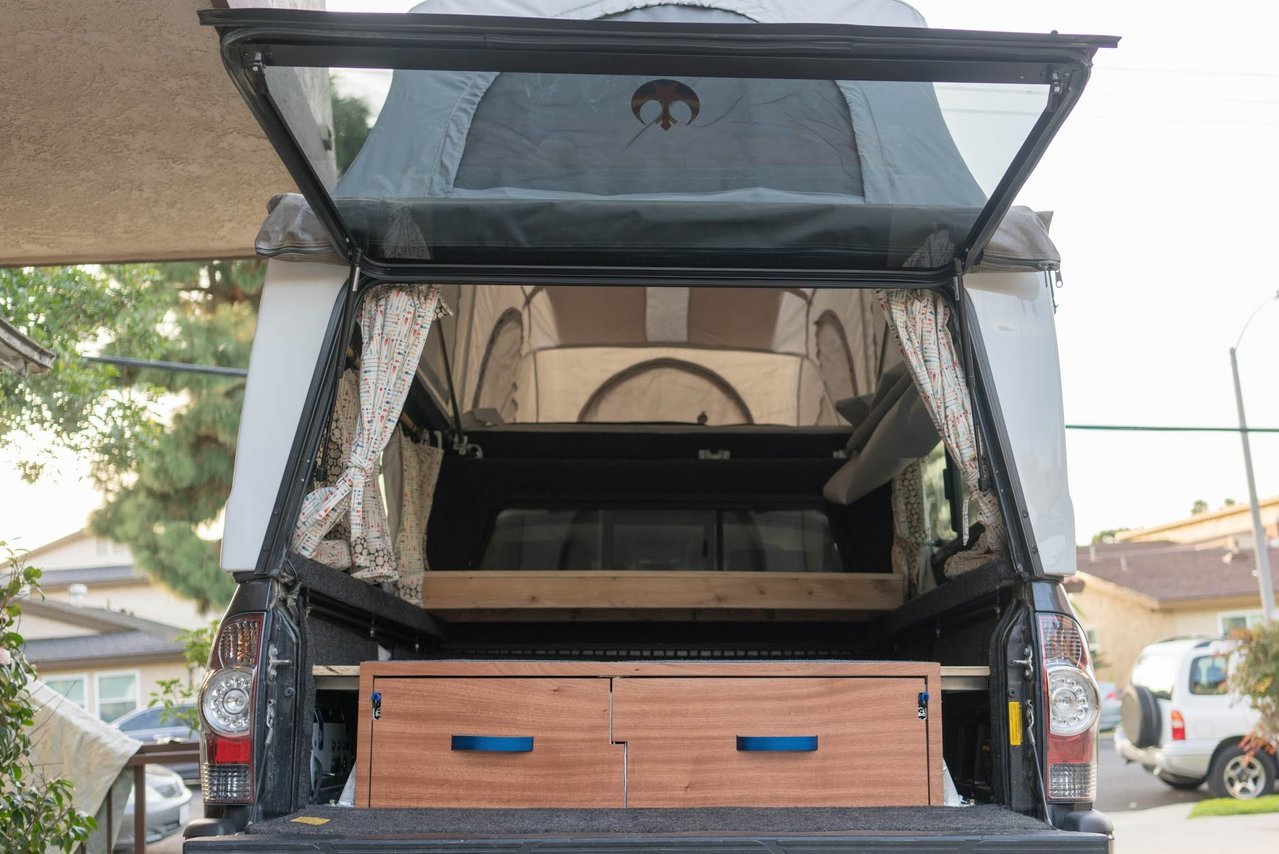

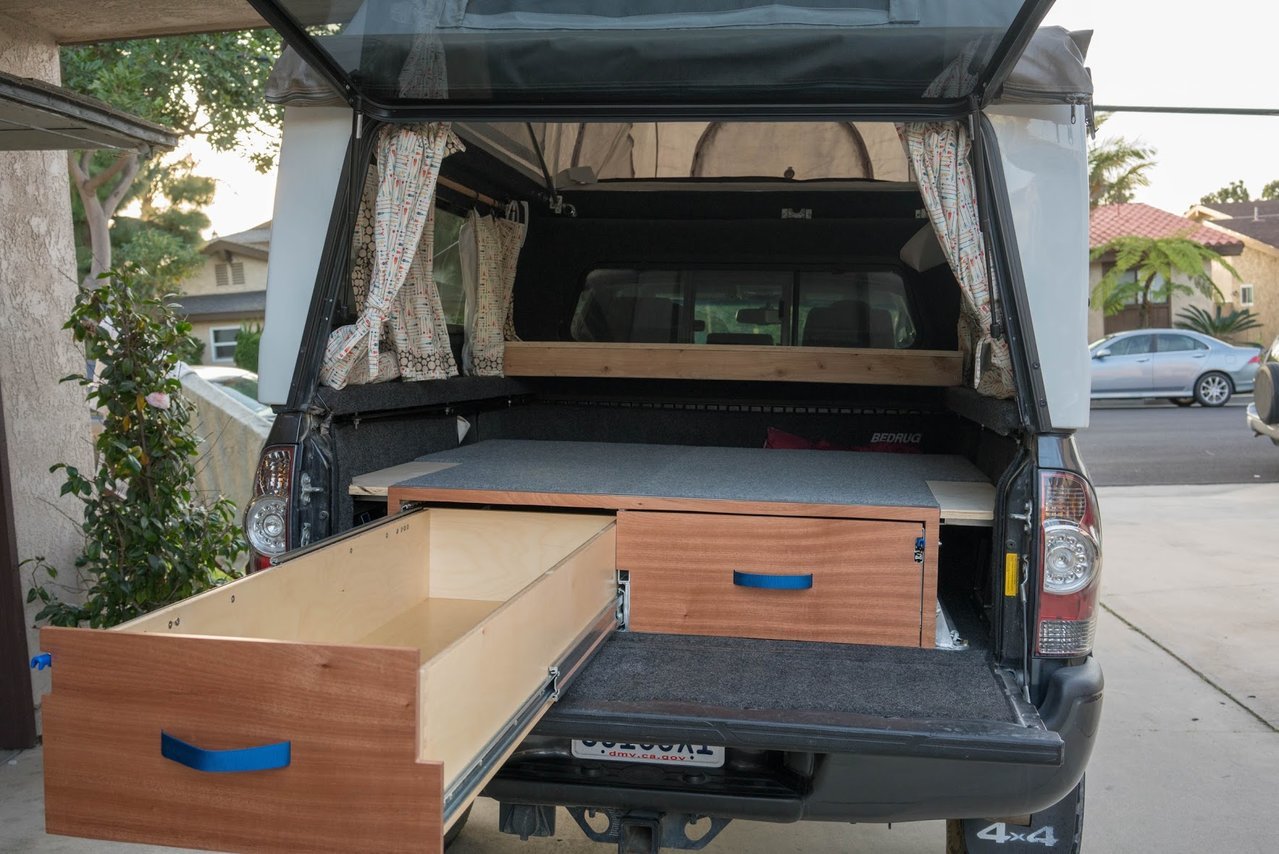

    The finished product. I'm pretty happy with how well it turned out. It's not perfect, but it should get the job done.

    dH88eGTiD4AlkK_X1NWdscIK8xQCEBFnsj7jF9MW_2fbc6508c41bb3c1b2ffac0f17e9524938ed54d0.jpg
    cr0G2WPvg5FDm62axKTqIw9N7jNiDnT5rzhpG0lH_769c245b016f8f5d7003bc58019c9550157249c3.jpg
    4WgAhFB1f3FR8XwKMymAjCyHT8U0aAJFTABfUyBN_3cb2562b8ca832f25f74739dad4fb2b04c92147d.jpg
    pom1KZzjkpjwZoCuu45cjT0n7pOvyErqzarNOSPz_66f5a4ca514456243db3b888d389e8e8e0539d32.jpg
    dsj1_U4dQ_5FZ--W9b2ahz-t9Nd6-DXpr8cGtKnq_92da63b53d1f94e52d30f0337690516ef65efdb5.jpg
    c7vyaQcP4bSunKXBBN9XCI-MaG4iABsg8K7TOcBJ_fb9d574d7616694ef7cb1cbc57b589c986d8770d.jpg
    VEvsBIlGkDsikXF2ke-3ZXVQjRo7bunDad9NaGBV_42dcb04ab424ad8d162572f0caf5bdaaed5ab891.jpg
