I need some electrical help

Discussion in '2nd Gen. Tacomas (2005-2015)' started by docloco, May 13, 2017.

Page 2 of 3
  1. May 14, 2017 at 10:26 AM
    #21
    docloco

    #21
    docloco [OP] Well-Known Member

    Joined:
    Jun 15, 2015
    Member:
    #157438
    Messages:
    2,957
    Gender:
    Male
    First Name:
    Ron
    Florida
    Vehicle:
    2015 MGM DCSB 4x4 TRD OR
    docloco, May 14, 2017
    #21
    GHOST SHIP[QUOTED] likes this.
  2. May 14, 2017 at 10:39 AM
    #22
    GHOST SHIP

    #22
    GHOST SHIP hates you.

    Joined:
    Mar 9, 2015
    Member:
    #150537
    Messages:
    22,295
    First Name:
    GHOST
    GHOST SHIP, May 14, 2017
    #22
    docloco[QUOTED][OP] likes this.
  3. May 14, 2017 at 10:41 AM
    #23
    docloco

    #23
    docloco [OP] Well-Known Member

    Joined:
    Jun 15, 2015
    Member:
    #157438
    Messages:
    2,957
    Gender:
    Male
    First Name:
    Ron
    Florida
    Vehicle:
    2015 MGM DCSB 4x4 TRD OR
    Ordered. Arriving tuesday. Will keep you updated. Thanks again for the help, everyone.

    docloco, May 14, 2017
    #23
    GHOST SHIP[QUOTED] and TXpro4X4 like this.
  4. May 14, 2017 at 10:43 AM
    #24
    GHOST SHIP

    #24
    GHOST SHIP hates you.

    Joined:
    Mar 9, 2015
    Member:
    #150537
    Messages:
    22,295
    First Name:
    GHOST
    FYI, those will have the 5th lead coming off them (87a). It'll be in the center of the relay and you will not need it. You can cut the wire or zip tie it out of place but the cleanest solution is to remove the connector insert out of the relay plug all together.

    GHOST SHIP, May 14, 2017
    #24
    docloco[OP] likes this.
  5. May 14, 2017 at 10:43 AM
    #25
    TXpro4X4

    #25
    TXpro4X4 Fuck Cancer!

    Joined:
    Oct 29, 2011
    Member:
    #66093
    Messages:
    27,906
    Gender:
    Male
    First Name:
    Bryan
    Costa Mesa, CA
    Vehicle:
    2011 TOY
    Toy Stuff..... Faktor Amber lights on in the grill. Under front bumper led rock lighting. Center counsel c.b mod with under the hood p.a. Anytime foglight mod. R.G.B tape light for inside toekick lighting. Front and back. Front weathertech floor mats. De-Baged except TOY on tailgate. FJ style 6 speed shifter knob. Rubber tacoma bed mat. Trd exhaust. Trd 16in beadlocker style wheels. Electrical a/c 115volt plug/usb mod next to passenger knee. Fox 2.5 coilovers. Icon 2.0's in the rear. Rear locker any-time mod. Abs kill switch mod. All Pro ISF front skid Pelfrey built front differential skid Baja design pro pods Rigid pods CBI pods brackets Mobtown tailgate guard RIP Mobtown Caliraised rear amber pod lights CJ Jumper- map, running, amber fog, reverse, and license plate led bulbs Pedal Commander
    :thumbsup:

    TXpro4X4, May 14, 2017
    #25
    docloco[QUOTED][OP] likes this.
  6. May 14, 2017 at 7:56 PM
    #26
    Jimmyh

    #26
    Jimmyh Well-Known Member

    Joined:
    May 16, 2012
    Member:
    #78991
    Messages:
    13,796
    Gender:
    Male
    SC
    Vehicle:
    2012 Prerunner SR5
    Glad to have assisted. :thumbsup:

    Jimmyh, May 14, 2017
    #26
  7. May 14, 2017 at 8:07 PM
    #27
    stairgod

    #27
    stairgod NOOB

    Joined:
    Aug 16, 2015
    Member:
    #161924
    Messages:
    7,965
    Gender:
    Male
    First Name:
    Jo n
    PA/NJ
    Vehicle:
    2011 MGM Trail Limo
    Locked Boosted 35s
    Looks to me like you have the wiring backwards. I.e. the power wire to run the lights is hooked up to the lead that is supposed to go out to the lights. The only time the upper light on the switch should be lit is when the switch is on. The led will light up due to the terminal going out to the lights seeing 12 volts. Normally that terminal would not have power when the switch is off. So switch the wires from the 12v in terminal and accessory out terminal and it should work normally.

    stairgod, May 14, 2017
    #27
    bmgreene likes this.
  8. May 20, 2017 at 7:45 AM
    #28
    docloco

    #28
    docloco [OP] Well-Known Member

    Joined:
    Jun 15, 2015
    Member:
    #157438
    Messages:
    2,957
    Gender:
    Male
    First Name:
    Ron
    Florida
    Vehicle:
    2015 MGM DCSB 4x4 TRD OR
    Well I got my relays in, thats the good news. The bad news is, its still not working. You would think following just 4 wires would be simple be no, and I don't have the electrical experience to really troubleshoot it, so I will look for some local TW members to assist. Thanks for the help thus far.

    docloco, May 20, 2017
    #28
  9. May 20, 2017 at 9:07 AM
    #29
    Up2NoGood

    #29
    Up2NoGood Well-Known Member

    Joined:
    Jun 23, 2014
    Member:
    #132511
    Messages:
    3,302
    Gender:
    Male
    First Name:
    Jaimes
    BC, Canada
    Vehicle:
    2014 TRD Sport DCLB
    Hey Ron,

    What exactly is the problem that is remaining?

    Up2NoGood, May 20, 2017
    #29
    docloco[OP] likes this.
  10. May 20, 2017 at 9:21 AM
    #30
    thejurgy

    #30
    thejurgy Well-Known Member

    Joined:
    Sep 6, 2016
    Member:
    #196582
    Messages:
    444
    Gender:
    Male
    First Name:
    Andre
    Oregon
    thejurgy, May 20, 2017
    #30
  11. May 20, 2017 at 9:35 AM
    #31
    Up2NoGood

    #31
    Up2NoGood Well-Known Member

    Joined:
    Jun 23, 2014
    Member:
    #132511
    Messages:
    3,302
    Gender:
    Male
    First Name:
    Jaimes
    BC, Canada
    Vehicle:
    2014 TRD Sport DCLB

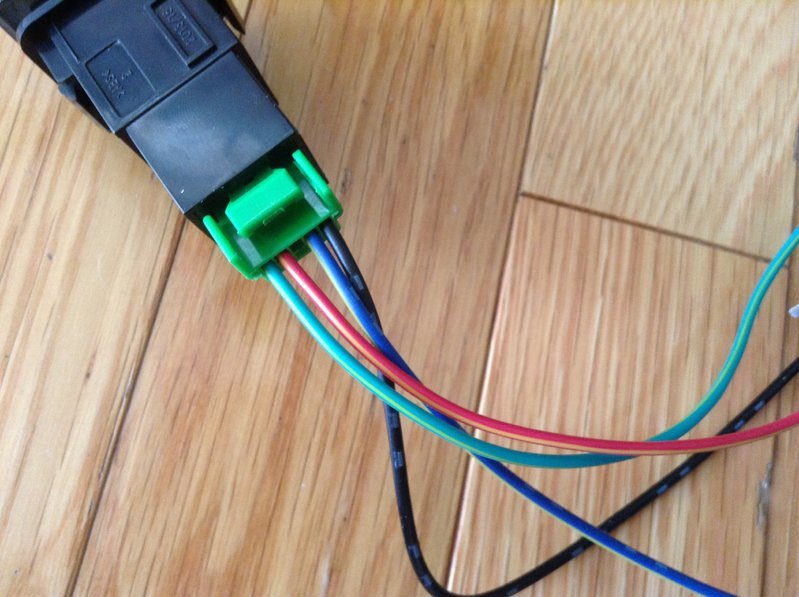

    Never mind I had a cup of coffee and another read lol. If your light is staying on full time (the one that indicates your accessory is being powered) you probably have two wires reversed. Make sure that:

    Green / Yellow wire = power in from fused source
    Red / Yellow wire = power out to accessory / relay

    If you reverse those two you will get exactly the result you are experiencing. Also just to make sure the factory didn't mess up here is the order the wires should be in.


    Up2NoGood, May 20, 2017
    #31
    docloco[OP] likes this.
  12. May 20, 2017 at 9:36 AM
    #32
    docloco

    #32
    docloco [OP] Well-Known Member

    Joined:
    Jun 15, 2015
    Member:
    #157438
    Messages:
    2,957
    Gender:
    Male
    First Name:
    Ron
    Florida
    Vehicle:
    2015 MGM DCSB 4x4 TRD OR
    Still have a hot light when it gets plugged in. Getting some local help. Thanks. To the best that can figure, I have everything wired correctly.

    docloco, May 20, 2017
    #32
  13. May 20, 2017 at 9:38 AM
    #33
    docloco

    #33
    docloco [OP] Well-Known Member

    Joined:
    Jun 15, 2015
    Member:
    #157438
    Messages:
    2,957
    Gender:
    Male
    First Name:
    Ron
    Florida
    Vehicle:
    2015 MGM DCSB 4x4 TRD OR
    Is this an aironboard switch? If it is my red and green are reversed from your pic.

    docloco, May 20, 2017
    #33
  14. May 20, 2017 at 9:40 AM
    #34
    Up2NoGood

    #34
    Up2NoGood Well-Known Member

    Joined:
    Jun 23, 2014
    Member:
    #132511
    Messages:
    3,302
    Gender:
    Male
    First Name:
    Jaimes
    BC, Canada
    Vehicle:
    2014 TRD Sport DCLB
    It is indeed an AOB switch, just took the pic myself. Looks like factory screw up FTW lol. Reverse those two and you'll be good.

    Up2NoGood, May 20, 2017
    #34
  15. May 20, 2017 at 9:45 AM
    #35
    docloco

    #35
    docloco [OP] Well-Known Member

    Joined:
    Jun 15, 2015
    Member:
    #157438
    Messages:
    2,957
    Gender:
    Male
    First Name:
    Ron
    Florida
    Vehicle:
    2015 MGM DCSB 4x4 TRD OR
    I will try that as soon as I can. Cooking on the grill for a party at the moment.

    docloco, May 20, 2017
    #35
  16. May 20, 2017 at 9:54 AM
    #36
    Up2NoGood

    #36
    Up2NoGood Well-Known Member

    Joined:
    Jun 23, 2014
    Member:
    #132511
    Messages:
    3,302
    Gender:
    Male
    First Name:
    Jaimes
    BC, Canada
    Vehicle:
    2014 TRD Sport DCLB
    Ah well grilling definitely trumps wire work. I'm heading out for some trail riding in a bit but that should be the culprit. Enjoy the party!

    Up2NoGood, May 20, 2017
    #36
    docloco[OP] likes this.
  17. May 20, 2017 at 10:26 AM
    #37
    Up2NoGood

    #37
    Up2NoGood Well-Known Member

    Joined:
    Jun 23, 2014
    Member:
    #132511
    Messages:
    3,302
    Gender:
    Male
    First Name:
    Jaimes
    BC, Canada
    Vehicle:
    2014 TRD Sport DCLB
    I missed something earlier, are you saying that the actual rigid lights are staying on full time too or just the light on the switch? The reversed wires would explain the switch lighting but not necessarily the rigid lights staying on too. Even with the wires reversed the switch should still be able to turn the rigid lights on and off.

    Not sure if I misread that part or not. I'll check in when I'm back.

    Up2NoGood, May 20, 2017
    #37
    docloco[OP] likes this.
  18. May 20, 2017 at 10:40 AM
    #38
    docloco

    #38
    docloco [OP] Well-Known Member

    Joined:
    Jun 15, 2015
    Member:
    #157438
    Messages:
    2,957
    Gender:
    Male
    First Name:
    Ron
    Florida
    Vehicle:
    2015 MGM DCSB 4x4 TRD OR
    Both actually. I'll play with it later this evening or tomorrow.

    docloco, May 20, 2017
    #38
  19. May 20, 2017 at 12:14 PM
    #39
    docloco

    #39
    docloco [OP] Well-Known Member

    Joined:
    Jun 15, 2015
    Member:
    #157438
    Messages:
    2,957
    Gender:
    Male
    First Name:
    Ron
    Florida
    Vehicle:
    2015 MGM DCSB 4x4 TRD OR
    Well I guess it wasn't as simple as two wires being backward

    docloco, May 20, 2017
    #39
    asuchemist and TXpro4X4 like this.
  20. May 20, 2017 at 12:19 PM
    #40
    TXpro4X4

    #40
    TXpro4X4 Fuck Cancer!

    Joined:
    Oct 29, 2011
    Member:
    #66093
    Messages:
    27,906
    Gender:
    Male
    First Name:
    Bryan
    Costa Mesa, CA
    Vehicle:
    2011 TOY
    Toy Stuff..... Faktor Amber lights on in the grill. Under front bumper led rock lighting. Center counsel c.b mod with under the hood p.a. Anytime foglight mod. R.G.B tape light for inside toekick lighting. Front and back. Front weathertech floor mats. De-Baged except TOY on tailgate. FJ style 6 speed shifter knob. Rubber tacoma bed mat. Trd exhaust. Trd 16in beadlocker style wheels. Electrical a/c 115volt plug/usb mod next to passenger knee. Fox 2.5 coilovers. Icon 2.0's in the rear. Rear locker any-time mod. Abs kill switch mod. All Pro ISF front skid Pelfrey built front differential skid Baja design pro pods Rigid pods CBI pods brackets Mobtown tailgate guard RIP Mobtown Caliraised rear amber pod lights CJ Jumper- map, running, amber fog, reverse, and license plate led bulbs Pedal Commander
    Hey!
    How hard would it be to get another switch and try it? Doesn't have to be the same just a toggle or something.....might be the switch.

    It is not that complex.

    TXpro4X4, May 20, 2017
    #40
    docloco[QUOTED][OP] likes this.
