I now dub these...

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Phantom_X-SP, Nov 6, 2009.

  1. Nov 6, 2009 at 10:48 AM
    #1
    Phantom_X-SP

    Phantom_X-SP [OP] Rude Boy |><|

    Joined:
    Jan 29, 2009
    Member:
    #13071
    Messages:
    1,292
    Gender:
    Male
    High Point, NC
    Vehicle:
    08 DC Black Sand Pearl X-SP
    ..."Phantom Tails" (hey...it works:p)

    They took a little longer than I anticipated but I'm satisfied with the result. I used one coat of the Pactra window tint and 5 coats of clear. Only one coat of tint since I didn't want it too dark.

    Here's a quick rundown of what I did:

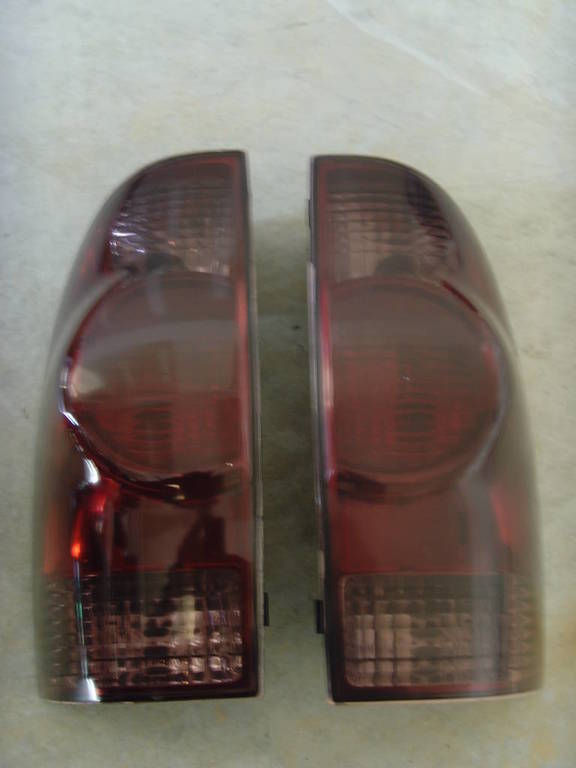

    This is what they looked like painted (pre sanded). You can see the "orange peel" effect in the clear

    [​IMG]

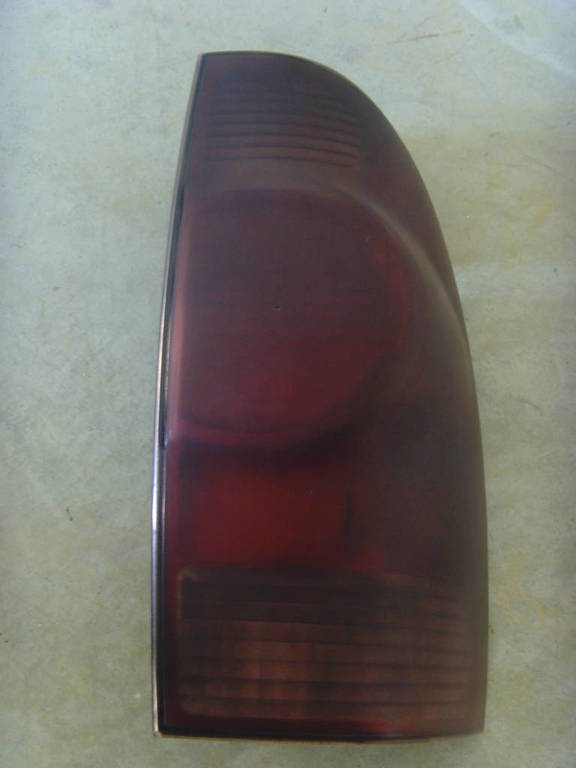

    I then lightly wet sanded with 1000grit then did more with the 2000 grit. The goal here is to get rid of the orange peel look. The tails will look really cloudy when you get finished with this step. Here's a pic of it should look like:

    [​IMG]

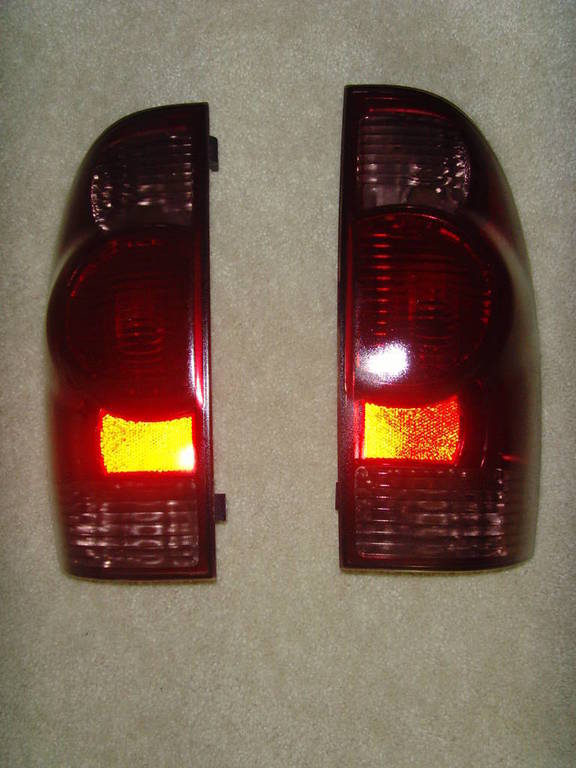

    I then used a rubbing compound and rubbed the heck out of them (I used Turtle Wax Premium rubbing compound FWIW). You'll start to see the shine come back when you remove the compound. Next I applied the wax and watched the shine really take shape. For reference, here's a pic of a finished taillight next to one with just the rubbing compound:

    [​IMG]

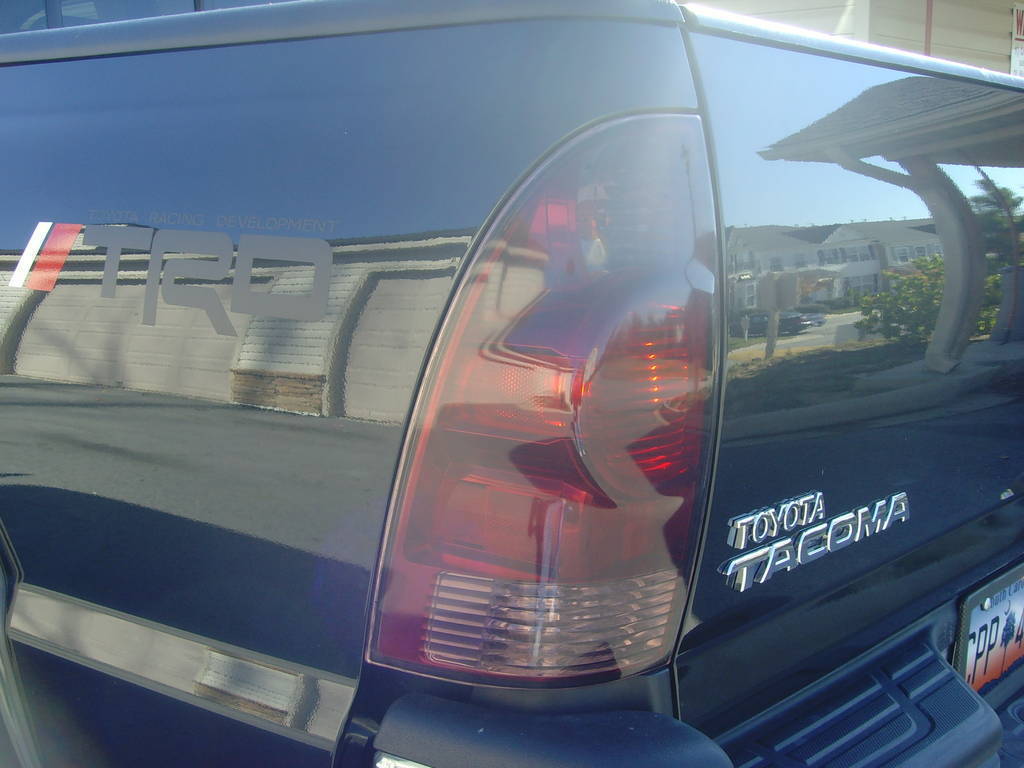

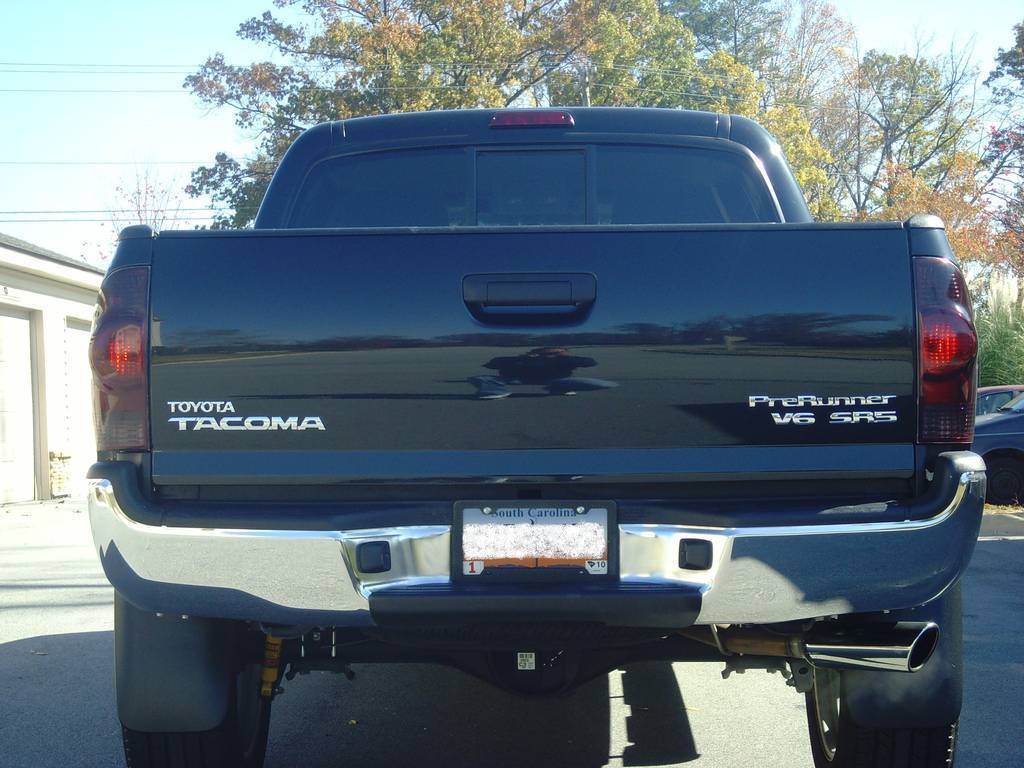

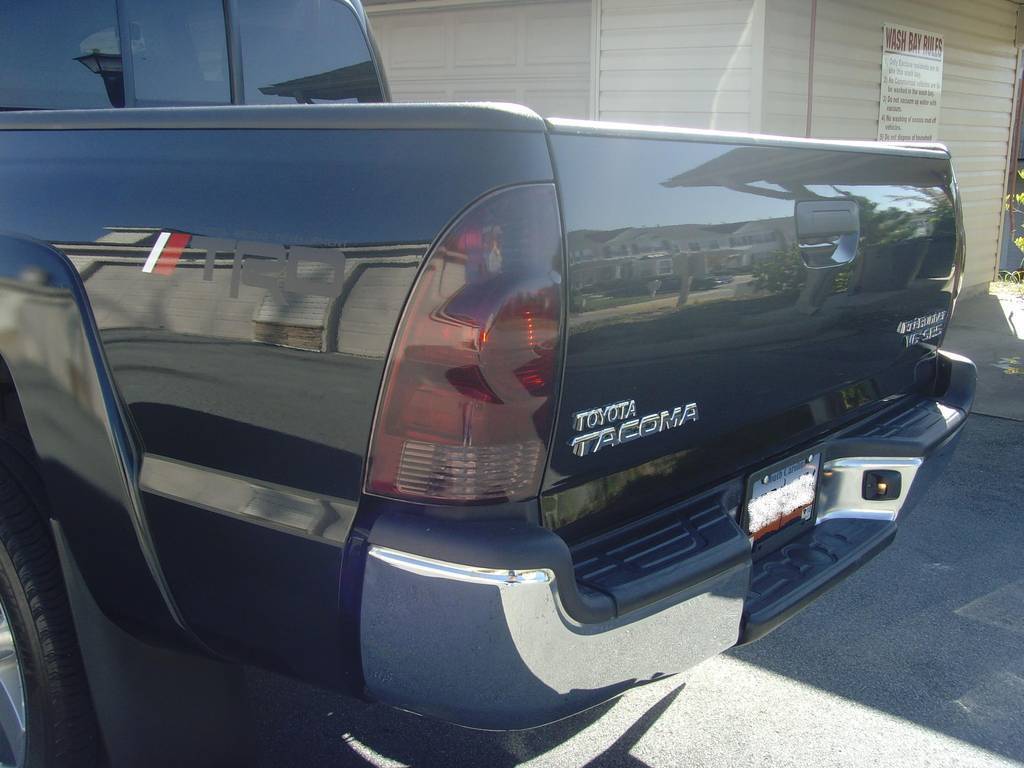

    And the finished product on the truck:

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    UPDATE:

    Quick update since I've recieved couple of PM's about this. The only prep I did to the taillights prior to painting was to spray some windex on the lights and clean them off with a wet cloth. The key is that they are completly clean. I did no sanding prior to painting.

  2. Nov 6, 2009 at 10:52 AM
    #2
    Zombie Runner

    Zombie Runner Are these black helicopters for me?

    Joined:
    Mar 13, 2008
    Member:
    #5246
    Messages:
    15,070
    Gender:
    Male
    First Name:
    Kevin
    Wichita Falls, TX
    Vehicle:
    2011 taco, sport 4x4
    oil change...
    that looks pretty legit to me!!!
    I need to redo mine bad

    so sand
    rubbing compound
    wax
    paint
    clear
    in that order?

  3. Nov 6, 2009 at 10:55 AM
    #3
    derekabraham

    derekabraham Living vicariously through everybody

    Joined:
    Jul 8, 2008
    Member:
    #7822
    Messages:
    28,873
    Gender:
    Male
    First Name:
    TW'S Hippy Liberal
    Portland, OR
    Vehicle:
    2002 4x4 4Runner
    Stick on hood scoop from Autozone.
    That looks good!!

  4. Nov 6, 2009 at 10:55 AM
    #4
    ThreeMan

    ThreeMan Opinions Vary...

    Joined:
    Feb 22, 2008
    Member:
    #4880
    Messages:
    760
    Gender:
    Male
    Oswego, NY
    Vehicle:
    08 4x4 V6 TRD DCLB
    King Remote Resi Suspension - Total Chaos UCAs - Full Katzkin Leather - Leer Camper Shell - Custom Projector Halo Headlights - HID Fogs - Eagle Eye LED tail lights - Rigid Industries LED Light Bar Mounted in Bumper - Wade In-channel Vent Visors - K&N Filter - 20% on the fronts - Dakar Progressive Leafs - Fuel Beast Wheels wrapped in Hankook Dynapro ATMs - 4 Tie Down Mod - Pop N Lock - Billet Grille - Weathertech Mats - LED Map and Dome Lights - Optima Yellow Top - Redline Elite Hood Struts - Tunes: Eclipse 7100 HU - Eclipse IPC-106 Interface - Audison LRX 5.1K - Hertz Mille MLK2 Components - JL 13TW5 - JL cables and wires - Fully Deadened with SDS products - Metra dash kit - Custom Sub Box and Amp Rack - Still Under Construction.
    Looks nice.

    Order...

    Tint
    Clear
    Sand
    Polish
    Wax

  5. Nov 6, 2009 at 10:57 AM
    #5
    dunkhi

    dunkhi CSULB socal

    Joined:
    Jan 5, 2009
    Member:
    #12257
    Messages:
    1,172
    Gender:
    Male
    First Name:
    Craig Sirois
    Southern California. Fountain Valley
    Vehicle:
    09 Ivan Stewart
    Toytec Coilover kit. Bilstein's 5100. Alcoa Wheels. General Tires. Magnaflow Cat-back. BLHM. Yellow fogs. 13TW5 jl sub. Stewart Decals.
    wow yummy

  6. Nov 6, 2009 at 11:05 AM
    #6
    ramjm_2000

    ramjm_2000 Well-Known Member

    Joined:
    Apr 30, 2008
    Member:
    #6303
    Messages:
    184
    Gender:
    Male
    NoVa (Alexandria VA)
    Vehicle:
    08 PreRunner SR5 DoubleCab BSP
    5100's Rear TSB Dominator slider/step bars Eclipse AVN 2210 Nav/XM Leather Upgrade TRD Skid Century Royal Sheel Armor Tech Custom Rear Bumper
    Nice and well done.

  7. Nov 6, 2009 at 11:07 AM
    #7
    Phantom_X-SP

    Phantom_X-SP [OP] Rude Boy |><|

    Joined:
    Jan 29, 2009
    Member:
    #13071
    Messages:
    1,292
    Gender:
    Male
    High Point, NC
    Vehicle:
    08 DC Black Sand Pearl X-SP
    Thanks guys!

    Three man has the order right:thumbsup:

  8. Nov 6, 2009 at 11:08 AM
    #8
    Zombie Runner

    Zombie Runner Are these black helicopters for me?

    Joined:
    Mar 13, 2008
    Member:
    #5246
    Messages:
    15,070
    Gender:
    Male
    First Name:
    Kevin
    Wichita Falls, TX
    Vehicle:
    2011 taco, sport 4x4
    oil change...
    alright thanks. when i did mine the first time i did it out of order...I know what im doing this weekend!!!:cool:

  9. Nov 6, 2009 at 11:09 AM
    #9
    Rudbwoy7s

    Rudbwoy7s Well-Known Member

    Joined:
    Sep 10, 2008
    Member:
    #9114
    Messages:
    1,501
    Gender:
    Male
    TEXAS
    Vehicle:
    08 Double cab 4x4 sr5
    3" Revtek suspension lift, 17" Black and silver American Eagle Alloy wheels, 285/70 Nitto Terra Grapplers, Flowmaster 40 series muffler, sockmonkey brake light cover, Maglight mod, Viper alarm, Smith & Wesson hitch receiver cover
    nice. did they get noticebly dimmer @ night?

  10. Nov 6, 2009 at 11:12 AM
    #10
    Viet2100

    Viet2100 Well-Known Member

    Joined:
    Jun 27, 2007
    Member:
    #1930
    Messages:
    2,505
    Gender:
    Male
    First Name:
    Viet
    South Florida
    Vehicle:
    2016 Prius 4T
    Nice! When I used to use that stuff, one coat didn't do anything for me.

  11. Nov 6, 2009 at 11:13 AM
    #11
    phynyx38

    phynyx38 Believe

    Joined:
    May 19, 2009
    Member:
    #17425
    Messages:
    862
    Gender:
    Male
    First Name:
    Mike
    San Antonio, TX
    Vehicle:
    08 Tacoma PreRunner
    Looks good I want to do mine :)

  12. Nov 6, 2009 at 1:12 PM
    #12
    Phantom_X-SP

    Phantom_X-SP [OP] Rude Boy |><|

    Joined:
    Jan 29, 2009
    Member:
    #13071
    Messages:
    1,292
    Gender:
    Male
    High Point, NC
    Vehicle:
    08 DC Black Sand Pearl X-SP
    Haven't seen them at night yet but I can only imagine it would have to be somewhat dimmer. It's not much tint so I don't think it'll make a big difference.

  13. Nov 6, 2009 at 2:01 PM
    #13
    pataco

    pataco Well-Known Member

    Joined:
    Jan 1, 2009
    Member:
    #12092
    Messages:
    2,063
    Gender:
    Male
    Down by the lake
    Vehicle:
    05 4x4 trd dc white
    FOX 2.0 RESIS,LRUCAS,BILLY 5100S ON THE REAR.MAGNAFLOW 11264,COLOR MATCHED GRILL,YELLOW FOG MOD.OVER HEAD DVD,FEDERAL COURAGIA M/T
    very nice work.to each there own.not my taste for sure.good way to get rear ended imo.

  14. Nov 6, 2009 at 2:09 PM
    #14
    Gunga

    Gunga Well-Known Member

    Joined:
    Mar 2, 2009
    Member:
    #14244
    Messages:
    126
    Gender:
    Male
    Glendale, AZ
    Vehicle:
    2008 TRD OffRoad DC 4x4
    I agree. I guess I'm too old to get the concept of darkening the taillights. Is this legal or don't you care?

  15. Nov 6, 2009 at 2:12 PM
    #15
    rossk35

    rossk35 Do Work Son!

    Joined:
    Mar 26, 2009
    Member:
    #15197
    Messages:
    1,004
    Gender:
    Male
    hawaii
    Vehicle:
    07 TRD Sport Supercharged
    TRD S/C/TRD Intake/TRD Boost Gauge/DT Headers/OEM TL/ZKW retro/Pioneer DVD w/Ipod/Magnaflow/20% Tint/BHLM/JL 10" sub, JL VR components, JL 450/4 amp/Helwig Sway bar/Viper 791/ 18" limited 4runner rims
    How? They aren't that much darker then stock. It's a ver suddle tint he put on.

  16. Nov 6, 2009 at 2:18 PM
    #16
    pataco

    pataco Well-Known Member

    Joined:
    Jan 1, 2009
    Member:
    #12092
    Messages:
    2,063
    Gender:
    Male
    Down by the lake
    Vehicle:
    05 4x4 trd dc white
    FOX 2.0 RESIS,LRUCAS,BILLY 5100S ON THE REAR.MAGNAFLOW 11264,COLOR MATCHED GRILL,YELLOW FOG MOD.OVER HEAD DVD,FEDERAL COURAGIA M/T
    well ive seen SOME that r dark.and being a commercial truck driver that is a bad mix for sure.any alteration to the color of lights isnt a good idea.its hard to tell how dark yours r but i just dont think it a great idea.just my 2cents

  17. Nov 6, 2009 at 2:59 PM
    #17
    Phantom_X-SP

    Phantom_X-SP [OP] Rude Boy |><|

    Joined:
    Jan 29, 2009
    Member:
    #13071
    Messages:
    1,292
    Gender:
    Male
    High Point, NC
    Vehicle:
    08 DC Black Sand Pearl X-SP

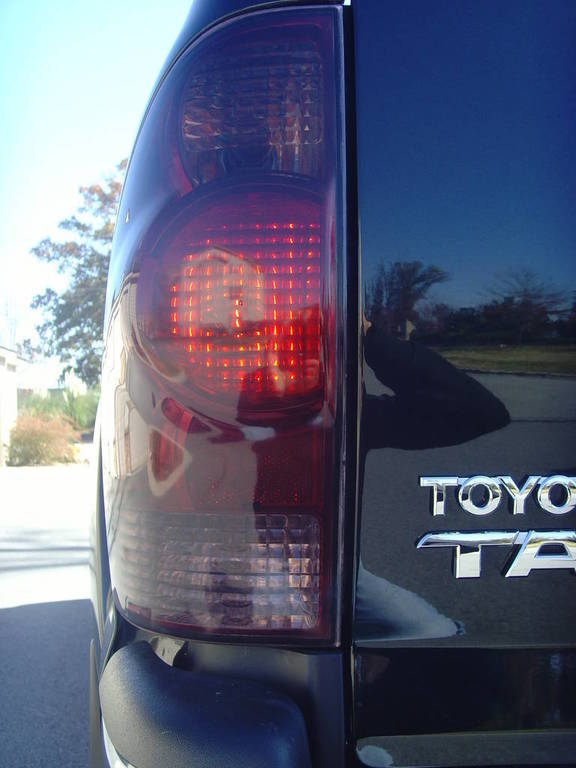

    I see your concern and the same was mine when I initially thought about doing this. The difference with mine is the tint is really light (only one coat applied) and it didn't make but a subtle difference in the appearance. The red in the housing is still plenty visibly. Mine are about the same shade as these stock Chevy Trailblazer tail lights:

    [​IMG]
    I figure if an auto manufacturer is putting a similar shade tail light on thousands of their vehicles then I should be ok :anonymous:

  18. Nov 6, 2009 at 3:46 PM
    #18
    uood8

    uood8 If You Search...You Shall Find.

    Joined:
    Jun 6, 2009
    Member:
    #18086
    Messages:
    1,364
    Gender:
    Male
    Greensboro, NC
    Vehicle:
    '16 Sr5 4x4 DCSB
    Pretty much stock
    I think we should meet up so you can help with mine :)

  19. Nov 6, 2009 at 3:58 PM
    #19
    socaltaco2

    socaltaco2 Active Member

    Joined:
    Mar 24, 2009
    Member:
    #15096
    Messages:
    42
    Gender:
    Male
    EXCELLENT JOB:headbang:

  20. Nov 6, 2009 at 4:04 PM
    #20
    mwild

    mwild I CANT SPELL SO DONT BITCH

    Joined:
    May 18, 2008
    Member:
    #6720
    Messages:
    1,408
    Gender:
    Male
    First Name:
    Matt
    Vernon, NJ
    Vehicle:
    03 2500 Dodge Ram
    Cat-Back, weather techs, ipod and sisuis Old 04 Taco: 5100s At all 4 corners set at 2.5", Toyotec AAL, Gibson cat-back, Deck plate mod, 20% Tint on fronts, 10" Kicker Comp sub, Sirius radio, Bud Built Skid, Pro Comp 8069 Wheels
    were do you get the tint spray
