ICON mini leaf pack installation help needed

Discussion in '2nd Gen. Tacomas (2005-2015)' started by alvinfromhawaii, Jul 15, 2016.

  1. Jul 15, 2016 at 3:15 PM
    #1
    alvinfromhawaii

    alvinfromhawaii [OP] Well-Known Member

    Joined:
    Mar 23, 2015
    Member:
    #151598
    Messages:
    573
    Gender:
    Male
    Northern California
    Vehicle:
    2015 MGM Tacoma DCSB V6 TRD Offroad
    Supercharged, Magnaflow, Volant,
    Hi There,

    I am installing the ICON mini leaf pack and i'm running into an issue. On the passenger side when I jack up the rear the bolt that hold the leaf together becomes crooked, it starts off straight and as I raise the rear it starts to become crooked. I did the driver side with no issue and is perfectly straight, somehow on the passenger side it is giving me trouble. I've tried adjusting the rear as I jack it up but at some point I can not adjust it anymore. I take it is not ok to have it a bit crooked. Or is my rear is not straight anymore from something I did? I've attach some pics for reference. I've taken it off and put it back on a few times and everytime it is the same thing (degree of angle changes everytime I do it but it is never straight)

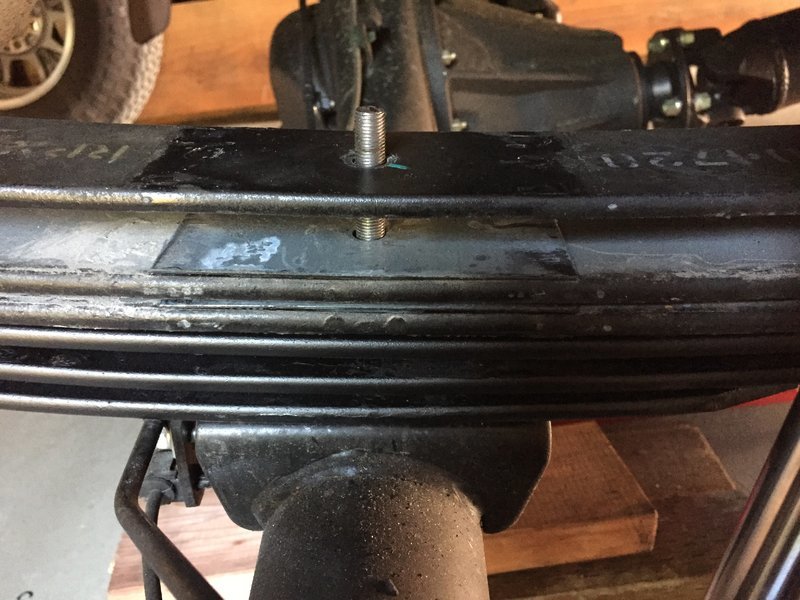

    Starts off straight

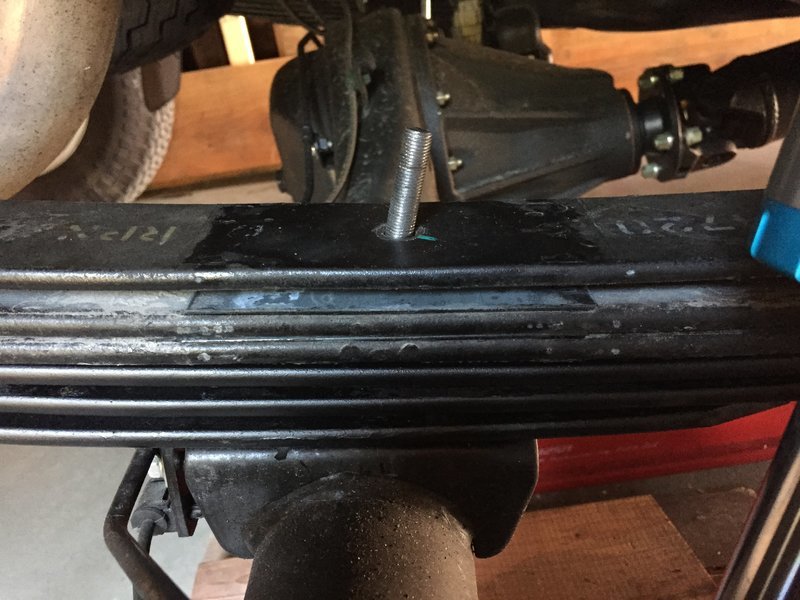

    As I jack up the rear it goes crooked and I can not adjust it any more. I've tried pulling on the wheel to move it forward as i jack up the rear which straightens the bolt but it only works midway up, then I can't move it any more.

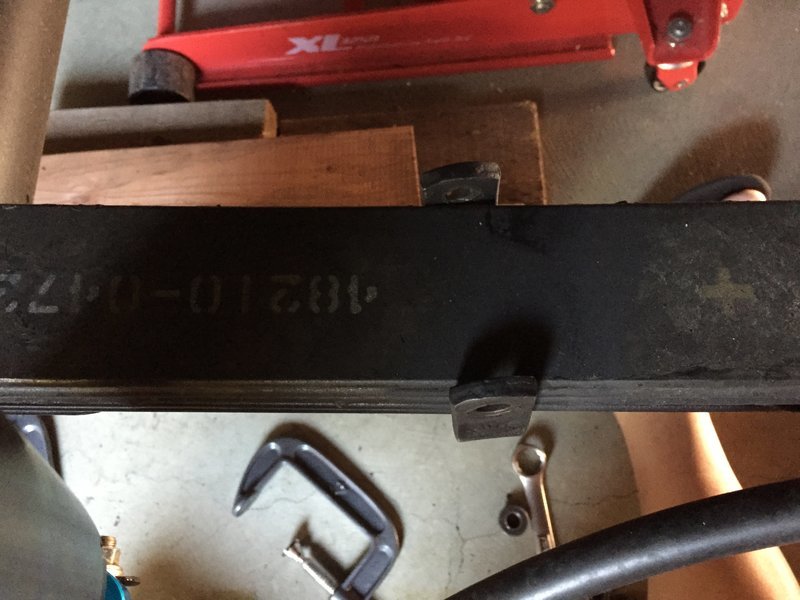

    I've also noticed on this leaf pack that one of the guide bracket is not straight, not sure if this is an issues or is the cause of what I am experiencing.

    Hope someone can give me some tips or answers.

    Thanks,
    Alvin

    Last edited: Jul 15, 2016
  2. Jul 15, 2016 at 4:04 PM
    #2
    EDDO

    EDDO                         

    Joined:
    Mar 12, 2014
    Member:
    #125165
    Messages:
    3,919
    Gender:
    Male
    First Name:
    Eric
    San Jose, CA
    Vehicle:
    13 DC TRD OR MG
                                                                                        CBI Moab 2.0 front bumper CBI Trail Rider 2.0 rear bumper B.A.M.F. sliders Exhaust crossover relocate Icon 2.5 front and 2.0 rear Camburg balljoint UCAs Welded stock alignment tabs Dakar Leaf Springs and 14" x 650 lb. coils Wheeler's SuperBumps (front) Icon Hydro Bumps with U-bolt flip Relentless Fab tailgate plate Total Chaos Bed Stiffeners 265/75R16 BFG T/A KO2 on black TRD faux beadlocks PTR18-35090 Custom Double Cardan Driveshaft from South Bay Driveline 2.5" dia .134" wall front, 3.0" dia .125" wall rear. Spicer 1310 joints, Spicer CB
    Please try again with the pictures. Can't see them.

  3. Jul 15, 2016 at 4:06 PM
    #3
    Unchained 5150

    Unchained 5150 Rick

    Joined:
    Sep 25, 2014
    Member:
    #139054
    Messages:
    62,185
    Gender:
    Male
    First Name:
    Rick
    Auburn Ma
    :redxfall:

    EDDO and 3coma like this.
  4. Jul 15, 2016 at 4:58 PM
    #4
    alvinfromhawaii

    alvinfromhawaii [OP] Well-Known Member

    Joined:
    Mar 23, 2015
    Member:
    #151598
    Messages:
    573
    Gender:
    Male
    Northern California
    Vehicle:
    2015 MGM Tacoma DCSB V6 TRD Offroad
    Supercharged, Magnaflow, Volant,
    Ok, uploaded pics again. Hope you can see it now.

  5. Jul 15, 2016 at 5:00 PM
    #5
    eccracer104

    eccracer104 O.G. Member

    Joined:
    Apr 9, 2008
    Member:
    #5854
    Messages:
    14,125
    Gender:
    Male
    First Name:
    Mike
    San Diego, CA
    Vehicle:
    2016 Tundra 4x4
    Sub'd for response. Might be installing something similar soon.
    :popcorn:

    TPDTaco likes this.
  6. Jul 15, 2016 at 5:03 PM
    #6
    Tretiak30

    Tretiak30 Well-Known Member

    Joined:
    Oct 10, 2013
    Member:
    #114203
    Messages:
    5,975
    Gender:
    Male
    First Name:
    Roman
    Cleveland, Ohio
    Vehicle:
    THE Ohioan.
    neo-garage.com
    Tighten the center pin bolt before jacking the axle back up. The axle tends to shift when unbolted from the pack and that's what's causing that shift.

    Wic07001 likes this.
  7. Jul 15, 2016 at 5:09 PM
    #7
    alvinfromhawaii

    alvinfromhawaii [OP] Well-Known Member

    Joined:
    Mar 23, 2015
    Member:
    #151598
    Messages:
    573
    Gender:
    Male
    Northern California
    Vehicle:
    2015 MGM Tacoma DCSB V6 TRD Offroad
    Supercharged, Magnaflow, Volant,
    Thanks, good to know. Is there a chance of striping the thread under all that pressure?

  8. Jul 15, 2016 at 5:29 PM
    #8
    EDDO

    EDDO                         

    Joined:
    Mar 12, 2014
    Member:
    #125165
    Messages:
    3,919
    Gender:
    Male
    First Name:
    Eric
    San Jose, CA
    Vehicle:
    13 DC TRD OR MG
                                                                                        CBI Moab 2.0 front bumper CBI Trail Rider 2.0 rear bumper B.A.M.F. sliders Exhaust crossover relocate Icon 2.5 front and 2.0 rear Camburg balljoint UCAs Welded stock alignment tabs Dakar Leaf Springs and 14" x 650 lb. coils Wheeler's SuperBumps (front) Icon Hydro Bumps with U-bolt flip Relentless Fab tailgate plate Total Chaos Bed Stiffeners 265/75R16 BFG T/A KO2 on black TRD faux beadlocks PTR18-35090 Custom Double Cardan Driveshaft from South Bay Driveline 2.5" dia .134" wall front, 3.0" dia .125" wall rear. Spicer 1310 joints, Spicer CB
    Yes. You should use a couple of c-clamps to put the pack together before tightening that bolt.

    alvinfromhawaii [OP] likes this.
  9. Jul 15, 2016 at 5:32 PM
    #9
    T4RFTMFW

    T4RFTMFW Well-Known Member

    Joined:
    Jul 23, 2014
    Member:
    #134525
    Messages:
    69,536
    Ideally one C clamp on each side of the bolt.

    alvinfromhawaii [OP] and EDDO like this.
  10. Jul 15, 2016 at 6:08 PM
    #10
    Tretiak30

    Tretiak30 Well-Known Member

    Joined:
    Oct 10, 2013
    Member:
    #114203
    Messages:
    5,975
    Gender:
    Male
    First Name:
    Roman
    Cleveland, Ohio
    Vehicle:
    THE Ohioan.
    neo-garage.com
    Yup.. What they said

  11. Jul 15, 2016 at 6:55 PM
    #11
    alvinfromhawaii

    alvinfromhawaii [OP] Well-Known Member

    Joined:
    Mar 23, 2015
    Member:
    #151598
    Messages:
    573
    Gender:
    Male
    Northern California
    Vehicle:
    2015 MGM Tacoma DCSB V6 TRD Offroad
    Supercharged, Magnaflow, Volant,
    Thats what I was thinking. Thanks.

  12. Jul 15, 2016 at 8:53 PM
    #12
    EricU

    EricU Well-Known Member

    Joined:
    Feb 4, 2015
    Member:
    #147859
    Messages:
    484
    Gender:
    Male
    Englewood, CO
    already been mentioned but C-clamps and tighten the pack before hand. but it looks like ya have the TSB 3+1 leaf pack and removed the overload, could ya post back your thoughts on the ride once ya get it back together?

  13. Jul 16, 2016 at 1:10 PM
    #13
    alvinfromhawaii

    alvinfromhawaii [OP] Well-Known Member

    Joined:
    Mar 23, 2015
    Member:
    #151598
    Messages:
    573
    Gender:
    Male
    Northern California
    Vehicle:
    2015 MGM Tacoma DCSB V6 TRD Offroad
    Supercharged, Magnaflow, Volant,
    Yes, overload spring was removed per the instructions. I'll let you know how it rides once I get it back together. Only caveat is that I am also replacing the rears w King shocks and adding an air ride spring helpers too.

  14. Jul 17, 2016 at 8:10 AM
    #14
    alvinfromhawaii

    alvinfromhawaii [OP] Well-Known Member

    Joined:
    Mar 23, 2015
    Member:
    #151598
    Messages:
    573
    Gender:
    Male
    Northern California
    Vehicle:
    2015 MGM Tacoma DCSB V6 TRD Offroad
    Supercharged, Magnaflow, Volant,
    Thanks everyone the combination of C clamps, threaded center pin and U-bolt flip kit did the trick.

    Here are the steps I did to get it on correctly.

    1. Use C-clamps to compress leafs. Unfortunately the C-clamps were only able to compress the leafs down so much which mostly helped me get the bolt to be straight.
    2. I then tightened the center pin down as much as I could being careful not to strip the threads.
    3. Next I used the U-bolt flip kit to compress the leafs all the way down.
    4. Then I placed back on the C-clamps to hold the leafs in place.
    5. Next remove the flip kit and retighten the center pin.
    6. Finally install U-bolt flip kit back.

    If you are using the factory U-bolt kit that could save you a couple of steps.

    DJFRENZY likes this.
  15. Aug 2, 2016 at 10:09 PM
    #15
    alvinfromhawaii

    alvinfromhawaii [OP] Well-Known Member

    Joined:
    Mar 23, 2015
    Member:
    #151598
    Messages:
    573
    Gender:
    Male
    Northern California
    Vehicle:
    2015 MGM Tacoma DCSB V6 TRD Offroad
    Supercharged, Magnaflow, Volant,
    Everything is in and aligned. Ride is a little stiffer than stock but not to bouncy. Feels firm, no more bottoming out when hitting dips/bumps at higher speeds.

    DJFRENZY and CroResident like this.
