    On the driver's side, the front retainer bolts will be obstructed by the fuel tank I think.

  2. Jul 4, 2020 at 8:50 PM
    #562
    utbytn

    utbytn Member

    Joined:
    Jun 15, 2018
    Member:
    #256517
    Messages:
    24
    Gender:
    Male
    Moab, UT
    Vehicle:
    2019 TRDOR DCSB ; 2003 TRD Xtracab (4sale)
    My BAMF HD shackle will not fit over the bushing. The bushing is about 3" and the shackle is about 2 7/8". Has anyone successfully installed these?

    I'm hesitant to attempt the install with factory shackles since they appear to have the same smaller opening but difficult to tell on the truck. Is it possible the bushings are incorrect? They look different from the limited pics I have found on here.

  3. Jul 4, 2020 at 9:40 PM
    #563
    cdex8357

    cdex8357 HE>i

    Joined:
    Apr 7, 2018
    Member:
    #249677
    Messages:
    495
    Gender:
    Male
    First Name:
    charles
    Vehicle:
    2013 tacoma
    FOX 2.5 Coilovers
    @utbytn I hit it with a big F#*%ing hammer while in a vice.. bent it out..

    shit pissed me off too..

  4. Jul 4, 2020 at 9:46 PM
    #564
    cdex8357

    cdex8357 HE>i

    Joined:
    Apr 7, 2018
    Member:
    #249677
    Messages:
    495
    Gender:
    Male
    First Name:
    charles
    Vehicle:
    2013 tacoma
    FOX 2.5 Coilovers
    I got it with out unbolting from hanger and frame

    3JOH22A likes this.
  5. Jul 4, 2020 at 9:47 PM
    #565
    3JOH22A

    3JOH22A Large Member

    Joined:
    Mar 27, 2019
    Member:
    #288172
    Messages:
    2,627
    Gender:
    Male
    District 6ix
    Vehicle:
    3rd Gen TRD Off-Road
    No issues with stock shackles on mine. Slid right over the bushing. :notsure:

    The only unforeseen issue I had was installing the parking brake cable fairlead bracket. I opened up the mounting hole a little with a unibit, to fit on one of the retainer bolts.

    Fitting the 2.5" RXT shock on the passenger side was a bigger pain. :laugh: Had to use a Dremel carbide cutter to slot the hole in the shock bucket.

    Last edited: Jul 4, 2020
  6. Jul 5, 2020 at 8:30 AM
    #566
    utbytn

    utbytn Member

    Joined:
    Jun 15, 2018
    Member:
    #256517
    Messages:
    24
    Gender:
    Male
    Moab, UT
    Vehicle:
    2019 TRDOR DCSB ; 2003 TRD Xtracab (4sale)
    You bent the BAMF or stock shackle? It don't see the BAMF bending very easily...
    I tried forcing it on with a hammer but it's just gouging the rubber part of the bushing and doesn't seem like it will slide over the inner metal sleeve.

  7. Jul 5, 2020 at 8:39 AM
    #567
    utbytn

    utbytn Member

    Joined:
    Jun 15, 2018
    Member:
    #256517
    Messages:
    24
    Gender:
    Male
    Moab, UT
    Vehicle:
    2019 TRDOR DCSB ; 2003 TRD Xtracab (4sale)

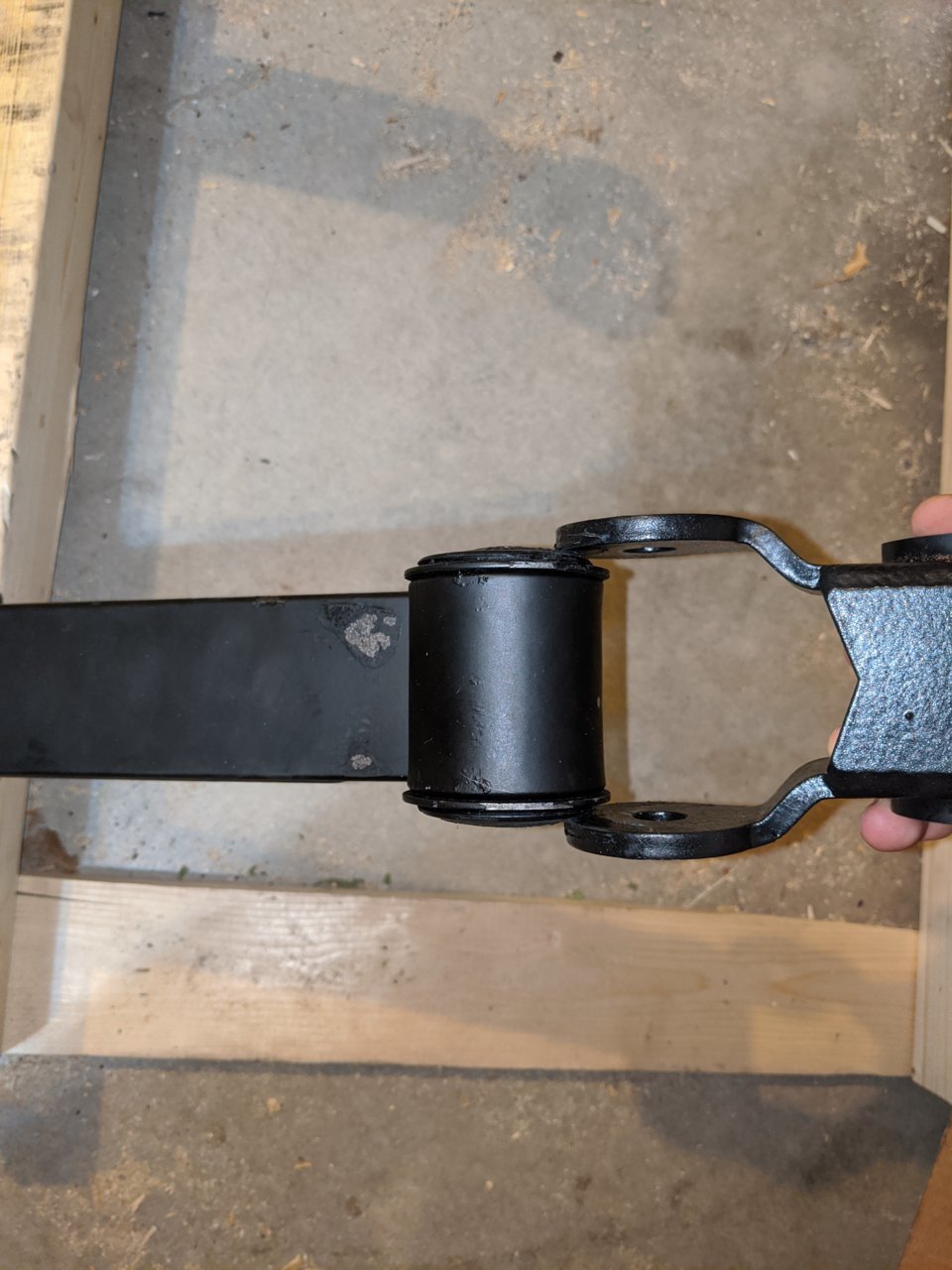

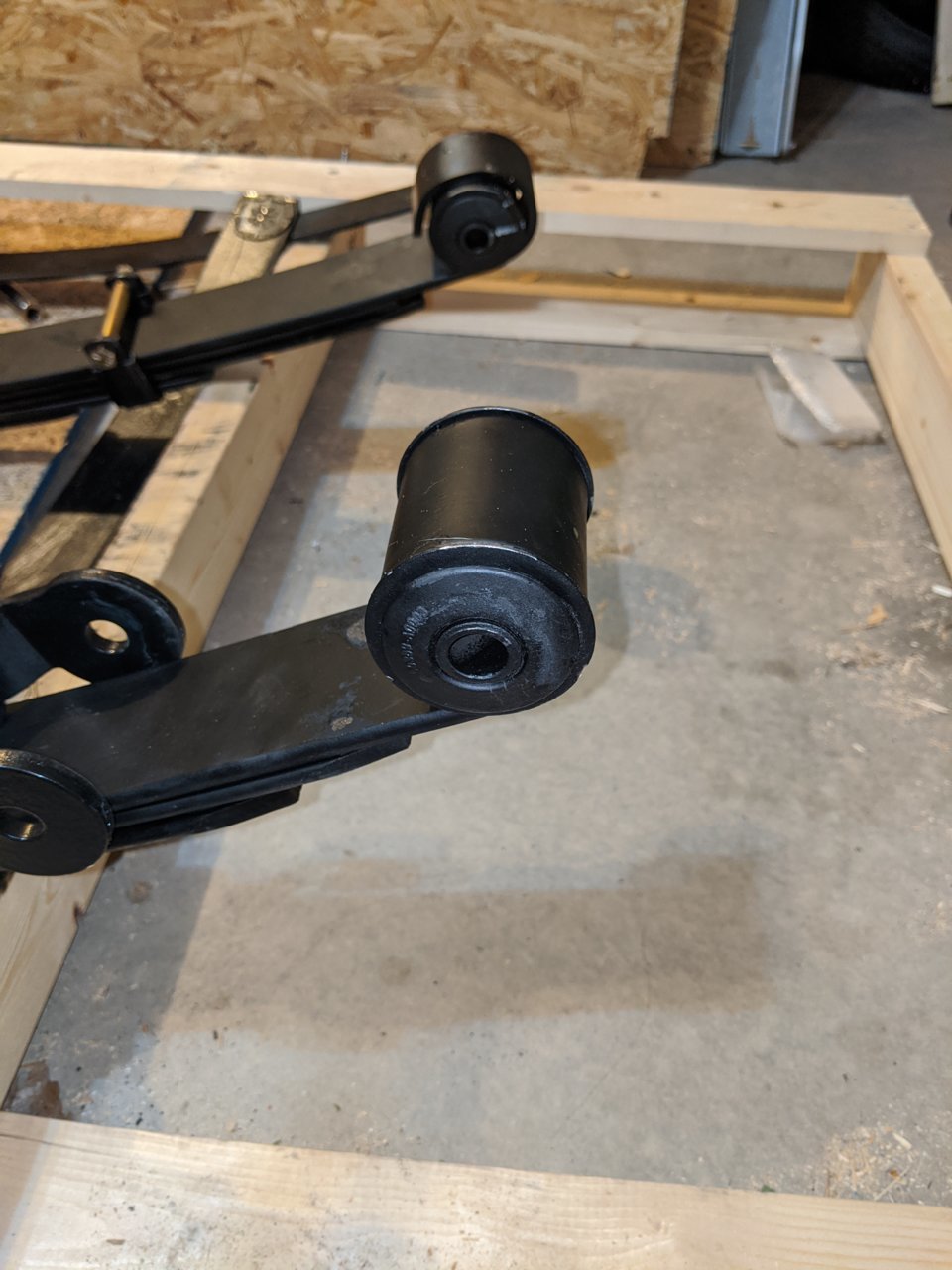

    Pictures for reference. Still not sure I want to pull a factory shackle just to hope it fits. May just reach out @JLee or @AccuTune Offroad tomorrow if I can't figure this out.


  8. Jul 5, 2020 at 12:04 PM
    #568
    cdex8357

    cdex8357 HE>i

    Joined:
    Apr 7, 2018
    Member:
    #249677
    Messages:
    495
    Gender:
    Male
    First Name:
    charles
    Vehicle:
    2013 tacoma
    FOX 2.5 Coilovers

    I bent the BAMF shackle.. I tried to make it fit for about an hour, then grabbed my hammer..

    SR-71A likes this.
  9. Jul 5, 2020 at 1:39 PM
    #569
    PB FAB

    PB FAB Well-Known Member

    Joined:
    Apr 11, 2017
    Member:
    #215942
    Messages:
    778
    Gender:
    Male
    Vehicle:
    2017 SR DCSB 4x4 v6
    you just need to spread the ears apart enough to fit over the spring sleeve. A vice and a big hammer should do it. Or try to pry it apart with some all thread and nuts washers until it slips over the bushing and sleeve. It probably just bent a little when they welded it.

    SR-71A and GF8er like this.
  10. Jul 5, 2020 at 4:42 PM
    #570
    utbytn

    utbytn Member

    Joined:
    Jun 15, 2018
    Member:
    #256517
    Messages:
    24
    Gender:
    Male
    Moab, UT
    Vehicle:
    2019 TRDOR DCSB ; 2003 TRD Xtracab (4sale)
  11. Jul 5, 2020 at 5:04 PM
    #571
    cdex8357

    cdex8357 HE>i

    Joined:
    Apr 7, 2018
    Member:
    #249677
    Messages:
    495
    Gender:
    Male
    First Name:
    charles
    Vehicle:
    2013 tacoma
    FOX 2.5 Coilovers
    @utbytn when you come back bring your hammer

  12. Jul 6, 2020 at 12:05 PM
    #572
    RETR0spec

    RETR0spec Active Member

    Joined:
    Jan 4, 2017
    Member:
    #206523
    Messages:
    36
    Sacramento, CA
    Installed the leafs on option 2. The ride definitely feels more planted and less rigid.
    I gained 2" in the rear and went from 23" with an AAL to 25" with the leaf pack.

    I'm hoping the rear settles before I raise the front about an inch to reduce the rake a little more.
    [​IMG]

    cdex8357 likes this.
  13. Jul 17, 2020 at 12:40 PM
    #573
    joesrcool

    joesrcool Well-Known Member

    Joined:
    Mar 30, 2019
    Member:
    #288496
    Messages:
    134
    Gender:
    Male
    First Name:
    Joe
    Vehicle:
    2019 Tacoma TRD Off Road
    Re-doing my entire suspension and I have a set of Icon RXT leafs arriving next week. Pictured here is how my truck sits 75% of the time, as I really only pull the tent off for winter. I'm currently running stock leafs with a HS 3-leaf AAL and I think it's having trouble with the weight. Pictured below is how it sits with an empty bed, and loaded up for trip you can imagine how much more it'll squat. I'm leaning towards option 2, as I've seen others in this thread with similar setups have good luck with that, and I don't think I have the weight for option 3. That being said, I'm okay with some rake for when I load up for trips. Should I try option 2, and if it's not enough, toss in the extra leaf?

    [​IMG]

  14. Jul 17, 2020 at 12:52 PM
    #574
    OVR1LND

    OVR1LND Whisker biscuit

    Joined:
    Jul 9, 2019
    Member:
    #298793
    Messages:
    19
    Gender:
    Male
    First Name:
    Chris
    Mesa, AZ
    Vehicle:
    2019 Cavalry Blue Tacoma TRD OR DCSB
    TJM rock sliders, RCI bedrack, Smittybilt RTT, Cali Raised LED bed stiffeners,JDM ASTAR Headlights
    Love my Icon RXTs. I would probably go with option 2, as I did. That was recommended by accutune as option 3 has more likelihood of stretching out your brake lines when your shocks extend. I have the perfect amount of rake and thats with a RTT, bedrack, maxtrax and rotopax. I can imagine your snug top isnt too heavy. So I'd say try option 2 first.

    joesrcool likes this.
  15. Jul 17, 2020 at 3:54 PM
    #575
    crossrifles

    crossrifles Well-Known Member

    Joined:
    Mar 21, 2020
    Member:
    #322671
    Messages:
    75
    Gender:
    Male
    Vehicle:
    2020 TRD Sport 4x4

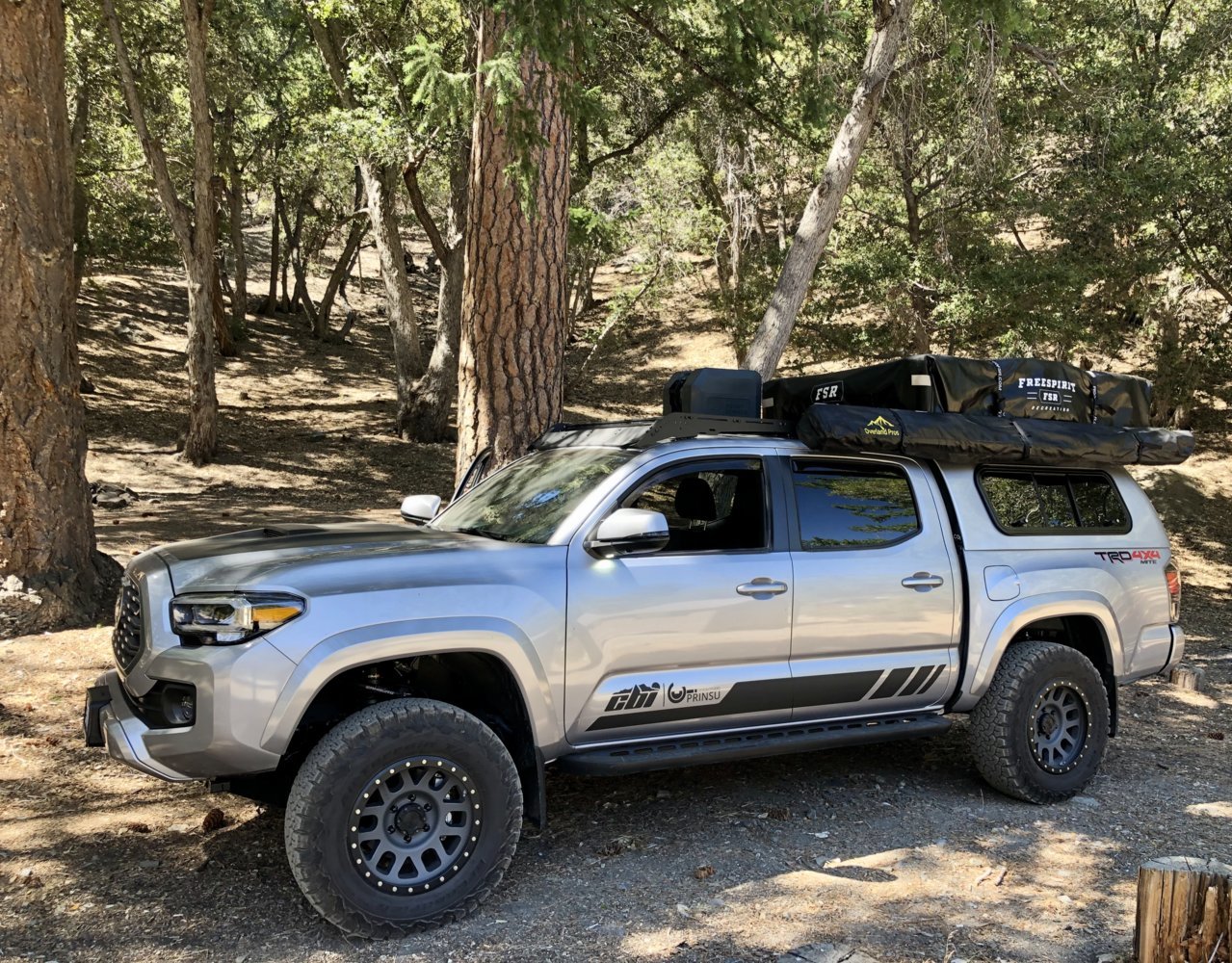

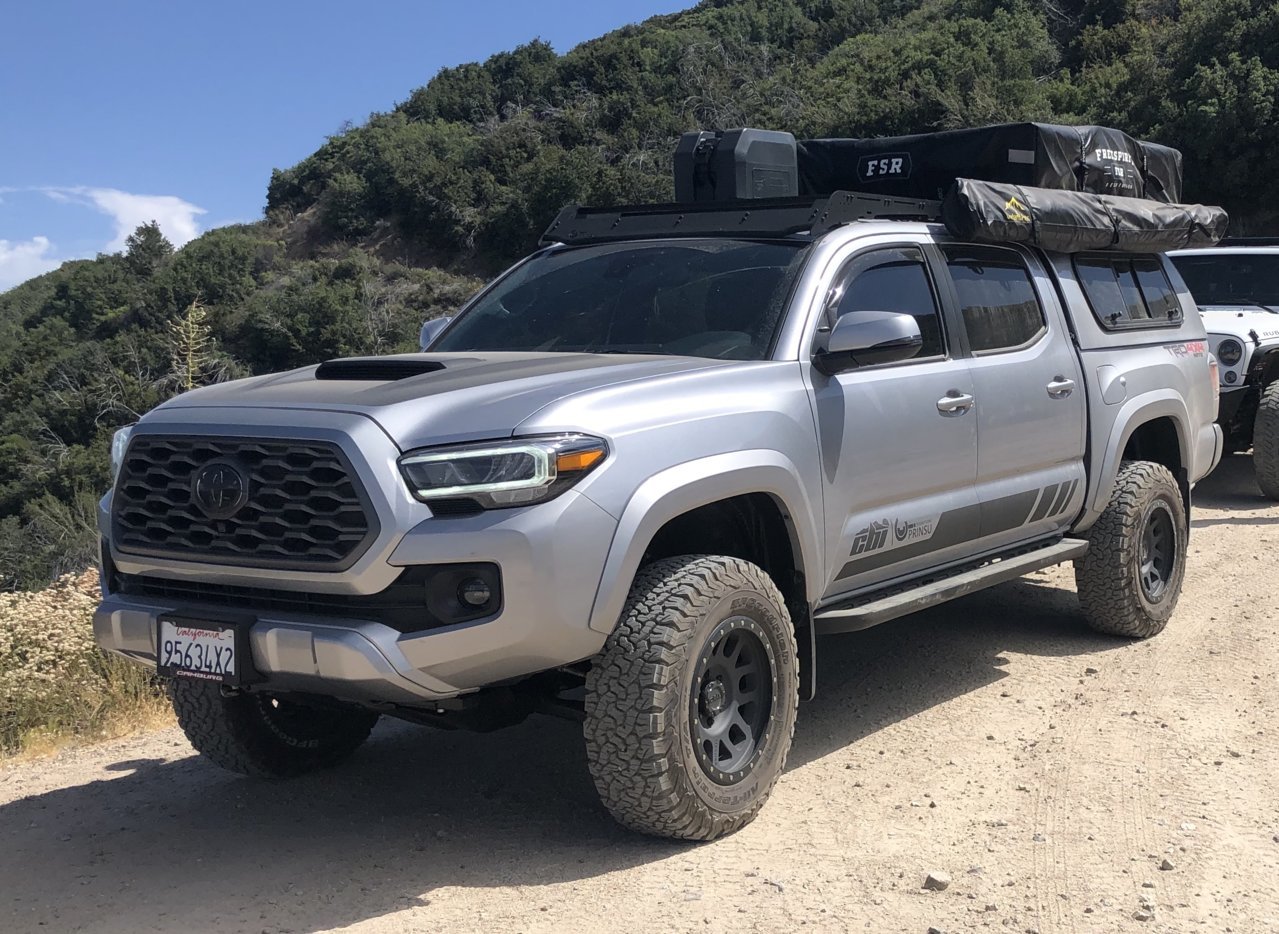

    I'm in a different camp here. I had option 2, but once I loaded up the RXT's on option 2 it sagged a bit (top picture). I went ahead and added the last leaf to option 3 and the truck drives a lot better and handles really well fully loaded. (bottom pic) but again that's if you plan on carrying a lot of weight (I'm estimating about 600 to 700 pounds.
    IMG_1383.jpg IMG_1565.jpg

    Last edited: Jul 17, 2020
    joesrcool, Island Cruiser and OVR1LND like this.
  16. Jul 17, 2020 at 5:43 PM
    #576
    Marcmtb1

    Marcmtb1 Well-Known Member

    Joined:
    Jun 30, 2014
    Member:
    #133029
    Messages:
    539
    Gender:
    Male
    GA, USA
    Vehicle:
    2016 Tacoma TRD OR DCSB 4x4
    5100/885 w/ 1/4 lean spacer, Icon RXT w/ B110’s, 255/80/17 FWP, AP Apex Sliders, SSP, ADD W1, BD mirror riser
    I am setup very similar to you, but add a pair of sliders and remove the tent. So same weight, but much lower of a CG. Option 2 is perfect height wise. If you keep that tent on all the time, I’d go option 3 for the extra stiffness/stability.

    joesrcool likes this.
  17. Jul 20, 2020 at 9:11 PM
    #577
    joesrcool

    joesrcool Well-Known Member

    Joined:
    Mar 30, 2019
    Member:
    #288496
    Messages:
    134
    Gender:
    Male
    First Name:
    Joe
    Vehicle:
    2019 Tacoma TRD Off Road
    Alright, leaf pack came in today and I set it up for option 2. Took a bit longer to get installed than I was anticipating, but no major issues to report. Overall I'm happy where it's sitting for now. I'm back at my original lifted height before I added any weight to the bed. I'm wondering if the Leer shell weighs less than the 200lb estimate. According to Icon, I should see a 1.75in lift with 200lbs. I'm seeing 1.75in of lift with approx. 350lbs of weight in the bed. I guess we'll see how things settle. This last measurement was after taking the truck on a 2-mile loop.

    Here are all my hub to fender numbers (rear left/rear right)...
    Stock: 22/21.5
    [​IMG][/url]

    HS 3-Leaf AAL w/ overload leaf- No weight in back: 23.75/23.75
    [​IMG]

    HS 3-Leaf AAL w/ overload leaf- Shell, rack, RTT, fridge: 22.75/22.75
    [​IMG]

    Icon RXT Option 2 - Shell, rack, RTT, fridge: 23.75/23.75
    [​IMG]

    BeastModeSteven likes this.
  18. Jul 20, 2020 at 9:22 PM
    #578
    PB FAB

    PB FAB Well-Known Member

    Joined:
    Apr 11, 2017
    Member:
    #215942
    Messages:
    778
    Gender:
    Male
    Vehicle:
    2017 SR DCSB 4x4 v6
    Stage 3 with bamf shock mounts. Still not stiff enough when towing the off road trailer, but when I’m not towing there the best setup I’ve run yet.


  19. Aug 18, 2020 at 12:25 AM
    #579
    BGXtobe

    BGXtobe Well-Known Member

    Joined:
    Mar 13, 2016
    Member:
    #181194
    Messages:
    663
    Gender:
    Male
    Central Valley, CA
    Vehicle:
    2016 MGM TRD Sport 4x4
    Anybody rocking the TRD Pro Suspension with the RXT leaf springs?
    Looking to replace my original sport leaf springs they're really flat but id like to keep the truck the way it is, leveled.

    Anyone know the difference from stage 1 to stock leaf springs height?

  20. Aug 18, 2020 at 2:07 AM
    #580
    Island Cruiser

    Island Cruiser TVita

    Joined:
    May 20, 2012
    Member:
    #79166
    Messages:
    3,166
    Gender:
    Male
    Kauai
    Vehicle:
    Baja
    I did have the 3rd Gen TRD Pro Fox suspension with the RXT’s on Option 1 on my 2nd Gen. It honestly felt really great although the height results are much different for the 2nd Gen.

    The stock height in the rear from center of hub to bottom of fender should be around 22 3/4.” After my RXT’s settled, I’m at an average of 24.”

    BeastModeSteven, veedo and BGXtobe like this.
