Identifying Remote Start?

Discussion in 'Technical Chat' started by VT_TACOMA, Nov 24, 2020.

  1. Nov 24, 2020 at 11:54 AM
    #1
    VT_TACOMA

    VT_TACOMA [OP] Well-Known Member

    Joined:
    Feb 20, 2019
    Member:
    #283752
    Messages:
    86
    Gender:
    Male
    Vehicle:
    2015 Tacoma DCSB TRD Sport

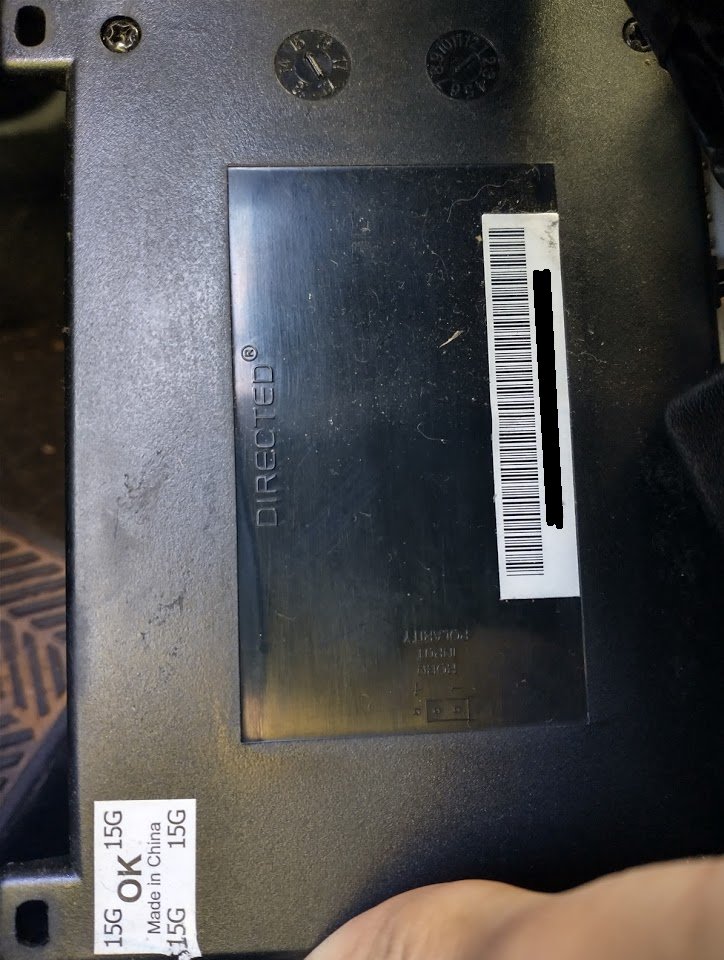

    I've owned my truck for several years now, and shortly after buying it I noticed a black box shoved up under the dash that clearly isn't factory. I'm assuming it's a remote start. I've found a little bit of information that it's a directed system with a DBALL2 interface. I'm new to this remote start game, and I'm not sure what it all means. I'm not sure if I require the monthly subscription for "smartstart" and use the app on my phone, or if the truck can be started by some combination of the factory key fob.

    Today is a day off from work, so I've decided to poke a little deeper. (After nearly 3 years of owning the truck!) Any help would be much appreciated, or if someone can point me in the right direction that would be great too!



    D_f3-XhtvU7Osfy95SIDNKpwsHvLZcJhNM34Oouz_20fcb69a46715f59d69eed24b93bf064e82e5718.jpg

  2. Nov 24, 2020 at 12:02 PM
    #2
    Unchained 5150

    Unchained 5150 Rick

    Joined:
    Sep 25, 2014
    Member:
    #139054
    Messages:
    62,488
    Gender:
    Male
    First Name:
    Rick
    Auburn Ma
  3. Nov 24, 2020 at 12:07 PM
    #3
    VT_TACOMA

    VT_TACOMA [OP] Well-Known Member

    Joined:
    Feb 20, 2019
    Member:
    #283752
    Messages:
    86
    Gender:
    Male
    Vehicle:
    2015 Tacoma DCSB TRD Sport
  4. Nov 24, 2020 at 12:08 PM
    #4
    Unchained 5150

    Unchained 5150 Rick

    Joined:
    Sep 25, 2014
    Member:
    #139054
    Messages:
    62,488
    Gender:
    Male
    First Name:
    Rick
    Auburn Ma
    Any remote start or audio place would be better to help I am sure.

  5. Nov 24, 2020 at 12:09 PM
    #5
    Unchained 5150

    Unchained 5150 Rick

    Joined:
    Sep 25, 2014
    Member:
    #139054
    Messages:
    62,488
    Gender:
    Male
    First Name:
    Rick
    Auburn Ma
  6. Nov 24, 2020 at 12:26 PM
    #6
    VT_TACOMA

    VT_TACOMA [OP] Well-Known Member

    Joined:
    Feb 20, 2019
    Member:
    #283752
    Messages:
    86
    Gender:
    Male
    Vehicle:
    2015 Tacoma DCSB TRD Sport
    It looks like at some point it would have started by pressing the lock button 3 times. That feature no longer works. I might have to bring it to one of their dealers to get re-flashed.

  7. Nov 24, 2020 at 12:27 PM
    #7
    Unchained 5150

    Unchained 5150 Rick

    Joined:
    Sep 25, 2014
    Member:
    #139054
    Messages:
    62,488
    Gender:
    Male
    First Name:
    Rick
    Auburn Ma
    Sorry I couldn't offer more help

  8. Nov 24, 2020 at 12:28 PM
    #8
    VT_TACOMA

    VT_TACOMA [OP] Well-Known Member

    Joined:
    Feb 20, 2019
    Member:
    #283752
    Messages:
    86
    Gender:
    Male
    Vehicle:
    2015 Tacoma DCSB TRD Sport
    I appreciate the help you did give! Thanks for taking the time to respond!

    Unchained 5150 likes this.
  9. Nov 24, 2020 at 1:24 PM
    #9
    destin_meeks

    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    2,847
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4
    So there are two different pieces, with two different functions

    the DBALL2 is a data interface. This piece tricks the truck’s computer into thinking the key is in the ignition. It copies the code embedded in the little chip in your key.

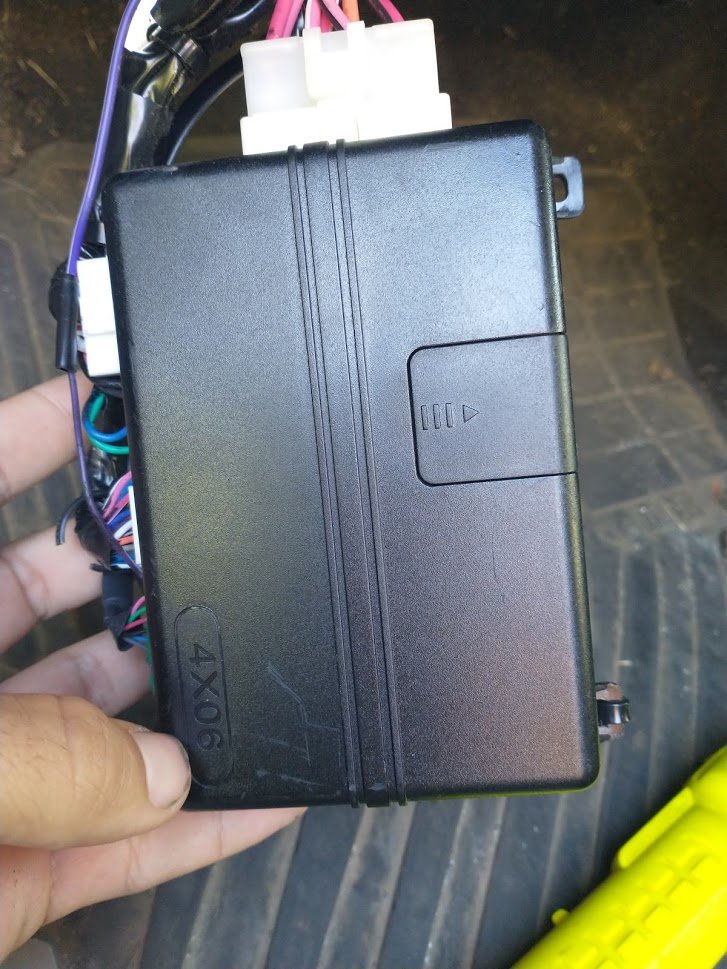

    then you have the actual remote start brain, the 4x06. This is sending all the power to all the necessary places to make the truck think you’re turning the key to start it.

    these two pieces are most likely still programmed to the truck and are most likely still functional. You’re most likely just missing the remote, and luckily the remote is easy to program.

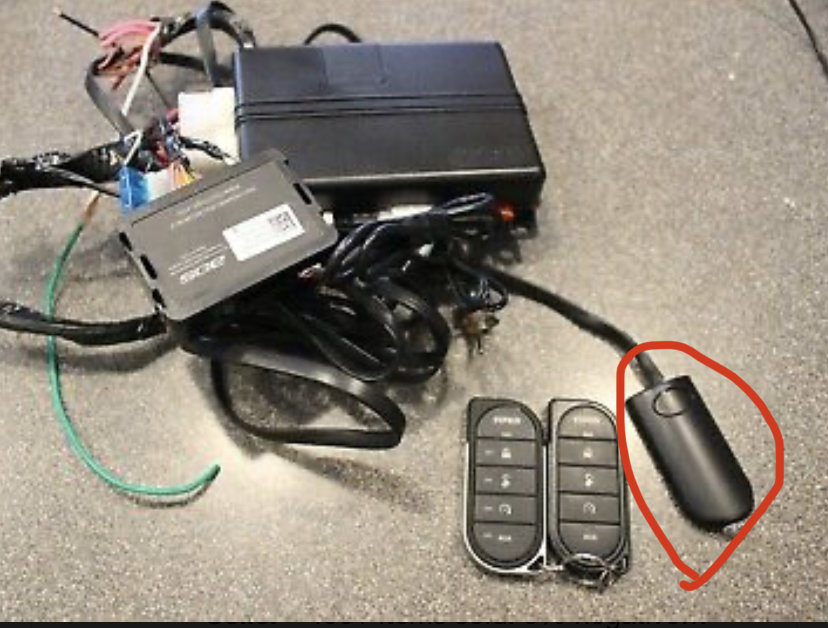

    hopefully, there is a little antenna located somewhere easy to get to? Typically stuck to the windshield somewhere. It will have a blue LED and a button on it


    Let me know if you find that

  10. Nov 24, 2020 at 1:45 PM
    #10
    VT_TACOMA

    VT_TACOMA [OP] Well-Known Member

    Joined:
    Feb 20, 2019
    Member:
    #283752
    Messages:
    86
    Gender:
    Male
    Vehicle:
    2015 Tacoma DCSB TRD Sport

    I believe this is it tucked up under the mirror. The LED doesn't seem to be activated but it looks right. It's a little hard to tell in the photo but it does have an LED and a button in it.

    8VFE27AIMlU-L-W_txIvArZ6Aqe1yvaHeHXhjGt0_abf4dc1eb36683066425f9ec1d43c480029b3926.jpg

  11. Nov 24, 2020 at 3:06 PM
    #11
    destin_meeks

    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    2,847
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4
    That’s definitely it. You most likely just need a new remote. But it’s always hard to know for sure.

    with the key in the ignition and turn on (but not cranked, so 2 clicks) press once then press and hold that button and see if the light comes on at all. If it doesnt, we can go from there

  12. Nov 24, 2020 at 3:15 PM
    #12
    VT_TACOMA

    VT_TACOMA [OP] Well-Known Member

    Joined:
    Feb 20, 2019
    Member:
    #283752
    Messages:
    86
    Gender:
    Male
    Vehicle:
    2015 Tacoma DCSB TRD Sport

    The light did turn on. The horn also beeped quickly on the first press and then longer during the hold. The light is now on with the key out of the ignition.

    Thank you very much for walking me through this!

  13. Nov 24, 2020 at 4:16 PM
    #13
    destin_meeks

    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    2,847
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4
    Ok. I’d get a viper 7816V remote and program it (takes 5 seconds) and you should be up and running

  14. Nov 25, 2020 at 7:59 AM
    #14
    VT_TACOMA

    VT_TACOMA [OP] Well-Known Member

    Joined:
    Feb 20, 2019
    Member:
    #283752
    Messages:
    86
    Gender:
    Male
    Vehicle:
    2015 Tacoma DCSB TRD Sport
    Thanks! Do you know if there are any remotes that would fit the system that would allow me to keep only 1 key fob? For example, would the 7857V remote work? Is programming still similar or is it more complicated with the other functions?

    I'm guessing that I have the 4806V 2 way remote start system, but I'm not sure how to correctly identify.

    You're a real internet hero!

  15. Nov 25, 2020 at 8:19 AM
    #15
    destin_meeks

    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    2,847
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4
    Yeah the 7857v should also work, as long as the lock/unlock functions are actually connected.

    judging by your picture, they should be. They are the blue and green wires in the 3pin connector

  16. Nov 25, 2020 at 2:43 PM
    #16
    VT_TACOMA

    VT_TACOMA [OP] Well-Known Member

    Joined:
    Feb 20, 2019
    Member:
    #283752
    Messages:
    86
    Gender:
    Male
    Vehicle:
    2015 Tacoma DCSB TRD Sport
    Remote ordered. It's due to arrive on the 1st. Fingers crossed.
