Idiot with Audio

Discussion in 'Audio & Video' started by Taco16Jessy, Mar 3, 2017.

  1. Mar 3, 2017 at 2:14 AM
    #1
    Taco16Jessy

    Taco16Jessy [OP] Well-Known Member

    Joined:
    Aug 26, 2016
    Member:
    #195646
    Messages:
    2,166
    Gender:
    Female
    First Name:
    Jessica
    Damn Corn Desert/Missing MO
    Vehicle:
    2016 BBP 4x4 AT-OR-DCSB
    Now accepting monetary donations for mods!
    I'm looking to put this sub/amp combo in my taco.
    https://www.amazon.com/gp/product/B00BO8O9XQ/ref=ox_sc_act_title_3?ie=UTF8&psc=1&smid=A5ZRC4DPYV13E

    Though beyond knowing that is a decent combo for a just little more power and kick to the kenwood speakers I installed, plug & play was idiot proof for me :p, I'm not sure what I need for an install.

    Found this on Amazon, but I'm not sure if that's exactly what I need.
    https://www.amazon.com/gp/product/B000FKP7TY/ref=ox_sc_act_title_2?ie=UTF8&psc=1&smid=ATVPDKIKX0DER

    Asked my brother what I would need, and he just sent me a screenshot of this with no explanation. So I'm at a loss. With install I hope I can find a youtube video!
    https://www.amazon.com/gp/product/B001EAWS3W/ref=ox_sc_act_title_1?ie=UTF8&psc=1&smid=ATVPDKIKX0DER

  2. Mar 3, 2017 at 4:08 AM
    #2
    robupstateny

    robupstateny Well-Known Member

    Joined:
    Dec 25, 2016
    Member:
    #205636
    Messages:
    561
    Gender:
    Male
    First Name:
    Rob
    Upstate NY
    Vehicle:
    2003 Lunar Mist Tacoma DLX
    Gray wire mod, Gentex 177 mirror, cupholder from @bradrn22, custom dog seat., AJT Design shift knob., Cb install
    Crutchfield.com is your friend on this one.

    medjah likes this.
  3. Mar 3, 2017 at 4:21 AM
    #3
    BWSecretQ

    BWSecretQ Well-Known Member

    Joined:
    Nov 1, 2015
    Member:
    #168376
    Messages:
    421
    Gender:
    Male
    First Name:
    Bradley
    Yadkin County, NC
    Vehicle:
    2013 Tacoma TX Baja
    Sliders, Prinsu Roof Rack, skids, Fox suspension
    The screen shot he sent you is to be able to hook the sub up with rca cables. It makes it easier to hook the sub up to a factory head unit. You tap into your speaker wires from the radio, then plug the rca into it and run the other end to the sub. This gives the sub the radio signal. Then all you need is to give it power and ground it.

    Taco16Jessy [OP] likes this.
  4. Mar 3, 2017 at 4:26 AM
    #4
    Rangerat

    Rangerat Member

    Joined:
    Feb 2, 2017
    Member:
    #209402
    Messages:
    20
    Gender:
    Male
    Louisiana
    Vehicle:
    2017 SR5 DCSB 4x2 Barcelona Red
    Wiring is included in the box. Shouldn't need the install kit.

    Taco16Jessy [OP] likes this.
  5. Mar 3, 2017 at 6:25 AM
    #5
    RugglesTarlek

    RugglesTarlek Well-Known Member

    Joined:
    Nov 23, 2013
    Member:
    #117113
    Messages:
    220
    Gender:
    Male
    California
    Vehicle:
    basic basic basic 14 AC
    Big if, but if you believe the Crutchfield description, it says it accepts speaker level inputs, so you don't need the LOC (your 3rd link). As mentioned above, power wiring is also supposed to be included, so you shouldn't need the wiring install kit either.

    What I would suggest is that you get plug-in harnesses, so you can do all your soldering/crimping in the comfort of your home, rather than squished into the dash. See this thread: https://www.tacomaworld.com/threads/2016-bbp-audio-build.430252/ (As noted, this only applies to the non-JBL radios.)

    Taco16Jessy [OP] likes this.
  6. Mar 3, 2017 at 6:47 AM
    #6
    xJuice

    xJuice My spoon is too Big!

    Joined:
    Oct 24, 2007
    Member:
    #3208
    Messages:
    9,760
    Gender:
    Male
    First Name:
    Josh
    North DFW
    Vehicle:
    19 Tundra MGM
    TRD Front & Rear Sway Bar, Undercover SE, Rear diff. Relocate, console organizer, debadged, color matched handles and mirror caps

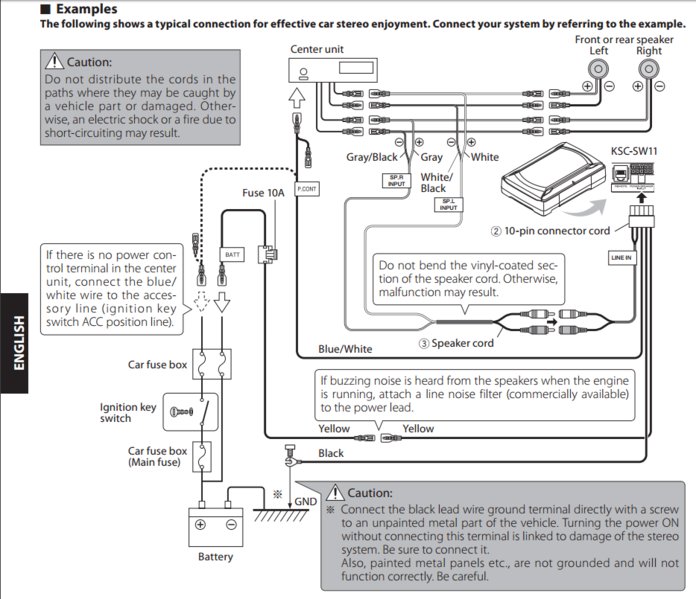

    It does do speaker level inputs; that's what the included wiring uses. (2) 10 pin connector and (3) speaker cord, are included in the box. They're 16' and 14' long respectively








    tl;dr
    most everything is included in the box to install except maybe some connections to get into the fuse box.

    Taco16Jessy [OP] likes this.
  7. Mar 3, 2017 at 9:33 AM
    #7
    kingston73

    kingston73 Well-Known Member

    Joined:
    Aug 8, 2009
    Member:
    #20845
    Messages:
    3,006
    Gender:
    Male
    eastern MA
    Vehicle:
    09 SR5 4.0L 4x4
    I'm going to be doing this exact thing soon myself. The only part I'm still unsure of is the power wiring. In another thread I asked about it and was shown some pictures of running the power directly from the battery, through the firewall in the passengers side, to the sub. But in that diagram above it looks like it's wired directly into a fuse box? How does that work? Seems way easier than running a wire through the firewall?

  8. Mar 3, 2017 at 11:26 AM
    #8
    Zac of all trades

    Zac of all trades FWP Fabrication Vendor

    Joined:
    Jun 9, 2015
    Member:
    #157073
    Messages:
    8,870
    Gender:
    Male
    First Name:
    Zac
    fwpfab.com
    Vehicle:
    2013 4x4 Locked DCLB
    886/5100s/AAL/UCAs/360 armor/RTT/295 17s
    You should be fine with that amp wiring kit as you are not pushing alot of power with that sub/amp combo.

    The 2nd link is an "line out converter", your factory head unit does not have RCA output interfaces on the back, so you will need that LOC so you can have RCAs to plug into the amp.

    To install it you will need to tap into one of your speakers wires, + & -, you can find wiring diagrams with a google search to find the colors and locations of your speaker wires.

    Running the power from the engine bay to the amp, and removing the HU will be the most difficult part of the install.

    Taco16Jessy [OP] likes this.
  9. Mar 3, 2017 at 12:03 PM
    #9
    RugglesTarlek

    RugglesTarlek Well-Known Member

    Joined:
    Nov 23, 2013
    Member:
    #117113
    Messages:
    220
    Gender:
    Male
    California
    Vehicle:
    basic basic basic 14 AC
    Aaah, apologies for the poor advice. The unit the OP wants (and maybe yours) only has a 10A fuse, so doesn't need much juice (or crazy thick power cable). So skip the firewall and go straight from the fuse box inside the cab.

  10. Mar 3, 2017 at 1:24 PM
    #10
    Zac of all trades

    Zac of all trades FWP Fabrication Vendor

    Joined:
    Jun 9, 2015
    Member:
    #157073
    Messages:
    8,870
    Gender:
    Male
    First Name:
    Zac
    fwpfab.com
    Vehicle:
    2013 4x4 Locked DCLB
    886/5100s/AAL/UCAs/360 armor/RTT/295 17s
    Hahaha, Wow i did not realize this thing was running so little power that you can use an 18 gauge wire for power!

    Taco16Jessy [OP] likes this.
  11. Mar 3, 2017 at 3:20 PM
    #11
    kingston73

    kingston73 Well-Known Member

    Joined:
    Aug 8, 2009
    Member:
    #20845
    Messages:
    3,006
    Gender:
    Male
    eastern MA
    Vehicle:
    09 SR5 4.0L 4x4
    I'm planning on getting the exact same sub. Is there a suggested fuse to use for the power and also for the blue/white switched power?

    Taco16Jessy [OP] likes this.
  12. Mar 4, 2017 at 1:47 AM
    #12
    Taco16Jessy

    Taco16Jessy [OP] Well-Known Member

    Joined:
    Aug 26, 2016
    Member:
    #195646
    Messages:
    2,166
    Gender:
    Female
    First Name:
    Jessica
    Damn Corn Desert/Missing MO
    Vehicle:
    2016 BBP 4x4 AT-OR-DCSB
    Now accepting monetary donations for mods!
    I think I saw that after some more digging, but was still unsure as the install kit was something paired with the sub as an option on Amazon.
    I don't have the tech package, so non-jbl isn't an issue. I do have the premium etune headunit in there though.
    I like the idea of a plug and play harness. What ever makes it easier for me.



    Thank you for the advice everyone! Will hopefully get this figured out soon, just ordered the sub today. I might try to catch my brother when he's eventually home and try to make him help me so I don't fuck anything up, haha.

    Zac of all trades likes this.
  13. Mar 12, 2017 at 2:21 PM
    #13
    kingston73

    kingston73 Well-Known Member

    Joined:
    Aug 8, 2009
    Member:
    #20845
    Messages:
    3,006
    Gender:
    Male
    eastern MA
    Vehicle:
    09 SR5 4.0L 4x4
    OP, I just installed mine today. If you get the Kenwood unit you won't need the amp install kit. The only extras I needed were two add a circuits, a couple extra fuses for the add a circuits, and a positaps kit. I'll post some pictures later but I connected the main power to the power outlet fuse and connected the blue/white switched wire to the washer fuse. I fit the sub under the drivers seat and routed all the wires under the the plastic door sill and kick panel.

    You didn't say if you're connecting to the factory radio or an aftermarket headunit but connecting my pioneer to the Kenwood was very easy.

    The sound improvement is definitely worth the price! Especially if you get it from Amazon. The same unti is $250 on Crutchfield, don't know why there's a $100 price difference?

    RugglesTarlek likes this.
