Ignition light ring

Discussion in '1st Gen. Tacomas (1995-2004)' started by ZrowGz, Mar 18, 2018.

  1. Mar 18, 2018 at 5:28 PM
    #1
    ZrowGz

    ZrowGz [OP] I'm a n00b.

    Joined:
    Nov 18, 2017
    Member:
    #236303
    Messages:
    507
    Gender:
    Male
    SLC, UT
    Vehicle:
    97 4x4 LT/Cantilever
    I’m going to be attempting the ignition light ring mod sometime soon and am wanting it to fade to off after a moment once the doors close, so I have some time to find the ignition.
    If I wired up a small capacitor into the circuit, would it do that as the voltage dropped off? Anyone have any thoughts on what size capacitor to use? What does their ignition ring draw in terms of power (mA, minimum voltage to ignite a led)? That way I could plan how long it’d be lit for.

  2. Mar 18, 2018 at 5:33 PM
    #2
    JdevTac

    JdevTac Bawnjourno

    Joined:
    Jan 8, 2012
    Member:
    #70234
    Messages:
    4,858
    Gender:
    Male
    First Name:
    Josh
    GA/MD
    Vehicle:
    2013 DC TRD-OR 4x4 Pyrite Mica (sold)
    If you wired it to the dome light would it not take a minute before turning off? At least that’s sort of how the 3rd gen 4Runner works. And that’s how the 1st gen diy describes it I think.

    Matic likes this.
  3. Mar 18, 2018 at 6:17 PM
    #3
    Sperrunner

    Sperrunner Respect the International Dibs Law

    Joined:
    Feb 23, 2018
    Member:
    #245334
    Messages:
    36,948
    Gender:
    Male
    First Name:
    Miguel
    Berkeley, Ca
    Vehicle:
    2004 Tacoma S-Runner 1987 toyota van 96 4wd frame
    Wd40, zipties, duck tape, and my hopes and dreams
    You would want to get some kind of off delay relay. that will de energize after a set time. Generally a pretty cheap part like 5$ and come in different delays i most common see 10 seconds

  4. Mar 18, 2018 at 6:21 PM
    #4
    Matic

    Matic The "OFG" Baby!!!

    Joined:
    Sep 8, 2009
    Member:
    #22436
    Messages:
    22,768
    Gender:
    Male
    First Name:
    Tricky Dick
    Easley, SC
    Vehicle:
    1 owner 2002 TRD, SR5, DC, 2.7. Full OME suspension, STT pro's.
    OME 881 coils with OME nitrochargers shocks up front. TC UCA's OME Dakars with extra leaf in the rear. Warn 8000 winch with 80ft custom braided synth line. Custom 60ft synth extension. All pro tube bumper, Hi-lift jack, Safari Snorkel, Wilco tiregate.
    In agreement with tapping into the dome light.

  5. Mar 18, 2018 at 6:52 PM
    #5
    Sperrunner

    Sperrunner Respect the International Dibs Law

    Joined:
    Feb 23, 2018
    Member:
    #245334
    Messages:
    36,948
    Gender:
    Male
    First Name:
    Miguel
    Berkeley, Ca
    Vehicle:
    2004 Tacoma S-Runner 1987 toyota van 96 4wd frame
    Wd40, zipties, duck tape, and my hopes and dreams
  6. Mar 18, 2018 at 8:11 PM
    #6
    ZrowGz

    ZrowGz [OP] I'm a n00b.

    Joined:
    Nov 18, 2017
    Member:
    #236303
    Messages:
    507
    Gender:
    Male
    SLC, UT
    Vehicle:
    97 4x4 LT/Cantilever
    So that’s for AC power it looks like? Right? As an option down below it I saw this! Looks like exactly what I was hoping for! Although the gentle fade to off would be fun as a capacitor discharged...

    https://www.amazon.com/dp/B01HNDOCKK/ref=cm_sw_r_cp_awdb_t1_FMYRAbAEGA974

    My dome light definitely just turns off as soon as the doors close. There’s been some wiring modifications to this vehicle. Still figuring them all out!

  7. Mar 18, 2018 at 8:18 PM
    #7
    Sperrunner

    Sperrunner Respect the International Dibs Law

    Joined:
    Feb 23, 2018
    Member:
    #245334
    Messages:
    36,948
    Gender:
    Male
    First Name:
    Miguel
    Berkeley, Ca
    Vehicle:
    2004 Tacoma S-Runner 1987 toyota van 96 4wd frame
    Wd40, zipties, duck tape, and my hopes and dreams
    Yeah i was just showing you what we use in hvac for doing what you want. There are tons of different styles of those relays. You just need a off delayed relay that will work for your application

    ZrowGz [OP] likes this.
  8. Mar 18, 2018 at 9:37 PM
    #8
    ZrowGz

    ZrowGz [OP] I'm a n00b.

    Joined:
    Nov 18, 2017
    Member:
    #236303
    Messages:
    507
    Gender:
    Male
    SLC, UT
    Vehicle:
    97 4x4 LT/Cantilever
    Thanks for the input! Time to research this!

  9. Nov 19, 2019 at 9:44 PM
    #9
    jnossoff

    jnossoff 2000 EC Pre-Runnerwith Leer 122 Camper shell

    Joined:
    Jan 1, 2014
    Member:
    #119667
    Messages:
    186
    Gender:
    Male
    First Name:
    Joel
    Albuquerque NM
    Vehicle:
    2000 PreRunner SR5 TRD
    @ZrowGz There must be a delay already built into the circuit. Tested my new light and it stayed on for a period after the door was closed.

    Installed the ignition ring light mod today and I got lucky. This for a 2000 ExtraCab SR5 Pre-Runner.
    Behind the dash I discovered the proper connector, just waiting for me to plug in my light. No need for special wiring.

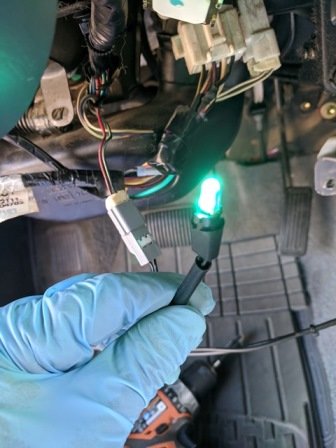

    Found the interface!.jpg
    And it worked immediately!
    And here is proof!.jpg

    jdmstuff and SwampYota like this.
  10. Nov 20, 2019 at 6:41 AM
    #10
    nzbrock

    nzbrock Well-Known Member

    Joined:
    Jan 6, 2013
    Member:
    #94572
    Messages:
    2,243
    Gender:
    Male
    First Name:
    Noah
    San Marcos, TX
    Vehicle:
    99 TRD Prerunner 3RZ
    SAW 2.0 Coilovers Wheeler's 5 Leaf + 3 AAL Bilstein 5100s LCE long tube header Flowmaster Delta 50 Muffler FJ Trail Team Wheels 255/85/16 Cooper ST Maxx 4Runner overhead sunglass console 4Runner leather seats All LED lights Red/Clear Tail Light Tundra Brakes HID Projector Retrofits 4Runner Auto Up/Down Windows Bullet Liner Cargo tie down system E-locker axle swap w/4.56 Gears ARE MX Cap Prinsu Toprac Custom heated turn signal/puddle light mirrors Volant Intake Tube
    My 1999 SR5 3RZ Pre-Runner Ext Cab had the plug as well.

    I have a feeling that all 95-00 (or some year range within that) has this plug. The light ring did come on certain models.

    I've attached the wiring diagram for the interior lights. You can see that it comes from the integration relay. That's where the delay circuit comes from.


    Attached Files:
