In-Dash hidden universal mount, RAM compatible.

Discussion in '3rd Gen. Tacomas (2016-2023)' started by PyrotechDesigns, Aug 24, 2017.

  1. Apr 28, 2018 at 7:47 PM
    #501
    joepagejr

    joepagejr Well-Known Member

    Joined:
    Jul 4, 2017
    Member:
    #223149
    Messages:
    69
    Gender:
    Male
    First Name:
    Joe
    Vehicle:
    2016 TRD Off-Road Access Cab - Inferno
    Pro tip #2 really helped me out during my install today. I also like your magnetic attachments and I may get them for myself. Thanks for sharing.

    nartmot[QUOTED] likes this.
  2. May 9, 2018 at 10:53 PM
    #502
    Tacomavkk

    Tacomavkk Well-Known Member

    Joined:
    Jan 7, 2018
    Member:
    #240613
    Messages:
    278
    Gender:
    Male
    Woodinville, WA
    Vehicle:
    2018 TRD Off-road DCSB Quicksand
    The bolts that come with the kit seem really short. Is everyone installing using those or picking up other ones?

    And anyone have a pointer to the install video? I looked back through the threads but didn't find it.

  3. May 10, 2018 at 3:58 AM
    #503
    NoOne

    NoOne El Taco Guapo

    Joined:
    Feb 6, 2018
    Member:
    #243575
    Messages:
    5,747
    Gender:
    Male
    First Name:
    Ø ©
    Gulf South
    Vehicle:
    2022 Tacoma DCLB OR (AT) - BC
    2018 SR5 - (Sold) 2018 OR - RIPieces 2022 OR - BluCrush
    Unless they changed them (I’m in the initial purchase group), they work fine. Some have moved them more outboard to create more of an arc, but I didn’t find that necessary. I did wish that I had installed it shifted more to the passenger side to allow for a notch on the driver’s side wher I could run a power lead internally in the dash. That is a minor thing in the scheme of things.

    As for install, it is pretty straight forward. Take off radio bezel (it pulls straight off). Put new mount over top of bezel in the obvious gap. Hold it as close to front as possible and mark the holes you intend to drill with a marker, pencil, punch, centering bit, etc. Remove assembly and drill those holes. You may want to oversize slightly to allow for some adjustment before tightening. Bolt that puppy up, snap back on and enjoy a cold beer as you marvel at what you have just accomplished!

  4. May 10, 2018 at 7:15 AM
    #504
    Tacomavkk

    Tacomavkk Well-Known Member

    Joined:
    Jan 7, 2018
    Member:
    #240613
    Messages:
    278
    Gender:
    Male
    Woodinville, WA
    Vehicle:
    2018 TRD Off-road DCSB Quicksand
    Thanks! That helps. I was thinking about a USB port somewhere there to avoid dangling wires.

    NoOne[QUOTED] likes this.
  5. May 10, 2018 at 7:51 AM
    #505
    NoOne

    NoOne El Taco Guapo

    Joined:
    Feb 6, 2018
    Member:
    #243575
    Messages:
    5,747
    Gender:
    Male
    First Name:
    Ø ©
    Gulf South
    Vehicle:
    2022 Tacoma DCLB OR (AT) - BC
    2018 SR5 - (Sold) 2018 OR - RIPieces 2022 OR - BluCrush
    Yea, they have those port extenders, etc that would have worked great. or even just the phone's cord itself. Pay attention to the ribs in the plastic bezel as you may have to select a different hole for the bolt or move slightly more to clear. You also don't want to take up one you plan to use for a mount (this is the reason they don't go all the way in - so you can still use that spot, just with an added nut/washers.

    I also had an idea, but haven't found where I placed the part I need - Since the thread is a common 1/4-20 it also matches up with lots of things. One of those is device/appliance leveling feet. I'm pretty sure I have some black plastic ones that probably have a wide enough diameter to allow use of suction cup mounts. In case you have one of those oddities that doesn't work with the RAM standards or has a unique attachment (I've got a few of these things that travel with me occasionally. Some I have adapted (read as 'ground off the rest of the mount') to accept the metal plate on the back so the magnetic works just fine. With the magnetics, the larger rectangle plates will hold most things, the round not so much. Just double up to get more pull.

    Tacomavkk[QUOTED] likes this.
  6. May 10, 2018 at 9:50 AM
    #506
    odinsbro15

    odinsbro15 Well-Known Member

    Joined:
    Nov 19, 2015
    Member:
    #170120
    Messages:
    1,289
    Gender:
    Male
    First Name:
    Eric
    LOS ANGELES CA
    Vehicle:
    2016 Gray Tacoma trd offroad DCSB
    ROUGH COUNTRY FRONT 2 INCH LEVEL KIT, TINT, DIPPED RIMS, DITCH LIGHTS, CUSTOMER REAR FACING LIGHT, INTERIOR MATS
    dude can you make these please! i want one but i know this dudes margin is way up there. we need a realistic price on these. TIA

  7. May 10, 2018 at 1:16 PM
    #507
    us3rnam3

    us3rnam3 Well-Known Member

    Joined:
    Jun 30, 2015
    Member:
    #158456
    Messages:
    97
    Bay Area
    Vehicle:
    '17 TRD-OR DCLB
    I’ll think about putting together a group buy or something.

  8. May 10, 2018 at 2:43 PM
    #508
    Chezbacca

    Chezbacca Active Member

    Joined:
    May 3, 2017
    Member:
    #218094
    Messages:
    37
    Gender:
    Male
    First Name:
    Steve
    Vehicle:
    2017 Tacoma TRD Off-Road 4x4
    Interested.

  9. May 10, 2018 at 3:12 PM
    #509
    odinsbro15

    odinsbro15 Well-Known Member

    Joined:
    Nov 19, 2015
    Member:
    #170120
    Messages:
    1,289
    Gender:
    Male
    First Name:
    Eric
    LOS ANGELES CA
    Vehicle:
    2016 Gray Tacoma trd offroad DCSB
    ROUGH COUNTRY FRONT 2 INCH LEVEL KIT, TINT, DIPPED RIMS, DITCH LIGHTS, CUSTOMER REAR FACING LIGHT, INTERIOR MATS
    put me down for a group buy! these realistically should be like $30-40 shipped... Right?

  10. May 10, 2018 at 5:19 PM
    #510
    us3rnam3

    us3rnam3 Well-Known Member

    Joined:
    Jun 30, 2015
    Member:
    #158456
    Messages:
    97
    Bay Area
    Vehicle:
    '17 TRD-OR DCLB
    Yes

  11. May 24, 2018 at 9:06 PM
    #511
    FreshMexicanTaco

    FreshMexicanTaco The Taco Garage

    Joined:
    Nov 6, 2016
    Member:
    #201659
    Messages:
    2,266
    Gender:
    Male
    First Name:
    AJ
    San Diego
    Vehicle:
    2019 spiced up Taco with guac, no onions.
    Dashtop Multi-Mount!, Pro grille, snug top, Kings BFGs, Front and rear view camera anytime, CMC, prinsu and more to come!
  12. May 24, 2018 at 10:35 PM
    #512
    us3rnam3

    us3rnam3 Well-Known Member

    Joined:
    Jun 30, 2015
    Member:
    #158456
    Messages:
    97
    Bay Area
    Vehicle:
    '17 TRD-OR DCLB
    Whoa. He lives

  13. May 25, 2018 at 11:10 PM
    #513
    FreshMexicanTaco

    FreshMexicanTaco The Taco Garage

    Joined:
    Nov 6, 2016
    Member:
    #201659
    Messages:
    2,266
    Gender:
    Male
    First Name:
    AJ
    San Diego
    Vehicle:
    2019 spiced up Taco with guac, no onions.
    Dashtop Multi-Mount!, Pro grille, snug top, Kings BFGs, Front and rear view camera anytime, CMC, prinsu and more to come!

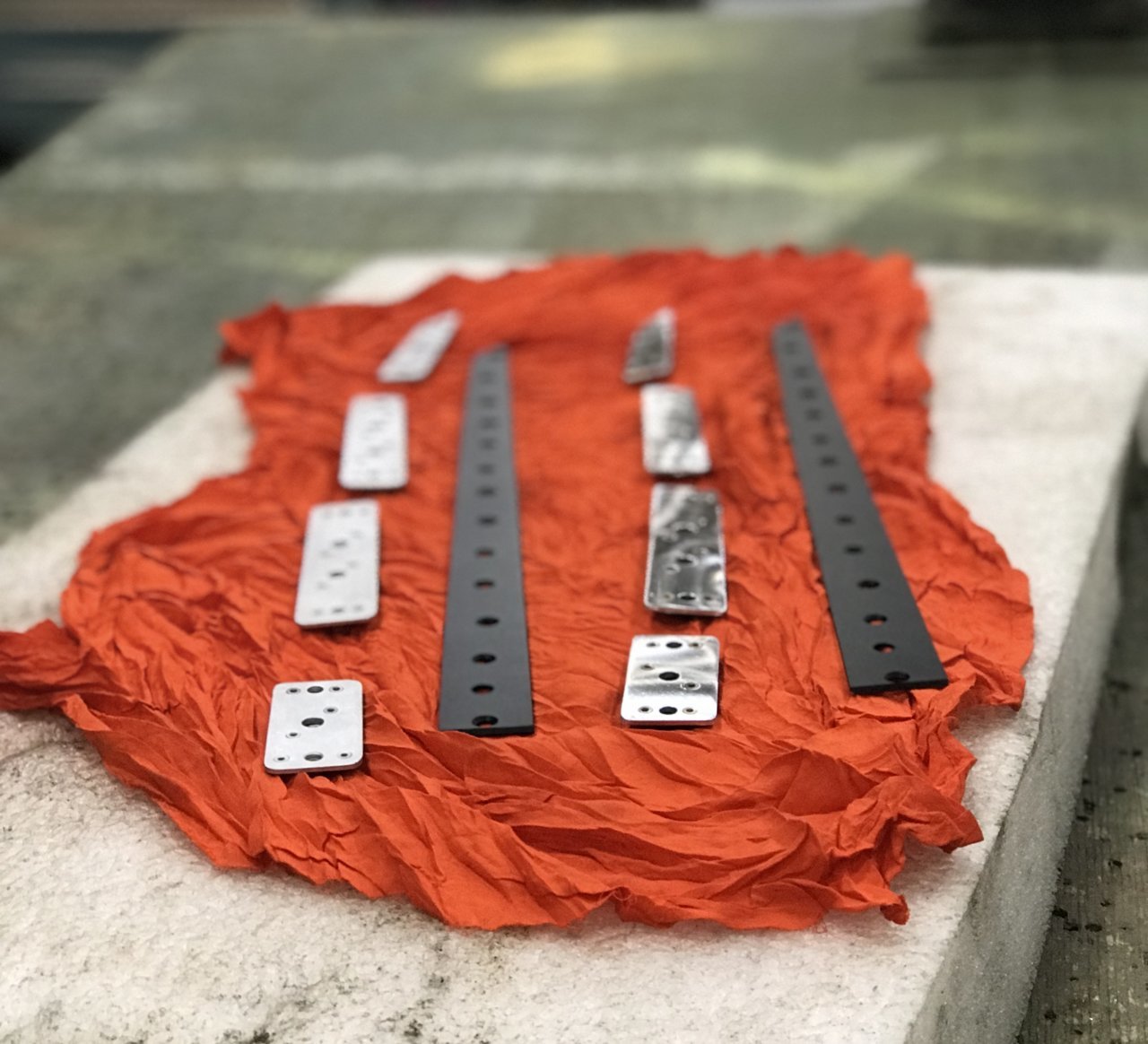

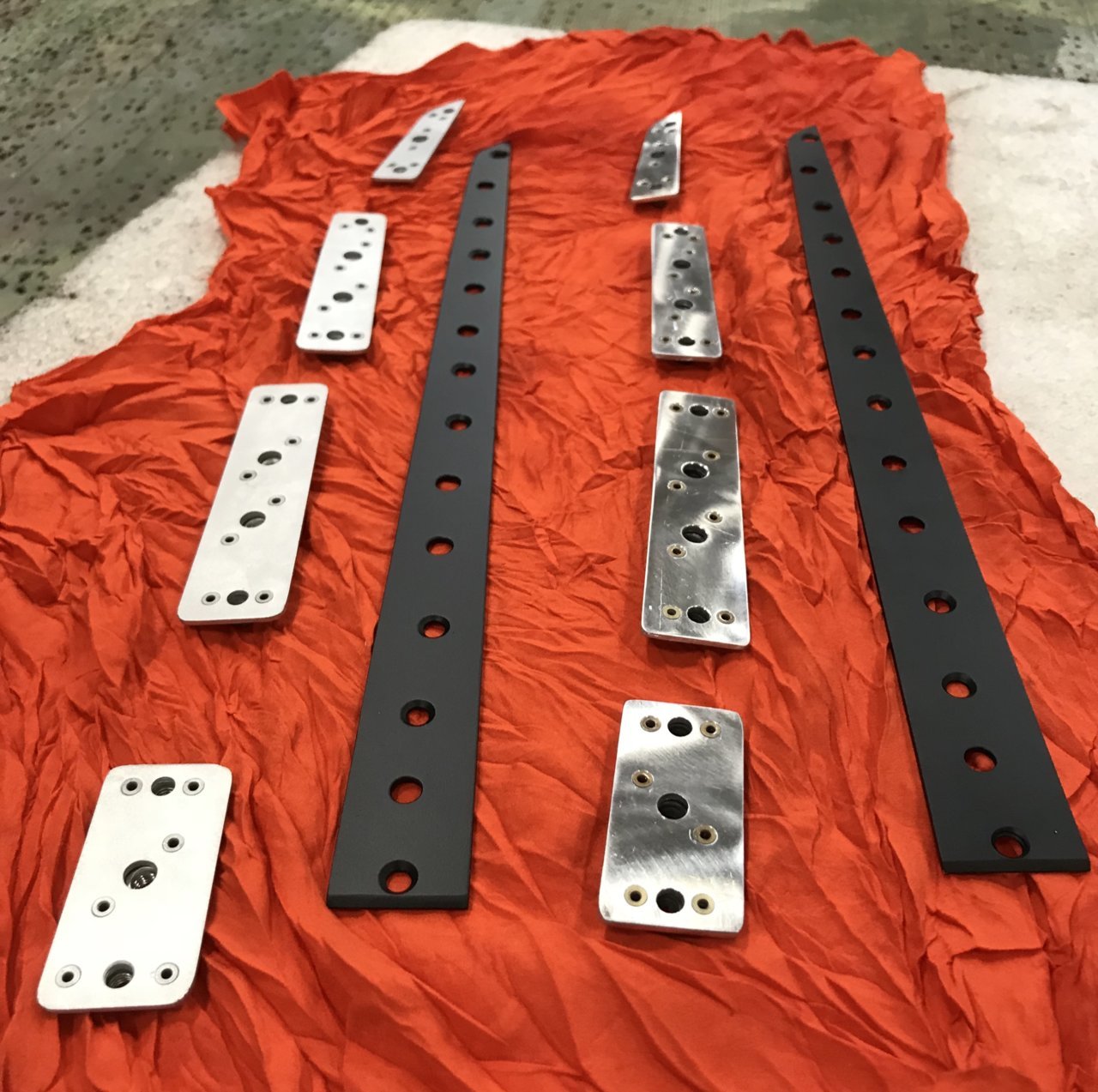

    Attached Files:

    I'mTheDude and 0uTkAsT like this.
  14. May 26, 2018 at 4:30 AM
    #514
    necrodiety

    necrodiety Well-Known Member

    Joined:
    Dec 7, 2017
    Member:
    #237877
    Messages:
    628
    Gender:
    Male
    Orlando
    Vehicle:
    2018 Silver TRD Sport
    OV Tune, Bakflip F1, Redline hood struts, faux pro headlights and tails, Meso: bucket, map and dome lights, fuse cover.
    Oh good, been looking for these. Didn't see a link for ordering in the op.

  15. May 28, 2018 at 4:03 PM
    #515
    FreshMexicanTaco

    FreshMexicanTaco The Taco Garage

    Joined:
    Nov 6, 2016
    Member:
    #201659
    Messages:
    2,266
    Gender:
    Male
    First Name:
    AJ
    San Diego
    Vehicle:
    2019 spiced up Taco with guac, no onions.
    Dashtop Multi-Mount!, Pro grille, snug top, Kings BFGs, Front and rear view camera anytime, CMC, prinsu and more to come!
    FREE kits available in San Diego. Limited availability.
    I am including a ram ball mount. Shoot me a PM and we’ll set something up.
    I can no longer edit the original post as I lost acces to that account and it is now deactivated.

    I'mTheDude likes this.
  16. May 28, 2018 at 4:36 PM
    #516
    RickS

    RickS New Old Stock

    Joined:
    Oct 4, 2015
    Member:
    #165789
    Messages:
    3,982
    Gender:
    Male
    First Name:
    Rick
    DFW'ish, Texas
    Vehicle:
    '22 Tundra Limited
    Bobbles and trinkets
    So where can I find the info regarding availability (I'm not in San Diego), pricing, shipping, payment and such?

    necrodiety likes this.
  17. May 31, 2018 at 9:14 AM
    #517
    I'mTheDude

    I'mTheDude Well-Known Member

    Joined:
    Apr 20, 2016
    Member:
    #184815
    Messages:
    534
    Gender:
    Male
    Hickory, NC
    Vehicle:
    2012 DCSB TRD OR
    It's been so long! So glad to see you back around here and really looking forward to finally getting my hands on one of these!

    necrodiety likes this.
  18. Jun 1, 2018 at 10:31 AM
    #518
    FreshMexicanTaco

    FreshMexicanTaco The Taco Garage

    Joined:
    Nov 6, 2016
    Member:
    #201659
    Messages:
    2,266
    Gender:
    Male
    First Name:
    AJ
    San Diego
    Vehicle:
    2019 spiced up Taco with guac, no onions.
    Dashtop Multi-Mount!, Pro grille, snug top, Kings BFGs, Front and rear view camera anytime, CMC, prinsu and more to come!
    doublethebass and 0uTkAsT like this.
  19. Jun 10, 2018 at 9:26 PM
    #519
    FreshMexicanTaco

    FreshMexicanTaco The Taco Garage

    Joined:
    Nov 6, 2016
    Member:
    #201659
    Messages:
    2,266
    Gender:
    Male
    First Name:
    AJ
    San Diego
    Vehicle:
    2019 spiced up Taco with guac, no onions.
    Dashtop Multi-Mount!, Pro grille, snug top, Kings BFGs, Front and rear view camera anytime, CMC, prinsu and more to come!
  20. Jun 20, 2018 at 5:41 PM
    #520
    pc3coyote

    pc3coyote www.pc3coyote.com

    Joined:
    Sep 28, 2014
    Member:
    #139276
    Messages:
    1,642
    Gender:
    Male
    First Name:
    Paul
    SoCal
    Vehicle:
    17 BBP Sport DCSB 4x4
