Install heated seats 3rd Gen

Discussion in '3rd Gen. Tacomas (2016+)' started by thomas3ford, Apr 30, 2018.

  1. Apr 30, 2018 at 10:55 AM
    #1
    thomas3ford

    thomas3ford [OP] Semper Tacoma

    Joined:
    Nov 18, 2017
    Member:
    #236346
    Messages:
    102
    Gender:
    Male
    First Name:
    Thomas
    Vehicle:
    2017 MGM Grey Tacoma TRD OR DCLB
    .
    Just in time for summer....I recently installed heated seats in my 2017 DCLB OR. I was frustrated in my research I couldn't find any one place to go and read a "how to" write up. Just thought I'd pass along what I learned to anyone looking to do the same. I am not a pro and this project was a big learning experience for me so if you see ways to improve it feel free to comment below.

    To be fair there are alot of resources out there that were helpful (including a 2nd gen wiring thread and YouTube videos) just not a start to finish in one spot. I didn't do the install with a write up in mind so I don't have photos of my own install, rather I am essentially putting together a synthesis of the resources I used.

    Before

    After (I also added a blue sea USB fast charger instead of the 12v)

    Here is the part number for the factory lower switch panel with 5 switches.
    55434-04070-C0
    This cost me $130 online and was more expensive than a member (mesojdms) who makes a lower switch panel for $58 with more switch slots. He sells in the 3rd gen marketplace but i had trouble finding it in stock and he makes them with more switches than I wanted on that panel anyway.

    The dual USB I found on Amazon $30. I just used the factory wiring for the 12v and dremeled the plastic apart to hook into the back or the new charger.
    Blue Sea Systems Fast Charge 4.8A Dual USB Charger Socket Mount, 12V/24Vhttps://www.amazon.com/dp/B01BV1MTAA?ref=yo_pop_ma_swf

    Seat heaters have many options but I liked the look of these switches and they had good reviews so I went with these. $90 (I got lucky and got used for $70)
    Besond car seat heater carbon fiber heater element two seats fits Toyota trucks https://www.amazon.com/dp/B01MEE6KLX?ref=yo_pop_ma_swf

    How to remove seat covers.
    https://youtu.be/bo52GJSsBL0


    How to install your seat heaters into the seats.
    https://youtu.be/_RvA9cuVGqE


    How to remove and replace the lower panel with the new 5 switch. The factory switches and panel are slotted on the sides so certain switches must go in certain switch slots. To put the switches in the exact places I did I slightly dremeled some plastic on the sides of the Qi switch to fit into the middle slot, can't see it and doesn't effect it functioning at all. This thread had all the info on what you need to know and more. Particularly helpful if you go with mesojdms switch panel option.
    www.tacomaworld.com/threads/installing-mesojdms-custom-lower-switch-panel.539029/#post-17386599

    For wiring I read this post from the 2nd gen forum and loosely followed his how too. I didn't have to splice any factory wires! He has links for YouTube videos that I learned alot from and im sure you will too if you are new to wiring/electrical work. Specifically how to tap into the fuse box and using a multimeter correctly. I ultimately didn't wire to the battery like the OP of the 2nd gen thread, I just used 4 add a fuse kits and tapped into the fuse box.
    https://www.tacomaworld.com/threads...tacoma-lots-of-pictures.503611/#post-15720200

    Link for the fuse taps I used. Just grabbed them from the local auto parts store you may be able to save a few bucks somewhere else.
    https://shop.advanceautoparts.com/w...t&actionSrc=Form&searchTerm=Atm+lp+add+a+fuse.

    I used one fuse tap for each (2 total) of the seat's red wires (tap into a 20A fuse for each). I tapped into S/roof and the aux fuse for these. One more fuse tap for both seat's red/yellow wires tapped into a 7.5A fuse. I believe i tapped into WASHER. Finally one fuse tap for the yellow wires (both seats again) which will illuminate your switches at night into the TAIL fuse which is a 5A fuse. Hookup the ground to some metal and you are good to go.

    At the end of the day I only spent $250 for heated seats and swapping the 12v for a dual USB fast charger. You could spend less if you use mesojdms switch panel instead of the factory one. Not a bad option since I didn't particularly care about any of the other upgrades included in the tech package! :)

    Any questions feel free and I will do my best to clarify.

    Good luck,
    Thomas

    Last edited: Apr 30, 2018
  2. Apr 30, 2018 at 11:11 AM
    #2
    toyotatacomaTRD

    toyotatacomaTRD Senior Member

    Joined:
    Sep 16, 2010
    Member:
    #43379
    Messages:
    4,341
    Gender:
    Male
    Pacific Northwest
    Vehicle:
    2018 OR DCSB 4x4

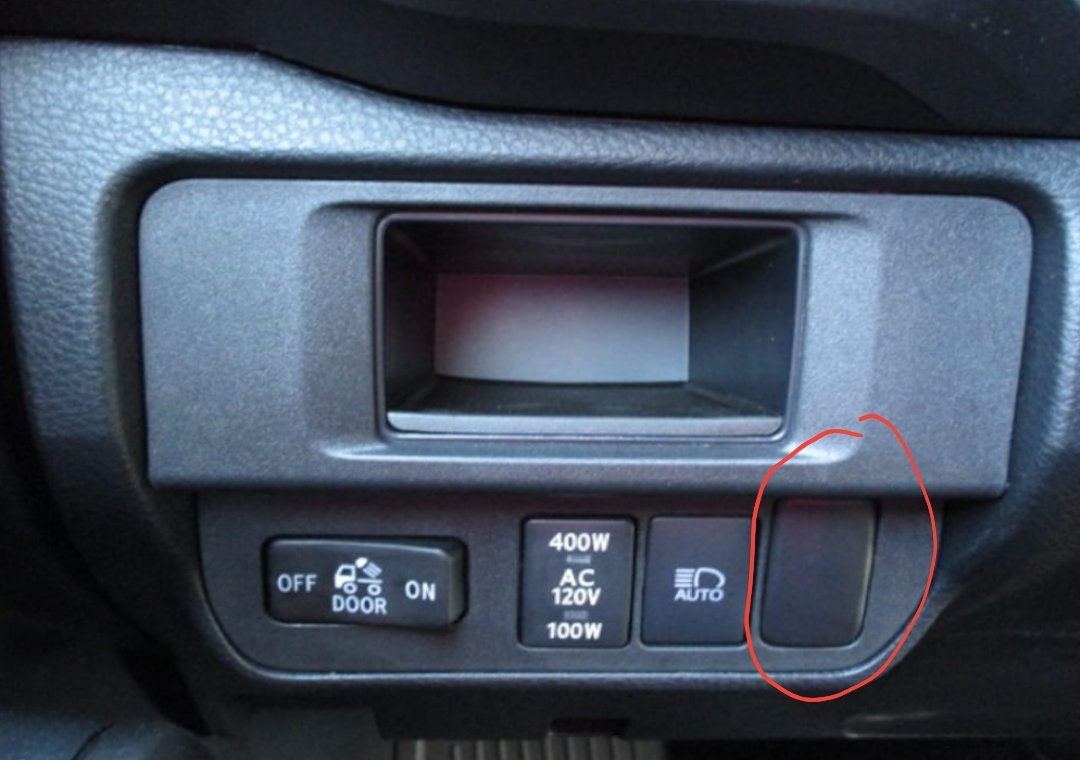

    Looks really nice. Great write up! I'm down to one blank in my truck. I'm thinking about putting the heated seat only on the driver's side because of that.... And 90 percent of the time it's just me in there anyway.
