Installation of a aftermarket keyless entry system

Discussion in '1st Gen. Tacomas' started by Turp, Feb 7, 2011.

  1. Feb 7, 2011 at 5:06 PM
    #1
    Turp

    Turp [OP] Well-Known Member

    Joined:
    Jan 10, 2011
    Member:
    #49037
    Messages:
    135
    Gender:
    Male
    Virginia
    Vehicle:
    02 PreRunner SR5
    K&N panel/ snorkel removed Keyless
    First generation Tacoma 2002 DoubleCab with power door locks.

    This guide should work for most keyless systems, the unit I installed here is the Audiovox AA-925. The reason I used this unit was the simple fact it didn't have a lot of buttons that would not be used. It has lock unlock, and option buttons. Price approximately $60+ form various dealers.

    Prior to this install I downloaded the installation instructions for the keyless entry unit and then used my Toyota reference information to basically match the connections on paper. I strongly suggest doing this to identify potential hurdles and streamline installation.

    The following sources, images, and installation notes should make your install easier.

    Background information sources:
    http://www.bulldogsecurity.com/bdnew/vehiclewiringdiagrams.asp navigate to your model and year
    http://audiovox2.info/docs/common/AA925/AA925_IM.pdf

    Tools and supplies:
    Medium sized Phillips and Flat screw drivers
    Metric socket or nut driver set with 8,9,& 10 mm
    Wire strippers with cutters
    Razor knife
    Small mirror
    Electrical Tape
    Zip ties

    Optional:
    Wire loom
    Test light
    alligator clip wire tester
    Small metric bolts 8, 9, or 10mm approximately 15mm long for possible control/base unit mounting as there are some threaded holes available for mounting behind the steering wheel under the instrument cluster.
    Also alternate mounting method: using Double sided self adhesive foam tape or strips.

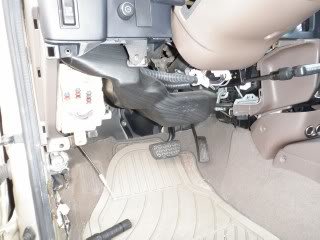

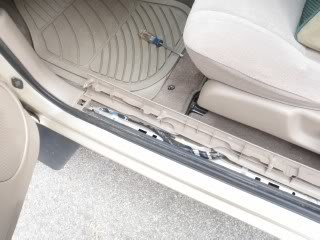

    1. Prep area: remove rocker kick plate, kick panel, lower dash board and center/ashtray console section. Becareful removing the center console/ashtray section, the clips come off the retaners so retrieve them after removing the section.
    [​IMG]
    [​IMG]

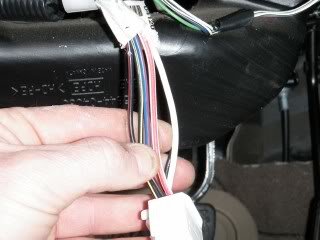

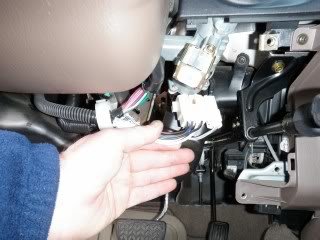

    2. Make ignition harness connections. This is found to the right of the steering column.
    Connections here:
    12v Constant- White
    Ignition 12v- Black/Red

    [​IMG]
    [​IMG]

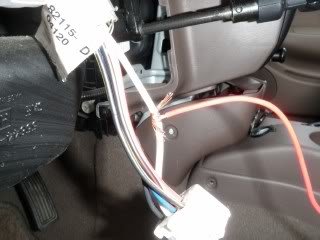

    I used wire strippers to section make 2 cut in ths insulation and then the razor knife to carefully trim/shave the section for removal. Then a small used pic or pointed probe to make a hole to insert the wire to be connected. I then inserted the stripped (3/4") new wire through, split it into two sections and wrapped around the vehicle wire and then around the new wire. See image below.
    [​IMG]
    Then I wrap the two with tape and use a zip tie to lock the connection.

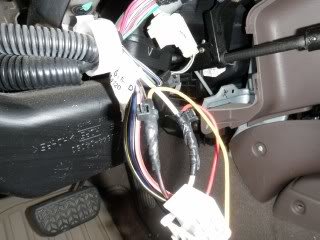

    See ignition connection below.
    [​IMG]

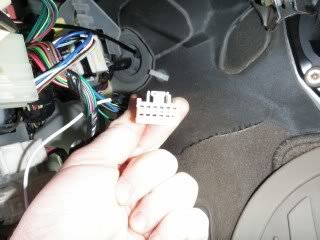

    Parking light connection is made to a green wire located on a 12 pin harness plug found on the back of the fuse box. There several plugs and green wires on the back of the fuse box. The one needed is located near the bottom of the fuse panel rear. The best way to find it is using a mirror. Facing the panel, it is located in the lower right corner nestled just inside of a line of harnesses connected on the outer perimeter of the panel. The connector is pictured below.
    This harness is best accessed by removing the clip that holds the 22 pin harness to the front of the fuse panel and some of the factory tape to clear the area and allow room to make the connection.
    Connections here:
    Parking light- Green
    [​IMG]

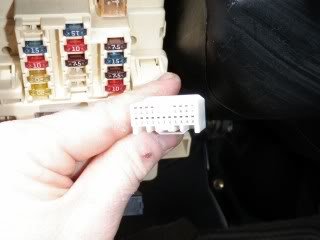

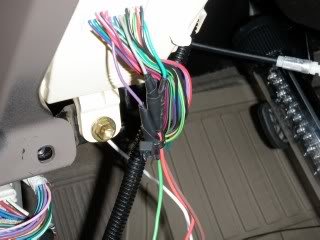

    Here's the 22 pin harness and clip removed.
    Connections here:
    Lock- Gray
    Unlock- Purple
    Door trigger- Green

    [​IMG]
    [​IMG]

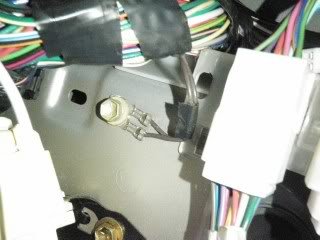

    Ground. Make sure you get a good ground. My first location did not and the unit did not function. Here are two locations:
    This on the interior sheet metal wall, best observed with a mirror
    [​IMG]

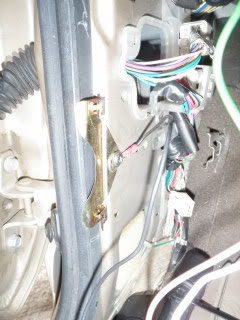

    or the kick panel retaining bracket.
    [​IMG]

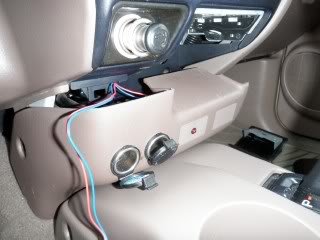

    Led light: This is not the most visible location and found the steering wheel blocks its visibility. Still, this approach uses the plank panel.
    [​IMG]

    Not a lot of connections. I did not post my final base unit mounting because it may change, but see my notes above on this as there are several options.

    I also had a lot of unused wires from the base unit I elected to cut down to 6" and tape off if needed later.

    The unit installed had a valet switch I elected to secure without mounting because I do not need it and didn't want to drill a hole for it at this point..

    My finished fuctions are basic; lock/unlock with parking light confirmation. I may add a third function at some point such as windows up.

    Overall the install should take about 2 hours and is fairly easy.

    Last edited: Nov 24, 2013
  2. Feb 8, 2011 at 1:07 AM
    #2
    tlh178

    tlh178 Well-Known Member

    Joined:
    Jan 1, 2011
    Member:
    #48535
    Messages:
    330
    Gender:
    Male
    First Name:
    terry
    mich
    Vehicle:
    2012 4WD reg cab/ 02 SR5 Prerunner/07 FJC 4WD
    nice detail turp, thanks for the pics!

  3. Feb 8, 2011 at 5:25 AM
    #3
    saweetlou

    saweetlou Well-Known Member

    Joined:
    Mar 15, 2010
    Member:
    #33266
    Messages:
    184
    Gender:
    Male
    Guelph Ontario
    Vehicle:
    TRD Stepside
    2in Skyjacker
    There is also another location you can use which is behind the radio/heater controls. I used to be a installer at a local shop for many years and Toyotas were always my favorite vehicles to do alarms in because they were so easy. Everything you need aside from doorlocks and the door pin switch is there you just run those wires up, Power Acc Ground and the parking lights can all be accessed from the stereo and the alarm brain can all be stuffed up beside the airbag unit behind the glove box. The door locks are a negative feed so no relays are required the only trick is to find the 2 wires.
    Im not trying hijack your thread Turp, you did a great job, just giving another location for the alarm brain.

  4. Feb 8, 2011 at 10:17 AM
    #4
    thombiz

    thombiz Active Member

    Joined:
    Oct 3, 2010
    Member:
    #44154
    Messages:
    35
    Gender:
    Male
    Corpus Christi
    Vehicle:
    01 Prerunner & '02 Tundra
    Thanks for the great write-up!

  5. Feb 8, 2011 at 10:45 AM
    #5
    Turp

    Turp [OP] Well-Known Member

    Joined:
    Jan 10, 2011
    Member:
    #49037
    Messages:
    135
    Gender:
    Male
    Virginia
    Vehicle:
    02 PreRunner SR5
    K&N panel/ snorkel removed Keyless
    Thanks for the input.

    I chose the method in the thread because of the available information and the connections using three easily accessiable harnesses. With the exception of the LED, the whole install can be done and mounted in the small area under the and behind the steering wheel between the fuse panel and steering column. I plan to move my base unit to that area and use metric bolts intstead of the foam adhesive.

    I added this thread because there wasn't any definative "here it is" and the pre-2003 factory Tacoma keyless entry option is pretty much non-existant, expensive(if found), and workable OEM cross applicatications questionable.

  6. Feb 9, 2011 at 5:07 AM
    #6
    saweetlou

    saweetlou Well-Known Member

    Joined:
    Mar 15, 2010
    Member:
    #33266
    Messages:
    184
    Gender:
    Male
    Guelph Ontario
    Vehicle:
    TRD Stepside
    2in Skyjacker
    I would say that at least 95% of the alarm/keyless entry systems are placed in the same location that you have chosen that I have seen over the years especially when the wires for the door locks are in the drivers kick panel, it just makes sense. For my location 90% of the time I would of been installing a new stereo at the same time so it was more convenient for me to tap into the radio wires and just like you I would zip tie my taped connections. Some would argue that all connections should be soldered, but who has time for that lol.

  7. Feb 9, 2011 at 5:48 PM
    #7
    Turp

    Turp [OP] Well-Known Member

    Joined:
    Jan 10, 2011
    Member:
    #49037
    Messages:
    135
    Gender:
    Male
    Virginia
    Vehicle:
    02 PreRunner SR5
    K&N panel/ snorkel removed Keyless

    "Back in the day" (Alpine tape deck w/ HALTECH Heads no internal amps, Alphasonic amps and separate component speakers) before component speakers were in "Blue Collar vehicles and aftermarket was the only way to get a decent sound, I did solder connections and run the risk of melting interior. However, I never lost a nonsoldered connection, so the soldering iron/gun stays at the work bench.


    Excuse the flashback, it was just the last time I remember a soldering iron used in the car/truck.

  8. Feb 9, 2011 at 7:07 PM
    #8
    StAndrew

    StAndrew Wait for it...

    Joined:
    Feb 8, 2010
    Member:
    #30950
    Messages:
    5,285
    Gender:
    Male
    First Name:
    Chris
    Hampton Roads, Va
    Vehicle:
    SR5 4x4TRD
    Deck Plate Mod; Grey Wire Mod; 1.5" AAL; 1.75" Lift Shackles; Bilstein 5100's; Eiback Coils; LR UCA; Front Diff Drop; Tundra Brake Upgrade; Wheels Offroad Brake Lines; Rear Diff Breather Mod
  9. Feb 11, 2011 at 6:15 AM
    #9
    Turp

    Turp [OP] Well-Known Member

    Joined:
    Jan 10, 2011
    Member:
    #49037
    Messages:
    135
    Gender:
    Male
    Virginia
    Vehicle:
    02 PreRunner SR5
    K&N panel/ snorkel removed Keyless
  10. Feb 12, 2011 at 12:25 PM
    #10
    tlh178

    tlh178 Well-Known Member

    Joined:
    Jan 1, 2011
    Member:
    #48535
    Messages:
    330
    Gender:
    Male
    First Name:
    terry
    mich
    Vehicle:
    2012 4WD reg cab/ 02 SR5 Prerunner/07 FJC 4WD
    how would someone add a remote starter too this? seeing how we have an installer replying in this thread!

  11. Feb 12, 2011 at 2:18 PM
    #11
    StAndrew

    StAndrew Wait for it...

    Joined:
    Feb 8, 2010
    Member:
    #30950
    Messages:
    5,285
    Gender:
    Male
    First Name:
    Chris
    Hampton Roads, Va
    Vehicle:
    SR5 4x4TRD
    Deck Plate Mod; Grey Wire Mod; 1.5" AAL; 1.75" Lift Shackles; Bilstein 5100's; Eiback Coils; LR UCA; Front Diff Drop; Tundra Brake Upgrade; Wheels Offroad Brake Lines; Rear Diff Breather Mod
    I have the Audiovox remote start/alarm system. Its not too hard to install (see above) though I think it only required one wire to be routed through the firewall (to the hood pin).

    You can find them for ~$50 on ebay. Any local audio shop would be the best place if you want an installation. It shouldnt cost more than $50 to install (if they ask for more, go somewhere else).

  12. Feb 12, 2011 at 7:03 PM
    #12
    tlh178

    tlh178 Well-Known Member

    Joined:
    Jan 1, 2011
    Member:
    #48535
    Messages:
    330
    Gender:
    Male
    First Name:
    terry
    mich
    Vehicle:
    2012 4WD reg cab/ 02 SR5 Prerunner/07 FJC 4WD
    i have the keyless entry one, it came in this week. can i add the starter too the AV AA-925?

  13. Feb 12, 2011 at 8:01 PM
    #13
    Turp

    Turp [OP] Well-Known Member

    Joined:
    Jan 10, 2011
    Member:
    #49037
    Messages:
    135
    Gender:
    Male
    Virginia
    Vehicle:
    02 PreRunner SR5
    K&N panel/ snorkel removed Keyless
    According to the directions, yes. It has several accesory channels for adding options and it mention remote start. Of course it will need an external relay but I don't know what connections are needed.

  14. Feb 19, 2011 at 4:10 PM
    #14
    tlh178

    tlh178 Well-Known Member

    Joined:
    Jan 1, 2011
    Member:
    #48535
    Messages:
    330
    Gender:
    Male
    First Name:
    terry
    mich
    Vehicle:
    2012 4WD reg cab/ 02 SR5 Prerunner/07 FJC 4WD
    turp, do i use the red/black for the door trigger or do i use the brown{gm Type} for the door trigger. in your pic, it looks like its a brown wire? thanks for your time!

  15. Jan 27, 2013 at 1:22 PM
    #15
    DUCKSHOT

    DUCKSHOT Well-Known Member

    Joined:
    Jun 21, 2012
    Member:
    #81095
    Messages:
    113
    Gender:
    Male
    TX
    Vehicle:
    01' Tacoma PreRunner
    So I want to do this but can't find this model and don't know what to use now.

  16. Jan 31, 2013 at 5:27 PM
    #16
    KerlyQ

    KerlyQ Well-Known Member

    Joined:
    Jan 15, 2013
    Member:
    #95274
    Messages:
    52
    Gender:
    Male
    First Name:
    Jared
    BC Canada
    Vehicle:
    First and last truck Ill own.
    Magnaflow exhaust. Custom leather Katskinz. Fujita CIA. Custom canopy. Armourthane sprayed bed. Grey wire mod. Black American eagle wheels. Dick Cepeks FCII's. Black Emblems all around. TRD oil cap. Ignition Light Ring Mod. Blue LED dash and controls.
    same here.....

  17. Nov 18, 2013 at 11:21 AM
    #17
    lepedog23

    lepedog23 Taco Rookie

    Joined:
    Mar 29, 2010
    Member:
    #34221
    Messages:
    964
    Gender:
    Male
    First Name:
    Frank
    Huntington Park
    Vehicle:
    2001 DC Tacoma. Stock. Salvage Title MOD.
    Salvage Title MOD.







    Just wondering Will this install be the same with other brand? I can't find this model for cheap anymore saw a different brand on amazon just lock and unlock for $25.

  18. Nov 18, 2013 at 12:15 PM
    #18
    offrdmania

    offrdmania Taco Wagon

    Joined:
    Oct 2, 2013
    Member:
    #113684
    Messages:
    436
    Gender:
    Male
    First Name:
    Matt
    Templeton, Ca
    Vehicle:
    96 Tacoma LX 4 banger
    If I can make a suggestion. If needed for power,there are extra fuses in the fuse block for accessories. Especially stereos. Tapping into the harness is the easy way out and I have had to clean up so may harnesses on vehicles because people hack into them on installs. A clean install will use the extra fuse ports without cutting into a harness.

  19. Nov 18, 2013 at 3:15 PM
    #19
    Turp

    Turp [OP] Well-Known Member

    Joined:
    Jan 10, 2011
    Member:
    #49037
    Messages:
    135
    Gender:
    Male
    Virginia
    Vehicle:
    02 PreRunner SR5
    K&N panel/ snorkel removed Keyless
    I agree it would be cleaner to avoid harness taps, but I breached that territory when I starting tapping connections for the door controls, lights, and other connections.

    The "hacking" in this install was conducted very carefully and as cleanly as possible while taking pictures because there was no guide for installing keyless in these trucks ;)

  20. Nov 18, 2013 at 3:33 PM
    #20
    Turp

    Turp [OP] Well-Known Member

    Joined:
    Jan 10, 2011
    Member:
    #49037
    Messages:
    135
    Gender:
    Male
    Virginia
    Vehicle:
    02 PreRunner SR5
    K&N panel/ snorkel removed Keyless
    Just a follow-up about whether or not other units could be installed using this guide.

    This install should work with most any keyless system of your choosing.

    Prior to this install I downloaded the installation instructions for the keyless entry unit and then used my Toyota reference information to basically match the connections on paper. I strongly suggest doing this.
