Installation/upgrade to navigation in a base model reg. cab

Discussion in 'Audio & Video' started by HAVOC, Jan 24, 2019.

  1. Jan 24, 2019 at 4:58 PM
    #1
    HAVOC

    HAVOC [OP] Well-Known Member

    Joined:
    Feb 6, 2012
    Member:
    #72230
    Messages:
    2,643
    Gender:
    Male
    Connecticut
    Vehicle:
    2012 Tacoma 4X4
    This will be the write-up of how I installed factory navigation into my base model truck.

    Are there cheaper ways of doing this? Yes.
    Are there easier ways of doing this. Yes.
    Why not just go aftermarket? Because I didn't want to.
    Was it hard to find parts? Somewhat.

    I'm presently getting pictures organized so I can post the full write-up.

    I have a 2012 base model Tacoma, it has DRL's and that's about it. I wanted navigation so I started reading the threads on this and other forums. Learned a lot about what parts are out there and what others have done. I finally found a navigation head unit from a 2014 Tacoma for sale on this forum. 2014 was important for me because that's when Toyota moved the image for the backup camera from the rear view mirror to the head unit.

    I'll try to answer questions the best I can but remember, there are slight differences between different years and option packages for these trucks.

    Last edited: Feb 16, 2020
    electricmarauder likes this.
  2. Jan 24, 2019 at 4:59 PM
    #2
    HAVOC

    HAVOC [OP] Well-Known Member

    Joined:
    Feb 6, 2012
    Member:
    #72230
    Messages:
    2,643
    Gender:
    Male
    Connecticut
    Vehicle:
    2012 Tacoma 4X4
    This will be where I post pictures and tell you what I have done.

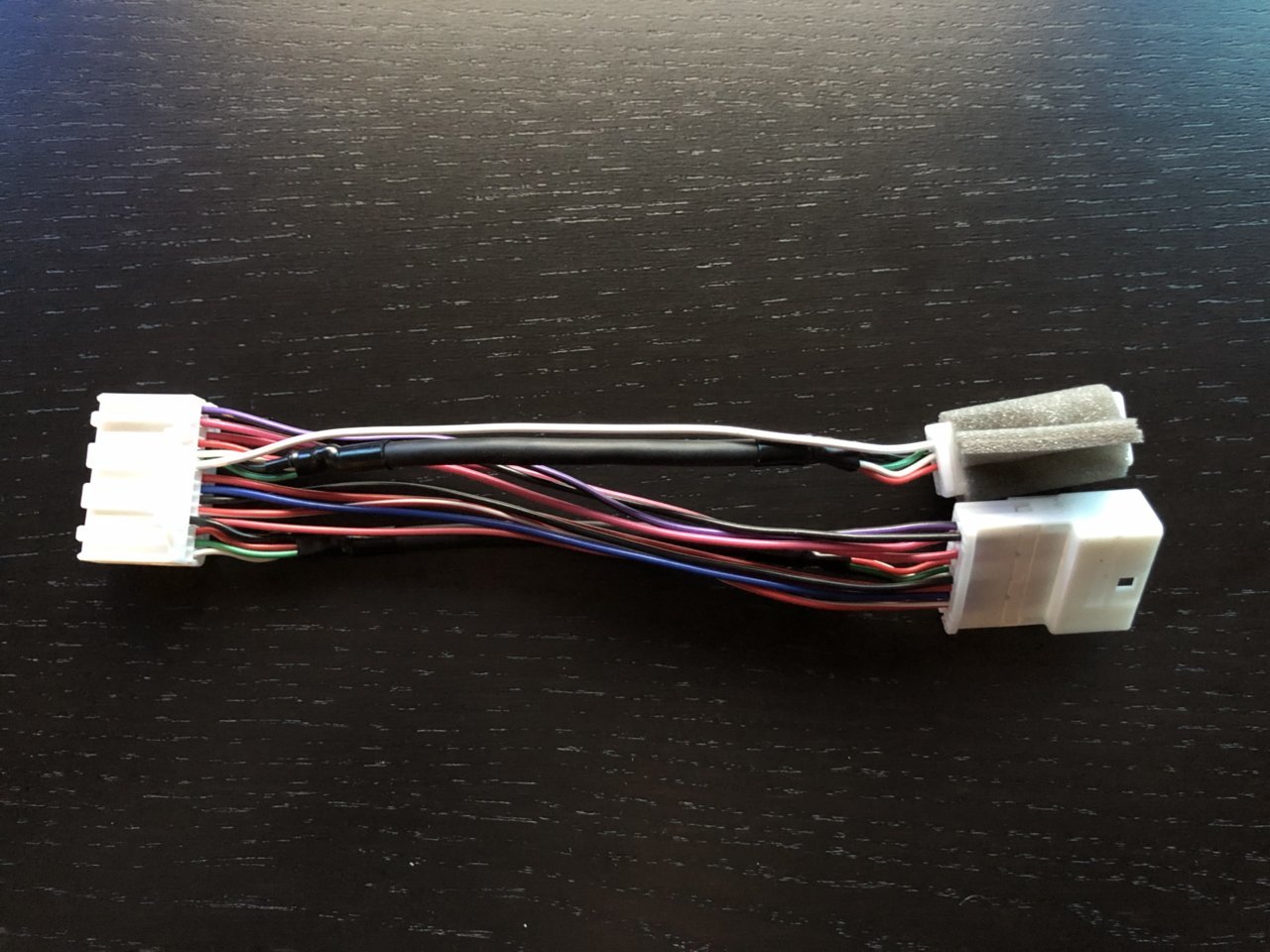

    Bought a PT546-00120-CH and modified it by moving a couple wires around. The small connector is where the microphone (PT546-NU160) plugs into. The larger connector is where the 20 pin that's in my truck will plug in. The largest connector (28 pin) plugs into the head unit.

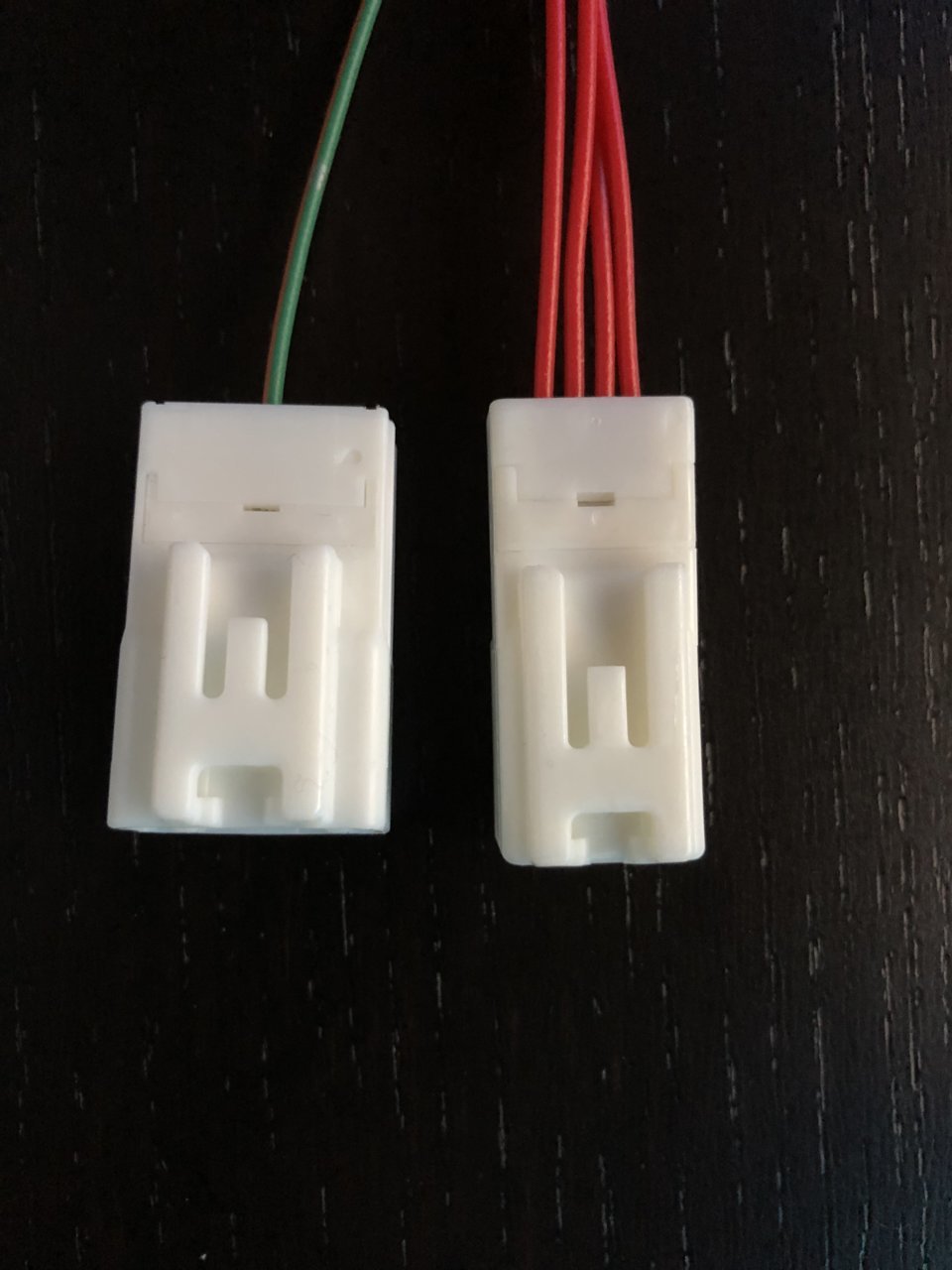

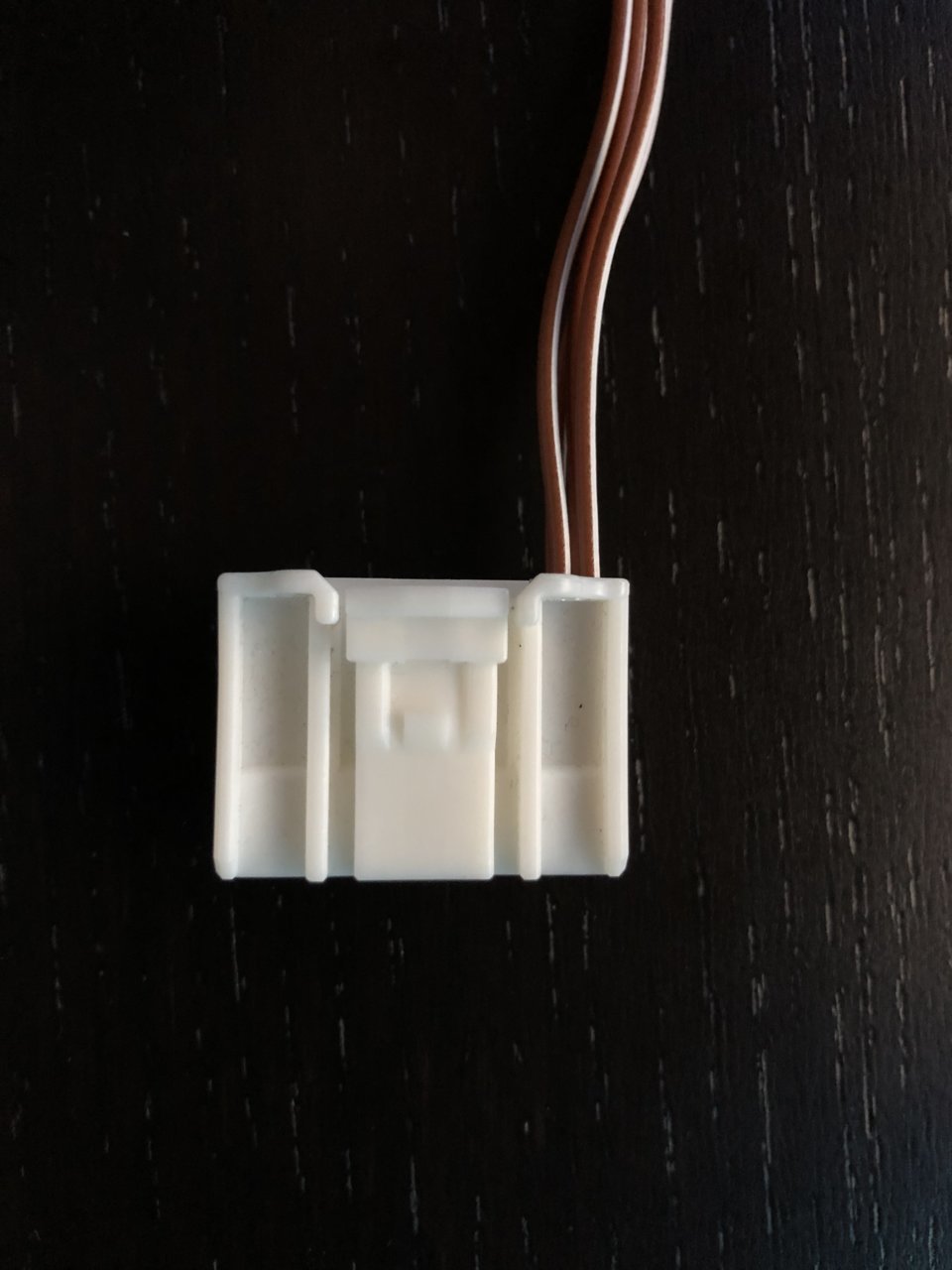

    Connectors made up for the reverse signal and camera wiring.


    24 pin connector for camera wiring to head unit.


    Last edited: Jan 25, 2019
  3. Jan 25, 2019 at 1:37 AM
    #3
    HAVOC

    HAVOC [OP] Well-Known Member

    Joined:
    Feb 6, 2012
    Member:
    #72230
    Messages:
    2,643
    Gender:
    Male
    Connecticut
    Vehicle:
    2012 Tacoma 4X4
    Bought 10 different colors of 18 ga. wire. Waiting for that to arrive. I'm still going to hook everything up temporarily to make sure it works like it should.

    It will be 100% complete when I install my new dash, old one is scratched.

    I got everything working today. Navigation/EnTune/XM/backup camera.

    Last edited: Jan 26, 2019
  4. Jan 26, 2019 at 11:36 AM
    #4
    HAVOC

    HAVOC [OP] Well-Known Member

    Joined:
    Feb 6, 2012
    Member:
    #72230
    Messages:
    2,643
    Gender:
    Male
    Connecticut
    Vehicle:
    2012 Tacoma 4X4

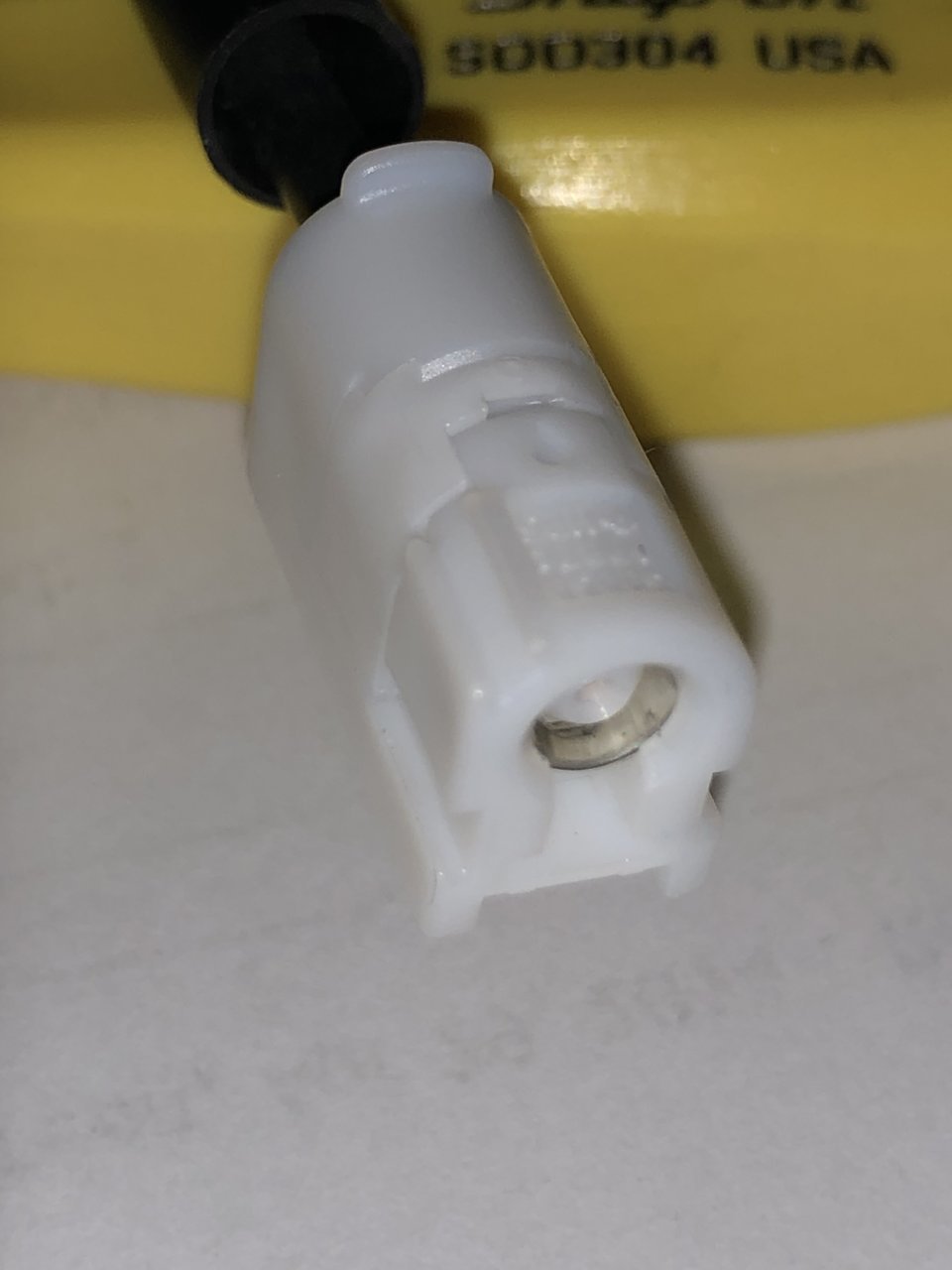

    I was able to use double sided tape to attach both antennas to the top of the radio. XM and GPS signals are good.

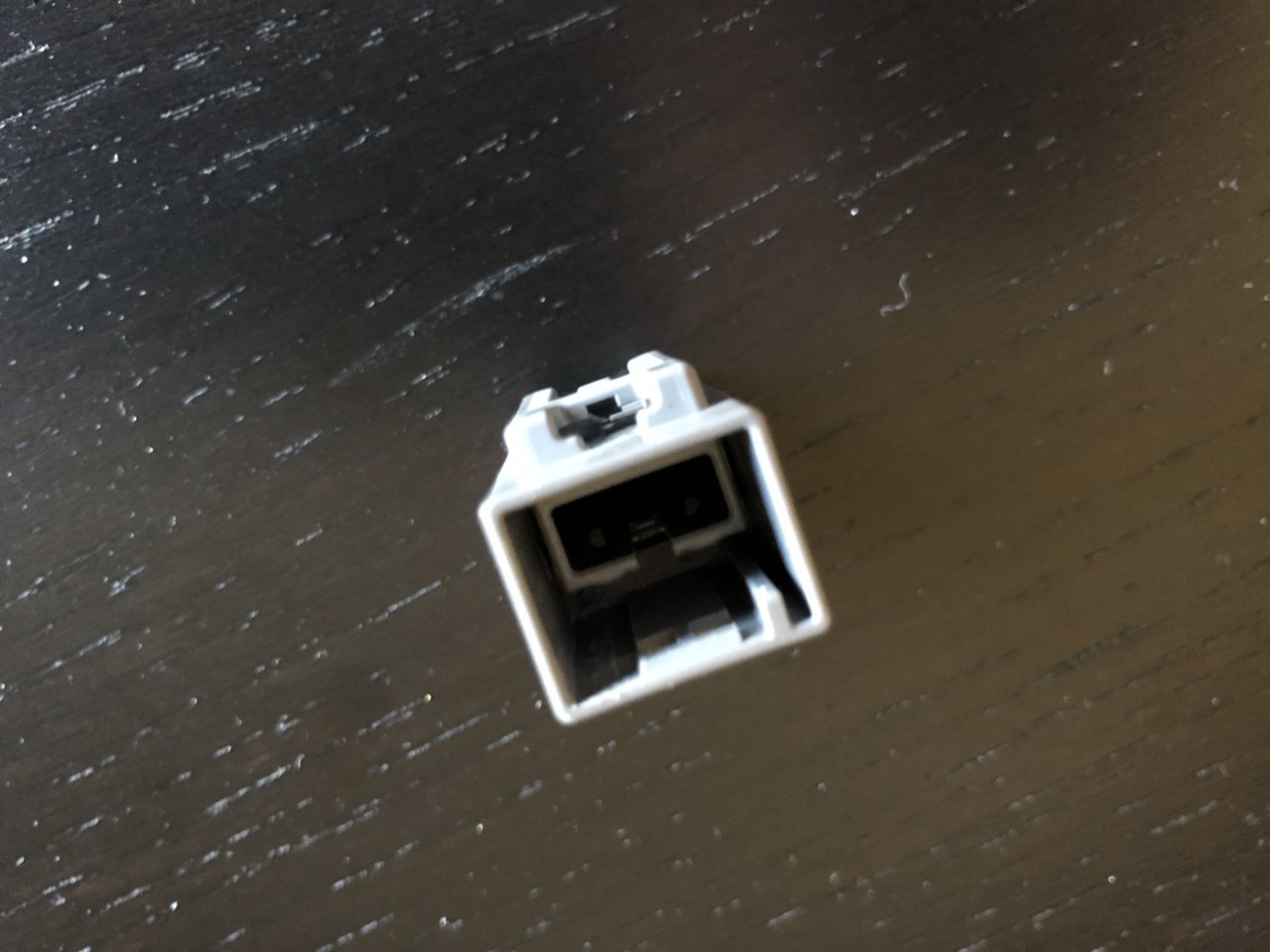

    Modified the USB connector cable to accept the USB cable from the Scion.

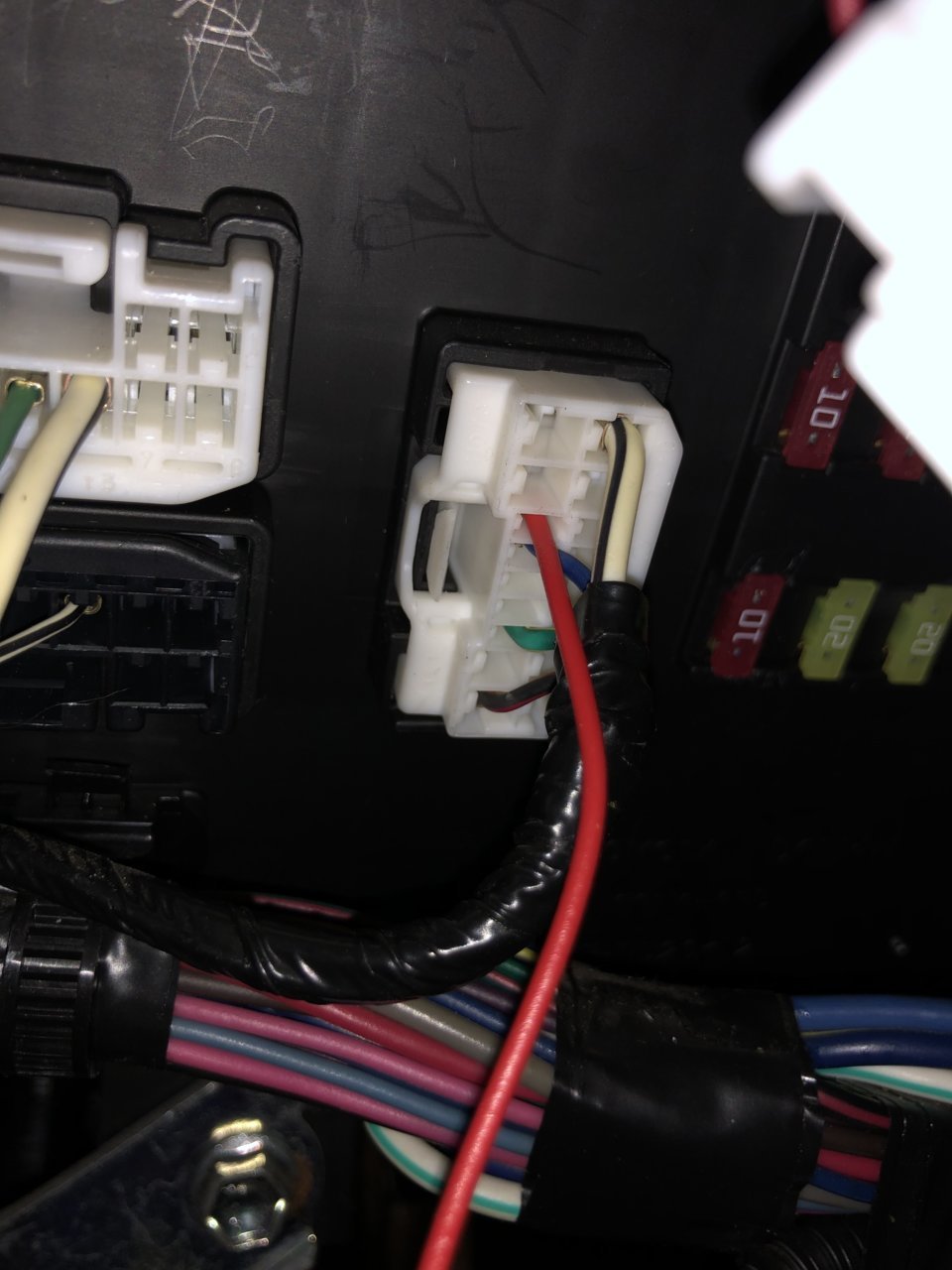

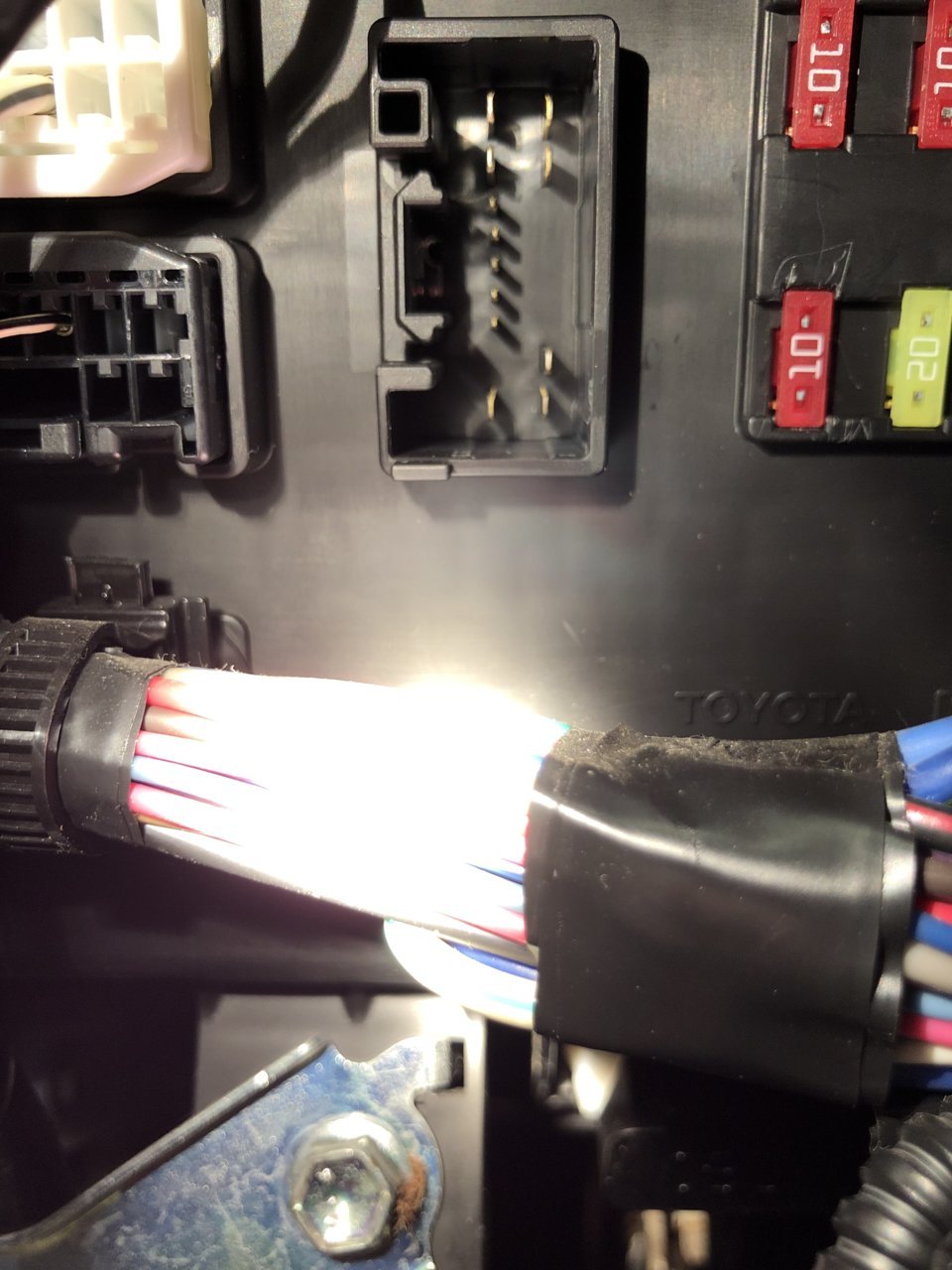

    Found a spot to get IGN (it's not shoved in there, I used a terminal/wire from Toyota)

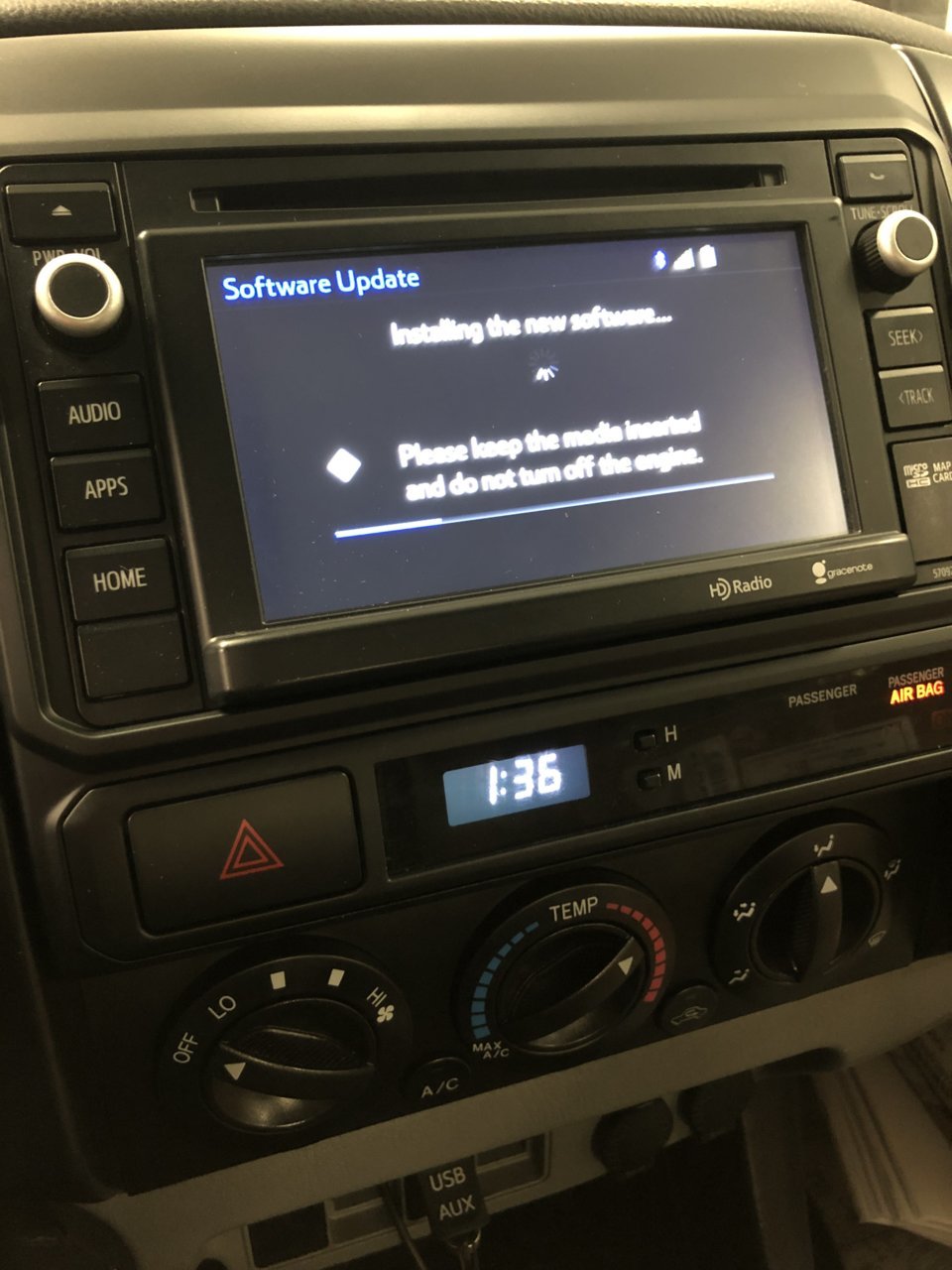

    Updating the radio to the latest.

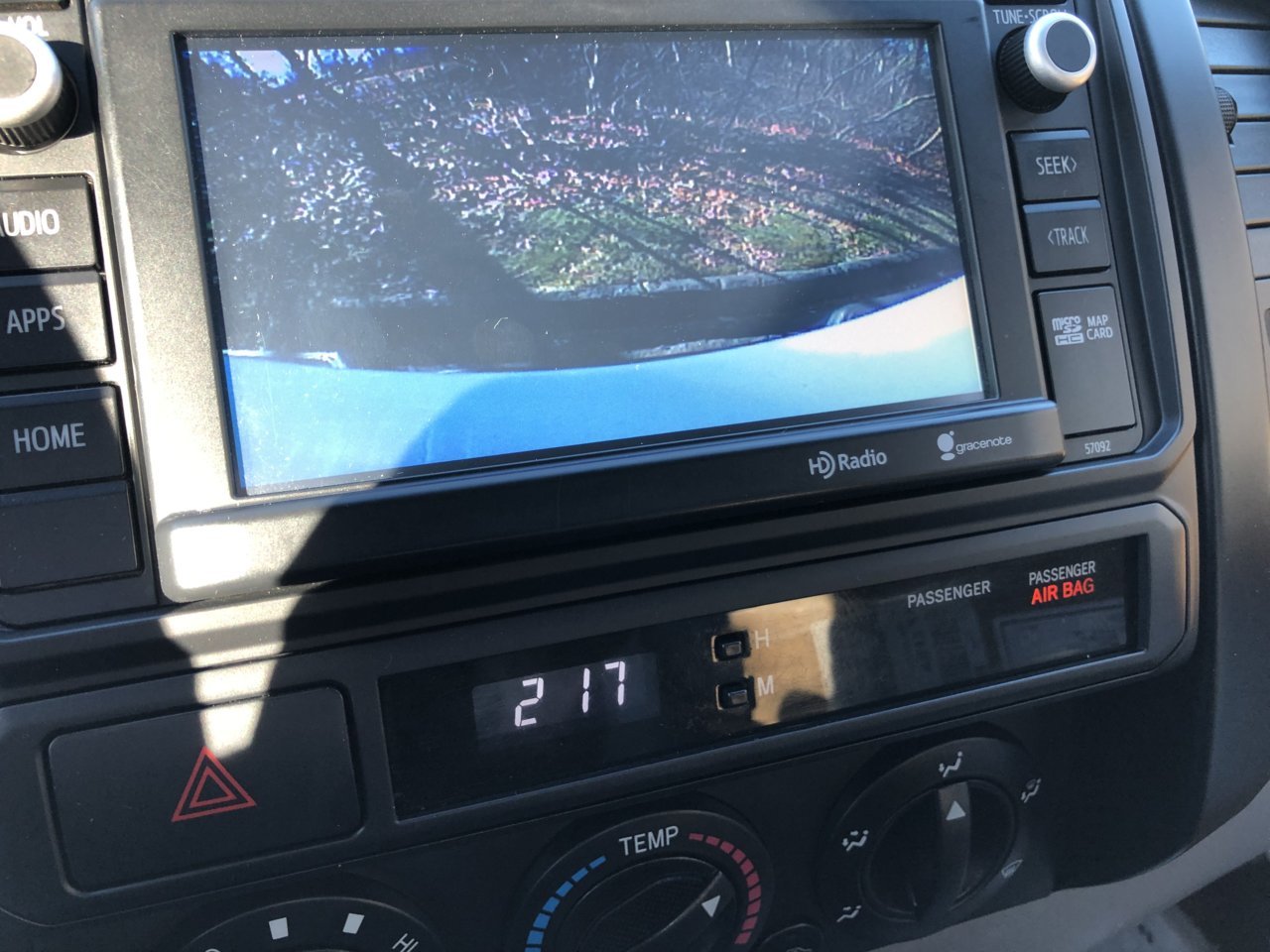

    Backup camera, no lines :(


    Last edited: Jan 26, 2019
  5. Jan 26, 2019 at 11:41 AM
    #5
    HAVOC

    HAVOC [OP] Well-Known Member

    Joined:
    Feb 6, 2012
    Member:
    #72230
    Messages:
    2,643
    Gender:
    Male
    Connecticut
    Vehicle:
    2012 Tacoma 4X4
    Part numbers used:

    86101-04030 (AM/FM ANTENNA CORD ASSY)

    86960-08011 (XM ANTENNA ASSY)

    86860-06080 (GPS ANTENNA ASSY)

    86808-02080 (GPS ANTENNA CORD ASSY, MODIFIED TO WORK FOR XM)

    PT546-00120-CH (28 PIN CONVERSION HARNESS)

    PT546-NU160 (MICROPHONE KIT)

    PT233-47100-WH (USB HARNESS)

    86190-0C020 (USB/AUX JACK)

    PT546-00120-US (USB CONVERSION CABLE)

    -------------------------------------------------------------------------

    CAMERA WIRING (HEAD UNIT)

    90980-12554 (24 PIN CONNECTOR) 1PCS.
    82998-12870 (TERMINAL REPAIR FOR 90980-12554) 4PCS.

    CAMERA WIRING (REAR)

    90980-12123 (4 PIN CONNECTOR) 1PCS.
    82998-12670 (TERMINAL REPAIR FOR 90980-12123) 4PCS.

    REVERSE WIRING

    90980-12369 (14 PIN CONNECTOR) 1PCS.
    82998-24270 (TERMINAL REPAIR FOR 90980-12369) 1PCS.


    IGNITION WIRING

    82998-12690 (TERMINAL REPAIR FOR 90980-11973) 1PCS.


    20 PIN ADAPTER WIRING

    82998-24290 (TERMINAL REPAIR FOR 90980-12460) 5PCS.

    Last edited: Jan 26, 2019
  6. Jan 26, 2019 at 11:45 AM
    #6
    HAVOC

    HAVOC [OP] Well-Known Member

    Joined:
    Feb 6, 2012
    Member:
    #72230
    Messages:
    2,643
    Gender:
    Male
    Connecticut
    Vehicle:
    2012 Tacoma 4X4
    When you buy a replacement radio and it has EnTune and you want to use it, you will need a VIN from a truck with the EXACT same radio.

    You can either get it from the person that sold you the radio or do what I did and look for a used truck online and get the VIN from the ad.

    Last edited: Jan 26, 2019
  7. Jan 26, 2019 at 10:17 PM
    #7
    maviolli

    maviolli Well-Known Member

    Joined:
    Dec 18, 2016
    Member:
    #205131
    Messages:
    117
    First Name:
    Matt
    Houston
    Vehicle:
    2012 DCSB 4x4
    I am in literally the exact same situation. Just bought a 2012 base. Picking up same 2014 head unit as you tomorrow. I had no idea this was so involved. Hoped it would be more plug and play...

  8. Jan 26, 2019 at 11:26 PM
    #8
    HAVOC

    HAVOC [OP] Well-Known Member

    Joined:
    Feb 6, 2012
    Member:
    #72230
    Messages:
    2,643
    Gender:
    Male
    Connecticut
    Vehicle:
    2012 Tacoma 4X4
    The radio will work and that's about it. To get anything else working, you have to do some work. Don't even try pairing your phone. With no microphone installed, it won't let you.
    If you have any questions, don't hesitate to ask.

  9. Jan 26, 2019 at 11:31 PM
    #9
    HAVOC

    HAVOC [OP] Well-Known Member

    Joined:
    Feb 6, 2012
    Member:
    #72230
    Messages:
    2,643
    Gender:
    Male
    Connecticut
    Vehicle:
    2012 Tacoma 4X4
    More pictures:

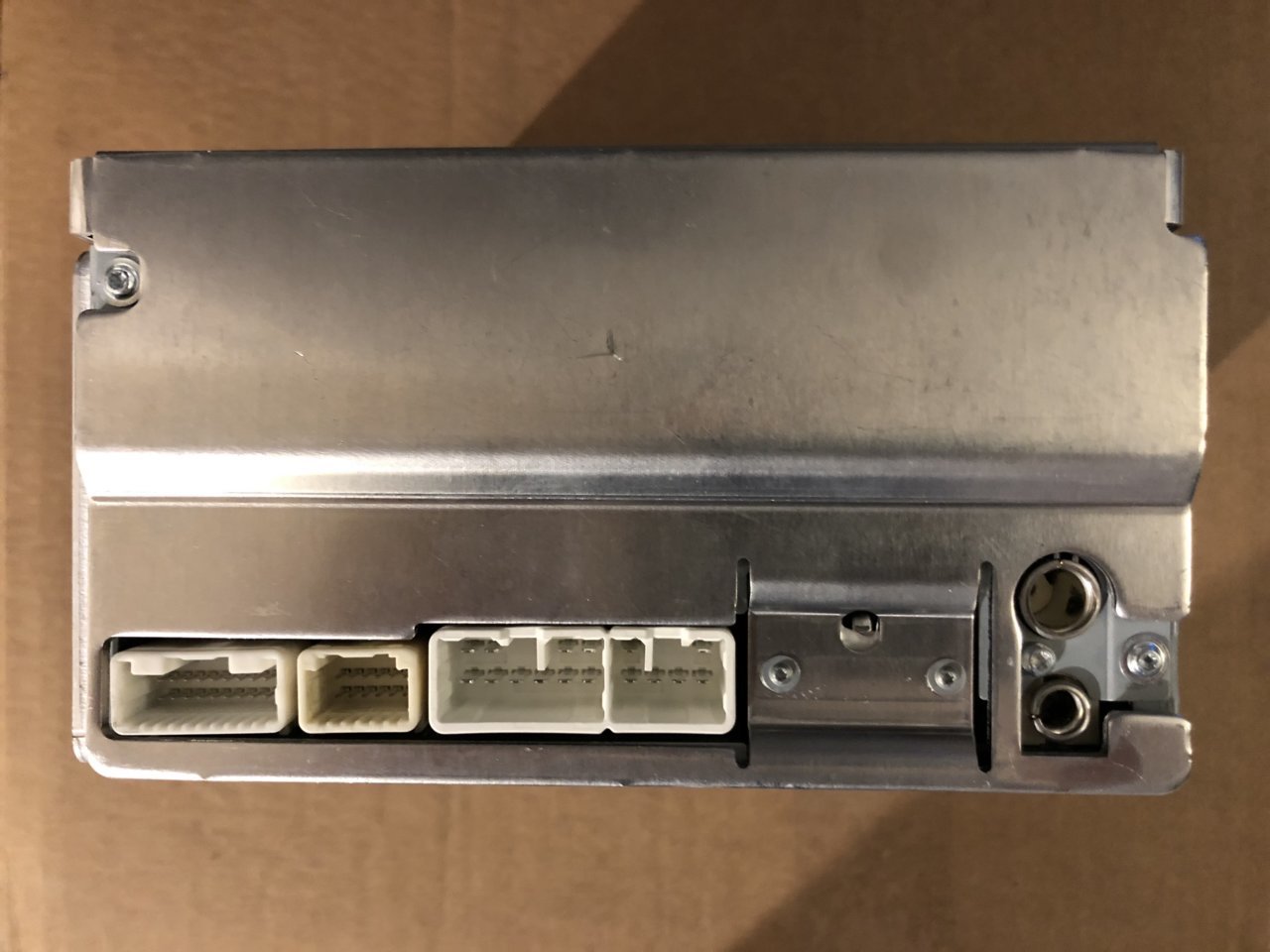

    old radio.jpg

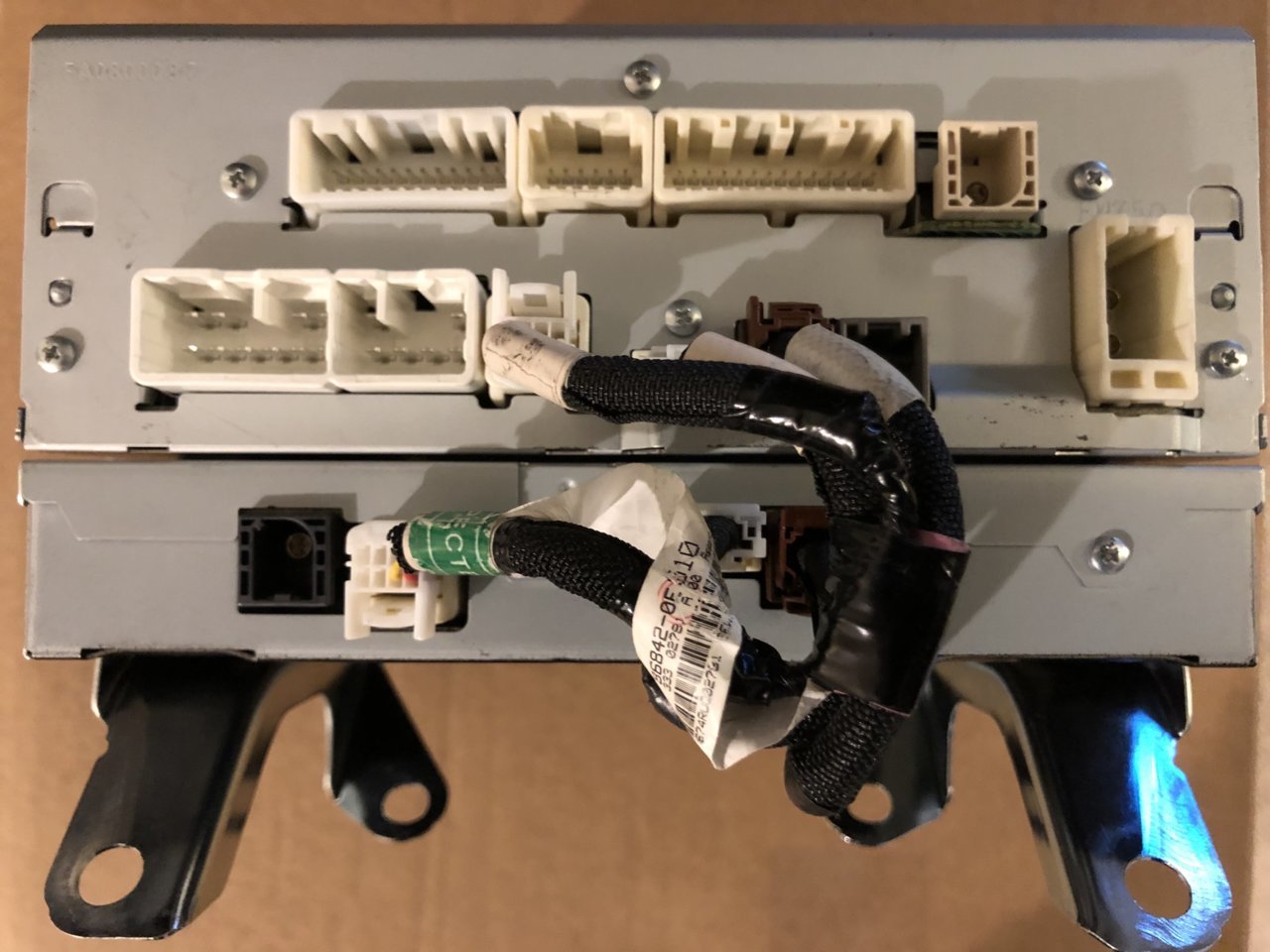

    rear 1.jpg

    Last edited: Jan 26, 2019
  10. Jan 27, 2019 at 6:41 AM
    #10
    maviolli

    maviolli Well-Known Member

    Joined:
    Dec 18, 2016
    Member:
    #205131
    Messages:
    117
    First Name:
    Matt
    Houston
    Vehicle:
    2012 DCSB 4x4
    My current set up does have Bluetooth and phone connectivity. Also have steering wheel controls for radio controls and phone. Do i need a different microphone to work with new setup?

  11. Jan 27, 2019 at 7:45 AM
    #11
    HAVOC

    HAVOC [OP] Well-Known Member

    Joined:
    Feb 6, 2012
    Member:
    #72230
    Messages:
    2,643
    Gender:
    Male
    Connecticut
    Vehicle:
    2012 Tacoma 4X4
    No.
    What radio do you have and what radio do you want to use?
    The microphone wiring should be part of the 28 pin connector.

  12. Jan 29, 2019 at 1:11 PM
    #12
    HAVOC

    HAVOC [OP] Well-Known Member

    Joined:
    Feb 6, 2012
    Member:
    #72230
    Messages:
    2,643
    Gender:
    Male
    Connecticut
    Vehicle:
    2012 Tacoma 4X4

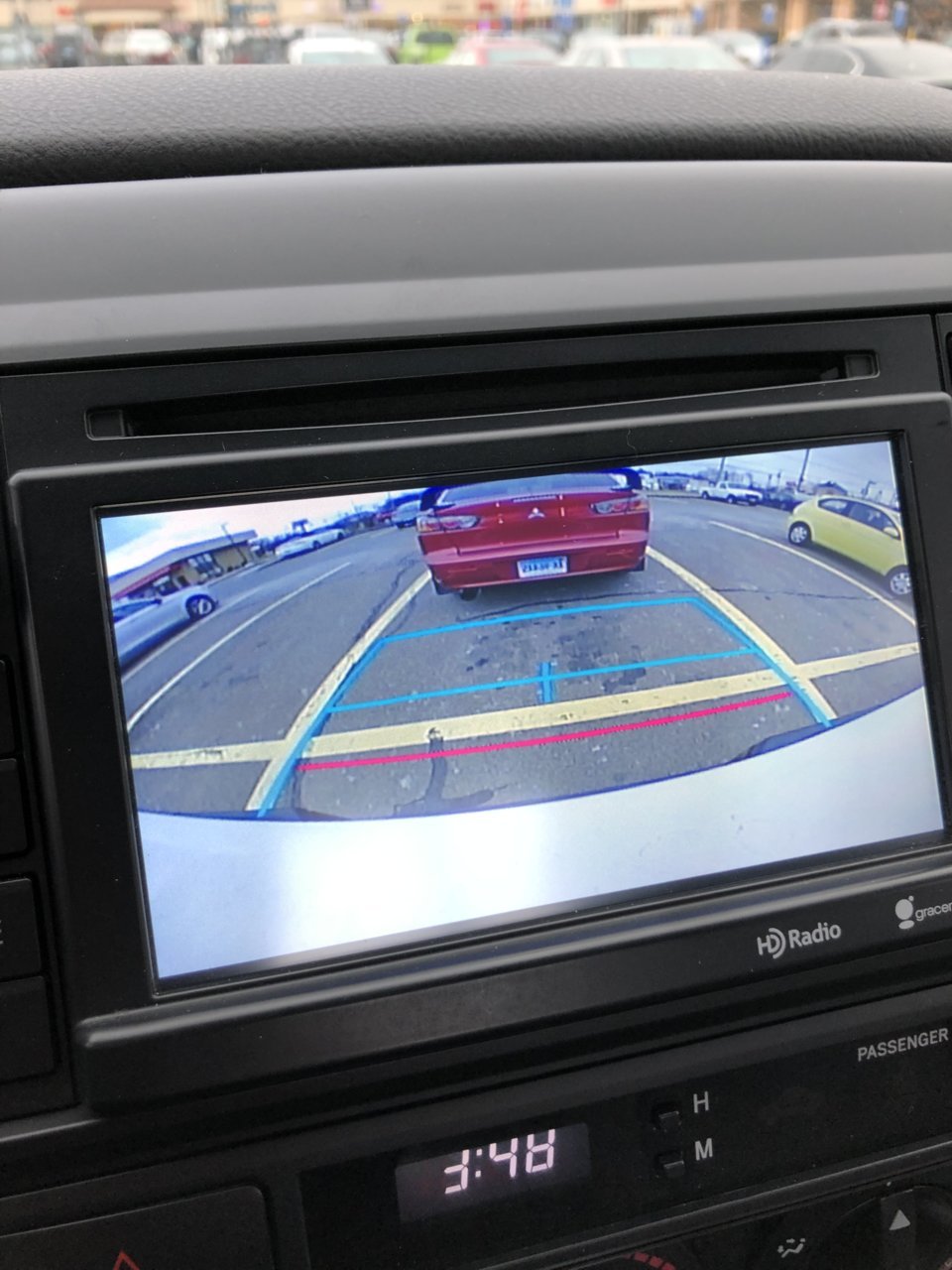

    Got the lines working :D
    With a 2014 radio you need a 2014 camera and harness for the tailgate.


  13. Feb 1, 2019 at 2:27 PM
    #13
    maviolli

    maviolli Well-Known Member

    Joined:
    Dec 18, 2016
    Member:
    #205131
    Messages:
    117
    First Name:
    Matt
    Houston
    Vehicle:
    2012 DCSB 4x4
    Hey buddy, sorry for my slow response.

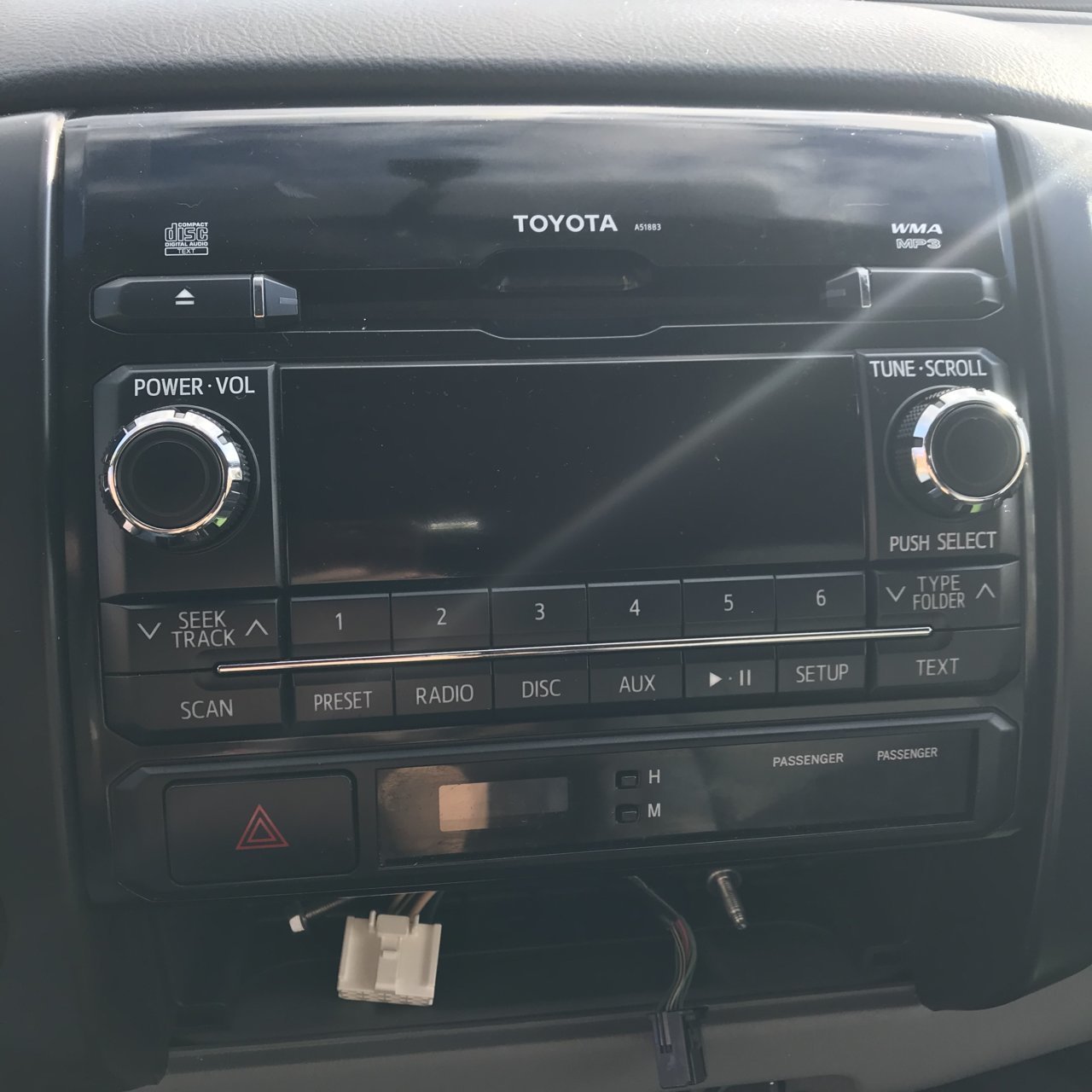

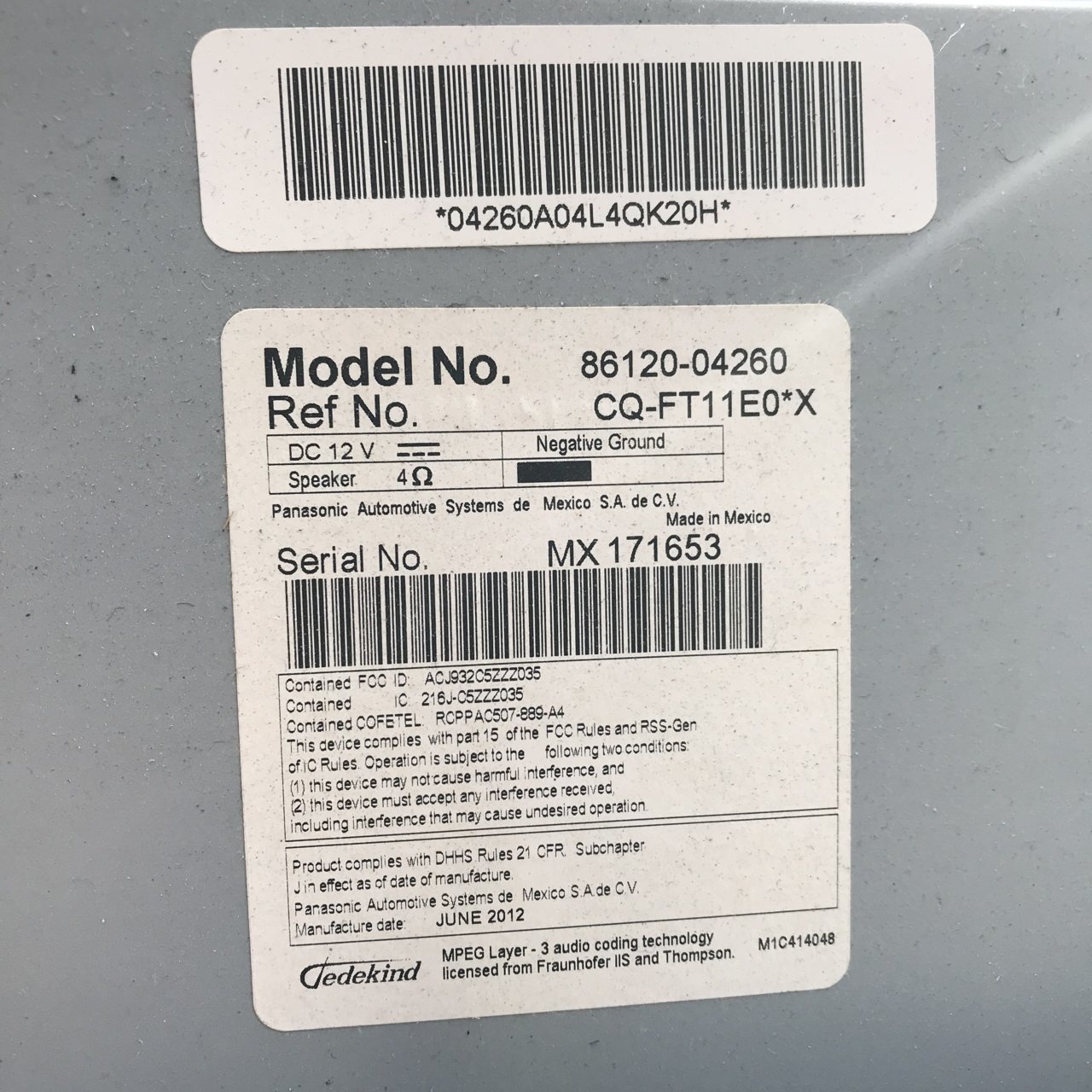

    Here is my existing radio.
    49356E70-DCAA-4767-B180-0BC603D495D9.jpg 43E5C20A-AA1F-44FE-B612-BB9423D499DA.jpg E3C41D93-E266-459C-B962-F688EDF39E93.jpg

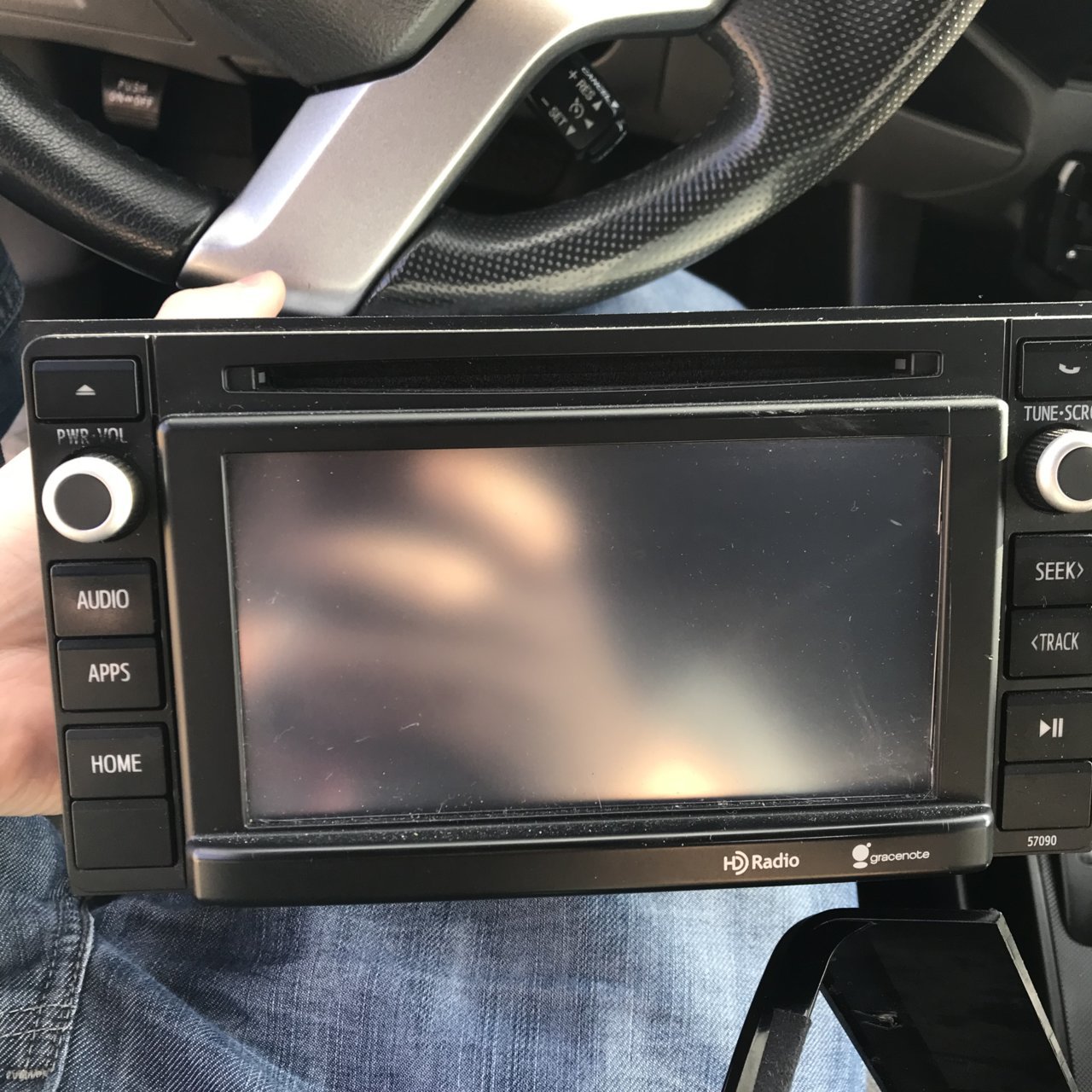

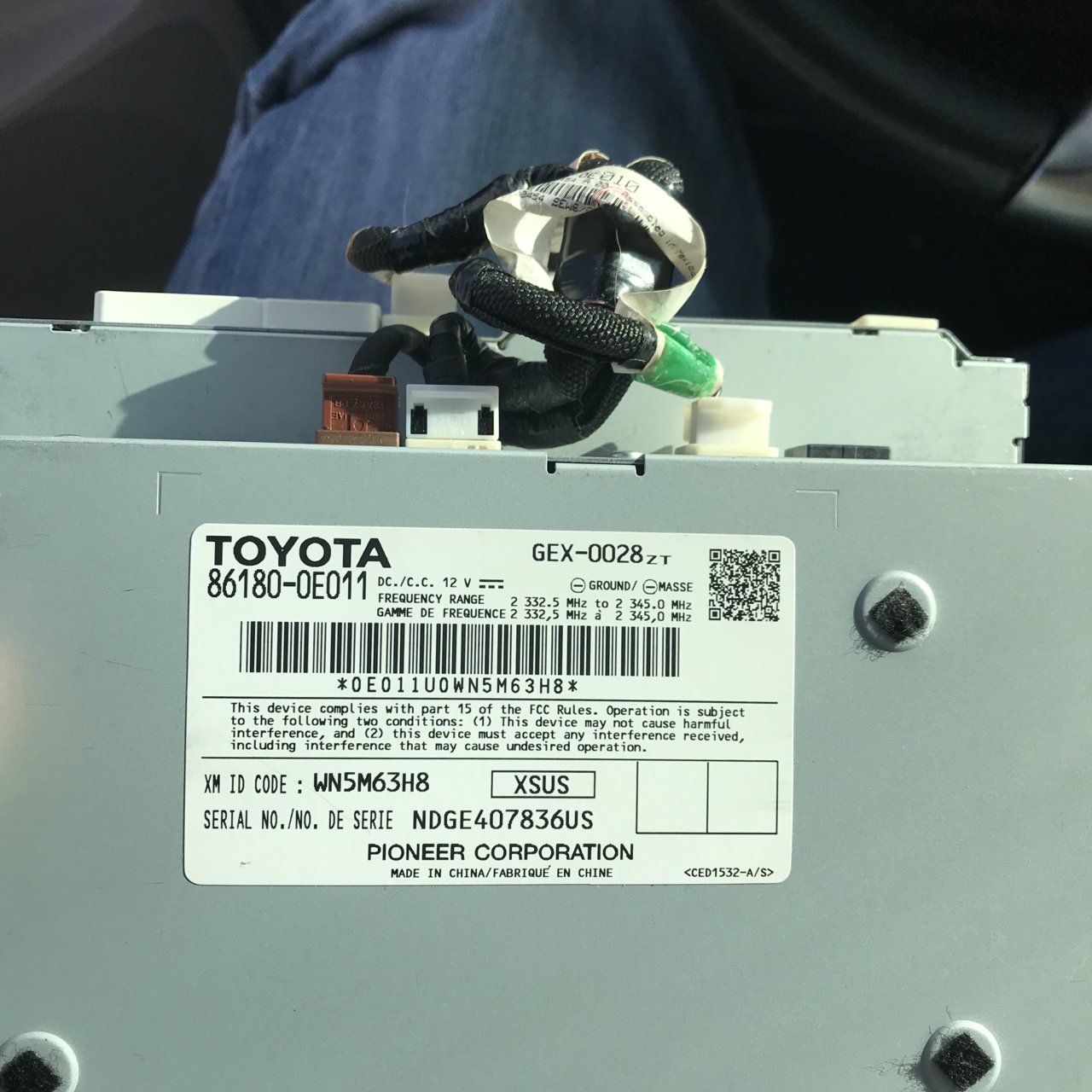

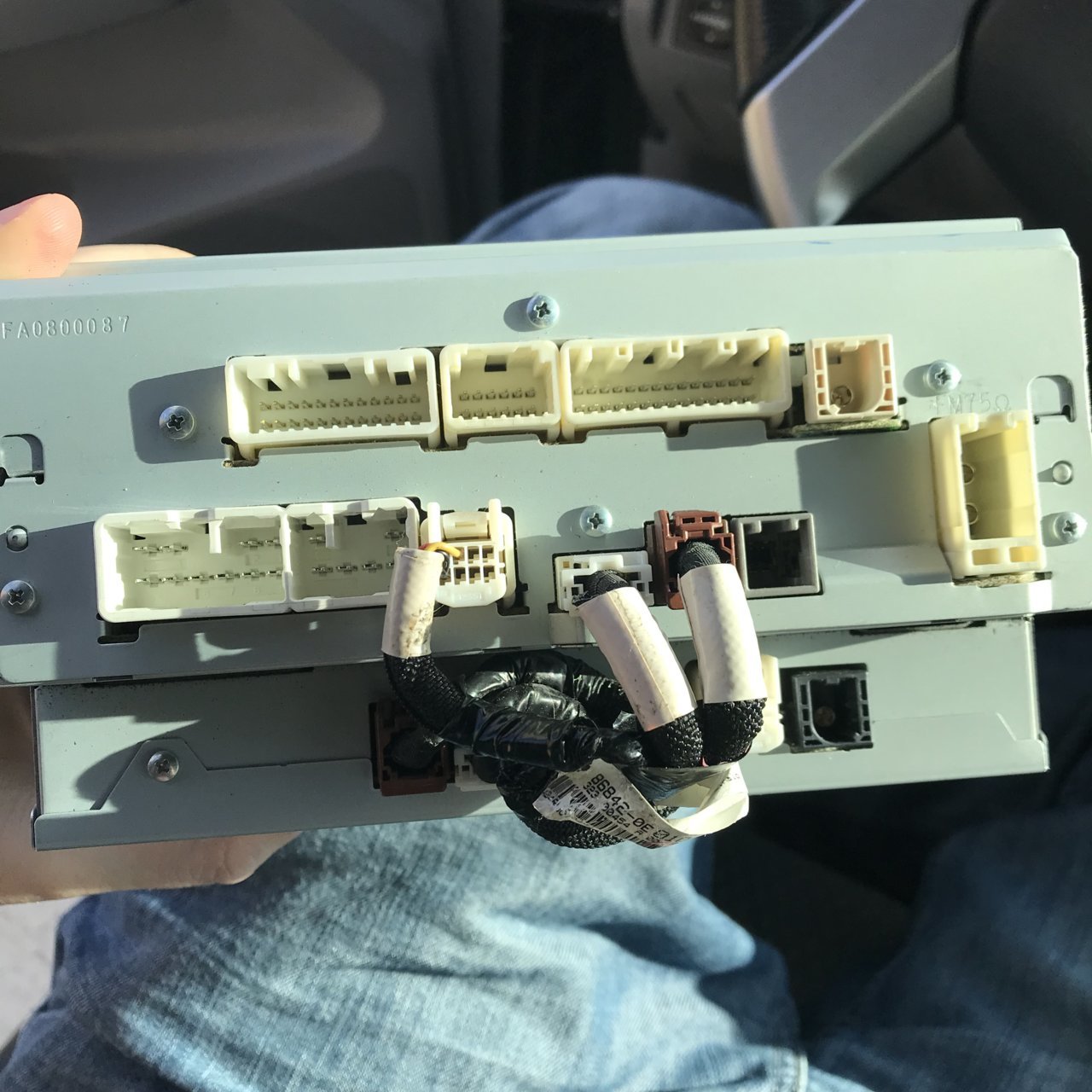

    Looking to replace with this radio

    70A1C59C-F726-4B4A-A262-9DDDB664E094.jpg 22724C2D-3E54-4A9D-81A0-12263AD6CA9E.jpg DA9A6BC4-DFB5-433D-8BA2-C814A0398249.jpg 6FE74A26-8BF9-4877-8DAE-F8B1044CE4F4.jpg

    Doesn’t look like existing radio has 28 pin ... ?

  14. Feb 1, 2019 at 5:16 PM
    #14
    HAVOC

    HAVOC [OP] Well-Known Member

    Joined:
    Feb 6, 2012
    Member:
    #72230
    Messages:
    2,643
    Gender:
    Male
    Connecticut
    Vehicle:
    2012 Tacoma 4X4

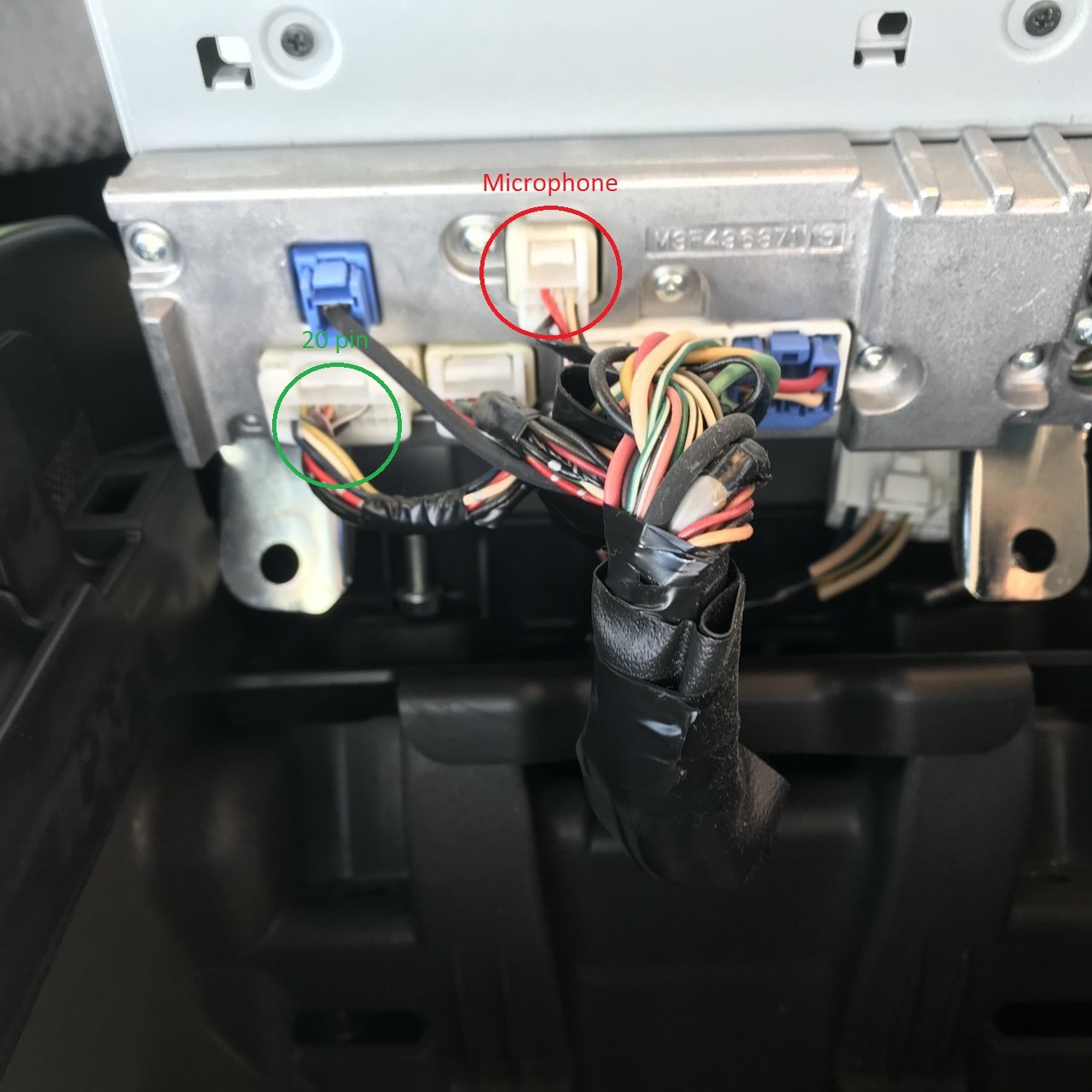

    The existing radio has a 20 pin and a what looks to be a 12 pin.

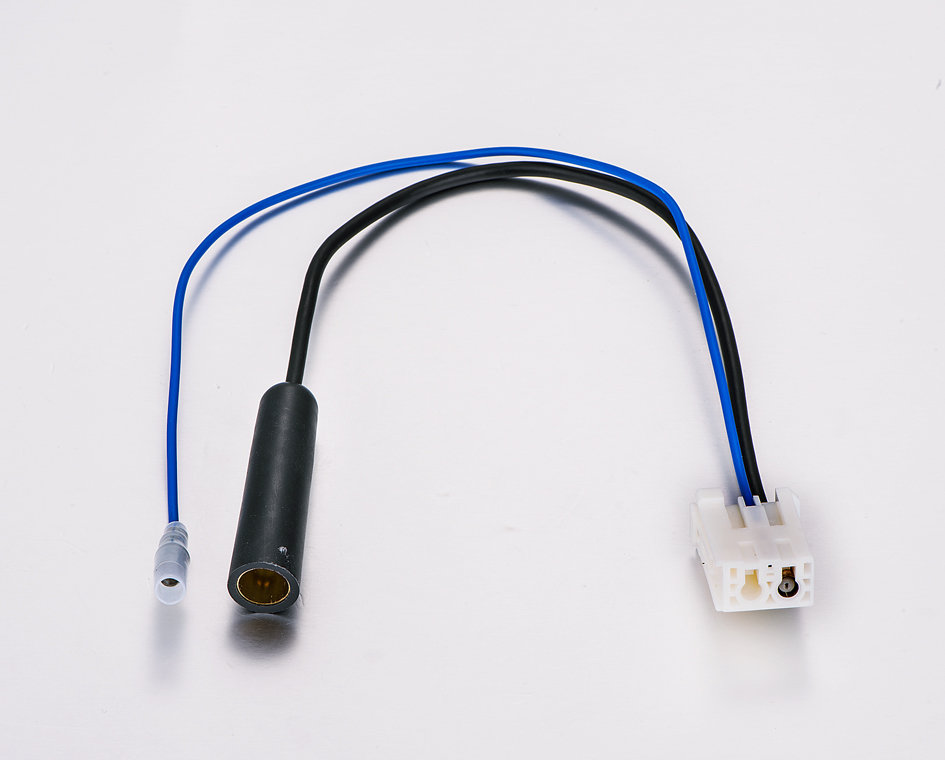

    You will need an antenna adapter like this:


    Or you can do what I did and replace the antenna cable from the radio to the A-pillar, part number 86101-04030
    You don't need the blue wire that's in the adapter, either de-pin it or tape it out of the way.

    You will need a 20 pin adapter for a Scion, part number PT546-00120-CH

    You will have to see if your truck has a Multimedia Interface ECU, that's the part that does USB for the old radio. Looks like the radio has the correct plug (12-pin). The ECU in question is to the right of the glove box.

    Last edited: Feb 1, 2019
  15. Feb 1, 2019 at 5:28 PM
    #15
    HAVOC

    HAVOC [OP] Well-Known Member

    Joined:
    Feb 6, 2012
    Member:
    #72230
    Messages:
    2,643
    Gender:
    Male
    Connecticut
    Vehicle:
    2012 Tacoma 4X4

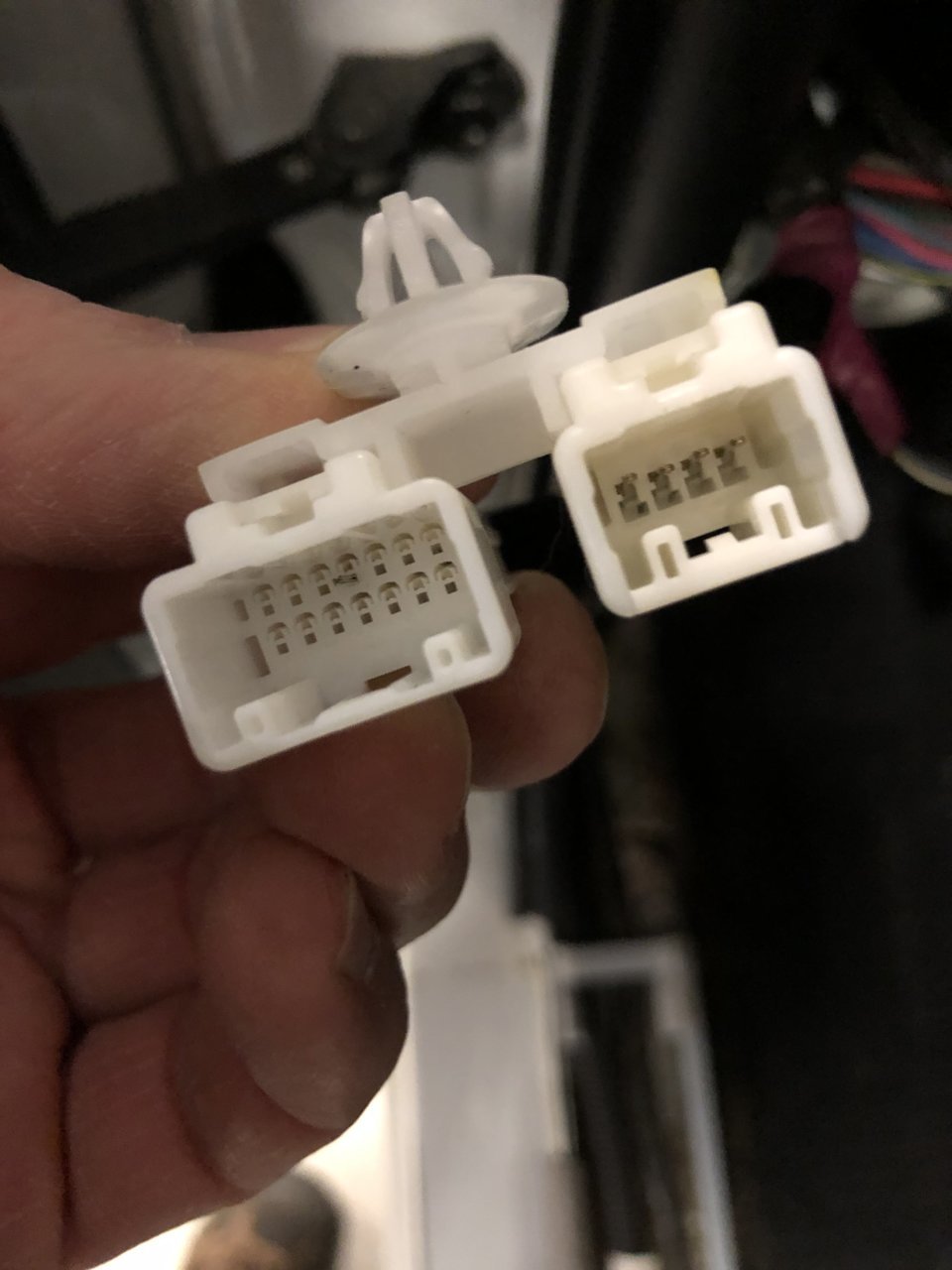

    These two connectors plug into the 20-pin adapter and the adapter plugs into the new radio (28 pin).


    Last edited: Feb 1, 2019
  16. Feb 1, 2019 at 5:52 PM
    #16
    HAVOC

    HAVOC [OP] Well-Known Member

    Joined:
    Feb 6, 2012
    Member:
    #72230
    Messages:
    2,643
    Gender:
    Male
    Connecticut
    Vehicle:
    2012 Tacoma 4X4
    Small update. I'll have to fab up a bracket for the GPS and XM antennas. The GPS seems to be working fine but the XM works 50% of the time (looses signal probably due to antenna placement).

    Used double sided tape to attach the antennas to the underside of the dash. XM still cuts out. Maybe a better antenna?

    Last edited: Feb 2, 2019
  17. Feb 17, 2019 at 7:01 AM
    #17
    HAVOC

    HAVOC [OP] Well-Known Member

    Joined:
    Feb 6, 2012
    Member:
    #72230
    Messages:
    2,643
    Gender:
    Male
    Connecticut
    Vehicle:
    2012 Tacoma 4X4
    Another small update. The satellite radio cuts out way too much, enough where I don't even listen to it which sucks 'cause I'm paying for it.
    I found a part number for a low profile XM antenna that fits a 2009-2011 Corolla and it's white, like my truck. It may even be super-white.
    I'm guessing that where the antenna is currently mounted and the way the windshield isn't sloped back like on a car, the roof blocks most of the signal getting to the antenna. If I'm driving South, the reception is better.

    This means that I will have to drill two holes in the roof. I'm not worried about leaks, I'm worried about rust.

  18. Dec 1, 2020 at 12:56 PM
    #18
    Flipperhead

    Flipperhead New Member

    Joined:
    Dec 1, 2020
    Member:
    #348352
    Messages:
    1
    Gender:
    Male
    First Name:
    Jason
    Vehicle:
    2012 Tacoma SR5
    None, so far
    Looking to do the same upgrade, how did you grab the back up camera signal and how did you get the lines on the screen? Im sure I'll have more questions once my HU gets here. thx
