INSTALLED! 5100s @ 1.75 + TSB AAL

Discussion in 'Suspension' started by STLTaco09, Jul 13, 2009.

  1. Jul 13, 2009 at 7:42 AM
    #1
    STLTaco09

    STLTaco09 [OP] Well-Known Member

    Joined:
    Dec 4, 2008
    Member:
    #11281
    Messages:
    363
    Gender:
    Male
    5100's all around, fronts at 1.75". TSB leaf pack + Toytec TSB AAL
    :woot: Finally got the lift purchased and installed. I can't thank everyone enough for the endless information, patient and thorough answers to questions, and everything else that comes with researching on this site. It truly is a great resource! :thumbsup:

    Here are the details:
    Wheels: 17x9 Moto Metal 951b, 4.53" Backspace
    Tires: 265/70/17 Bridgestone Dueler Revo
    Lift: 4 x Bilstein 5100's, fronts set to 1.75", Toytec 1/4" top plate spacer on driver's side, Toytec 1.5" TSB AAL in rear.

    Actual Height Measurements:
    Front Left Before: 35 1/4"
    Front Left After: 37 1/8"

    Front Right Before: 35 3/4"
    Front Right After: 37 1/8"

    Rear Left Before: 37 1/4"
    Rear Left After: 39"

    Rear Right Before: 37 3/4"
    Rear Right After: 39"


    Alignment specs (stock UCAs):
    Front Left:
    Camber: Actual = .8*, Before =.9*, Specified range = -.3 - 1.2*
    Caster: Actual = 1.4*, Before =.4*, Specified range = 1.4* - 2.9*
    Toe: Actual = .03*, Before = -.01*, Specified range = -.02* - .09*
    SAI: Actual = 10.9*, Before = 10.8* Specified range = 11.2* - 12.7*
    Included Angle: Actual = 11.8*, Before = 11.7*, Specified range = 11.0* - 14.0*

    Front Right:
    Camber: Actual = .8*, Before =.9*, Specified range = -.3 - 1.2*
    Caster: Actual = 1.5*, Before =.4*, Specified range = 1.4* - 2.9*
    Toe: Actual = .05*, Before = -.01*, Specified range = -.02* - .09*
    SAI: Actual = 11.4*, Before = 11.3* Specified range = 11.2* - 12.7*
    Included Angle: Actual = 12.2*, Before = 12.2*, Specified range = 11.0* - 14.0*

    *Note: I'm not sure if the caster wasn't set to 0* on purpose or if they couldn't get it to 0* because of the lift and limitations of the stock UCA. I was told that my tires won't wear unevenly though. I'll take that for what it's worth, only time will really tell. All numbers are within 'spec' though.

    Before:
    [​IMG]

    After:
    [​IMG]

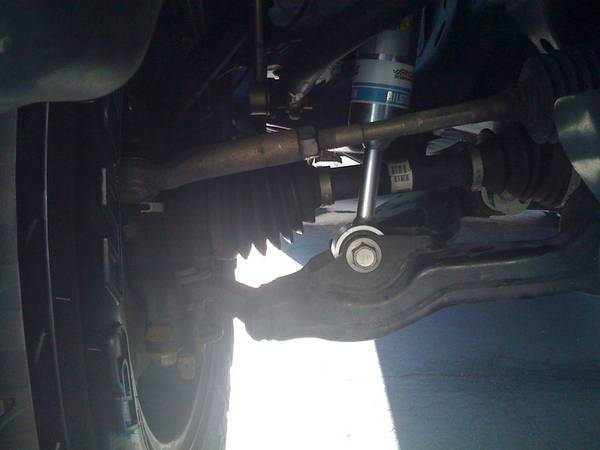

    CV Angle After:
    [​IMG]

    Stock UCA After:
    [​IMG]

    So far I'm really enjoying it. The ride is much better than stock, even with the TSB AAL in my TSB leaf pack. It's a great ride. No crazy vibrations or anything like that either. I do have a VERY VERY minimal shudder when accelerating from a stop. It's hard to pinpoint, but it comes right around 5-7mph. It's quick and goes away very fast. At this point I'm not sure if I'm even going to worry about - especially if I can find out that no damage/wear will occur because of it. If anyone can confirm either way, I'd appreciate it.

    Thanks again for the help!

  2. Jul 13, 2009 at 7:52 AM
    #2
    Veccster

    Veccster bass turds

    Joined:
    Aug 8, 2008
    Member:
    #8407
    Messages:
    2,085
    Gender:
    Male
    First Name:
    Eric
    Pittsburgh - The City of Champions
    Vehicle:
    2009 DC V6 TRDsport
    5100's all around - fronts at 1.75", 265/70/17 Bridgestone Revo 2, HID headlights and fog lights, factory skid plate, ss exhaust tip, tube steps, Access roll-up tonneau cover, Redline hood struts, 6 D-rings, seat MagLite, LED dome, fumoto oil drain, DTRL, fog light anytime, Kenwood/Clarion speakers, Pop-N-Lock 5300, LED bed lights and a few other things...
    Looks good and made a helluva difference.

    You did what I plan on doing (4x5100, TSB AAL, top plate spacer). It's a nice lift for a nice price.

    I am a bit concerned about your shudder and what causes it. So many other have not claimed such a shudder with the same life. Did they not have the spacer...could that be causing it? Or do the others just not notice or care to admit this shudder?

  3. Jul 13, 2009 at 7:55 AM
    #3
    STLTaco09

    STLTaco09 [OP] Well-Known Member

    Joined:
    Dec 4, 2008
    Member:
    #11281
    Messages:
    363
    Gender:
    Male
    5100's all around, fronts at 1.75". TSB leaf pack + Toytec TSB AAL
    I knew you'd chime in - I remember you researching the same setup as me a few weeks back!

    I'm 99% sure its coming from the rear, and I think it's common after lifting the rear. I've read that anything from greasing up the rear/drive shaft to adding shims or installing the carrier bearing drop kit will fix it. This is literally minimal though, it took me a day of driving around to even notice it. How I move forward with addressing it (if I do at all) will pretty much depend on what I hear about implications about just leaving it as is...

    Keep in mind too, my truck has 8,000 miles on it, purchased new in November. I've hauled very minimally, so the TSB leaf pack might not even have settled that much. On top of that, I threw in the AAL. It could be that all this needs to settle, and the shudder will go away?? Just a thought.

  4. Jul 13, 2009 at 8:28 AM
    #4
    Ticketdoctor

    Ticketdoctor Senior Lettuce Washer

    Joined:
    Dec 10, 2008
    Member:
    #11440
    Messages:
    223
    Gender:
    Male
    Ithaca, NY
    Vehicle:
    09 Tacoma Double TRD O.R. 4x4 Timberland Mica
    XM Radio Mod, TRD Skid Plate, Bed Mat, Weathertech, More to come.
    I have 4 Billy's, a 1.5" AAL, New Front Springs and New TC UCA's sitting in my garage just waiting to be installed. I am trying to get the rear leaf TSB or lack there of completed on my '09 before I start adding parts.

  5. Jul 13, 2009 at 8:42 AM
    #5
    Lentsnh

    Lentsnh Well-Known Member

    Joined:
    Nov 22, 2008
    Member:
    #10953
    Messages:
    9,550
    Gender:
    Male
    Vehicle:
    2007 Hummer H3 Tactical Edition
    None yet- Future: HIDs, Tinted tails, LED interior lights,
    Yeah they couldnt get my specs dead on but theyre in SPEC. I will get everything changed out eventually.

    Looks great BTW

  6. Jul 13, 2009 at 9:03 AM
    #6
    headhunter247

    headhunter247 Well-Known Member

    Joined:
    Oct 16, 2008
    Member:
    #10013
    Messages:
    1,345
    Gender:
    Male
    St. Louis, MO area
    Vehicle:
    13 Taco Double Cab TRD
    Bilstein 5100's all around, front set at 2.5", Toytec AAL, 265/75/16 Duratracs, Pro Comp 5001, Weathertech's, AVS In Channel Visors, Nokya Hyper Yellow fogs, CB Set up, Color matched grill surround, ATC Camper Shell with Yakima Racks, SOS Concepts Regular Rear Bumper.

    This looks great!! Where did you get the shocks, spacer and AAL installed at? And for how much if you dont mind me asking?

  7. Jul 13, 2009 at 9:06 AM
    #7
    Lentsnh

    Lentsnh Well-Known Member

    Joined:
    Nov 22, 2008
    Member:
    #10953
    Messages:
    9,550
    Gender:
    Male
    Vehicle:
    2007 Hummer H3 Tactical Edition
    None yet- Future: HIDs, Tinted tails, LED interior lights,
    Go to advanced auto and get a torque wrench and strut compressor for $80 you get it back though

  8. Jul 13, 2009 at 9:12 AM
    #8
    STLTaco09

    STLTaco09 [OP] Well-Known Member

    Joined:
    Dec 4, 2008
    Member:
    #11281
    Messages:
    363
    Gender:
    Male
    5100's all around, fronts at 1.75". TSB leaf pack + Toytec TSB AAL
    I got everything installed at Hellbent Performance Offroad in Chesterfield, MO. Took them around 2.5 hours, they charged me $210. Very reasonable in my opinion.

    I have a lifetime alignment at Firestone, so thats where I took it for the alignment.

  9. Jul 13, 2009 at 1:12 PM
    #9
    headhunter247

    headhunter247 Well-Known Member

    Joined:
    Oct 16, 2008
    Member:
    #10013
    Messages:
    1,345
    Gender:
    Male
    St. Louis, MO area
    Vehicle:
    13 Taco Double Cab TRD
    Bilstein 5100's all around, front set at 2.5", Toytec AAL, 265/75/16 Duratracs, Pro Comp 5001, Weathertech's, AVS In Channel Visors, Nokya Hyper Yellow fogs, CB Set up, Color matched grill surround, ATC Camper Shell with Yakima Racks, SOS Concepts Regular Rear Bumper.

    I keep hearing about them, as well as PUR performance (1st Capitol 4wd) on Truman Rd in STC-- Have you ever dealt with them? They are super close to my work.

    Did you just take the specs for the allignment to them and they did it?

  10. Jul 13, 2009 at 1:16 PM
    #10
    STLTaco09

    STLTaco09 [OP] Well-Known Member

    Joined:
    Dec 4, 2008
    Member:
    #11281
    Messages:
    363
    Gender:
    Male
    5100's all around, fronts at 1.75". TSB leaf pack + Toytec TSB AAL
    I've never dealt with PUR Performance, never even heard of them.

    I didn't take any specs in for the alignment. I just told them it had been lifted just short of 2", and to give it an alignment. They did their thing, and I asked for a print out of the alignment results.

  11. Jul 13, 2009 at 2:33 PM
    #11
    bigmooze

    bigmooze Well-Known Member

    Joined:
    Jan 10, 2009
    Member:
    #12437
    Messages:
    793
    Gender:
    Male
    First Name:
    Richard
    Belle River, ON
    Vehicle:
    2009 4x4 access cab SR5
    Bilstein 5100's all round (0" up front with stock springs), 265/75/16 Goodyear Wrangler Duratracs, K&N 63 Series Aircharger Kit, Flowmaster Super 44 Muffler, Delta Champion Toolbox, fog lights, back-up lights, Sirius satellite radio with PA15-TOY, Midland 1001z CB radio with 2' Firestik II antenna, Weathertech floor mats, AVS sill protectors, Marathon SuperHides Seatcovers (Universal Digital Camo), trimmed front mud flaps, Viair 20005 OBA, Warn W650D driving lights and W650F fog lights on N-Fab light bar, Hi-Lift X-treme jack with off road accessories, TracRac "TracONE" system
    Looks awesome. FWIW, I haven't touched my suspension yet (bone stock) and I have had the same shudder from take off since I bought my truck.

  12. Jul 14, 2009 at 5:38 AM
    #12
    headhunter247

    headhunter247 Well-Known Member

    Joined:
    Oct 16, 2008
    Member:
    #10013
    Messages:
    1,345
    Gender:
    Male
    St. Louis, MO area
    Vehicle:
    13 Taco Double Cab TRD
    Bilstein 5100's all around, front set at 2.5", Toytec AAL, 265/75/16 Duratracs, Pro Comp 5001, Weathertech's, AVS In Channel Visors, Nokya Hyper Yellow fogs, CB Set up, Color matched grill surround, ATC Camper Shell with Yakima Racks, SOS Concepts Regular Rear Bumper.

    You should go and check them out some time. They carry EVERYTHING. They are right off the Cave Springs/Truman exit. Youll go north about 3/4 mi.

    Truck looks good. Im right behind you with getting the billies.

  13. Jul 14, 2009 at 6:04 AM
    #13
    MattN03

    MattN03 Well-Known Member

    Joined:
    Jan 14, 2009
    Member:
    #12571
    Messages:
    711
    Gender:
    Male
    First Name:
    Matt
    Bluegrass State
    Vehicle:
    07 DC 4x4 TRD Off-Road
    20% window tint, beep mod, hardwired V1, TSB springs, AVS Bugshield-21803, USA Spec PA15, OEM Tacoma scuff plates, Weathertech mats, Truxedo LoPro, TRD skid, GY Duratrac's 265/75/16 C Range, locker mod (switch method)
    Looks great! This is what I'm wanting to do to my TRD O/R.

  14. Jul 14, 2009 at 6:59 AM
    #14
    STLTaco09

    STLTaco09 [OP] Well-Known Member

    Joined:
    Dec 4, 2008
    Member:
    #11281
    Messages:
    363
    Gender:
    Male
    5100's all around, fronts at 1.75". TSB leaf pack + Toytec TSB AAL
    I appreciate the feedback. I'm really enjoying it too. It is exactly what the truck needed.

    Does anyone think I need to do anything with the inner CV joint boot? It looks like the fins are awefully close. Should I spread the boot out at all? I'm not worried about the angle, just thinking the boot could be spread out a bit to prevent them from rubbing. What do you think?

  15. Jul 14, 2009 at 7:12 AM
    #15
    Lentsnh

    Lentsnh Well-Known Member

    Joined:
    Nov 22, 2008
    Member:
    #10953
    Messages:
    9,550
    Gender:
    Male
    Vehicle:
    2007 Hummer H3 Tactical Edition
    None yet- Future: HIDs, Tinted tails, LED interior lights,
    No its fine. But if you feel like you should you can get smaller CV boots

  16. Jul 14, 2009 at 7:29 AM
    #16
    geolink

    geolink Well-Known Member

    Joined:
    May 1, 2009
    Member:
    #16653
    Messages:
    276
    Gender:
    Male
    SILVER STATE
    Vehicle:
    09 DCLB MagGray TRD SPORT
    Weathertech mats and hood protector, RuffTuff seat covers, padded console, Redline Hood Struts, Snugtop canopy w/Thule Rack, TSB rear springs plus AAL, 5100's all around OME 885 front coils, LR UCA, Avid Step Bars, LT265/70R17 BFG AT on stock Sport Rims
    STLTaco09, others will need to address your question about the CV Joint Boot.

    I appreciate you starting this thread, providing the height numbers, alignment results and all the contributing posts.
    I am gathering the parts for this same lift. Have the TSB 4 leaf rear springs (waiting to settle a bit) and the 4 5100's arrived yesterday.

    Still need to order the Toytec TSB AAL (or similar). Questions 'bout that AAL. What is the leaf length and where does it fit in the spring pack? Are there install instructions?

    My only concern about the lift is setting a proper alignment. Does anyone else have alignment specs for this specific lift?
    Thanks!

  17. Jul 14, 2009 at 8:41 AM
    #17
    STLTaco09

    STLTaco09 [OP] Well-Known Member

    Joined:
    Dec 4, 2008
    Member:
    #11281
    Messages:
    363
    Gender:
    Male
    5100's all around, fronts at 1.75". TSB leaf pack + Toytec TSB AAL
    I don't recall if there were instructions with it or not - I want to say there weren't though. Instructions did come with the 1/4" top plate spacer though from Toytec.

    The TSB AAL goes in between the overload leaf and the top 3 leafs in the TSB leaf pack. I dont have measurements on it now, and it probably wouldn't be very accurate if I measure now when its on the truck, so sorry about that.

    If you got the TSB leaf pack, it should have come with new ubolts. If you did in fact get them, then you shouldn't need longer U Bolts to incorporate the AAL.

  18. Jul 14, 2009 at 8:48 AM
    #18
    Lentsnh

    Lentsnh Well-Known Member

    Joined:
    Nov 22, 2008
    Member:
    #10953
    Messages:
    9,550
    Gender:
    Male
    Vehicle:
    2007 Hummer H3 Tactical Edition
    None yet- Future: HIDs, Tinted tails, LED interior lights,
    You dont need longer U-bolts with an AAL. I have stock U-bolts w/ AAL now.

    :thumbsup:

  19. Jul 14, 2009 at 8:52 AM
    #19
    r12rex

    r12rex Well-Known Member

    Joined:
    Oct 6, 2008
    Member:
    #9759
    Messages:
    321
    Gender:
    Male
    Cleared headlights, Black emblems, Painted black valence on front bumper, 2.5" 5100 Billys front, 1.5" AAL rear, Satin black TRD O/F wheels with 265/75 16 Definity M/T, Spidertrax spacers
    I just did the same thing to my silver taco! I used 2.5 on the front billys though and used the same 1.5" aal TSB. The truck is level! I have 32" Definity M/T on stock TRD wheels with Spidertrax spacers. The truck is absolutely awesome. :)

    Yours looks good! :)

    Kind Regards,
    Ryan

  20. Jul 14, 2009 at 8:57 AM
    #20
    geolink

    geolink Well-Known Member

    Joined:
    May 1, 2009
    Member:
    #16653
    Messages:
    276
    Gender:
    Male
    SILVER STATE
    Vehicle:
    09 DCLB MagGray TRD SPORT
    Weathertech mats and hood protector, RuffTuff seat covers, padded console, Redline Hood Struts, Snugtop canopy w/Thule Rack, TSB rear springs plus AAL, 5100's all around OME 885 front coils, LR UCA, Avid Step Bars, LT265/70R17 BFG AT on stock Sport Rims
    Thanks for the info. Yes, it appears they put on new ubolts. 1/2 inch remains available (for the AAL). Will that suffice?
