Installed D-Rings in the Bed (Pics)

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Neubs, Feb 27, 2009.

  1. Dec 19, 2011 at 12:34 PM
    #301
    TacomaPrime

    TacomaPrime Cybertronian Tacoma

    Joined:
    May 20, 2011
    Member:
    #56955
    Messages:
    1,782
    Gender:
    Male
    First Name:
    Gregory
    Illinois
    Vehicle:
    14 TRD sport 4x4 Barcelona Red
    Weathertech front floor liners, window vent visors. Custom bedside decals. OEM bed mat, tonneau covrew. Added D rings to bed.
  2. Dec 19, 2011 at 12:40 PM
    #302
    kryten

    kryten Well-Known Member

    Joined:
    Jun 23, 2009
    Member:
    #18813
    Messages:
    1,750
    Gender:
    Male
    Canada
    Vehicle:
    07 TRD Sport DCSB 6MT 4x4
    1" lift from 3rd gen suspension, 265/75/16 ATs
    I have toyota OEM D-rings and the way they are angled, the only way to install them without removing that big washer, was to put 2 small washers underneath. Take a look at the pic in my thread. That is NOT the correct way. It took me 5min each to sand that small ridge by hand without using any power tools and then I was able to install them correctly.

    EDIT: On the pic it looks like there is only one washer underneath, there are actually two, anyway that is NOT the correct way to install it.

  3. Dec 19, 2011 at 12:45 PM
    #303
    TacomaPrime

    TacomaPrime Cybertronian Tacoma

    Joined:
    May 20, 2011
    Member:
    #56955
    Messages:
    1,782
    Gender:
    Male
    First Name:
    Gregory
    Illinois
    Vehicle:
    14 TRD sport 4x4 Barcelona Red
    Weathertech front floor liners, window vent visors. Custom bedside decals. OEM bed mat, tonneau covrew. Added D rings to bed.
    got ya.

  4. Jan 18, 2012 at 4:54 PM
    #304
    Bobbb

    Bobbb "Rumors of Bob, but never Bob. It is Bob, right?"

    Joined:
    Sep 14, 2011
    Member:
    #63498
    Messages:
    1,244
    Gender:
    Male
    First Name:
    Bob
    Bob
    Vehicle:
    Bob
    Tundra TRD/OR

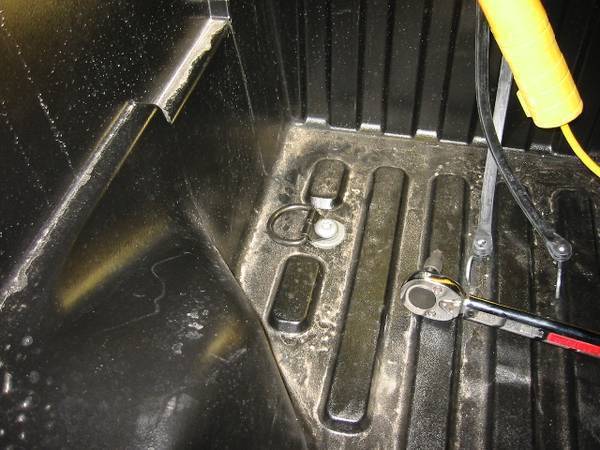

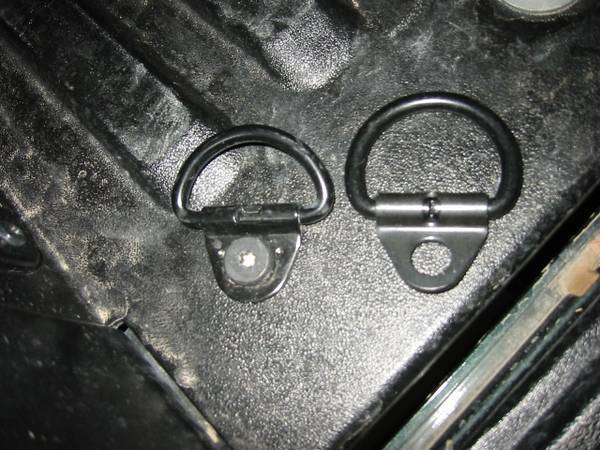

    Knocked out this mod today, but I used a couple different parts/methods. The first time I laid eyes on the OEM rings in the back they immediately reminded me of something Dodge uses. I used to be a fleet manager and we had a bunch of Dodge Sprinter cargo vans for deliveries. In the back of the vans, they had a handful of D-rings as well. Here's the Taco stock ring on the left and the Dodge ring on the right-

    [​IMG]

    You can order them directly from Mopar here for $3.48/ea + shipping. Just search for '2005' 'Sprinter Wagon' and use part # 05104500AA. Make sure to use the 'Wagon' addition as searching 'Sprinter' alone doesn't find the part. If you have trouble with their site (it often blows dog) you can also call them directly. I know I saw a number on their site before, but can't find it now. Their official name for the part is: 'Ring, Ring-Retainer'. What you see above is all you will get with no bolt, backing plate, etc. If you can find them via the site search they will list at $27.84, but that's for a quantity of 8 as that was the standard complement for each van. If you add it to your cart, it will only add one and you can adjust quantity from there. You can also order them through your local crappy Dodge dealer rather than pay s/h. After fighting with the site, I went this route and paid $5.34/ea + tax ($22.96 for four).

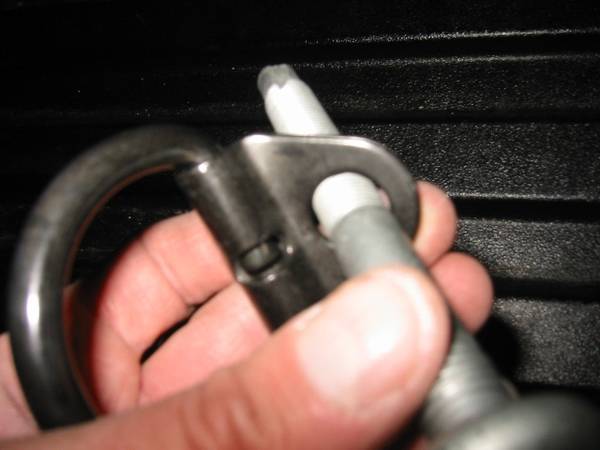

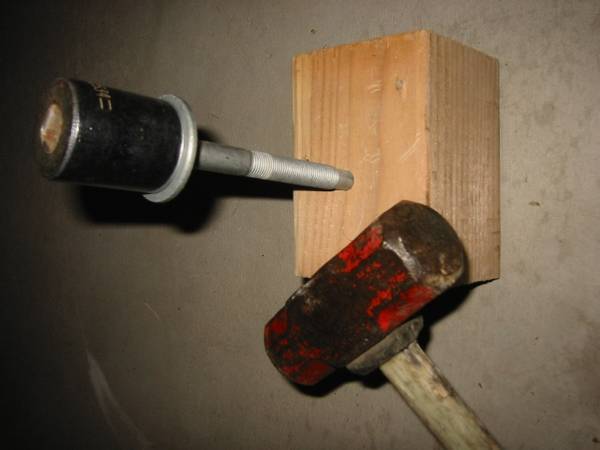

    On the sanding/grinding down the bolt retention ridges, I used a hammer instead. I recall reading either in this thread or somewhere about another Tacoer using a press. I figured if that would work then so would a BFH. 1-1/16" socket (this is a 12-pt socket and I've been informed that it needs to be 1-1/8" if it's a 6-pt) on top and scrap 4x4 block underneath. 2lb sledge whacks the washer past the ridges and after the first one's done, there's a nice hole in the block so no more holding the damn thing while you hit it-

    [​IMG]

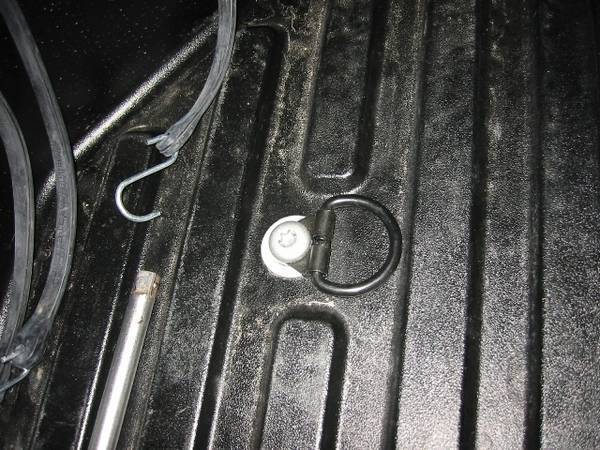

    The washer does end up slightly cupped so I reversed it so the cup faced the bolthead for re-install. I figure this helped center the washer in the bed hole plus it allowed the bolt ridges to press back through the washer upon torquing. These rings also come with the right size hole so no reaming required-

    [​IMG]

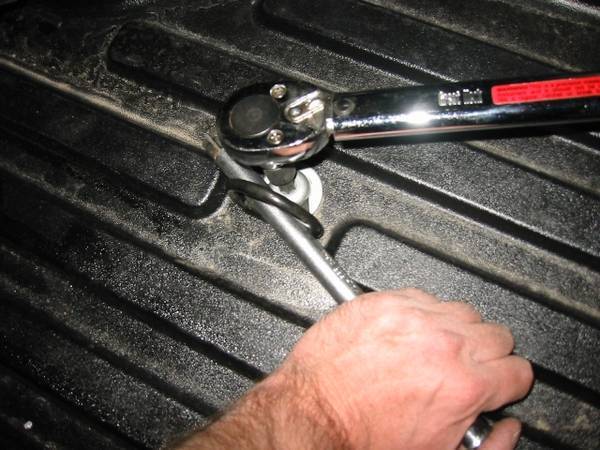

    Aligning ring where I want it while torquing (used 55lbs)-

    [​IMG]

    Side complete-

    [​IMG]

    Front complete-

    [​IMG]

    Since I didn't have to do any grinding on the bolts or reaming the retainers it literally took 5 minutes per ring start to finish (5 mo old truck so no rust/frozen bolts). These rings can be pulled up by fingers once mounted, but they are very snug so no rattling issues whatsoever.

    Anyhoo, I like these rings a lot because they're very similar to the OEM's, they're beefy as hell and even cheap to buy. Entire job took less than 40 minutes and that includes laying out tools, running over to Never Any Parts Available for a T-55 after I couldn't find mine ($3.33 + tax for impact) and cleanup. Thanks to all of the above posters who made this thing a walk in the park as I was able to set everything up in my head before ever grabbing a wrench!

    Last edited: May 31, 2013
  5. Jan 18, 2012 at 5:14 PM
    #305
    xJuice

    xJuice My spoon is too Big!

    Joined:
    Oct 24, 2007
    Member:
    #3208
    Messages:
    9,898
    Gender:
    Male
    First Name:
    Josh
    N. Texas
    Vehicle:
    19 Tundra MGM
    TRD Front & Rear Sway Bar, TRD Pro LED Headlights, Undercover SE, Rear diff. Relocate, console organizer, debadged, color matched handles, mirror caps, and grill
    Nice^^^ I bet the finish holds up better on those than the 'army surplus' ones.

  6. Jan 18, 2012 at 5:32 PM
    #306
    Bobbb

    Bobbb "Rumors of Bob, but never Bob. It is Bob, right?"

    Joined:
    Sep 14, 2011
    Member:
    #63498
    Messages:
    1,244
    Gender:
    Male
    First Name:
    Bob
    Bob
    Vehicle:
    Bob
    Tundra TRD/OR
    I'm hoping so! Won't know until I get a little weather on them, but then again, I live in the desert and have a cap on so it might be a while before I'll know. Might have to go spill my beer on them to see. Wait, no that would be wasting! I'll have to come up with something else...

  7. Feb 7, 2012 at 9:38 AM
    #307
    groundrules

    groundrules New Member

    Joined:
    Feb 7, 2012
    Member:
    #72306
    Messages:
    3
    Gender:
    Male
    Ohio
    Vehicle:
    '10 2.4L auto, 2x4
    Hey, so has anyone attempted to mount additional D-rings down the center line of the bed? Obviously couldn't use the bed/frame bolts for this, but maybe one of the OEM rings with the backer plate? Thanks..

  8. Feb 7, 2012 at 10:01 AM
    #308
    rpking

    rpking Well-Known Member

    Joined:
    Jun 19, 2011
    Member:
    #58543
    Messages:
    220
    Gender:
    Male
    First Name:
    Roger
    Ohio
    Vehicle:
    Tacoma 4x4 TRD off road
    painted engine cover, bed cover, color match door handles, window tint, seat covers, weather gaurd floor mats, TRD stainless steel cat back exhaust, front skid pan, bug deflector, custom holster mount in center console, OME 884X springs and shocks, 2" AAL, OME shocks
    Drink your beer, wait 15 min. crawl in the back of your truck and piss on em :notsure: Bad idea?? just sayin. Damn nice job, I'm gonna have to do this mod

  9. Feb 7, 2012 at 10:02 AM
    #309
    holyfield19

    holyfield19 GO TIGERS!

    Joined:
    Jan 13, 2011
    Member:
    #49179
    Messages:
    4,037
    Gender:
    Male
    First Name:
    Bob
    South Carolina
    Vehicle:
    06 DC TRD Sport 4X4
    Busted CV boots and lots of squeaks.
  10. Feb 7, 2012 at 12:33 PM
    #310
    ImpulseRed008

    ImpulseRed008 Gone But Not Forgotten

    Joined:
    Sep 9, 2008
    Member:
    #9104
    Messages:
    46,823
    Gender:
    Female
    First Name:
    Susan
    SC
    Vehicle:
    08 PreRunner SR5 V6 w/tow pkg
    OEM SS tube steps, Access LE tonneau cover, pop n'lock, AVS in-channel vent visors, stubby antenna, Wet Okole seat covers, bed mat, rear diff breather mod, 4 extra d rings in bed, K&N air filter.
    I wouldn't. Center of the bed isn't designed to have holes drilled in it, much less the stress of being pulled when being used.

    But, it's your truck...

  11. Feb 7, 2012 at 1:35 PM
    #311
    Mts49

    Mts49 Well-Known Member

    Joined:
    Feb 2, 2012
    Member:
    #71953
    Messages:
    86
    First Name:
    Tyler
    Bham, AL
    Vehicle:
    2020 SR5 DCSB 4X4 MGM
    Great thread, and good info on the beefy Dodge rings! Marked for future reference...

  12. Feb 7, 2012 at 2:42 PM
    #312
    groundrules

    groundrules New Member

    Joined:
    Feb 7, 2012
    Member:
    #72306
    Messages:
    3
    Gender:
    Male
    Ohio
    Vehicle:
    '10 2.4L auto, 2x4
    yeah, he wasn't joking about that site being dog doo though. I tried to go there and got this message:

    "Site Registration has expired for this site.
    You may contact us at 888-349-2298 or email us at estore@mopar.com"

    I was able to google around for that part number though, but ultimately it just directed me to order from a local dealer. I may try that email address and see what happens.

  13. Feb 7, 2012 at 2:53 PM
    #313
    groundrules

    groundrules New Member

    Joined:
    Feb 7, 2012
    Member:
    #72306
    Messages:
    3
    Gender:
    Male
    Ohio
    Vehicle:
    '10 2.4L auto, 2x4
    Interesting. serious question- you think the center of the bed (which presumably was designed to accommodate a heavy load) would be weaker than the side wall of the bed (where the factory recommends adding the loops)?

  14. Feb 7, 2012 at 3:29 PM
    #314
    Bobbb

    Bobbb "Rumors of Bob, but never Bob. It is Bob, right?"

    Joined:
    Sep 14, 2011
    Member:
    #63498
    Messages:
    1,244
    Gender:
    Male
    First Name:
    Bob
    Bob
    Vehicle:
    Bob
    Tundra TRD/OR
    When I told the parts guy at the Dodge dealer that I'd found these rings on their website, but that it was a pain in the ass to deal with, he let off with a string of colorful language about that site that was loud enough for the folks out in the service lounge to enjoy. I don't know what the hell happened to it now because I can't find my way back there either. I did find them via another Mopar site, but it just told me to try a dealer also.

    You might try local junkyards to see if there's a wrecked Sprinter laying out back that you can pull these out of too. BTW, these vans aren't actually Dodge. They're a Mercedes make and can be found as either Mercedes, Dodge or Freightliner so any of those dealers and/or parts sources might work too. They're looking for part #13 from the interior trim in this pic-

    [​IMG]

  15. Feb 7, 2012 at 3:42 PM
    #315
    ImpulseRed008

    ImpulseRed008 Gone But Not Forgotten

    Joined:
    Sep 9, 2008
    Member:
    #9104
    Messages:
    46,823
    Gender:
    Female
    First Name:
    Susan
    SC
    Vehicle:
    08 PreRunner SR5 V6 w/tow pkg
    OEM SS tube steps, Access LE tonneau cover, pop n'lock, AVS in-channel vent visors, stubby antenna, Wet Okole seat covers, bed mat, rear diff breather mod, 4 extra d rings in bed, K&N air filter.
    The middle of the bed wasn't designed for drilling holes or installing extra d rings. That part of the bed wasn't designed for upward stress. The toyota d rings come with a backing plate and specific locations to install them.

  16. Feb 7, 2012 at 4:05 PM
    #316
    jackbauersmom

    jackbauersmom Member

    Joined:
    Nov 9, 2011
    Member:
    #66774
    Messages:
    16
    Gender:
    Male
    indy
    Vehicle:
    11 DCLB 4x4 sport
    3" ome lift, trd beadlocks, bfg at, Nfab steps, bestop supertop
    sub'd

  17. Feb 7, 2012 at 5:38 PM
    #317
    xJuice

    xJuice My spoon is too Big!

    Joined:
    Oct 24, 2007
    Member:
    #3208
    Messages:
    9,898
    Gender:
    Male
    First Name:
    Josh
    N. Texas
    Vehicle:
    19 Tundra MGM
    TRD Front & Rear Sway Bar, TRD Pro LED Headlights, Undercover SE, Rear diff. Relocate, console organizer, debadged, color matched handles, mirror caps, and grill
    I'd say it would be fine. There's nothing special about the side of the bed where toyota shows them to be placed. In fact the bed floor may even be stronger with the ribbing in it. Although the only issue I'd see is there isn't a large enough recessed area to fit the d-ring. It would be sticking up above the floor line and you'd likely get stuff caught on it.

  18. Feb 7, 2012 at 8:03 PM
    #318
    clcoyle

    clcoyle Well-Known Member

    Joined:
    Sep 12, 2011
    Member:
    #63371
    Messages:
    201
    Gender:
    Male
    very well done

  19. Feb 8, 2012 at 2:33 PM
    #319
    a89aries

    a89aries Well-Known Member

    Joined:
    May 10, 2010
    Member:
    #36897
    Messages:
    142
    Gender:
    Male
    First Name:
    Alex
    London Ontario
    Vehicle:
    09 Tacoma TRD offroad
    Just bought 15, 4 for the truck, rest for the trailer!

    Thanks posters!

  20. Feb 18, 2012 at 8:36 AM
    #320
    JEP

    JEP Resident Lurker

    Joined:
    Aug 2, 2011
    Member:
    #61005
    Messages:
    683
    Gender:
    Male
    Madison
    Vehicle:
    15 DBL V6 4WD
    N-fabs, BakFlip VP, power tailgate lock, bed lights, "raptor" grill lights. Standard mall crawler stuff.
    Thanks for everyone that previously completed this MOD. I just installed 4 more in my bed this morning. I got the these from Army surplus.
