Installed D-Rings in the Bed (Pics)

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Neubs, Feb 27, 2009.

  1. Nov 7, 2021 at 12:59 PM
    #821
    steel wheels

    steel wheels Well-Known Member

    Joined:
    Jan 10, 2021
    Member:
    #352370
    Messages:
    311
    Gender:
    Male
    Vehicle:
    2020-ACLB-4x4-Sport-M/T
    The picture makes it all quite clear with the Sprinter D-ring. On most Dodge websites the Sprinters are less expensive but the shipping is kind of excessive. I'll go see a local Dodge dealer and see what he has to say...
    Thanks.

    Yep, I did think about a bevel and thought I'd ask about the sprinters.
    Thanks.

  2. Nov 7, 2021 at 1:04 PM
    #822
    steel wheels

    steel wheels Well-Known Member

    Joined:
    Jan 10, 2021
    Member:
    #352370
    Messages:
    311
    Gender:
    Male
    Vehicle:
    2020-ACLB-4x4-Sport-M/T
    That is a good friend you have... I married my best friend 45 yrs. ago and surprisingly she still likes me, or so she says...

  3. Nov 7, 2021 at 1:10 PM
    #823
    Pibbles99

    Pibbles99 One more cast

    Joined:
    Nov 3, 2015
    Member:
    #168608
    Messages:
    5,126
    Gender:
    Male
    First Name:
    Brian
    Southern NH
    Vehicle:
    21 OR dbl cab
    :thumbsup: :D

  4. Nov 7, 2021 at 1:26 PM
    #824
    Island Cruiser

    Island Cruiser TVita

    Joined:
    May 20, 2012
    Member:
    #79166
    Messages:
    3,937
    Gender:
    Male
    Kauai
    Vehicle:
    Baja
    Nice! I still would suggest spraying PB Blaster religiously every day, a few days before you start. It’ll really make it easier

  5. Nov 7, 2021 at 2:47 PM
    #825
    Pibbles99

    Pibbles99 One more cast

    Joined:
    Nov 3, 2015
    Member:
    #168608
    Messages:
    5,126
    Gender:
    Male
    First Name:
    Brian
    Southern NH
    Vehicle:
    21 OR dbl cab
    Under the bed right?

  6. Nov 7, 2021 at 2:55 PM
    #826
    Island Cruiser

    Island Cruiser TVita

    Joined:
    May 20, 2012
    Member:
    #79166
    Messages:
    3,937
    Gender:
    Male
    Kauai
    Vehicle:
    Baja
    Both under the bed and I even aimed beneath the bolt head

    Pibbles99[QUOTED] likes this.
  7. Nov 7, 2021 at 3:44 PM
    #827
    ODSC1

    ODSC1 Well-Known Member

    Joined:
    Nov 29, 2017
    Member:
    #237291
    Messages:
    1,982
    Gender:
    Male
    London ON
    Vehicle:
    2017 DCSB Sport MT
    Here is a link to another thread on Sprinter tie downs. The last post is mine and has pic of the bevel I put on the bed bolts. https://www.tacomaworld.com/threads/2020-tie-downs.700172/ . You'll need to grind the bolts a little bit anyways to get the washers off.

    Last edited: Nov 7, 2021
  8. Nov 15, 2021 at 9:35 PM
    #828
    T-Dozzer

    T-Dozzer Well-Known Member

    Joined:
    Jul 25, 2019
    Member:
    #300290
    Messages:
    73
    Gender:
    Male
    Those bolts were a PIA to get out. Had to heat em up to melt the thread lock.

  9. Jan 21, 2022 at 3:36 PM
    #829
    PNWTacoTruck

    PNWTacoTruck Well-Known Member

    Joined:
    Dec 17, 2021
    Member:
    #384884
    Messages:
    90
    Gender:
    Male
    First Name:
    Brent
    I have gone through every page of this thread. I'm just curious if the bed bolts go through composite, how are mine rusting? Do they thread into composite but have a metal sleeve at some point? Is there an exploded diagram of what they thread into? 90% of the threads are clean and then a 1cm section in the middle has rust. I have a 2010 ACLB.

  10. Jan 21, 2022 at 4:05 PM
    #830
    Island Cruiser

    Island Cruiser TVita

    Joined:
    May 20, 2012
    Member:
    #79166
    Messages:
    3,937
    Gender:
    Male
    Kauai
    Vehicle:
    Baja

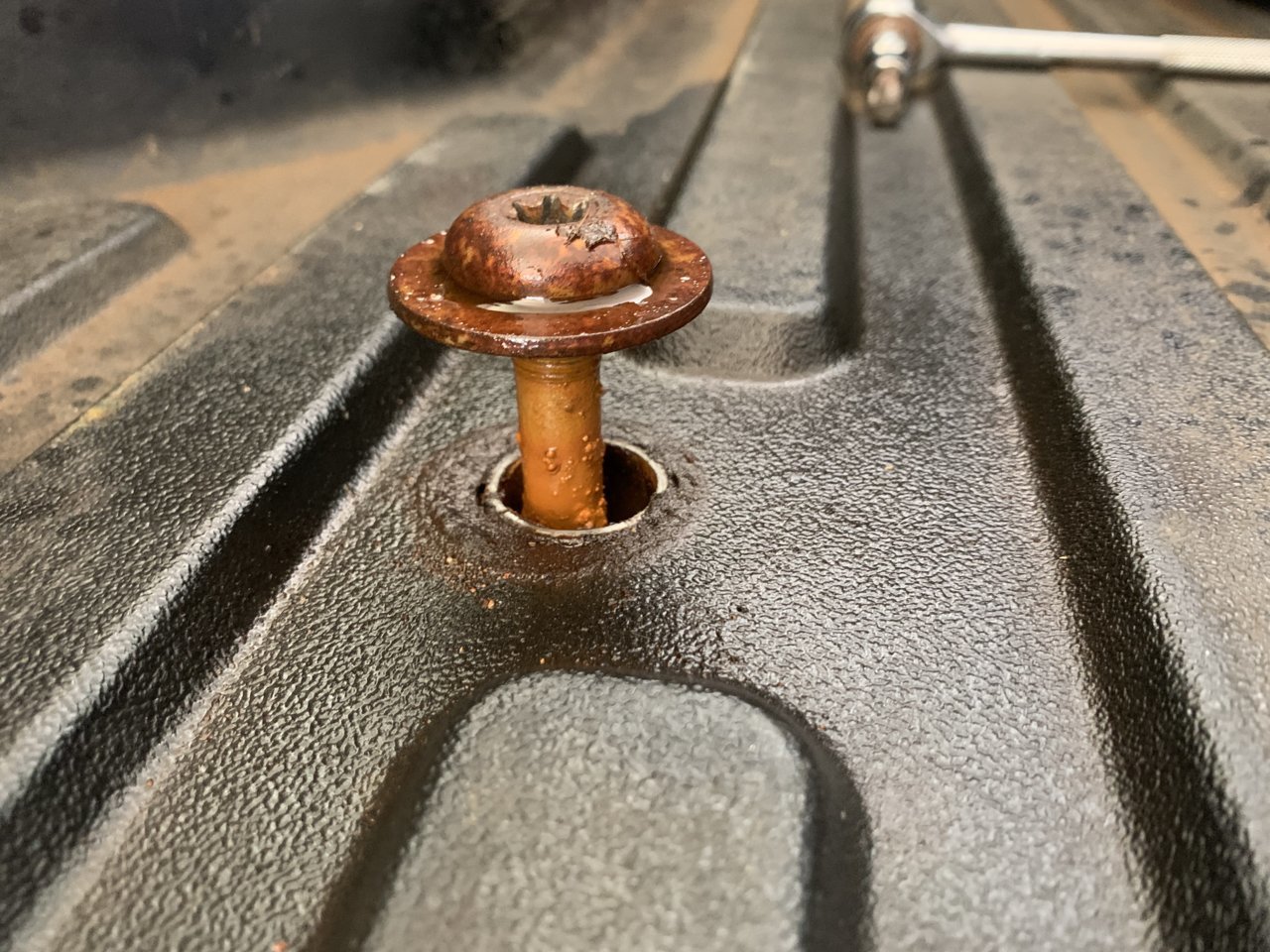

    There is a metal sleeve/well as you can see here. You’ll see where the end of the bolt threads through if you crawl underneath the bed

  11. Jan 21, 2022 at 6:05 PM
    #831
    srspicer

    srspicer Paint it black

    Joined:
    Jul 29, 2017
    Member:
    #225326
    Messages:
    1,590
    Gender:
    Male
    Lower Bucks PA.
    Vehicle:
    05' Black DBLC short bed
    Painting things black

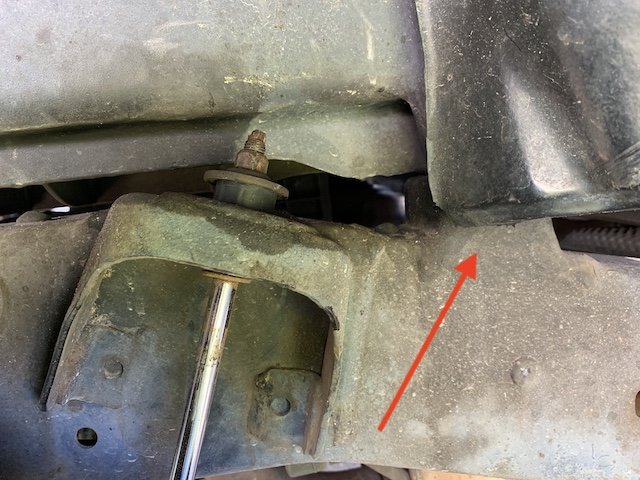

    The bolts thread through small raised pedestals that have a threaded section in the center. The pedestals also give the bed a level platform because of the shape of the frame. I pulled all six of mine just to make sure they would come out. A red arrow points to one of the pedestals that is partially hidden by the plastic wheel house liner.
    IMG_1169 copy.jpg

  12. Jan 21, 2022 at 7:36 PM
    #832
    PNWTacoTruck

    PNWTacoTruck Well-Known Member

    Joined:
    Dec 17, 2021
    Member:
    #384884
    Messages:
    90
    Gender:
    Male
    First Name:
    Brent
    So the screw doesn't thread into metal at any point, just passes through a steel collar, that narrows to a sleeve, before threading into the composite of the bed. Correct?

  13. Jan 21, 2022 at 7:49 PM
    #833
    Island Cruiser

    Island Cruiser TVita

    Joined:
    May 20, 2012
    Member:
    #79166
    Messages:
    3,937
    Gender:
    Male
    Kauai
    Vehicle:
    Baja
    The red arrow in @srspicer ’s pic points to where the bed bolt goes through. The bolt threads into the frame

  14. Jan 21, 2022 at 7:52 PM
    #834
    PNWTacoTruck

    PNWTacoTruck Well-Known Member

    Joined:
    Dec 17, 2021
    Member:
    #384884
    Messages:
    90
    Gender:
    Male
    First Name:
    Brent
    So is it threaded into the composite bed also, or just the frame?

  15. Jan 21, 2022 at 7:56 PM
    #835
    Island Cruiser

    Island Cruiser TVita

    Joined:
    May 20, 2012
    Member:
    #79166
    Messages:
    3,937
    Gender:
    Male
    Kauai
    Vehicle:
    Baja
    Just the frame. In my pic, you can see where the metal sleeve is and where the composite ends

  16. Jun 7, 2022 at 8:00 PM
    #836
    TheIncredibleTaco

    TheIncredibleTaco Well-Known Member

    Joined:
    May 19, 2021
    Member:
    #366219
    Messages:
    148
    Gender:
    Male
    Denver, CO
    Vehicle:
    2021 TRD OR DCSB
    Exhaust reroute RCI steel full skid plates (front, transfer case, transmission) Front camera (anytime backup camera) RCI rock sliders AC Drip mod OEM locking tailgate Brite box fogster anytime fogs Backwoods adventure mods hi-lite front bumper with Baja designs squadron pros ARB single OBA Fox 2.5 PES DSC 2-3” Wheelers superbumps + ubolt flip kit Deaver stage 1 u402 Cab mount chop+fender trim Rrw RR-7 -12 offset with 315/70r17 5.29 regear ARB front air locker Z precision big cupholder
    Super old post but I have the OEM d rings removed from my bed corners since I added a stiffener which has a bunch of tie points built in. A nylon washer will only rotate by unscrewing the bolt. The torque value is just too high for that thing to work. Oh well I guess they won’t rotate and will permanently stick up above the bed, not that I care since I hardly ever haul anything

  17. Jun 25, 2022 at 4:28 PM
    #837
    nettereo16

    nettereo16 Active Member

    Joined:
    Dec 8, 2014
    Member:
    #143896
    Messages:
    28
    Gender:
    Male
    Durham, NC
    Vehicle:
    06 TRD Sport AC
    How are the rear OEM D-Rings set up? I need to replace mine as they are rusted out.

    Looks like the bolt goes through the frame and has a nut behind it -- is there any section of the frame or an insert that is threaded I should know about??

  18. Jun 25, 2022 at 4:53 PM
    #838
    TheIncredibleTaco

    TheIncredibleTaco Well-Known Member

    Joined:
    May 19, 2021
    Member:
    #366219
    Messages:
    148
    Gender:
    Male
    Denver, CO
    Vehicle:
    2021 TRD OR DCSB
    Exhaust reroute RCI steel full skid plates (front, transfer case, transmission) Front camera (anytime backup camera) RCI rock sliders AC Drip mod OEM locking tailgate Brite box fogster anytime fogs Backwoods adventure mods hi-lite front bumper with Baja designs squadron pros ARB single OBA Fox 2.5 PES DSC 2-3” Wheelers superbumps + ubolt flip kit Deaver stage 1 u402 Cab mount chop+fender trim Rrw RR-7 -12 offset with 315/70r17 5.29 regear ARB front air locker Z precision big cupholder
    I didn’t take a photo but there’s a lot of hardware to get it spin and give it the right spacing. There’s a spacer, a star washer (to keep it assembled), and I think one more item.

    Looked up the bed stiffener I strictions that show it.
    Step 4 https://www.chaosfab.com/PDF/48676.pdf

    nettereo16[QUOTED] likes this.
  19. Jun 25, 2022 at 5:34 PM
    #839
    maineah

    maineah Well-Known Member

    Joined:
    Mar 24, 2011
    Member:
    #53641
    Messages:
    6,796
    Gender:
    Male
    First Name:
    Tim
    Maine
    Vehicle:
    4X4 SR5 V6 6spd
    If you notice the bolt it has drill bit on the tip that's what gets it into the frame. I added the extra rings maybe a week after I got the truck I would recommend anti seize in case you want to get them out. If you have a long bed a full size pickup tool box will fit in length wise bore a matching hole in the tool box and use one of the long bolts to hold it down lock the tool box and it's going no where.

    Last edited: Jun 25, 2022
  20. May 15, 2023 at 10:36 PM
    #840
    Suicyco

    Suicyco Well-Known Member

    Joined:
    Feb 8, 2017
    Member:
    #210044
    Messages:
    417
    Gender:
    Male
    Vehicle:
    14 ac 4x4
    Anyone have an extra toyota oe d-ring laying around in decent condition that you want to get rid of?
