Installed LR UCA's and billies..Toe in BAD!!

Discussion in 'Suspension' started by badguybuster, Jan 9, 2010.

  1. Jan 9, 2010 at 8:03 PM
    #1
    badguybuster

    badguybuster [OP] Well-Known Member

    Joined:
    Mar 8, 2009
    Member:
    #14475
    Messages:
    2,437
    Gender:
    Male
    West (by GOD) Virginia
    Vehicle:
    2008 Tundra Off Road SR5
    6000K HID Headlights 6000k HID Fog Lights Window visors (all 4) Tri-Fold Tonno Bedlined Rockers Bedlined Bumpers Bilstein 5100 Toytec 1/2" spacers 3" TSB Leafs and AAL's (Toytec) Differential 1" Drop Sway Bar Relocators BHLM Mod Debadged Pro Comp 7089s Hankook Dynapro 35" M/T's Billett Grill 55 watt fog lights in grill 55 watt fog lights on Pre-Runner Light Bar Rear Bilstein 5100's Flowmaster Super 10's Yellow Fog Light Mod Titanium Burl Wood Grain Dash Mod Leather Arm Rest Mod TRD Steering wheel Mod Painted Engine Cover Painted Fuse Box TRD Seat Belt Covers Bed Light Mod Extended/Braided Brake Lines Back up light mod

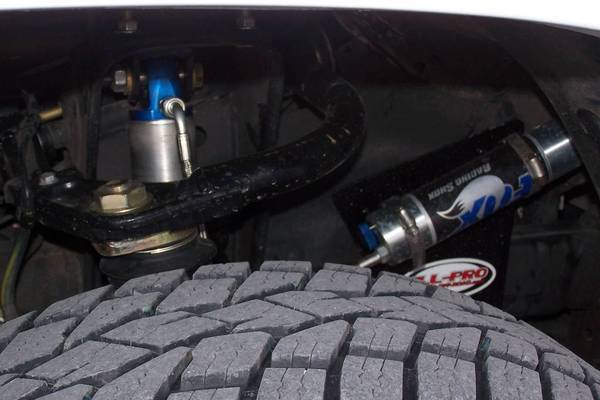

    Ok. I installed my LR UCA's today (notice I painted them to match the truck :D). I also installed my 5100's with OME 885's and toytec spacers. The install went perfect..no fuss..no muss. Now, I definitely have to have my alignment done ASAP!! The tires are toe'd in really bad.:confused: That really sucks since there is no way to get it done until Monday. Sorry that the pics are bad, I took them with my cell phone at night by the lovely glow of work lights.

    [​IMG]
    Dontcha just love road salt!!!!:mad:

    [​IMG]

    I also did some fiddling with my bumper and flares to try and minimize the damage done when the chicken shit hit me and took off. Wasn't too successful.

  2. Jan 9, 2010 at 8:26 PM
    #2
    brutalguyracing

    brutalguyracing BIG DADDY

    Joined:
    Jun 28, 2009
    Member:
    #19000
    Messages:
    24,038
    Gender:
    Male
    F.U> GUYZ
    broken mods
    how hard was the install of the uca......im saving for a set myself.....any special tools needed??

  3. Jan 9, 2010 at 11:54 PM
    #3
    stenyeart

    stenyeart Well-Known Member

    Joined:
    Aug 3, 2009
    Member:
    #20575
    Messages:
    151
    Gender:
    Male
    First Name:
    Sean
    Lewiston, Idaho
    Vehicle:
    06 DC TRD OR SWB
    3" Toytec Lift w/ AAL, TRD CAI, Leer 700 Series, Hypertech Speedo Calibrator, Locker Anytime Mod, LR UCA's, OEM Roof Rack, Satoshi grill with Devil Horns Emblem, USA Spec PA-15 Toy Ipod Integration, Redline Tuning Hood Struts and EZ Down Tailgate.
    Did mine today too. Very easy install, only took an hour and a half for the Light Racing UCA's. I'm also in the same situation on alignment, have to wait until Monday. I already had it lifted so I think my alignment is close as I use my "eyeball" guage.

  4. Jan 10, 2010 at 5:17 AM
    #4
    badguybuster

    badguybuster [OP] Well-Known Member

    Joined:
    Mar 8, 2009
    Member:
    #14475
    Messages:
    2,437
    Gender:
    Male
    West (by GOD) Virginia
    Vehicle:
    2008 Tundra Off Road SR5
    6000K HID Headlights 6000k HID Fog Lights Window visors (all 4) Tri-Fold Tonno Bedlined Rockers Bedlined Bumpers Bilstein 5100 Toytec 1/2" spacers 3" TSB Leafs and AAL's (Toytec) Differential 1" Drop Sway Bar Relocators BHLM Mod Debadged Pro Comp 7089s Hankook Dynapro 35" M/T's Billett Grill 55 watt fog lights in grill 55 watt fog lights on Pre-Runner Light Bar Rear Bilstein 5100's Flowmaster Super 10's Yellow Fog Light Mod Titanium Burl Wood Grain Dash Mod Leather Arm Rest Mod TRD Steering wheel Mod Painted Engine Cover Painted Fuse Box TRD Seat Belt Covers Bed Light Mod Extended/Braided Brake Lines Back up light mod
    I tried the eyeball as best as I could. But installing both the struts and the UCA's really put it out of whack. I hate to even drive it like this but I don't have any choice. It will definitely go in on Monday.

  5. Jan 10, 2010 at 5:58 AM
    #5
    MurphyZ

    MurphyZ Well-Known Member

    Joined:
    Jan 10, 2009
    Member:
    #12441
    Messages:
    745
    Gender:
    Male
    First Name:
    I HATE SPICYTACOS
    Alaska
    Vehicle:
    97 4runner, 08 Tundy
    89 SAS 3.4 1st gen 4runner- Sold 3.4 swap cut hood for clearance exhaust x-over and magnaflow muffler lockright in the rear SAS 83 toy axle (Wab-Fab) 4xinnovations sliders roof rack from 2nd gen for kayak.
    man that is a good setup u should be fine til monday. unless you have a long commute or something.

  6. Jan 10, 2010 at 6:42 AM
    #6
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Moderator

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    106,192
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    Something doesnt look right.....Shouldnt the gold'ish peice of steel under the UCA have the flat side facing out?

  7. Jan 10, 2010 at 8:26 AM
    #7
    pataco

    pataco Well-Known Member

    Joined:
    Jan 1, 2009
    Member:
    #12092
    Messages:
    2,070
    Gender:
    Male
    Down by the lake
    Vehicle:
    05 4x4 trd dc white
    FOX 2.0 RESIS,LRUCAS,BILLY 5100S ON THE REAR.MAGNAFLOW 11264,COLOR MATCHED GRILL,YELLOW FOG MOD.OVER HEAD DVD,FEDERAL COURAGIA M/T
    hard to tell in that pic.my flat is facing to the rear of the truck with the rounded part to the front.[​IMG]

  8. Jan 10, 2010 at 8:30 AM
    #8
    SC4333

    SC4333 Well-Known Member

    Joined:
    Dec 9, 2008
    Member:
    #11412
    Messages:
    2,190
    Gender:
    Male
    First Name:
    Grant
    San Antonio, TX
    Vehicle:
    2016 TRD Off-Road 4x4 DCSB - Super White
    SOLD!
    Its hard to tell from the picture, but I would agree that it appears the UCAs were assembled incorrectly.

  9. Jan 10, 2010 at 1:08 PM
    #9
    stenyeart

    stenyeart Well-Known Member

    Joined:
    Aug 3, 2009
    Member:
    #20575
    Messages:
    151
    Gender:
    Male
    First Name:
    Sean
    Lewiston, Idaho
    Vehicle:
    06 DC TRD OR SWB
    3" Toytec Lift w/ AAL, TRD CAI, Leer 700 Series, Hypertech Speedo Calibrator, Locker Anytime Mod, LR UCA's, OEM Roof Rack, Satoshi grill with Devil Horns Emblem, USA Spec PA-15 Toy Ipod Integration, Redline Tuning Hood Struts and EZ Down Tailgate.
    The UCA's are installed correctly. The gold piece you guys are talking about is how the caster is adjusted. It can be rotated to 8 different settings (spread out evenly over a 360 degree rotation). It looks like he has it set at a +2.0 caster, which is what he needs to correct his alignment.

  10. Jan 10, 2010 at 1:09 PM
    #10
    stenyeart

    stenyeart Well-Known Member

    Joined:
    Aug 3, 2009
    Member:
    #20575
    Messages:
    151
    Gender:
    Male
    First Name:
    Sean
    Lewiston, Idaho
    Vehicle:
    06 DC TRD OR SWB
    3" Toytec Lift w/ AAL, TRD CAI, Leer 700 Series, Hypertech Speedo Calibrator, Locker Anytime Mod, LR UCA's, OEM Roof Rack, Satoshi grill with Devil Horns Emblem, USA Spec PA-15 Toy Ipod Integration, Redline Tuning Hood Struts and EZ Down Tailgate.
  11. Jan 11, 2010 at 3:33 PM
    #11
    Metallikatz3

    Metallikatz3 Well-Known Member

    Joined:
    Sep 10, 2008
    Member:
    #9124
    Messages:
    636
    SLC, UT
    Vehicle:
    2017 DCLB OR (on the way)
    Yeah you can spin the ball joint in the LCA to change caster. Just depends how much change you need. No change at all has the flat side facing out

  12. Jan 11, 2010 at 7:24 PM
    #12
    badguybuster

    badguybuster [OP] Well-Known Member

    Joined:
    Mar 8, 2009
    Member:
    #14475
    Messages:
    2,437
    Gender:
    Male
    West (by GOD) Virginia
    Vehicle:
    2008 Tundra Off Road SR5
    6000K HID Headlights 6000k HID Fog Lights Window visors (all 4) Tri-Fold Tonno Bedlined Rockers Bedlined Bumpers Bilstein 5100 Toytec 1/2" spacers 3" TSB Leafs and AAL's (Toytec) Differential 1" Drop Sway Bar Relocators BHLM Mod Debadged Pro Comp 7089s Hankook Dynapro 35" M/T's Billett Grill 55 watt fog lights in grill 55 watt fog lights on Pre-Runner Light Bar Rear Bilstein 5100's Flowmaster Super 10's Yellow Fog Light Mod Titanium Burl Wood Grain Dash Mod Leather Arm Rest Mod TRD Steering wheel Mod Painted Engine Cover Painted Fuse Box TRD Seat Belt Covers Bed Light Mod Extended/Braided Brake Lines Back up light mod
    I got the alignment done today and it took about 2 hours. The Tech couldn't figure out how to work the adjustible ball joints. I had to show him (after providing the directions). Once he got the hang of it, there were no issues. She is in perfect alignment. Although, after going up another 1/2" in lift I am getting a very slight vibration at highway speeds. Nothing really noticeable but she is my girl and I notice everything!!! I really love the look of the LR UCA's, especially after painting them to match the truck. Combined with the new 885's and Billies, she is rockin it out!!!!:D

  13. Jan 12, 2010 at 3:07 AM
    #13
    pataco

    pataco Well-Known Member

    Joined:
    Jan 1, 2009
    Member:
    #12092
    Messages:
    2,070
    Gender:
    Male
    Down by the lake
    Vehicle:
    05 4x4 trd dc white
    FOX 2.0 RESIS,LRUCAS,BILLY 5100S ON THE REAR.MAGNAFLOW 11264,COLOR MATCHED GRILL,YELLOW FOG MOD.OVER HEAD DVD,FEDERAL COURAGIA M/T
    good to hear.

  14. Jan 12, 2010 at 3:51 AM
    #14
    T@co_Pr3runn3r

    T@co_Pr3runn3r XXXXXXXXXXXXXXXXXXX

    Joined:
    Jan 20, 2009
    Member:
    #12767
    Messages:
    11,951
    Gender:
    Male
    <----------------->
    Vehicle:
    08 RC Prerunner SR5
    Thanks for that link. I have 5100s @ 2.5 & LR UCAs sittin in the garage waitin for my lame ass to throw them on & go get a free alignment. Looks to me that for 2+ caster, (according to the chart in the link), the flat sides should point outward on each side with the ball joint stud pulled back towards rear of truck. Toytec posted that chart, I need + caster back & will be following this chart.

    BTW, none of the positions on the chart indicate clocking the rounded side of the locking plate toward the outside,front or rear of the vehicle for any caster setting. If you check out the chart, the only thing changing the caster is how you center the balljoint stud. The flat side points out in every position, which is also what Chris4x4 was saying about it not looking right. If he's skeptical, you might wanna listen up.........Not sure how OP got correct alignment with round side out but cool if so. I however, will be following the chart from Toytec post & Chris4x4's intuitiveness.

  15. Jan 12, 2010 at 8:54 AM
    #15
    badguybuster

    badguybuster [OP] Well-Known Member

    Joined:
    Mar 8, 2009
    Member:
    #14475
    Messages:
    2,437
    Gender:
    Male
    West (by GOD) Virginia
    Vehicle:
    2008 Tundra Off Road SR5
    6000K HID Headlights 6000k HID Fog Lights Window visors (all 4) Tri-Fold Tonno Bedlined Rockers Bedlined Bumpers Bilstein 5100 Toytec 1/2" spacers 3" TSB Leafs and AAL's (Toytec) Differential 1" Drop Sway Bar Relocators BHLM Mod Debadged Pro Comp 7089s Hankook Dynapro 35" M/T's Billett Grill 55 watt fog lights in grill 55 watt fog lights on Pre-Runner Light Bar Rear Bilstein 5100's Flowmaster Super 10's Yellow Fog Light Mod Titanium Burl Wood Grain Dash Mod Leather Arm Rest Mod TRD Steering wheel Mod Painted Engine Cover Painted Fuse Box TRD Seat Belt Covers Bed Light Mod Extended/Braided Brake Lines Back up light mod
    I will take a pic tonight to show my settings, so ya'll can see how it looks.

  16. Jan 12, 2010 at 10:45 AM
    #16
    Masada

    Masada Well-Known Member

    Joined:
    Sep 10, 2009
    Member:
    #22555
    Messages:
    3,093
    Gender:
    Male
    First Name:
    Taylor
    Laveen, AZ
    Vehicle:
    05 Tacoma 4x4 TRD Off Road
    All Pro Steel Plate Front Bumper| All Pro Light Bar| All Pro IFS Skid Plate| All Pro E-locker guard| PIAA 510 Fog Lights| Hella 700FF| Fox 2.5 Coilover| Bilstein 5100 on the rear| BHLM| Grill Craft MX Series insert| Added two D-rings to bed|AVID Off Road sliders| AFE Dry Flow S| Gibson Cat Back| Custom Bedbar with hilift mount| Camburg 1" Uni-Ball UCA's| Hi-Lift 48" Extreme
    So when you installed them did you mess with any of the adjustments?

  17. Jan 12, 2010 at 10:53 AM
    #17
    badguybuster

    badguybuster [OP] Well-Known Member

    Joined:
    Mar 8, 2009
    Member:
    #14475
    Messages:
    2,437
    Gender:
    Male
    West (by GOD) Virginia
    Vehicle:
    2008 Tundra Off Road SR5
    6000K HID Headlights 6000k HID Fog Lights Window visors (all 4) Tri-Fold Tonno Bedlined Rockers Bedlined Bumpers Bilstein 5100 Toytec 1/2" spacers 3" TSB Leafs and AAL's (Toytec) Differential 1" Drop Sway Bar Relocators BHLM Mod Debadged Pro Comp 7089s Hankook Dynapro 35" M/T's Billett Grill 55 watt fog lights in grill 55 watt fog lights on Pre-Runner Light Bar Rear Bilstein 5100's Flowmaster Super 10's Yellow Fog Light Mod Titanium Burl Wood Grain Dash Mod Leather Arm Rest Mod TRD Steering wheel Mod Painted Engine Cover Painted Fuse Box TRD Seat Belt Covers Bed Light Mod Extended/Braided Brake Lines Back up light mod
    No, I set it at "0". Or at least what I believe was zero:D. then I let the alignment guys do their thing.
