Installed Resister for LED hyper-flashing

Discussion in '3rd Gen. Tacomas (2016-2023)' started by JabambyBrew, Mar 28, 2019.

  1. Mar 28, 2019 at 12:17 PM
    #1
    JabambyBrew

    JabambyBrew [OP] Well-Known Member

    Joined:
    Nov 6, 2018
    Member:
    #271828
    Messages:
    158
    Gender:
    Male
    First Name:
    JB
    Denver NC
    Vehicle:
    2019 Toyota Tacoma TRD PRO
    I installed resister for my rear turn singles for hyper-flashing on my LEDs. I watch Taco Twans video 5 time before I installed them. After installing them I still get hyper-flashing when I have the lights on but not when I have the hazards on. I noticed in the video Taco Twan doesn’t test each turn singles out by its self just the hazards. What an I doing wrong? Any help would be great!

  2. Mar 28, 2019 at 12:54 PM
    #2
    Siblue

    Siblue Well-Known Member

    Joined:
    Dec 2, 2014
    Member:
    #143489
    Messages:
    3,077
    Gender:
    Male
    First Name:
    Ryan
    So Cal
    Vehicle:
    22 Tundra
    LEDs used for rear turn signal or LED turn signals in front too?
    If both you will need 4 load resistors total.

  3. Mar 28, 2019 at 1:07 PM
    #3
    Technique

    Technique Well-Known Member

    Joined:
    Nov 4, 2017
    Member:
    #235046
    Messages:
    2,633
    Gender:
    Male
    First Name:
    Alex
    Utah
    Vehicle:
    2017 Silver Offroad DCSB
    -285/70/17 Toyo AT3 -Tuned
    I only used resistors in the rear - I have LED everything in my tail lights + LED front turns.

    Did you use 50w 6ohm resistors?

  4. Mar 28, 2019 at 1:10 PM
    #4
    VE7OSR

    VE7OSR нет войне

    Joined:
    Dec 12, 2011
    Member:
    #68608
    Messages:
    5,773
    Gender:
    Male
    First Name:
    Rob II
    Okanagan, Canada
    Vehicle:
    05 DCLB TRD Sport
    Armour: All-Pro Skid plates - IFS, transmission, and transfer case. Pelfreybilt rear standard plate bumper, Metal Tech Sliders w/ kickout and dimple die filler plates. Front Suspension: OME 885 + NitroCharger 9000 shocks + 1/2" spacers for a 3" lift. Superbumps replacing stock bumpstops. Camburg ball joint UCA SS braid brake lines Future: ADS Extended length, extended length UCA BJ to increase droop capability Rear Suspension: All-Pro Expedition rear leafs, Walker Evans 27" rear shocks, extended rear brake lines (Wheelers Offroad), U -bolt flip kit, rear Timbren bumpstops. Future: Hammer Hangers, Shock relocate, ADS 12" or 14" shock. Interior: Weatherteck floor liners - front, Wet Okoles- front, ScanGauge, LED interior & map lights. Power moonroof. Exterior: Raider Cobra canopy, retrofit headlight by Insight, LED bulbs all around, modified flasher unit for LEDs. Rear diff breather mod. Front diff vibe problem, driver's side needle bearing replaced with ECGS bushing. yet to install: HID Blazer Fog Retrofit, LED Flood & Spot, + switches, fuse panel. swaybar relocate blocks (build my own)
    Symptoms would indicate resistance is too high. Suspect double check connections made for poor connection, or reduce resistance by another ohm ie 6 ohm to 5 ohm.

  5. Mar 28, 2019 at 1:58 PM
    #5
    JabambyBrew

    JabambyBrew [OP] Well-Known Member

    Joined:
    Nov 6, 2018
    Member:
    #271828
    Messages:
    158
    Gender:
    Male
    First Name:
    JB
    Denver NC
    Vehicle:
    2019 Toyota Tacoma TRD PRO
    This what I used.

    https://www.amazon.com/Resistors-Si...id=1553806502&s=gateway&sprefix=led+re&sr=8-8

    I even went ahead and redid the connections. I do have led turn singles in the front but never had a problem with them.

  6. Mar 28, 2019 at 3:50 PM
    #6
    Vinci

    Vinci Well-Known Member

    Joined:
    Mar 13, 2019
    Member:
    #286494
    Messages:
    233
    Sarasota, FL
    Vehicle:
    '17 MGM Limited 4x4
    Which wires did you bridge in the rear? You should have bridged the yellow to the white/black on the driver side and the blue to white/black on the passenger side.

    The size resistors you have match what I successfully used, so I think you may have a wiring issue.

    The hazards don't hyperflash because they bypass the normal flasher circuit and always flash at a set rate

  7. Mar 28, 2019 at 4:17 PM
    #7
    JabambyBrew

    JabambyBrew [OP] Well-Known Member

    Joined:
    Nov 6, 2018
    Member:
    #271828
    Messages:
    158
    Gender:
    Male
    First Name:
    JB
    Denver NC
    Vehicle:
    2019 Toyota Tacoma TRD PRO
    From what you said I did it wrong. I think Taco Twan did it wrong as well. Yeah I didn’t do the yellow or blue wires. Dammmmit. Easy fix though. Thanks for the help.

  8. Mar 28, 2019 at 4:47 PM
    #8
    Vinci

    Vinci Well-Known Member

    Joined:
    Mar 13, 2019
    Member:
    #286494
    Messages:
    233
    Sarasota, FL
    Vehicle:
    '17 MGM Limited 4x4
    I had to check them with a meter because, like you, I found that information seemed to be conflicting where I was reading. If you bridged the white/black and green (both thinner wires), that was the running light.

  9. Mar 28, 2019 at 6:31 PM
    #9
    Siblue

    Siblue Well-Known Member

    Joined:
    Dec 2, 2014
    Member:
    #143489
    Messages:
    3,077
    Gender:
    Male
    First Name:
    Ryan
    So Cal
    Vehicle:
    22 Tundra
    WTF is a Taco Twan?

    ricco333, musicisevil and MrBrooks like this.
  10. Mar 29, 2019 at 4:41 AM
    #10
    JabambyBrew

    JabambyBrew [OP] Well-Known Member

    Joined:
    Nov 6, 2018
    Member:
    #271828
    Messages:
    158
    Gender:
    Male
    First Name:
    JB
    Denver NC
    Vehicle:
    2019 Toyota Tacoma TRD PRO
    YouTube channel lol

    Siblue[QUOTED] likes this.
  11. Mar 29, 2019 at 6:28 AM
    #11
    JabambyBrew

    JabambyBrew [OP] Well-Known Member

    Joined:
    Nov 6, 2018
    Member:
    #271828
    Messages:
    158
    Gender:
    Male
    First Name:
    JB
    Denver NC
    Vehicle:
    2019 Toyota Tacoma TRD PRO
    Thanks for the info. That fixed it. Oh yeahhhh!

  12. Mar 29, 2019 at 9:05 AM
    #12
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,270
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

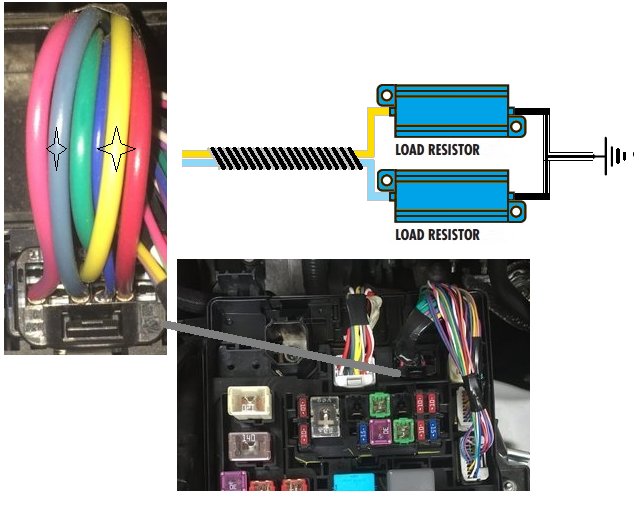

    Another option for those looking to do the same.

  13. Oct 1, 2020 at 10:43 AM
    #13
    van_isle_taco

    van_isle_taco Member

    Joined:
    Jul 24, 2020
    Member:
    #335504
    Messages:
    5
    Gender:
    Male
    Vancouver Island, BC
    Vehicle:
    2020 Tacoma OR DCSB
    I had to add some resistors for after swapping out all my bulbs for LEDs and this post saved me so much time. Thanks @Vinci!

    Vinci[QUOTED] likes this.
  14. Dec 20, 2023 at 9:54 AM
    #14
    Frankmelton

    Frankmelton Member

    Joined:
    May 17, 2023
    Member:
    #424869
    Messages:
    10
    Gender:
    Male
    I see this is an old post, but I am having similar issues. Is there a way to install one resistor for the entire lighting system? I thought this was one circuit. I have after-market LED assemblies in the front and rear. The hazard lights only work when the engine is running. I am sure I need a resistor. I don't know which one and how to install it.

  15. Dec 20, 2023 at 9:58 AM
    #15
    3JOH22A

    3JOH22A Toyota Gigolo

    Joined:
    Mar 27, 2019
    Member:
    #288172
    Messages:
    10,126
    Gender:
    Male
    District 6ix
    Vehicle:
    3G Tacoma on 35"s, 5G 4Runner
    ^You have aftermarket tail light assemblies or LED bulbs? Most LED tail light assemblies have the load resistor mounted right on the casing.

    Chew likes this.
  16. Dec 20, 2023 at 10:03 AM
    #16
    Frankmelton

    Frankmelton Member

    Joined:
    May 17, 2023
    Member:
    #424869
    Messages:
    10
    Gender:
    Male
  17. Dec 20, 2023 at 12:22 PM
    #17
    3JOH22A

    3JOH22A Toyota Gigolo

    Joined:
    Mar 27, 2019
    Member:
    #288172
    Messages:
    10,126
    Gender:
    Male
    District 6ix
    Vehicle:
    3G Tacoma on 35"s, 5G 4Runner
    ^Googling the Keystone P/N TO2503291 shows this headlight is intended for 2020+ TRD OR/Sport/Limited models that came with the same style of LED reflector headlights from the factory (i.e. it's intended to be a crash replacement part). What year and model is your truck? Are you using any adapter harnesses?

  18. Dec 20, 2023 at 12:26 PM
    #18
    Frankmelton

    Frankmelton Member

    Joined:
    May 17, 2023
    Member:
    #424869
    Messages:
    10
    Gender:
    Male
    I have a 2019 Tacoma TRD Sport. I had to use the conversion kit to make it fit into my truck.

  19. Dec 20, 2023 at 12:38 PM
    #19
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,270
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Left & Right, so you'll need one per side.

    Frankmelton[QUOTED] likes this.
  20. Dec 25, 2023 at 6:11 AM
    #20
    Frankmelton

    Frankmelton Member

    Joined:
    May 17, 2023
    Member:
    #424869
    Messages:
    10
    Gender:
    Male
    Has anyone installed resistors on OEM LED headlights? I know it doesn't sound very clear. The situation is that I got OEM LED headlights for my truck (Aftermarket headlights come with the resistors already installed), and now I am having issues with the hazard lights only when the car is not running. Are there any schematics on how to install the 50W load resistor? I need to find out which is the blinker cable. I understand that one end of the resistor goes to the ground cable and the other to the blinker cable. Thats is difficult to tell because my conversion kit only has DRL, Low beam, and high beam.
