Discussion in 'Audio & Video' started by Jerez, Apr 3, 2012.

Page 12 of 21
  1. Jul 16, 2013 at 12:08 PM
    #221
    anarion55

    #221
    anarion55 Well-Known Member

    Joined:
    Mar 3, 2013
    Member:
    #98907
    Messages:
    326
    Gender:
    Male
    First Name:
    Tony
    S. Florida
    Vehicle:
    2013 PreRunner SR5
    ImMrYo's Mirror Mod, Stereo Upgrade - Power Pro 60x4 Amp/Kicker powered 8" sub/Pioneer component speakers, PassPort 8500 Radar Detector, Locking Bed Storage Cubbies, Onboard air system - Viair 450C compressor/16 gal. PVC tank/15 & 16" horns, quick-d/c air chuck in bed cubby 24" LED light Bar (mounted to skidplate)A Headlights, foglights interior lights and backup lights all converted to LED (HUGE difference)

    This is the color code/pin out for the stereo wiring harness. Keep in mind that these wires are spread out among several connectors, and not how you'd think (i.e. the rear speaker wires are on a different connector than the front speaker wires). Good luck.

    [FONT=&quot]
    [/FONT]    ​
    [FONT=&quot]WIRE COLOR [/FONT][FONT=&quot](First color listed is the wire's main insulation color; second color, if any, is the stripe color)[/FONT]
    [FONT=&quot]Accessory 12 Volt[/FONT] [FONT=&quot]GRAY[/FONT] (Pin 3)
    [FONT=&quot]Constant 12 Volt[/FONT] [FONT=&quot]BLUE/YELLOW (Pin 4)[/FONT]
    [FONT=&quot]Chassis Ground[/FONT] [FONT=&quot]BROWN (Pin 7)[/FONT]
    [FONT=&quot]Illumination[/FONT][FONT=&quot] GREEN/RED[/FONT] (Pin 10)
    [FONT=&quot]Dimmer[/FONT] [FONT=&quot]BROWN/WHITE[/FONT] (Pin 15)

    [FONT=&quot]If vehicle is equipped with front door tweeters, they are wired in parallel with the door woofers.
    [/FONT]
    [FONT=&quot]Left Front Spkr +[/FONT] [FONT=&quot]PINK (Pin 2) (L.GN at Spkr) ¹[/FONT]
    [FONT=&quot]Left Front Spkr -[/FONT][FONT=&quot]VIOLET (Pin 6) (BU at Spkr) ¹[/FONT]
    [FONT=&quot]Right Front Spkr +[/FONT] [FONT=&quot]LIGHT GREEN[/FONT] (Pin 1)
    [FONT=&quot]Right Front Spkr -[/FONT] [FONT=&quot]BLUE[/FONT] (Pin 5)
    [FONT=&quot]Left Rear Spkr +[/FONT][FONT=&quot] BLACK (Pin 12)(RD at Spkr) ²[/FONT]
    [FONT=&quot]Left Rear Spkr -[/FONT] [FONT=&quot]YELLOW (Pin 16) (WT at Spkr) ²[/FONT]
    [FONT=&quot]Right Rear Spkr +[/FONT] [FONT=&quot]RED[/FONT] (Pin 11)[FONT=&quot] ²[/FONT]
    [FONT=&quot]Right Rear Spkr -[/FONT] [FONT=&quot]WHITE[/FONT] (Pin 13)[FONT=&quot] ²[/FONT]

    [FONT=&quot]
    ¹ Without Power Windows.

    ² Applies to Regular Cab and Double Cab models only. Rear speaker wires are on a different connector than the front speaker wires

    There IS NO Remote or Power Antenna output from the Non-JBL head unit. You must wire your amp remote inputs to the switched 7.5 amp fuse in the driver's side fuse panel. I used a "piggy back" fuse/power takeoff for this AND my radar detector power, so everything turns on with the ignition key... no transients or "thumps".[/FONT]

    anarion55, Jul 16, 2013
    #221
  2. Jul 16, 2013 at 2:29 PM
    #222
    CAD41985

    #222
    CAD41985 Well-Known Member

    Joined:
    Oct 11, 2012
    Member:
    #88750
    Messages:
    93
    Gender:
    Male
    First Name:
    Corey
    Virginia Beach, VA
    Vehicle:
    12 TRD Sport 4x4 DCLB Super White
    Toytec 3" ULK, LR UCA's, 17" Procomp 7089's with 285/70/17 BFG KM2's, debadged tailgate, plasti-dipped front and side emblems, Weather tech rear liner, ARE camper shell
    Where did you find that? I am looking for the Bluetooth and steering wheel control diagrams.

    CAD41985, Jul 16, 2013
    #222
  3. Jul 16, 2013 at 3:34 PM
    #223
    Jerez

    #223
    Jerez [OP] SoCal LED Dash Swap

    Joined:
    Feb 1, 2010
    Member:
    #30488
    Messages:
    17,975
    Gender:
    Male
    First Name:
    Rod
    Diamond Bar/Ontario, CA
    Vehicle:
    08 TRD 2wd converted to 4wd
    Estock
    worked perfectly :D
    now im pissed because i cant find my usb/aux port i bought months back :frusty::annoyed:

    This site contains affiliate links for which the site may be compensated.
    Jerez, Jul 16, 2013
    #223
  4. Jul 16, 2013 at 3:44 PM
    #224
    anarion55

    #224
    anarion55 Well-Known Member

    Joined:
    Mar 3, 2013
    Member:
    #98907
    Messages:
    326
    Gender:
    Male
    First Name:
    Tony
    S. Florida
    Vehicle:
    2013 PreRunner SR5
    ImMrYo's Mirror Mod, Stereo Upgrade - Power Pro 60x4 Amp/Kicker powered 8" sub/Pioneer component speakers, PassPort 8500 Radar Detector, Locking Bed Storage Cubbies, Onboard air system - Viair 450C compressor/16 gal. PVC tank/15 & 16" horns, quick-d/c air chuck in bed cubby 24" LED light Bar (mounted to skidplate)A Headlights, foglights interior lights and backup lights all converted to LED (HUGE difference)
    Crutchfield provided it with my crossover & subwoofer. Their "master sheets" are second to none.

    anarion55, Jul 16, 2013
    #224
  5. Jul 18, 2013 at 7:44 PM
    #225
    benright

    #225
    benright Well-Known Member

    Joined:
    Dec 11, 2011
    Member:
    #68592
    Messages:
    61
    Gender:
    Male
    First Name:
    Broghan
    Layton, UT
    Vehicle:
    11, 4x4, Dbl Cab, TRD Sport
    Velocity 3" spacers, Total Chaos UCA's, 18X9 XD Monsters, 275/65/18 Nitto Ridge Grapplers, Toytec AAL.
    ^^^^ Got mine installed, works perfect

    benright, Jul 18, 2013
    #225
  6. Jul 19, 2013 at 12:04 AM
    #226
    Millertime187

    #226
    Millertime187 I'll be your huckleberry!

    Joined:
    Sep 25, 2012
    Member:
    #87698
    Messages:
    1,924
    Gender:
    Male
    First Name:
    David
    Clay City, KY
    Vehicle:
    1995 Taco
    Just a few little things. It's my DD
    did you all use that wire to run to the New USB port? or just run wire off it???

    thanks

    Millertime187, Jul 19, 2013
    #226
  7. Jul 19, 2013 at 4:47 PM
    #227
    benright

    #227
    benright Well-Known Member

    Joined:
    Dec 11, 2011
    Member:
    #68592
    Messages:
    61
    Gender:
    Male
    First Name:
    Broghan
    Layton, UT
    Vehicle:
    11, 4x4, Dbl Cab, TRD Sport
    Velocity 3" spacers, Total Chaos UCA's, 18X9 XD Monsters, 275/65/18 Nitto Ridge Grapplers, Toytec AAL.
    ^^^^^
    I used the cable that apoteker found for the back of the headunit
    Combined with the USB write up here:
    http://www.tacomaworld.com/forum/audio-video/103041-how-tundra-usb-stereo-input-tacoma-aftermarket-head-unit.html

    Also, don't waste time taking all the plastics off like they did in the write up ^^. I used a small flat head and gently pried the blank out.

    This site contains affiliate links for which the site may be compensated.
    benright, Jul 19, 2013
    #227
  8. Jul 19, 2013 at 6:33 PM
    #228
    Millertime187

    #228
    Millertime187 I'll be your huckleberry!

    Joined:
    Sep 25, 2012
    Member:
    #87698
    Messages:
    1,924
    Gender:
    Male
    First Name:
    David
    Clay City, KY
    Vehicle:
    1995 Taco
    Just a few little things. It's my DD
    did you do the headphone jack mod as well or just the usb? hopefully my wire will be here this week from china!

    Millertime187, Jul 19, 2013
    #228
  9. Jul 20, 2013 at 2:02 PM
    #229
    Millertime187

    #229
    Millertime187 I'll be your huckleberry!

    Joined:
    Sep 25, 2012
    Member:
    #87698
    Messages:
    1,924
    Gender:
    Male
    First Name:
    David
    Clay City, KY
    Vehicle:
    1995 Taco
    Just a few little things. It's my DD
    Hooray!!! I now have a USB jack!!!! Thanks to everyone that has made this possible!!!

    Millertime187, Jul 20, 2013
    #229
  10. Jul 22, 2013 at 6:51 AM
    #230
    Madpage

    #230
    Madpage Active Member

    Joined:
    Mar 8, 2013
    Member:
    #99262
    Messages:
    37
    Gender:
    Male
    First Name:
    Frank
    Nashvillle, TN
    Vehicle:
    12 SR5 4x4
    2" Lift
    First, here's a shout out and thank you for all of you who are doing the work and posting what you do. It is very much appreciated.

    Here's a question for you. I got a 2013 JBL/Entune and I want to replace the headunit in my 2012 Double Cab, standard radio (Satellite radio, but not JBL). Even after reading your post(s) I'm not sure if the 2013 hu is the same as a 2012/2011 JBL/Entune system. Does anyone know? I meant to take a picture of the back of the head unit, I just haven't had the time yet.

    Thanks,

    Madpage, Jul 22, 2013
    #230
  11. Jul 22, 2013 at 8:47 AM
    #231
    Jerez

    #231
    Jerez [OP] SoCal LED Dash Swap

    Joined:
    Feb 1, 2010
    Member:
    #30488
    Messages:
    17,975
    Gender:
    Male
    First Name:
    Rod
    Diamond Bar/Ontario, CA
    Vehicle:
    08 TRD 2wd converted to 4wd
    Estock
    entune unit is not the same as the regular 2012 unit not 2011
    also is not the same as the 2011 jbl unit but is the same jbl unit in the 2012 (aka touchscreen entune)
    be prepared to run alot of new wiring sir :eek:

    Jerez, Jul 22, 2013
    #231
  12. Jul 23, 2013 at 9:46 PM
    #232
    apoteker

    #232
    apoteker Well-Known Member

    Joined:
    Aug 1, 2012
    Member:
    #83859
    Messages:
    374
    Gender:
    Male
    Vehicle:
    2012 DCSB O/R debadged
    JBL/Entune Touchscreen Navigation with speed sensor override mod, JBL Speaker refit, debadged, chime removed, overhead led mod, switch LED mod, rear cupholder LED mod, ImMrYo Rear-View Mirror Lift Bracket #339, Custom Cobra CB install, Iggy Switch panel, OEM Katzkin leather seats, Seat heaters, Illuminated 4runner 4WD switch, 4runner side mirrors (heated, turnsignals, puddle lamps), husky x-act fit floor mats, climate control knob upgrade, air injection pump filter mod, underhood LED light mod, KB Voodoo bike bar
    anyone want to share what gps antenna works with this entune jbl unit?
    post pics/links please

    apoteker, Jul 23, 2013
    #232
  13. Jul 24, 2013 at 7:21 PM
    #233
    CBTaco2010

    #233
    CBTaco2010 Well-Known Member

    Joined:
    May 15, 2013
    Member:
    #104247
    Messages:
    62
    Gender:
    Male
    Dartmouth, Nova Scotia
    Vehicle:
    10 SR5
    just starting the conversion of my none entune 2013 touch screen head unit into my 2010 sr5 access cab, does anyone have a link to the antenna adapter for the am/fm antenna, I know I saw it posted in here before, but I can't seem to find it now.
    thanks

    CBTaco2010, Jul 24, 2013
    #233
  14. Jul 24, 2013 at 8:19 PM
    #234
    dapetik

    #234
    dapetik Well-Known Member

    Joined:
    Apr 3, 2008
    Member:
    #5724
    Messages:
    1,178
    Gender:
    Male
    First Name:
    David
    Barboursville, Va
    Vehicle:
    2015 TRD Sport
    Magic bedcover, sweet ass floormats, rocket boosters, warp drive
    Why would it take so much $$ to swap an Entunes into a pre-2012 JBL? I've read the entire thread and would like to do this swap.

    dapetik, Jul 24, 2013
    #234
  15. Jul 25, 2013 at 7:14 AM
    #235
    apoteker

    #235
    apoteker Well-Known Member

    Joined:
    Aug 1, 2012
    Member:
    #83859
    Messages:
    374
    Gender:
    Male
    Vehicle:
    2012 DCSB O/R debadged
    JBL/Entune Touchscreen Navigation with speed sensor override mod, JBL Speaker refit, debadged, chime removed, overhead led mod, switch LED mod, rear cupholder LED mod, ImMrYo Rear-View Mirror Lift Bracket #339, Custom Cobra CB install, Iggy Switch panel, OEM Katzkin leather seats, Seat heaters, Illuminated 4runner 4WD switch, 4runner side mirrors (heated, turnsignals, puddle lamps), husky x-act fit floor mats, climate control knob upgrade, air injection pump filter mod, underhood LED light mod, KB Voodoo bike bar
    crutchfield is where i got mine... $10 with free shipping

    http://www.crutchfield.com/p_12040L...56305&awat=pla&awnw=g&awcr=15802862185&awdv=c

    since the blue wire is a power antenna lead i removed it

    good luck


    apoteker, Jul 25, 2013
    #235
  16. Jul 25, 2013 at 9:39 AM
    #236
    dapetik

    #236
    dapetik Well-Known Member

    Joined:
    Apr 3, 2008
    Member:
    #5724
    Messages:
    1,178
    Gender:
    Male
    First Name:
    David
    Barboursville, Va
    Vehicle:
    2015 TRD Sport
    Magic bedcover, sweet ass floormats, rocket boosters, warp drive
    What physically needs to be modified on the truck/dash in order to fit the entunes in a pre-2012 dash? I saw various mentions of trimming and dash kits.

    dapetik, Jul 25, 2013
    #236
  17. Jul 26, 2013 at 5:16 PM
    #237
    Jerez

    #237
    Jerez [OP] SoCal LED Dash Swap

    Joined:
    Feb 1, 2010
    Member:
    #30488
    Messages:
    17,975
    Gender:
    Male
    First Name:
    Rod
    Diamond Bar/Ontario, CA
    Vehicle:
    08 TRD 2wd converted to 4wd
    Estock
    ;) green knobs to match the rest of my truck

    :cool: pain in the ass tho
    [​IMG]a

    [​IMG]

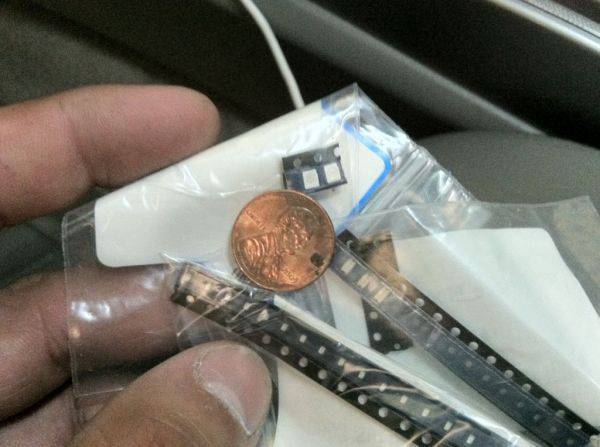

    From top to bottom --
    Cluster LEDs
    05-11 radio LEDs
    2012+ radio LEDs :anonymous:
    [​IMG]

    Jerez, Jul 26, 2013
    #237
    tattoosamm likes this.
  18. Jul 27, 2013 at 6:12 AM
    #238
    CBTaco2010

    #238
    CBTaco2010 Well-Known Member

    Joined:
    May 15, 2013
    Member:
    #104247
    Messages:
    62
    Gender:
    Male
    Dartmouth, Nova Scotia
    Vehicle:
    10 SR5
    that looks sick! Awesome job

    CBTaco2010, Jul 27, 2013
    #238
  19. Jul 27, 2013 at 1:50 PM
    #239
    Millertime187

    #239
    Millertime187 I'll be your huckleberry!

    Joined:
    Sep 25, 2012
    Member:
    #87698
    Messages:
    1,924
    Gender:
    Male
    First Name:
    David
    Clay City, KY
    Vehicle:
    1995 Taco
    Just a few little things. It's my DD
    Has anyone got a Bluetooth Mic working? I order one but it doesn't have the right plug... :(

    Millertime187, Jul 27, 2013
    #239
  20. Jul 28, 2013 at 2:26 PM
    #240
    benright

    #240
    benright Well-Known Member

    Joined:
    Dec 11, 2011
    Member:
    #68592
    Messages:
    61
    Gender:
    Male
    First Name:
    Broghan
    Layton, UT
    Vehicle:
    11, 4x4, Dbl Cab, TRD Sport
    Velocity 3" spacers, Total Chaos UCA's, 18X9 XD Monsters, 275/65/18 Nitto Ridge Grapplers, Toytec AAL.
    The original post has been edited a few times. Jerez was originally checking the fitment of the non-touchscreen head unit; it required some trimming to fit.

    The touchscreen head unit does not require any trimming.

    Last edited: Jul 29, 2013
    benright, Jul 28, 2013
    #240
