Installing a voltmeter gauge

Discussion in '3rd Gen. Tacomas (2016+)' started by Izzy_Taco, Feb 1, 2019.

  1. Feb 1, 2019 at 10:57 AM
    #1
    Izzy_Taco

    Izzy_Taco [OP] New Member

    Joined:
    Jan 20, 2019
    Member:
    #279955
    Messages:
    3
    Gender:
    Male
    First Name:
    Israel
    Vehicle:
    2019 Gun MetalBlack Tacoma TRD Off-Road 4X4
    I currently installed ditch lights and bar lights on my 2019 Tacoma. I also have things plugged in the usb 100% of the time. I want to keep an eye on the voltage of my battery. Need some guidance on the electrical and wiring part.

    Thanks guys!

  2. Feb 2, 2019 at 4:14 AM
    #2
    GulfCoastMike

    GulfCoastMike Co-pilot Angel

    Joined:
    Aug 15, 2017
    Member:
    #226861
    Messages:
    54
    Pascagoula, MS
    Vehicle:
    2017 MGM AC SR5 3.5L A/T

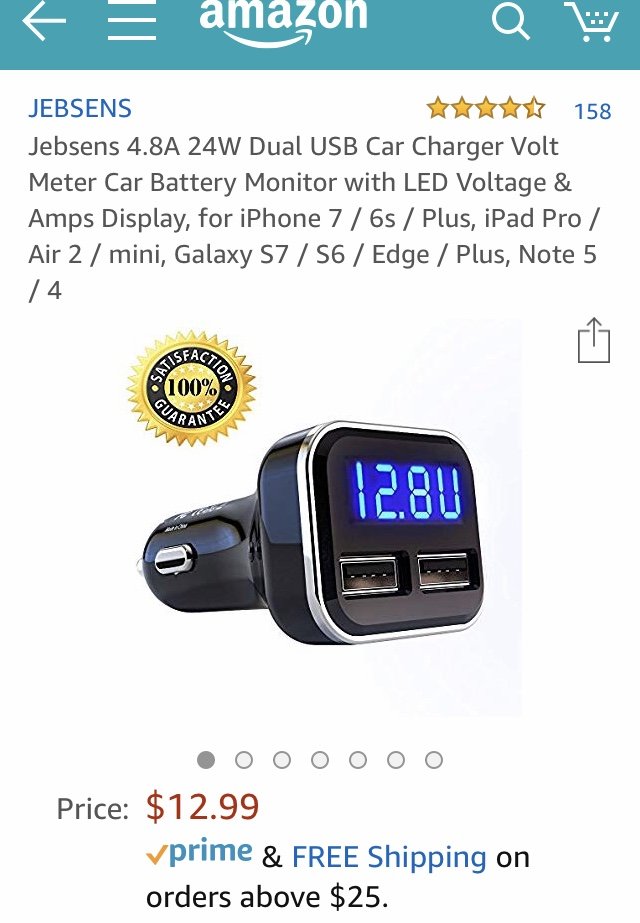

    Here’s a cheap, simple solution for you. You don’t need anything complicated.


  3. Feb 2, 2019 at 4:17 AM
    #3
    diabetiktaco

    diabetiktaco Instalander

    Joined:
    Sep 5, 2016
    Member:
    #196480
    Messages:
    4,347
    Gender:
    Male
    First Name:
    Eric
    New Jersey
    Vehicle:
    2013 DCSB
    You can get a scangauge or something too. It sounds like you dont have enough going on there to worry. I've got a gps, radar, camera, scangauage, CB, fridge, 9" leds, rigid pods, and scene lighting all hard wired. I am running a single battery with no issues.

    Izzy_Taco [OP] likes this.
  4. Feb 2, 2019 at 4:54 AM
    #4
    LarsonFan

    LarsonFan Chip Ganassi Racing

    Joined:
    Sep 18, 2015
    Member:
    #164581
    Messages:
    7,408
    Gender:
    Male
    First Name:
    Everett
    Southern Illinois
    Vehicle:
    SSM, 2019 Tacoma SR, Access Cab, 4X2
    2016Tacoman likes this.
  5. Feb 2, 2019 at 6:03 AM
    #5
    MoneyMan55

    MoneyMan55 Licensed Master Electrician

    Joined:
    Jan 22, 2017
    Member:
    #208306
    Messages:
    1,929
    Gender:
    Male
    First Name:
    Doug
    PA
    Vehicle:
    2017 DCSB SR5 Blazing Blue Pearl
  6. Feb 2, 2019 at 6:09 AM
    #6
    2016Tacoman

    2016Tacoman Well-Known Member

    Joined:
    Jun 23, 2016
    Member:
    #190389
    Messages:
    2,647
    Gender:
    Male
    First Name:
    J
    Vehicle:
    2016 Tacoma 4x4 V6 Metallic
    MoneyMan55 likes this.
  7. Feb 2, 2019 at 7:27 AM
    #7
    Boomer3731

    Boomer3731 Well-Known Member

    Joined:
    Aug 22, 2016
    Member:
    #195239
    Messages:
    369
    Gender:
    Male
    First Name:
    Ryan
    CO
    Vehicle:
    2017 DCSB TRD Sport

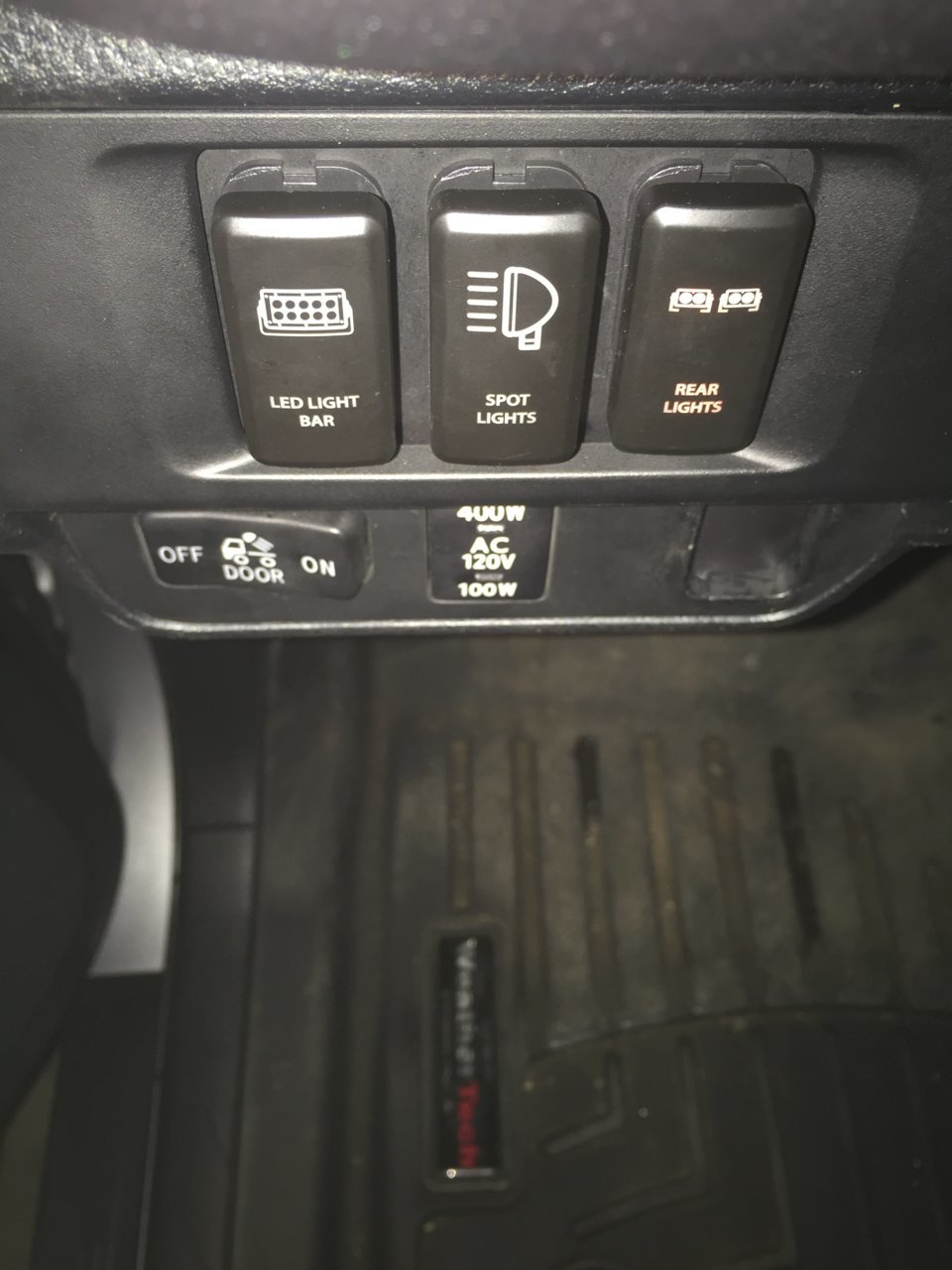

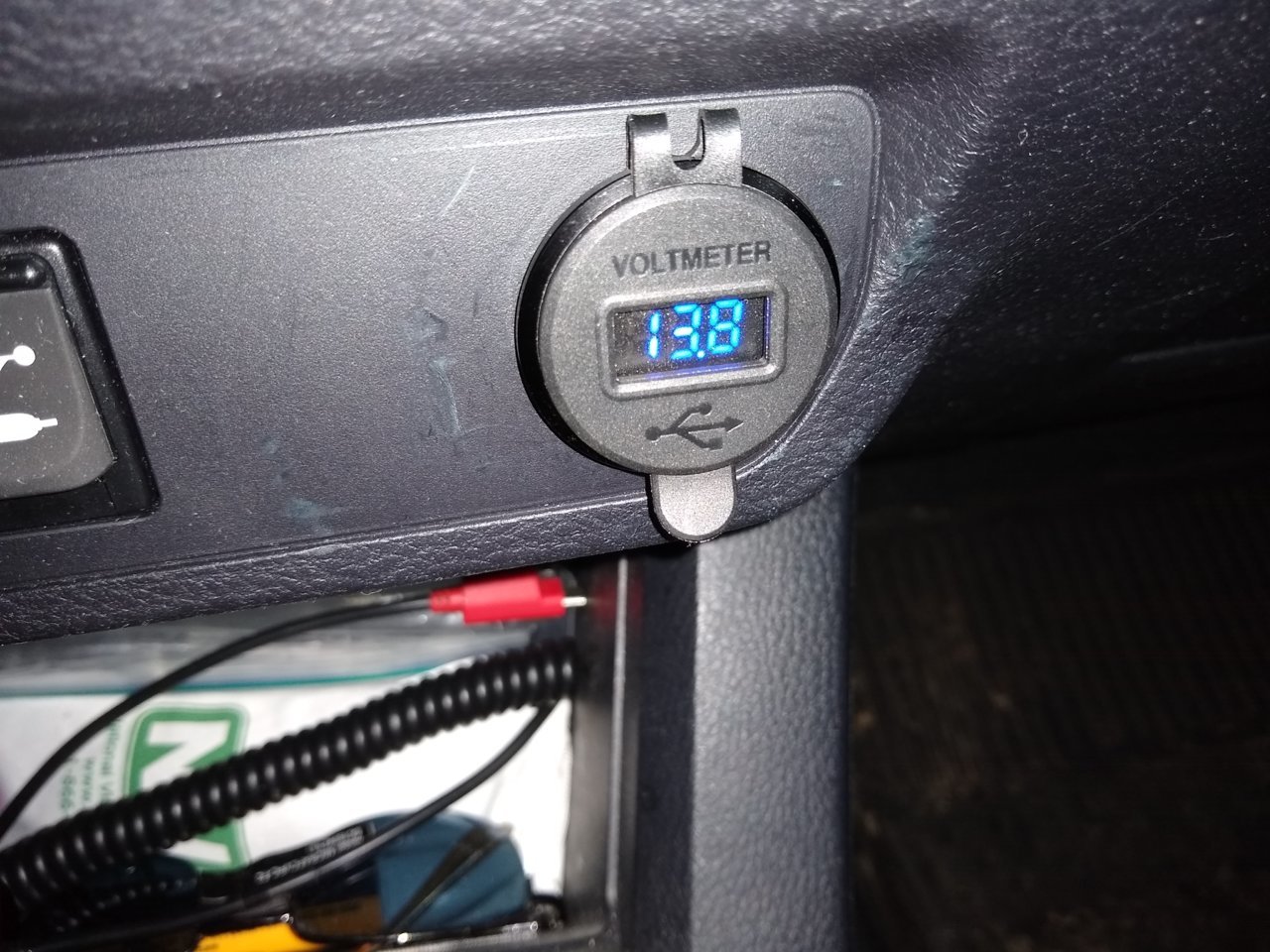

    The hole needs to be slightly enlarged. You can install it just by removing the head unit and reaching down behind it.



    Fair warning, it is bright.

    Last edited: Feb 2, 2019
    m603holden, 2016Tacoman and Mtn Mike like this.
  8. Feb 2, 2019 at 7:43 AM
    #8
    Tcgator

    Tcgator Well-Known Member

    Joined:
    Sep 7, 2014
    Member:
    #137806
    Messages:
    580
    Gender:
    Male
    First Name:
    Tyler
    Fernandina beach
    Vehicle:
    2017 Quicksand TRD Offroad
    Do you have more photos of this on?

  9. Feb 2, 2019 at 8:56 AM
    #9
    Boomer3731

    Boomer3731 Well-Known Member

    Joined:
    Aug 22, 2016
    Member:
    #195239
    Messages:
    369
    Gender:
    Male
    First Name:
    Ryan
    CO
    Vehicle:
    2017 DCSB TRD Sport

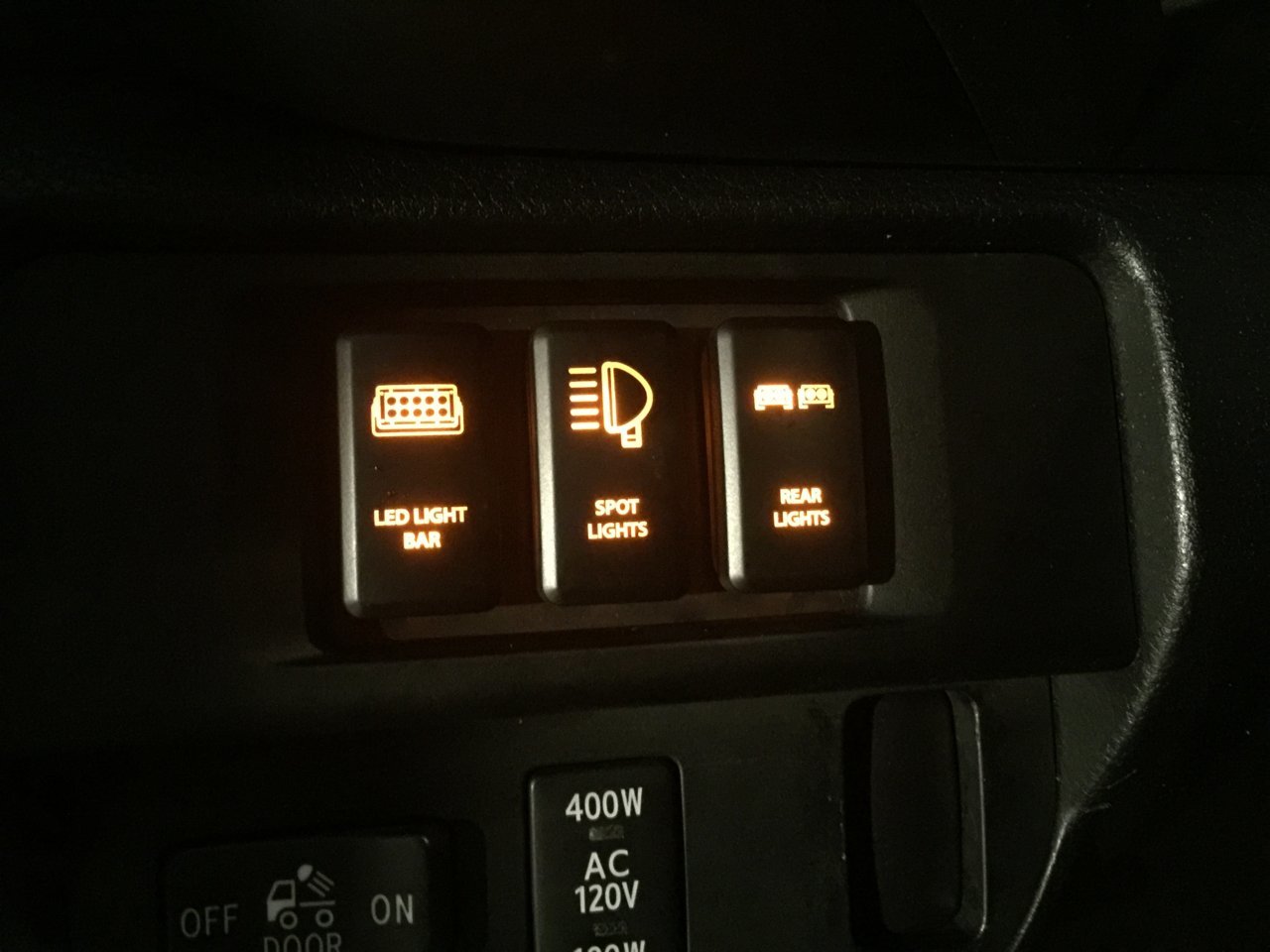

  10. Feb 2, 2019 at 9:02 AM
    #10
    SpeySquatch

    SpeySquatch Function over Form

    Joined:
    Mar 6, 2018
    Member:
    #246516
    Messages:
    4,707
    Gender:
    Male
    Vehicle:
    2016 TRD OR DCSB
    Seems like that would get annoying driving at night...

  11. Feb 2, 2019 at 9:08 AM
    #11
    Boomer3731

    Boomer3731 Well-Known Member

    Joined:
    Aug 22, 2016
    Member:
    #195239
    Messages:
    369
    Gender:
    Male
    First Name:
    Ryan
    CO
    Vehicle:
    2017 DCSB TRD Sport
    It's far enough out of the way that it's not bad. I might open it up and try to swap some of the resistors though, as I've done with my CH4x4 switches.

  12. Feb 2, 2019 at 9:13 AM
    #12
    SpeySquatch

    SpeySquatch Function over Form

    Joined:
    Mar 6, 2018
    Member:
    #246516
    Messages:
    4,707
    Gender:
    Male
    Vehicle:
    2016 TRD OR DCSB
    Same thing I’m thinking for the empty spot in the bottom right


  13. Feb 2, 2019 at 9:13 AM
    #13
    Sixthelement

    Sixthelement Ran over a Yeti once, Texas, never again

    Joined:
    Apr 1, 2017
    Member:
    #215083
    Messages:
    259
    Gender:
    Male
    Treasure Coast, Fl
    Vehicle:
    2017 DCSB 6MT TRD OR 4x4
    Piece of that frosted scotch tape should be a quick solution, in the interim.

  14. Feb 2, 2019 at 11:00 AM
    #14
    Ronzio

    Ronzio Well-Known Member

    Joined:
    Feb 20, 2018
    Member:
    #245114
    Messages:
    1,390
    Gender:
    Male
    Pennsylvania
    Vehicle:
    17 DCSB TRDOR
  15. Feb 2, 2019 at 11:57 AM
    #15
    MoneyMan55

    MoneyMan55 Licensed Master Electrician

    Joined:
    Jan 22, 2017
    Member:
    #208306
    Messages:
    1,929
    Gender:
    Male
    First Name:
    Doug
    PA
    Vehicle:
    2017 DCSB SR5 Blazing Blue Pearl
    Had to file the hole just a tad. Pull the trim around radio and remove radio. Crimp new terminals. That's it. Piece of cake

  16. Feb 2, 2019 at 12:00 PM
    #16
    MoneyMan55

    MoneyMan55 Licensed Master Electrician

    Joined:
    Jan 22, 2017
    Member:
    #208306
    Messages:
    1,929
    Gender:
    Male
    First Name:
    Doug
    PA
    Vehicle:
    2017 DCSB SR5 Blazing Blue Pearl

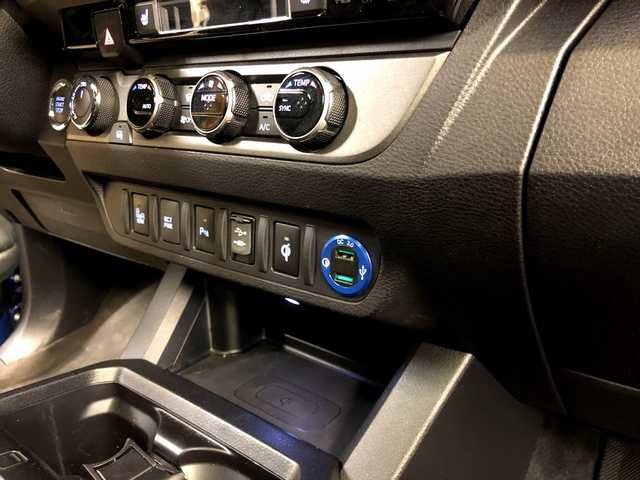

    Installed


  17. Feb 2, 2019 at 5:30 PM
    #17
    Izzy_Taco

    Izzy_Taco [OP] New Member

    Joined:
    Jan 20, 2019
    Member:
    #279955
    Messages:
    3
    Gender:
    Male
    First Name:
    Israel
    Vehicle:
    2019 Gun MetalBlack Tacoma TRD Off-Road 4X4
    That’s exactly what I’m trying to do. Can you help me with the wiring?

  18. Feb 3, 2019 at 11:25 AM
    #18
    Ronzio

    Ronzio Well-Known Member

    Joined:
    Feb 20, 2018
    Member:
    #245114
    Messages:
    1,390
    Gender:
    Male
    Pennsylvania
    Vehicle:
    17 DCSB TRDOR

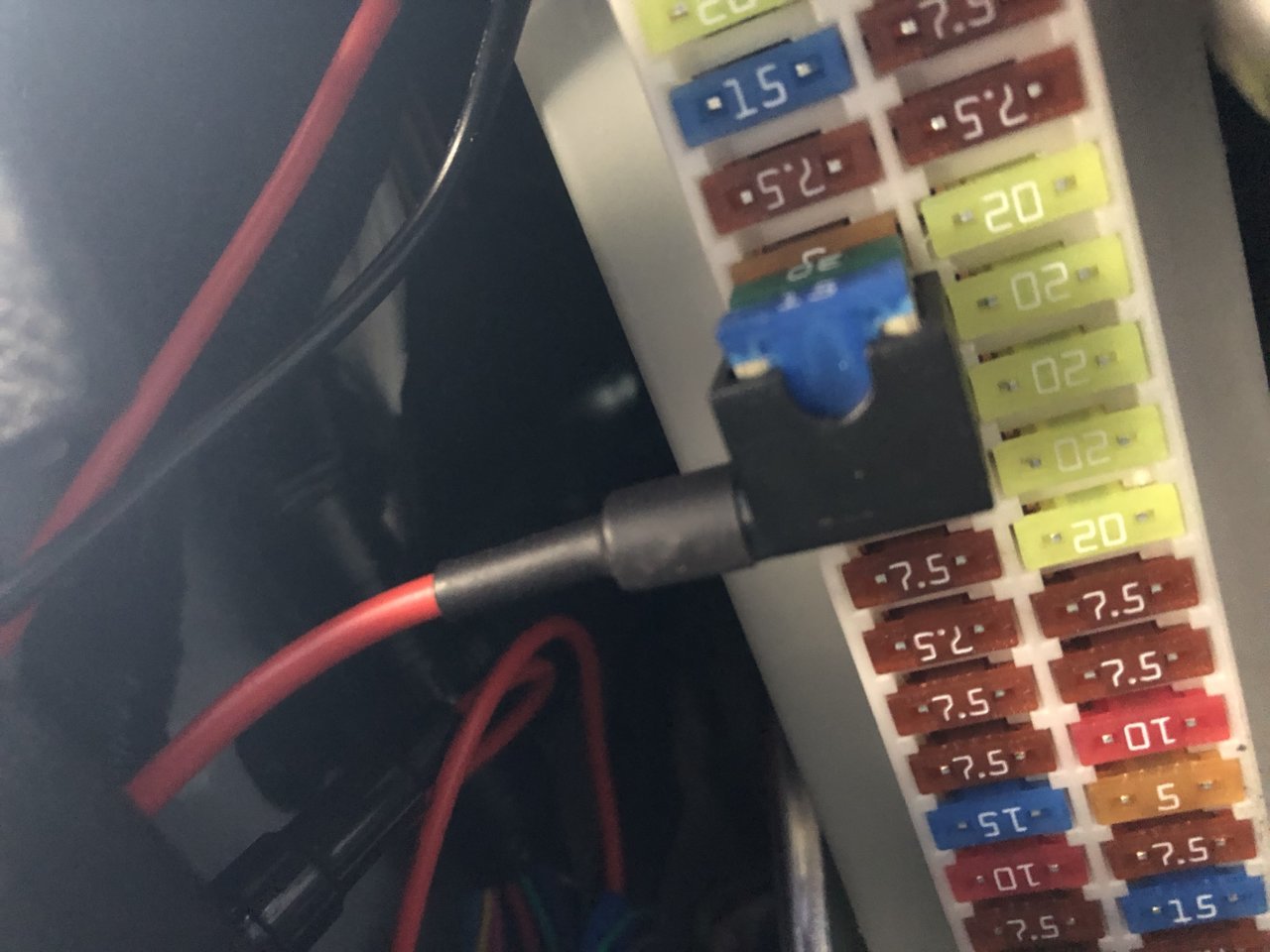

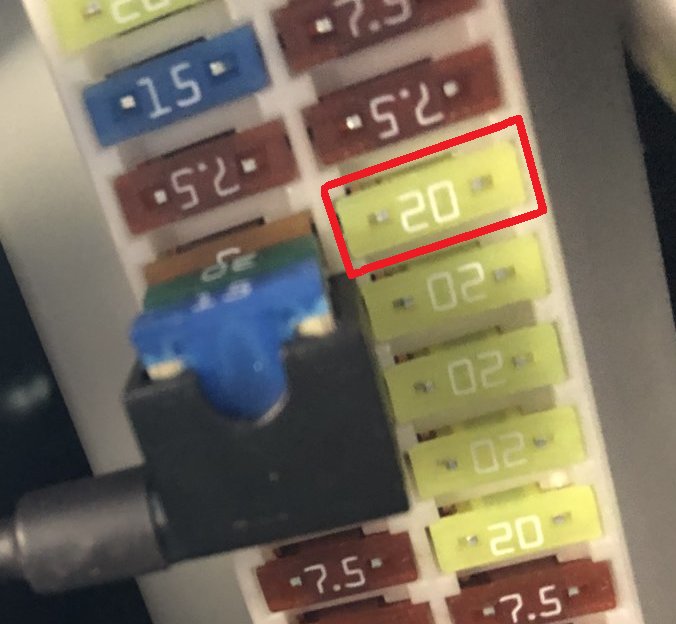

    Sure remove drivers side kick panel attach black wire to ground there is a factory ground spot behind the kick panel...then red wire to a add a fuse use fuse shown in the photo and your done.

    Skydvrr and Izzy_Taco [OP] like this.
  19. Feb 3, 2019 at 12:41 PM
    #19
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    1,645
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Since the truck has no Sliding "MoonRoof"o_O, use that circuit to tap the add-a-circuit.;)

    Izzy_Taco [OP] likes this.
  20. May 17, 2019 at 5:04 AM
    #20
    Banker

    Banker Well-Known Member

    Joined:
    Feb 28, 2019
    Member:
    #284842
    Messages:
    91
    Gender:
    Male
    OHio
    Vehicle:
    2017 Sport TRD DCSB
    Sorry to bring this tread back up. Does't the lighter/round power adapter have power to it now that you can use? Or does it have constant power at all times so you had to wire in power that is keyed on/off? I am also looking into adding a voltmeter gauge.
