Instrument cluster LED dimmer instructions (M/T 2/3RZ) $7

Discussion in '1st Gen. Tacomas (1995-2004)' started by metaquanta, Dec 19, 2019.

  1. Dec 19, 2019 at 8:58 AM
    #1
    metaquanta

    metaquanta [OP] Well-Known Member

    Joined:
    Nov 6, 2018
    Member:
    #271916
    Messages:
    49
    Gender:
    Male
    First Name:
    Matt
    Vehicle:
    2000 2.7L MT 4x4, 240k mi
    (Note: See RysiuM's post for alternative: https://www.tacomaworld.com/posts/17724575 )

    Step 1: Buy something like this: https://www.ebay.com/itm/0-10V-Dimm...ller-DC5-24V-for-LED-Light-Strip/252476201661
    A $7 LED dimmer from China. This one is a low-side switch, which is preferred because to switch on the high-side would require tearing up a bunch of wiring.

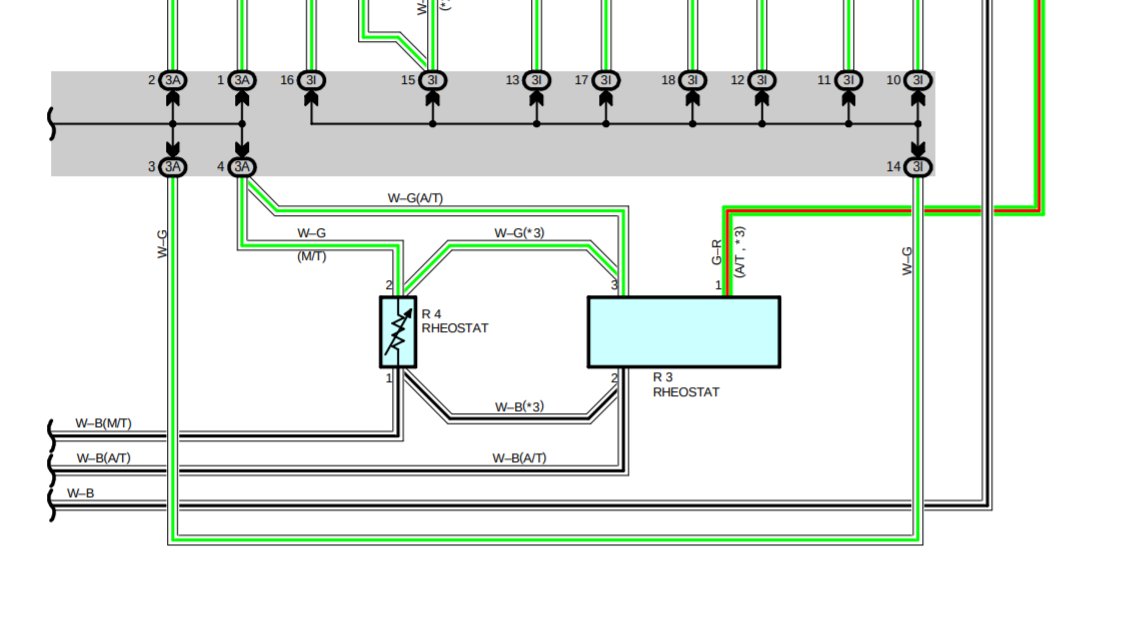

    FSM wiring.jpg

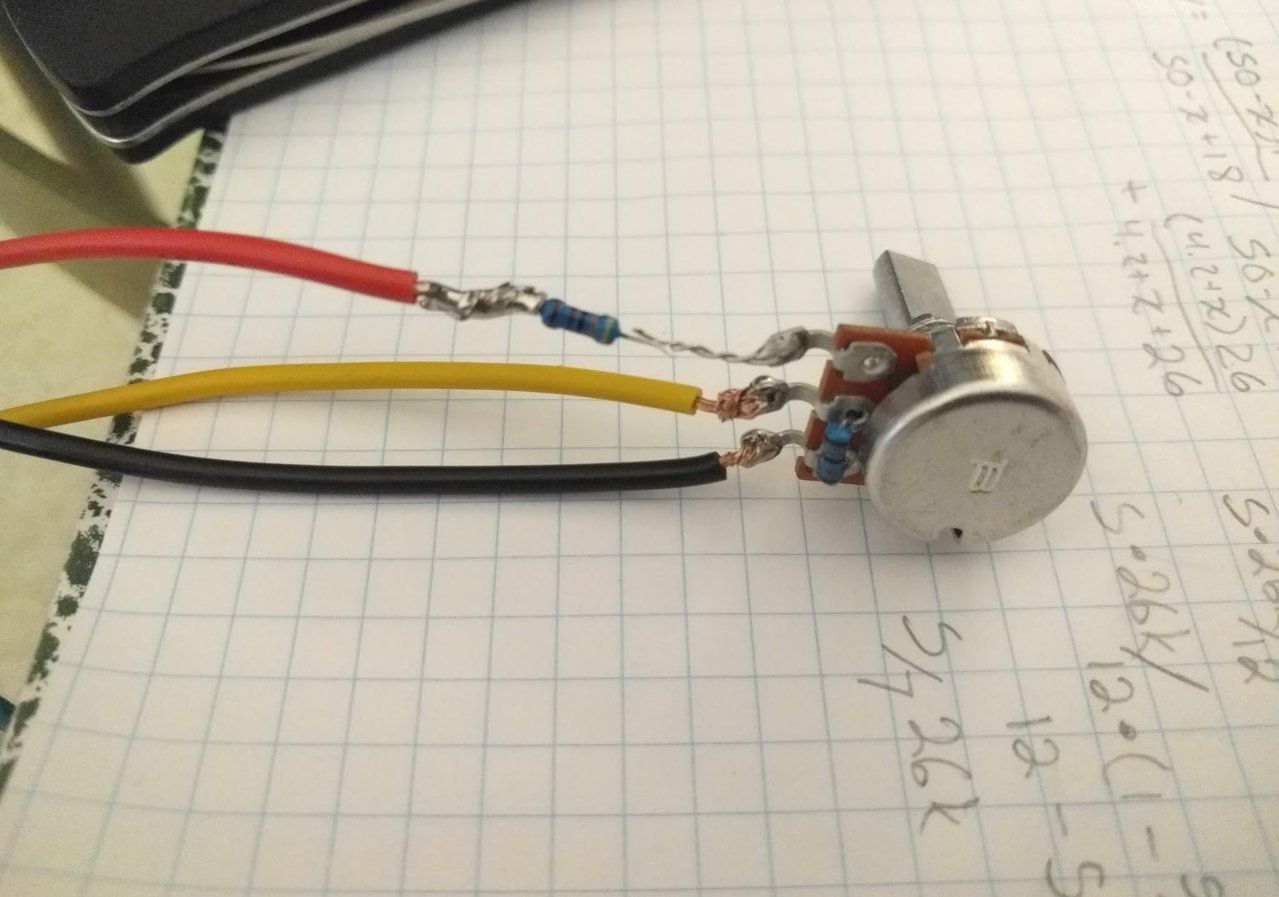

    Step 2: Find a 50k pot. Solder an 18kΩ resistor between the left and center terminals and one end of a 4.3kΩ resistor to the right terminal. Then attach three wires to the left, center, and free end of 4.3kΩ resistor. Like this: Screenshot 2019-12-19 at 11.21.09.jpg The resistors aren't strictly necessary, but the results are much better with them. The above dimmer has an effective 26kΩ pull-up on the control line and only works 0-10v. Those two resistors make the whole span of the pot change the brightness usefully. We can't use the rheostat because 1) it's only 10Ω, so would burn a ton of current if we tried to use it like this and 2) unlike a pot, a rheostat makes a non-linear voltage-divider.

    3) Take the pot, two more wires with blades crimped on, and a fuse tap and screw into the dimmer as follows:
    Pot left → 0-10v V- (Ground)
    Pot center → 0-10v V+ (Control voltage)
    Pot right/resistor → Load V+ (+12)
    Fuse tap → Power V+ (+12)
    Wire 1 → Load V- (PWM)
    Wire 2 → Power V- (Ground)

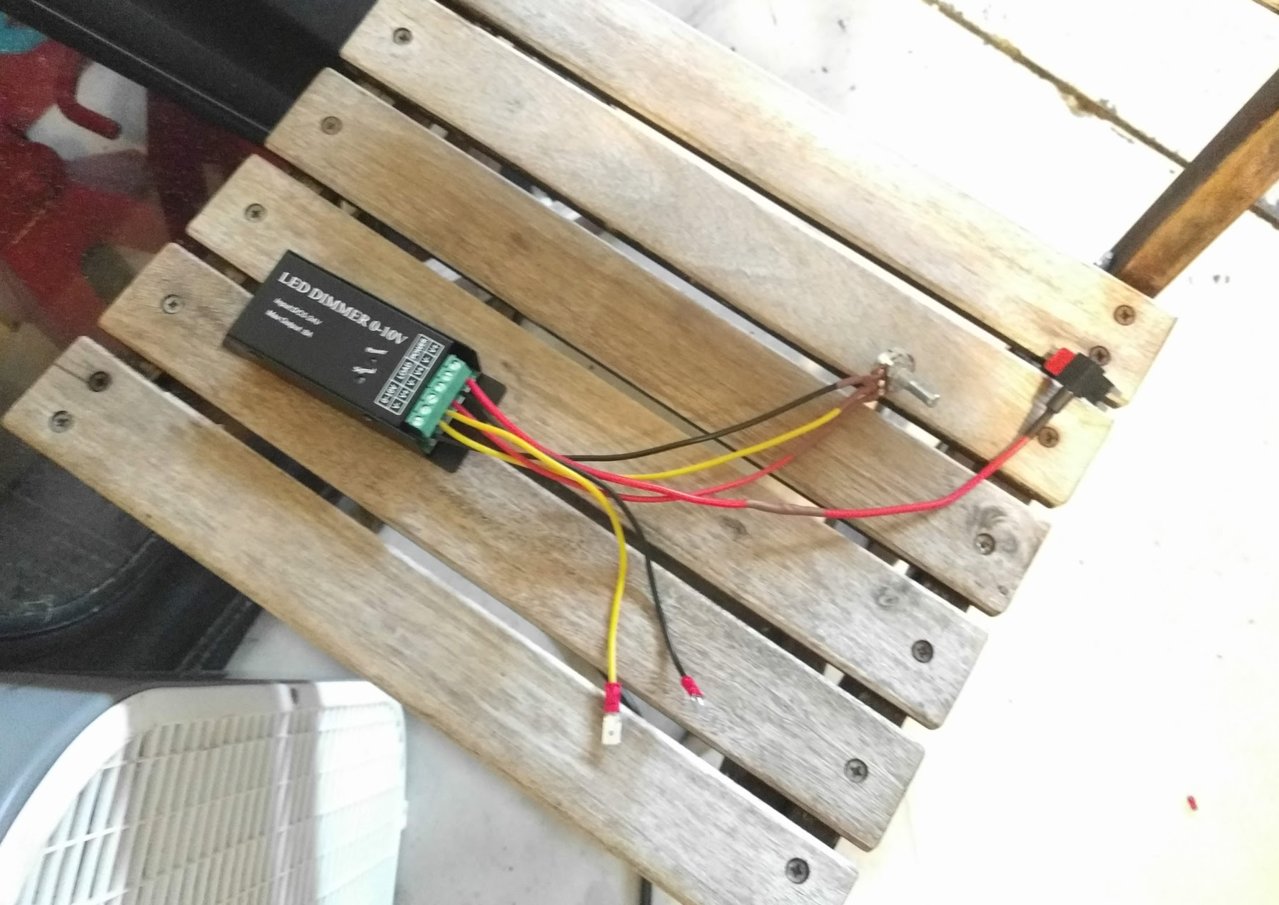

    Like this:
    Screenshot 2019-12-19 at 11.20.52.jpg
    Note that the pair of wires labelled (Ground) above and the pair labelled (+12) are each
    interchangeable. We're only using, the misleadingly labelled, 0-10v V- and Load V+ to save a couple of splices.

    4) Now stuff it under the dash somewhere. Remove the rheostat and screw the pot on in its place (a washer might be useful. There's also a metal tab that sticks up on my pots that you'll want to snip off). Plug wire 1 into the rheostat socket with a green and white wire and plug wire 2 into the rheostat socket with a black and white wire. Plug the fuse tap in somewhere. and that's it, you're done!

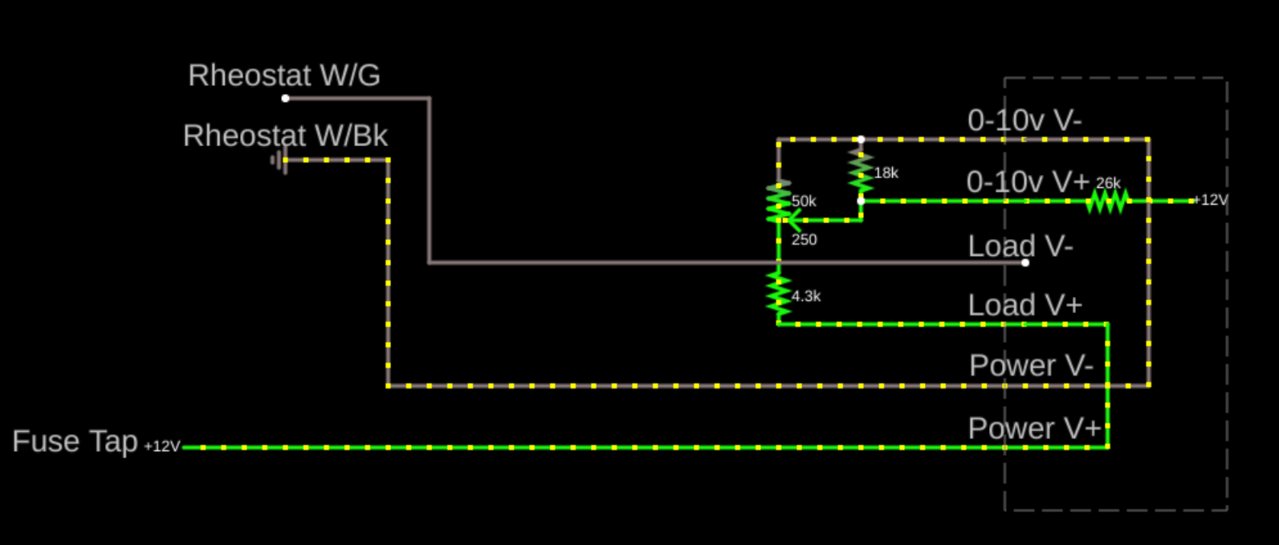

    Screenshot 2019-12-19 at 11.15.25.jpg
    Screenshot 2019-12-19 at 11.19.03.jpg

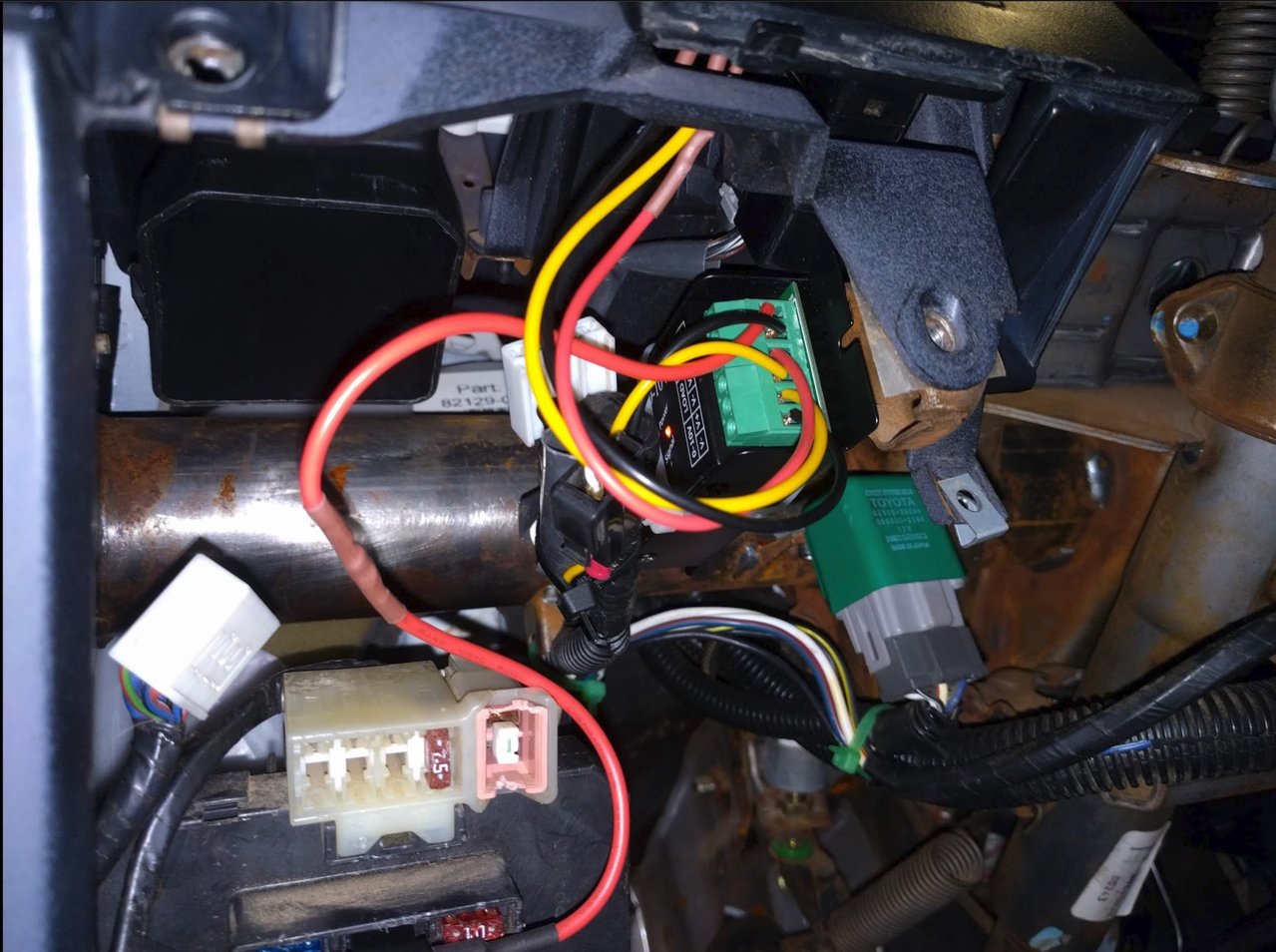

    It is actually functioning in the above picture. The pot runs from very nearly 0 volts to 9 and half or so, turning the LEDs from off to really fucking bright. Don't put it there though, I took the above photo before realizing the vent duct won't fit.

    Caveat: I don't think there are any fuses in that panel that one can tap that will keep the dash lights on when the car is off but the lights are on. This doesn't bother me at all, but if it bother's you you'll want to find the lights circuit to tap off.

    Last edited: Dec 19, 2019
  2. Dec 19, 2019 at 9:04 AM
    #2
    metaquanta

    metaquanta [OP] Well-Known Member

    Joined:
    Nov 6, 2018
    Member:
    #271916
    Messages:
    49
    Gender:
    Male
    First Name:
    Matt
    Vehicle:
    2000 2.7L MT 4x4, 240k mi

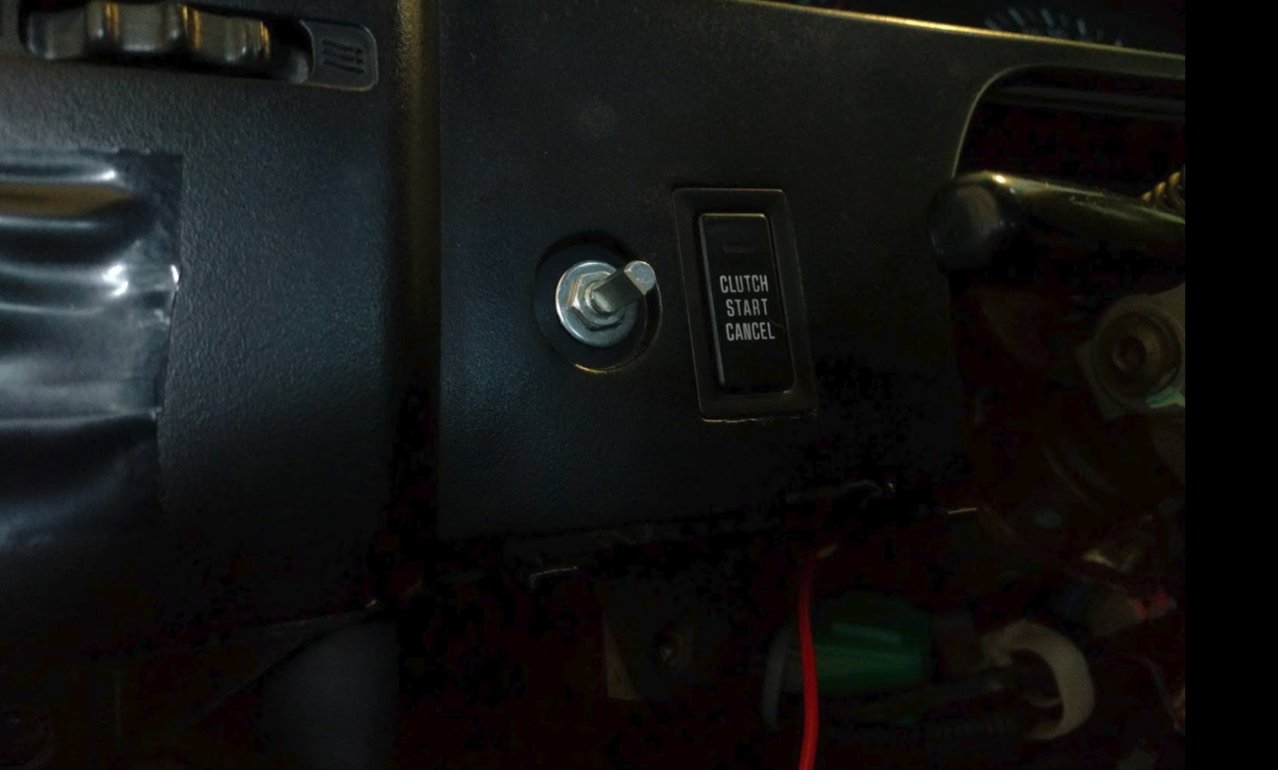

    Here's what the pot looks like installed. You might want to grind it into a square, though I just jammed the Toyota knob on as is.Screenshot 2019-12-19 at 12.03.49.jpg

  3. Dec 19, 2019 at 9:09 AM
    #3
    ekul310

    ekul310 Well-Known Member

    Joined:
    Jun 1, 2016
    Member:
    #188443
    Messages:
    219
    Gender:
    Male
    First Name:
    Luke
    Pennsylvania
    Vehicle:
    2003 Black Double Cab 4x4 TRD OR
    Skinny 33 S/T Maxxs 3" Bastard Lift ARB Bullbar
    Is this just for dimming the leds in your cluster? The ones I put in my 03 sim with the stock dinner just fine

  4. Dec 19, 2019 at 9:13 AM
    #4
    metaquanta

    metaquanta [OP] Well-Known Member

    Joined:
    Nov 6, 2018
    Member:
    #271916
    Messages:
    49
    Gender:
    Male
    First Name:
    Matt
    Vehicle:
    2000 2.7L MT 4x4, 240k mi
    Yeah. The LEDs I have dimmed a little, but nothing like they're supposed to. Definitely didn't turn off. Not many may care, but now they transition from bright to off nice and smoothly through the whole twist.

  5. Dec 19, 2019 at 9:30 AM
    #5
    RysiuM

    RysiuM Well-Known Member

    Joined:
    Oct 18, 2015
    Member:
    #167004
    Messages:
    2,508
    Gender:
    Male
    First Name:
    Rysiu
    Was Golden State, now Poland EU
    Vehicle:
    1995 4x4 LX Ext Cab, I4 2.7, MT, 320K miles
    DD Deck+backup camera, LED DRL, All LED except H4 Hella
  6. Dec 19, 2019 at 9:37 AM
    #6
    metaquanta

    metaquanta [OP] Well-Known Member

    Joined:
    Nov 6, 2018
    Member:
    #271916
    Messages:
    49
    Gender:
    Male
    First Name:
    Matt
    Vehicle:
    2000 2.7L MT 4x4, 240k mi
  7. Dec 19, 2019 at 10:32 AM
    #7
    ekul310

    ekul310 Well-Known Member

    Joined:
    Jun 1, 2016
    Member:
    #188443
    Messages:
    219
    Gender:
    Male
    First Name:
    Luke
    Pennsylvania
    Vehicle:
    2003 Black Double Cab 4x4 TRD OR
    Skinny 33 S/T Maxxs 3" Bastard Lift ARB Bullbar
    Mine do dim the whole way to off. Maybe I bought dimmable leds or something...who knows

  8. Dec 19, 2019 at 11:23 AM
    #8
    RysiuM

    RysiuM Well-Known Member

    Joined:
    Oct 18, 2015
    Member:
    #167004
    Messages:
    2,508
    Gender:
    Male
    First Name:
    Rysiu
    Was Golden State, now Poland EU
    Vehicle:
    1995 4x4 LX Ext Cab, I4 2.7, MT, 320K miles
    DD Deck+backup camera, LED DRL, All LED except H4 Hella

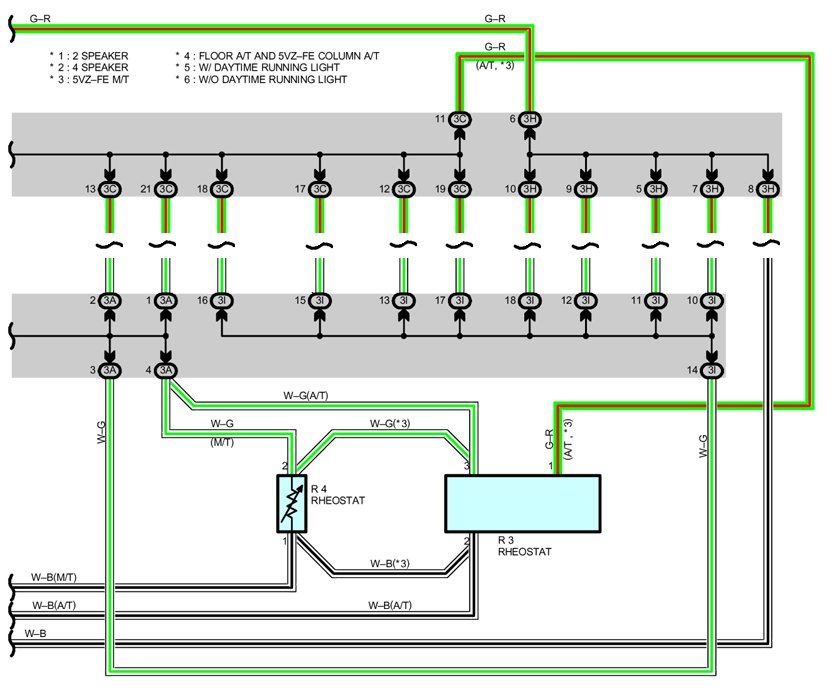

    It looks like 2000 Tacoma with Automatic transmission (note A/T on EWD) and with 5VZ–FE with Manual transmission (note *3 on EWD) are equipped with electronic (3 wire) dimmer. 2.7 and 2.4 Tacoma with Manual transmission (note M/T on EWD) is equipped with rheostat. This is why some people report no problem with dimming LED in dash - they have Tacoma already equipped with electronic dimmer from factory.


    Yes, it takes some time to get understanding all the options and variants depicted on EWD, at there always more wires and connections shown on EWD than there are on particular truck.

    Oh, and the electronic dimmer if it is PWM, it is well smoothed out (no flickering). It might be just variable voltage regulator.

  9. Dec 19, 2019 at 11:31 AM
    #9
    metaquanta

    metaquanta [OP] Well-Known Member

    Joined:
    Nov 6, 2018
    Member:
    #271916
    Messages:
    49
    Gender:
    Male
    First Name:
    Matt
    Vehicle:
    2000 2.7L MT 4x4, 240k mi
    I have updated the title and the post to reflect this new information. Thanks.

  10. Dec 19, 2019 at 11:33 AM
    #10
    metaquanta

    metaquanta [OP] Well-Known Member

    Joined:
    Nov 6, 2018
    Member:
    #271916
    Messages:
    49
    Gender:
    Male
    First Name:
    Matt
    Vehicle:
    2000 2.7L MT 4x4, 240k mi
    I bet you have an automatic and/or V6. RysiuM has solved the mystery of why cluster LEDs dim for some but not others.
