Intake Manifold Spacer 4.0l Coming!

Discussion in 'Performance and Tuning' started by highaltitude, Feb 6, 2012.

  1. hirod

    hirod Well-Known Member

    Joined:
    Jun 3, 2013
    Member:
    #105540
    Messages:
    287
    Gender:
    Male
    hawaii
    Vehicle:
    prerunner double cab longbed
    Tundra racing lowering kit, jump er's LEDs, debadged, hell wig rear sway bar and helper springs, auto pop lock
    Guessing maybe a good place to start would be looking at how much more room in terms of hood clearance, interference from other components, and slack in attachments like hoses and wiring. Are there negative effects of too long aside from a loss of hp in the higher rpms? Anyone who's installed this believe two spacers wouldn't fit? Thinking might have to put a spacer for the aircleaner support in the front. Personally I use torque more than hp. Never really have the opportunity to floor it nowadays and won't notice the loss of high end. Anyone that has this have any feedback? Thanks

  2. emelianenkov

    emelianenkov Well-Known Member

    Joined:
    May 3, 2012
    Member:
    #78151
    Messages:
    17,706
    Gender:
    Male
    First Name:
    Alex
    Andover, MA
    Vehicle:
    Fuck you, its a Toyota regardless :D
    Bilstein 5100/Eibach springs/.5" top plate spacer. Rear icon springs. (2) 4" (1) 42" LED bars, Magnaflow, K&N CAI, 1/2" XTP IMS, "Custom Cap" installed by factory :D, TRD stickers (Instantly gained extra HP), Pioneer Audio all around, 200w sub amp
    I have a 1.25" body lift, so I have another 1"+ to go before I hit my max.

    I know getting the wiring to fit might be a pain, but I wouldn't mind trying something taller. More torque the better

  3. luka

    luka Well-Known Member

    Joined:
    Jun 17, 2011
    Member:
    #58428
    Messages:
    2,604
    Gender:
    Male
    First Name:
    Mike
    Kailua, HI
    Vehicle:
    Prerunner -> 4WD Converted
    Pelfreybilt Bumper & IFS+Mid skid, Warn Zeon 10-S, BAMF Sliders & LCA/Diff Skids, DTRL toggle on/off, FJ OEM Fog/Aux Light switches, 2012 lower center console swap, wired in auto-dimming rear view mirror, Wet-Okole inside, Weathertech Liners & Vent Visors, Rigid Duallys fogs, 35%/5% front/rear tint, Roto-Pax, Bestop SuperTop, OME 90000/886 Front, OME Dakars+AAL/extended 5100 Rears, Extended SS brake lines, TRD TX Pro/Baja Graphite 16" Rims
    2 or a 1" spacer might be a problem. I think the hood would still close, but you'd have to get longer hoses for the throttle body, and another at the back of the manifold. also have to fab longer brackets(A,B,C) that stabilize the manifold to the block.


    true there aren't dyno's completed :deadhorse:

    from what i've been tracking, i've seen a difference. The biggest factor is still constant throttle control

  4. hirod

    hirod Well-Known Member

    Joined:
    Jun 3, 2013
    Member:
    #105540
    Messages:
    287
    Gender:
    Male
    hawaii
    Vehicle:
    prerunner double cab longbed
    Tundra racing lowering kit, jump er's LEDs, debadged, hell wig rear sway bar and helper springs, auto pop lock
    Ah. That's what I was worried about. Kind of a lot of work to try get two in. Were the wires and hoses kinda tight installing the half inch spacer?

    Don't actually care about dyno results cause I'm looking for the range that I drive in day to day. I don't think I break 2k rpm 90% of the time. When you're dynoing you're flooring it. More interested in the feedback you've provided. Whether or not people notice it driving around town. Or in your case when you jump on h3. I'm impressed with your gas mileage. I don't even go over the hill and I only get about 18 mpg. Never broken 19. Thanks for the feedback.

    Tempted to pick one of these up but I also really want to pick up an e fan. Choices choices.

  5. steezinstangl

    steezinstangl Well-Known Member

    Joined:
    Sep 10, 2012
    Member:
    #86667
    Messages:
    337
    Gender:
    Male
    First Name:
    Ryan
    Elk Grove, Ca
    Vehicle:
    2008 FJ Cruiser
    Mini H1 Retrofit 5K, 1st Gen TRD CAI, JBA Catback, Radflo 2.5 extended coilovers w/ resis, Radflo 2.5 rear shocks with resis, toytec superflex rear springs, DSM Uniball UCA's, intake manifold spacer
    gas mpg with the spacer is damn good. driving conservatively (only getting on the gas a couple times) on this tank I'm averaging 17.7 in the city.

  6. highaltitude

    highaltitude [OP] Well-Known Member

    Joined:
    Feb 5, 2012
    Member:
    #72178
    Messages:
    265
    Gender:
    Male
    Asheville, NC
    Airaid Quickfit CAI w/AEM dry filter, XTP I.M.S., 2* Advance,TB Screen mod, Magnaflow Y-pipe, SuperChips Cortex, JBA Headers
    My 1/2" spacer was proven on a dyno to show excellent gains with the Nissan. The spacer made by NST for Toyota was made of 1/2" and proven on the dyno to work. I made mine of 1/2" based on that criteria. If you would like to fork out the $ to have multiple sizes made, and multiple dynos run, I'll make all the spacers you want to test on, and you can find the optimum. What really is the optimum anyway? What you may want out of the spacer may not be what another wants. LIke I stated, it depends on where you want gains and dont. This size showed to be an overall effective spacer for everyone. It doesnt take away too much up top, but gains nicely in the mid/low end. I'm not here just for the money. With a few hundred sold of the Nissan and the small number of these Toyotas so far, I have not had any complaints on the gains that are achieved. You may not agree with the process I have done to bring this to you guys but it was for everyone's benefit. If all I wanted to do was make money, this wouldnt be it.

    Last edited: Aug 23, 2013
  7. luka

    luka Well-Known Member

    Joined:
    Jun 17, 2011
    Member:
    #58428
    Messages:
    2,604
    Gender:
    Male
    First Name:
    Mike
    Kailua, HI
    Vehicle:
    Prerunner -> 4WD Converted
    Pelfreybilt Bumper & IFS+Mid skid, Warn Zeon 10-S, BAMF Sliders & LCA/Diff Skids, DTRL toggle on/off, FJ OEM Fog/Aux Light switches, 2012 lower center console swap, wired in auto-dimming rear view mirror, Wet-Okole inside, Weathertech Liners & Vent Visors, Rigid Duallys fogs, 35%/5% front/rear tint, Roto-Pax, Bestop SuperTop, OME 90000/886 Front, OME Dakars+AAL/extended 5100 Rears, Extended SS brake lines, TRD TX Pro/Baja Graphite 16" Rims

    Not that much work to install 2 in place of one. The 2 lines to the throttle body are easy to replace as is the air line at the back of the manifold. the electrical harnesses should clear but it might be tight. If anything, may have to extend the harness near the back.

    If I can keep it around 1500-1800 rpms my ultragauge instant mpg display will hit over 30mpg on flat ground cruising. My mpg avg from Aug 3(a few weeks prior to installing) to now is between 18.8 & 19 MPG with ~500lbs of bumper/winch/skids/tools.

    I managed to find the sweet spot going up H3 in 4th gear(Auto) showing a 16.5mpg instant avg while slowly accelerating from 60mpg up hill. Usually the same spot will show 10mpg on the instant avg prior to the spacer.

  8. luka

    luka Well-Known Member

    Joined:
    Jun 17, 2011
    Member:
    #58428
    Messages:
    2,604
    Gender:
    Male
    First Name:
    Mike
    Kailua, HI
    Vehicle:
    Prerunner -> 4WD Converted
    Pelfreybilt Bumper & IFS+Mid skid, Warn Zeon 10-S, BAMF Sliders & LCA/Diff Skids, DTRL toggle on/off, FJ OEM Fog/Aux Light switches, 2012 lower center console swap, wired in auto-dimming rear view mirror, Wet-Okole inside, Weathertech Liners & Vent Visors, Rigid Duallys fogs, 35%/5% front/rear tint, Roto-Pax, Bestop SuperTop, OME 90000/886 Front, OME Dakars+AAL/extended 5100 Rears, Extended SS brake lines, TRD TX Pro/Baja Graphite 16" Rims
    averaged about 25.3mpg for the first 60ish miles after filling up to full with a full cooler and camping gear. Constant speed of 30-40mph with flat ground, rpm's around 1k the whole way.

    hills and traffic will net less of a gain, but for long casual drives, this spacer is doing it's job.

    :cool:

  9. hirod

    hirod Well-Known Member

    Joined:
    Jun 3, 2013
    Member:
    #105540
    Messages:
    287
    Gender:
    Male
    hawaii
    Vehicle:
    prerunner double cab longbed
    Tundra racing lowering kit, jump er's LEDs, debadged, hell wig rear sway bar and helper springs, auto pop lock
    Dammit. I was going to stop modding for this year so I could save up for my snug top. But ... even if I gain 1 mpg, this puppy pays for itself in little more than a year. So its not spending, its saving ... gonna keep repeating that to myself.

  10. PMK

    PMK Well-Known Member

    Joined:
    Feb 27, 2010
    Member:
    #32186
    Messages:
    981
    Gender:
    Male
    Florida
    Vehicle:
    10 DCLB TRD Sport
    White, debadged, Mudflaps removed, ICON 2.5 in front, 2.0 in rear, all 4 corners have reservoirs, Spidertrax wheel spacers all around, BAMF bolt on sliders, Avid lightbar, oem transmission cooler converted to power steering cooler, aftermarket transmission cooler eliminating all oem transmission cooler stuff, remote mounted spin on transmission fluid filter TrueTrac rear differential, rear diff housing vented and filtered into left side bed box, URD MAF calibrator, Volant intake scoop into oem airbox, second filter removed, airbox internals smoothed, blended and polished throttle body, NST intake manifold spacer, Wet Okolee set covers, WeatherTech Digital Fit mats, inexpensive JVC single DIN, Scangage, AVS Stepshield door sill protectors
    I hear you on this one. With help, I found a used NST Spacer I was able to pick up.

    PK

  11. Chakraj

    Chakraj Well-Known Member

    Joined:
    Jun 19, 2013
    Member:
    #106620
    Messages:
    137
    Gender:
    Male
    CA
    Vehicle:
    2013 DCSB TRD SPORT v6 auto 4x4
    Debadged, ToyTec Adjustable Coilovers,Total Chaos UCA, Dakar Leaf Packs, Bilstein 5100, Spidertrax 1.25 spacers
    Any check engine lights? is everyone still running the spacer or have you removed it?

  12. LowerBost

    LowerBost Well-Known Member

    Joined:
    Jun 14, 2013
    Member:
    #106273
    Messages:
    325
    Gender:
    Male
    First Name:
    Nick
    Pittsburgh, PA
    Vehicle:
    09 Tacoma Sport
    Old Man Emu Lift w/ Dakars and Billsteins, K&N Intake, Throttle Body Space, Front Bull Bar, Side Rails, Painted Stock Rims, Bilstein 5100 Front Shocks, Third Brake Light Cover, Satoshi Grill Mod, BHLM Mod
    How about install? Pretty easy?

  13. luka

    luka Well-Known Member

    Joined:
    Jun 17, 2011
    Member:
    #58428
    Messages:
    2,604
    Gender:
    Male
    First Name:
    Mike
    Kailua, HI
    Vehicle:
    Prerunner -> 4WD Converted
    Pelfreybilt Bumper & IFS+Mid skid, Warn Zeon 10-S, BAMF Sliders & LCA/Diff Skids, DTRL toggle on/off, FJ OEM Fog/Aux Light switches, 2012 lower center console swap, wired in auto-dimming rear view mirror, Wet-Okole inside, Weathertech Liners & Vent Visors, Rigid Duallys fogs, 35%/5% front/rear tint, Roto-Pax, Bestop SuperTop, OME 90000/886 Front, OME Dakars+AAL/extended 5100 Rears, Extended SS brake lines, TRD TX Pro/Baja Graphite 16" Rims
    no lights and still running.

    not bad, easy if you're handy with tools. the fitment of the main harness got a little tighter putting all the little clips back on because of the 1/2" movement.

    I had to stand on my bumper for mine because the grill guard limited my reach :D

  14. emelianenkov

    emelianenkov Well-Known Member

    Joined:
    May 3, 2012
    Member:
    #78151
    Messages:
    17,706
    Gender:
    Male
    First Name:
    Alex
    Andover, MA
    Vehicle:
    Fuck you, its a Toyota regardless :D
    Bilstein 5100/Eibach springs/.5" top plate spacer. Rear icon springs. (2) 4" (1) 42" LED bars, Magnaflow, K&N CAI, 1/2" XTP IMS, "Custom Cap" installed by factory :D, TRD stickers (Instantly gained extra HP), Pioneer Audio all around, 200w sub amp
    I stood on the winch plate. Made for an EASY install lol

  15. 3ps14

    3ps14 Well-Known Member

    Joined:
    May 17, 2011
    Member:
    #56803
    Messages:
    319
    Gender:
    Male
    Orange, CA
    Vehicle:
    05 trd sport dc
    OME 885s, Black FJ Alloys, TSB AAL, BHLM, Satoshi, Hellas, Black Valence, 6k HIDs
    I'm thinking about purchasing one, however I need some reinforcement before I jump the gun. I commute almost everyday to school 60+ miles roundtrip and the mpg gains would definitely help.. Should I do it?!

  16. emelianenkov

    emelianenkov Well-Known Member

    Joined:
    May 3, 2012
    Member:
    #78151
    Messages:
    17,706
    Gender:
    Male
    First Name:
    Alex
    Andover, MA
    Vehicle:
    Fuck you, its a Toyota regardless :D
    Bilstein 5100/Eibach springs/.5" top plate spacer. Rear icon springs. (2) 4" (1) 42" LED bars, Magnaflow, K&N CAI, 1/2" XTP IMS, "Custom Cap" installed by factory :D, TRD stickers (Instantly gained extra HP), Pioneer Audio all around, 200w sub amp

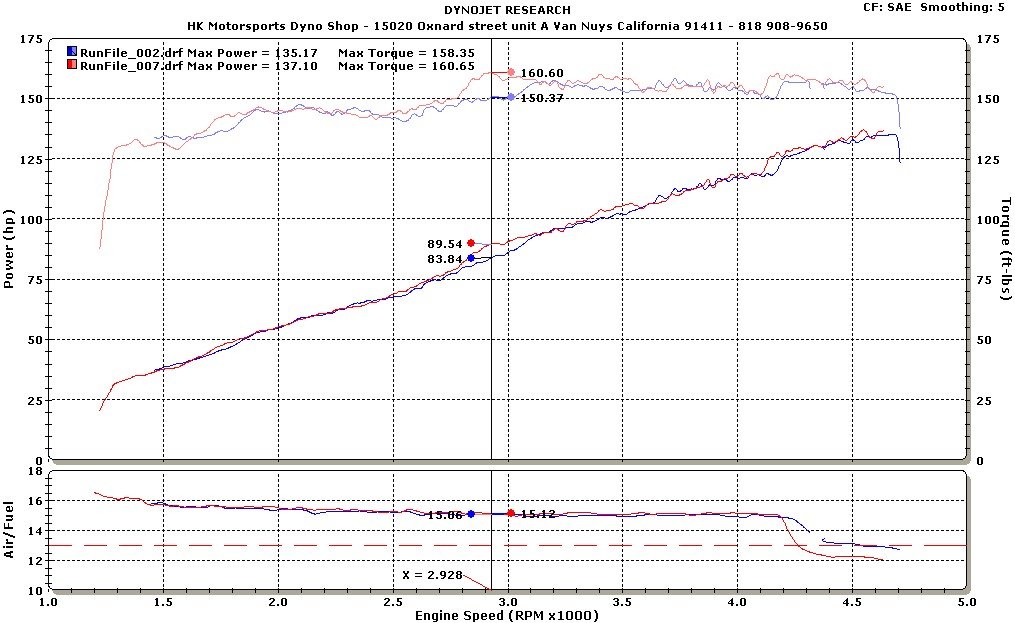

    [​IMG]

  17. luka

    luka Well-Known Member

    Joined:
    Jun 17, 2011
    Member:
    #58428
    Messages:
    2,604
    Gender:
    Male
    First Name:
    Mike
    Kailua, HI
    Vehicle:
    Prerunner -> 4WD Converted
    Pelfreybilt Bumper & IFS+Mid skid, Warn Zeon 10-S, BAMF Sliders & LCA/Diff Skids, DTRL toggle on/off, FJ OEM Fog/Aux Light switches, 2012 lower center console swap, wired in auto-dimming rear view mirror, Wet-Okole inside, Weathertech Liners & Vent Visors, Rigid Duallys fogs, 35%/5% front/rear tint, Roto-Pax, Bestop SuperTop, OME 90000/886 Front, OME Dakars+AAL/extended 5100 Rears, Extended SS brake lines, TRD TX Pro/Baja Graphite 16" Rims
    I drive ~50 miles daily for work and noticed it is helping the most on flat ground. I have to drive over a hill so I fight it halfway and coast down the other :)

    still managing to maintain 17+ mpg with 33's(255/85) with a lot of armor.

  18. CWG

    CWG Active Member

    Joined:
    Apr 21, 2013
    Member:
    #102546
    Messages:
    31
    Gender:
    Male
    Seattle?
    Vehicle:
    2013 DCLB Sport
    Truck Covers USA Hard Tonneau, DynoLock, OEM steps, TRD SE Anthracite wheels, Duratrac tires

    I drive a hilly 40 miles daily roundtrip and I didn't notice much on the mpg gains. For me the powerband shift down in RPM was the fantastic part. No more contstant downshift in traffic on my variable speed hilly commute. Rarely get it over 3000 rpm now, which should have helped mpg but haven't noticed over 1/2 mpg variance.

  19. 3ps14

    3ps14 Well-Known Member

    Joined:
    May 17, 2011
    Member:
    #56803
    Messages:
    319
    Gender:
    Male
    Orange, CA
    Vehicle:
    05 trd sport dc
    OME 885s, Black FJ Alloys, TSB AAL, BHLM, Satoshi, Hellas, Black Valence, 6k HIDs
    Thanks for all your guys' help and insight! Im gonna be purchasing one here soon.

  20. PMK

    PMK Well-Known Member

    Joined:
    Feb 27, 2010
    Member:
    #32186
    Messages:
    981
    Gender:
    Male
    Florida
    Vehicle:
    10 DCLB TRD Sport
    White, debadged, Mudflaps removed, ICON 2.5 in front, 2.0 in rear, all 4 corners have reservoirs, Spidertrax wheel spacers all around, BAMF bolt on sliders, Avid lightbar, oem transmission cooler converted to power steering cooler, aftermarket transmission cooler eliminating all oem transmission cooler stuff, remote mounted spin on transmission fluid filter TrueTrac rear differential, rear diff housing vented and filtered into left side bed box, URD MAF calibrator, Volant intake scoop into oem airbox, second filter removed, airbox internals smoothed, blended and polished throttle body, NST intake manifold spacer, Wet Okolee set covers, WeatherTech Digital Fit mats, inexpensive JVC single DIN, Scangage, AVS Stepshield door sill protectors
    Plan ahead in regards to the intake supports. My lightly used NST spacer came with 2 out of three brackets, and these were already trimmed.

    It's not difficult, just be prepared if your spacer does not come with them.

    You might also consider cleaning the il residue from inside the manifold and throttle body while apart.

    PK
