Integrating FJ switch to Rigid light

Discussion in 'Lighting' started by Sgian, Mar 3, 2013.

  1. Mar 3, 2013 at 5:35 AM
    #1
    Sgian

    Sgian [OP] The sherbet is fermenting........

    Joined:
    Mar 5, 2011
    Member:
    #52360
    Messages:
    386
    Gender:
    Male
    First Name:
    Matt
    Louisiana
    Vehicle:
    2011 Sport DCSB Manual V-6 SC
    TRD Super Charger, AFE CAI, URD Cat-back exhaust, URD Short throw Shifter, OME 886 coilovers with Nitrochargers, Dakar Leaves, Desert Products UCA's, FJ TRD Anthracite rims, BFG AT/TKO 285s, Redline Hood struts, Weathertech Ventshades, Weathertech Floormats, Speed Dawg shift knob, Coupe solid shifter, Relentless all around, Eyelids T2, Mr Yo Rearview mirror lift, ejector seats, Rigid D2s front and back, Rigid Light bar in skewp.
    Has anyone done this? I am sitting here, looking at the six pin FJ accessory light switch and my three wire Rigid light bar wiring harness and scratching my head. Wires 5 and 6 I understand, will tap into the power and ground from my fog light switch. 1, 2, 3, 4 have me stymied. I know 1 is power to the "on" led. 2 is ground for the light. 3 is power in for the accessory light. 4 is power to the light. I am just having trouble thinking of how I need to splice this into the Rigid system. Any advice would be more than welcome. Thank you for your time.
    [​IMG]
    For the life of me, I cannot find a wiring schematic for the Rigid wiring harness.

  2. Mar 4, 2013 at 5:20 PM
    #2
    BytorTruck

    BytorTruck Well-Known Member

    Joined:
    Oct 24, 2011
    Member:
    #65792
    Messages:
    157
    Gender:
    Male
    First Name:
    Brandon
    Scottsdale AZ
    Did you get it figured out Matt?

  3. Mar 5, 2013 at 1:52 AM
    #3
    Sgian

    Sgian [OP] The sherbet is fermenting........

    Joined:
    Mar 5, 2011
    Member:
    #52360
    Messages:
    386
    Gender:
    Male
    First Name:
    Matt
    Louisiana
    Vehicle:
    2011 Sport DCSB Manual V-6 SC
    TRD Super Charger, AFE CAI, URD Cat-back exhaust, URD Short throw Shifter, OME 886 coilovers with Nitrochargers, Dakar Leaves, Desert Products UCA's, FJ TRD Anthracite rims, BFG AT/TKO 285s, Redline Hood struts, Weathertech Ventshades, Weathertech Floormats, Speed Dawg shift knob, Coupe solid shifter, Relentless all around, Eyelids T2, Mr Yo Rearview mirror lift, ejector seats, Rigid D2s front and back, Rigid Light bar in skewp.
    Not fully. I am going to attempt to wire it up this weekend. There will undoubtably be some error and trial going on. My best guess is going to be blue wire to 1, black to 2, red to 3 and black to 4 again. Hopefully I don't blow up the system.

  4. Mar 5, 2013 at 11:09 AM
    #4
    BytorTruck

    BytorTruck Well-Known Member

    Joined:
    Oct 24, 2011
    Member:
    #65792
    Messages:
    157
    Gender:
    Male
    First Name:
    Brandon
    Scottsdale AZ
    This is what I would do. Dont run any wires into the cab. Cut the Red Black and Blue off the switch on the Rigid harness. Cap off the Red and the Black wires off. Take the blue wire from the rigid harness and T-tap it with the positive fog light wire any where between the factory relay and factory fog light bulb.

    Last edited: Mar 5, 2013
  5. Mar 5, 2013 at 3:35 PM
    #5
    Sgian

    Sgian [OP] The sherbet is fermenting........

    Joined:
    Mar 5, 2011
    Member:
    #52360
    Messages:
    386
    Gender:
    Male
    First Name:
    Matt
    Louisiana
    Vehicle:
    2011 Sport DCSB Manual V-6 SC
    TRD Super Charger, AFE CAI, URD Cat-back exhaust, URD Short throw Shifter, OME 886 coilovers with Nitrochargers, Dakar Leaves, Desert Products UCA's, FJ TRD Anthracite rims, BFG AT/TKO 285s, Redline Hood struts, Weathertech Ventshades, Weathertech Floormats, Speed Dawg shift knob, Coupe solid shifter, Relentless all around, Eyelids T2, Mr Yo Rearview mirror lift, ejector seats, Rigid D2s front and back, Rigid Light bar in skewp.
    I am planning to put in a separate switch from the factory fogs. I have bought an FJ switch, and wanted the "On" light for that switch to function.

  6. Mar 12, 2013 at 5:12 AM
    #6
    Sgian

    Sgian [OP] The sherbet is fermenting........

    Joined:
    Mar 5, 2011
    Member:
    #52360
    Messages:
    386
    Gender:
    Male
    First Name:
    Matt
    Louisiana
    Vehicle:
    2011 Sport DCSB Manual V-6 SC
    TRD Super Charger, AFE CAI, URD Cat-back exhaust, URD Short throw Shifter, OME 886 coilovers with Nitrochargers, Dakar Leaves, Desert Products UCA's, FJ TRD Anthracite rims, BFG AT/TKO 285s, Redline Hood struts, Weathertech Ventshades, Weathertech Floormats, Speed Dawg shift knob, Coupe solid shifter, Relentless all around, Eyelids T2, Mr Yo Rearview mirror lift, ejector seats, Rigid D2s front and back, Rigid Light bar in skewp.
    Ok, figured it out. I had been searching all over the interweb for a wiring diagram for the Rigid light bar. Turns out the instructions that came with the D2s included what goes where for the bar :facepalm:.

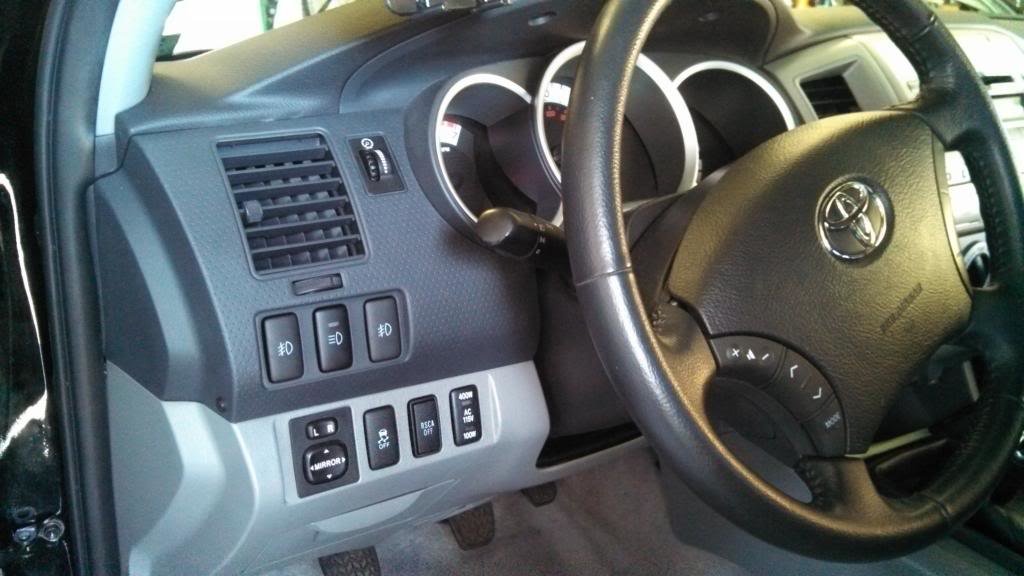

    [​IMG]

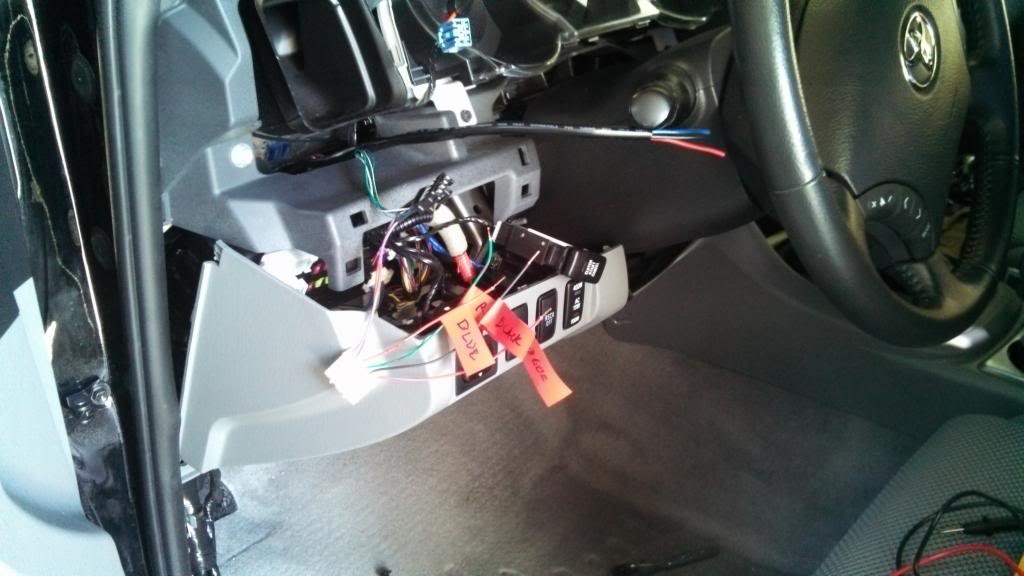

    So then integrating it into the FJ switch was a little nerve wracking, ended up calling my dad to double check as I didn't want to burn out the switch itself. Ended up being 1 to blue, 2 to black, 3 to red, 4 to blue again, 5 got connected to wire 4 of the adjacent fog light switch, 6 to wire 3 of fog light.
    [​IMG]
    and then all closed up:
    [​IMG]

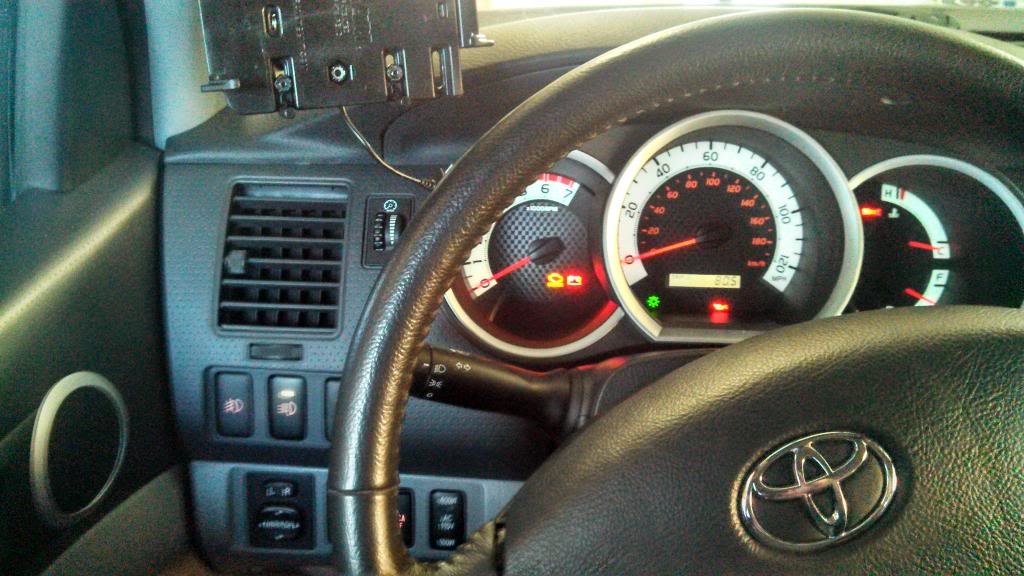

    and working:
    [​IMG]

  7. Mar 12, 2013 at 5:16 AM
    #7
    Dark Knight

    Dark Knight Well-Known Member

    Joined:
    Jul 18, 2008
    Member:
    #8006
    Messages:
    9,546
    Gender:
    Male
    First Name:
    Jeff
    NC/SC
    Vehicle:
    Trail Limo
    Icon stuff, Skyjacker rear leafs, FJ TRD SE wheels, 285/75/16 Trail grapplers, Rigid SR. 20", Yakima Rack, Bestop Canopy, TRD Exhaust, TRD CAI, Kenwood DNX5120 Navi, Fog Light Mod, Driving Light Mod, BHLM, Scanguage II on Blendmount, TC uca's, ARB Heavy Duty air compressor, ARB Rear Locker, Shrockworks Rock Sliders, ARB Front Bumper, Relentless Fab Rear Bumper w/ custom bed protection, WARN M8000
    Nice! I have got the cheapo factory light switch. I want this one.

  8. Mar 12, 2013 at 8:38 PM
    #8
    Mitch

    Mitch Somebody call for a Wambulance?

    Joined:
    Jun 27, 2011
    Member:
    #58964
    Messages:
    5,847
    Gender:
    Male
    First Name:
    Mitch
    Tigard, OR
    Vehicle:
    2007 Access Cab SR5 4x4
    Lights, Siren, Drugs, Needles, Electricity
    Where did you get the switch from?

  9. Mar 13, 2013 at 12:50 AM
    #9
    Sgian

    Sgian [OP] The sherbet is fermenting........

    Joined:
    Mar 5, 2011
    Member:
    #52360
    Messages:
    386
    Gender:
    Male
    First Name:
    Matt
    Louisiana
    Vehicle:
    2011 Sport DCSB Manual V-6 SC
    TRD Super Charger, AFE CAI, URD Cat-back exhaust, URD Short throw Shifter, OME 886 coilovers with Nitrochargers, Dakar Leaves, Desert Products UCA's, FJ TRD Anthracite rims, BFG AT/TKO 285s, Redline Hood struts, Weathertech Ventshades, Weathertech Floormats, Speed Dawg shift knob, Coupe solid shifter, Relentless all around, Eyelids T2, Mr Yo Rearview mirror lift, ejector seats, Rigid D2s front and back, Rigid Light bar in skewp.
  10. Mar 13, 2013 at 1:18 AM
    #10
    wrmathis

    wrmathis Dark Lord of the Sith

    Joined:
    Sep 10, 2008
    Member:
    #9126
    Messages:
    6,865
    Gender:
    Male
    First Name:
    Ryan Mathis
    Lives: Fountain, Colorado/Home: Leesburg, GA
    Vehicle:
    2006 Tacoma TRD OR 4x4
    parts and stuff
    glad u got it working. wish i would hava eseen the wiring diagram to give u some insight when u were asking me

  11. Mar 13, 2013 at 9:59 AM
    #11
    Mitch

    Mitch Somebody call for a Wambulance?

    Joined:
    Jun 27, 2011
    Member:
    #58964
    Messages:
    5,847
    Gender:
    Male
    First Name:
    Mitch
    Tigard, OR
    Vehicle:
    2007 Access Cab SR5 4x4
    Lights, Siren, Drugs, Needles, Electricity
    Thanks.

    So if I wanted to hook up a set of lights to that switch how would I get the other end of the plug to be able to plug into the harness?

  12. Mar 13, 2013 at 4:21 PM
    #12
    Sgian

    Sgian [OP] The sherbet is fermenting........

    Joined:
    Mar 5, 2011
    Member:
    #52360
    Messages:
    386
    Gender:
    Male
    First Name:
    Matt
    Louisiana
    Vehicle:
    2011 Sport DCSB Manual V-6 SC
    TRD Super Charger, AFE CAI, URD Cat-back exhaust, URD Short throw Shifter, OME 886 coilovers with Nitrochargers, Dakar Leaves, Desert Products UCA's, FJ TRD Anthracite rims, BFG AT/TKO 285s, Redline Hood struts, Weathertech Ventshades, Weathertech Floormats, Speed Dawg shift knob, Coupe solid shifter, Relentless all around, Eyelids T2, Mr Yo Rearview mirror lift, ejector seats, Rigid D2s front and back, Rigid Light bar in skewp.
    The only one I know for certain is the rigid harness. I do not pretend to be an electrical engineer, the only circuits I wired prior to this was to blow something up. I can take a crack at your question if you have the wiring diagram for your set of lights, but no promises. I normally destroy things rather than create.

  13. Mar 13, 2013 at 4:31 PM
    #13
    caribe makaira

    caribe makaira Lurker No More

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    510
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Have you verified that the switch dims with the rest of the other switches? Pin 6 should go to pin 2 of adjacent fog light switch.

  14. Mar 13, 2013 at 4:41 PM
    #14
    Sgian

    Sgian [OP] The sherbet is fermenting........

    Joined:
    Mar 5, 2011
    Member:
    #52360
    Messages:
    386
    Gender:
    Male
    First Name:
    Matt
    Louisiana
    Vehicle:
    2011 Sport DCSB Manual V-6 SC
    TRD Super Charger, AFE CAI, URD Cat-back exhaust, URD Short throw Shifter, OME 886 coilovers with Nitrochargers, Dakar Leaves, Desert Products UCA's, FJ TRD Anthracite rims, BFG AT/TKO 285s, Redline Hood struts, Weathertech Ventshades, Weathertech Floormats, Speed Dawg shift knob, Coupe solid shifter, Relentless all around, Eyelids T2, Mr Yo Rearview mirror lift, ejector seats, Rigid D2s front and back, Rigid Light bar in skewp.
    Dude, you just made me run outside and check. It does infact dim and brighten with the rheostat control at the same rate as the fog light switch. And now to hijack my own thread.... Do you bychance have a copy saved of your fog lights a'la Caribe hidden anywhere? I would really prefer your elegant solution to the one I am currently running/

  15. Mar 13, 2013 at 5:08 PM
    #15
    Mitch

    Mitch Somebody call for a Wambulance?

    Joined:
    Jun 27, 2011
    Member:
    #58964
    Messages:
    5,847
    Gender:
    Male
    First Name:
    Mitch
    Tigard, OR
    Vehicle:
    2007 Access Cab SR5 4x4
    Lights, Siren, Drugs, Needles, Electricity
    Well most of the light I've been looking at are just +/- wires. I have no issue wiring them up to a standard switch. I like the fact that we can hijack a FJ switch and make it look stock.
