Intense 5.5 EVP Build

Discussion in 'Other Builds' started by 186000mps, Jan 16, 2012.

  1. Jan 16, 2012 at 7:57 AM
    #1
    186000mps

    186000mps [OP] ..Slingin' up mud and we're scarying off bunnies..

    Joined:
    Aug 29, 2011
    Member:
    #62581
    Messages:
    778
    Gender:
    Male
    First Name:
    Charles
    Wimberley, TX
    Vehicle:
    01 Tacoma V6 4WD
    Bilstein 5100's, Toytec front adjustable coilover kit, Exporear leafs, Fox resi rears, Slotted & Drilled front rotors, 33x12.50 BFG ATs on Outlaw II 15 x 10s, Bushwacker cutout flares, K&N cold air intake with aluminum sheathing water baffles, ARB bumper with XD9000 winch with wireless remote, IPF 900XS lights, Flowmaster cat-back exhaust, Rhino bed liner, UWS gullwing toolbox with tools and recovery gear. 48" Hi-Lift Jack secured under toolbox.
    03.22.12:
    [​IMG]

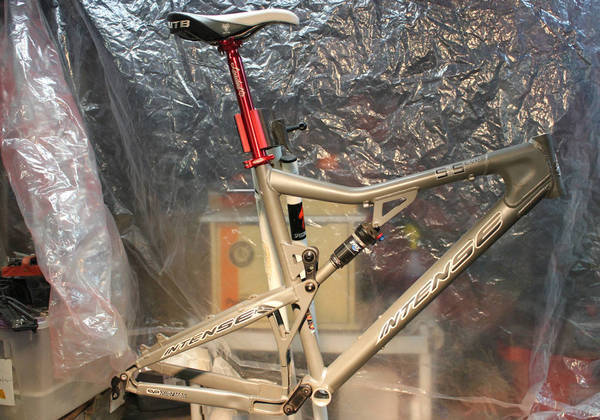

    So its nice to see a lot of Taco owners into Mtn Biking. While there are good Mtn Bike sites out there, I spend most of my time here, so I thought I'd share with y'all. I've been collecting parts for a while and only recently have started the assembly.

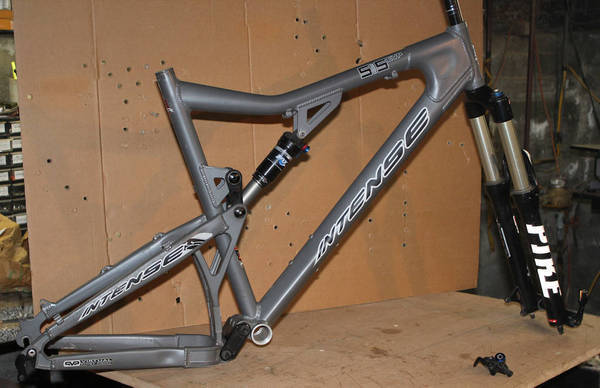

    Started with a used frame/fork from a local mechanic.

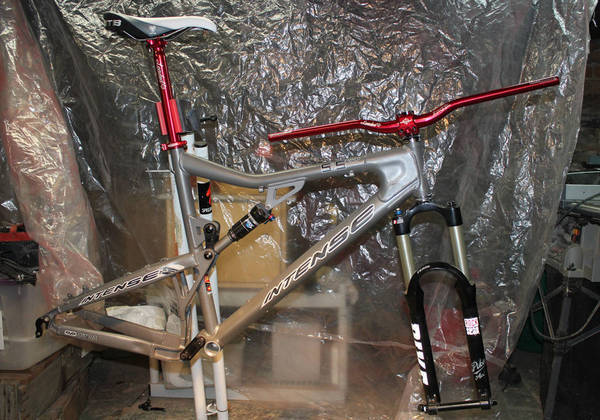

    [​IMG]
    [​IMG]

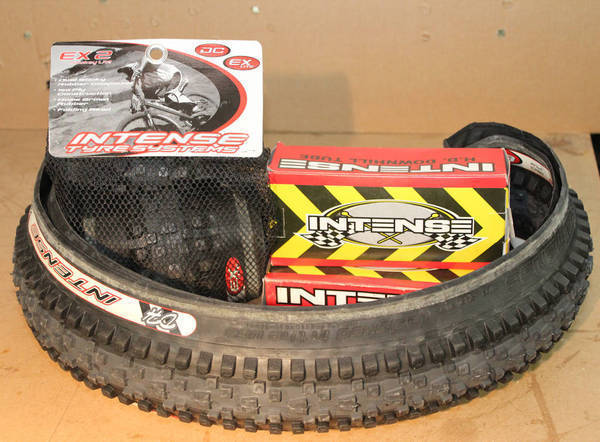

    Intense tires and tubes
    [​IMG]

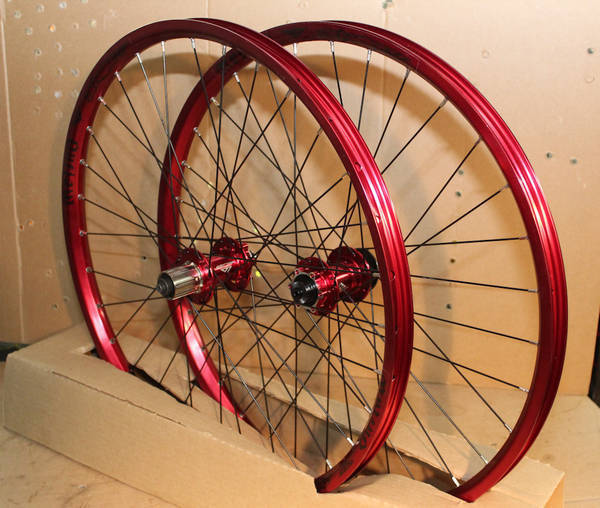

    Azonic Outlaw wheelset
    [​IMG]

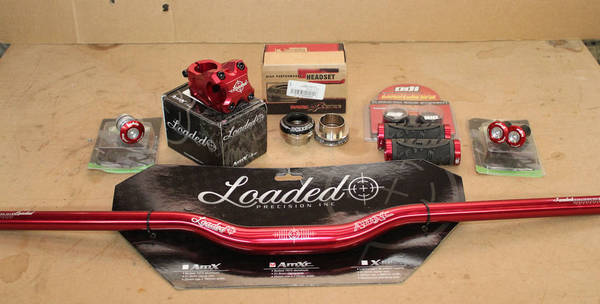

    Loaded Handlebars & Stem, Race Face Stainless DH headset & Hope goodies
    [​IMG]

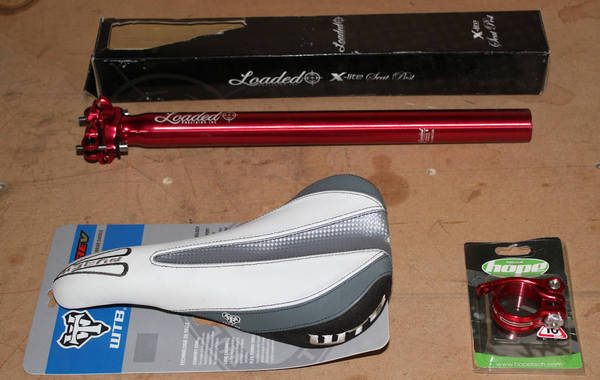

    Seat & Seatpost
    [​IMG]

    Sram X0 drivetrain with Race Face cranks & Crank Bros pedals
    [​IMG]

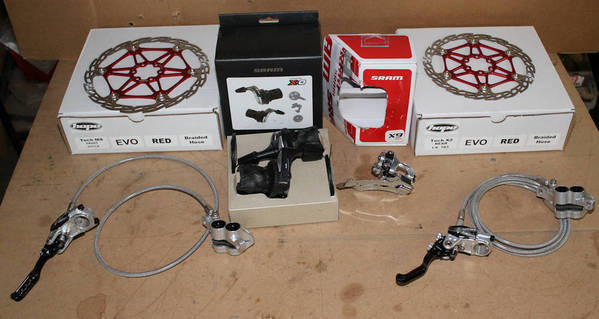

    Hope Tech M4 brakes with floating rotors and braided lines
    [​IMG]

    Started Build 12/31/11
    [​IMG]

    Pressing in bottom S/S cup
    [​IMG]

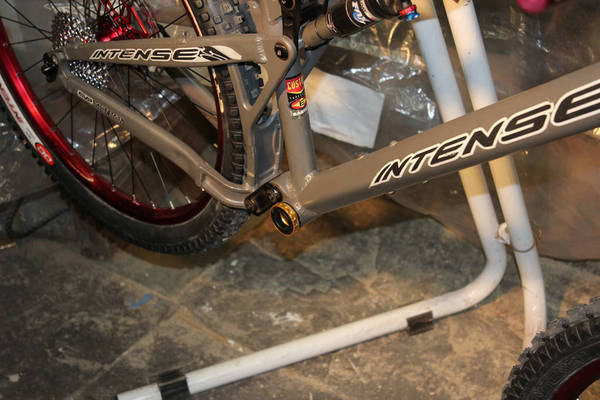

    Both cups seated
    [​IMG]

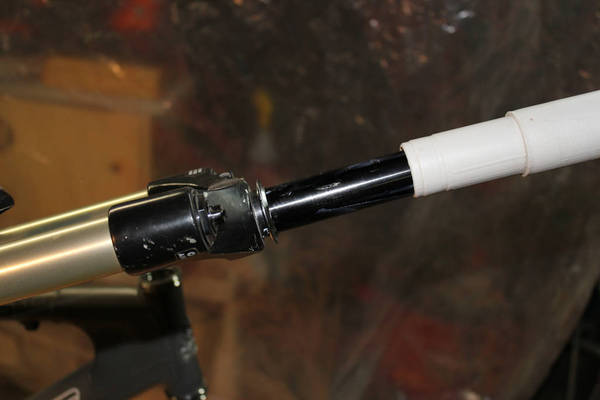

    Installing race on forks with plastic tube
    [​IMG]

    Loaded Stem (will trim steerer tube very last)
    [​IMG]

    Loaded Handlebars in place
    [​IMG]

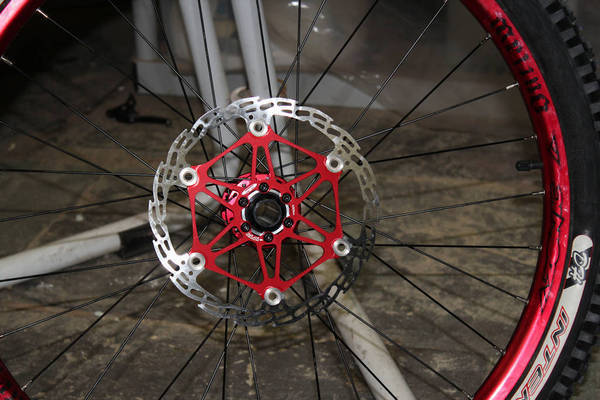

    Installed tires & rotors
    [​IMG]

    Race Face External BB installed
    [​IMG]

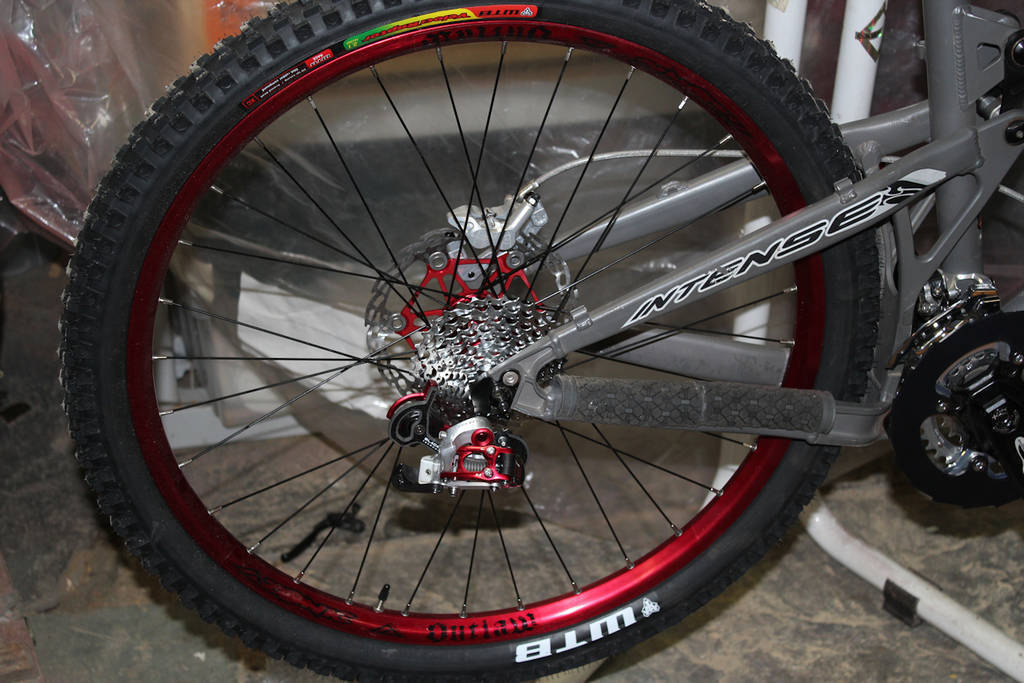

    Wheels in place, went with front 20mm Maxle and std QR in rear
    [​IMG]

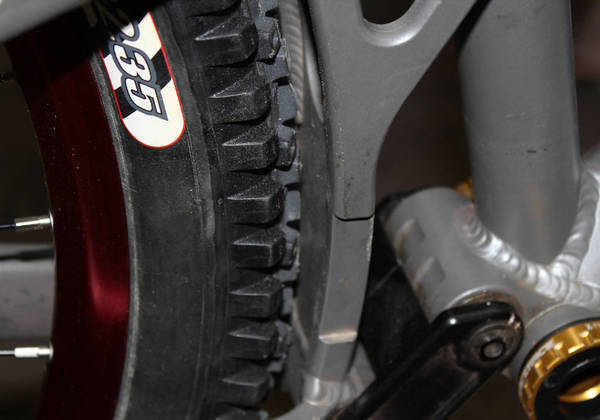

    But the 2.35 tires have very little mud clearance
    [​IMG]

    New 2.10 Velociraptors on order as well as new wrenches to install rest of the Race Face crankset.

    01.11.12

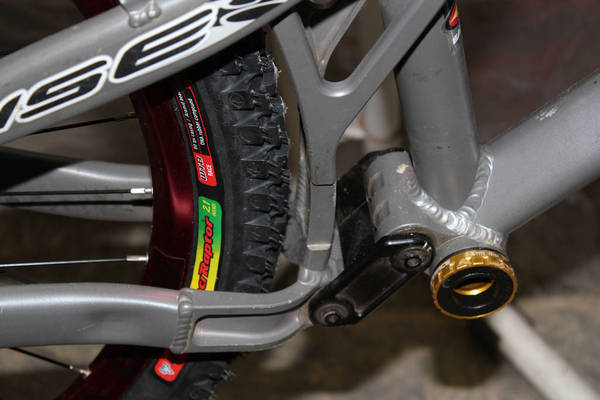

    New tires arrived and I installed them this weekend. Better clearance!
    [​IMG]
    [​IMG]

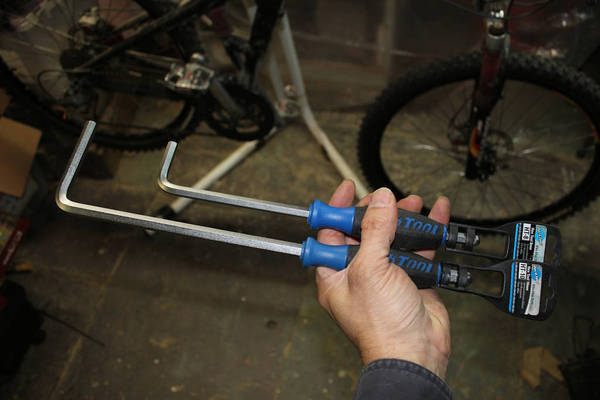

    Also got some big ass crank arm wrenches to finish up the Race Face install.
    [​IMG]


    Update: 03.02.12

    Azonic poster for the Outlaw rims
    [​IMG]

    Cranks, bash guard, rear derailleur and brakes installed
    [​IMG]

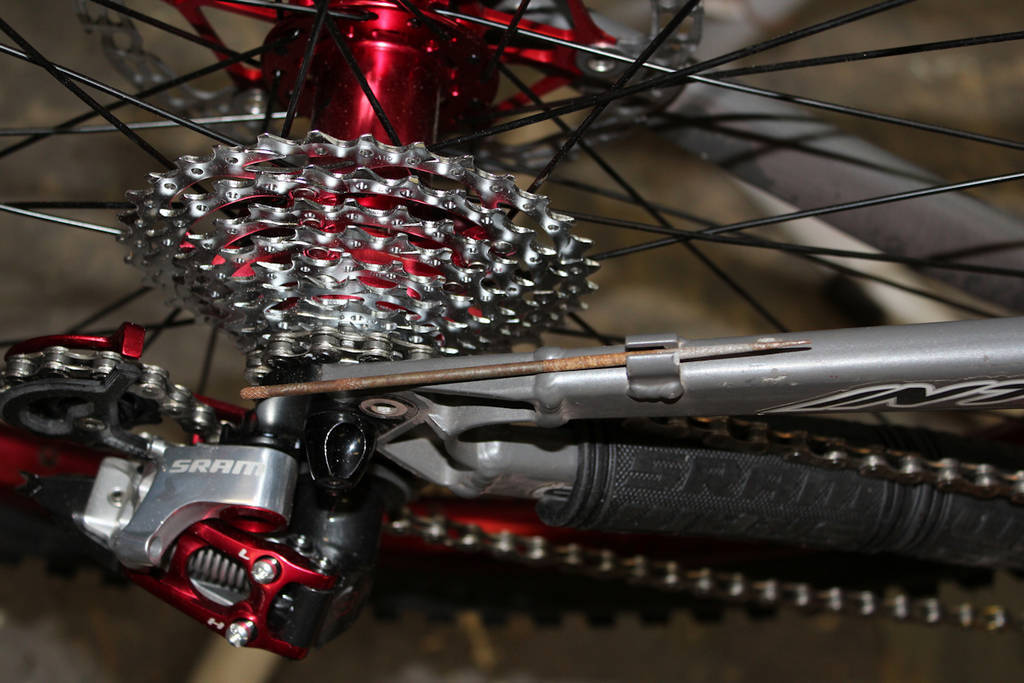

    Sram XO rear derailleur
    [​IMG]

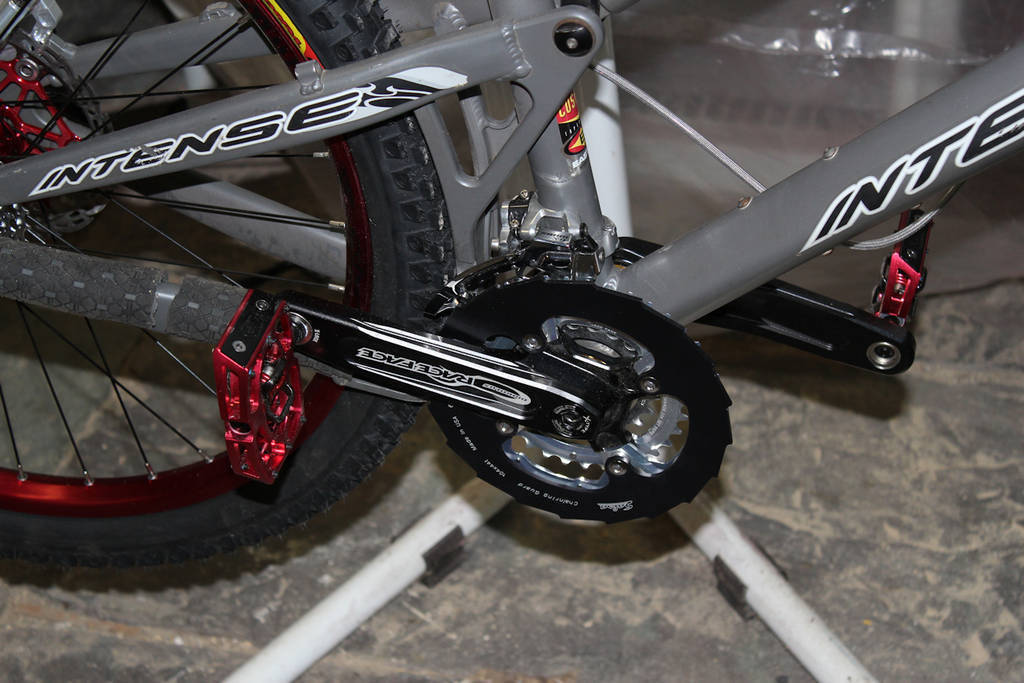

    Race Face cranks with Salsa bash guard and Crank bros pedals
    [​IMG]

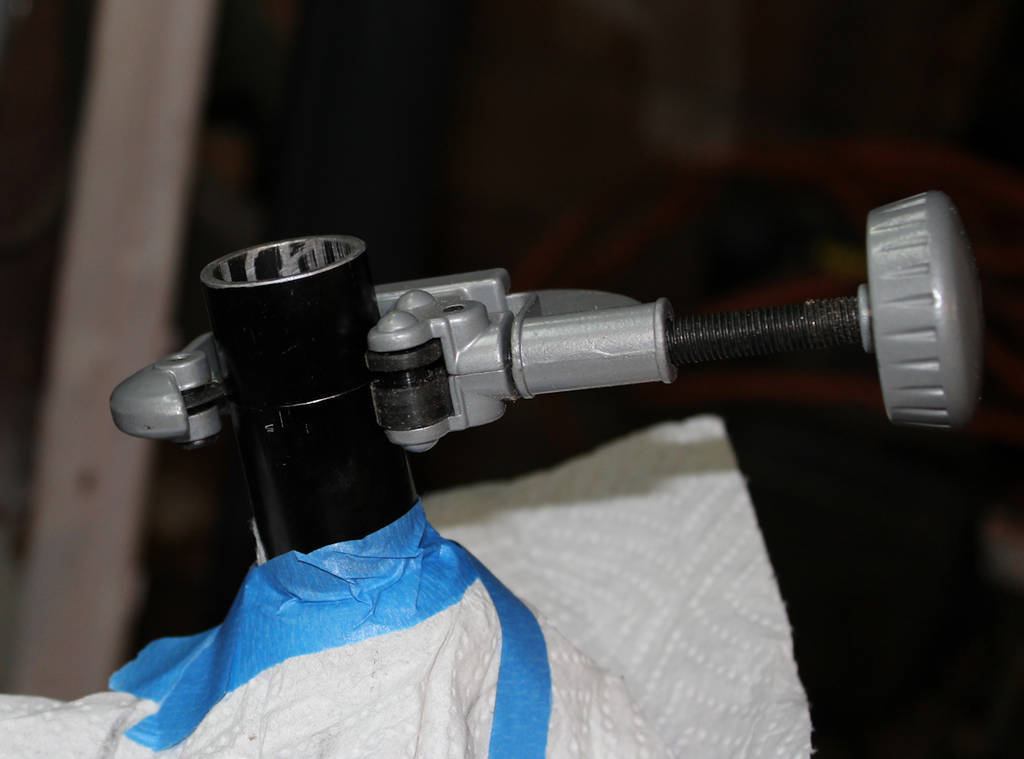

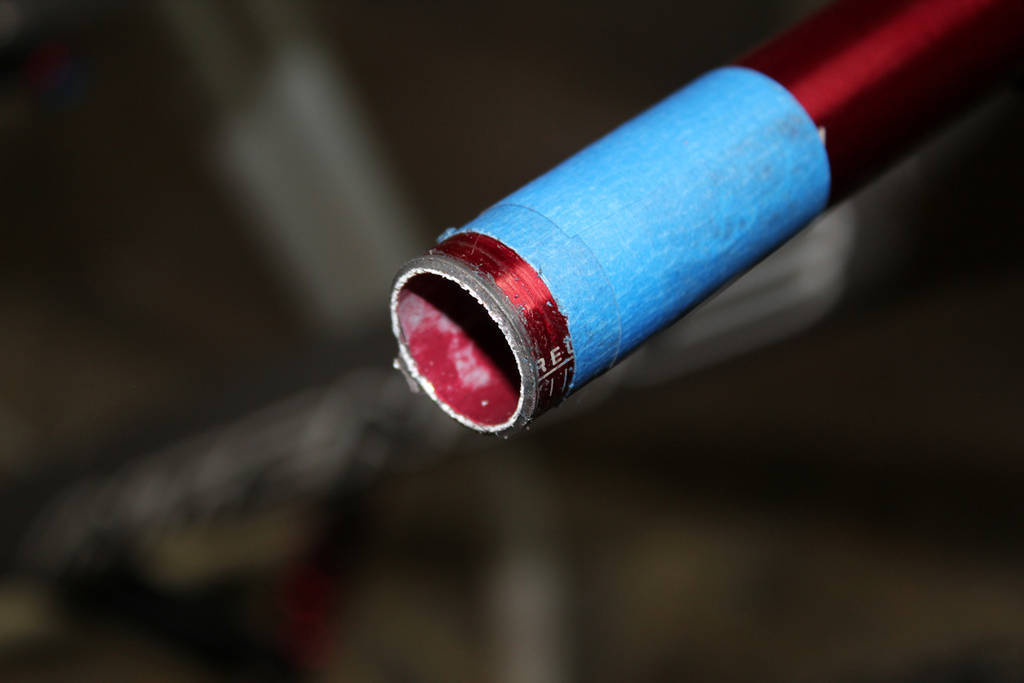

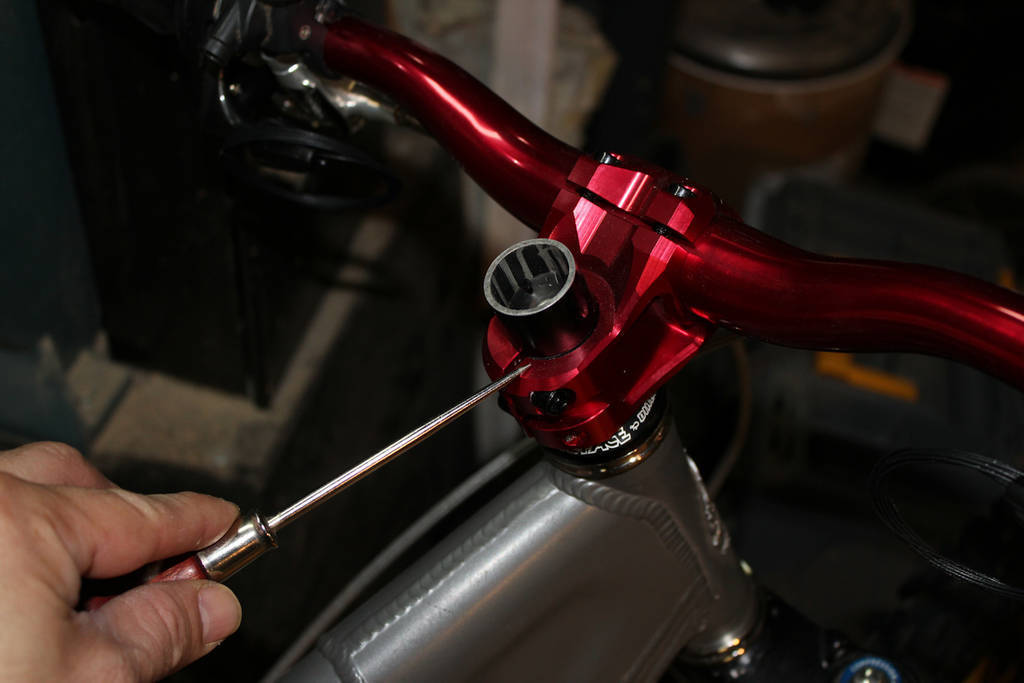

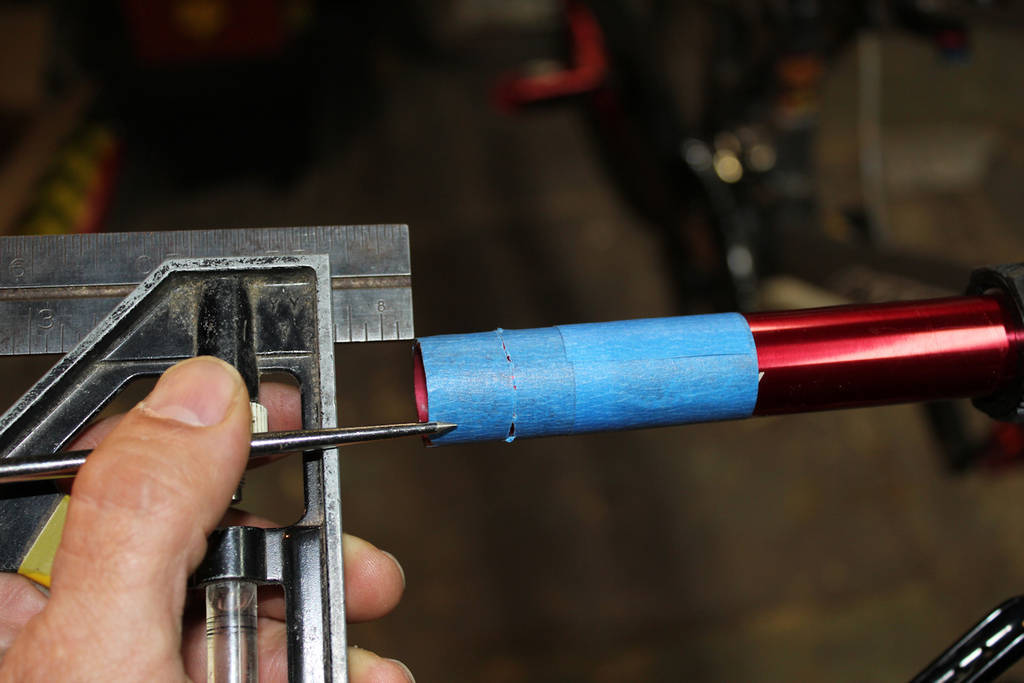

    Marking the steerer tube for cutting
    [​IMG]

    Locating the cut about an 1/8" below scratch line
    [​IMG]

    Cut progress
    [​IMG]

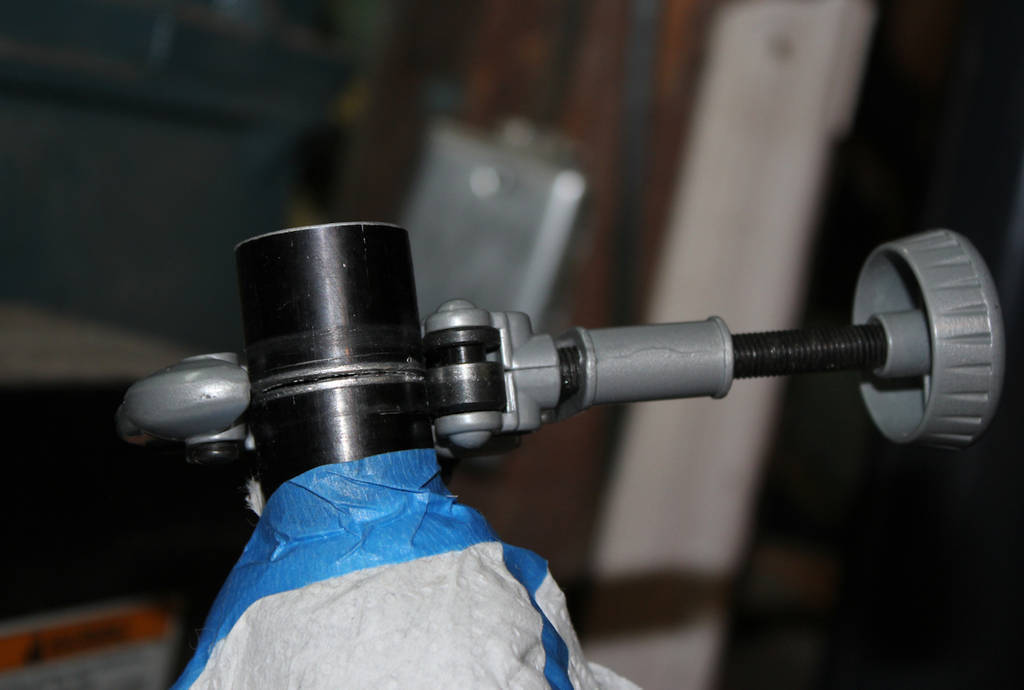

    I deburred the inside and outside of tube and reinstalled stem
    [​IMG]

    Top of tube sits slightly shallow of top of stem
    [​IMG]

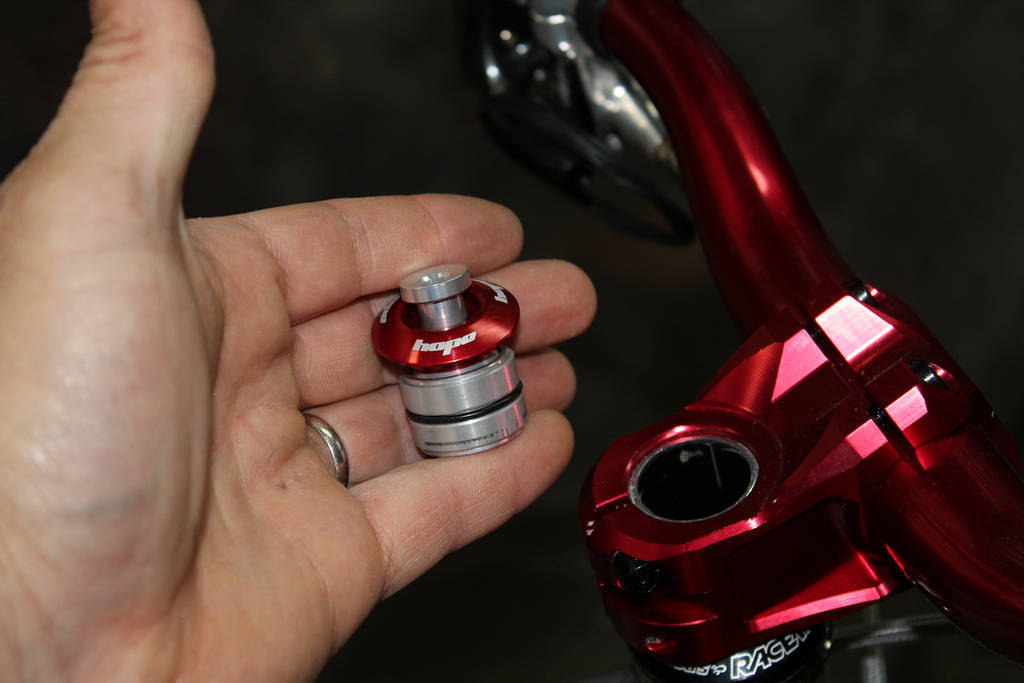

    Hope Head Doctor
    [​IMG]

    Head Doctor installed
    [​IMG]

    Bars were a little too long, so I marked the ends for trimming
    [​IMG]

    End cut before deburring
    [​IMG]

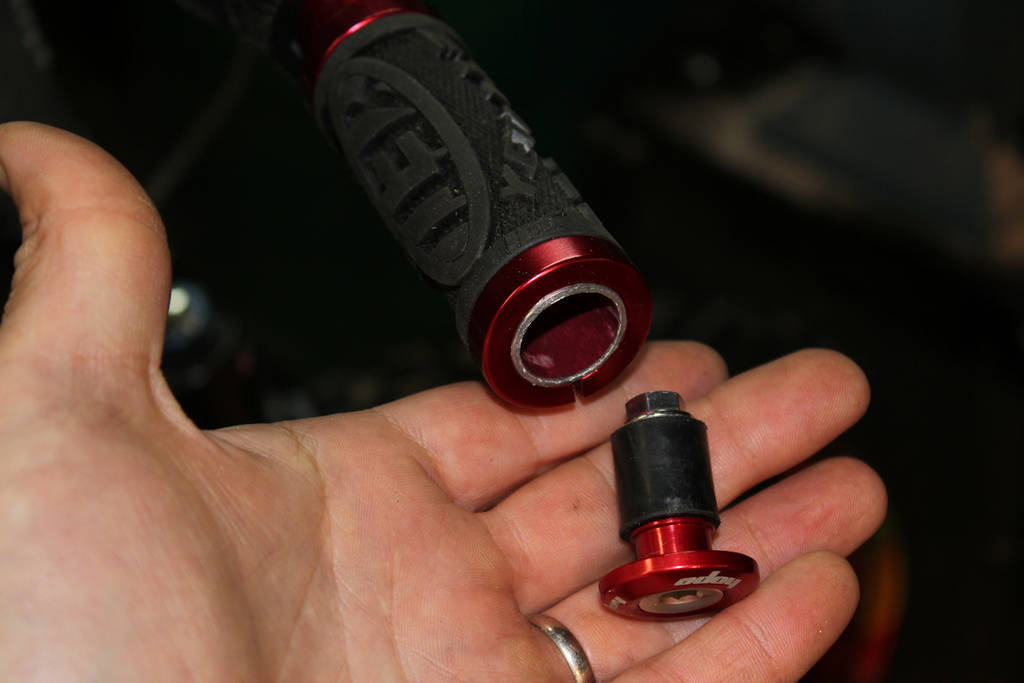

    Deburred end and Hope Grip Doctor
    [​IMG]

    Grips and Grip Doctor in place
    [​IMG]

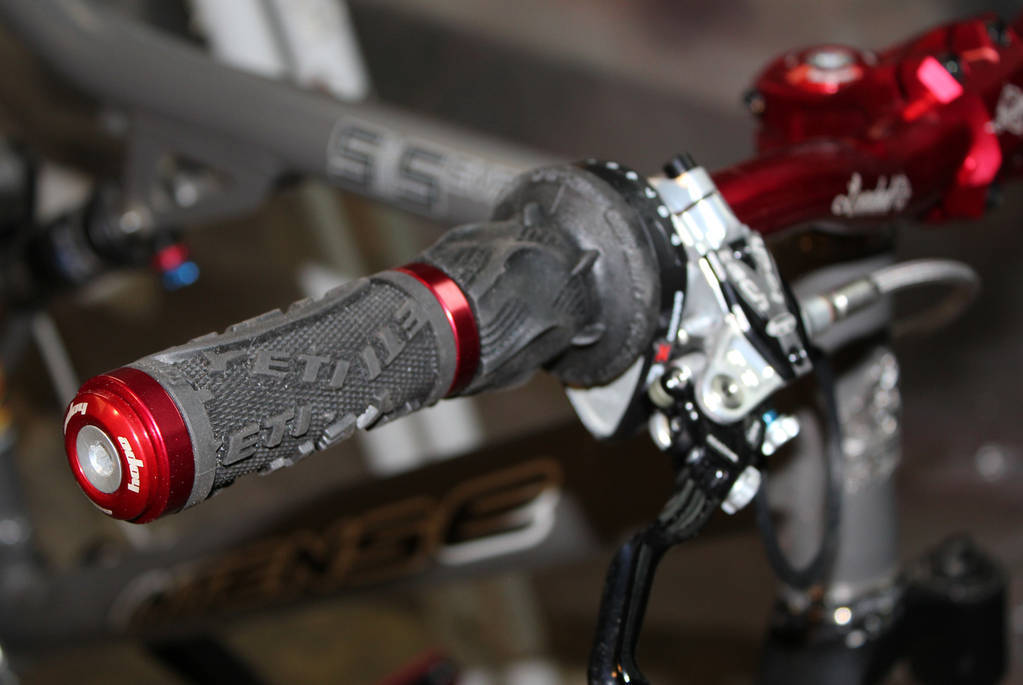

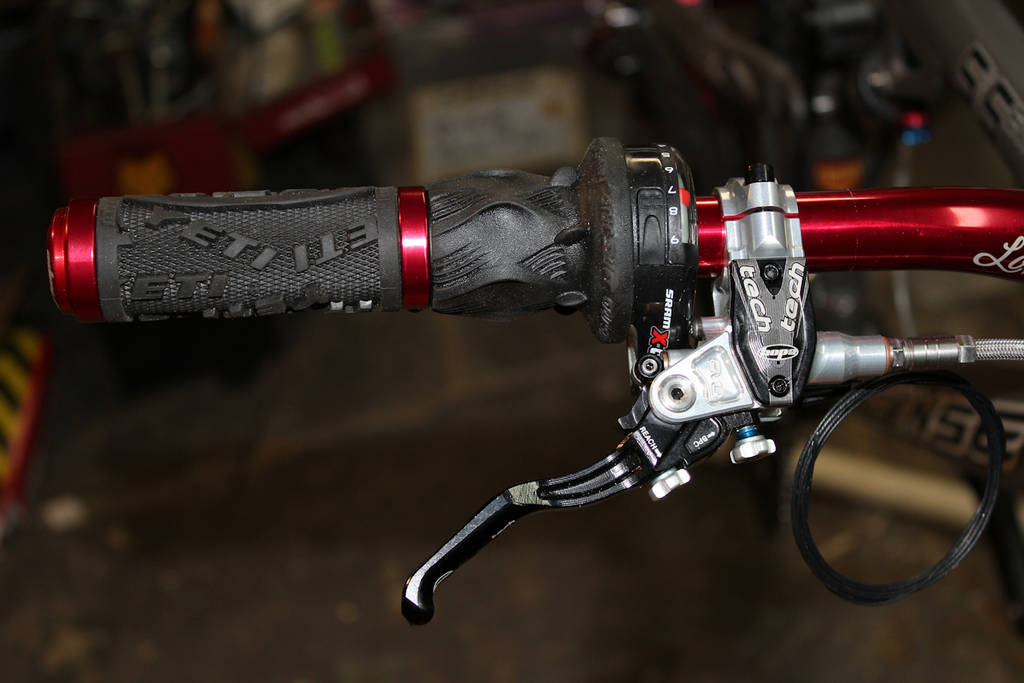

    Hope Tech brake lever installed
    [​IMG]

    Rock Shox Pike remote lock out
    [​IMG]

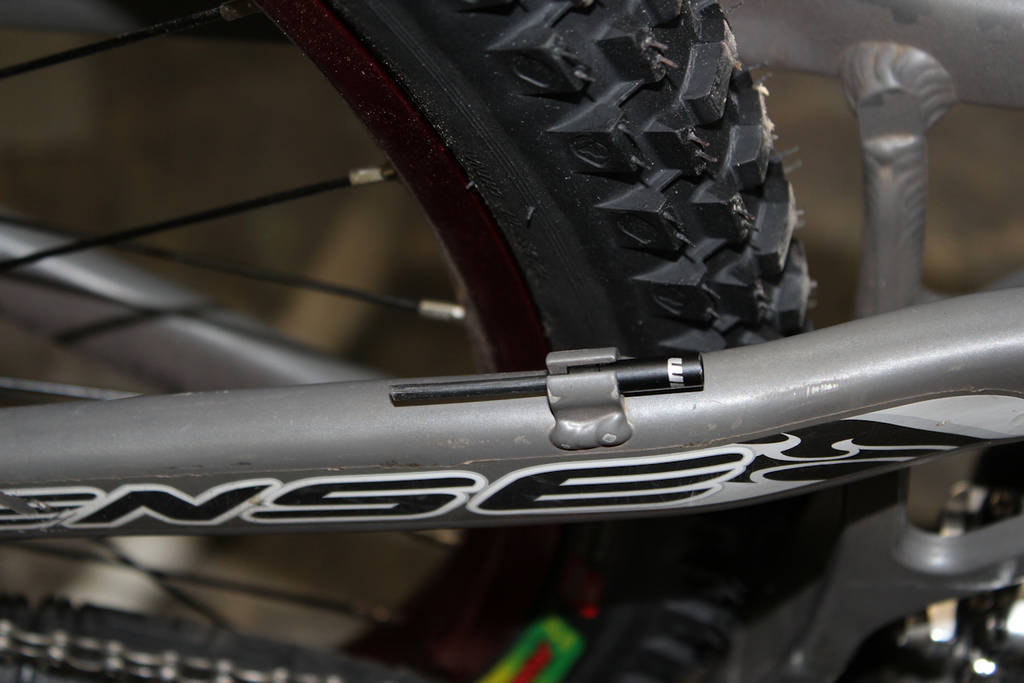

    I had to file the housing mounts to fit the Sram ferrules
    [​IMG]

    Ferrule test fitting
    [​IMG]

    That's about it so far, I have to route all my cables and set up my brakes. I'm having a bit of an issue right now with my rotors nicking my brake mounting adapters, I may end up taking a little material off the mounting adapters.




    03.21.12
    Finally got around to finishing it up.
    I had issues with the Azonic wheels not lining up true in the frame or forks. With the Maxle front, I finally fabricated a washer to insert on the disc side that fit into the recess of the Pike shocks.
    I installed and routed all the cables.

    03.22.12
    After everything was in place, I bleed the Tech levers and M4 Hope brakes then centralized the pistons about the discs.
    Sorry no picts, was in the zone about finishing it all up.

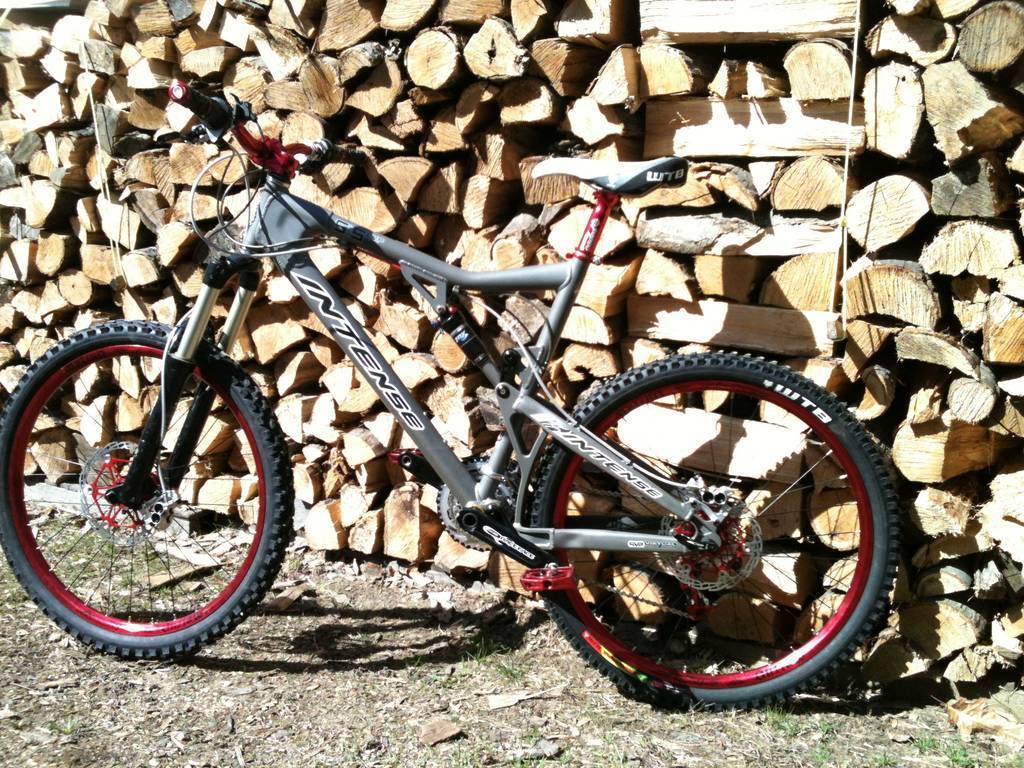

    Finally took the beast out for its virgin ride.

    In the driveway:
    [​IMG]

    On the trail headed to the local summit:
    [​IMG]

    On summit:
    [​IMG]

    Detail of summit with Adirondacks in background:
    [​IMG]

    I didn't get too crazy this time out as the brakes hadn't bed in yet, but all worked great!
    I locked out both the forks and rear suspension for the climb and let her loose for the decent, plush yet agile !

  2. Jan 16, 2012 at 9:21 AM
    #2
    113tac

    113tac Well-Known Member

    Joined:
    Jun 14, 2009
    Member:
    #18439
    Messages:
    4,800
    Gender:
    Male
    First Name:
    Stephen
    va
    Vehicle:
    05 4 banger
    tint 35/20 colormatched (by me) grill.
    sick man im diggin the color scheme!

  3. Jan 16, 2012 at 9:25 AM
    #3
    paintdiddy

    paintdiddy Machine gun shits

    Joined:
    Oct 12, 2008
    Member:
    #9924
    Messages:
    10,352
    Gender:
    Male
    First Name:
    shithead
    nj and not from "the jersey shore"
    Vehicle:
    silver bullet
    I was thinking the same thing. Nice build

  4. Jan 16, 2012 at 9:57 AM
    #4
    186000mps

    186000mps [OP] ..Slingin' up mud and we're scarying off bunnies..

    Joined:
    Aug 29, 2011
    Member:
    #62581
    Messages:
    778
    Gender:
    Male
    First Name:
    Charles
    Wimberley, TX
    Vehicle:
    01 Tacoma V6 4WD
    Bilstein 5100's, Toytec front adjustable coilover kit, Exporear leafs, Fox resi rears, Slotted & Drilled front rotors, 33x12.50 BFG ATs on Outlaw II 15 x 10s, Bushwacker cutout flares, K&N cold air intake with aluminum sheathing water baffles, ARB bumper with XD9000 winch with wireless remote, IPF 900XS lights, Flowmaster cat-back exhaust, Rhino bed liner, UWS gullwing toolbox with tools and recovery gear. 48" Hi-Lift Jack secured under toolbox.
    Well....that's why it took so long. I had a second job doing construction just to pay for a lot of it. Since I have 7" of rear travel in my old Mantra I didn't need to bust this out in a hurry. I did a lot of waiting until stuff went on sale. I also didn't want to skimp, as I had been dreaming about this for a long time.

  5. Jan 16, 2012 at 9:59 AM
    #5
    Airun

    Airun Well-Known Member

    Joined:
    Mar 19, 2010
    Member:
    #33516
    Messages:
    2,632
    Gender:
    Male
    First Name:
    Aaron
    Show Me State
    Vehicle:
    TRD sport, DCLB, 4wd
    Debadged, custom emblem, Husky liners, custom bedrail Yak Trak setup with load bars, , BakFlip Fibermax, OME 3" lift with LightRacing UCAs
    Looks great! The red anno components are tastey and those Hope brakes are awesome. Kingdom trails look out.

  6. Jan 16, 2012 at 11:02 AM
    #6
    186000mps

    186000mps [OP] ..Slingin' up mud and we're scarying off bunnies..

    Joined:
    Aug 29, 2011
    Member:
    #62581
    Messages:
    778
    Gender:
    Male
    First Name:
    Charles
    Wimberley, TX
    Vehicle:
    01 Tacoma V6 4WD
    Bilstein 5100's, Toytec front adjustable coilover kit, Exporear leafs, Fox resi rears, Slotted & Drilled front rotors, 33x12.50 BFG ATs on Outlaw II 15 x 10s, Bushwacker cutout flares, K&N cold air intake with aluminum sheathing water baffles, ARB bumper with XD9000 winch with wireless remote, IPF 900XS lights, Flowmaster cat-back exhaust, Rhino bed liner, UWS gullwing toolbox with tools and recovery gear. 48" Hi-Lift Jack secured under toolbox.
    My son & I already have a spring camping trip up there planned.
    Locally I help build trails at the Pine Hill park.
    Check out some sick bridges..
    http://www.pinehillpark.org/php/Pine_Hill_Park_Welcome.html

    Thanks for looking !!!

  7. Jan 16, 2012 at 11:05 AM
    #7
    steve o 77

    steve o 77 braaap

    Joined:
    Nov 29, 2009
    Member:
    #26726
    Messages:
    19,909
    Gender:
    Male
    First Name:
    Steven
    In a corn field, OH
    Vehicle:
    2001 4x4 5Spd Xtra Cab V6
    265/75/16 BFG A/T's, OME 881's, Wheelers 5 leaf pack, 5100's, Home Made Sliders
    :drool: very nice!

  8. Jan 22, 2012 at 4:05 PM
    #8
    186000mps

    186000mps [OP] ..Slingin' up mud and we're scarying off bunnies..

    Joined:
    Aug 29, 2011
    Member:
    #62581
    Messages:
    778
    Gender:
    Male
    First Name:
    Charles
    Wimberley, TX
    Vehicle:
    01 Tacoma V6 4WD
    Bilstein 5100's, Toytec front adjustable coilover kit, Exporear leafs, Fox resi rears, Slotted & Drilled front rotors, 33x12.50 BFG ATs on Outlaw II 15 x 10s, Bushwacker cutout flares, K&N cold air intake with aluminum sheathing water baffles, ARB bumper with XD9000 winch with wireless remote, IPF 900XS lights, Flowmaster cat-back exhaust, Rhino bed liner, UWS gullwing toolbox with tools and recovery gear. 48" Hi-Lift Jack secured under toolbox.

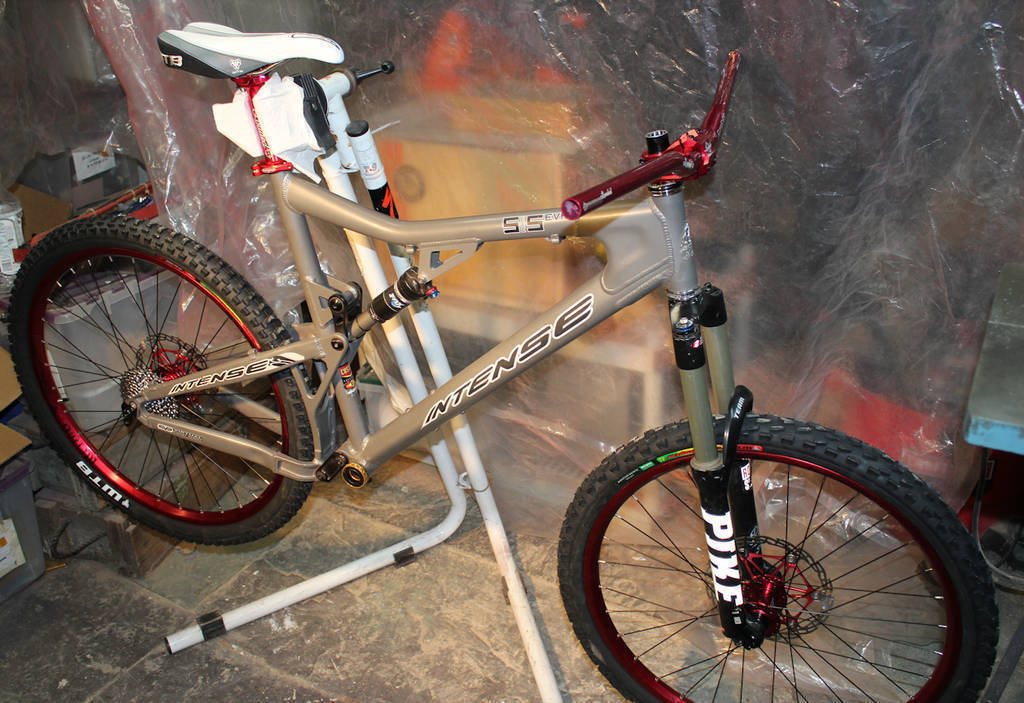

    Put on new treads this weekend for better clearance.
    [​IMG]

  9. Jan 22, 2012 at 4:14 PM
    #9
    Airun

    Airun Well-Known Member

    Joined:
    Mar 19, 2010
    Member:
    #33516
    Messages:
    2,632
    Gender:
    Male
    First Name:
    Aaron
    Show Me State
    Vehicle:
    TRD sport, DCLB, 4wd
    Debadged, custom emblem, Husky liners, custom bedrail Yak Trak setup with load bars, , BakFlip Fibermax, OME 3" lift with LightRacing UCAs
    Lookn good Charles and the bridges at Pine Hill are most impressive. Don't think I've seen composite materials used in a park before, looks built to last.

  10. Jan 22, 2012 at 4:18 PM
    #10
    186000mps

    186000mps [OP] ..Slingin' up mud and we're scarying off bunnies..

    Joined:
    Aug 29, 2011
    Member:
    #62581
    Messages:
    778
    Gender:
    Male
    First Name:
    Charles
    Wimberley, TX
    Vehicle:
    01 Tacoma V6 4WD
    Bilstein 5100's, Toytec front adjustable coilover kit, Exporear leafs, Fox resi rears, Slotted & Drilled front rotors, 33x12.50 BFG ATs on Outlaw II 15 x 10s, Bushwacker cutout flares, K&N cold air intake with aluminum sheathing water baffles, ARB bumper with XD9000 winch with wireless remote, IPF 900XS lights, Flowmaster cat-back exhaust, Rhino bed liner, UWS gullwing toolbox with tools and recovery gear. 48" Hi-Lift Jack secured under toolbox.
    We have a little of everything depending on the application and cuts involved. The trickier ones are made of pressure treated lumber. I'm tempted to head out there tomorrow as it may finally make it out of the teens....brrr

  11. Feb 3, 2012 at 7:08 AM
    #11
    misterdmac

    misterdmac Well-Known Member

    Joined:
    Aug 10, 2011
    Member:
    #61478
    Messages:
    185
    First Name:
    Doostin
    In or around the truck
    Vehicle:
    '97 2.7L DLX
    That looks great bro. Gets me really stoked to throw my tax refund into a new 29'er.

    Do you always run those tires or were they just lying around? I couldn't stand the VelociRaptors that came on a Gary Fisher I had. Too much resistance, and they didn't really make up for it traction-wise. Decent for mud thought which I guess ya'll have quite a bit of up there in the spring. Can't say enough about Maxxis though, I run High Rollers and love them for an all purpose tread.

  12. Feb 3, 2012 at 7:22 AM
    #12
    97yota4wd

    97yota4wd Well-Known Member

    Joined:
    Aug 26, 2010
    Member:
    #42280
    Messages:
    13,025
    Gender:
    Male
    First Name:
    Eric
    Mesa, AZ
    Vehicle:
    alot of metal, small engine, decent travel.
    caged, camburg long travel, 50t leafpack (soon to be installed) light rack over cab, 5pt harnesses etc

    agree, very nice build.

    kinda curious though, how much did this whole build run you?

  13. Feb 3, 2012 at 8:35 AM
    #13
    186000mps

    186000mps [OP] ..Slingin' up mud and we're scarying off bunnies..

    Joined:
    Aug 29, 2011
    Member:
    #62581
    Messages:
    778
    Gender:
    Male
    First Name:
    Charles
    Wimberley, TX
    Vehicle:
    01 Tacoma V6 4WD
    Bilstein 5100's, Toytec front adjustable coilover kit, Exporear leafs, Fox resi rears, Slotted & Drilled front rotors, 33x12.50 BFG ATs on Outlaw II 15 x 10s, Bushwacker cutout flares, K&N cold air intake with aluminum sheathing water baffles, ARB bumper with XD9000 winch with wireless remote, IPF 900XS lights, Flowmaster cat-back exhaust, Rhino bed liner, UWS gullwing toolbox with tools and recovery gear. 48" Hi-Lift Jack secured under toolbox.
    ^^ I'll have to try the High Rollers out. Those VelociRaptors are new, hadn't run the rear before. But I have had good success with the Smoke/Dart combo as well as Hutchinson's "On the Rocks" rear specific. These were close to those in tread pattern. I change tires out quite a bit for weather and terrain. These are for the soft tight singletrack around here. In the picture..the yellow ones, Hutchinson's Pythons are what I run 95% of the time on my Mantra. This is my current stack, I know I have more tires laying around somewhere. The green ones, Michelin Wild Grippers are wicked fast. I do have a tendency to pick tires with high edge knobs. I steer a lot with the rear tire, digging into the corners .
    [​IMG]

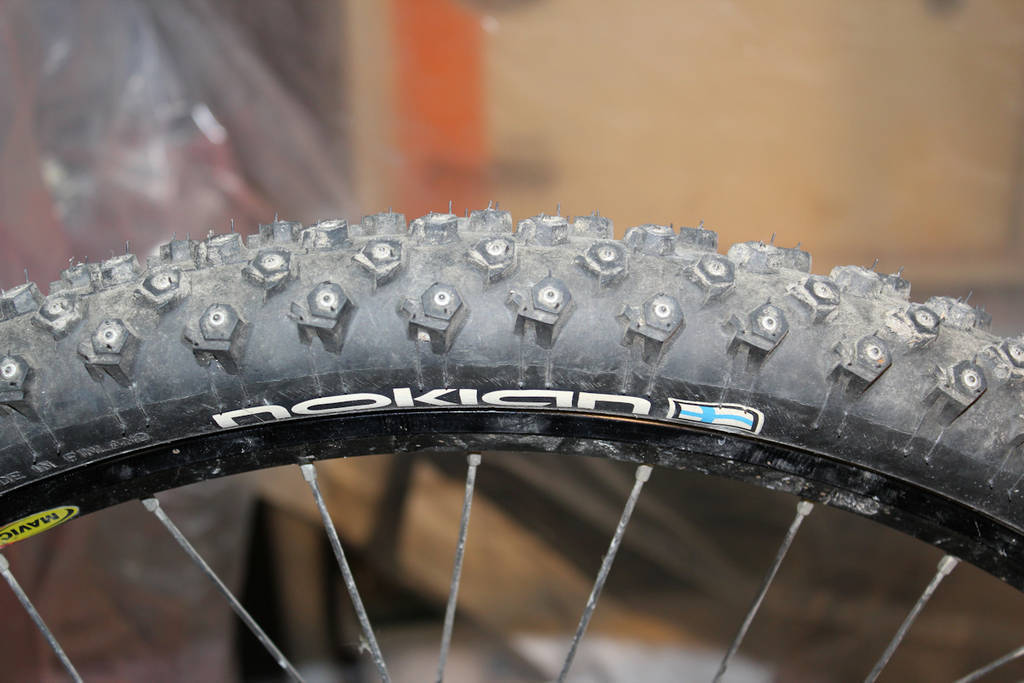

    These are what I'm running right now for the winter on the Mantra
