Inverter anytime (stock)

Discussion in '2nd Gen. Tacomas' started by aw113sgte, Dec 3, 2012.

  1. Dec 6, 2012 at 11:17 AM
    #21
    Zombie Runner

    Zombie Runner Are these black helicopters for me?

    Joined:
    Mar 13, 2008
    Member:
    #5246
    Messages:
    15,111
    Gender:
    Male
    First Name:
    Kevin
    Wichita Falls, TX
    Vehicle:
    Tundra, double cab.
    LED interior lights, stubby antenna, Pioneer in dash screen
  2. Dec 10, 2012 at 7:05 AM
    #22
    RV7Garage

    RV7Garage R.O.U.S.

    Joined:
    Sep 6, 2009
    Member:
    #22358
    Messages:
    630
    Gender:
    Male
    First Name:
    Paul
    Ill Annoy
    Vehicle:
    2012 DCSB Offroad, Nautical Blue
    Disable DRL, Jailbreak Fog Lights, ARE topper
    Sub'd. I would like this mod as well. I assume that it gives the full 400w output all the time, too- right?

  3. Dec 10, 2012 at 7:54 AM
    #23
    kankaloo

    kankaloo Member

    Joined:
    Nov 16, 2012
    Member:
    #91250
    Messages:
    23
    Gender:
    Male
    Norwalk, CA
    Vehicle:
    07 DCLB TRD sport
    Sub'd... waiting for detailed write up and pics.. :)

  4. Dec 11, 2012 at 6:18 PM
    #24
    RV7Garage

    RV7Garage R.O.U.S.

    Joined:
    Sep 6, 2009
    Member:
    #22358
    Messages:
    630
    Gender:
    Male
    First Name:
    Paul
    Ill Annoy
    Vehicle:
    2012 DCSB Offroad, Nautical Blue
    Disable DRL, Jailbreak Fog Lights, ARE topper
  5. Dec 14, 2012 at 6:16 AM
    #25
    aw113sgte

    aw113sgte [OP] Well-Known Member

    Joined:
    Nov 7, 2011
    Member:
    #66637
    Messages:
    103
    Gender:
    Male
    Wiring diagrams added to first post.

  6. Dec 14, 2012 at 6:28 AM
    #26
    RV7Garage

    RV7Garage R.O.U.S.

    Joined:
    Sep 6, 2009
    Member:
    #22358
    Messages:
    630
    Gender:
    Male
    First Name:
    Paul
    Ill Annoy
    Vehicle:
    2012 DCSB Offroad, Nautical Blue
    Disable DRL, Jailbreak Fog Lights, ARE topper
    Fantastic diagram. Pics would be really helpful, tho. Thank you!

  7. Dec 14, 2012 at 10:47 AM
    #27
    Crom

    Crom Time is precious; use it wisely

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    4,223
    Gender:
    Male
    First Name:
    Mr. Sir
    San Diego, CA
    Vehicle:
    2009 Double Cab 4x4 Off Road
    A.R.E. MX Shell & Yakima Rack, Stubbs HD-SKO Rock Sliders, JBA HD UCA's & OME 885 Coils and nitrochargers, Dakar leaf packs, u-bolt flip, Flat BajaRack, Kenwood VHF/UHF Radio, Aux Battery, Solar Panels, L-Track everywhere, Goodyear Duratracs, Secured tailgate, 7-pin relocation, Inverter 400W all time, In-cab 110v outlets, Rear-seat 12v outlets., Steering shaft TSB, anytime fogs, DTRL toggle switch, aux turn signals, Diff Breather, ImMrYo mirror bracket, ABS Kill switch, (2) Kid Car Seats, and a Glock 23 with night sights.
    OP, thanks for the diagram it's very helpful. I have a couple question for you.
    Where did you find +12v source to send to the inverter (did you have to run wire)?
    Did you find +12v in the drivers side junciton box or did you resort to feeding a wire through the firewall?

    I PM'd caribe makaira and asked him to comment on the technique/diagram. It's good to have some peer review. :D

    Thanks again OP; rep sent.

  8. Dec 14, 2012 at 11:04 AM
    #28
    nut

    nut she'll ride

    Joined:
    Nov 6, 2011
    Member:
    #66555
    Messages:
    1,616
    Gender:
    Male
    First Name:
    Patrick
    Currently Richmond, VA
    Vehicle:
    Totaled
    TRD SKEWP DCSB 4x4 Silver Mica | URD TCAI/MAF CAL | BHLM | GrillCraft | FF Sliders | LED's All Around | 12v Constant On | EGR In Channel | 15% Tint | Trimmed mud flaps | Fog Light Anytime Mod | Debadged | Tailgate Hoseclamp | DTRL Switch | Disabled Lock Beep/Seatbelt Chime | Husky Liners | HID's | BedRug | WO Seat Covers | ABS Kill Switch | Oil Catch Can | Viper 5704 | Custom Carbon Cabin Filter | Backup Camera Anytime | 400W Anytime | In Cab Outlet W/USB | Firestone Ride Rites | Ams Oil All Around | 32" LED In Lower Grill | BlackVue DR500GW-HD |

    looking forward to caribe's input. he is the master diagramsman

  9. Dec 15, 2012 at 5:38 AM
    #29
    aw113sgte

    aw113sgte [OP] Well-Known Member

    Joined:
    Nov 7, 2011
    Member:
    #66637
    Messages:
    103
    Gender:
    Male
    Your 6spd diagram has the clutch wire going to gnd, it needs to go to 12v

  10. Dec 15, 2012 at 7:45 PM
    #30
    aw113sgte

    aw113sgte [OP] Well-Known Member

    Joined:
    Nov 7, 2011
    Member:
    #66637
    Messages:
    103
    Gender:
    Male
    Still don't see it....unless I'm missing something on your diagram.

    The REDR line goes to ground when the inverter is turned on. Since you tap into the REDR and send that to the clutch switch, it will think the clutch is pushed down, thereby making it go to 100w.

  11. Dec 17, 2012 at 5:35 AM
    #31
    aw113sgte

    aw113sgte [OP] Well-Known Member

    Joined:
    Nov 7, 2011
    Member:
    #66637
    Messages:
    103
    Gender:
    Male
    You need to feed +12v to the clutch switch input, REDR and the branch it's connected with is a switched. It goes to ground once all conditions are met. This is visible by looking at the relay. Prior to our rewiring, the positive side fo the coil is connected to 12v when the key is turned, the relay doesn't switch until you push the inverter button, this means the REDR then goes to ground if the inverter sees all conditions are met.

  12. Dec 17, 2012 at 11:35 AM
    #32
    RV7Garage

    RV7Garage R.O.U.S.

    Joined:
    Sep 6, 2009
    Member:
    #22358
    Messages:
    630
    Gender:
    Male
    First Name:
    Paul
    Ill Annoy
    Vehicle:
    2012 DCSB Offroad, Nautical Blue
    Disable DRL, Jailbreak Fog Lights, ARE topper
    I sure hope some pics come out of this. :D

    On the diagrams, do the colors represent the actual wire colors as well?

  13. Dec 18, 2012 at 5:57 AM
    #33
    aw113sgte

    aw113sgte [OP] Well-Known Member

    Joined:
    Nov 7, 2011
    Member:
    #66637
    Messages:
    103
    Gender:
    Male
    The REDR pin is floating when the 100W is turned off. This is controlled by the inverter. When conditions are met, the inverter Grounds the REDR pin. Since the other side of the 100W light is always connected to the battery, this proves the line is either floating or grounded. By t-tapping into the REDR line for the clutch input, the input for the clutch line sees ground instead of the desired +12V.

  14. Dec 19, 2012 at 8:02 AM
    #34
    aw113sgte

    aw113sgte [OP] Well-Known Member

    Joined:
    Nov 7, 2011
    Member:
    #66637
    Messages:
    103
    Gender:
    Male
    Correction, the 100W light, edited previous post.

  15. Dec 28, 2012 at 1:34 PM
    #35
    RV7Garage

    RV7Garage R.O.U.S.

    Joined:
    Sep 6, 2009
    Member:
    #22358
    Messages:
    630
    Gender:
    Male
    First Name:
    Paul
    Ill Annoy
    Vehicle:
    2012 DCSB Offroad, Nautical Blue
    Disable DRL, Jailbreak Fog Lights, ARE topper
    OP- would it be possible for you to provide some pics for this? I am diagramatically challenged, but would really like to do this mod.

    PLEEEEEZE!!! pics :)

  16. Apr 2, 2013 at 2:43 PM
    #36
    tweeek

    tweeek Well-Known Member

    Joined:
    Mar 11, 2012
    Member:
    #74706
    Messages:
    181
    Gender:
    Male
    Victoria, BC
    Vehicle:
    2006 Tacoma Access Cab TRD OR
    I know this thread has been dead for a while, but I just wanted to confirm this working on an AUTO as well. Even easier for us AUTO folks, just ignore the blue/black clutch control wire (for obvious reasons) and cut the Violet wire. Then send the Violet wire coming FROM the inverter to the convenient nearby ground location. All other cuts/splices are the same as M/T. Voila, 400W anytime ignition on or off, drive or park.

    I did probe under the fuse panel and tapped a constant 12v+ instead of running wires through the firewall.

  17. Apr 3, 2013 at 6:57 AM
    #37
    RV7Garage

    RV7Garage R.O.U.S.

    Joined:
    Sep 6, 2009
    Member:
    #22358
    Messages:
    630
    Gender:
    Male
    First Name:
    Paul
    Ill Annoy
    Vehicle:
    2012 DCSB Offroad, Nautical Blue
    Disable DRL, Jailbreak Fog Lights, ARE topper
    tweeek- sent you a PM

  18. May 15, 2013 at 11:32 AM
    #38
    rhavin42

    rhavin42 Well-Known Member

    Joined:
    Mar 31, 2010
    Member:
    #34336
    Messages:
    264
    Gender:
    Male
    First Name:
    Vladimir
    Phoenix, AZ
    Vehicle:
    09 DC LB SPORT 4x4
    Edit: Asked a stupid question, figured it out. Here are the pictures for you diagrammatically challenged folk

    I changed the mod slightly, I tied into a +12V that came on when the key was in the ACC position, It scared me a bit too much to do the anytime. So all the red wires you see in my pics are tied to a +12 source that turns on with key in ACC position.

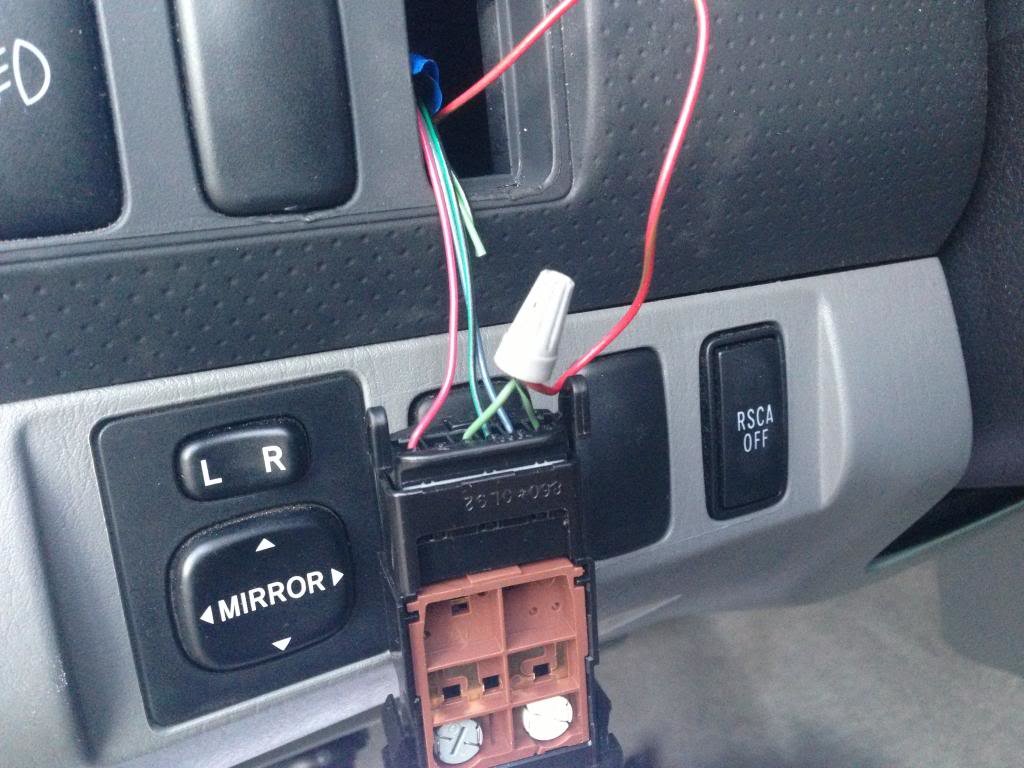

    Tied in light green, and light green with black stripe with switched 12V
    [​IMG]

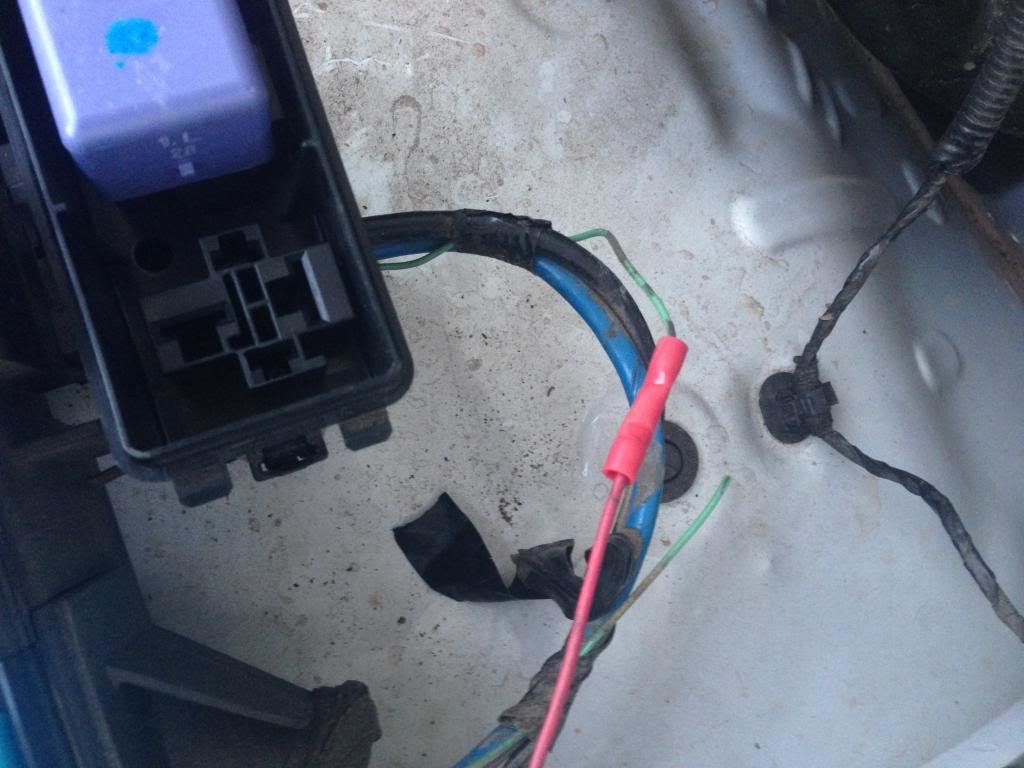

    Ran another tie off that same switched 12V source, through the firewall to the green wire going to the relay.
    [​IMG]

    So with key in ACC position (First click) you can push the inverter button and have it turn on to it's full 400w. Functionality is still there for the inverter to go back to 100W when the car is not in Park.

    Last edited: May 15, 2013
  19. May 15, 2013 at 7:28 PM
    #39
    rhavin42

    rhavin42 Well-Known Member

    Joined:
    Mar 31, 2010
    Member:
    #34336
    Messages:
    264
    Gender:
    Male
    First Name:
    Vladimir
    Phoenix, AZ
    Vehicle:
    09 DC LB SPORT 4x4
    I updated my previous post to show pictures for those of you interested.

  20. May 21, 2013 at 4:38 AM
    #40
    RV7Garage

    RV7Garage R.O.U.S.

    Joined:
    Sep 6, 2009
    Member:
    #22358
    Messages:
    630
    Gender:
    Male
    First Name:
    Paul
    Ill Annoy
    Vehicle:
    2012 DCSB Offroad, Nautical Blue
    Disable DRL, Jailbreak Fog Lights, ARE topper
    Awesome. Thank you !
