Is 5th Gear Still OD in Gen 3

Discussion in 'Towing' started by GreyGhost16, Feb 16, 2019.

  1. Feb 16, 2019 at 12:08 PM
    #1
    GreyGhost16

    GreyGhost16 [OP] Active Member

    Joined:
    Feb 16, 2019
    Member:
    #283215
    Messages:
    41
    Gender:
    Male
    Northern Virginia
    Vehicle:
    2016 Taco TRD Off Road
    Hi All,

    I have a 2016 TRD OR with no tow package. Plan on pulling my 14.5 wide beam Jon boat all over this summer.

    Seeing how I have 6 gears (AT), should I keep it in 4th gear on the highway, or is it safe to go up to 5th?

    Thanks y’all!

  2. Feb 16, 2019 at 3:48 PM
    #2
    cctk2

    cctk2 GLACIERBIRD

    Joined:
    Jun 18, 2010
    Member:
    #39136
    Messages:
    932
    Gender:
    Male
    First Name:
    Chip
    NorCal and Alaska
    Vehicle:
    '68 FJ40, '16 TRD AC OR A/T WHITE
    Accessories: SnugTop Rebel canopy AVS Window Rain Deflectors TACOMA 6' Bed Mat Weathertech Mud Guards (4) Scanguage (re-installed from the '02) Tekonsha Voyager Brake controller (Chalet A frame pop-up.) Vinyl letter insets for tailgate. Garmin CS60 GPS mounting. Other misc décor in the form of decals.
    Weight? +/-
    I tow my 2500lb A-frame all day long using 4/5.

  3. Feb 16, 2019 at 4:21 PM
    #3
    GreyGhost16

    GreyGhost16 [OP] Active Member

    Joined:
    Feb 16, 2019
    Member:
    #283215
    Messages:
    41
    Gender:
    Male
    Northern Virginia
    Vehicle:
    2016 Taco TRD Off Road
    Thank you cctk2. Looking forward to making some 250 mile trips pulling that Jon boat and hauling kids and gear.

  4. Feb 16, 2019 at 7:07 PM
    #4
    Sprig

    Sprig Well-Known Member

    Joined:
    Sep 28, 2017
    Member:
    #231426
    Messages:
    1,082
    Gender:
    Male
    First Name:
    Ken
    N. Calif. The Twilight Zone
    Vehicle:
    2009 Tacoma TRD double cab 4x4
    Off road lights, aux backup lights, bull bar, Lear camper shell, camo seat covers, nerf bars
    What’s the weight of your boat, motor and trailer? I assume it’s pretty light, probably under 1000 lbs total. If so 5th gear should be no problem and on flat highways 6th gear may be ok. Just depends on weight.

  5. Feb 17, 2019 at 6:33 AM
    #5
    Cnasianfire

    Cnasianfire Well-Known Member

    Joined:
    Apr 16, 2017
    Member:
    #216411
    Messages:
    506
    Gender:
    Male
    First Name:
    Charles
    Wilmington, NC
    Vehicle:
    2015 Tacoma TRD off road DCSB
    BFG KO2 285/75/16 ~2" lift (5100s and block)
    OR and no tow package??? OR comes standard with the tow package

  6. Feb 17, 2019 at 7:31 AM
    #6
    GreyGhost16

    GreyGhost16 [OP] Active Member

    Joined:
    Feb 16, 2019
    Member:
    #283215
    Messages:
    41
    Gender:
    Male
    Northern Virginia
    Vehicle:
    2016 Taco TRD Off Road
    Not in ‘16, I think. It’s got the receiver and the plug, but no coolers. I think it’s rated for 3500 vice 6800

  7. Feb 17, 2019 at 8:03 AM
    #7
    Cnasianfire

    Cnasianfire Well-Known Member

    Joined:
    Apr 16, 2017
    Member:
    #216411
    Messages:
    506
    Gender:
    Male
    First Name:
    Charles
    Wilmington, NC
    Vehicle:
    2015 Tacoma TRD off road DCSB
    BFG KO2 285/75/16 ~2" lift (5100s and block)
    If it has a class 4 receiver, it had to be the tow package. What makes you think it doesn't have it? I could be wrong though. But I have never heard of an OR not having the tow package

    4drtaco03 likes this.
  8. Feb 17, 2019 at 3:25 PM
    #8
    GreyGhost16

    GreyGhost16 [OP] Active Member

    Joined:
    Feb 16, 2019
    Member:
    #283215
    Messages:
    41
    Gender:
    Male
    Northern Virginia
    Vehicle:
    2016 Taco TRD Off Road
    Well, I can always look again

  9. Feb 24, 2019 at 6:52 PM
    #9
    specter208

    specter208 Well-Known Member

    Joined:
    Oct 6, 2015
    Member:
    #165992
    Messages:
    3,826
    Gender:
    Male
    California
    Vehicle:
    2017 TRD SPORT ACLB w/ 6MT TRUCK WHITE
    TOYOTA OEM: Cast Aluminum Running Boards Mud Guards Bed Mat All-Weather Floor Liner NIssan Frontier Sliding Bed Extender

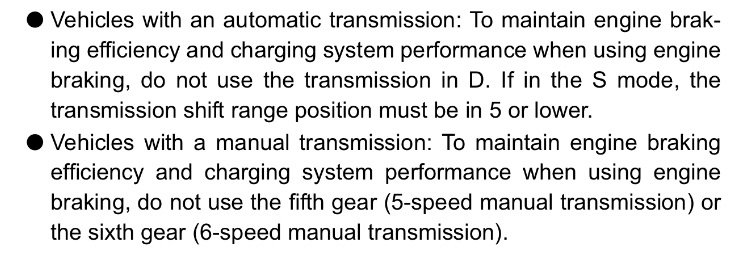

    Only use 4th gear (S4) if you are using the 6AT. If you have a 6MT in the third gen, then it is Ok to use 5th. 4th gear is 1.00 Direct drive and you will have sufficient RPMs for good power silvery and effective engine cooling (aswell as best engine braking and battery charging effect). If using S5 or S6 then your RPMs will be too low and you will not have enough power nor suffficient coolant flow to keep the engine temp low.

    GreyGhost16 [OP] likes this.
  10. Feb 25, 2019 at 3:29 AM
    #10
    Skidog1

    Skidog1 Well-Known Member

    Joined:
    Jul 4, 2016
    Member:
    #191190
    Messages:
    604
    Gender:
    Male
    Chicagoland
    Vehicle:
    2016 Black TRD 4x4 Sport DCLB
    With your vin number you can go to the Toyota website and the owner's section will tell you all the options your truck has.

    GreyGhost16 [OP] likes this.
  11. Feb 25, 2019 at 3:31 AM
    #11
    GreyGhost16

    GreyGhost16 [OP] Active Member

    Joined:
    Feb 16, 2019
    Member:
    #283215
    Messages:
    41
    Gender:
    Male
    Northern Virginia
    Vehicle:
    2016 Taco TRD Off Road
    Thank you Specter208. Will adhere to this advice....also try and get the funds who have a cooler installed.

    specter208 likes this.
  12. Feb 25, 2019 at 3:32 AM
    #12
    GreyGhost16

    GreyGhost16 [OP] Active Member

    Joined:
    Feb 16, 2019
    Member:
    #283215
    Messages:
    41
    Gender:
    Male
    Northern Virginia
    Vehicle:
    2016 Taco TRD Off Road
    Thank you!

  13. Feb 25, 2019 at 5:41 AM
    #13
    96carboard

    96carboard Well-Known Member

    Joined:
    Sep 14, 2018
    Member:
    #266237
    Messages:
    1,600
    People like to give an easy answer to the question of what gear to operate in. The truth is somewhat more complex.
    It comes down to whether or not the transmission will set itself into a steady state.

    Note that you can change the gear it is in at any time you like, even when under load driving.

    So basically it is like this;
    Ideally, you will be driving in the HIGHEST gear possible, with the torque converter in a LOCKED state.
    If it doesn't lock the torque converter, downshift.

    Now having the torque converter unlocked is not the most damaging state to be in. An even worse state is for the transmission to be "hunting" for gears. This is when the transmission goes into a cycle where it gradually slows down, then downshifts, then speeds back up, then upshifts, then gradually slows down. Now in reality, it can be hunting gears, or it can be hunting the torque converter between locked and unlocked. Either is something you don't want -- downshift.

    To tell if the torque converter is locked or not.... if the torque converter is UNLOCKED, then slight changes in the throttle position will result in changes in the ratio between engine speed and wheel speed. If the torque converter is LOCKED, then the ratio between those two will be absolutely fixed.

  14. Feb 25, 2019 at 6:11 AM
    #14
    Frito

    Frito Well-Known Member

    Joined:
    Dec 2, 2015
    Member:
    #171253
    Messages:
    1,477
    I don't quite get this but want to understand the torque converter better.
    Would you state this another way for my simple mind ? :confused:

    AxisCab, GreyGhost16 [OP] and Skidog1 like this.
  15. Feb 25, 2019 at 7:01 AM
    #15
    specter208

    specter208 Well-Known Member

    Joined:
    Oct 6, 2015
    Member:
    #165992
    Messages:
    3,826
    Gender:
    Male
    California
    Vehicle:
    2017 TRD SPORT ACLB w/ 6MT TRUCK WHITE
    TOYOTA OEM: Cast Aluminum Running Boards Mud Guards Bed Mat All-Weather Floor Liner NIssan Frontier Sliding Bed Extender
    There are times when the torque converter is physically connected to the transmission gears like a clutch on a manual transmission. You can tell it is locked if your RPMs will drop slightly and if you repeatedly tap on the gas pedal you can immediately feel the energy transfer to rear wheels and you'll even feel some clunking. If it is unlocked, then this means the torque converter is not physically connected to the transmission gears and is instead pumping fluid over the turbine. This gives you a little better torque but also will heat up the transmission fluid if it remains unlocked for prolonged periods of time or repeatedly locks/unlocks.

    This is why in the 6AT you want to remain in S4 (4th gear) where you'll have sufficient power to keep your torque converter locked which keeps your transmission cool. Also, like I said before, in S4 your RPMs will be high enough that your water pump will be spinning faster and will cool your engine faster aswell (plus better battery charging, engine braking)


    Here is your transmission ratio and projected RPMs for road speed using stock tires, R&P gear, etc.

    4th gear in 6AT: 1.00:1
    Stock tire Size: 30.6"
    Stock R&P Gear: 3.90

    All speeds are in S4(4th gear)

    2400rpms - 56 mph
    2500rpms - 58.4 mph
    2600rpms - 60.7 mph
    2700rpms - 63 mph
    2800rpms - 65.4 mph


    If using S5 or S6, you will have too little RPMs to provide sufficient torque and power to drive without downshifting constant shifting, this will heat up your engine and transmission. If you try to keep your RPMs high enough in these gears you'll be going super faster which is dangerous, potentially illegal, puts more load on the engine and will not save any fuel. S5 may be used if loaded lightly enough, use it at your own discretion.

    5th gear in 6AT: 0.72:1
    6th gear in 6AT: 0.58:1

    For example:

    Speeds in S5 (5th gear)
    1700rpms - 55mph
    1800rpms - 58.4mph
    1900rpms - 61.6mph
    2000rpms - 64.8mpH

    Speeds in S6 (6th gear)

    1400rpms - 56.3mph
    1500rpms - 60.4mph
    1600rpms - 64.4mph
    1700rpms - 68.4mph


    Last edited: Feb 25, 2019
    GreyGhost16 [OP] and Skidog1 like this.
  16. Feb 25, 2019 at 9:02 AM
    #16
    96carboard

    96carboard Well-Known Member

    Joined:
    Sep 14, 2018
    Member:
    #266237
    Messages:
    1,600
    I'm going to guess that the other guy's explanation is a bit more than you're going to easily absorb.

    Basically, think of a torque converter as a box full of transmission fluid, in which there are two impeller blades. The engine is connected to one, and the transmission is connected to the other. When the engine spins its impeller, it pushes transmission fluid up against the transmission's impeller, causing it to turn.

    Because the energy is transmitted loosely through the fluid, it allows a certain amount of slipping, which is why you can shift an automatic into "drive" and it while it pulls slightly forward, it also allows you to press the brake and hold still. When sitting still in drive, the engine side impeller is spinning with the engine, but the transmission side is holding still. As you press the gas, it takes more and more force to hold the transmission side from moving.

    A locking torque converter takes this one step further, in that it also contains a mechanical clutch between the two impeller blades. When that clutch is engaged, then the two sides of the torque converter are locked together, thus no longer slipping and no longer generating heat.

    GreyGhost16 [OP] and Skidog1 like this.
  17. Feb 25, 2019 at 3:17 PM
    #17
    GreyGhost16

    GreyGhost16 [OP] Active Member

    Joined:
    Feb 16, 2019
    Member:
    #283215
    Messages:
    41
    Gender:
    Male
    Northern Virginia
    Vehicle:
    2016 Taco TRD Off Road
    Gentlemen- thank you all for the time you took to reply and explain. This community has been great since I’ve joined (last week).

    I can keep the Grey Ghost in 4th and drive 55- beats a new tranny! I’m only pulling a Jon boat, but I’ll be driving from VA to NJ in the summer heat. Otherwise, I’ll be driving an hour or two to MD with the boat.

    Oh, yeah....is it ok to use cruise control?

    specter208 likes this.
  18. Feb 25, 2019 at 5:48 PM
    #18
    Frito

    Frito Well-Known Member

    Joined:
    Dec 2, 2015
    Member:
    #171253
    Messages:
    1,477
    Nahhh..... you don't want to be using CC while towing.

  19. Feb 26, 2019 at 8:23 AM
    #19
    96carboard

    96carboard Well-Known Member

    Joined:
    Sep 14, 2018
    Member:
    #266237
    Messages:
    1,600

    Its fine to CC, as long as you pay attention to what its doing and take over manual control when needed.

  20. Feb 26, 2019 at 2:54 PM
    #20
    GreyGhost16

    GreyGhost16 [OP] Active Member

    Joined:
    Feb 16, 2019
    Member:
    #283215
    Messages:
    41
    Gender:
    Male
    Northern Virginia
    Vehicle:
    2016 Taco TRD Off Road
