Is my frame buckled?

May have found the reason the rear in the truck can't be aligned.
This is on both sides. Is that normal?



Can't properly tell what that is
I suggest add a few more pics from more angles

Is it a scrape?
You can't really align the rear as that is what this looks like

What's the story on this?



Here's my original thread:

http://www.tacomaworld.com/forum/2nd-gen-tacomas/271322-severe-alignment-issues-photos.html

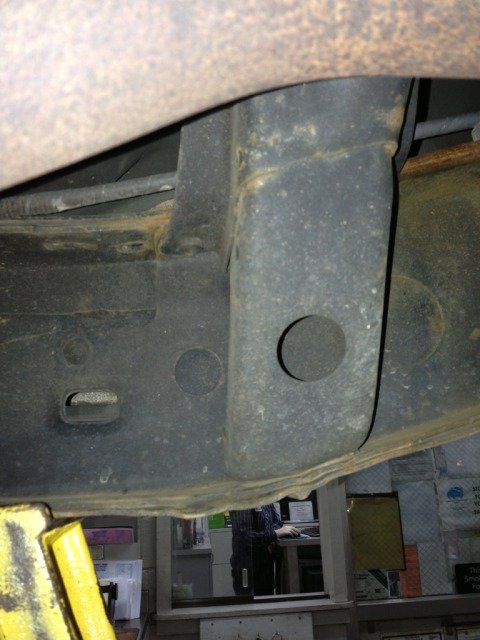

What you're looking at is the frame, just behind the life points, on a lift.

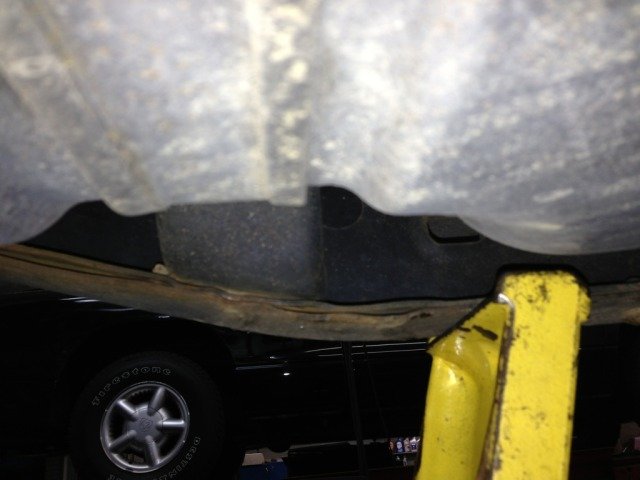

Notice the layers of metal that seem to be separated or buckled. It it almost looks like a warped piece of plywood that's separating.



Just looked at mine on my lunch break...looks almost the same on both sides, maybe a little less wrinkled but same never the less and I have no issues.



so we are aligning rear ends now?
last I checked the front mount of the leafs are bolted via a mount to the frame while the diff is located by 4 threaded ends from shackle U-bolts, kinda pinned. Only thing I can see being done is loosing the U-bolts and attempting to bump a few , and it would not be much.

typically the alignment shops don't align the rear of a truck.



Theres no aligning the rear in the truck. Does it dog track? You having a problem?

Frame looks normal.

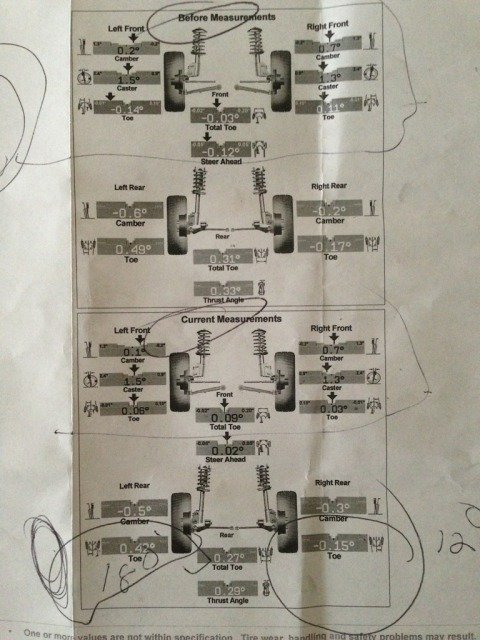

I've got to hold the wheel slightly to left to drive strait on the highway. Center lane. No road crowning. So, to answer- yes. The truck dog tracks to the right. The wheelbase is 1.4 inches different from right side left.

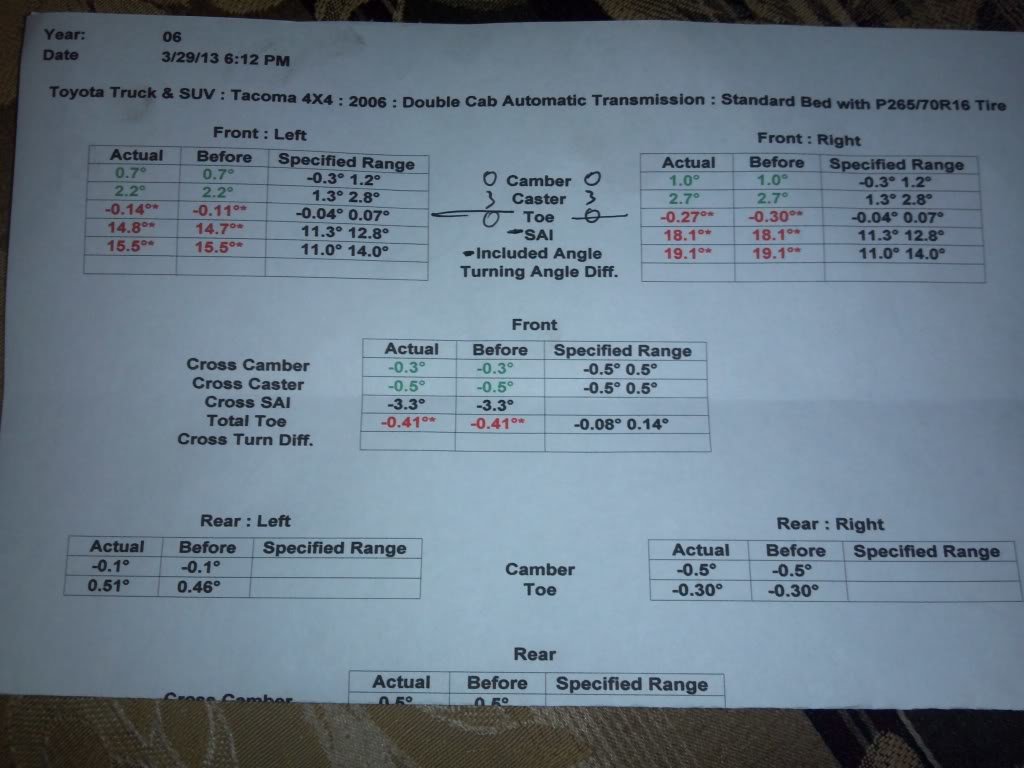

See alignment spec sheet.

Had the truck on a lift last night. Centering pin isn't sheered off. Nothing wrong with the leafs.



Thanks for that!!



I'll get an alignment check here soon and post it. Mine drives straight enough. The front Pass. Cam bolts are froze up solid and the tie rod took a gorilla to turn.

My old alignment numbers, the rear is close to yours and I had to hold the steering wheel to the left a litte to go straight but the new Front alignment changed that.



I guess there could be some compensation in the front to make the truck track strait, but that by no means would explain or fix this:

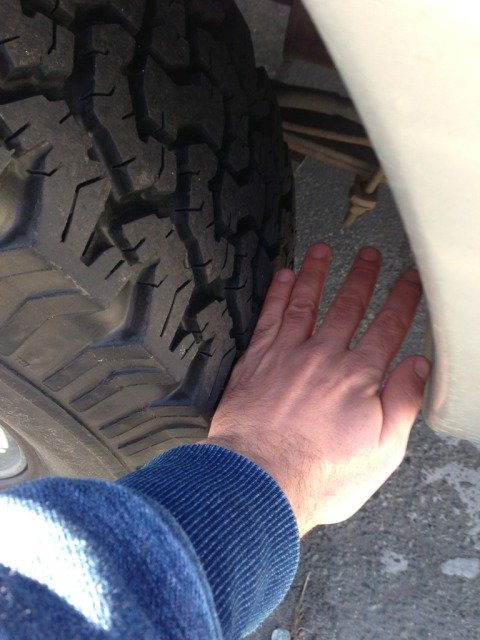

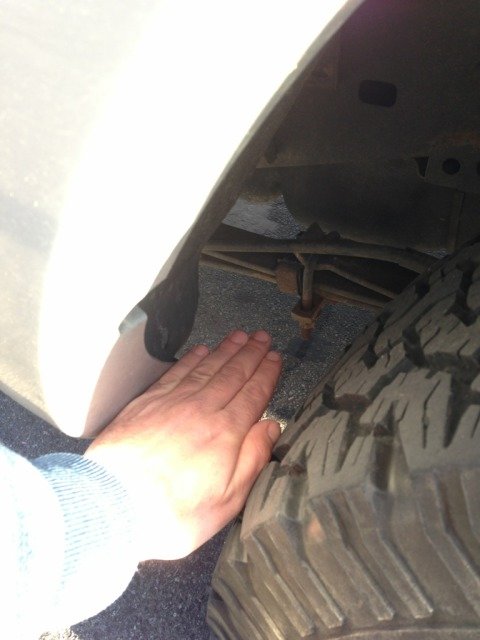

Front wheel well L&R side:



Bed to frame alignment would account for that much.



Would I need to take it to a body shop for that?



Not unless you're helpless. Loosen bolts, knock bed around, tighten bolts.



Measure from the front spring eye to the spring pad on the axle, both sides should be the same. If theres a difference your axle could have shifted on the springs, its been said many times on TW that the factory uses low torque settings on the u-bolts.
And finally if the axle shifted and sheared the center pin you won't see that until you remove the u-bolts.



What does the gap on each side of the bed look like?
Cab to bed gap?



Depending where the OP lives (i.e. how much salt they put on the roads), after five years, the bed bolts could be in there pretty good. I see reports of people stripping the torx pattern from the bolt head when installing extra D-rings.
