jberry's Dingleberry Expo Trailer

Discussion in 'Other Builds' started by jberry813, Aug 2, 2013.

  1. Aug 2, 2013 at 12:48 PM
    #1
    jberry813

    jberry813 [OP] Making TW Great Again Moderator

    Joined:
    Jan 21, 2011
    Member:
    #49636
    Messages:
    20,239
    Gender:
    Male
    First Name:
    Jason
    Lake Tahoe
    Vehicle:
    2012 DCSB Sport
    ...too much shit to list.
    6B45A1EA-A2C9-4D1A-9508-1BFF6C4CEB7D_zps_89d4f4b87696e6249a57f40c9e2a1aed6f61fbc0.jpg

    [​IMG]

    Frame and A-frame are 2"x3"x1/8" rectangle tube
    Tongue is 2.5"x2.5"x.25" square receiver tube
    Crossmembers are 2"x2"x.120 square tube
    Gussets on every 90* joint
    Integrated hitch recovery point (and will be used for bicycle rack) in rear bumper

    Exterior Shots:
    061590D4-7B68-408D-B36E-02A387E42AC5-364_694bfd55cf251e0c9d6fcd2ed16feae4d0180e52.jpg

    [​IMG]

    Little shoe basket using the ladder and ladder holddown:

    Never need to find a bottle opener:

    Lockable Home Depot caster I added to the tongue jack:

    Safety Chains:

    Fenders are nice and stout...can be used as steps (as you can see)

    Lockable T-handles on all doors:

    LED license plate bracket:

    Greasable hinges on all doors:

    3500 lb 6x5.5 axle with bronze SCS F5's

    Electric brake setup including 5 amp hour battery backup:

    Fresh Water Setup:

    Drain spiggot on water tank:

    Electrical:
    3644C838-91AF-4390-A4BD-4E4B79BFE3C5-581_09d5ff0fe234c2469bfbe6f623bb48ffcd962112.jpg
    026E718C-4188-4EE1-9192-362389E424DB-427_05c1577170c3e6f26efbb83350fb1d34828f4132.jpg
    C852709E-7F48-4AE8-884A-0B962A3885CD-427_d14d64be12aa67dbeae13cd1413e9277d8306b0e.jpg
    AC518BD7-1CBE-4DCC-B4E5-8CADB8DAF753-427_b1d4a0e1f24d2211bc9fdcd96c4cbb5e759aebd2.jpg
    DECD272D-8E81-455D-837E-200EC4A46E06-427_4a984d36ed9aa5914ec3fac5cb4cb1b8814df879.jpg

    LED lights inside tent with little e-bay switch:

    Folding camping table nestled between the roof and tent...like I planned it.

    Fold down tailgate table:
    5FDCE74A-260A-4110-99E1-6480B610D117-510_4223dc64ada7d5e0f7844967a88e8cccc951ea39.jpg
    5BD6C587-A571-4AA7-865C-EC3F88C86928-364_82e3bd82bfd4308290901138111b9701175f1695.jpg
    D54D599D-C566-4B88-AB83-781D7C712C78-145_bff9859f8415dfde140ef5266b7cbb61baccb0df.jpg

    Modified harbor freight clamps to hold table tight to tailgate in transit:

    Stove/Oven on slide-out:
    B0BE1224-A5A4-41B7-8234-A50CB47CFFB5-145_4b04d5da43a931587ecb74513dbd0d09f93c2a33.jpg
    F0BC4FE1-72A6-456E-ADFA-1FF7B6DC16DB-145_408b2341e86db96c686fbdadf0eeddc41da22713.jpg

    Pleanty of space:

    Suspension:
    Pro Comp 4" lift springs for the front of a Jeep YJ
    WFO Concepts Leaf Spring Hangers (designed to fit a 2" frame and taper out to a 2.5" spring)
    WFO Concepts Shackle Hanger (again, designed for a 2" frame)
    Homemade 4" shackles
    Energy Suspension spring & shackle bushing set (actually designed for a old K5 blazer but the dimensions were exactly what I needed).

    D6A9C221-FD17-4738-89CF-3A28B5E79780-427_819b5660472a36137c4e1415b72fc107405c85a1.jpg
    9D7E11FC-A457-487A-A520-4C7086CDEC6D-427_e69d5c76638fadd0bdb0c3425f7a321775f9ee0d.jpg

    Last edited: Apr 22, 2014
  2. Aug 2, 2013 at 12:50 PM
    #2
    YOTA LOVER

    YOTA LOVER Stay Calm, and Fire For Effect

    Joined:
    Jul 17, 2012
    Member:
    #82814
    Messages:
    4,095
    Gender:
    Male
    First Name:
    Chris
    NH
    Vehicle:
    2011 MGM Tacoma DCLB SR5
    A slew of pricey stuff my wife hates me for.
    :thumbsup: Gotta start somewhere!

  3. Aug 2, 2013 at 12:51 PM
    #3
    nfs257

    nfs257 Well-Known Member

    Joined:
    Jun 22, 2011
    Member:
    #58691
    Messages:
    7,600
    Gender:
    Male
    First Name:
    Chris
    Menifee, Ca -> Tucson, Az -- April
    Vehicle:
    09 DCLB PreRunner MGM SR5 Debadged
    Trac Performance built Prerunner
    Sub'd to this epicness as well!!!!!!!!!!!!!

  4. Aug 2, 2013 at 1:13 PM
    #4
    Box Rocket

    Box Rocket Well-Known Member

    Joined:
    Mar 1, 2010
    Member:
    #32389
    Messages:
    6,845
    Gender:
    Male
    First Name:
    Adam
    Syracuse, Utah
    Vehicle:
    1995 FZJ80 Land Cruiser
    3xLocked, lifted, well used
    Subbed I guess although this has to be the most boring start to a build ever.

  5. Aug 2, 2013 at 1:15 PM
    #5
    YOTA LOVER

    YOTA LOVER Stay Calm, and Fire For Effect

    Joined:
    Jul 17, 2012
    Member:
    #82814
    Messages:
    4,095
    Gender:
    Male
    First Name:
    Chris
    NH
    Vehicle:
    2011 MGM Tacoma DCLB SR5
    A slew of pricey stuff my wife hates me for.
    :rofl:

    Throw the man a bone, he doesn't have the years of expertise you've developed.

  6. Aug 2, 2013 at 1:20 PM
    #6
    nfs257

    nfs257 Well-Known Member

    Joined:
    Jun 22, 2011
    Member:
    #58691
    Messages:
    7,600
    Gender:
    Male
    First Name:
    Chris
    Menifee, Ca -> Tucson, Az -- April
    Vehicle:
    09 DCLB PreRunner MGM SR5 Debadged
    Trac Performance built Prerunner
    :eek:


    :rofl: :rofl: :rofl: :rofl: :rofl: :rofl:

  7. Aug 2, 2013 at 1:23 PM
    #7
    Box Rocket

    Box Rocket Well-Known Member

    Joined:
    Mar 1, 2010
    Member:
    #32389
    Messages:
    6,845
    Gender:
    Male
    First Name:
    Adam
    Syracuse, Utah
    Vehicle:
    1995 FZJ80 Land Cruiser
    3xLocked, lifted, well used
    Sure he does.

  8. Aug 2, 2013 at 1:26 PM
    #8
    Jon850FL

    Jon850FL is Lurkin'

    Joined:
    Aug 1, 2011
    Member:
    #60972
    Messages:
    2,331
    Gender:
    Male
    First Name:
    Jon
    DFS, FL
    wasnt expecting that.....lol :D

  9. Aug 2, 2013 at 1:35 PM
    #9
    Oowen

    Oowen Well-Known Member

    Joined:
    Nov 2, 2011
    Member:
    #66326
    Messages:
    1,280
    Gender:
    Male
    First Name:
    Owen
    Elko, NV
    Vehicle:
    '09 Offroad
    Lift Armor Badassery with a shit ton of pin stripes 18% Tint
    Can't wait to see you tow this thing 80 mph through some whoops :popcorn:

  10. Aug 2, 2013 at 1:46 PM
    #10
    jberry813

    jberry813 [OP] Making TW Great Again Moderator

    Joined:
    Jan 21, 2011
    Member:
    #49636
    Messages:
    20,239
    Gender:
    Male
    First Name:
    Jason
    Lake Tahoe
    Vehicle:
    2012 DCSB Sport
    ...too much shit to list.
    I thought it was kinda clever :brianr:


    But ok...more.
    The trailer will use a standard 3500 lb trailer axle, with some custom goodies for suspension. Will still be leaf sprung, but definitely not trailer leafs. :spy:

    I'm waiting for a metric shit ton of parts to come in so the simple stuff is getting knocked out now.

    Some simple 5" shackles.
    Nothing fancy, just 1/4" plate with a 1"x.188 wall DOM sleeve. Got antsy and already painted them too.


    And picked up these u-bolt plates. They are 1/4 plate with a built in pseudo skid plate to protect the u-bolts similar to my truck (trailer will be SUA). The plates are designed to mate a standard 2-3/8" round tube axle to 2.5" wide leaf springs.

    137acd17-735d-4e04-a73a-6c69813af7d2_zps_ca870f4c32d54537fe9214f7c8fa02710e22aa3b.jpg


  11. Aug 2, 2013 at 1:52 PM
    #11
    DIRT YOTA

    DIRT YOTA Aka EL ROJO

    Joined:
    Jun 22, 2010
    Member:
    #39302
    Messages:
    6,355
    Gender:
    Male
    First Name:
    Cory
    Camarillo, CA
    Vehicle:
    03' dbl cab with some stuff

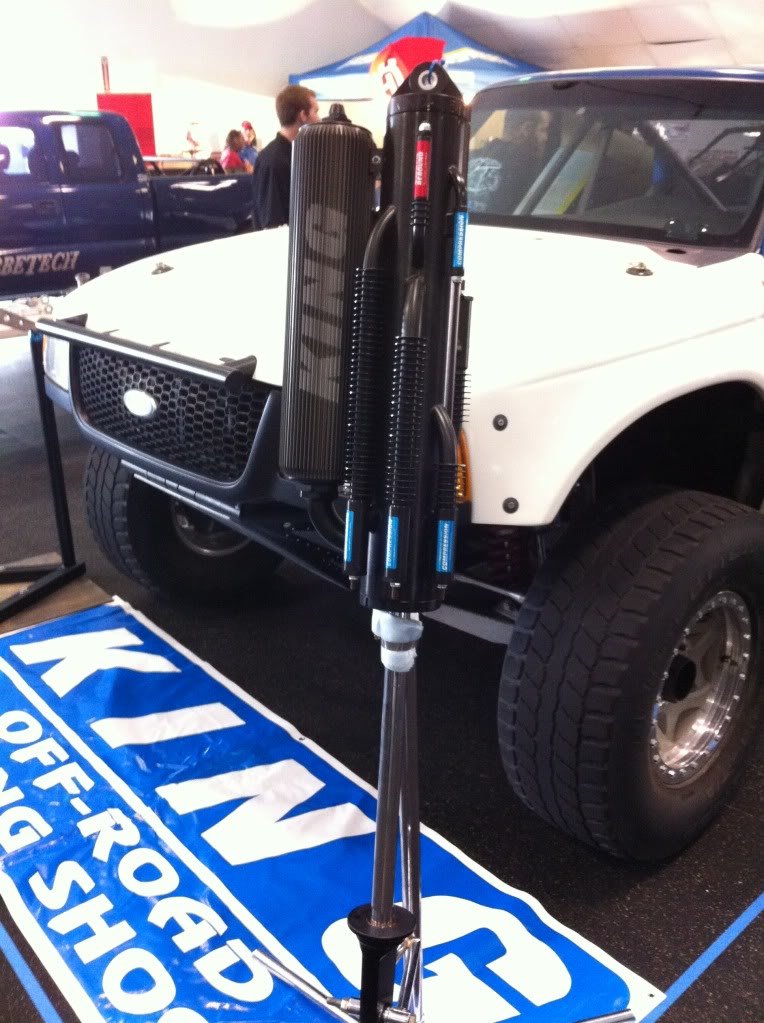

    Gonna run some 3.0 triples on this w/some 4" bumps :D

  12. Aug 2, 2013 at 1:56 PM
    #12
    ian408

    ian408 Well-Known Member

    Joined:
    Nov 8, 2009
    Member:
    #25619
    Messages:
    12,256
    Gender:
    Male
    First Name:
    Ian
    Santa Clara, CA
    Vehicle:
    09 Tacoma
    3" lift, custom rims, snug top shell, shrockworks bumper, warn winch.
    I thought it was kinda clever too.

    Have you looked at the various iterations of the torsion bar axle? Doesn't flex and probably not the greatest for dragging along a trail but they sure pull nice and you get some iteration of suspension too.

  13. Aug 2, 2013 at 2:06 PM
    #13
    IDtrucks

    IDtrucks My screen name is now slightly incorrect...

    Joined:
    Jun 2, 2010
    Member:
    #38254
    Messages:
    21,105
    Gender:
    Male
    First Name:
    Mark "Buck"
    Jackson Wyoming
    Vehicle:
    96' X-Cab 4x4 TRD Off Road Clusterfuck
    JVC Deck, 10" sub mountd in rear seat cubby, 2 LED off road lights mounted in grille, amber raptor style grille lights, LED rock lights, square led bed light, custom made fuse block tray, 12 blade Blue Sea fuse block, 100a marine circuit breaker, black plasti dipped full grille, tinted tail lights + third, Uniden 520 with 4' firestik, Bilstein 5100s with 620lb Eibach coils, Diff drop, Chevy 63 leaf swap, TG creeper joints, 14" triangulated biletein 5125s, 8" extended steel braided brake line, TG Rock Sliders, CBI Moab 1.0 front bumper, custom fabbed bed rack, full TRD E-Locker axle swap and matching re-gear with custom stand alone wiring circuit, 29 spline pinion flange from an 06 wishbone runner, tubbed for 35x12.5" general grabbers on Ultra type 181 wheels, crush sleeve eliminator, Mini ARB compressor, front ARB locker, garage fab aluminum front skid plate, custom built high clearence rear bumper, removable mothafuckin doors
    duh. the trailer has to fly with him!

  14. Aug 2, 2013 at 2:06 PM
    #14
    jberry813

    jberry813 [OP] Making TW Great Again Moderator

    Joined:
    Jan 21, 2011
    Member:
    #49636
    Messages:
    20,239
    Gender:
    Male
    First Name:
    Jason
    Lake Tahoe
    Vehicle:
    2012 DCSB Sport
    ...too much shit to list.

    From what I researched, torsions are the wrong type of suspension for an offroad trailer. Shit for travel and the rubber just rips apart. They are great for on-road applications. I had torsions on my old toy hauler.

  15. Aug 2, 2013 at 2:10 PM
    #15
    Box Rocket

    Box Rocket Well-Known Member

    Joined:
    Mar 1, 2010
    Member:
    #32389
    Messages:
    6,845
    Gender:
    Male
    First Name:
    Adam
    Syracuse, Utah
    Vehicle:
    1995 FZJ80 Land Cruiser
    3xLocked, lifted, well used
    You know I'm just giving you crap.

    I know that it's "fashionable" to use trailing arms and airbags on trailers these days. I'm sure they work well and it's nice to just add air to the bags to level it out with a big load. But there are so many more parts that can fail. I think leaf springs are the right choice. Obviously the trailer springs on mine aren't ideal but they work. Running some longer (maybe custom) spring packs like it sounds like you're doing will be sweet and totally worry free.

  16. Aug 2, 2013 at 2:15 PM
    #16
    medic2230

    medic2230 Ditch Doctor

    Joined:
    Oct 13, 2008
    Member:
    #9942
    Messages:
    42,039
    Gender:
    Male
    First Name:
    Murph
    Bama! Roll Tide
    Vehicle:
    2011 Taco 4x4 DCLB
    20% Tint, OME 3"complete lift with Dakar's, Light Racing UCA's, 285/75/16 Nitto Terra Grapplers, 10 HP TW sticker, Ultraguage, B.A.M.F. Rock Sliders, MedicFab Bed Rack, Relentless front bumper
    This gonna be one of those long build threads that gets finished in a few years?

    On a side note:

    I was thinking of using my stock springs off the taco on my trailer. Any reason why I should think of using something different?

  17. Aug 2, 2013 at 2:19 PM
    #17
    jberry813

    jberry813 [OP] Making TW Great Again Moderator

    Joined:
    Jan 21, 2011
    Member:
    #49636
    Messages:
    20,239
    Gender:
    Male
    First Name:
    Jason
    Lake Tahoe
    Vehicle:
    2012 DCSB Sport
    ...too much shit to list.
    I expect nothing less. :D

    This is going to be one of those ONGOING build threads. Most likely it will end up like my truck build thread, occasional updates on the vehicle, mostly BS, probably followed by broken parts that get rebuilt to the point of excess, and occasional pictures of random hotties.

    IMO the only problem with the stock taco springs is the amount of spring arch. It's almost non-existant. I see no reason why you couldn't do a SOA setup with them.

  18. Aug 2, 2013 at 2:24 PM
    #18
    medic2230

    medic2230 Ditch Doctor

    Joined:
    Oct 13, 2008
    Member:
    #9942
    Messages:
    42,039
    Gender:
    Male
    First Name:
    Murph
    Bama! Roll Tide
    Vehicle:
    2011 Taco 4x4 DCLB
    20% Tint, OME 3"complete lift with Dakar's, Light Racing UCA's, 285/75/16 Nitto Terra Grapplers, 10 HP TW sticker, Ultraguage, B.A.M.F. Rock Sliders, MedicFab Bed Rack, Relentless front bumper
    Sub'd

  19. Aug 2, 2013 at 2:54 PM
    #19
    nelson18matt

    nelson18matt Well-Known Member

    Joined:
    Mar 19, 2009
    Member:
    #14939
    Messages:
    13,684
    Gender:
    Male
    Goodyear, Arizona
    Vehicle:
    2004 Long Travel Tacoma
    *SOLD*
    trailer needs... you buy


  20. Aug 2, 2013 at 2:58 PM
    #20
    ian408

    ian408 Well-Known Member

    Joined:
    Nov 8, 2009
    Member:
    #25619
    Messages:
    12,256
    Gender:
    Male
    First Name:
    Ian
    Santa Clara, CA
    Vehicle:
    09 Tacoma
    3" lift, custom rims, snug top shell, shrockworks bumper, warn winch.
    Yeah. That was my concern but other than small trailers, I haven't seen them used at all.

    I think the biggest problem is they don't flex at all.
