JeepAndrew's Jetski Trailer-to-Offroad RTT Hauler Build

Discussion in 'Other Builds' started by JeepAndrew, Apr 7, 2014.

  1. Apr 17, 2014 at 12:14 PM
    #41
    JeepAndrew

    JeepAndrew [OP] Jeep driving High Voltage junkie

    Joined:
    Jan 28, 2013
    Member:
    #96314
    Messages:
    2,221
    Gender:
    Male
    First Name:
    Andrew
    Tucson, AZ
    Vehicle:
    '93 Jeep Wrangler YJ/'97 Jeep Cherokee XJ
    --(97 XJ) 6.5 inch Pro-comp front coils, 3 inch Pro-comp rear leaves, 2 inch shackles, custom Ballistic Fab trac bar w/ custom drop bracket, Rubicon Express control arms, 33-12.5-15 Goodyear Duratracs on steelies, bushwacker fender flares, custom rock sliders, XRC front winch bumper, XRC rear recovery bumper with custom swing-away tire carrier, custom hood vent, cobra CB/4 foot firestik --(93 YJ) custom all-around spring-over-axle swap with custom springs and shackles and body lift elimination, front shackle reversal, S.Y.E.'d crawl-boxed transfer case with double-cardan front and rear driveshafts, 33-12.5-15 Goodyear MTR Kevlars on 15x12 steelies, warn front recovery bumper w/10K XRC winch, rear XRC recovery bumper w/tire carrier, locking center console box, custom tube fenders/rock sliders, 50 inch LED lightbar, 20" lightbar on bumper, overhead console, Cobra CB w/ bluetooth wireless headset, 5 foot firestik, onboard 120volt power.
    Hmm that is pretty cool! Where did you get yours?

  2. Apr 17, 2014 at 12:43 PM
    #42
    jberry813

    jberry813 The Mad Scientist

    Joined:
    Jan 21, 2011
    Member:
    #49636
    Messages:
    13,592
    Gender:
    Male
    First Name:
    Jason
    Lake Tahoe
    Vehicle:
    Resurrected LT TRD S/C 4x4
    TRD Supercharger, URD 7th Injector Kit, Total Chaos LT, King Coilov....too much shit to list.
    Amazon, last year for 40 bucks

  3. Apr 17, 2014 at 5:53 PM
    #43
    JeepAndrew

    JeepAndrew [OP] Jeep driving High Voltage junkie

    Joined:
    Jan 28, 2013
    Member:
    #96314
    Messages:
    2,221
    Gender:
    Male
    First Name:
    Andrew
    Tucson, AZ
    Vehicle:
    '93 Jeep Wrangler YJ/'97 Jeep Cherokee XJ
    --(97 XJ) 6.5 inch Pro-comp front coils, 3 inch Pro-comp rear leaves, 2 inch shackles, custom Ballistic Fab trac bar w/ custom drop bracket, Rubicon Express control arms, 33-12.5-15 Goodyear Duratracs on steelies, bushwacker fender flares, custom rock sliders, XRC front winch bumper, XRC rear recovery bumper with custom swing-away tire carrier, custom hood vent, cobra CB/4 foot firestik --(93 YJ) custom all-around spring-over-axle swap with custom springs and shackles and body lift elimination, front shackle reversal, S.Y.E.'d crawl-boxed transfer case with double-cardan front and rear driveshafts, 33-12.5-15 Goodyear MTR Kevlars on 15x12 steelies, warn front recovery bumper w/10K XRC winch, rear XRC recovery bumper w/tire carrier, locking center console box, custom tube fenders/rock sliders, 50 inch LED lightbar, 20" lightbar on bumper, overhead console, Cobra CB w/ bluetooth wireless headset, 5 foot firestik, onboard 120volt power.
    I might have to go that route. Thanks man!

  4. Apr 17, 2014 at 6:06 PM
    #44
    Toyanvil

    Toyanvil Well-Known Member

    Joined:
    Oct 11, 2012
    Member:
    #88807
    Messages:
    162
    Gender:
    Male
    I went old school, with 4 Atwood jacks extended 8", light weight, sets up in minutes on any surface, with or without being hooked to my truck.
    [​IMG]

  5. Apr 17, 2014 at 7:26 PM
    #45
    JeepAndrew

    JeepAndrew [OP] Jeep driving High Voltage junkie

    Joined:
    Jan 28, 2013
    Member:
    #96314
    Messages:
    2,221
    Gender:
    Male
    First Name:
    Andrew
    Tucson, AZ
    Vehicle:
    '93 Jeep Wrangler YJ/'97 Jeep Cherokee XJ
    --(97 XJ) 6.5 inch Pro-comp front coils, 3 inch Pro-comp rear leaves, 2 inch shackles, custom Ballistic Fab trac bar w/ custom drop bracket, Rubicon Express control arms, 33-12.5-15 Goodyear Duratracs on steelies, bushwacker fender flares, custom rock sliders, XRC front winch bumper, XRC rear recovery bumper with custom swing-away tire carrier, custom hood vent, cobra CB/4 foot firestik --(93 YJ) custom all-around spring-over-axle swap with custom springs and shackles and body lift elimination, front shackle reversal, S.Y.E.'d crawl-boxed transfer case with double-cardan front and rear driveshafts, 33-12.5-15 Goodyear MTR Kevlars on 15x12 steelies, warn front recovery bumper w/10K XRC winch, rear XRC recovery bumper w/tire carrier, locking center console box, custom tube fenders/rock sliders, 50 inch LED lightbar, 20" lightbar on bumper, overhead console, Cobra CB w/ bluetooth wireless headset, 5 foot firestik, onboard 120volt power.
    Nice setup! That would work as well. The Atwood jacks are really inexpensive.

  6. Apr 17, 2014 at 10:00 PM
    #46
    JeepAndrew

    JeepAndrew [OP] Jeep driving High Voltage junkie

    Joined:
    Jan 28, 2013
    Member:
    #96314
    Messages:
    2,221
    Gender:
    Male
    First Name:
    Andrew
    Tucson, AZ
    Vehicle:
    '93 Jeep Wrangler YJ/'97 Jeep Cherokee XJ
    --(97 XJ) 6.5 inch Pro-comp front coils, 3 inch Pro-comp rear leaves, 2 inch shackles, custom Ballistic Fab trac bar w/ custom drop bracket, Rubicon Express control arms, 33-12.5-15 Goodyear Duratracs on steelies, bushwacker fender flares, custom rock sliders, XRC front winch bumper, XRC rear recovery bumper with custom swing-away tire carrier, custom hood vent, cobra CB/4 foot firestik --(93 YJ) custom all-around spring-over-axle swap with custom springs and shackles and body lift elimination, front shackle reversal, S.Y.E.'d crawl-boxed transfer case with double-cardan front and rear driveshafts, 33-12.5-15 Goodyear MTR Kevlars on 15x12 steelies, warn front recovery bumper w/10K XRC winch, rear XRC recovery bumper w/tire carrier, locking center console box, custom tube fenders/rock sliders, 50 inch LED lightbar, 20" lightbar on bumper, overhead console, Cobra CB w/ bluetooth wireless headset, 5 foot firestik, onboard 120volt power.
    Back to work!! :cool:

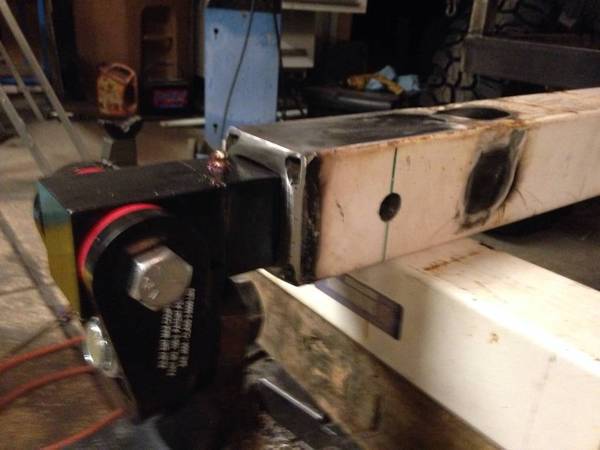

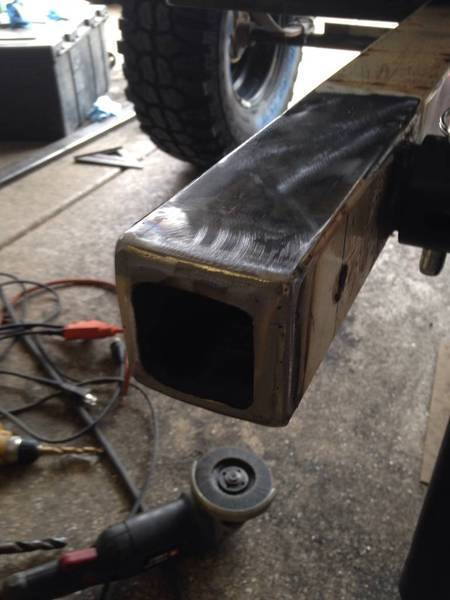

    This evening I focused on the tongue bar. The trailer-side attachment on the Max Coupler is a 2" receiver bar, so the trailer tongue needed the corresponding 2.5" hitch sleeve, which I just so happened to have an 18" piece of. It was a bit loose fitting inside the 3" tongue bar, so I shimmed it up on all 4 sides with 18" strips of 2"X1/8" steel flat strap, welded solidly to the outside of the sleeve. This made for a very tight fit inside the tongue bar (had to be driven into the bar with a sledge hammer) with no movement whatsoever. Finally, I did 6 rosette welds to permanently bond the coupler sleeve to the tongue bar. Still need to fill the corners but it turned out great! Tongue bar metal thickness is nearly 1/2"!

    [​IMG]

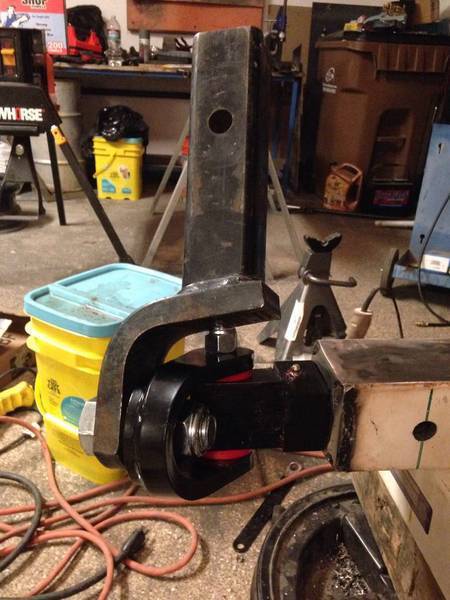

    Here's a pic to give an idea of the articulation of the Max Coupler. This thing can flex!

    [​IMG]

    The #1 thing I really like about the trailer-side attachment on the Max Coupler is that it's entirely removable; I can remove the coupler, leave the trailer set up at camp while I go explore etc, and don't have to worry about someone coming along and hooking up and stealing it :)

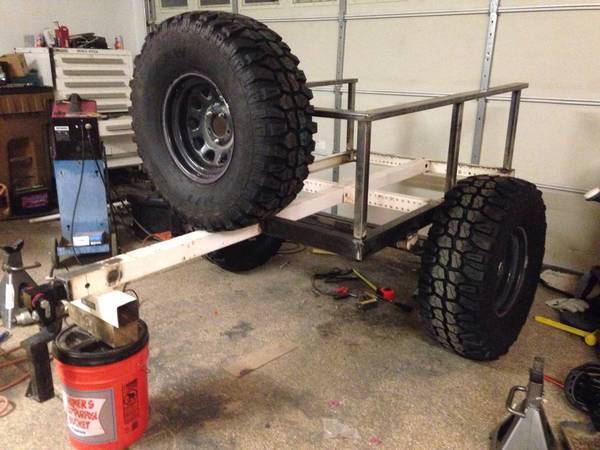

    Here's how it's sitting right now, not bad for a total of 3 days work! The tailgate, deck and sides will be tackled tomorrow!

    [​IMG]

    Last edited: Apr 17, 2014
  7. Apr 17, 2014 at 10:41 PM
    #47
    NewRider

    NewRider Well-Known Member

    Joined:
    Aug 15, 2012
    Member:
    #84801
    Messages:
    1,631
    Gender:
    Male
    First Name:
    Travis, Truck: Baja
    Harrisonburg, Va
    Vehicle:
    '06 AC TRD Sport, Indigo Ink
    1. bought it... 2. Mud flap delete 3. BHLM 4. AUX input on factory stereo 5....... Check the build
  8. Apr 18, 2014 at 8:21 AM
    #48
    JeepAndrew

    JeepAndrew [OP] Jeep driving High Voltage junkie

    Joined:
    Jan 28, 2013
    Member:
    #96314
    Messages:
    2,221
    Gender:
    Male
    First Name:
    Andrew
    Tucson, AZ
    Vehicle:
    '93 Jeep Wrangler YJ/'97 Jeep Cherokee XJ
    --(97 XJ) 6.5 inch Pro-comp front coils, 3 inch Pro-comp rear leaves, 2 inch shackles, custom Ballistic Fab trac bar w/ custom drop bracket, Rubicon Express control arms, 33-12.5-15 Goodyear Duratracs on steelies, bushwacker fender flares, custom rock sliders, XRC front winch bumper, XRC rear recovery bumper with custom swing-away tire carrier, custom hood vent, cobra CB/4 foot firestik --(93 YJ) custom all-around spring-over-axle swap with custom springs and shackles and body lift elimination, front shackle reversal, S.Y.E.'d crawl-boxed transfer case with double-cardan front and rear driveshafts, 33-12.5-15 Goodyear MTR Kevlars on 15x12 steelies, warn front recovery bumper w/10K XRC winch, rear XRC recovery bumper w/tire carrier, locking center console box, custom tube fenders/rock sliders, 50 inch LED lightbar, 20" lightbar on bumper, overhead console, Cobra CB w/ bluetooth wireless headset, 5 foot firestik, onboard 120volt power.
    :cool: :D

  9. Apr 18, 2014 at 10:11 AM
    #49
    Brian007Taco

    Brian007Taco 007Taco

    Joined:
    May 16, 2012
    Member:
    #78964
    Messages:
    14,974
    Gender:
    Male
    First Name:
    Don't ask!
    Mesa, Arizona
    Vehicle:
    06 TRD Off-road Prerunner
    OME 885 with 5100's in front, TSB and AAL with 5125's in back. 30" light bar in the valance.
    Looks great Andrew.

  10. Apr 18, 2014 at 8:55 PM
    #50
    JeepAndrew

    JeepAndrew [OP] Jeep driving High Voltage junkie

    Joined:
    Jan 28, 2013
    Member:
    #96314
    Messages:
    2,221
    Gender:
    Male
    First Name:
    Andrew
    Tucson, AZ
    Vehicle:
    '93 Jeep Wrangler YJ/'97 Jeep Cherokee XJ
    --(97 XJ) 6.5 inch Pro-comp front coils, 3 inch Pro-comp rear leaves, 2 inch shackles, custom Ballistic Fab trac bar w/ custom drop bracket, Rubicon Express control arms, 33-12.5-15 Goodyear Duratracs on steelies, bushwacker fender flares, custom rock sliders, XRC front winch bumper, XRC rear recovery bumper with custom swing-away tire carrier, custom hood vent, cobra CB/4 foot firestik --(93 YJ) custom all-around spring-over-axle swap with custom springs and shackles and body lift elimination, front shackle reversal, S.Y.E.'d crawl-boxed transfer case with double-cardan front and rear driveshafts, 33-12.5-15 Goodyear MTR Kevlars on 15x12 steelies, warn front recovery bumper w/10K XRC winch, rear XRC recovery bumper w/tire carrier, locking center console box, custom tube fenders/rock sliders, 50 inch LED lightbar, 20" lightbar on bumper, overhead console, Cobra CB w/ bluetooth wireless headset, 5 foot firestik, onboard 120volt power.

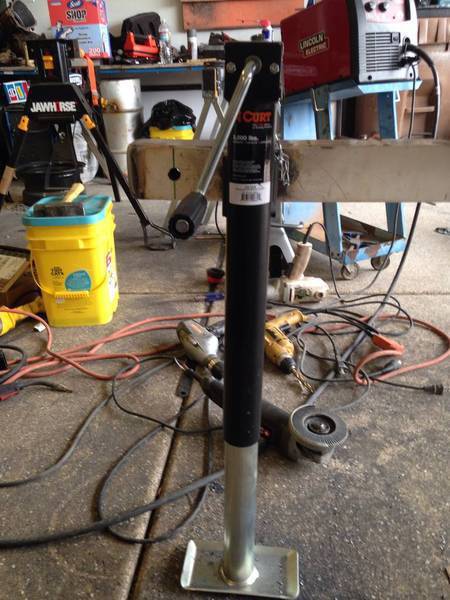

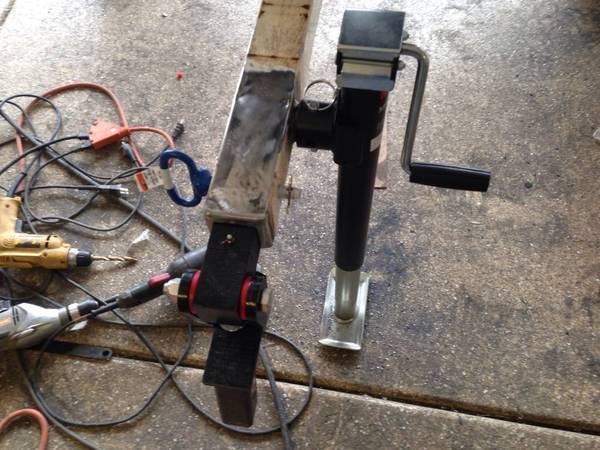

    Today I went by one of the local trailer places and picked up a 2,000# rated Curt brand trailer jack with a round tube sleeve attachment. Also stopped in at our local Industrial Metal Supply and picked up two 12"x48" pieces of 10 gauge sheet for the fenders. Once I got home I went to work finishing the end of the tongue bar and welding the jack sleeve onto the trailer.

    [​IMG]

    [​IMG]

    [​IMG]

    Next came the deck and sides. I used 14 gauge steel sheet, cut to required sizes. Each piece was C-clamped into position and tacked in place with the Lincoln :D Here it is hooked up to the jeep, with just the 3 sides in place:

    [​IMG]

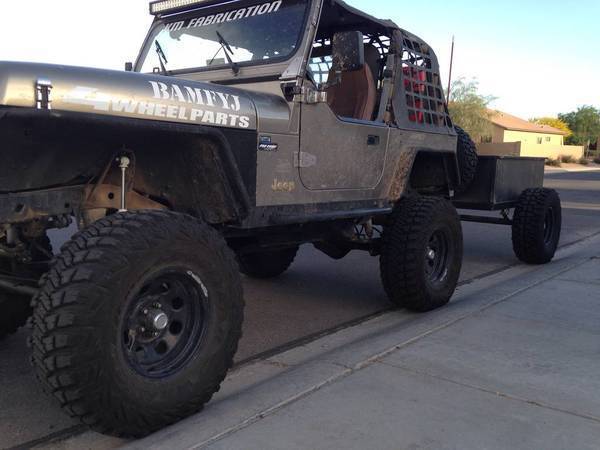

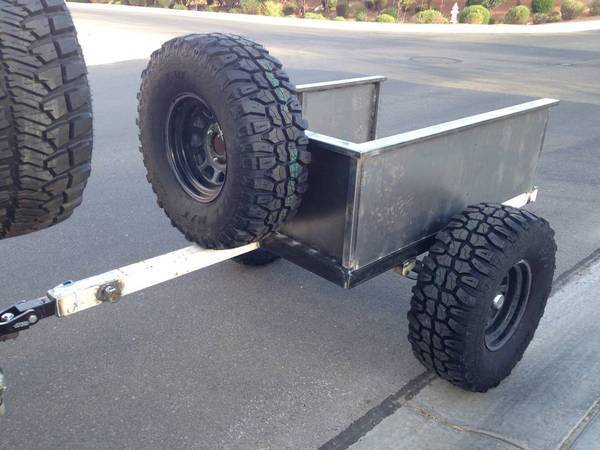

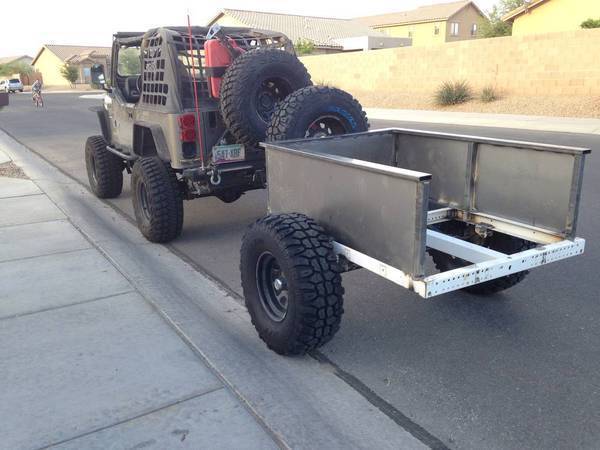

    The tongue weight is now around 80# I think. I took it around the neighborhood again and it tracks and tows great!

    [​IMG]

    [​IMG]

    Last edited: Apr 18, 2014
  11. Apr 18, 2014 at 9:02 PM
    #51
    snowtank

    snowtank whys the rum gone

    Joined:
    Sep 14, 2012
    Member:
    #86930
    Messages:
    9,265
    Gender:
    Male
    First Name:
    Andrew
    Arizona
    Vehicle:
    11 txpro dcsb 08 trd sprt dcsb
    Some stuff here and there....
    Much tires. Very awesome. So cool. :cool: way to keep the andrew name epic!

  12. Apr 18, 2014 at 9:12 PM
    #52
    nfs257

    nfs257 Well-Known Member

    Joined:
    Jun 22, 2011
    Member:
    #58691
    Messages:
    5,868
    Gender:
    Male
    First Name:
    Chris
    San Diego
    Vehicle:
    09 DCLB PreRunner MGM SR5 Debadged
    Trac Performance built Prerunner
  13. Apr 19, 2014 at 7:22 AM
    #53
    Crawlin WJ

    Crawlin WJ Fuck that rock.

    Joined:
    Dec 5, 2013
    Member:
    #117957
    Messages:
    341
    Gender:
    Male
    First Name:
    Derrick
    Tucson Az.
    Vehicle:
    99 Jeep Wrangler
    this is coming along smoothly. Good job man!

  14. Apr 19, 2014 at 8:22 AM
    #54
    Moose1988

    Moose1988 ____livevil____

    Joined:
    May 29, 2011
    Member:
    #57449
    Messages:
    14,469
    Gender:
    Male
    First Name:
    Josh
    Chandler, AZ
    Vehicle:
    THE BOOSTED STORMTROOPER
    Check Build >>>>
    Lookin damn good brotha. :thumbsup:

  15. Apr 20, 2014 at 8:56 AM
    #55
    JeepAndrew

    JeepAndrew [OP] Jeep driving High Voltage junkie

    Joined:
    Jan 28, 2013
    Member:
    #96314
    Messages:
    2,221
    Gender:
    Male
    First Name:
    Andrew
    Tucson, AZ
    Vehicle:
    '93 Jeep Wrangler YJ/'97 Jeep Cherokee XJ
    --(97 XJ) 6.5 inch Pro-comp front coils, 3 inch Pro-comp rear leaves, 2 inch shackles, custom Ballistic Fab trac bar w/ custom drop bracket, Rubicon Express control arms, 33-12.5-15 Goodyear Duratracs on steelies, bushwacker fender flares, custom rock sliders, XRC front winch bumper, XRC rear recovery bumper with custom swing-away tire carrier, custom hood vent, cobra CB/4 foot firestik --(93 YJ) custom all-around spring-over-axle swap with custom springs and shackles and body lift elimination, front shackle reversal, S.Y.E.'d crawl-boxed transfer case with double-cardan front and rear driveshafts, 33-12.5-15 Goodyear MTR Kevlars on 15x12 steelies, warn front recovery bumper w/10K XRC winch, rear XRC recovery bumper w/tire carrier, locking center console box, custom tube fenders/rock sliders, 50 inch LED lightbar, 20" lightbar on bumper, overhead console, Cobra CB w/ bluetooth wireless headset, 5 foot firestik, onboard 120volt power.
    You want one don't you? :D

    ^This guy. Best fab assistant EVAR!

    Thank you sir! :)

  16. Apr 20, 2014 at 9:31 PM
    #56
    JeepAndrew

    JeepAndrew [OP] Jeep driving High Voltage junkie

    Joined:
    Jan 28, 2013
    Member:
    #96314
    Messages:
    2,221
    Gender:
    Male
    First Name:
    Andrew
    Tucson, AZ
    Vehicle:
    '93 Jeep Wrangler YJ/'97 Jeep Cherokee XJ
    --(97 XJ) 6.5 inch Pro-comp front coils, 3 inch Pro-comp rear leaves, 2 inch shackles, custom Ballistic Fab trac bar w/ custom drop bracket, Rubicon Express control arms, 33-12.5-15 Goodyear Duratracs on steelies, bushwacker fender flares, custom rock sliders, XRC front winch bumper, XRC rear recovery bumper with custom swing-away tire carrier, custom hood vent, cobra CB/4 foot firestik --(93 YJ) custom all-around spring-over-axle swap with custom springs and shackles and body lift elimination, front shackle reversal, S.Y.E.'d crawl-boxed transfer case with double-cardan front and rear driveshafts, 33-12.5-15 Goodyear MTR Kevlars on 15x12 steelies, warn front recovery bumper w/10K XRC winch, rear XRC recovery bumper w/tire carrier, locking center console box, custom tube fenders/rock sliders, 50 inch LED lightbar, 20" lightbar on bumper, overhead console, Cobra CB w/ bluetooth wireless headset, 5 foot firestik, onboard 120volt power.
    Made a lot of progress this weekend!

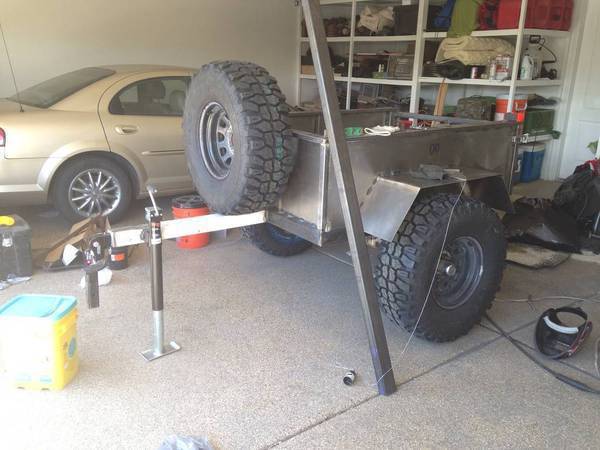

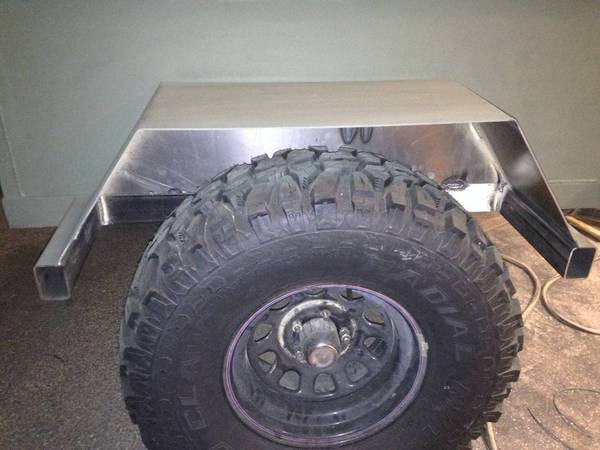

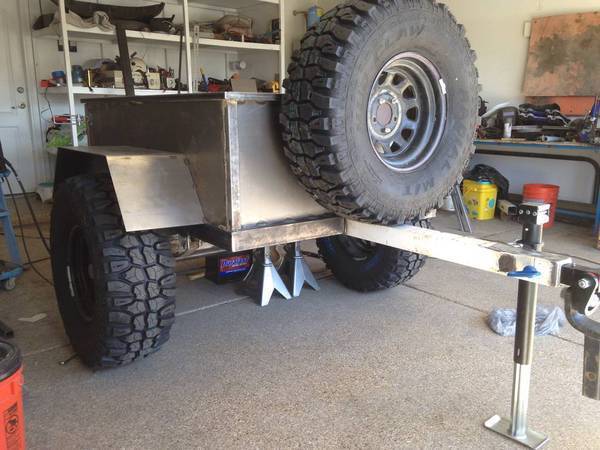

    Fabricated the flat steel fenders out of 10 gauge sheet, cut and welded angles over the tires accordingly :)

    [​IMG]


    [​IMG]

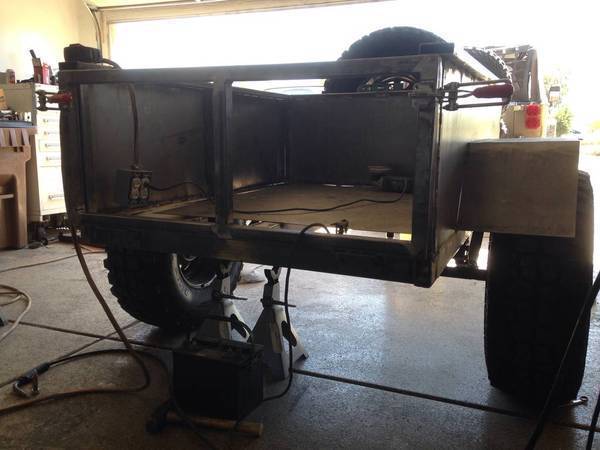

    Tailgate frame was built out of the same 1.5"x1.5"x1/8" square tube as the siderail uprights. I used $20 heavy duty commercial door hinges from Lowes.

    I also had ordered a couple 1,000lb tire gate latches off of ebay to use as tailgate latches.

    [​IMG]

    I needed to strengthen the fender bottoms, so we cut pieces of 2"x3"x1/8" and welded them into the frame along the ends of the fenders. These will act as stiffeners and rock protection.

    [​IMG]

    [​IMG]

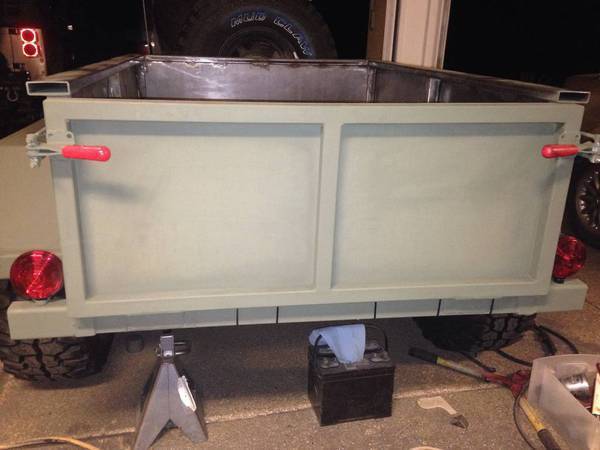

    Finished the tailgate by paneling it with 1/4" maple hardwood. I decided to go with the maple to keep the rear weight down. It's very strong and had no issues supporting me while I sat on it. I did some of the sheetwork in the bed, I'll be finishing that up tomorrow after work. Also ran the trailer light wiring and mounted up some cheap trailer lights I picked up from Autozone that should work nicely on the trail :D

    [​IMG]

    [​IMG]

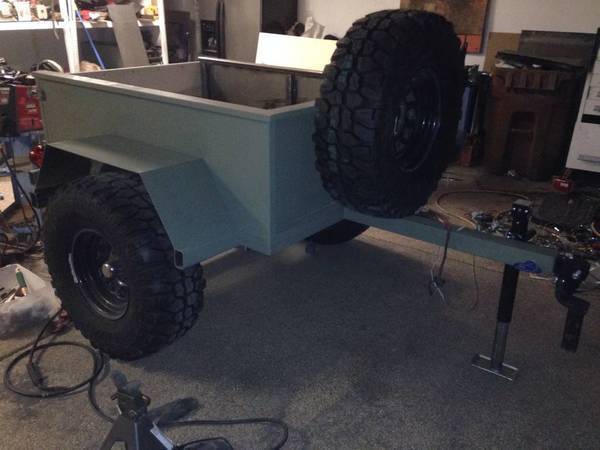

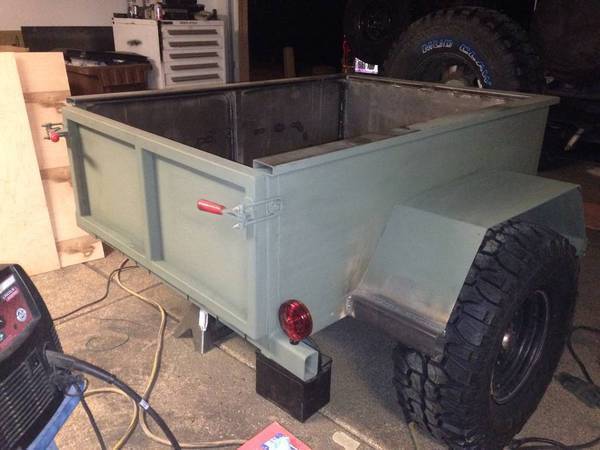

    By this evening I had sprayed it with gray Rustoleum self-etching primer, as you can see. Stuff works great!

    This coming weekend I'll be taking it on a 500 mile road trip to northern AZ as a test run, so I'm planning on having it mostly done before Thursday :yes:

    Last edited: Apr 20, 2014
  17. Apr 20, 2014 at 9:38 PM
    #57
    MJonAgs32

    MJonAgs32 asphinctersayswhat?

    Joined:
    Apr 14, 2009
    Member:
    #15949
    Messages:
    9,211
    Gender:
    Male
    First Name:
    MJ
    Union City, CA (SF Bay Area)
    Vehicle:
    07 Mid-Travel 4x4 DCSB 6spd
    check out my build
  18. Apr 20, 2014 at 9:44 PM
    #58
    01tacoprerunner

    01tacoprerunner Lifted 'n Locked 4WD Prerunner

    Joined:
    Jun 5, 2009
    Member:
    #18077
    Messages:
    3,280
    Gender:
    Male
    First Name:
    Brian
    Bluefield, WV
    Vehicle:
    01 4WD Prerunner with No-slip locker
    4WD Conversion, No-slip locker, 5100s set at 2.5" and shackles in the back. Black 2nd gen rims, and Courser M/T tires, Bull Bar,Fog lights, UWS toolbox, CB Radio, Fiberglass antenna, 2nd Gen Badges, Deck Plate Mod, Diff Breather Mod, Sockmonkey decals.
  19. Apr 21, 2014 at 8:04 PM
    #59
    JeepAndrew

    JeepAndrew [OP] Jeep driving High Voltage junkie

    Joined:
    Jan 28, 2013
    Member:
    #96314
    Messages:
    2,221
    Gender:
    Male
    First Name:
    Andrew
    Tucson, AZ
    Vehicle:
    '93 Jeep Wrangler YJ/'97 Jeep Cherokee XJ
    --(97 XJ) 6.5 inch Pro-comp front coils, 3 inch Pro-comp rear leaves, 2 inch shackles, custom Ballistic Fab trac bar w/ custom drop bracket, Rubicon Express control arms, 33-12.5-15 Goodyear Duratracs on steelies, bushwacker fender flares, custom rock sliders, XRC front winch bumper, XRC rear recovery bumper with custom swing-away tire carrier, custom hood vent, cobra CB/4 foot firestik --(93 YJ) custom all-around spring-over-axle swap with custom springs and shackles and body lift elimination, front shackle reversal, S.Y.E.'d crawl-boxed transfer case with double-cardan front and rear driveshafts, 33-12.5-15 Goodyear MTR Kevlars on 15x12 steelies, warn front recovery bumper w/10K XRC winch, rear XRC recovery bumper w/tire carrier, locking center console box, custom tube fenders/rock sliders, 50 inch LED lightbar, 20" lightbar on bumper, overhead console, Cobra CB w/ bluetooth wireless headset, 5 foot firestik, onboard 120volt power.

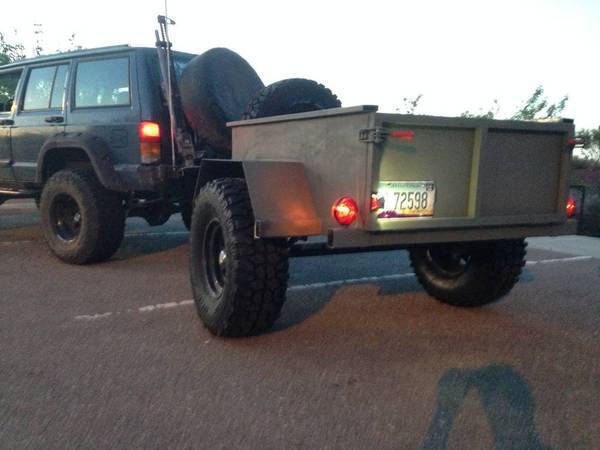

    This evening I finished the trailer light wiring by adding a license plate light to the tailgate, and welding hookups for the safety chains. All that's left to do is the deck, watercan holders (waiting on the cans to arrive) and the onboard 120v power. And of course there's the rack setup for the RTT that still needs to be done.

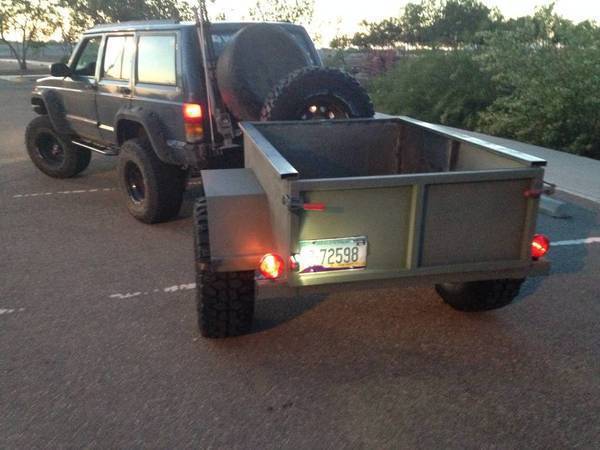

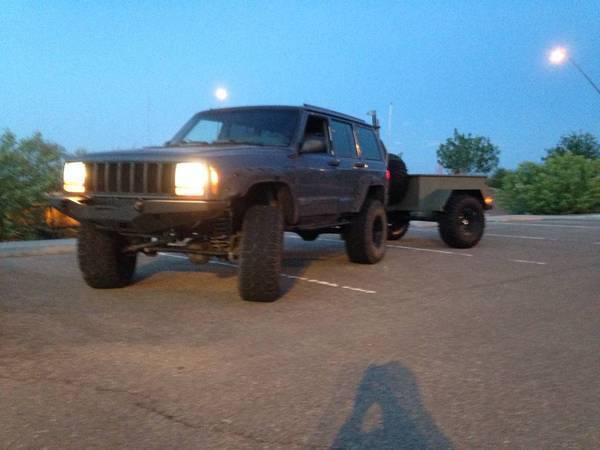

    I took it for a test run behind my Cherokee to test the lights and just to drive it around.

    [​IMG]

    [​IMG]

    [​IMG]

    It's unbelievable how light this thing is. Between my two jeeps, the Cherokee, with all the engine mods, has way more power by far than the wrangler, and I honestly couldn't feel it behind me at all. It tracks perfectly straight and is very easy to back up. I'd estimate that it only weighs around 500-600lbs.

    Here's a quick cost breakdown so far:

    Jetski trailer = free
    3- 15x12 steel rims = free
    3 tires- 33x12.5x15 mud claws = $620
    Max Coupler = $287
    Tailgate latches = $83
    Misc steel (square & round tubing, sheet etc) $575
    Trailer lights and onboard power wiring = $350

    Total cost so far = $1915, along with approx 5 days labor.

    Last edited: Apr 21, 2014
  20. Apr 21, 2014 at 8:48 PM
    #60
    Brian007Taco

    Brian007Taco 007Taco

    Joined:
    May 16, 2012
    Member:
    #78964
    Messages:
    14,974
    Gender:
    Male
    First Name:
    Don't ask!
    Mesa, Arizona
    Vehicle:
    06 TRD Off-road Prerunner
    OME 885 with 5100's in front, TSB and AAL with 5125's in back. 30" light bar in the valance.
    Looks awesome so far.
