JeepAndrew's Jetski Trailer-to-Offroad RTT Hauler Build

Discussion in 'Other Builds' started by JeepAndrew, Apr 7, 2014.

  1. Apr 29, 2014 at 8:51 AM
    #81
    Box Rocket

    Box Rocket just trying to help

    Joined:
    Mar 1, 2010
    Member:
    #32389
    Messages:
    5,944
    Gender:
    Male
    First Name:
    Adam
    Syracuse, Utah
    Vehicle:
    2003 TRD DoubleCab
    lift, tires, armor and stuff
    X1000. Almost no difference in cost for a 3500# axle and it will save you from all kinds of headaches.

  2. Apr 29, 2014 at 12:20 PM
    #82
    snowtank

    snowtank whys the rum gone

    Joined:
    Sep 14, 2012
    Member:
    #86930
    Messages:
    9,594
    Gender:
    Male
    First Name:
    Andrew
    Arizona
    Vehicle:
    11 txpro dcsb 08 trd sprt dcsb
    Some stuff here and there....

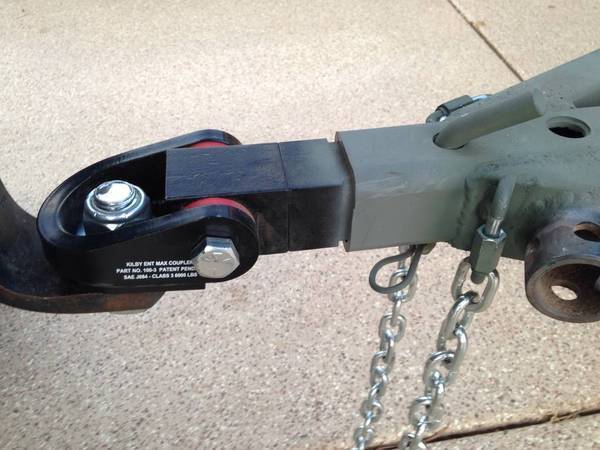

    Yeah you tested that thing to the max! That max coupler is bad ass.

  3. Jul 2, 2014 at 9:32 PM
    #83
    JeepAndrew

    JeepAndrew [OP] Jeep driving High Voltage junkie

    Joined:
    Jan 28, 2013
    Member:
    #96314
    Messages:
    2,265
    Gender:
    Male
    First Name:
    Andrew
    Tucson, AZ
    Vehicle:
    '93 Jeep Wrangler YJ/'97 Jeep Cherokee XJ
    --(97 XJ) 6.5 inch Pro-comp front coils, 3 inch Pro-comp rear leaves, 2 inch shackles, custom Ballistic Fab trac bar w/ custom drop bracket, Rubicon Express control arms, 33-12.5-15 Goodyear Duratracs on steelies, bushwacker fender flares, custom rock sliders, XRC front winch bumper, XRC rear recovery bumper with custom swing-away tire carrier, custom hood vent, cobra CB/4 foot firestik --(93 YJ) custom all-around spring-over-axle swap with custom springs and shackles and body lift elimination, front shackle reversal, S.Y.E.'d crawl-boxed transfer case with double-cardan front and rear driveshafts, 33-12.5-15 Goodyear MTR Kevlars on 15x12 steelies, warn front recovery bumper w/10K XRC winch, rear XRC recovery bumper w/tire carrier, locking center console box, custom tube fenders/rock sliders, 50 inch LED lightbar, 20" lightbar on bumper, overhead console, Cobra CB w/ bluetooth wireless headset, 5 foot firestik, onboard 120volt power.
    Holy shit I've neglected this thread! Had a lot going on lately, but now it's time for some teaser pics of progress on the trailer. It's nearly done, just have a few more things to do:

    [​IMG]


    [​IMG]

  4. Jul 2, 2014 at 10:18 PM
    #84
    Milota95

    Milota95 Mall Crawling Specialist

    Joined:
    Apr 15, 2013
    Member:
    #102118
    Messages:
    1,737
    Gender:
    Male
    First Name:
    Quintin
    B.F.E
    Vehicle:
    95 tacoma 4c 2.7l
    Bone stock, Custom AZ pinstriped paint, small horn mod
    subbed looking good! :popcorn:

  5. Jul 2, 2014 at 10:26 PM
    #85
    Brian007Taco

    Brian007Taco 007Taco

    Joined:
    May 16, 2012
    Member:
    #78964
    Messages:
    15,166
    Gender:
    Male
    First Name:
    Don't ask!
    Mesa, Arizona
    Vehicle:
    06 TRD Off-road Prerunner
    OME 885 with 5100's in front, TSB and AAL with 5125's in back. 30" light bar in the valance.
    Lookin good so far Andrew.

  6. Jul 3, 2014 at 12:55 AM
    #86
    JeepAndrew

    JeepAndrew [OP] Jeep driving High Voltage junkie

    Joined:
    Jan 28, 2013
    Member:
    #96314
    Messages:
    2,265
    Gender:
    Male
    First Name:
    Andrew
    Tucson, AZ
    Vehicle:
    '93 Jeep Wrangler YJ/'97 Jeep Cherokee XJ
    --(97 XJ) 6.5 inch Pro-comp front coils, 3 inch Pro-comp rear leaves, 2 inch shackles, custom Ballistic Fab trac bar w/ custom drop bracket, Rubicon Express control arms, 33-12.5-15 Goodyear Duratracs on steelies, bushwacker fender flares, custom rock sliders, XRC front winch bumper, XRC rear recovery bumper with custom swing-away tire carrier, custom hood vent, cobra CB/4 foot firestik --(93 YJ) custom all-around spring-over-axle swap with custom springs and shackles and body lift elimination, front shackle reversal, S.Y.E.'d crawl-boxed transfer case with double-cardan front and rear driveshafts, 33-12.5-15 Goodyear MTR Kevlars on 15x12 steelies, warn front recovery bumper w/10K XRC winch, rear XRC recovery bumper w/tire carrier, locking center console box, custom tube fenders/rock sliders, 50 inch LED lightbar, 20" lightbar on bumper, overhead console, Cobra CB w/ bluetooth wireless headset, 5 foot firestik, onboard 120volt power.
    Thank you fellas! Quintin your trailer is sick! Really clean build! I was going to go with the box type when I originally designed mine.

  7. Jul 3, 2014 at 12:57 AM
    #87
    Milota95

    Milota95 Mall Crawling Specialist

    Joined:
    Apr 15, 2013
    Member:
    #102118
    Messages:
    1,737
    Gender:
    Male
    First Name:
    Quintin
    B.F.E
    Vehicle:
    95 tacoma 4c 2.7l
    Bone stock, Custom AZ pinstriped paint, small horn mod
    thanks:) we will both have trailers on the epic trip !

  8. Jul 3, 2014 at 1:16 AM
    #88
    JeepAndrew

    JeepAndrew [OP] Jeep driving High Voltage junkie

    Joined:
    Jan 28, 2013
    Member:
    #96314
    Messages:
    2,265
    Gender:
    Male
    First Name:
    Andrew
    Tucson, AZ
    Vehicle:
    '93 Jeep Wrangler YJ/'97 Jeep Cherokee XJ
    --(97 XJ) 6.5 inch Pro-comp front coils, 3 inch Pro-comp rear leaves, 2 inch shackles, custom Ballistic Fab trac bar w/ custom drop bracket, Rubicon Express control arms, 33-12.5-15 Goodyear Duratracs on steelies, bushwacker fender flares, custom rock sliders, XRC front winch bumper, XRC rear recovery bumper with custom swing-away tire carrier, custom hood vent, cobra CB/4 foot firestik --(93 YJ) custom all-around spring-over-axle swap with custom springs and shackles and body lift elimination, front shackle reversal, S.Y.E.'d crawl-boxed transfer case with double-cardan front and rear driveshafts, 33-12.5-15 Goodyear MTR Kevlars on 15x12 steelies, warn front recovery bumper w/10K XRC winch, rear XRC recovery bumper w/tire carrier, locking center console box, custom tube fenders/rock sliders, 50 inch LED lightbar, 20" lightbar on bumper, overhead console, Cobra CB w/ bluetooth wireless headset, 5 foot firestik, onboard 120volt power.
    Hopefully I'll have my RTT by then!

  9. Jul 9, 2014 at 8:38 PM
    #89
    JeepAndrew

    JeepAndrew [OP] Jeep driving High Voltage junkie

    Joined:
    Jan 28, 2013
    Member:
    #96314
    Messages:
    2,265
    Gender:
    Male
    First Name:
    Andrew
    Tucson, AZ
    Vehicle:
    '93 Jeep Wrangler YJ/'97 Jeep Cherokee XJ
    --(97 XJ) 6.5 inch Pro-comp front coils, 3 inch Pro-comp rear leaves, 2 inch shackles, custom Ballistic Fab trac bar w/ custom drop bracket, Rubicon Express control arms, 33-12.5-15 Goodyear Duratracs on steelies, bushwacker fender flares, custom rock sliders, XRC front winch bumper, XRC rear recovery bumper with custom swing-away tire carrier, custom hood vent, cobra CB/4 foot firestik --(93 YJ) custom all-around spring-over-axle swap with custom springs and shackles and body lift elimination, front shackle reversal, S.Y.E.'d crawl-boxed transfer case with double-cardan front and rear driveshafts, 33-12.5-15 Goodyear MTR Kevlars on 15x12 steelies, warn front recovery bumper w/10K XRC winch, rear XRC recovery bumper w/tire carrier, locking center console box, custom tube fenders/rock sliders, 50 inch LED lightbar, 20" lightbar on bumper, overhead console, Cobra CB w/ bluetooth wireless headset, 5 foot firestik, onboard 120volt power.
    So here's a quick rundown of the progress so far:

    Total cost ~$2,500

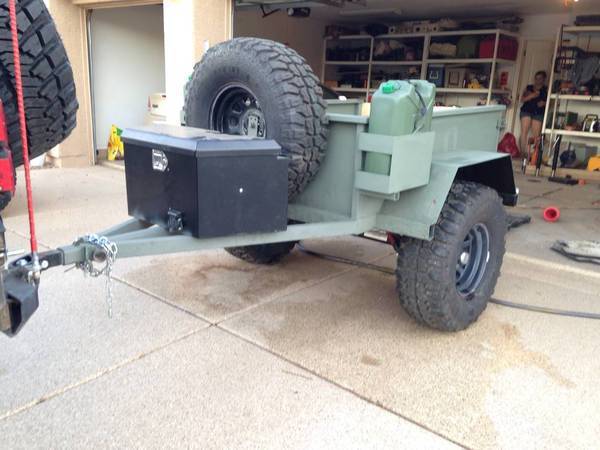

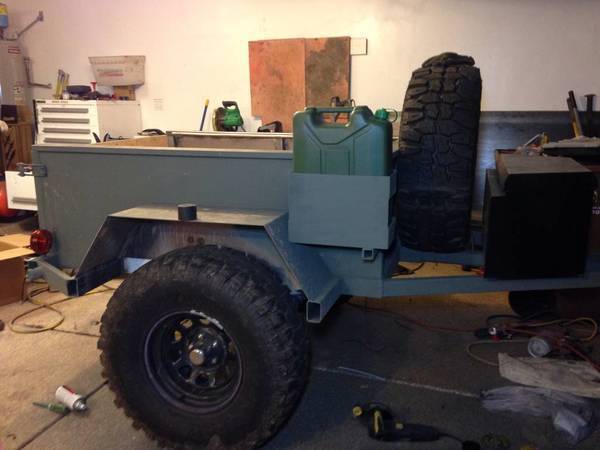

    [​IMG]

    After the road trip to northern AZ, I realized two things; 1- the trailer didn't have enough tongue weight, and 2- the tongue wasn't quite sturdy (and long enough) for my preferences. So, I cut the old tongue bar off, and replaced it with a full length of 2.5 x 1/4" thick receiver tube, and triangulated it with 1x3x3/16" rectangle tube.

    [​IMG]

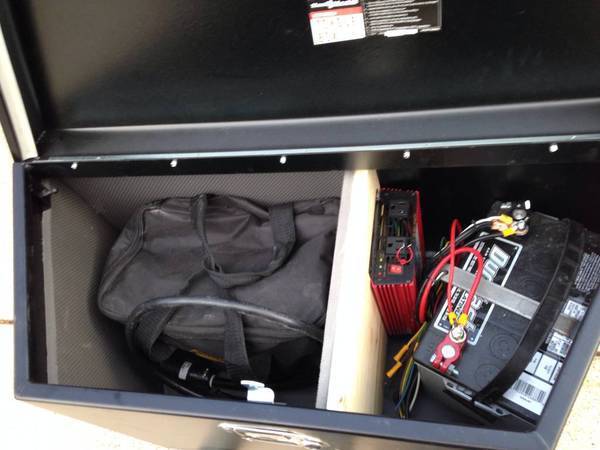

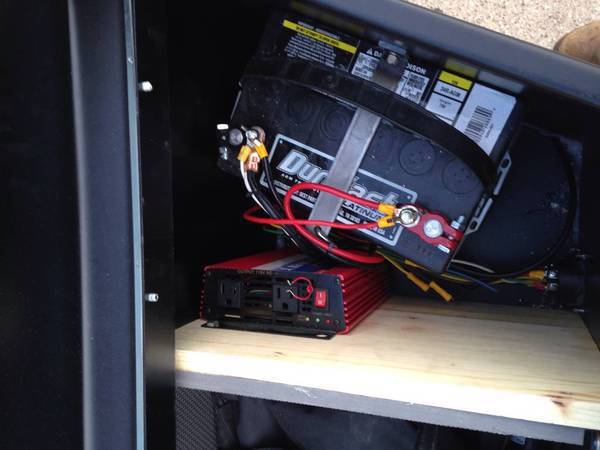

    As you can see, I also added a tongue box, which is equipped with a 12v AGM battery and 1000 watt Vector inverter, as well as a space for tools, accessories etc, which is foam padded to keep down noise from anything inside bouncing around.

    I still need to build the panel that will have the 120volt outlet, 12v outlets, and switches for some of the electrical accessories (bed cargo lights, rock lights, and what not) that will mount over the space with the battery.

    I also made damn sure that the box was watertight.

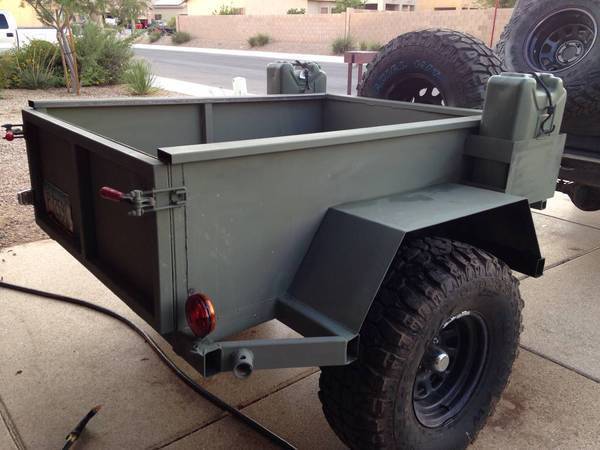

    [​IMG]

    Everything electrical on the trailer, including marker and tail lights, is wired through this enclosure. The battery will charge off the tow vehicle via 30 amp circuit through the 7 round trailer plug. This wiring is already installed on my Cherokee (haven't done the Wrangler yet) and works perfectly.

    Since I wanted to be able to disconnect the trailer light cable whip when offroad on some of the nastier trails, I made up a piece of cable with two male ends on it, and installed a vehicle side female plug into the tongue box. The safety chains are removable from the trailer for the same reason.

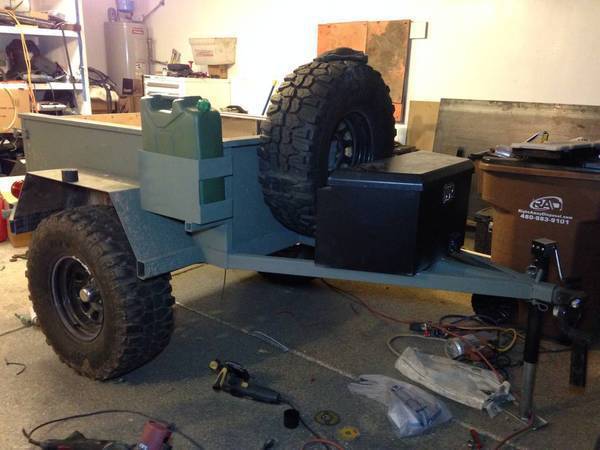

    [​IMG]

    [​IMG]

    I also added Jerry can holders that will accept either fuel or water cans, and there are provisions for jacks on both back corners.

    [​IMG]

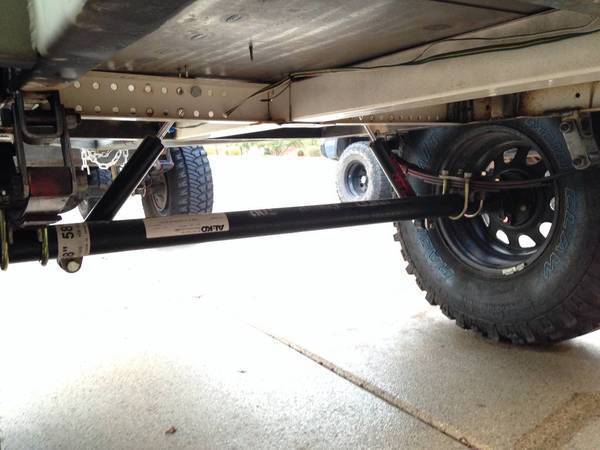

    After bending the rear axle on the road test, I had originally picked up a 2k axle to replace it, but after a couple members raised some valid points, I traded it out for a 3500lb, ordered new leafsprings, and replaced the entire setup. I had an extra set of Rough Country steering stabilizer shocks for my Cherokee so I tossed those on since the new springs really needed some dampening.

    [​IMG]

    [​IMG]

    Last edited: Jul 9, 2014
  10. Jul 9, 2014 at 10:44 PM
    #90
    Brian007Taco

    Brian007Taco 007Taco

    Joined:
    May 16, 2012
    Member:
    #78964
    Messages:
    15,166
    Gender:
    Male
    First Name:
    Don't ask!
    Mesa, Arizona
    Vehicle:
    06 TRD Off-road Prerunner
    OME 885 with 5100's in front, TSB and AAL with 5125's in back. 30" light bar in the valance.
  11. Jul 10, 2014 at 4:58 PM
    #91
    JeepAndrew

    JeepAndrew [OP] Jeep driving High Voltage junkie

    Joined:
    Jan 28, 2013
    Member:
    #96314
    Messages:
    2,265
    Gender:
    Male
    First Name:
    Andrew
    Tucson, AZ
    Vehicle:
    '93 Jeep Wrangler YJ/'97 Jeep Cherokee XJ
    --(97 XJ) 6.5 inch Pro-comp front coils, 3 inch Pro-comp rear leaves, 2 inch shackles, custom Ballistic Fab trac bar w/ custom drop bracket, Rubicon Express control arms, 33-12.5-15 Goodyear Duratracs on steelies, bushwacker fender flares, custom rock sliders, XRC front winch bumper, XRC rear recovery bumper with custom swing-away tire carrier, custom hood vent, cobra CB/4 foot firestik --(93 YJ) custom all-around spring-over-axle swap with custom springs and shackles and body lift elimination, front shackle reversal, S.Y.E.'d crawl-boxed transfer case with double-cardan front and rear driveshafts, 33-12.5-15 Goodyear MTR Kevlars on 15x12 steelies, warn front recovery bumper w/10K XRC winch, rear XRC recovery bumper w/tire carrier, locking center console box, custom tube fenders/rock sliders, 50 inch LED lightbar, 20" lightbar on bumper, overhead console, Cobra CB w/ bluetooth wireless headset, 5 foot firestik, onboard 120volt power.
    Thank you good sir! You'll be seeing this trailer in action, hopefully with an RTT on it!

  12. Jul 10, 2014 at 5:57 PM
    #92
    Brian007Taco

    Brian007Taco 007Taco

    Joined:
    May 16, 2012
    Member:
    #78964
    Messages:
    15,166
    Gender:
    Male
    First Name:
    Don't ask!
    Mesa, Arizona
    Vehicle:
    06 TRD Off-road Prerunner
    OME 885 with 5100's in front, TSB and AAL with 5125's in back. 30" light bar in the valance.
  13. Jul 10, 2014 at 6:54 PM
    #93
    snowtank

    snowtank whys the rum gone

    Joined:
    Sep 14, 2012
    Member:
    #86930
    Messages:
    9,594
    Gender:
    Male
    First Name:
    Andrew
    Arizona
    Vehicle:
    11 txpro dcsb 08 trd sprt dcsb
    Some stuff here and there....
    Looks great dude!

  14. Jul 10, 2014 at 9:03 PM
    #94
    Moose1988

    Moose1988 ____livevil____

    Joined:
    May 29, 2011
    Member:
    #57449
    Messages:
    14,865
    Gender:
    Male
    First Name:
    Josh
    Chandler, AZ
    Vehicle:
    THE BOOSTED STORMTROOPER
    Check Build >>>>
  15. Aug 16, 2014 at 10:23 PM
    #95
    extremachn1

    extremachn1 I am an asshole, deal with it!

    Joined:
    Jun 21, 2010
    Member:
    #39291
    Messages:
    2,536
    Gender:
    Male
    First Name:
    Turd Furgison
    Tucson, AZ
    Vehicle:
    BAD ASS SUPERCHARGED BEAST
    TRD S/C, TRD quick shifter, AFE CAI, Magnaflow cat back exhaust, Fox racing shocks, TC UCA, All-pro expo leafs, Bestop soft top, Wet Okole black seat covers, Scan gauge II.
    Andrew, any plans on switching to an independent trailing arm style suspension?

  16. Aug 17, 2014 at 12:36 AM
    #96
    JeepAndrew

    JeepAndrew [OP] Jeep driving High Voltage junkie

    Joined:
    Jan 28, 2013
    Member:
    #96314
    Messages:
    2,265
    Gender:
    Male
    First Name:
    Andrew
    Tucson, AZ
    Vehicle:
    '93 Jeep Wrangler YJ/'97 Jeep Cherokee XJ
    --(97 XJ) 6.5 inch Pro-comp front coils, 3 inch Pro-comp rear leaves, 2 inch shackles, custom Ballistic Fab trac bar w/ custom drop bracket, Rubicon Express control arms, 33-12.5-15 Goodyear Duratracs on steelies, bushwacker fender flares, custom rock sliders, XRC front winch bumper, XRC rear recovery bumper with custom swing-away tire carrier, custom hood vent, cobra CB/4 foot firestik --(93 YJ) custom all-around spring-over-axle swap with custom springs and shackles and body lift elimination, front shackle reversal, S.Y.E.'d crawl-boxed transfer case with double-cardan front and rear driveshafts, 33-12.5-15 Goodyear MTR Kevlars on 15x12 steelies, warn front recovery bumper w/10K XRC winch, rear XRC recovery bumper w/tire carrier, locking center console box, custom tube fenders/rock sliders, 50 inch LED lightbar, 20" lightbar on bumper, overhead console, Cobra CB w/ bluetooth wireless headset, 5 foot firestik, onboard 120volt power.
    So far no, I'm actually surprised at how well the leafsprings handle offroad. Maybe down the road I might, but I can't argue with the simplicity of leafsprings.

  17. Aug 17, 2014 at 7:29 AM
    #97
    extremachn1

    extremachn1 I am an asshole, deal with it!

    Joined:
    Jun 21, 2010
    Member:
    #39291
    Messages:
    2,536
    Gender:
    Male
    First Name:
    Turd Furgison
    Tucson, AZ
    Vehicle:
    BAD ASS SUPERCHARGED BEAST
    TRD S/C, TRD quick shifter, AFE CAI, Magnaflow cat back exhaust, Fox racing shocks, TC UCA, All-pro expo leafs, Bestop soft top, Wet Okole black seat covers, Scan gauge II.
    Yea, I need to build on of those myself. Excpet mine will be on 37's. As soon as my 35" Goodyear MT/R's are gone I am going with Maxxis Creepy Crawlers. Probably 37x14.5R15 for the Jeep and 37x12.5R15 for the trailer. I have already removed the rear fenders and am cutting the fender for clearance, also I have metal cloak arched front fenders and new inner fenders that will give me plenty of room to run 37's. That coupled with my belly up kit will give me all the ground clearance I need and a nice low center of gravity.

    I would like to do a trailing arm suspension, but maybe for initial simplicity I will just do like you did go with a straight axel initially.

    Last edited: Aug 17, 2014
  18. Aug 17, 2014 at 9:15 AM
    #98
    JeepAndrew

    JeepAndrew [OP] Jeep driving High Voltage junkie

    Joined:
    Jan 28, 2013
    Member:
    #96314
    Messages:
    2,265
    Gender:
    Male
    First Name:
    Andrew
    Tucson, AZ
    Vehicle:
    '93 Jeep Wrangler YJ/'97 Jeep Cherokee XJ
    --(97 XJ) 6.5 inch Pro-comp front coils, 3 inch Pro-comp rear leaves, 2 inch shackles, custom Ballistic Fab trac bar w/ custom drop bracket, Rubicon Express control arms, 33-12.5-15 Goodyear Duratracs on steelies, bushwacker fender flares, custom rock sliders, XRC front winch bumper, XRC rear recovery bumper with custom swing-away tire carrier, custom hood vent, cobra CB/4 foot firestik --(93 YJ) custom all-around spring-over-axle swap with custom springs and shackles and body lift elimination, front shackle reversal, S.Y.E.'d crawl-boxed transfer case with double-cardan front and rear driveshafts, 33-12.5-15 Goodyear MTR Kevlars on 15x12 steelies, warn front recovery bumper w/10K XRC winch, rear XRC recovery bumper w/tire carrier, locking center console box, custom tube fenders/rock sliders, 50 inch LED lightbar, 20" lightbar on bumper, overhead console, Cobra CB w/ bluetooth wireless headset, 5 foot firestik, onboard 120volt power.
    If you need any help with working on your trailer let me know! The axle with hubs and bearings for mine was around $160, springs, perches and brackets another $75. Not too bad. And you can always 3 link the axle later.

  19. Aug 17, 2014 at 12:28 PM
    #99
    Milota95

    Milota95 Mall Crawling Specialist

    Joined:
    Apr 15, 2013
    Member:
    #102118
    Messages:
    1,737
    Gender:
    Male
    First Name:
    Quintin
    B.F.E
    Vehicle:
    95 tacoma 4c 2.7l
    Bone stock, Custom AZ pinstriped paint, small horn mod
    I like the trailer plug charging the battery how and what do i need ?

  20. Aug 17, 2014 at 12:52 PM
    #100
    JeepAndrew

    JeepAndrew [OP] Jeep driving High Voltage junkie

    Joined:
    Jan 28, 2013
    Member:
    #96314
    Messages:
    2,265
    Gender:
    Male
    First Name:
    Andrew
    Tucson, AZ
    Vehicle:
    '93 Jeep Wrangler YJ/'97 Jeep Cherokee XJ
    --(97 XJ) 6.5 inch Pro-comp front coils, 3 inch Pro-comp rear leaves, 2 inch shackles, custom Ballistic Fab trac bar w/ custom drop bracket, Rubicon Express control arms, 33-12.5-15 Goodyear Duratracs on steelies, bushwacker fender flares, custom rock sliders, XRC front winch bumper, XRC rear recovery bumper with custom swing-away tire carrier, custom hood vent, cobra CB/4 foot firestik --(93 YJ) custom all-around spring-over-axle swap with custom springs and shackles and body lift elimination, front shackle reversal, S.Y.E.'d crawl-boxed transfer case with double-cardan front and rear driveshafts, 33-12.5-15 Goodyear MTR Kevlars on 15x12 steelies, warn front recovery bumper w/10K XRC winch, rear XRC recovery bumper w/tire carrier, locking center console box, custom tube fenders/rock sliders, 50 inch LED lightbar, 20" lightbar on bumper, overhead console, Cobra CB w/ bluetooth wireless headset, 5 foot firestik, onboard 120volt power.
    If you already have the large 7 round trailer plug on your Tacoma then you're golden, you just need to use one of the spare pins in the plug. Most trailer wiring only uses 4 of the 7 pins (unless you also have trailer brakes). I ran a 10 gauge wire from the battery back to the plug on my jeep, and then same thing on the trailer side cord to the auxiliary battery. That's the smallest size (and largest you can use with a standard 7 round plug) I'd go with for a charge lead, since the trailer battery may draw a lot of current under charge if it's run low while you're out camping.

    Also, make sure you have some sort of protection on the charge lead at the vehicle battery (fuse is good but a self-resetting automotive breaker will be much better, a fuse may have issues with blowing randomly when you start the truck with the trailer plugged in) and that the trailer ground wiring to the lead vehicle matches the size of your charging lead. It goes without saying, that the hitch itself IS NOT AN ADEQUATE GROUND for a trailer battery charging system.

    Last edited: Aug 17, 2014
