Just an Alpine iDA-X305

Discussion in 'Audio & Video' started by BAP_29, Nov 7, 2009.

  1. Nov 7, 2009 at 7:14 PM
    #1
    BAP_29

    BAP_29 [OP] Well-Known Member

    Joined:
    Mar 2, 2009
    Member:
    #14238
    Messages:
    677
    Gender:
    Male
    First Name:
    Ben
    North Carolina
    Vehicle:
    05 Prerunner DC TRD Sport
    Bilstein 5100s at 2.5" and Toytec 1.5" AAL Eagle Alloy 063 Wheels on 285/60/18 Cooper Zeon LTZ tires Alpine iDA-X305 Head Unit MB Quart DKD 116 Discus-Line 6.5" Front Speakers (Baffles by Marv) Alpine 6-Disk CD Changer Toyota All-Weather Floor Mats Kobalt Low-Profile Toolbox 13" Wicked Flow Muffler w/ Chrome Tip
    Got the Alpine iDA-X305 yesterday for my bday. it looks awesome and i cant wait to put it in. me and my dad want to put it in ourselves. But while ago we were just looking at all the wiring and were kind of overwhelmed. he thought a wiring harness ment we would just have to plug everything in and it work. you still have to crimp the wires dont you? Any help with the install would be greatly appreciated. The plan is to take out the factory radio 2moro and try to put it the alpine then. we were just looking at it 2nite. thanks guys!

  2. Nov 7, 2009 at 7:27 PM
    #2
    itsmyturn

    itsmyturn Well-Known Member

    Joined:
    Mar 24, 2008
    Member:
    #5502
    Messages:
    414
    Gender:
    Male
    Victorville, CA
    Vehicle:
    08 dbl cab TRD sport
    afe Pro-Dry S dropin, Readylift leveling kit, TRD skid plate, Alpine CDA-9887, 6K D2S HID
    its very simple, if you got the wiring harness. just match the colors of the alpine harness and the pigtail harness you got. if you got a metra harness use the orange illumination wire, do not use the orange/white wire.

  3. Nov 7, 2009 at 7:35 PM
    #3
    BAP_29

    BAP_29 [OP] Well-Known Member

    Joined:
    Mar 2, 2009
    Member:
    #14238
    Messages:
    677
    Gender:
    Male
    First Name:
    Ben
    North Carolina
    Vehicle:
    05 Prerunner DC TRD Sport
    Bilstein 5100s at 2.5" and Toytec 1.5" AAL Eagle Alloy 063 Wheels on 285/60/18 Cooper Zeon LTZ tires Alpine iDA-X305 Head Unit MB Quart DKD 116 Discus-Line 6.5" Front Speakers (Baffles by Marv) Alpine 6-Disk CD Changer Toyota All-Weather Floor Mats Kobalt Low-Profile Toolbox 13" Wicked Flow Muffler w/ Chrome Tip
    ok well i ordered the whole kit off crutchfield. so i think im gonna need to get a crimping tool and some caps?

  4. Nov 7, 2009 at 10:01 PM
    #4
    car15

    car15 Well-Known Member

    Joined:
    Jul 31, 2009
    Member:
    #20435
    Messages:
    80
    Gender:
    Male
    AZ
    Vehicle:
    09 X-Runner

    The Metra kit I bought does not have an orange wire but it does have an orange and white wire and so does the wiring harness on my newly acquired Eclipse AVN726E Nav HU.

  5. Nov 7, 2009 at 11:05 PM
    #5
    medic2230

    medic2230 Ditch Doctor

    Joined:
    Oct 13, 2008
    Member:
    #9942
    Messages:
    10,249
    Gender:
    Male
    First Name:
    Murph
    Columbus, Ga
    Vehicle:
    2011 Taco 4x4 DCLB
    20% Tint, OME 3"complete lift with Dakar's, Light Racing UCA's, 285/75/16 Nitto Terra Grapplers, 10 HP TW sticker, Ultraguage, B.A.M.F. Rock Sliders, MedicFab Bed Rack, Relentless front bumper
    If you got a true wiring harness then all you should have to do is plug one end into the trucks radio connections and one into the radio's connection and then plug them together. Most if not all radio harnesses have 2 pieces. One is radio brand specific and the other one is truck brand specific. They then connect together to complete the harness. I hope that makes sense. You shouldn't need to be crimping anything.

    Murph

  6. Nov 7, 2009 at 11:36 PM
    #6
    Untamed_SS

    Untamed_SS Stayed Up Too Late

    Joined:
    Oct 22, 2008
    Member:
    #10163
    Messages:
    1,967
    Gender:
    Male
    First Name:
    Adam
    Haughton, Louisiana
    Vehicle:
    08 Speedway Blue Access Cab
    Alpine iDA-X200 Deck, Rockford P3, Infinity 1600 A Amp, Black Badges, "KnightRider Mod", Back-up lights. Painted Engine Cover. TRD QuickShifter & Shift Knob. MAF Calibrator. Doug Thorley LT Headers. Custom Y-Pipe. Flowmaster 50 series. Satoshi Grill
    That is a freakin nice deck man. I want one so bad. I currently have the iDA-X200, which is awesome also, IMO. :D

    Let me know how it works out for ya.

  7. Nov 8, 2009 at 6:38 AM
    #7
    BAP_29

    BAP_29 [OP] Well-Known Member

    Joined:
    Mar 2, 2009
    Member:
    #14238
    Messages:
    677
    Gender:
    Male
    First Name:
    Ben
    North Carolina
    Vehicle:
    05 Prerunner DC TRD Sport
    Bilstein 5100s at 2.5" and Toytec 1.5" AAL Eagle Alloy 063 Wheels on 285/60/18 Cooper Zeon LTZ tires Alpine iDA-X305 Head Unit MB Quart DKD 116 Discus-Line 6.5" Front Speakers (Baffles by Marv) Alpine 6-Disk CD Changer Toyota All-Weather Floor Mats Kobalt Low-Profile Toolbox 13" Wicked Flow Muffler w/ Chrome Tip

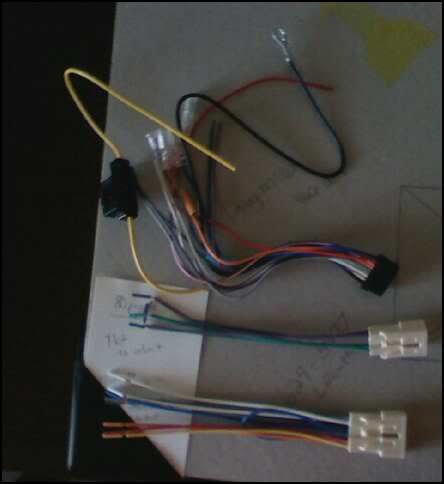

    ok well heres a picture of the wiring harnesses. The top one was included with the deck and the bottom too came from crutchfield, made specifally for the truck. Tell me what im gonna need to do

    [​IMG]

  8. Nov 8, 2009 at 8:05 AM
    #8
    Untamed_SS

    Untamed_SS Stayed Up Too Late

    Joined:
    Oct 22, 2008
    Member:
    #10163
    Messages:
    1,967
    Gender:
    Male
    First Name:
    Adam
    Haughton, Louisiana
    Vehicle:
    08 Speedway Blue Access Cab
    Alpine iDA-X200 Deck, Rockford P3, Infinity 1600 A Amp, Black Badges, "KnightRider Mod", Back-up lights. Painted Engine Cover. TRD QuickShifter & Shift Knob. MAF Calibrator. Doug Thorley LT Headers. Custom Y-Pipe. Flowmaster 50 series. Satoshi Grill
  9. Nov 8, 2009 at 8:09 AM
    #9
    itsmyturn

    itsmyturn Well-Known Member

    Joined:
    Mar 24, 2008
    Member:
    #5502
    Messages:
    414
    Gender:
    Male
    Victorville, CA
    Vehicle:
    08 dbl cab TRD sport
    afe Pro-Dry S dropin, Readylift leveling kit, TRD skid plate, Alpine CDA-9887, 6K D2S HID
    metra harnesses come with 2 different illumination wires. orange on the small plug and orange/white on the large plug. mine came that way. the orange/white i believe is a positive illumination signal and i have people frying the rheostat or cluster lights because of using the wrong wire. i used the orange wire in my truck.

  10. Nov 8, 2009 at 8:12 AM
    #10
    Schully

    Schully Well-Known Member

    Joined:
    Oct 31, 2009
    Member:
    #25233
    Messages:
    281
    Gender:
    Male
    First Name:
    Aaron
    Seaside
    Vehicle:
    Black 09 2.7 AC 4x4
    Leather Arm Rests, Alpine Stereo, Pro Comp Wheels, Wet Okoles, Front mud flap delete, Debadged, Rear TSB
    You're gonna love that deck... i have the double din, and the way you can navigate through your ipod is legit. Best deck for the ipod yet!


  11. Nov 8, 2009 at 9:26 AM
    #11
    BAP_29

    BAP_29 [OP] Well-Known Member

    Joined:
    Mar 2, 2009
    Member:
    #14238
    Messages:
    677
    Gender:
    Male
    First Name:
    Ben
    North Carolina
    Vehicle:
    05 Prerunner DC TRD Sport
    Bilstein 5100s at 2.5" and Toytec 1.5" AAL Eagle Alloy 063 Wheels on 285/60/18 Cooper Zeon LTZ tires Alpine iDA-X305 Head Unit MB Quart DKD 116 Discus-Line 6.5" Front Speakers (Baffles by Marv) Alpine 6-Disk CD Changer Toyota All-Weather Floor Mats Kobalt Low-Profile Toolbox 13" Wicked Flow Muffler w/ Chrome Tip
    ok i fixed the picture. am i gonna need to crimp or not?? From what I think I already know, i think Im gonna have to

  12. Nov 8, 2009 at 9:39 AM
    #12
    car15

    car15 Well-Known Member

    Joined:
    Jul 31, 2009
    Member:
    #20435
    Messages:
    80
    Gender:
    Male
    AZ
    Vehicle:
    09 X-Runner

    That is strange! I have two sets of wire harness, one fom Metra and the other unknown mfg. The Metra has an orange/white stripe wire on the large plug and an orange/black stripe wire on the small one. The unk mfg harness is the same. I am now confused and I do not want to fry anything. Anyone else want to chime in?

  13. Nov 8, 2009 at 9:41 AM
    #13
    car15

    car15 Well-Known Member

    Joined:
    Jul 31, 2009
    Member:
    #20435
    Messages:
    80
    Gender:
    Male
    AZ
    Vehicle:
    09 X-Runner
    Notice that on the small plug shown below there is no orange wire.


  14. Nov 8, 2009 at 9:45 AM
    #14
    Cars0n`

    Cars0n` Well-Known Member

    Joined:
    Sep 8, 2008
    Member:
    #9091
    Messages:
    1,436
    Gender:
    Male
    First Name:
    Carson
    Edmonton AB
    Vehicle:
    07 2wd access cab base.
    Kenwood DDX-512 Deck, Boston Acoustics G5 Sub in Ported Bassworx Box, Kenwood eXcelon KAC-X10D Amp, Sirius Satellite Radio, Magellan GPS, DDM 55w bi-xenon headlights, 2 HID Hella 500ff's mounted behind grill, 4 pc ebay Billet grill, Fog Lights (my truck didnt have them stock), Pioneer Speakers 6x9's(front) 6.5's(rear) AFE Cold Air Intake, Hose Clamp Mod, Tailgate Strengthen Mod, Removed Gay Mud Flaps, De-Badged, BHLM, 245/45/20 on velocity wheels. VW865a, Extra D Rings In Box, OEM Cruise Added Optima Red Top Battery
    you could use some kind of connector like a butt connector

    http://images.google.ca/images?q=bu...ent=firefox-a&um=1&ie=UTF-8&sa=N&hl=en&tab=wi

    or for a better more permanent connection i would use solder to make the connections then wrap them in tape or heat shrink tube.

    either connection method is cheap.
    if you have to buy a soldering gun/iron its not as cheap but i bought mine for this purpose and it comes in handy for a lot of stuff especially cuz i like modding my taco.

  15. Nov 8, 2009 at 1:23 PM
    #15
    BAP_29

    BAP_29 [OP] Well-Known Member

    Joined:
    Mar 2, 2009
    Member:
    #14238
    Messages:
    677
    Gender:
    Male
    First Name:
    Ben
    North Carolina
    Vehicle:
    05 Prerunner DC TRD Sport
    Bilstein 5100s at 2.5" and Toytec 1.5" AAL Eagle Alloy 063 Wheels on 285/60/18 Cooper Zeon LTZ tires Alpine iDA-X305 Head Unit MB Quart DKD 116 Discus-Line 6.5" Front Speakers (Baffles by Marv) Alpine 6-Disk CD Changer Toyota All-Weather Floor Mats Kobalt Low-Profile Toolbox 13" Wicked Flow Muffler w/ Chrome Tip
    ok we figured it out and its finally in! The crimping was very easy as well after we went to radio shack and bought a crimping tool and some caps. It looks incredible and i cant wait to see it at night where it will really shine! Ill post a pic soon hopefully

  16. Nov 8, 2009 at 9:15 PM
    #16
    car15

    car15 Well-Known Member

    Joined:
    Jul 31, 2009
    Member:
    #20435
    Messages:
    80
    Gender:
    Male
    AZ
    Vehicle:
    09 X-Runner

    So did you use the orange/white stripe wire on the large plug?

  17. Nov 9, 2009 at 4:43 PM
    #17
    BAP_29

    BAP_29 [OP] Well-Known Member

    Joined:
    Mar 2, 2009
    Member:
    #14238
    Messages:
    677
    Gender:
    Male
    First Name:
    Ben
    North Carolina
    Vehicle:
    05 Prerunner DC TRD Sport
    Bilstein 5100s at 2.5" and Toytec 1.5" AAL Eagle Alloy 063 Wheels on 285/60/18 Cooper Zeon LTZ tires Alpine iDA-X305 Head Unit MB Quart DKD 116 Discus-Line 6.5" Front Speakers (Baffles by Marv) Alpine 6-Disk CD Changer Toyota All-Weather Floor Mats Kobalt Low-Profile Toolbox 13" Wicked Flow Muffler w/ Chrome Tip
    yeah i think so. there was only one i think, so i had to use it. and the dimmer works perfectly. ill have to pull out the manuals again to be 100% sure on that though

  18. Nov 12, 2009 at 10:22 PM
    #18
    car15

    car15 Well-Known Member

    Joined:
    Jul 31, 2009
    Member:
    #20435
    Messages:
    80
    Gender:
    Male
    AZ
    Vehicle:
    09 X-Runner
    2009 X-Runner

    I have a question regarding the illumination wiring on this nav unit. The installation instruction calls out for an orange/white wire to be hooked up to the head light switch (illumination (+)). On the HU unit itself there is a sticker that says orange/white to illumination (dimmer).

    On the Metra wiring harness with the large connector there is an orange/white wire labeled (dimmer) and on the small connector there is an orange/black wire but on the Metra instructions it is labeled orange (illumination).

    Can anyone help with this installation? This is my last wire to be hooked up and it is holding up my installation

    Thanks.....
