Just installed new mirror

Discussion in '2nd Gen. Tacomas (2005-2015)' started by ElderP, Aug 14, 2015.

  1. Nov 18, 2015 at 10:01 AM
    #61
    MQQSE

    MQQSE Bannable Galloot

    Joined:
    May 6, 2010
    Member:
    #36646
    Messages:
    50,748
    Gender:
    Male
    First Name:
    Rob III
    Palmer, Alaska
    Vehicle:
    "Stitch" Still Stock Concept Truck
    Shtuff
    @ClammyPeach I tapped the line coming off an add-a-fuse that powers my bed aux light switch (light is powered thru a relay). That add-a-fuse is plugged into the 7.5 amp Gauge fuse on the in cabin panel. On my truck, that's the top row, second from the left. Hope you can interpret this, and my post above. Please let me know if you have more questions.

    ClammyPeach likes this.
  2. Nov 18, 2015 at 11:21 AM
    #62
    Ares0311

    Ares0311 Member

    Joined:
    Nov 13, 2015
    Member:
    #169539
    Messages:
    12
    Gender:
    Male
    First Name:
    Adam
    Vehicle:
    2014 DCSB Tacoma Pyrite
    Okay, so I don't have an AAF line. But I think I can tap into the ignition wire directly. This is what the instructions say to do. Can anyone confirm the ignition wiring colors...

    Thought I saw somewhere that it was the blue / yellow stripe but I could be wrong.

    I found that wire, just nervous to tap it and then not be able to start my truck or something else equally bad! This is my first install, previous experience is changing light bulbs and tires lol!

  3. Nov 18, 2015 at 11:35 AM
    #63
    Ares0311

    Ares0311 Member

    Joined:
    Nov 13, 2015
    Member:
    #169539
    Messages:
    12
    Gender:
    Male
    First Name:
    Adam
    Vehicle:
    2014 DCSB Tacoma Pyrite
    @ClammyPeach

    I will try and get a pic of where I mounted mine. It's almost center of the radiator on a support. Ours should be the same front end. When routing your wire through the firewall there is a spot designed for user added wire runs, makes life super easy. It's under the main wire harness, you will need to cut the end of the rubber nipple and the the wires will pass through easily.

    ClammyPeach likes this.
  4. Nov 18, 2015 at 12:21 PM
    #64
    ClammyPeach

    ClammyPeach Well-Known Member

    Joined:
    Sep 21, 2015
    Member:
    #164842
    Messages:
    107
    First Name:
    Gary
    Vehicle:
    2014 Blue Tacoma Sport DCLB
    thanks @MQQSE and @Ares0311. Mine should arrive Friday and I'm gonna bet i'll be on here as much as I'll be working on the truck. good to know about the user wired firewall and the pictures are making this install a lot clearer.

  5. Nov 18, 2015 at 4:21 PM
    #65
    Ares0311

    Ares0311 Member

    Joined:
    Nov 13, 2015
    Member:
    #169539
    Messages:
    12
    Gender:
    Male
    First Name:
    Adam
    Vehicle:
    2014 DCSB Tacoma Pyrite
    Okay, all installed and working great. @MQQSE Thanks for your advice and time.

    MQQSE likes this.
  6. Nov 18, 2015 at 4:22 PM
    #66
    MQQSE

    MQQSE Bannable Galloot

    Joined:
    May 6, 2010
    Member:
    #36646
    Messages:
    50,748
    Gender:
    Male
    First Name:
    Rob III
    Palmer, Alaska
    Vehicle:
    "Stitch" Still Stock Concept Truck
    Shtuff
    You bet brother ... glad you figured it all out. :thumbsup:

  7. Nov 19, 2015 at 3:18 AM
    #67
    ElderP

    ElderP [OP] Well-Known Member

    Joined:
    Apr 9, 2013
    Member:
    #101701
    Messages:
    322
    Gender:
    Male
    First Name:
    Steve
    West Virginia
    Vehicle:
    15 Access 4x4 V6 SR5
    Installed Cooper At/3's (265/70R16) and ProComp 7089 Rims. Tinted front windows. Did the Fog Light Anytime mod. Did the tailgate mod. Added running boards. Adding sound Deadening from RAAMaudio. Replacing stock speakers with Polk Audio DB6501's.
    And another happy modder. :)

    ClammyPeach and MQQSE like this.
  8. Nov 19, 2015 at 4:50 AM
    #68
    deanooo311

    deanooo311 Well-Known Member

    Joined:
    Nov 14, 2014
    Member:
    #142322
    Messages:
    309
    Gender:
    Male
    First Name:
    ryan
    Midland, MI
    Vehicle:
    15 taco base 4x4 dclb
    OME 885, dakar leaf pack. 265/75r16 duratracs "c". Back up camera. Scan gauge. Husky floor liners. Cal trend canvas seat covers. Topper and tacoma bed mat. Tailgate skin and cap. Differential breather mod. Intermittent wiper switch. Redline hood struts.
    Hmm subd

  9. Nov 19, 2015 at 5:42 AM
    #69
    ClammyPeach

    ClammyPeach Well-Known Member

    Joined:
    Sep 21, 2015
    Member:
    #164842
    Messages:
    107
    First Name:
    Gary
    Vehicle:
    2014 Blue Tacoma Sport DCLB
    Do you have a picture of the access through the firewall? I was looking last night for the port for aftermarket wires but wasn't sure what I was looking at.

  10. Nov 19, 2015 at 6:22 AM
    #70
    Ares0311

    Ares0311 Member

    Joined:
    Nov 13, 2015
    Member:
    #169539
    Messages:
    12
    Gender:
    Male
    First Name:
    Adam
    Vehicle:
    2014 DCSB Tacoma Pyrite
    @ClammyPeach

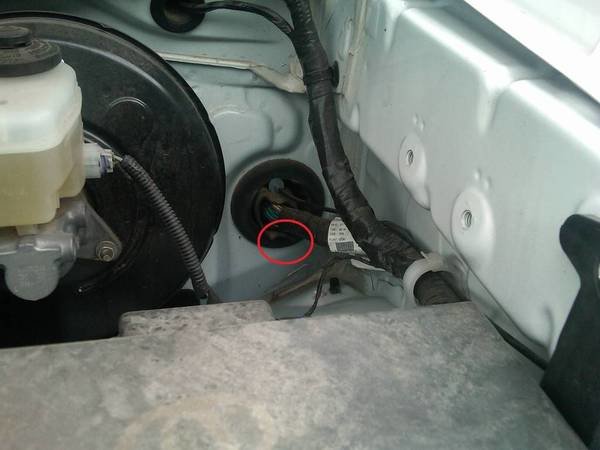

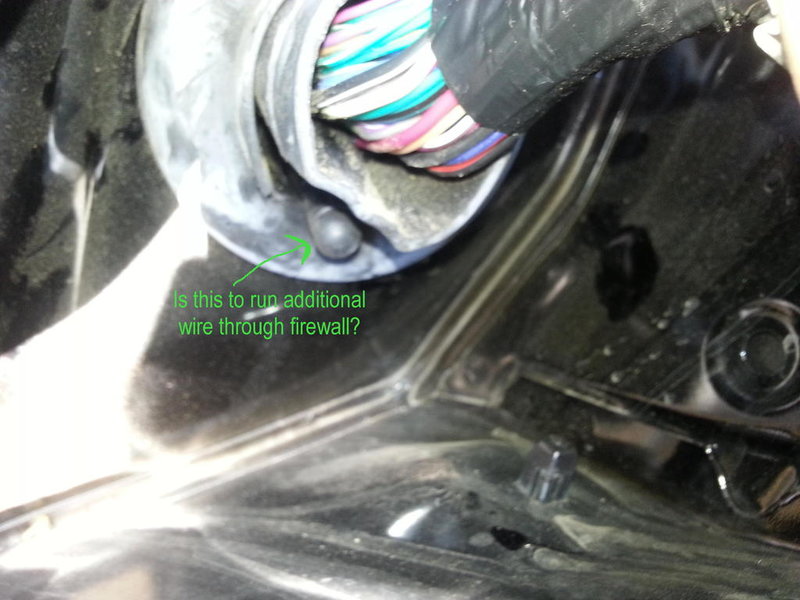

    Neither of these images are mine- just found them on google images - but this is exactly what you are looking for. (dont mind the green text on the second picture.) It is a rubber nipple, about 3 inches long at the 7 o'clock position under the main harness. You will need to cut the end off of it. I just used scissors and snipped the end off.

    On the inside of the cab, look at the firewall port (just left of the E-brake) and fold down the carpet flap at the 4 o'clock position and you will see a hole about 3/8" big.

    firewall.jpg 20150114_135724.jpg

    ClammyPeach and MQQSE like this.
  11. Nov 19, 2015 at 6:25 AM
    #71
    Ares0311

    Ares0311 Member

    Joined:
    Nov 13, 2015
    Member:
    #169539
    Messages:
    12
    Gender:
    Male
    First Name:
    Adam
    Vehicle:
    2014 DCSB Tacoma Pyrite
    Also if you have an Add-A-Fuse then you can tap off that (like MQQSE mentioned). I did not have an AAF so I tapped the ignition line directly. Have driven 20 miles so far and everything works perfect.

    ClammyPeach and MQQSE like this.
  12. Nov 19, 2015 at 6:52 AM
    #72
    ClammyPeach

    ClammyPeach Well-Known Member

    Joined:
    Sep 21, 2015
    Member:
    #164842
    Messages:
    107
    First Name:
    Gary
    Vehicle:
    2014 Blue Tacoma Sport DCLB
    I ordered an aaf with the mirror. I think I'll tap that into the ac like mqqse was showing.

  13. Nov 19, 2015 at 1:20 PM
    #73
    ElderP

    ElderP [OP] Well-Known Member

    Joined:
    Apr 9, 2013
    Member:
    #101701
    Messages:
    322
    Gender:
    Male
    First Name:
    Steve
    West Virginia
    Vehicle:
    15 Access 4x4 V6 SR5
    Installed Cooper At/3's (265/70R16) and ProComp 7089 Rims. Tinted front windows. Did the Fog Light Anytime mod. Did the tailgate mod. Added running boards. Adding sound Deadening from RAAMaudio. Replacing stock speakers with Polk Audio DB6501's.
    Add-a-fuse off the AC is often used.

    ClammyPeach and MQQSE like this.
  14. Nov 19, 2015 at 4:20 PM
    #74
    MQQSE

    MQQSE Bannable Galloot

    Joined:
    May 6, 2010
    Member:
    #36646
    Messages:
    50,748
    Gender:
    Male
    First Name:
    Rob III
    Palmer, Alaska
    Vehicle:
    "Stitch" Still Stock Concept Truck
    Shtuff
    Yep, it was your post I was quoting. ;)

  15. Nov 22, 2015 at 2:01 PM
    #75
    ClammyPeach

    ClammyPeach Well-Known Member

    Joined:
    Sep 21, 2015
    Member:
    #164842
    Messages:
    107
    First Name:
    Gary
    Vehicle:
    2014 Blue Tacoma Sport DCLB
    Had no clue there are mini fuses! Thought it was all one size lol. Trying to figure out how to remove the overhead console right now for routing.

    Last edited: Nov 22, 2015
  16. Nov 22, 2015 at 3:03 PM
    #76
    MQQSE

    MQQSE Bannable Galloot

    Joined:
    May 6, 2010
    Member:
    #36646
    Messages:
    50,748
    Gender:
    Male
    First Name:
    Rob III
    Palmer, Alaska
    Vehicle:
    "Stitch" Still Stock Concept Truck
    Shtuff
    Match the amp of the inline one that came with the mirror is what I would do. The primary fuse should be the same one that comes out of that slot if I recall how those work correctly.

  17. Nov 22, 2015 at 3:26 PM
    #77
    Ares0311

    Ares0311 Member

    Joined:
    Nov 13, 2015
    Member:
    #169539
    Messages:
    12
    Gender:
    Male
    First Name:
    Adam
    Vehicle:
    2014 DCSB Tacoma Pyrite
    @ClammyPeach

    Yeah, I found out they were mini low profile fuses, no stores in my area carried the mini low pro AAF and I was too impatient to wait for one to ship to me hahaha. Did you get the CIPA mirror? You shouldn't have to remove the overhead console. I believe just the Gentex version accesses the plug in the overhead console...

    ClammyPeach likes this.
  18. Nov 22, 2015 at 3:54 PM
    #78
    ClammyPeach

    ClammyPeach Well-Known Member

    Joined:
    Sep 21, 2015
    Member:
    #164842
    Messages:
    107
    First Name:
    Gary
    Vehicle:
    2014 Blue Tacoma Sport DCLB
    Job complete, thanks for all the info. Install is easy enough. I used a hangar to get through the firewall, slipped through easy enough and taped the leads to the hangar and pulled.

    Ares0311 and MQQSE like this.
  19. Nov 22, 2015 at 4:20 PM
    #79
    ClammyPeach

    ClammyPeach Well-Known Member

    Joined:
    Sep 21, 2015
    Member:
    #164842
    Messages:
    107
    First Name:
    Gary
    Vehicle:
    2014 Blue Tacoma Sport DCLB
    Weird, the nav and the clock stopped working..

    Edit: fixed by adding another 10amp fuse to the line. So I have a 7.5 and a 10 in the aaf.

    Ares0311 and MQQSE like this.
  20. Nov 22, 2015 at 5:25 PM
    #80
    TheWringer

    TheWringer Active Member

    Joined:
    Feb 24, 2015
    Member:
    #149518
    Messages:
    33
    Gender:
    Male
    West Michigan
    Vehicle:
    '15 TRD Off-Road Access
    Bilstein 5100s, OME 885, LR UCAs, BFG KO2, AO Rims, Auto-dimming infinity edge mirror w/ compass and HomeLink, 30" Bi-Color LED light bar in lower valence, Raptor grille mod, Blacked out emblems, Fog light anytime mod, Rear Diff breather relocated to bed cubby, Front windows tinted 20%, Blacked out grille, Hi-Lift bed mount, LED interior lights, LED reverse lights, LED license plate lights, TRS LED fog lights, Wet Okole TRD Off Road seat covers, NFAB Bed-mount light rack, 4x 6" KC ProSport HID, 2x 6" rear LED pods, CrimeStopper Remote Start.
    This was also one of the first mods I did to my truck. I couldn't stand the flipper/prismatic style mirror that my truck came with. I decided to go with a Gentex mirror as I've had bad luck in the past with Donnelly (my old Lexus had one and it got spots in it as well as shook constantly while driving). Also, mine has a little LED on the bottom of it that turns on as a PRNDL light at night for a slight illumination of the center console (my Lexus also had this feature and I could not see anything in the Tacoma cab at night without it). It's just enough light to be able to see things in the cab at night without having to turn on my dome or reading lights. Love it.

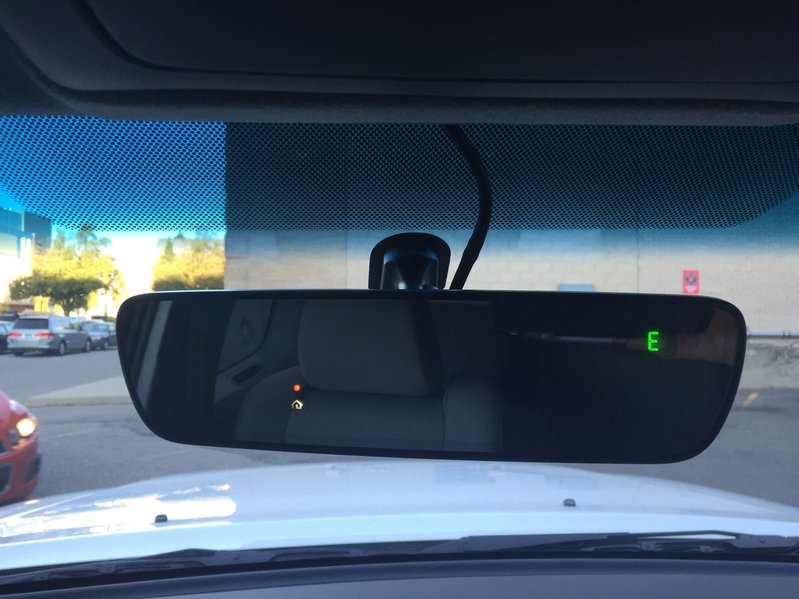

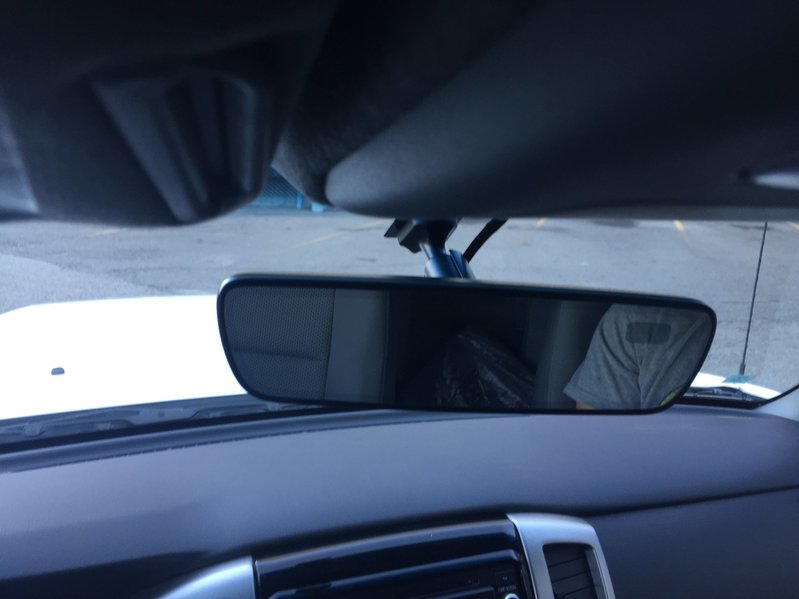

    For install, I cut the connector thats located in the factory headliner and wired the +,-,and ign. accordingly to the mirror. Here are the results:


    ClammyPeach likes this.
