KB Voodoo AluMax Rack Install with Diamondback Cover - Photo Heavy

Discussion in '3rd Gen. Tacomas (2016+)' started by Papadave418, Oct 1, 2018.

  1. Oct 1, 2018 at 9:49 AM
    #1
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,478
    Gender:
    Male
    First Name:
    Dave
    Livermore CA
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Ray 10’s, Kings, HD Deavers, CBI skids

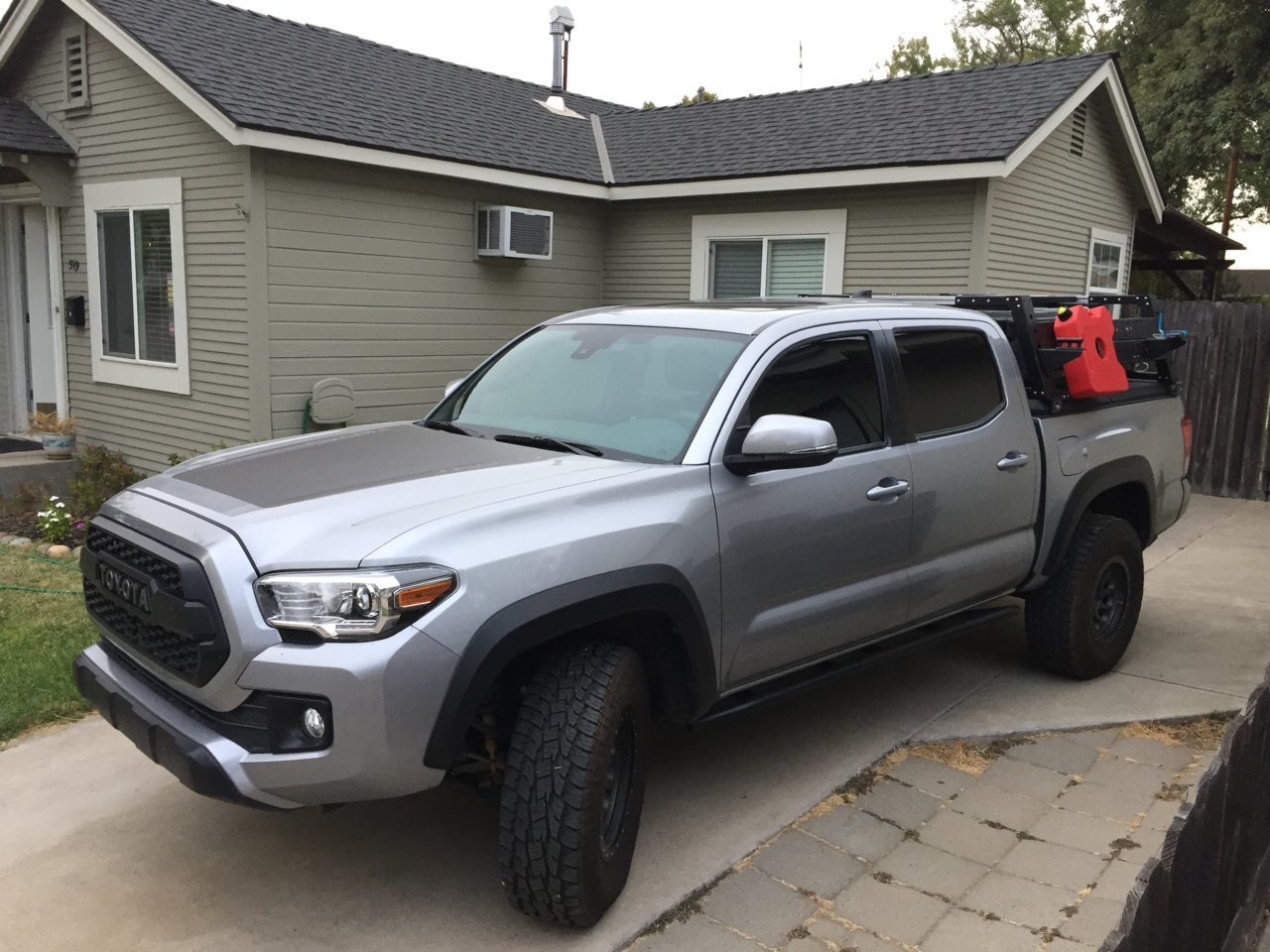

    AluMax Tall Long Bed Rack Install On A Short Bed Diamondback Cover

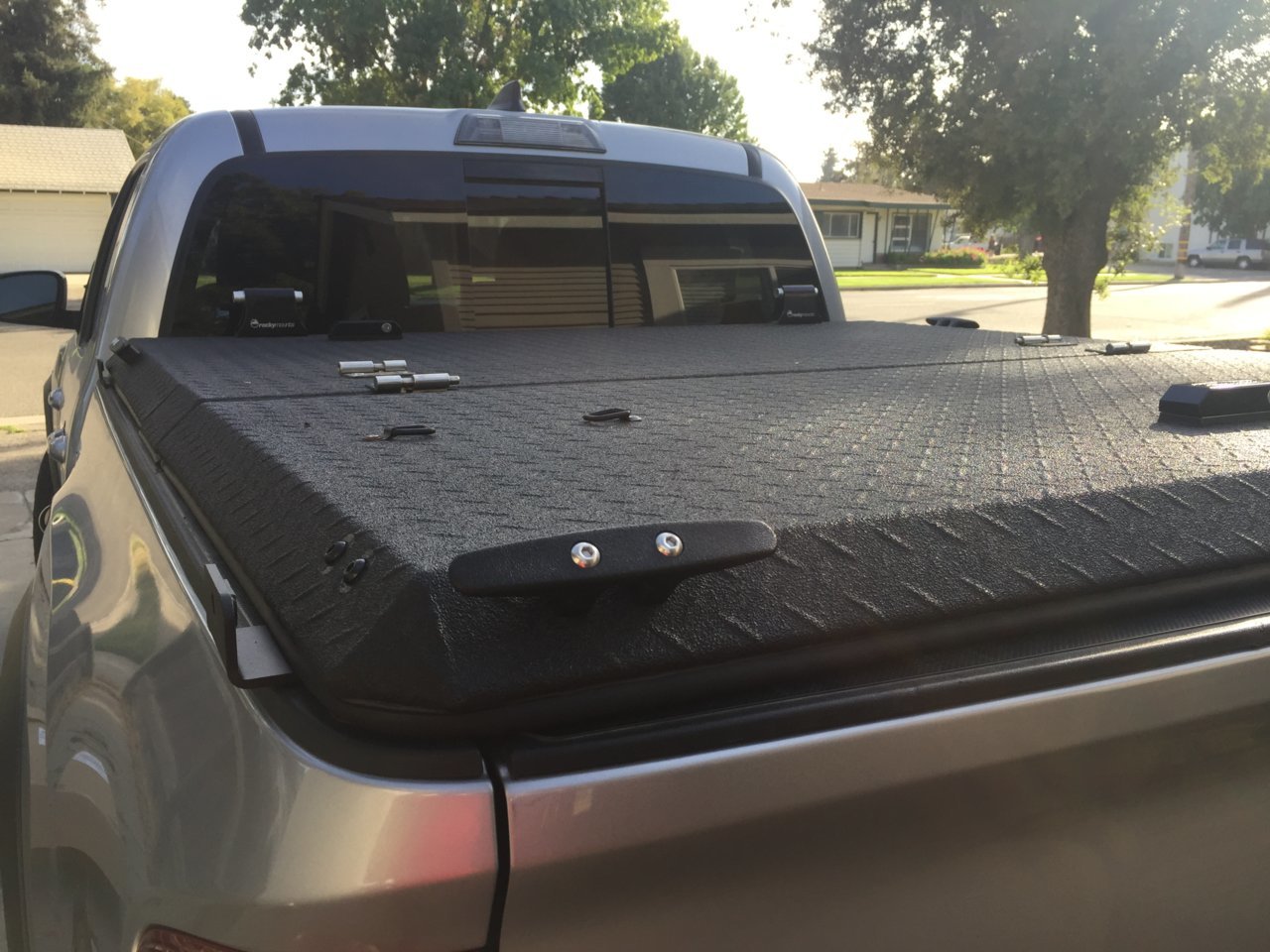

    When I bought my 2018 in Feb I ordered a Diamondback SE cover as I was signing the papers and I love this thing. Keeps my work equipment clean and dry and this light version can still hold about 500lbs. I started with KB Voodoo’s high bars (which are for sale) and recently just purchased @kbvoodoo AluMax tall long bed rack for my DCSB truck.

    I wanted a system that worked with my cover, gave me a ton of strength and mounting options, plus my roof top tent. As this truck is my DD I needed it to come off and on easily and with the tonneau brackets it’s just 4 bolts. Plus I also purchased the cargo tray which is awesome! Here’s how it looks now from the front

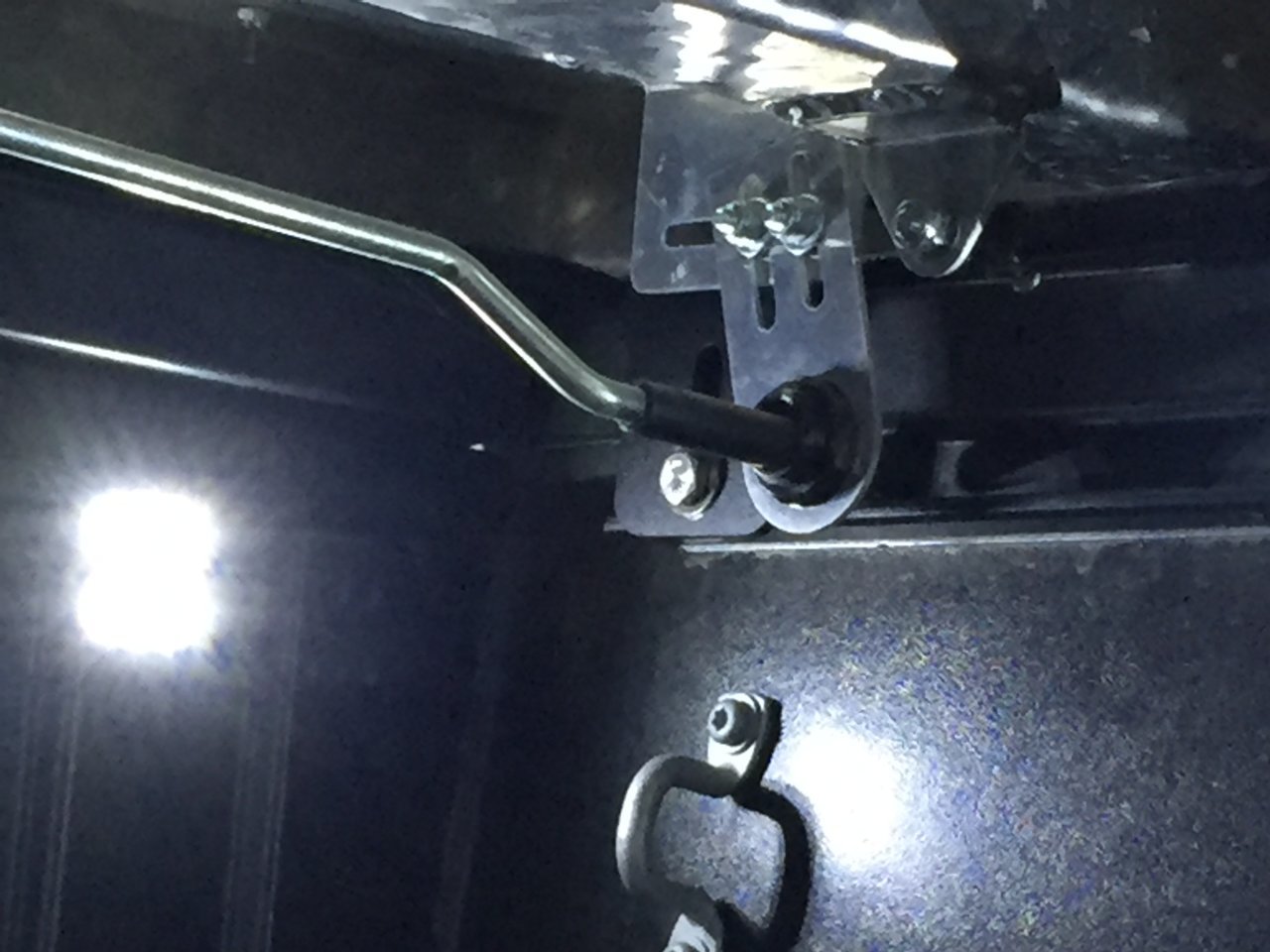

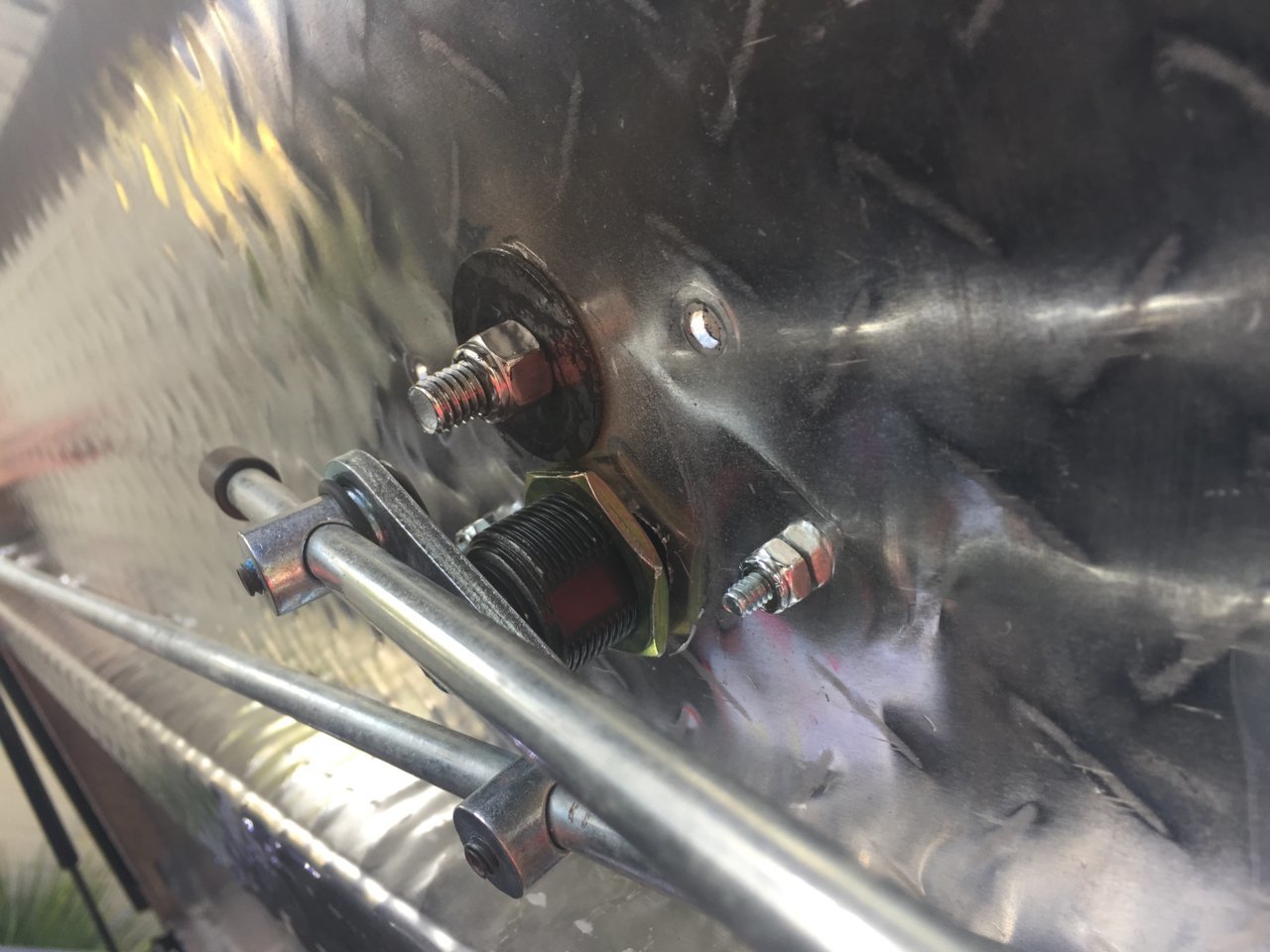

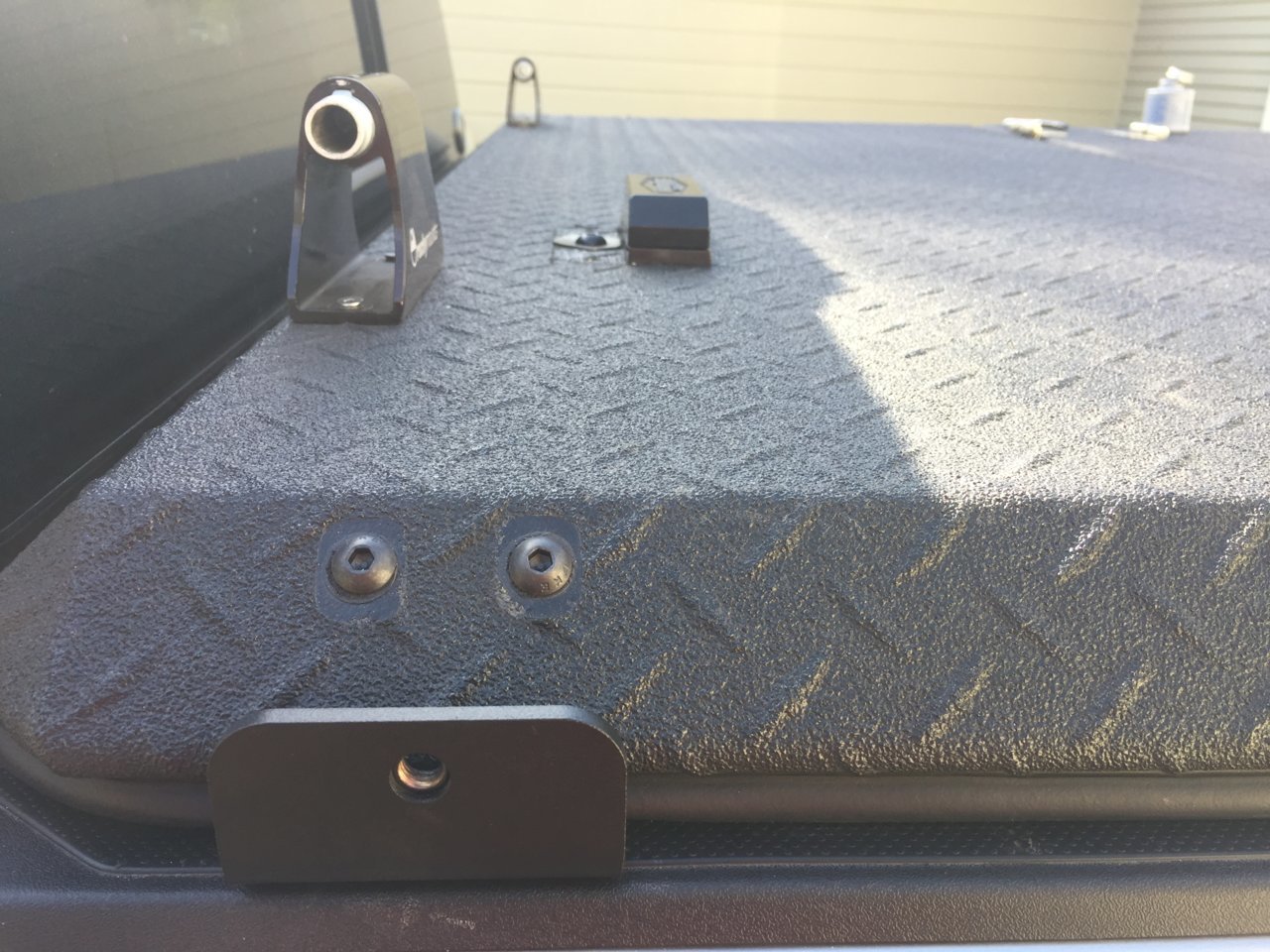

    In order to do all this I had to relocate the front lock 1.5 inches backwards to make room for the cargo tray crossbar. I sealed with two 1.5 inch washers. I moved the tie downs as well.

    Locking arms are easy to adjust

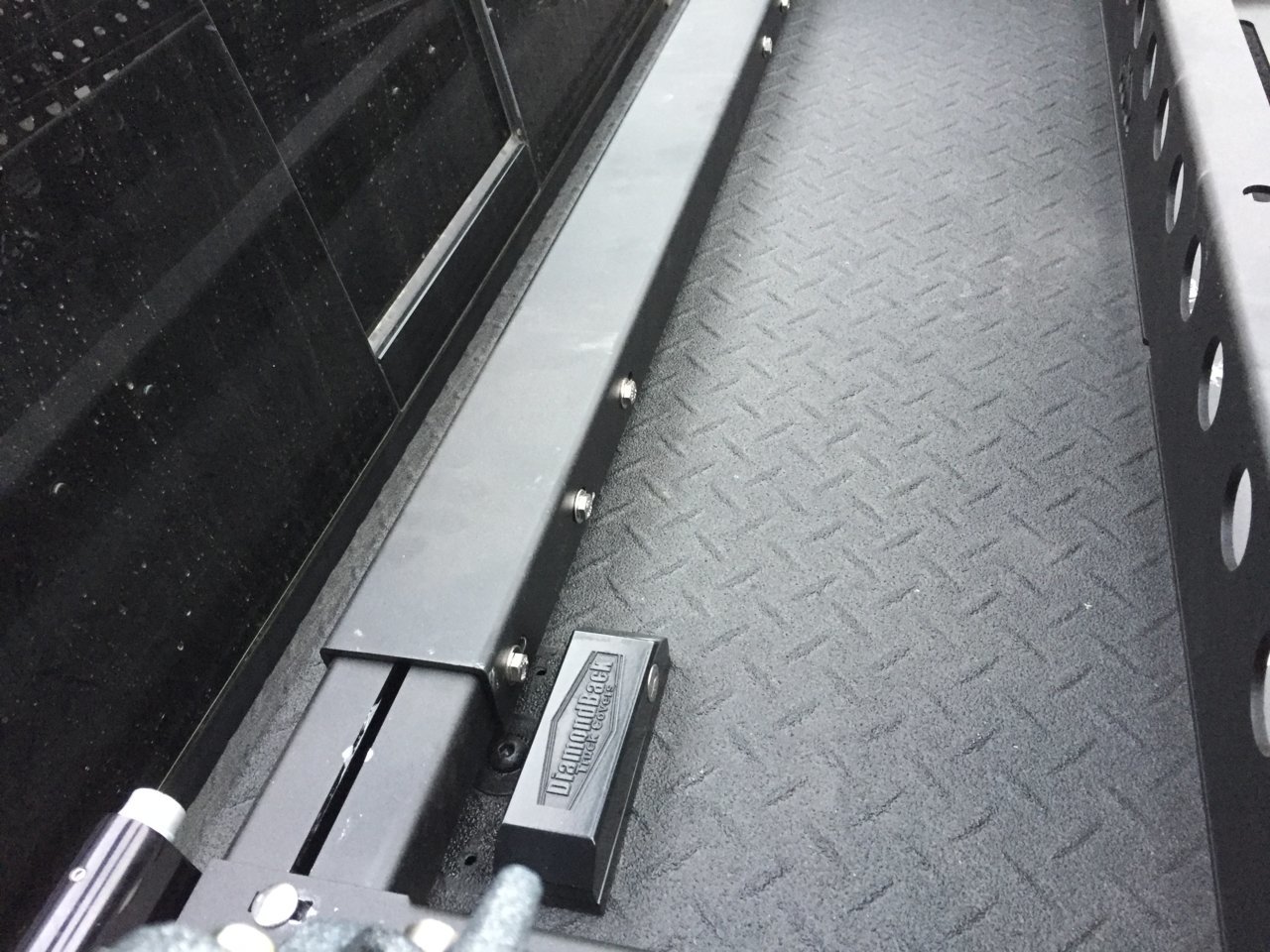

    The DD profile is minimal leaving the tonneau brackets in place. I also have fork mounts and D rings on my cover for my mountian bikes
    The rack is light! 55 pounds and the cargo tray is 49 pounds

    I looked at all these hoist and pulley options and realized the easiest solution was 4 binding style tie downs. $30 for the straps and eye bolts. They each can hold 300lbs and the rack is 104lbs and once I put my tent on then it will hoist the rack and tent together. It’s easy to lower down and 4 bolts later I’m ready to roll.

    I opted for the KB Voodoo bike mounts which are solid!

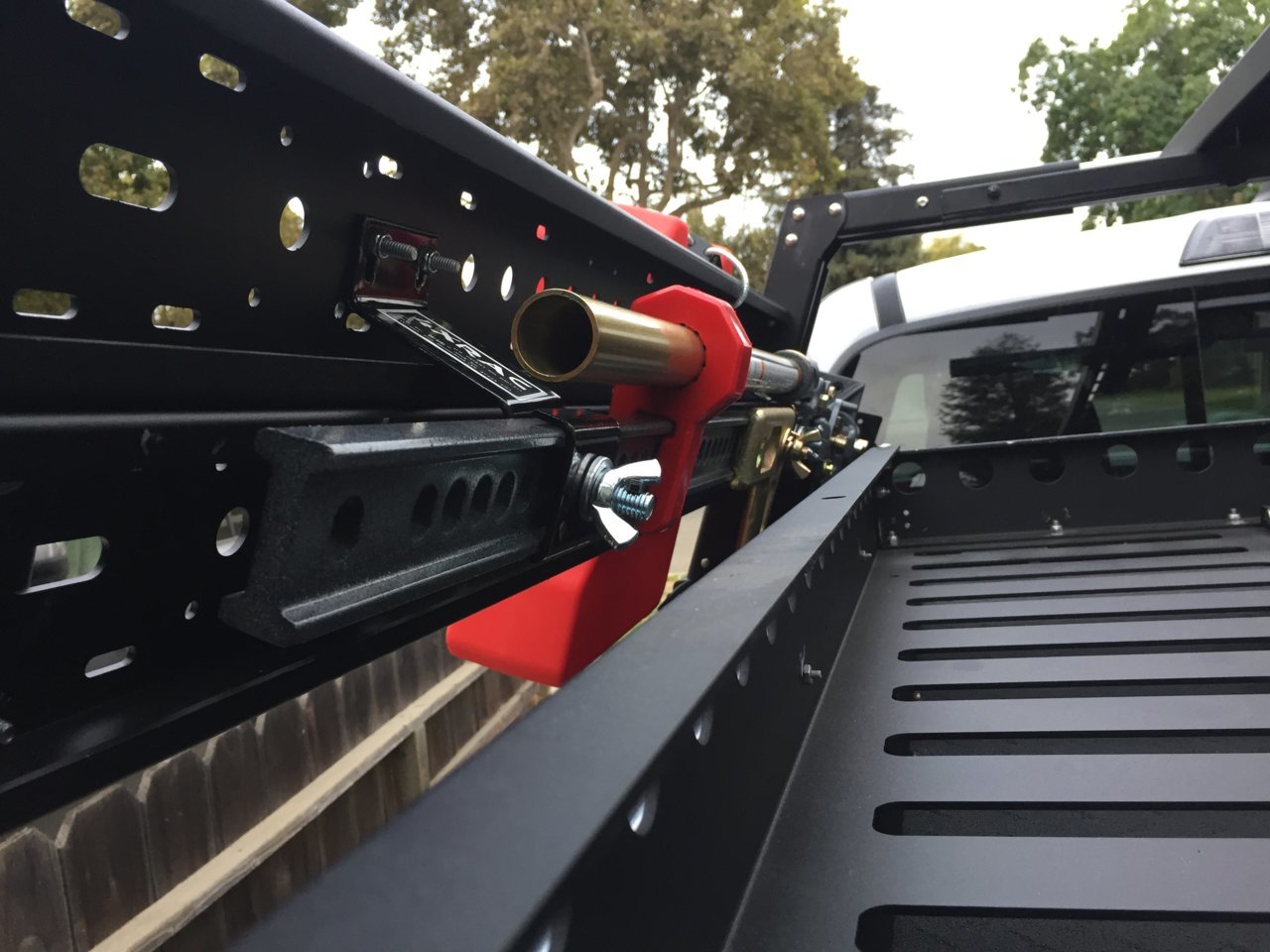

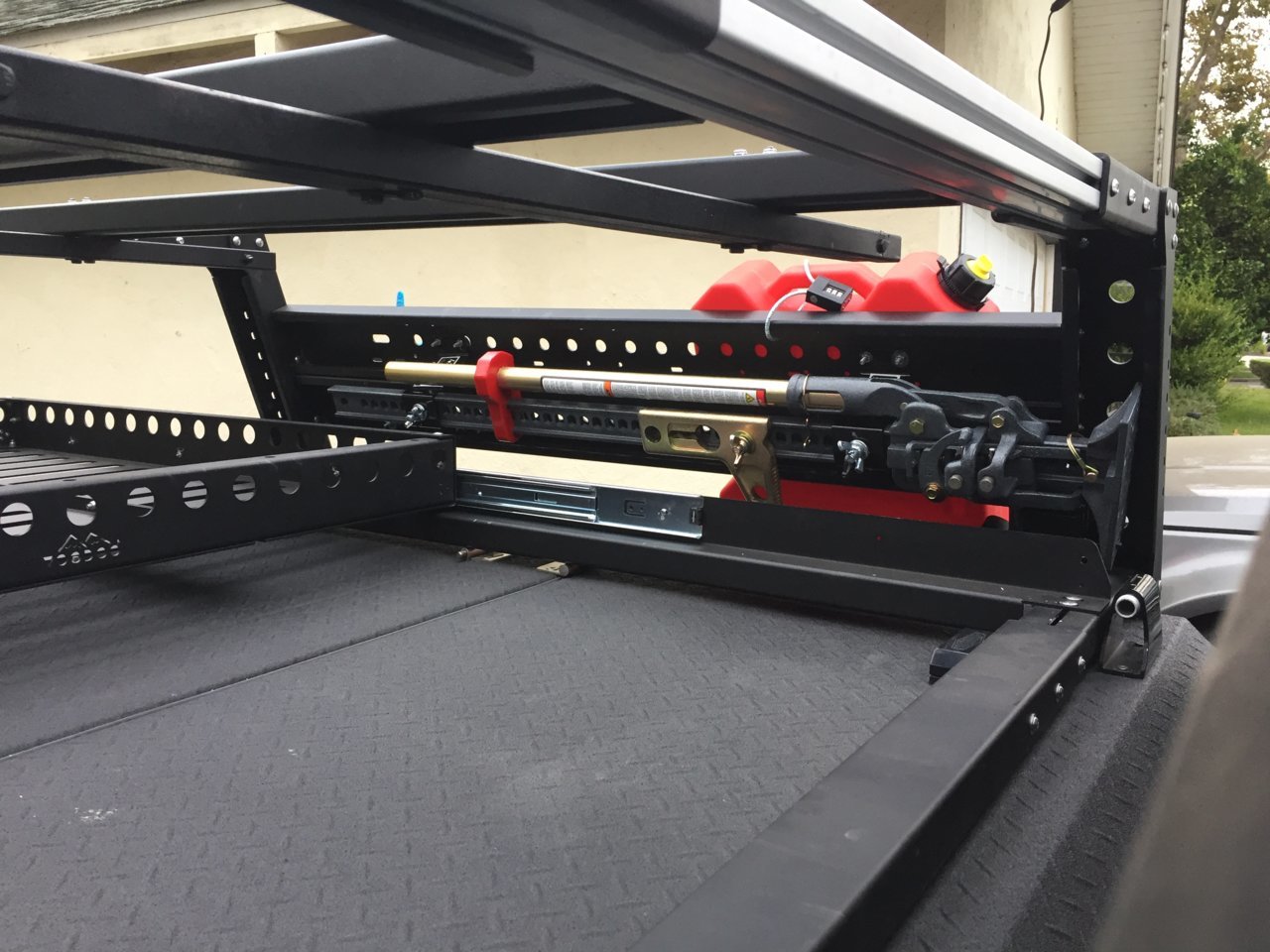

    I regret not getting KB Voodoo’s Hi-Lift mount, I struggled with this one but love having it on the inside and yet accessible. Nice to have though I hope not to use it.
    5E6DB4B3-9042-47C7-B05D-A9626B5AE2CD.jpg 8DD846EB-8FAF-4078-A593-A2F0DA883276.jpg

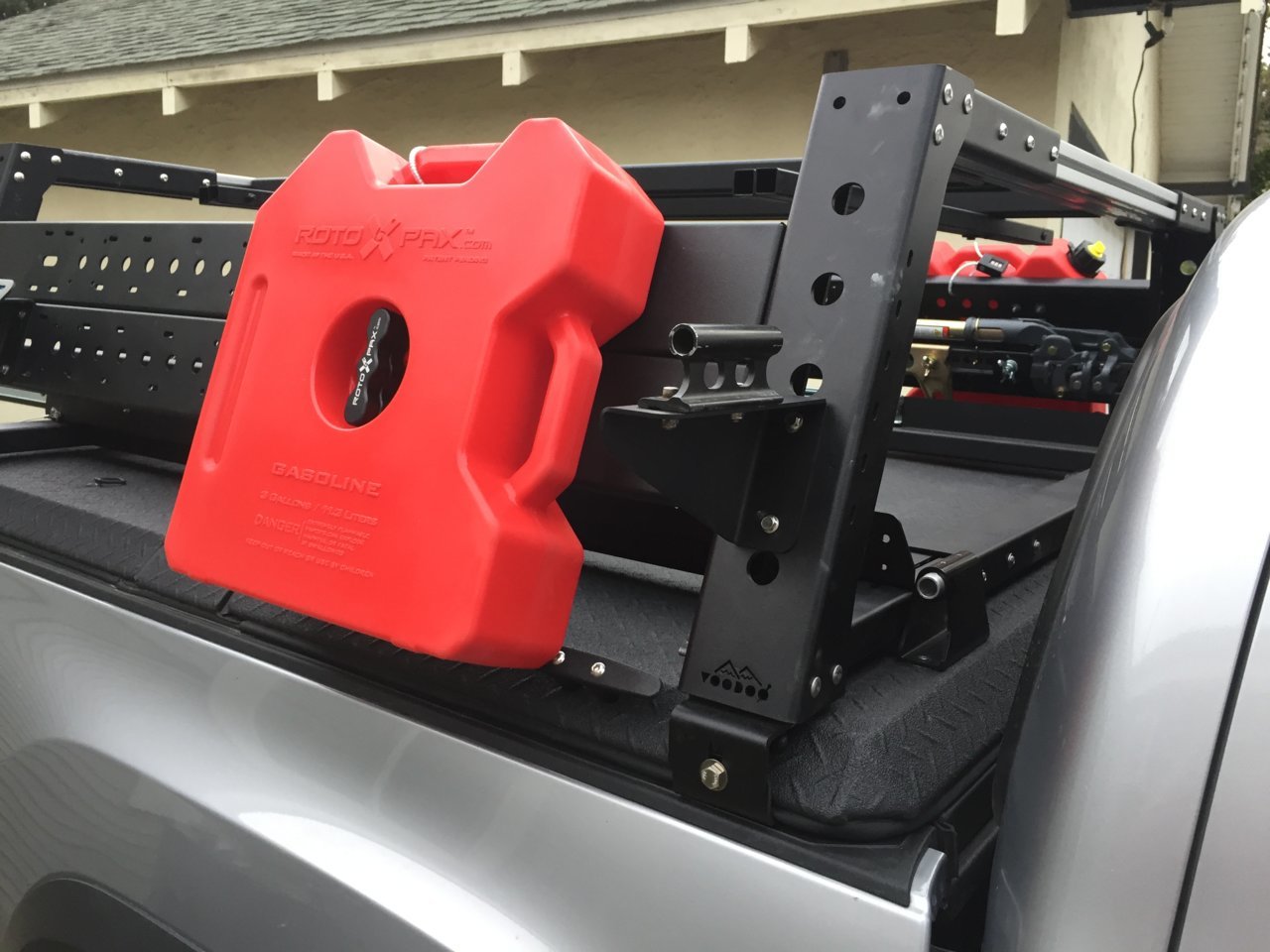

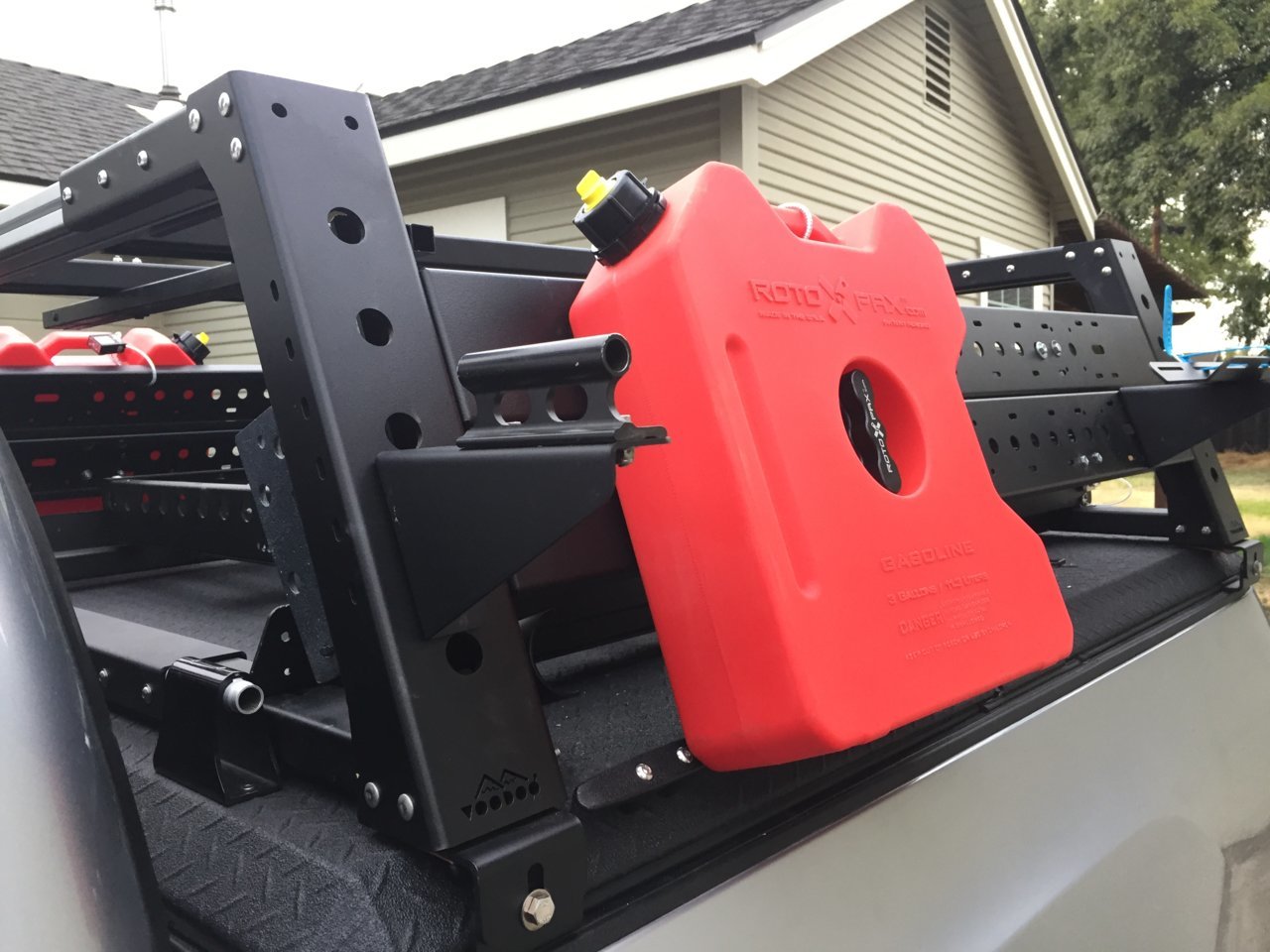

    I also added 2 extra side boards to double them up for looks and mounting options. Each side has a 3 gallon Rotopax and I did not want the Rotopax lock for a couple reasons. I don’t need another key in my life, they are almost twice as much as a standard mount, and they can rust up. So I got a 3 pack of combo gun locks. Easy and the perfect length to keep my gear safe. Obviously no lock is 100% safe.

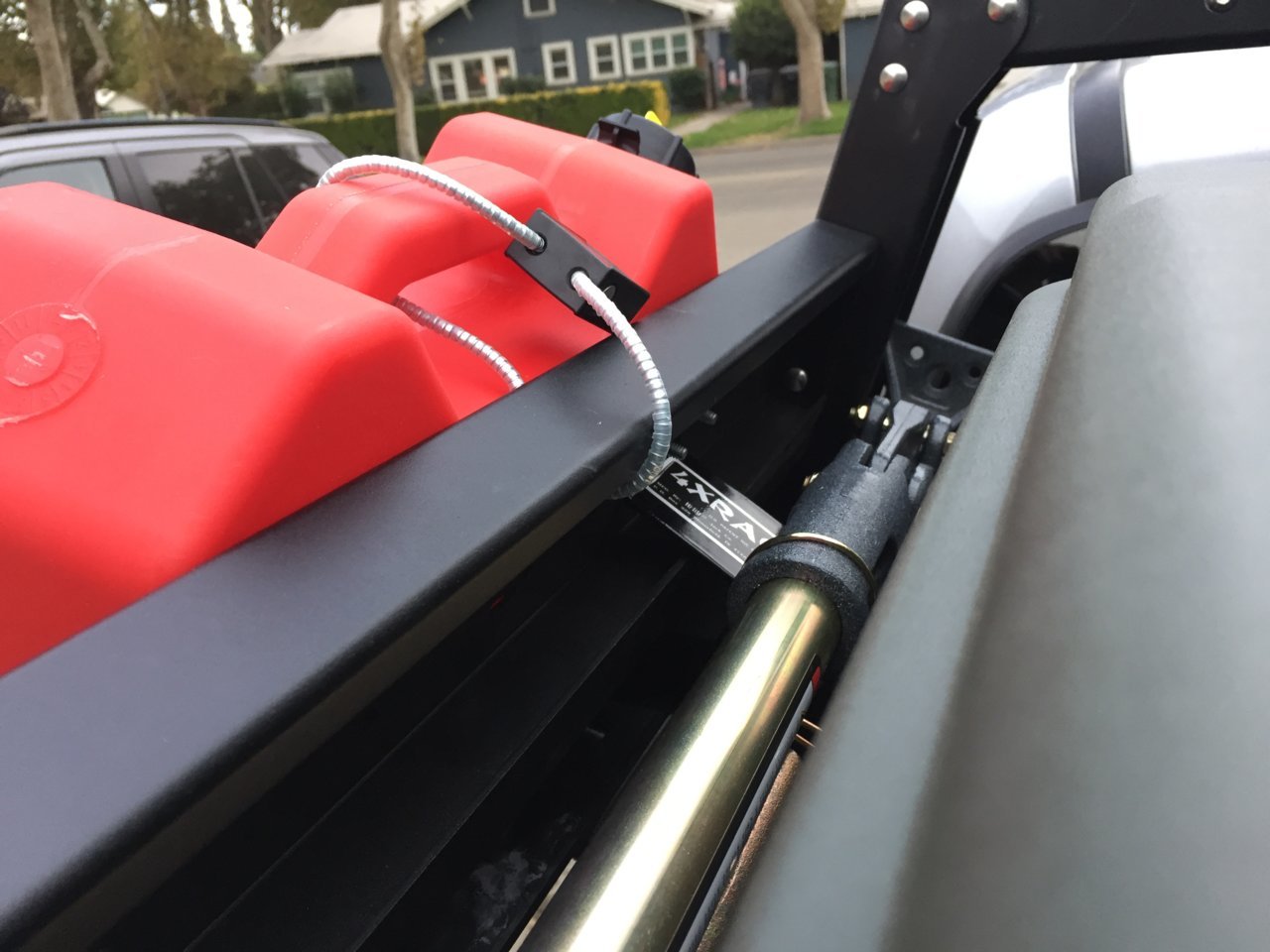

    FSDC 14" California-approved Combination Cable Gun Lock 3-Pack https://www.amazon.com/dp/B071412HWC/ref=cm_sw_r_cp_tai_WBKSBb7G9ZNTP
    723C1A1F-B5B9-419D-8D48-813A399C9BB2.jpg 27B010BA-1952-407A-AFEB-3CC8CAF27F59.jpg

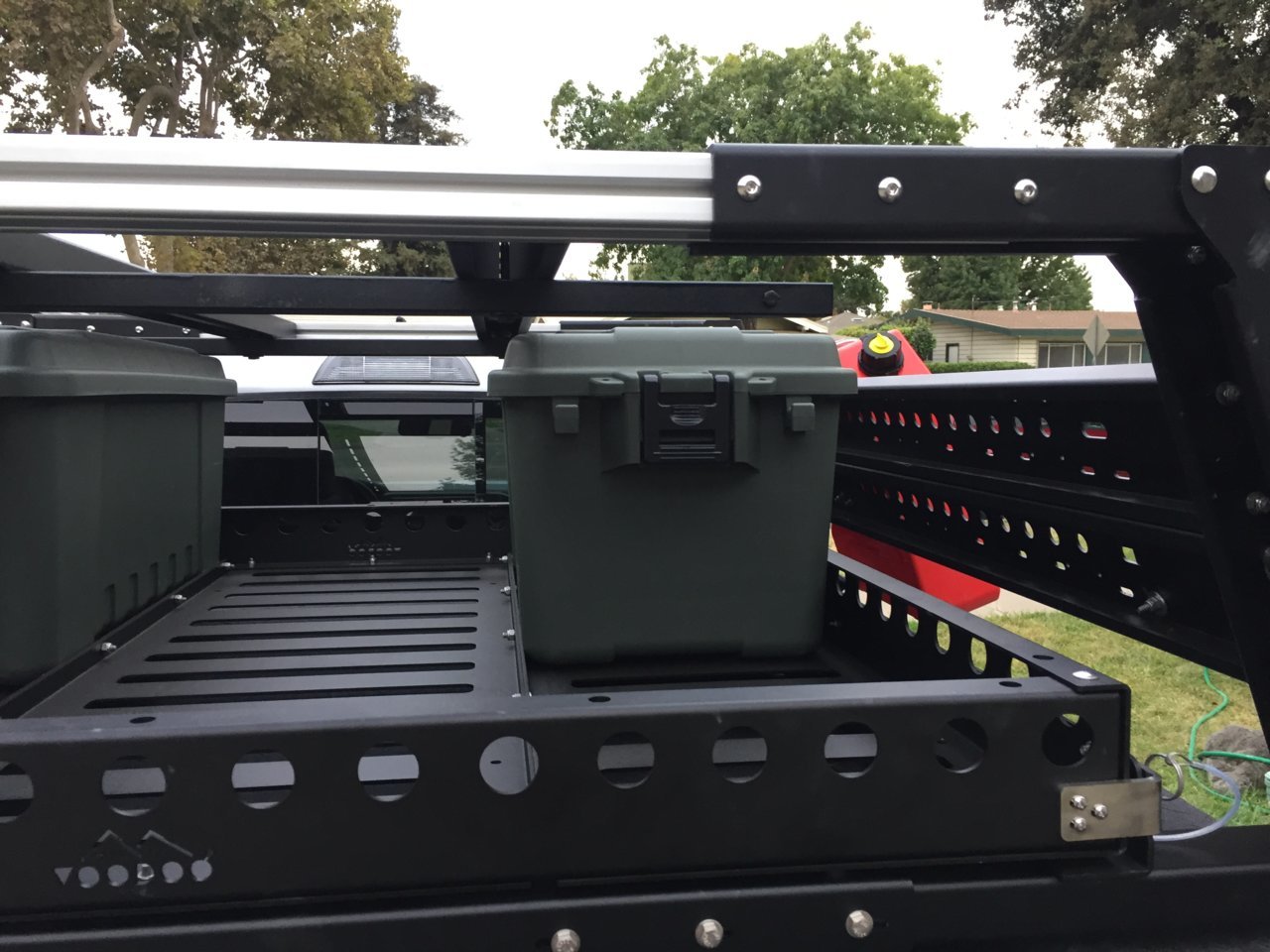

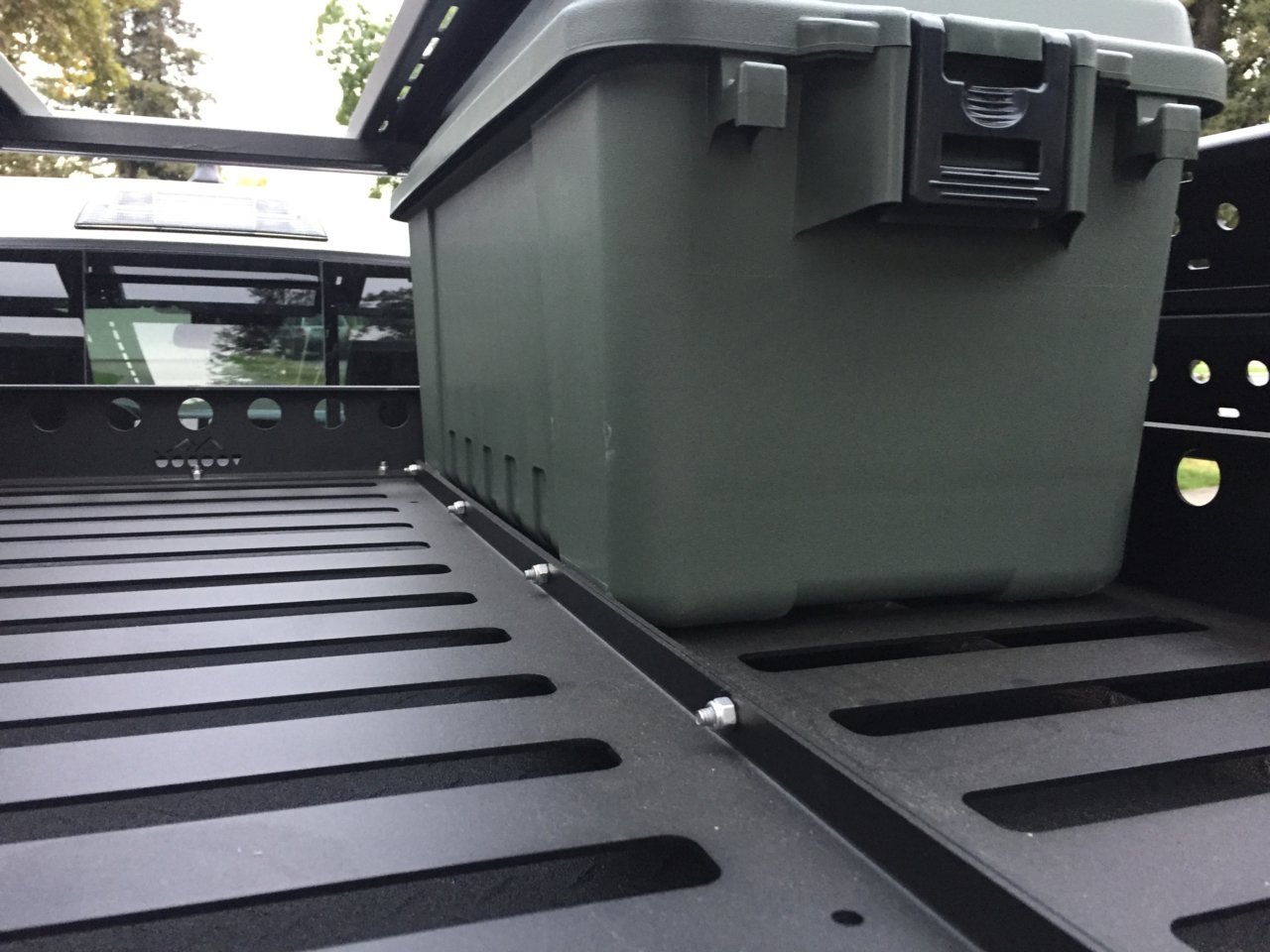

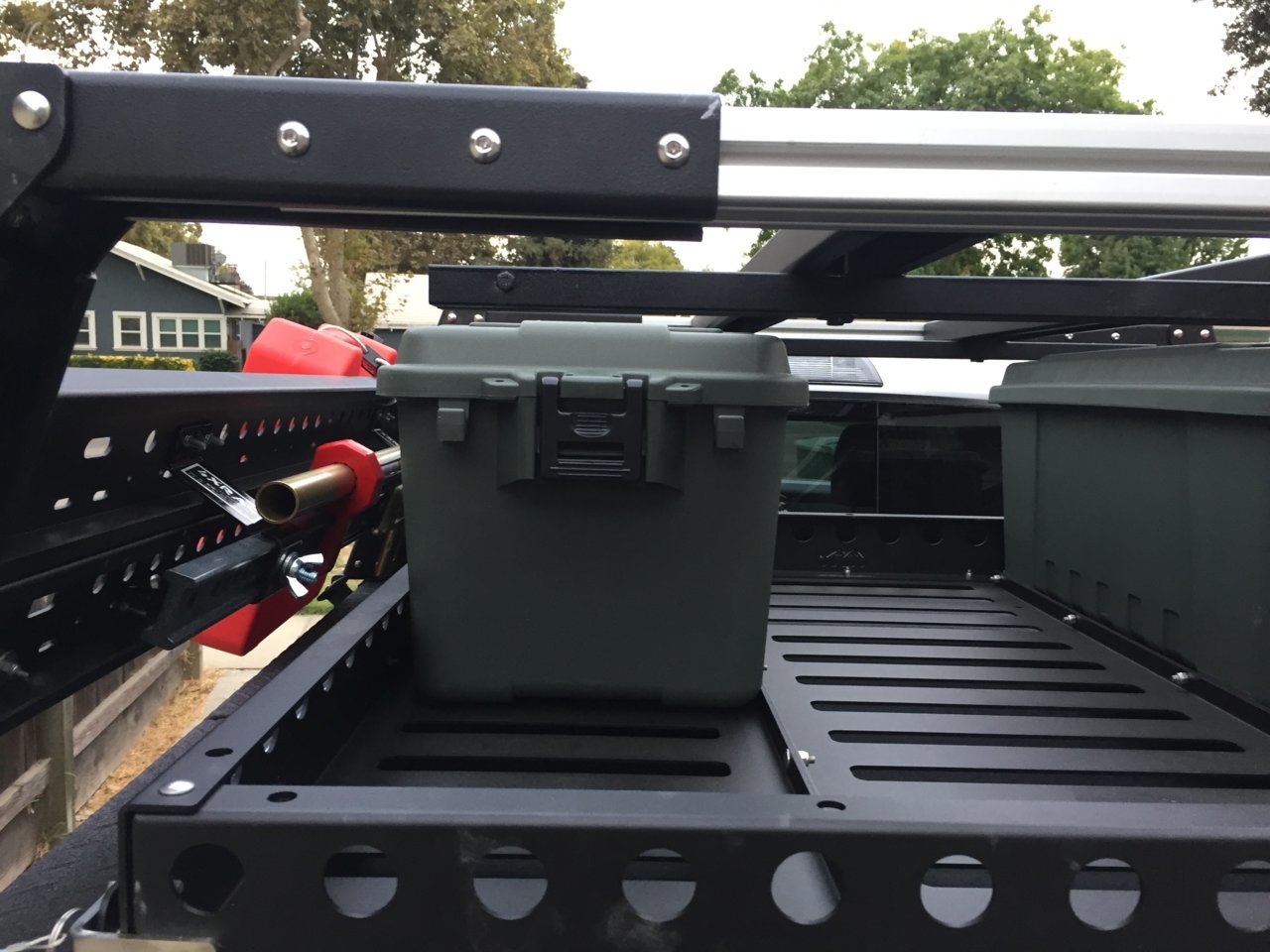

    I bought 2 small Plano Sportmans Trunks and they fit EXACTLY PERFECT in the tray, seriously like they were meant to go there. I’m doing 2 as the center would be hard to fit, plus gives me room for my water jugs. Cargo net for smaller items. Such a great use of space.
    Plano Molding 1719-01 68 Quart Tote (OD Green) https://www.amazon.com/dp/B007TOHIJQ/ref=cm_sw_r_cp_tai_0CKSBbNNT63VT
    185E2B74-9020-467E-A60F-4C009CE0C802.jpg 9441033C-CB3B-479E-AB2B-3C775BC7378E.jpg

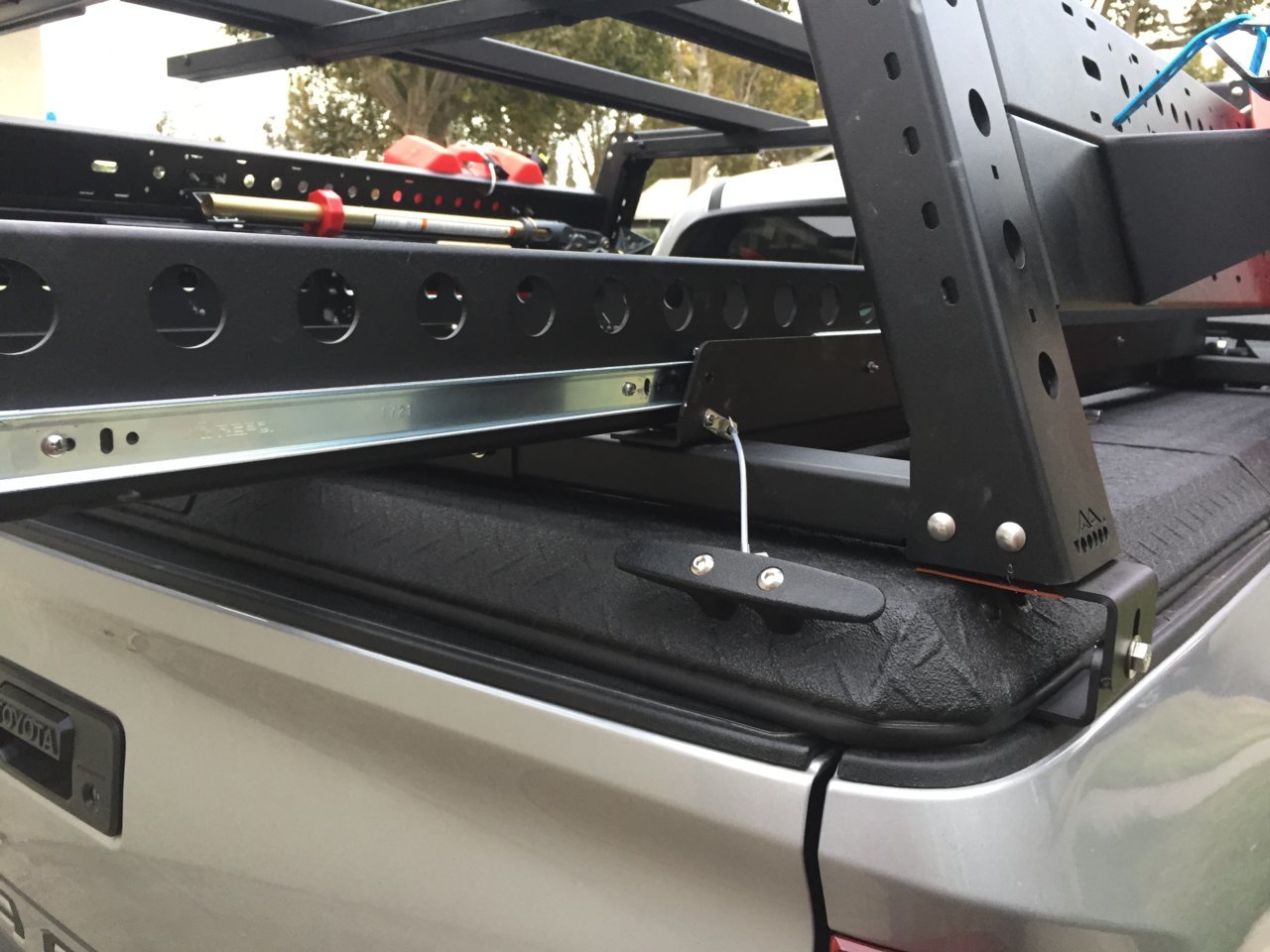

    The cargo tray slides out nicely for access
    BD52BD28-F3C3-44DF-BCDF-EB36CE09E3BD.jpg 6A3BA698-1B2B-4B4F-B2A8-1D631FEF22AF.jpg

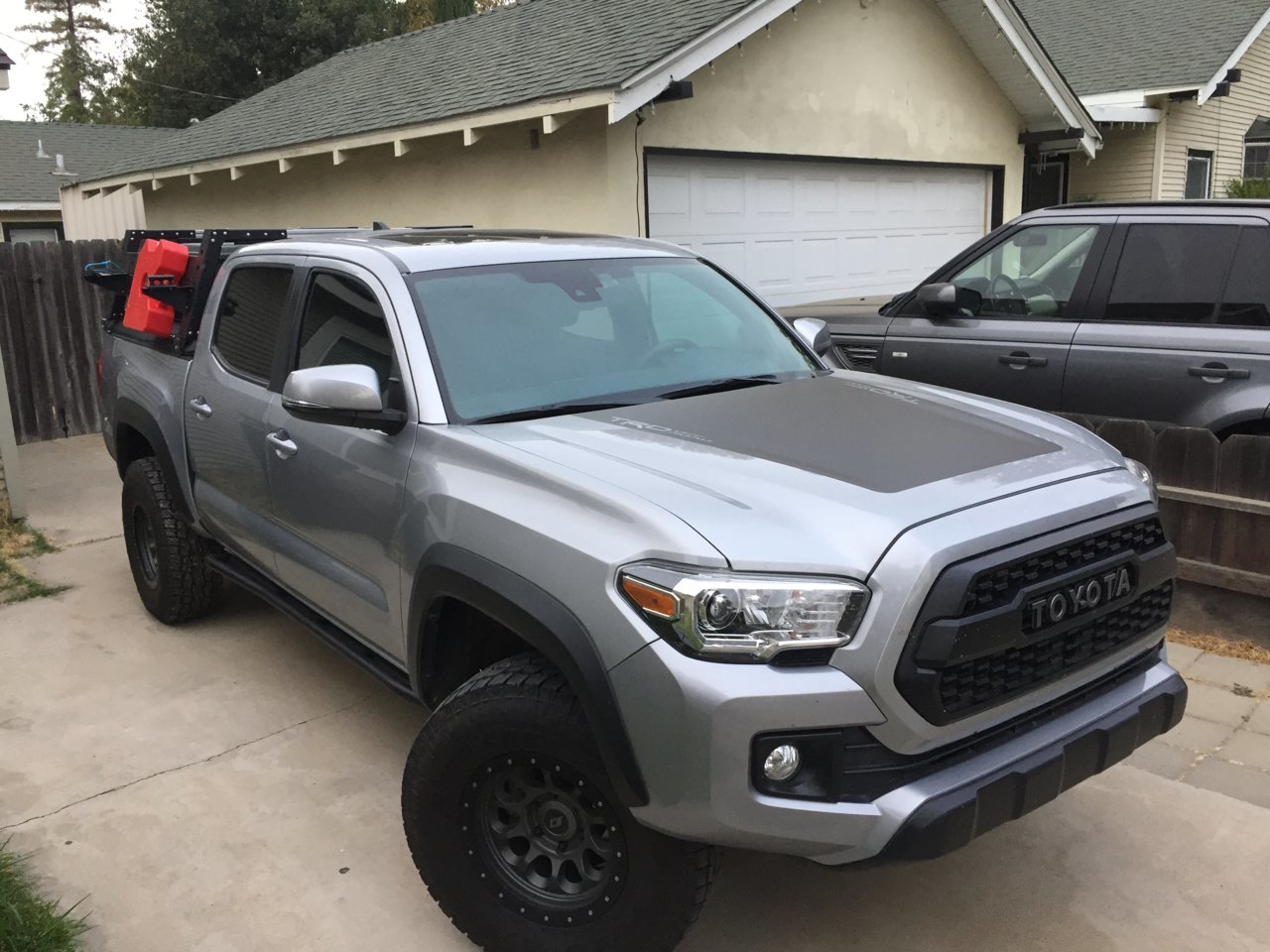

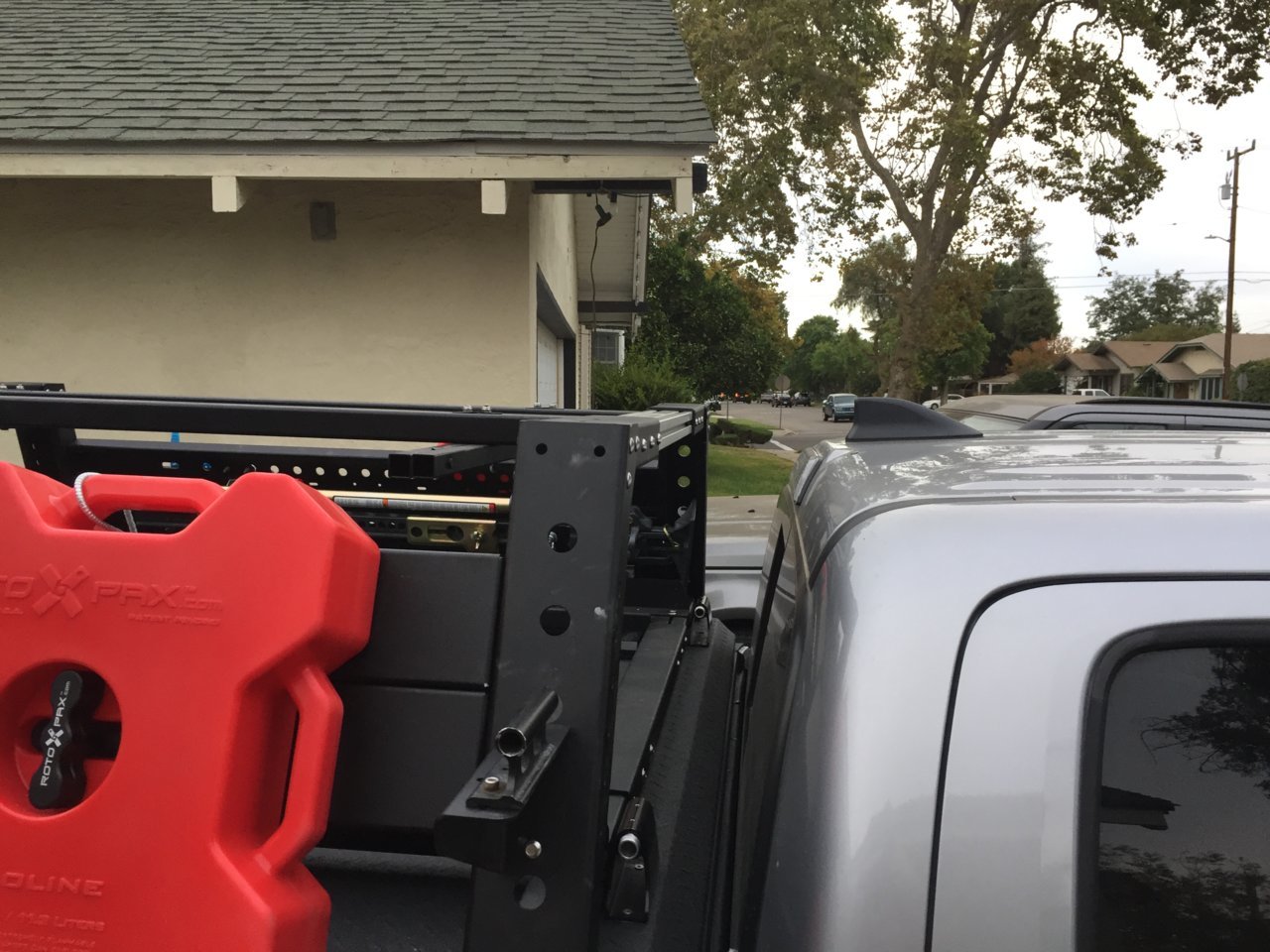

    Here is how the tall rack lines up with the roof

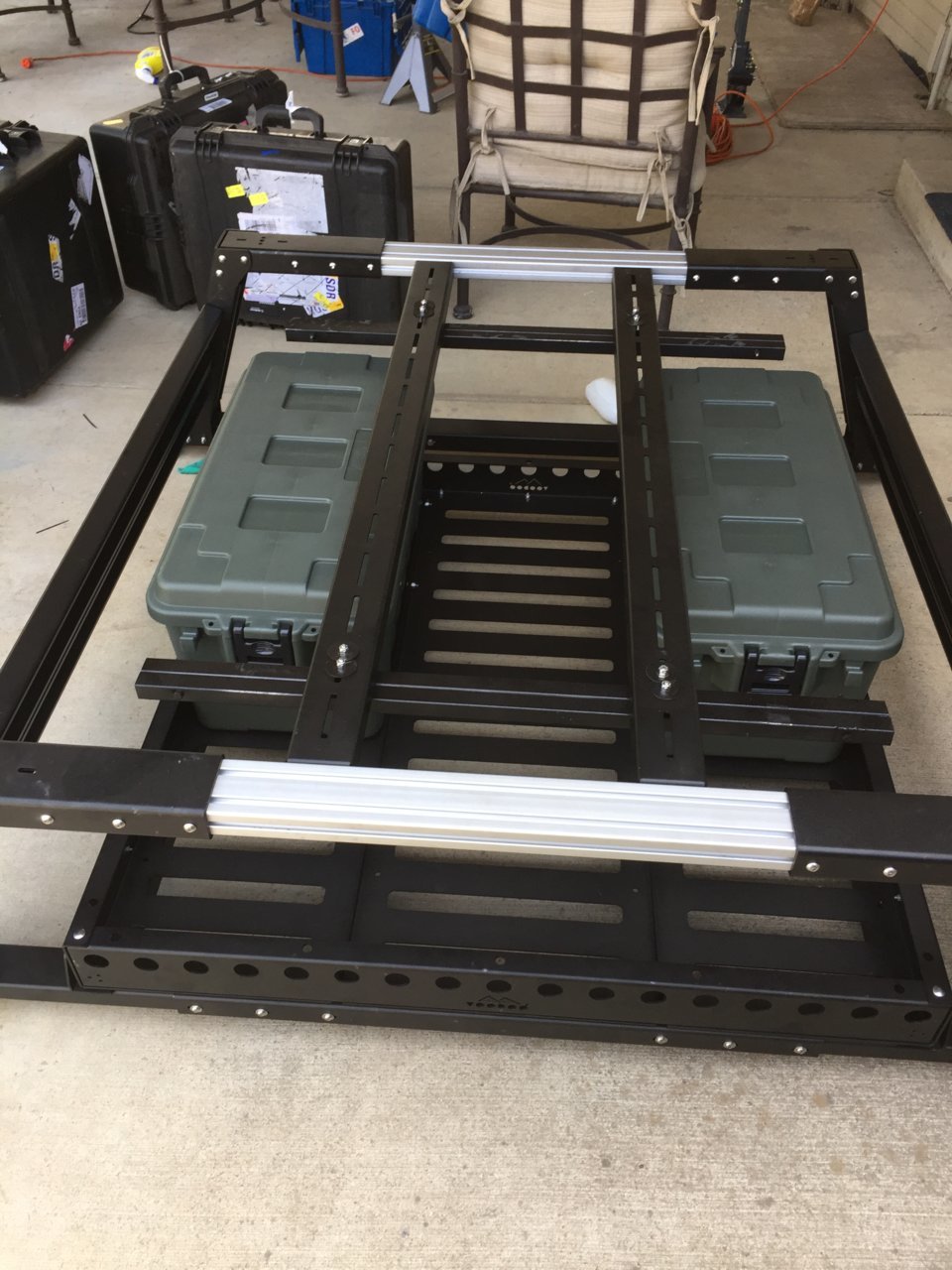

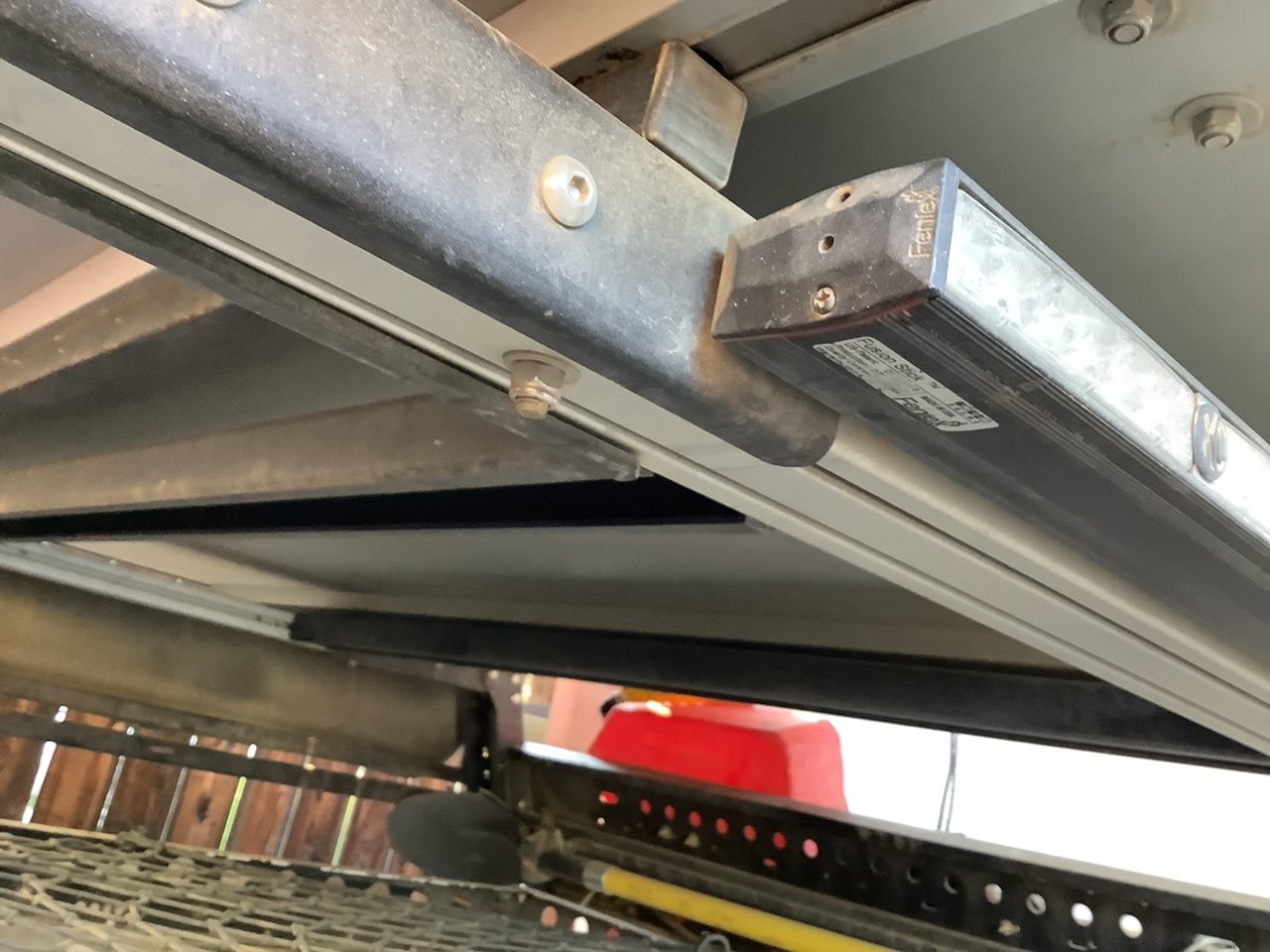

    I added crossbars under the main supports for my style of roof top tent.

    Overall the powder coating seems more durable than my previous high rise bars.

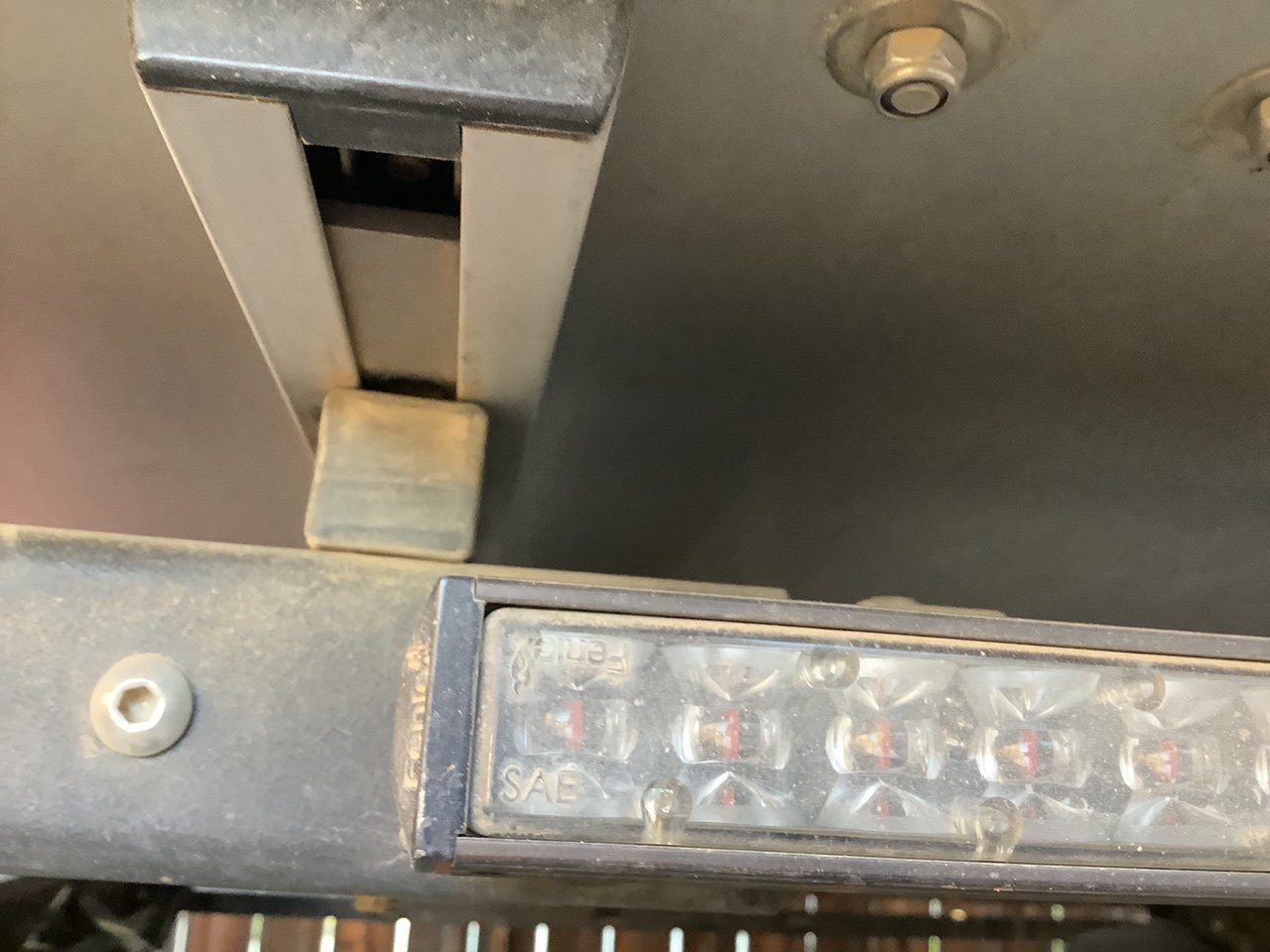

    One last shot of the clearance for the front lock relocation. Just remembered those 2 holes I need to seal haha
    Thanks for reading along and I hope the photos help answer questions you might have and inspire you dream a little for your set up. :)

    https://youtu.be/Qike5D_Msjk

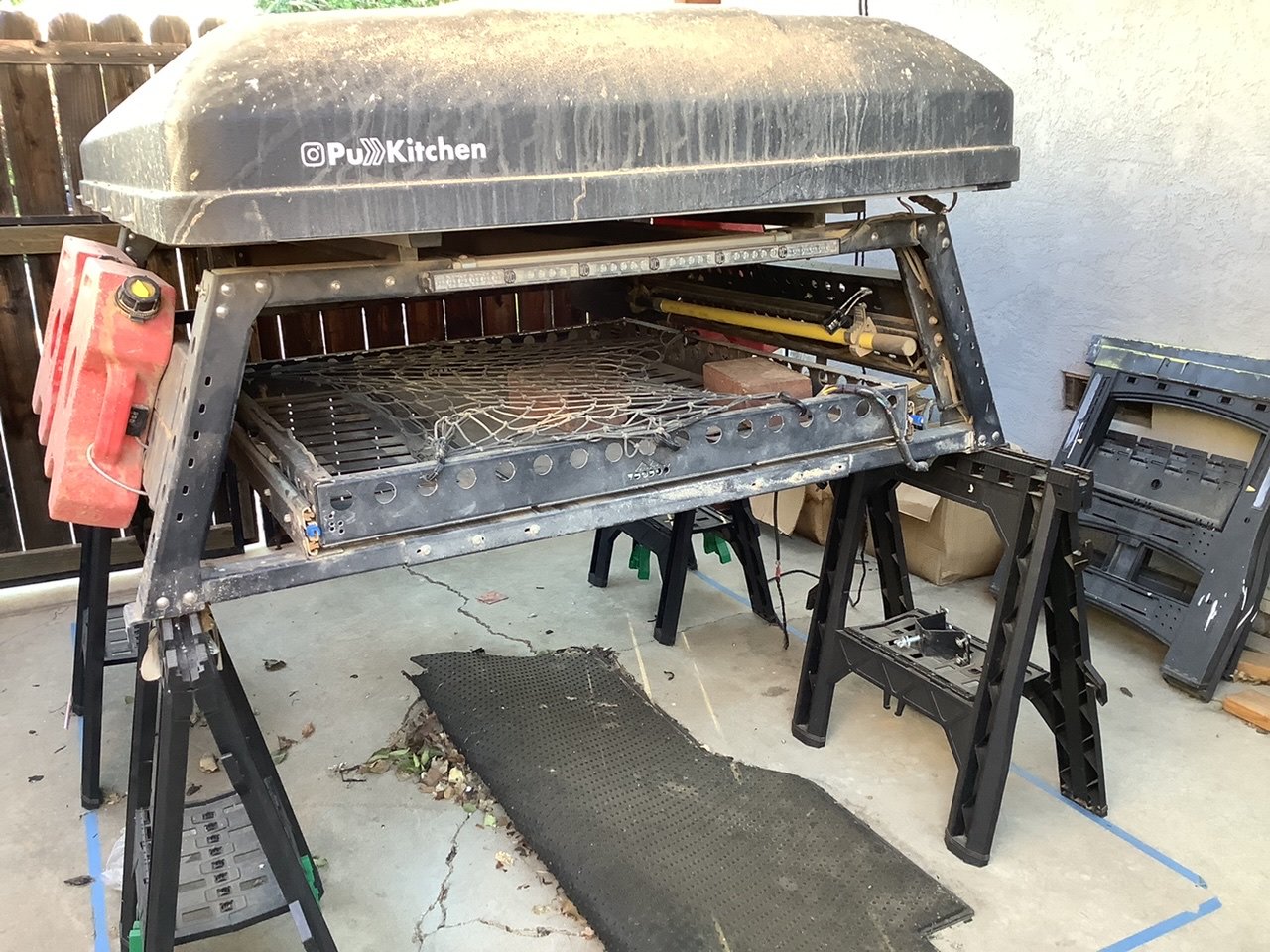

    Not directly related to the rack and cover, but I upgraded my off-road kitchen. The response has been strong so I’m thinking about doing it as a side hustle now. Minute 3:30 the kitchen comes out, for reference I have an iKamper now and I made a low profile slide to get my Dometic 75DZ under the cover next to the kitchen
    https://youtu.be/UmMUiLCtzKg

    Last edited: Jan 14, 2020
    lynyrd3, DSRamsey13, SD_Taco and 42 others like this.
  2. Oct 1, 2018 at 10:49 AM
    #2
    ebertdav

    ebertdav Member

    Joined:
    Feb 18, 2018
    Member:
    #244803
    Messages:
    18
    Gender:
    Male
    First Name:
    David
    Vehicle:
    2017 Tacoma TRD Offroad
    Nice. Looking good.

  3. Oct 1, 2018 at 10:57 AM
    #3
    WMDtech

    WMDtech Well-Known Member

    Joined:
    Apr 19, 2011
    Member:
    #55183
    Messages:
    274
    Gender:
    Male
    First Name:
    Nate
    TN
    Vehicle:
    2018 TRD OR 4X4, White, DCSB
    None... sigh
    I dig it... a lot

  4. Oct 1, 2018 at 11:35 AM
    #4
    Sharkfrog

    Sharkfrog Well-Known Member

    Joined:
    May 11, 2013
    Member:
    #103948
    Messages:
    981
    Gender:
    Male
    First Name:
    Cameron
    Modesto, CA
    Vehicle:
    2013 DCLB Sport Magnetic Grey
    She ain't stock anymore.
    I dig it!

    Papadave418 [OP] likes this.
  5. Oct 1, 2018 at 11:41 AM
    #5
    KB Voodoo

    KB Voodoo Well-Known Member

    Joined:
    Dec 20, 2012
    Member:
    #93425
    Messages:
    8,953
    Gender:
    Male
    First Name:
    Chad
    Glenwood, NY
    www.kbvoodoo.com
    Looks great!!

    A rag with WD40 will clean that anti-seize off.

    zcweisman and Papadave418 [OP] like this.
  6. Oct 1, 2018 at 11:46 AM
    #6
    roguegs

    roguegs Well-Known Member

    Joined:
    Feb 23, 2018
    Member:
    #245423
    Messages:
    2,959
    Gender:
    Male
    First Name:
    Angelo
    East Bay Area
    Vehicle:
    '17 DCLB OR 4x4
    Bilstein 6112/5160s, Mobtown IFS, Mid, TCase Skid
    Much clean. Very like.

    Papadave418 [OP] likes this.
  7. Oct 1, 2018 at 11:55 AM
    #7
    CalTacoma09

    CalTacoma09 Well-Known Member

    Joined:
    Aug 27, 2013
    Member:
    #111280
    Messages:
    3,567
    Gender:
    Male
    First Name:
    John
    Manteca, CA
    Vehicle:
    09 TRD Sport DCLB 4x4 Barcelona Red
    A lot of crap and too much money spent
    that looks good. :thumbsup:

    Papadave418 [OP] likes this.
  8. Oct 1, 2018 at 12:20 PM
    #8
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,478
    Gender:
    Male
    First Name:
    Dave
    Livermore CA
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Ray 10’s, Kings, HD Deavers, CBI skids
    That stuff is hard to get off black, I will use your tip for sure!

  9. Oct 1, 2018 at 12:31 PM
    #9
    upTOPOverland_Drew

    upTOPOverland_Drew upTOP Overland Technical Design and Application

    Joined:
    May 22, 2016
    Member:
    #187612
    Messages:
    2,730
    Gender:
    Male
    First Name:
    Drew
    Littleton, CO
    Vehicle:
    2017 TRD OR DCSB SUPER WHITE
    All the things...click the link in sig
  10. Oct 1, 2018 at 12:32 PM
    #10
    Aggiesdm

    Aggiesdm Well-Known Member

    Joined:
    Jun 29, 2011
    Member:
    #59058
    Messages:
    277
    Gender:
    Male
    San Antonio
    Vehicle:
    17 TRD OR 4X4
    SnugTop topper, WeatherTec mats, thats all for now
    Nice looking rig for sure. I'm jealous and interested in checking out this rack!

    Papadave418 [OP] likes this.
  11. Oct 1, 2018 at 1:51 PM
    #11
    KB Voodoo

    KB Voodoo Well-Known Member

    Joined:
    Dec 20, 2012
    Member:
    #93425
    Messages:
    8,953
    Gender:
    Male
    First Name:
    Chad
    Glenwood, NY
    www.kbvoodoo.com
    The WD40 cuts right through it.

    Papadave418 [OP] likes this.
  12. Oct 1, 2018 at 3:24 PM
    #12
    tommy_tacoma

    tommy_tacoma Member

    Joined:
    Jan 10, 2017
    Member:
    #207186
    Messages:
    13
    Gender:
    Male
    Nice job! I was looking for a solution to the tent crossbar issue with the long bed rack. Currently I have my tent opening backwards over the tailgate so it could be mounted to the rack, but I see you added some crossbars underneath. What did you use for the crossbars?

    Papadave418 [OP] likes this.
  13. Oct 1, 2018 at 3:43 PM
    #13
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,478
    Gender:
    Male
    First Name:
    Dave
    Livermore CA
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Ray 10’s, Kings, HD Deavers, CBI skids
    I bought and cut some 1” steel bars, drilled and bolted them to each other, then drilled and bolted them to the main support. I opted to mount my homemade crossbars under to reduce the height of the RTT. I currently have a soft top RTT but next month hoping to move to a hardshell like an iKamper. More aerodynamic and ease of set up.

    The steel bars work and much cheaper and more customizable than a Thule bar or something similar.

    Last edited: Oct 2, 2018
  14. Oct 2, 2018 at 12:04 AM
    #14
    Hawaiianwargod

    Hawaiianwargod New Member

    Joined:
    Sep 25, 2018
    Member:
    #267382
    Messages:
    3
    Gender:
    Male
    Vehicle:
    2018 TRD OR
    Very nice!

    Papadave418 [OP] likes this.
  15. Oct 2, 2018 at 5:02 AM
    #15
    runmc

    runmc Well-Known Member

    Joined:
    Aug 8, 2017
    Member:
    #226288
    Messages:
    293
    Gender:
    Male
    First Name:
    Ron
    DFW Texas
    Vehicle:
    2018 Inferno Tacoma TRD OR DCSB
    One Mod after another
    Very well thought out. I like your ideas. :thumbsup:

  16. Oct 2, 2018 at 10:28 PM
    #16
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,478
    Gender:
    Male
    First Name:
    Dave
    Livermore CA
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Ray 10’s, Kings, HD Deavers, CBI skids
    Worked really well!
    Thanks I am pretty happy with how it’s turning out

  17. Oct 4, 2018 at 8:29 AM
    #17
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,478
    Gender:
    Male
    First Name:
    Dave
    Livermore CA
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Ray 10’s, Kings, HD Deavers, CBI skids
    FYI when building the cargo tray the bolt direction is very important. I had 2 bolts reversed and it was limiting the cargo tray extension. I reverse their direction so the slides would clear and it pulls out 32” which is really nice to access the gear.

    Landpirate likes this.
  18. Oct 5, 2018 at 9:30 PM
    #18
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,478
    Gender:
    Male
    First Name:
    Dave
    Livermore CA
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Ray 10’s, Kings, HD Deavers, CBI skids

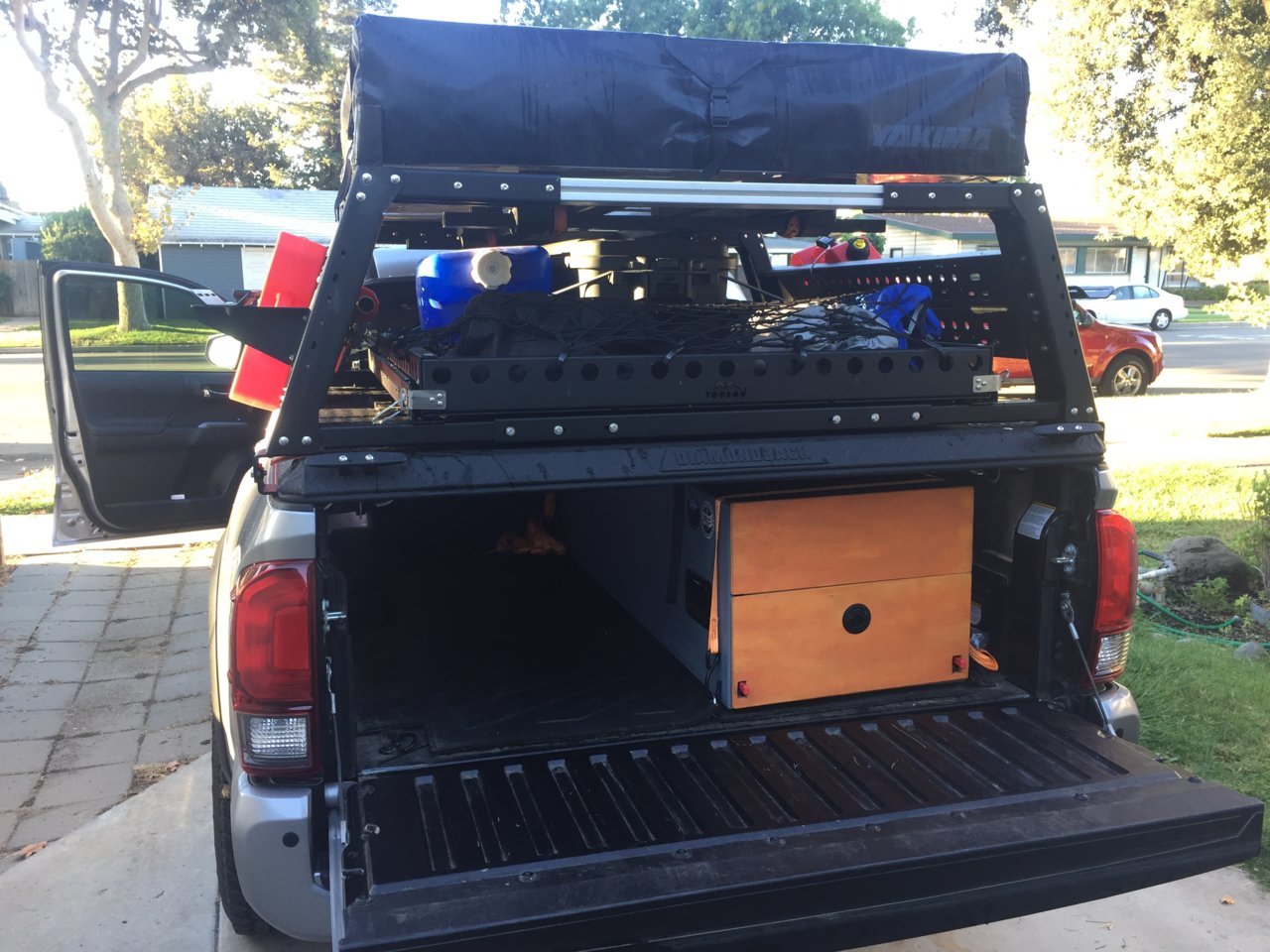

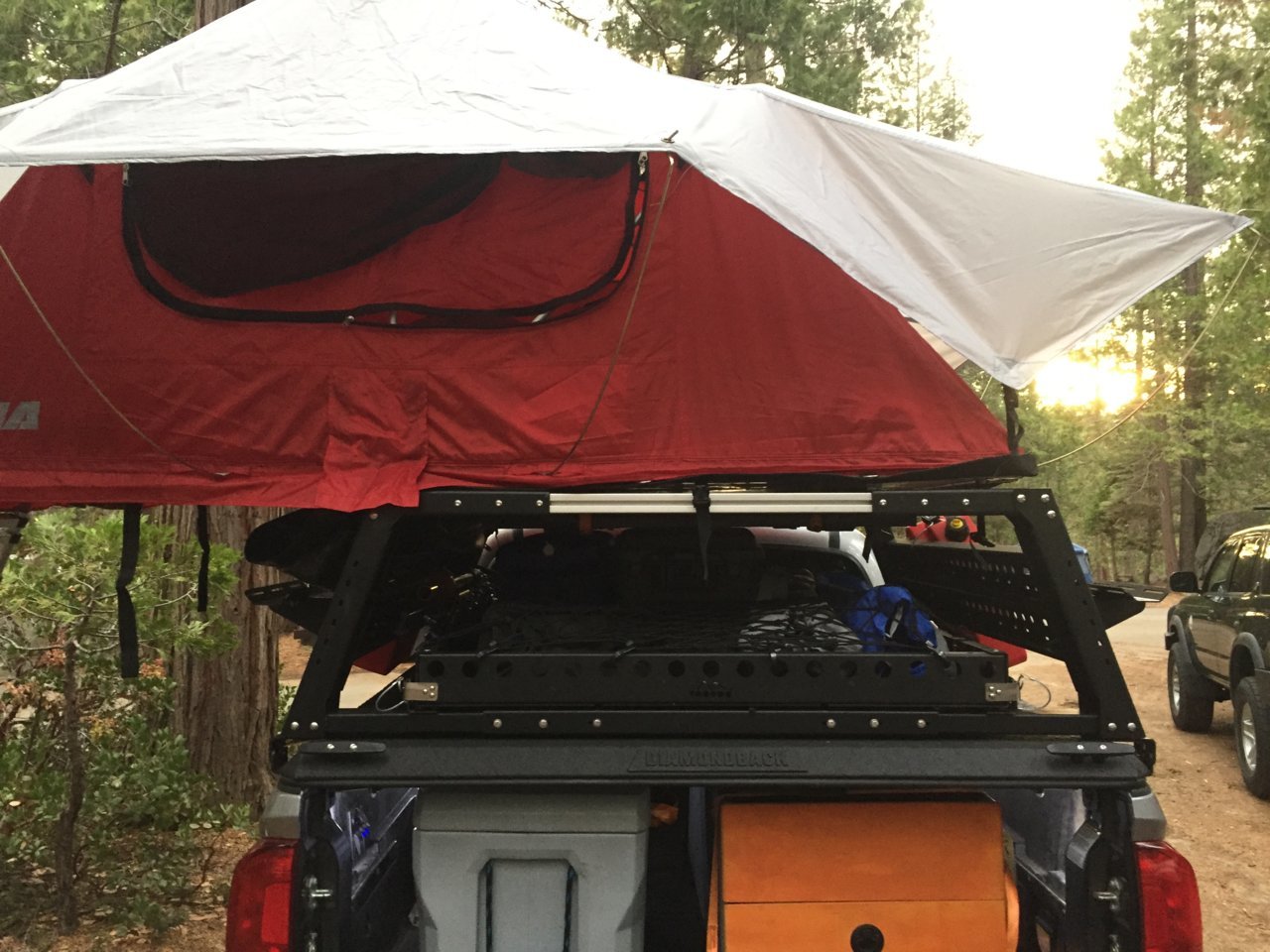

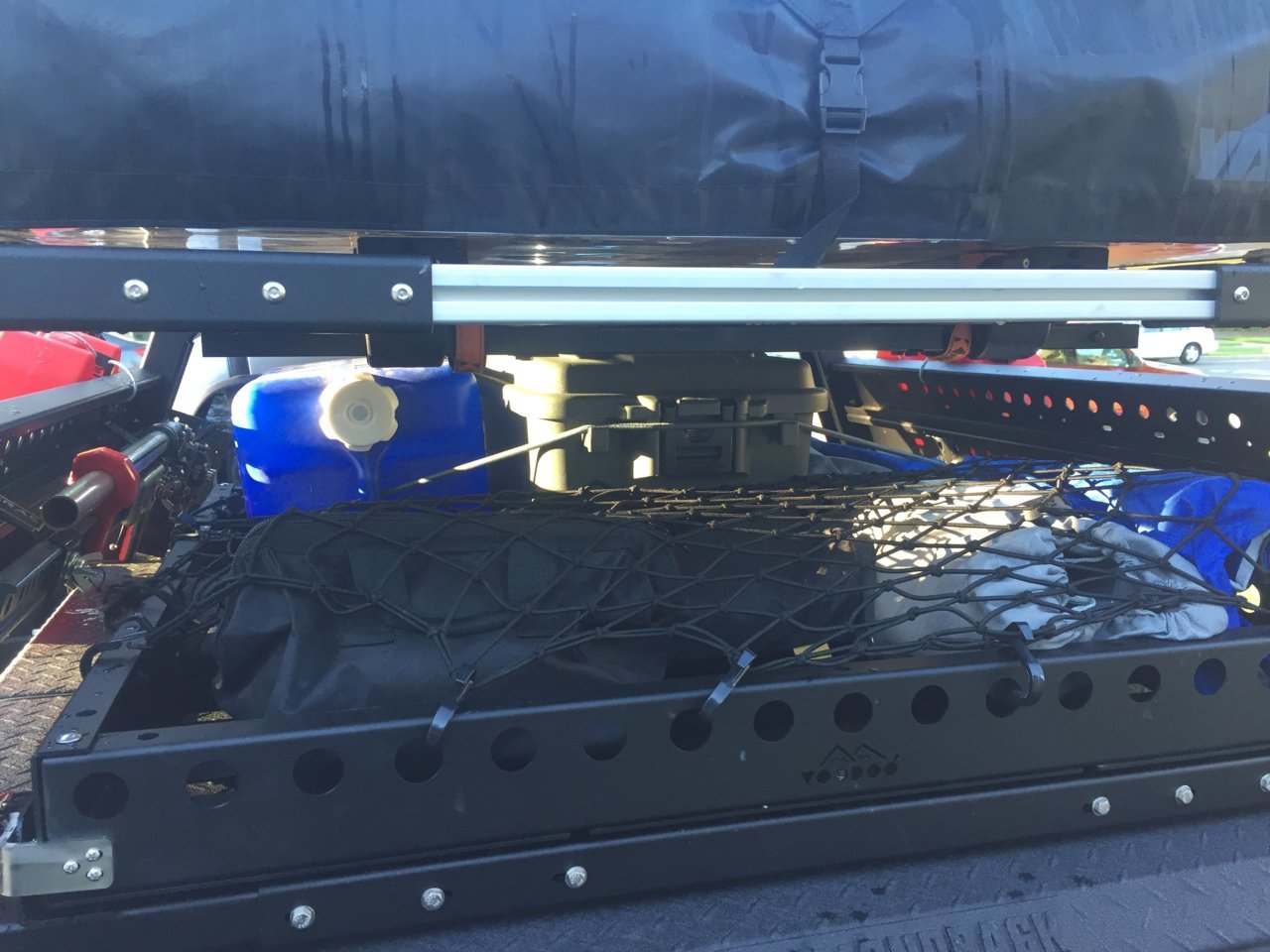

    Camping up by Bald Mountain CA. Rack is awesome. I loaded all my gear and with the cargo tray I had extra room. Never happened before.
    F926EEA9-5CA5-45D8-BA65-02CEB7A452C5.jpg CC77D38C-9BFB-4E14-B222-CEC421751F8A.jpg A9336291-862B-41EA-B680-729239363C22.jpg DFB11516-2649-4B4A-8A67-5C00CD977986.jpg DA6A0D55-0F58-4049-B17B-DB94312AEDC9.jpg


    Landpirate and KB Voodoo like this.
  19. Oct 11, 2018 at 8:55 PM
    #19
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,478
    Gender:
    Male
    First Name:
    Dave
    Livermore CA
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Ray 10’s, Kings, HD Deavers, CBI skids

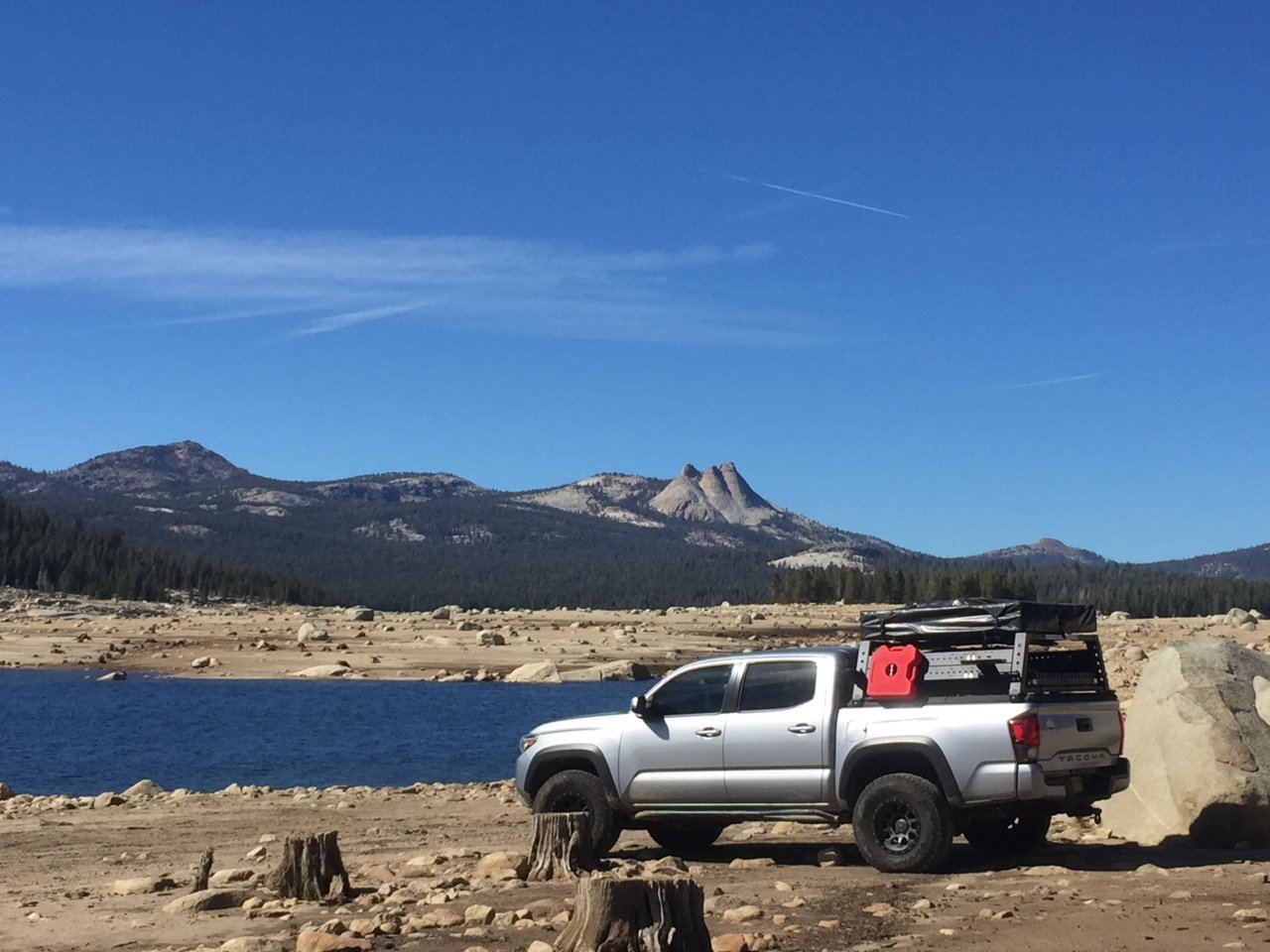

    8200’ up in the Sierras where only 4x4’s can go. No parking lots, no crowds, no worries
    34603830-2383-411F-A476-0D40C056F199.jpg 06027367-2F4E-4232-8EBF-4595A861F6BF.jpg

  20. Oct 13, 2018 at 8:02 PM
    #20
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,478
    Gender:
    Male
    First Name:
    Dave
    Livermore CA
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Ray 10’s, Kings, HD Deavers, CBI skids

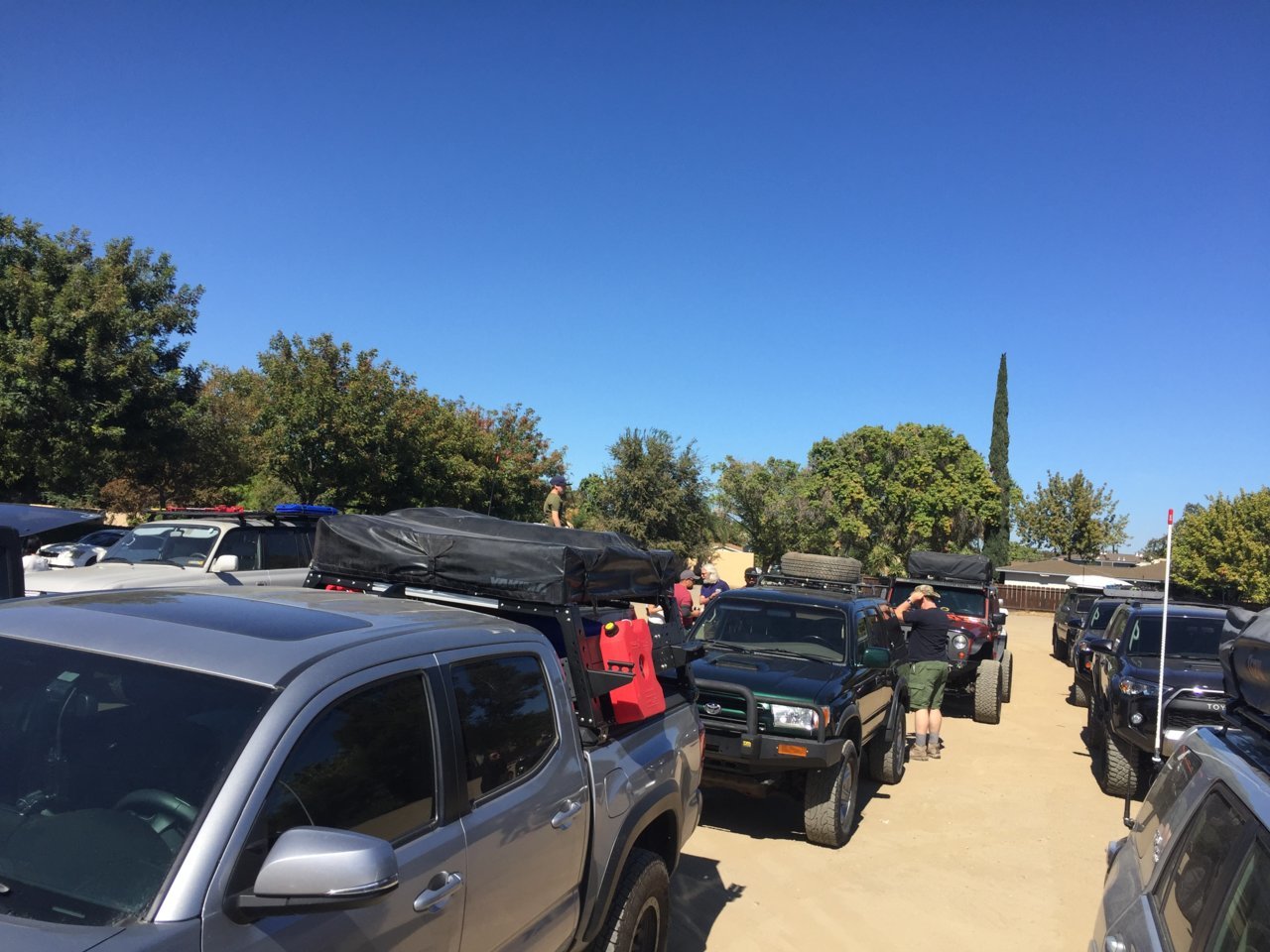

    Just did a rig walk around with Michael from Overland Bound today on a DD that converts to an overland rig. Gave some in-depth props to @kbvoodoo for his rack and cargo tray which Michael geeked out on. I hope it helps with sales for a great product. Your AluMax is a next level rack my friend.

    The video will post Sunday night on Overland Bound’s YouTube channel A8D3508A-48A9-4721-9696-94352D451013.jpg

    Last edited: Oct 14, 2018
