KB Voodoo AluMax Rack Install with Diamondback Cover - Photo Heavy

Discussion in '3rd Gen. Tacomas (2016+)' started by Papadave418, Oct 1, 2018.

  1. Dec 13, 2018 at 9:16 PM
    #81
    Sapnjack

    Sapnjack Well-Known Member

    Joined:
    Dec 2, 2018
    Member:
    #274538
    Messages:
    125
    Gender:
    Male
    First Name:
    Daniel
    Phoenix AZ
    Vehicle:
    2016 TRD-OffRoad
    Bilstein 6112/5160 Dakar EL096R Leaf Springs KO2 265/75/16 Tires OCF Rock Sliders Cali-Raised Hidden Lightbar Diamonback Cover HD KB VooDoo Premium Rack CVT Tent ARB Awning
    I have a 10 inch premium KBvoodoo with CVT RTT, and it fits under my 7 foot garage

    Papadave418 [OP] likes this.
  2. Dec 13, 2018 at 9:57 PM
    #82
    BlackRoan

    BlackRoan Active Member

    Joined:
    Aug 12, 2018
    Member:
    #262619
    Messages:
    40
    Gender:
    Male
    Vehicle:
    2018 White TRD PRO
    Still working on it
    Hello @KB Voodoo I also have a Diamondback SE cover and was eying your hi rise cross bars. I know current versions a steel. When aluminum models drop will the veracity of carrying a RTT be effected? Not sure if load rating will be different. What is timeline for aluminum versions? Price?

  3. Dec 13, 2018 at 10:06 PM
    #83
    KB Voodoo

    KB Voodoo Well-Known Member

    Joined:
    Dec 20, 2012
    Member:
    #93425
    Messages:
    8,830
    Gender:
    Male
    First Name:
    Chad
    Glenwood, NY
    www.kbvoodoo.com
    Load rating of the new aluminum bars will be the same. Price is TBD.

  4. Dec 13, 2018 at 10:19 PM
    #84
    BlackRoan

    BlackRoan Active Member

    Joined:
    Aug 12, 2018
    Member:
    #262619
    Messages:
    40
    Gender:
    Male
    Vehicle:
    2018 White TRD PRO
    Still working on it
    That is great news! Will you be discontinuing the steel versions or offering both?

  5. Dec 13, 2018 at 10:29 PM
    #85
    KB Voodoo

    KB Voodoo Well-Known Member

    Joined:
    Dec 20, 2012
    Member:
    #93425
    Messages:
    8,830
    Gender:
    Male
    First Name:
    Chad
    Glenwood, NY
    www.kbvoodoo.com
    For the Hi Rise Crossbars, we will always offer both steel and aluminum.

  6. Dec 13, 2018 at 10:47 PM
    #86
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    969
    Gender:
    Male
    First Name:
    Dave
    Ripon, Ca
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Ray 10’s & Center Console Organizer!!
    Currently the same size but thought about tapping it larger to get a more stout bolt in. What I’m unsure about is would one need to drill it out or can the tap shave out enough to get a 3/8” or so bolt in there?

  7. Dec 14, 2018 at 2:15 AM
    #87
    Cleetus VanDam

    Cleetus VanDam Well-Known Member

    Joined:
    Aug 30, 2017
    Member:
    #228567
    Messages:
    45
    Gender:
    Male
    Vehicle:
    2017 TRD OR
    OME BP-51, Dakars, SPC UCAs, CBI T-3, Smittybilt 9.5 XRC
    I watched your walk around video the other day, nice setup! I installed the KB Voodoo Tacomax last weekend and overall I’m really happy with it. I would recommend this to anyone, it’s very sturdy and well constructed.

    I doubt you will be able to tap the factory nut for a larger bolt, plus even if you did, the location prevents the bracket from sitting flush against the bed due to the bead just aft of the bolt. What I did was remove the bolt so the bracket can sit flush, then I drilled a new hole about half an inch forward of the factory hole. I then used the provided T nut and bolt to secure it in place. There is plenty of room to access everything with the tail lights removed.

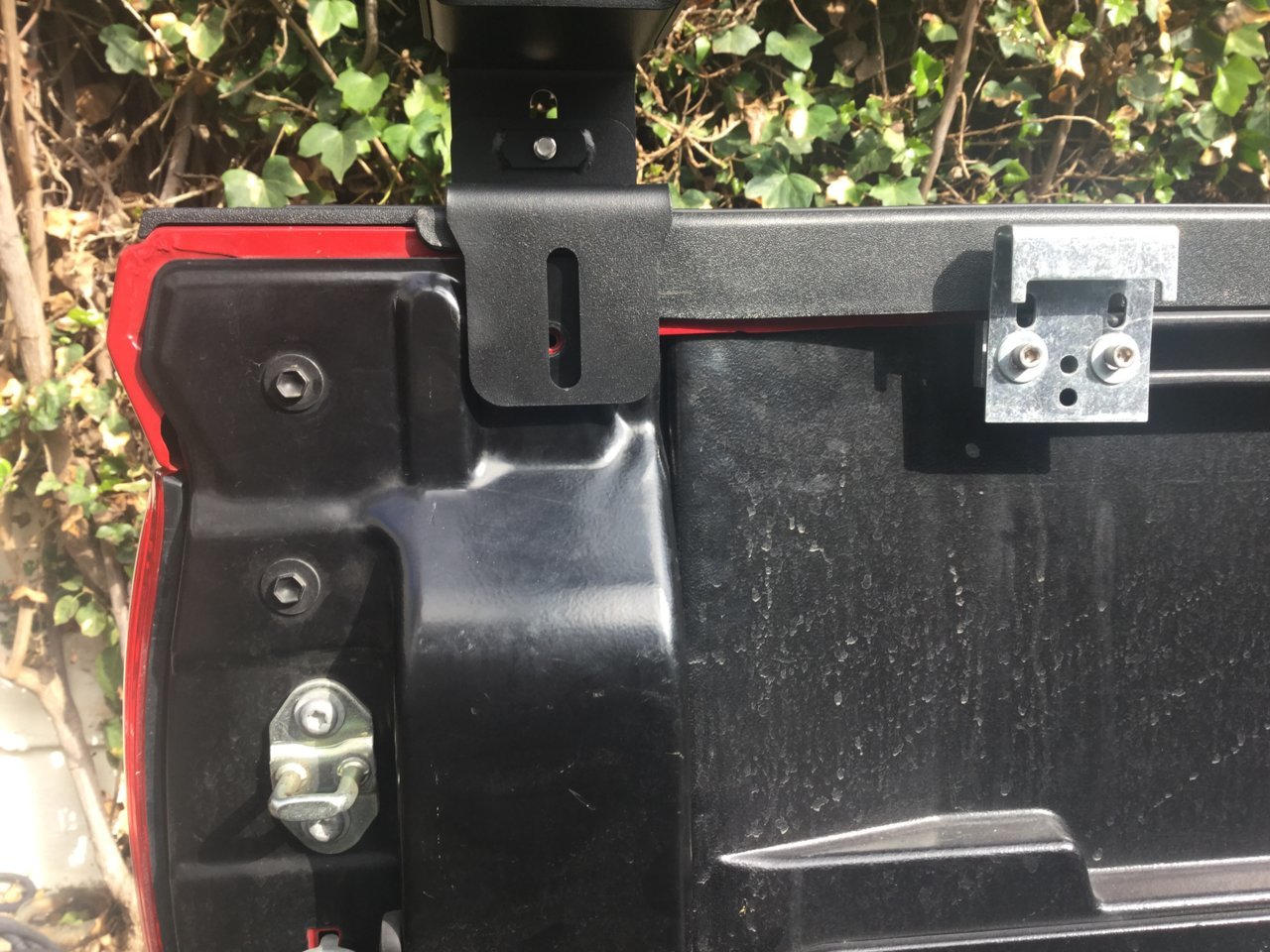

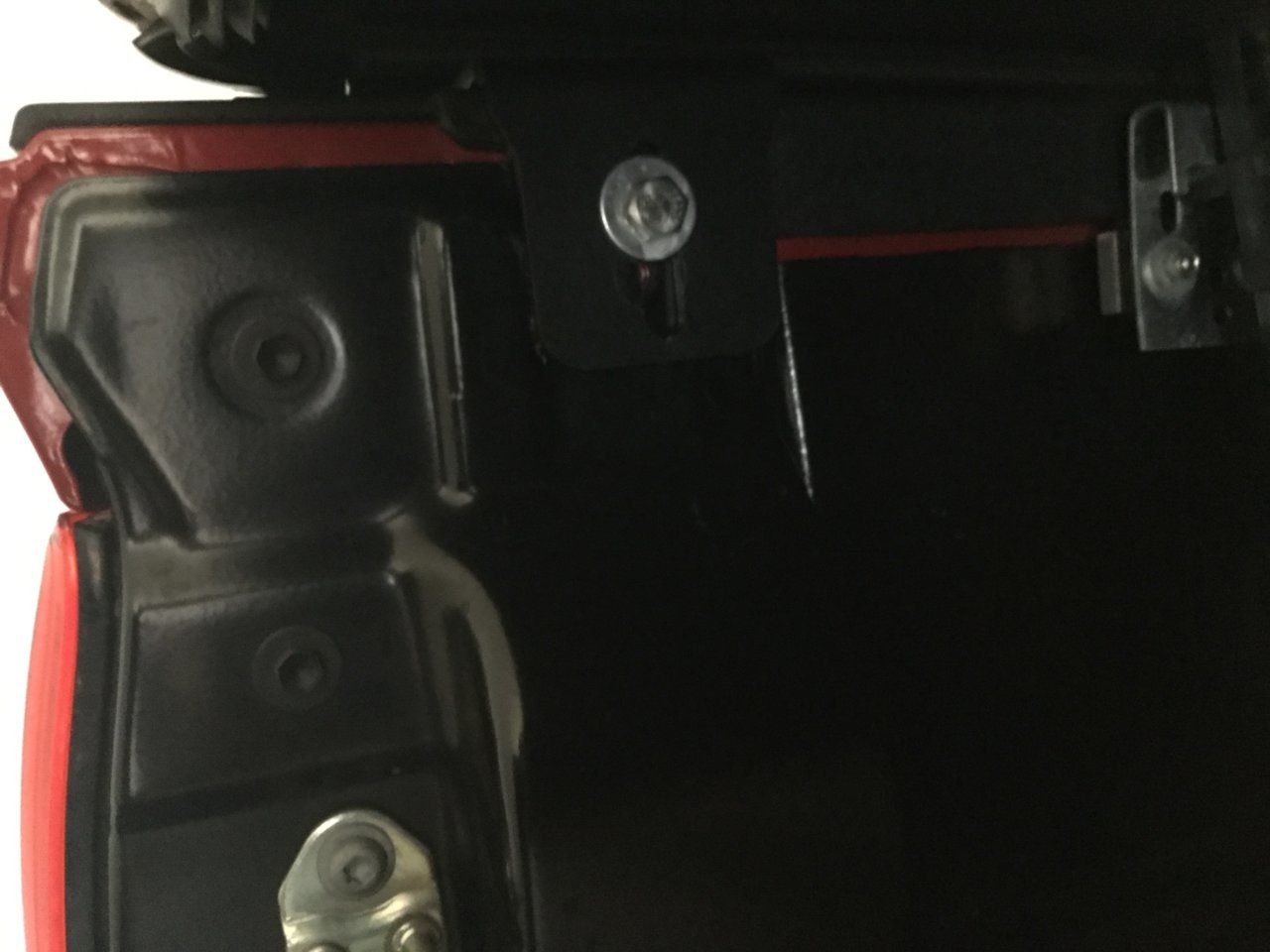

    5D84008F-8027-4C2A-8954-B365257240AF.jpg F182091F-F273-4CC1-AA7B-34004CA202A1.jpg

    I really didn’t want to drill into the bed, but it was the only way I could see mounting it with adequate hardware. I mounted it up originally with the factory bolt and just didn’t think it would cut it due to both the bracket not sitting flush and the small size of the factory bolt.

    Just to add for anyone wondering, you would only have to do this if you’re installing the long bed rack on a short bed Tacoma. If you use the short bed rack on the short bed, or the long bed rack on a long bed, the rack will bolt to the accessory rail with the provided T nuts at all four corners.

    Last edited: Dec 14, 2018
  8. Dec 14, 2018 at 7:18 AM
    #88
    the_taco_times

    the_taco_times Well-Known Member

    Joined:
    May 15, 2017
    Member:
    #219104
    Messages:
    46
    Gender:
    Male
    First Name:
    E
    Vehicle:
    2016 Taco TRD OFF ROAD
    6" BDS performance lift with Fox shocks and UCAs Fab Four Vengeance Bumpers Black Oak lights all around Universal Spod with touch screen Full exterior color matched Bed Liner Toyo MT 35" tires with Fuel Trophy D551 Wheels
    I don't know but going with what u did for now and going to look into it!

    Papadave418 [OP] likes this.
  9. Dec 14, 2018 at 7:46 AM
    #89
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    969
    Gender:
    Male
    First Name:
    Dave
    Ripon, Ca
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Ray 10’s & Center Console Organizer!!
    That is an interesting idea of moving the hole forward. I added a couple of washers behind the tonneau bracket so it would sit flush, but would like to either move it or increase the bolt size. What size drill and tap did you go with?

  10. Dec 14, 2018 at 7:48 AM
    #90
    boogie3478

    boogie3478 Tacomaholic & Hollywood

    Joined:
    Oct 12, 2014
    Member:
    #140179
    Messages:
    19,261
    Gender:
    Male
    Northern Virginia
    Vehicle:
    14 TRD Off-Road V6
    All the mods
    Looking good! Watch out for that cable on your Rotopax as it will eventually rub through the powerdcoating on the rack where it touches.

  11. Dec 14, 2018 at 8:08 AM
    #91
    the_taco_times

    the_taco_times Well-Known Member

    Joined:
    May 15, 2017
    Member:
    #219104
    Messages:
    46
    Gender:
    Male
    First Name:
    E
    Vehicle:
    2016 Taco TRD OFF ROAD
    6" BDS performance lift with Fox shocks and UCAs Fab Four Vengeance Bumpers Black Oak lights all around Universal Spod with touch screen Full exterior color matched Bed Liner Toyo MT 35" tires with Fuel Trophy D551 Wheels

    So you drilled a hole just big enough for the bolt, and with the T nut being bigger, you put it in behind from the tailight area and threaded into the T nut. Brilliant, and yes waiting to hear what size bit u used

  12. Dec 14, 2018 at 8:15 AM
    #92
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    969
    Gender:
    Male
    First Name:
    Dave
    Ripon, Ca
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Ray 10’s & Center Console Organizer!!
    Last month I did 400 miles off road in Death Valley...so it’s definitely already rubbed through. But having the AluMax Rack I don’t really care! Hahaha. Won’t rust :)

    (Just realized your “that guy” with the Tacoma problem in need of a 12 step program)
    I don’t have a problem

  13. Dec 14, 2018 at 8:16 AM
    #93
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    969
    Gender:
    Male
    First Name:
    Dave
    Ripon, Ca
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Ray 10’s & Center Console Organizer!!
    What T nut provided?

  14. Dec 14, 2018 at 8:23 AM
    #94
    the_taco_times

    the_taco_times Well-Known Member

    Joined:
    May 15, 2017
    Member:
    #219104
    Messages:
    46
    Gender:
    Male
    First Name:
    E
    Vehicle:
    2016 Taco TRD OFF ROAD
    6" BDS performance lift with Fox shocks and UCAs Fab Four Vengeance Bumpers Black Oak lights all around Universal Spod with touch screen Full exterior color matched Bed Liner Toyo MT 35" tires with Fuel Trophy D551 Wheels

    I bought my rack and tonneau cover because of u! I wonder how many you've sold lol you need a referral bonus hahahaha

    oranjish likes this.
  15. Dec 14, 2018 at 8:28 AM
    #95
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    969
    Gender:
    Male
    First Name:
    Dave
    Ripon, Ca
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Ray 10’s & Center Console Organizer!!
    You know you are making a lot of sense to me, what do you think @KB Voodoo
    :)

    Hey I’m glad it helped inspire you, so many here have helped me and I’m glad to pass it forward. Post some pictures here of your build, I’d love to see it

    the_taco_times likes this.
  16. Dec 14, 2018 at 8:43 AM
    #96
    Cleetus VanDam

    Cleetus VanDam Well-Known Member

    Joined:
    Aug 30, 2017
    Member:
    #228567
    Messages:
    45
    Gender:
    Male
    Vehicle:
    2017 TRD OR
    OME BP-51, Dakars, SPC UCAs, CBI T-3, Smittybilt 9.5 XRC
    I think it was a 10 mm drill bit, no tap used since I put the nut on the other side of the bed (behind the tail light).

    You got it, pretty sure it was a 10 mm drill bit.

    The other two nuts that would have gone in the accessory rail for a long bed truck.

  17. Dec 14, 2018 at 9:02 AM
    #97
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    969
    Gender:
    Male
    First Name:
    Dave
    Ripon, Ca
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Ray 10’s & Center Console Organizer!!
    Ahhhh the nut for the rail. I was thinking those T nuts that have spikes and embed into wood

  18. Dec 14, 2018 at 9:09 AM
    #98
    paleh0rse

    paleh0rse Well-Known Member

    Joined:
    Nov 17, 2018
    Member:
    #273012
    Messages:
    683
    Gender:
    Male
    Raleigh, NC
    Vehicle:
    2019 Cement Tacoma TRD Off-road DCLB
    How do you guys deal with not being able to easily access the bed storage when the rack+RTT is mounted above the Diamondback? I really want to love the VooDoo+DiamondbackHD combo, but wouldn't a retractable solution be better for overlanding and other situations wherein you constantly need to access the entire storage area?

    Have any of you purchased the Diamondback and a rack, but later regretted this particular limitation of the setup?

  19. Dec 14, 2018 at 9:53 AM
    #99
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    969
    Gender:
    Male
    First Name:
    Dave
    Ripon, Ca
    Vehicle:
    2018 TRD Off-Road Premium Package DCSB Silver Sky
    Ray 10’s & Center Console Organizer!!
    I don’t have my rack on all the time, only when off roading. Half of my bed has a custom drawer that I use that elimates reaching in and pulling out almost all of the stuff I would access in my bed for camping. The other side has my blue water cubes and my fridge. The cargo drawer holds my recovery gear and random camp stuff (in 2 Plano totes), chairs, firewood, and whatnot. My buddy has a retractable cover but you lose the front 10-12” or so of the bed where the cover rolls up. 99% of the time my truck is in daily driver mode so for me I can reach in for my water cubes when off roading.

    This is my complete footprint camping. My chair and roll up coffee table are to the right, but nothing else is on the ground.
    8D38EAD9-E0BF-43C1-88CA-99FE431D9C07.jpg AFA8DAD4-96D9-4239-B466-7FEA300E7120.jpg

    When camping I put a water cube up in the cargo drawer and slide it out to get water. I place it so the spout pours right through the cargo drawer slots, then push the drawer back in 50E9549F-0F54-4ACD-81CA-D8DF3E4F5DF3.jpg

  20. Dec 14, 2018 at 9:54 AM
    #100
    the_taco_times

    the_taco_times Well-Known Member

    Joined:
    May 15, 2017
    Member:
    #219104
    Messages:
    46
    Gender:
    Male
    First Name:
    E
    Vehicle:
    2016 Taco TRD OFF ROAD
    6" BDS performance lift with Fox shocks and UCAs Fab Four Vengeance Bumpers Black Oak lights all around Universal Spod with touch screen Full exterior color matched Bed Liner Toyo MT 35" tires with Fuel Trophy D551 Wheels

    3/8 bit worked perfect with t nut and bolt provided


    Papadave418 [OP] likes this.
