KB Voodoo AluMax Rack Install with Diamondback Cover - Photo Heavy

Discussion in '3rd Gen. Tacomas (2016-2023)' started by Papadave418, Oct 1, 2018.

  1. Aug 11, 2019 at 6:29 AM
    #161
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,935
    If I didn’t put the window poles for that side on I could, but I usually just pulled the bikes off since it takes just a minute or so

    Hextall[QUOTED] likes this.
  2. Oct 15, 2019 at 2:21 PM
    #162
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,935
    Anybody build a freestanding hoist to remove their RTT/rack?

  3. Nov 13, 2019 at 11:53 PM
    #163
    Fletcher37

    Fletcher37 Well-Known Member

    Joined:
    Aug 28, 2019
    Member:
    #303607
    Messages:
    386
    PNW
    @Papadave418 Great thread. Lots of great build ideas and inspirations.
    I'm curious if you are running any bed stiffeners? I'm wondering if a bed stiffener and installing a long bed rack on my DCSB Tacoma will interfere with each other as they may share the same mounting area at the rear.

  4. Nov 14, 2019 at 4:50 AM
    #164
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,935
    Personally I have not found a need for bed stiffeners. The rack locked into place creates a boxed in frame that should be stronger than a L bracket could ever be. As my rack goes on and off I’ve never noticed any issues with my bed sides bowing out.

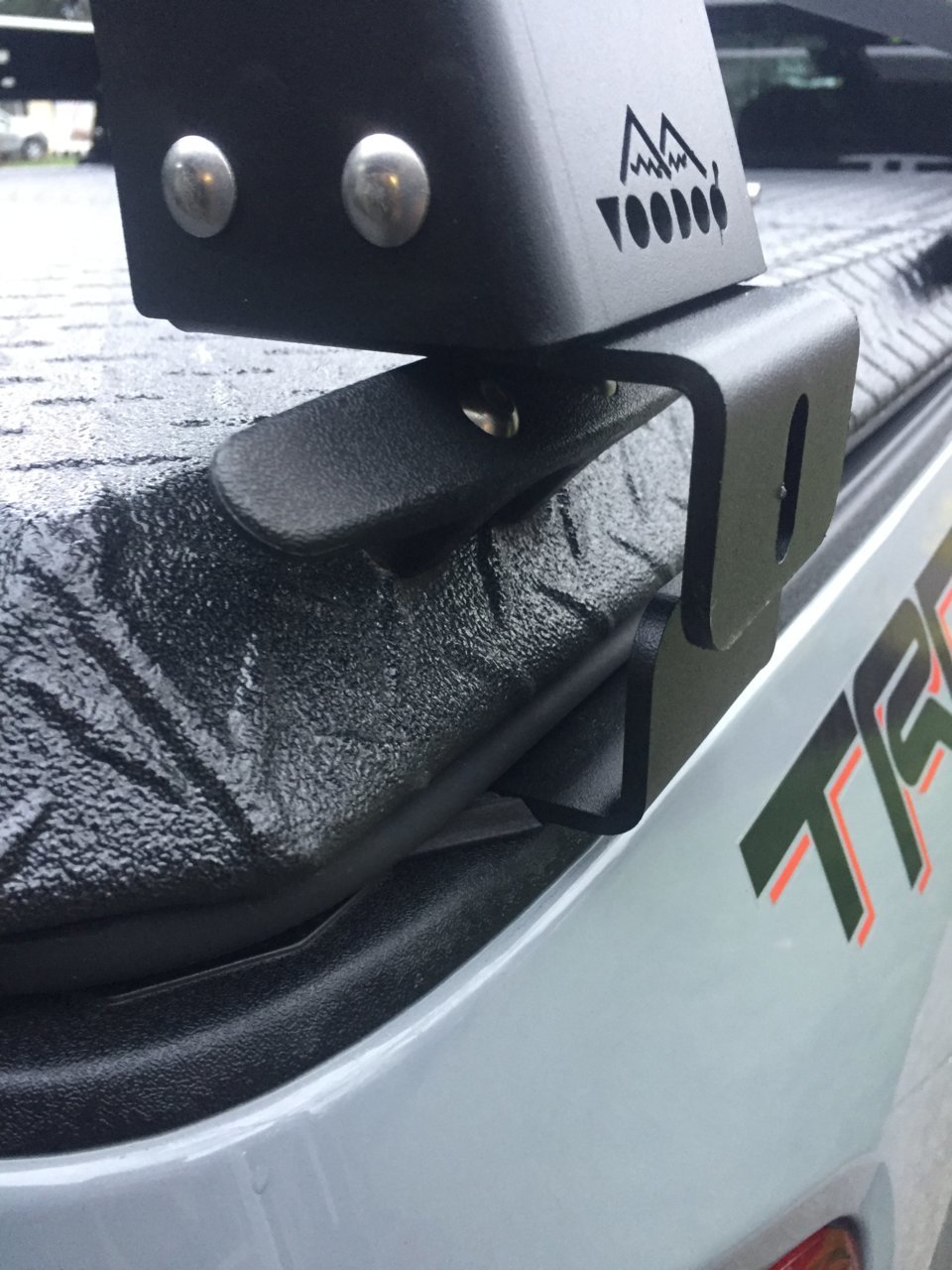

    As to your question of interference, with the @KB Voodoo tonneau bracket I had to add about 1/4” of washers behind it as I screwed it into the rear off the bed so that the bracket would remain vertical when tightened down. I have not looked at stiffeners but perhaps given its thickness (and if they share the same mounting bolt) they might play nice together

  5. Nov 14, 2019 at 10:11 PM
    #165
    Fletcher37

    Fletcher37 Well-Known Member

    Joined:
    Aug 28, 2019
    Member:
    #303607
    Messages:
    386
    PNW
    Yup, looking at photos of the stiffeners and where you are attaching the tonneau brackets, I think they might play well. I appreciate your reply!

  6. Nov 20, 2019 at 12:15 PM
    #166
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,935
    No problem!

  7. Dec 24, 2019 at 3:57 PM
    #167
    Fletcher37

    Fletcher37 Well-Known Member

    Joined:
    Aug 28, 2019
    Member:
    #303607
    Messages:
    386
    PNW
    Well... fuu....uudge.
    Putting a long bed Max Modular rack on a DCSB with a Diamondback HD bed cover. The tiedown handles are in the way.


    jookdoree likes this.
  8. Dec 24, 2019 at 4:00 PM
    #168
    T4RFTMFW

    T4RFTMFW Well-Known Member

    Joined:
    Jul 23, 2014
    Member:
    #134525
    Messages:
    69,793
    Those are $2 plastic tie downs. Remove them and plug the holes, or you may be able to get a lower profile version online somewhere.

    Fletcher37 and Papadave418[OP] like this.
  9. Dec 24, 2019 at 5:10 PM
    #169
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,935

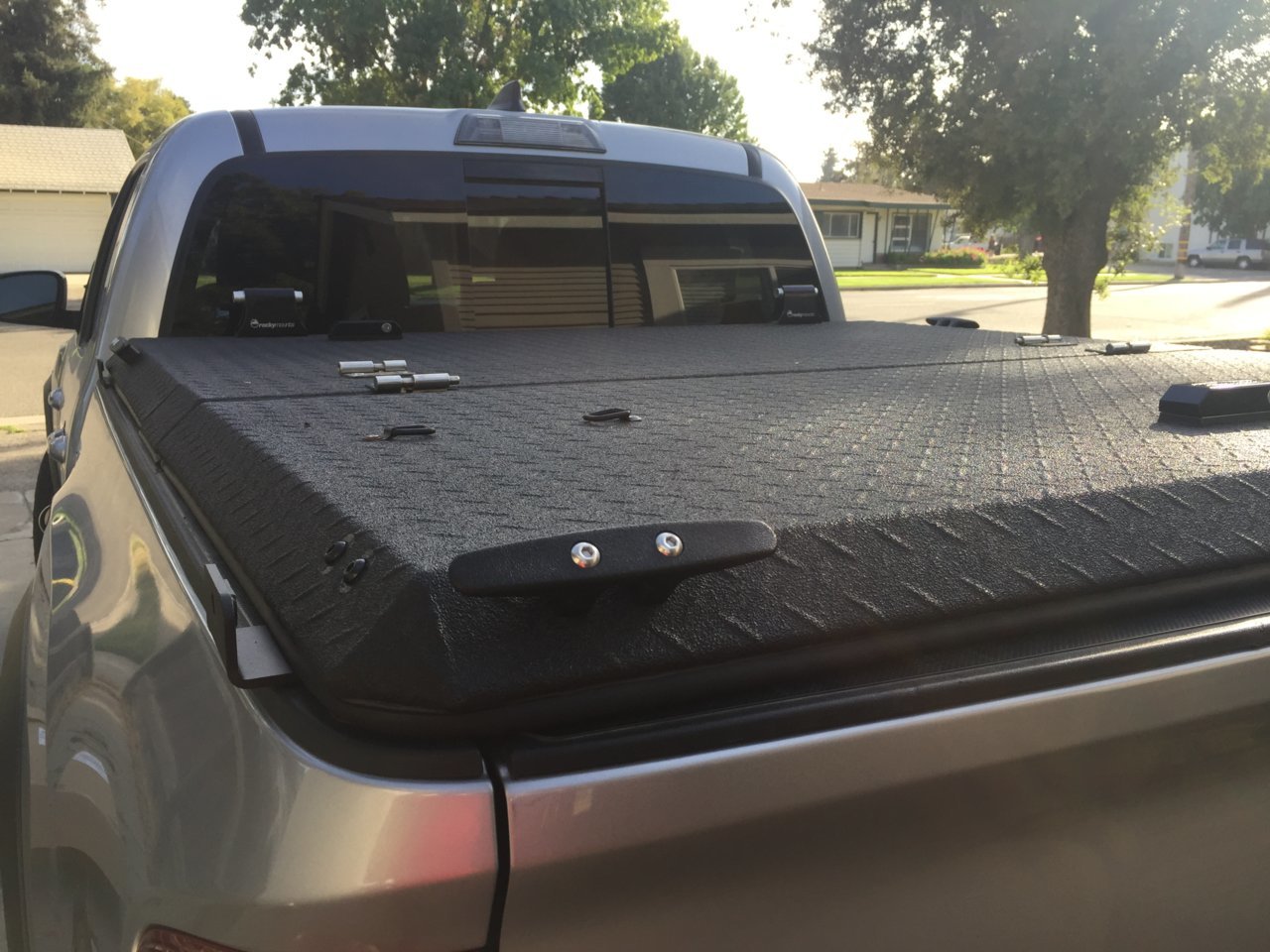

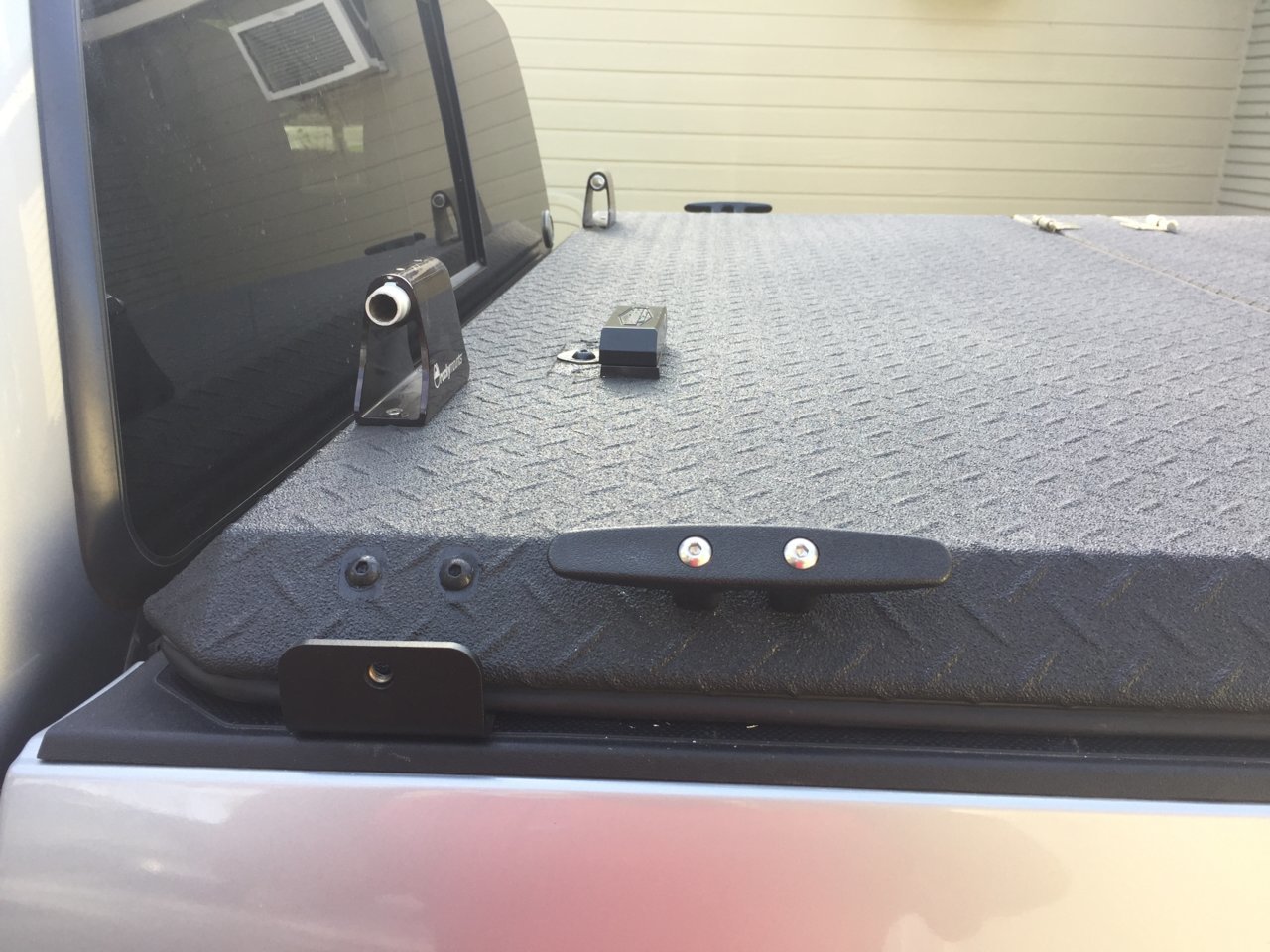

    I moved mine, I figured the rack was more essential than the location of my cleats. I found my old photos D0BB4529-9D64-4706-AE49-72A6DCF7EBA8.jpg9BEC2E68-5F25-4A91-BEC2-9DA76920B7D2.jpg

    KB Voodoo likes this.
  10. Dec 24, 2019 at 7:43 PM
    #170
    Fletcher37

    Fletcher37 Well-Known Member

    Joined:
    Aug 28, 2019
    Member:
    #303607
    Messages:
    386
    PNW
    Yup, I just removed them and replaced the bolts/washers and added a little silicon to keep things sealed. Otherwise, the installation was pretty drama-free.

    I have Total Chaos bed stiffeners and attached the rear tonneau brackets to the top bolt against the stiffener. Works okay there with no spacers. I replaced the stock M6 25mm bolt with a longer M6 35mm. Wish I could use a bigger bolt but I can't move the bracket any more forward because the bed stiffener top mount would be in the way.

    Papadave418[OP] likes this.
  11. Dec 24, 2019 at 10:07 PM
    #171
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,935
    I didn’t reuse the M6 bolt as it’s pretty small, I drilled out the M6 and put a larger bolt and nut in to make it stronger. I had put in an M6 but that was longer as well and it snapped

    Last edited: Dec 24, 2019
  12. Jan 12, 2020 at 2:07 PM
    #172
    KB Voodoo

    KB Voodoo Well-Known Member

    Joined:
    Dec 20, 2012
    Member:
    #93425
    Messages:
    9,652
    Gender:
    Male
    First Name:
    Chad
    Glenwood, NY
    www.kbvoodoo.com
  13. Jan 12, 2020 at 2:51 PM
    #173
    Jdizzy92

    Jdizzy92 Beer.taco

    Joined:
    Dec 31, 2016
    Member:
    #206148
    Messages:
    66
    Gender:
    Male
    Bay Area, CA
    Vehicle:
    2017 Toyota Tacoma TRD Off-Road
    -BFgoodrich KO2 285/75/16 - SCS Ray10 16" - Fox 2.5 2.5" lift and Icon add a leaf springs - Camburg UCA - TRD Pro Skid plate - CBI Rear skid plate - BAMF rear diff skid plate - Heavy Metal Off Road rock sliders - KBVoodoo Cross high rise bars - Undercover flex tonneau cover - Smittybuilt RTT - Pop N Lock - Anytime Front camera - TRD Pro Grill
    Yep, I have one for my sideyard and I built electric hoist in my garage. Since you live near by. You can come by and I can show you my setup.

  14. Jan 12, 2020 at 7:03 PM
    #174
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,935
    Glad that @KB Voodoo replied to your question about his rack systems because his is great. My rack goes on and off easily and quickly with a hoist, and my hard tonneau cover thing comes off in 5 minutes with a 9/16” socket so I can haul taller objects. Secure tonneaus like diamondbacks allow me to carry and store things of value in my bed, or haul on top of the cover with gear below. That’s how I use my truck as a truck.

  15. Jan 12, 2020 at 7:05 PM
    #175
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,935

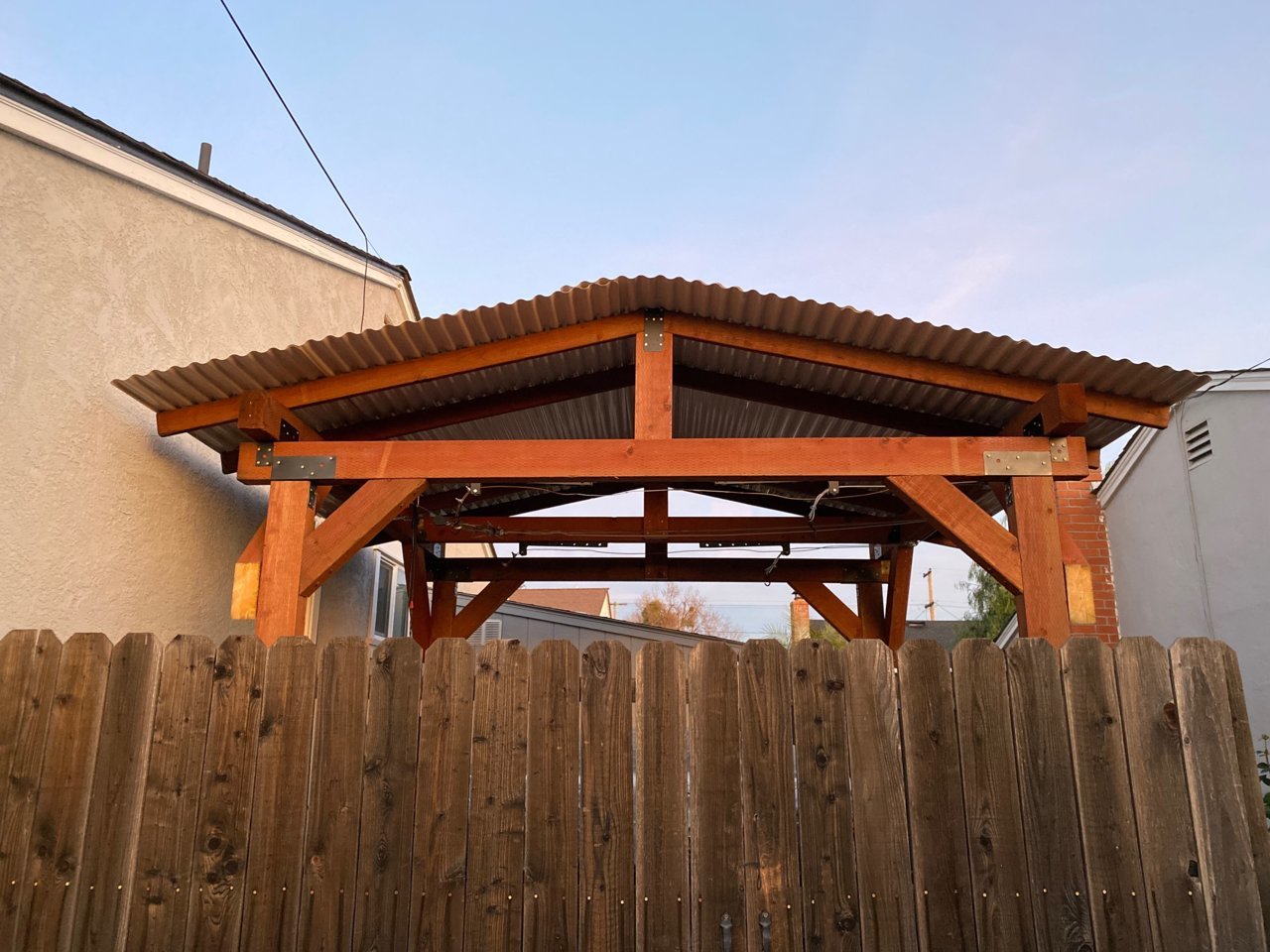

    Thanks I ended up building a pergola style hoist for my rack and kitchen drawer. So much nicer to quickly change up my truck


    xsf18cdf likes this.
  16. Jan 12, 2020 at 8:55 PM
    #176
    Jdizzy92

    Jdizzy92 Beer.taco

    Joined:
    Dec 31, 2016
    Member:
    #206148
    Messages:
    66
    Gender:
    Male
    Bay Area, CA
    Vehicle:
    2017 Toyota Tacoma TRD Off-Road
    -BFgoodrich KO2 285/75/16 - SCS Ray10 16" - Fox 2.5 2.5" lift and Icon add a leaf springs - Camburg UCA - TRD Pro Skid plate - CBI Rear skid plate - BAMF rear diff skid plate - Heavy Metal Off Road rock sliders - KBVoodoo Cross high rise bars - Undercover flex tonneau cover - Smittybuilt RTT - Pop N Lock - Anytime Front camera - TRD Pro Grill
    Nice setup. Like you have a roof to protect from the rain when you have to off load your truck. Off loading from a trip is already not fun but doing in the rain makes it worse. I went with a 1 ton gantry on wheels in my side yard and I reinforce my runners in my garage to hang an electric 440 lbs. hoist to store my RTT.

    https://www.instagram.com/p/B7PzSaKg1X6/?utm_source=ig_web_copy_link

    Papadave418[OP] likes this.
  17. Jan 12, 2020 at 9:46 PM
    #177
    Papadave418

    Papadave418 [OP] Well-Known Member

    Joined:
    Jul 17, 2017
    Member:
    #224251
    Messages:
    1,935
    That’s nice it can hang the whole time, great work

  18. Jan 13, 2020 at 5:08 AM
    #178
    QuadCop

    QuadCop Member

    Joined:
    Jan 8, 2020
    Member:
    #315493
    Messages:
    21
    Gender:
    Male
    @Papadave418 Apologies if I missed it, but would you share your overall clearance height with the iKamper mounted?

    Thank you sir, I love your set-up and your information will really help guide my build.

    Papadave418[OP] likes this.
  19. Jan 13, 2020 at 7:39 AM
    #179
    KB Voodoo

    KB Voodoo Well-Known Member

    Joined:
    Dec 20, 2012
    Member:
    #93425
    Messages:
    9,652
    Gender:
    Male
    First Name:
    Chad
    Glenwood, NY
    www.kbvoodoo.com
    I'm not sure what you're confused about. All of our bed racks are here: https://www.max-modular.com/shop-max-modular

    Our TACO Max racks are made specifically for the Tacoma. We make them in steel and aluminum. We offer 10", 14", 18", and 22" tall racks. We offer those in 46" and 58" lengths.

    If you have any specific questions, let me know.

    Accessories are towards the bottom of the page.

  20. Jan 13, 2020 at 8:18 AM
    #180
    KB Voodoo

    KB Voodoo Well-Known Member

    Joined:
    Dec 20, 2012
    Member:
    #93425
    Messages:
    9,652
    Gender:
    Male
    First Name:
    Chad
    Glenwood, NY
    www.kbvoodoo.com
    The supports cannot be removed. If you need to load tall cargo, simply remove the rack, it comes out by removing four bolts.

    Rack weights are shown on our website. Load ratings are also shown on our website.
